TOYOTA C-HR 2019 Accessories, Audio & Navigation (in English)

201
1. BASIC OPERATION
NAVIGATION SYSTEM
8
C-HR_Navi_USA_OM10581U_17CY
1Place the cursor over an icon.
2Select “Info”.
The information screen will be displayed.
“Save”: Select to register as a memory
point.To change the icon, name, etc.
( P.238)
“Go”/“Enter” : Select to set as a destina-
tion.
: Select to call the registered
number.
“Delete” : Select to delete destination or
memory point.
“Edit” : Select to display the edit memory
point screen.
DISPLAYING INFORMATION
ABOUT THE ICON WHERE
THE CURSOR IS SET
When the cursor is placed over an icon
on the map screen, the name is dis-
played at the top of the screen. If “In-
fo” is shown to the right of the name,
detailed information can be displayed.
STANDARD MAP ICONS
IconName
Park
Business facility
Airport
Military
University
Hospital
Stadium
Shopping mall
Golf

202
1. BASIC OPERATION
C-HR_Navi_USA_OM10581U_17CY

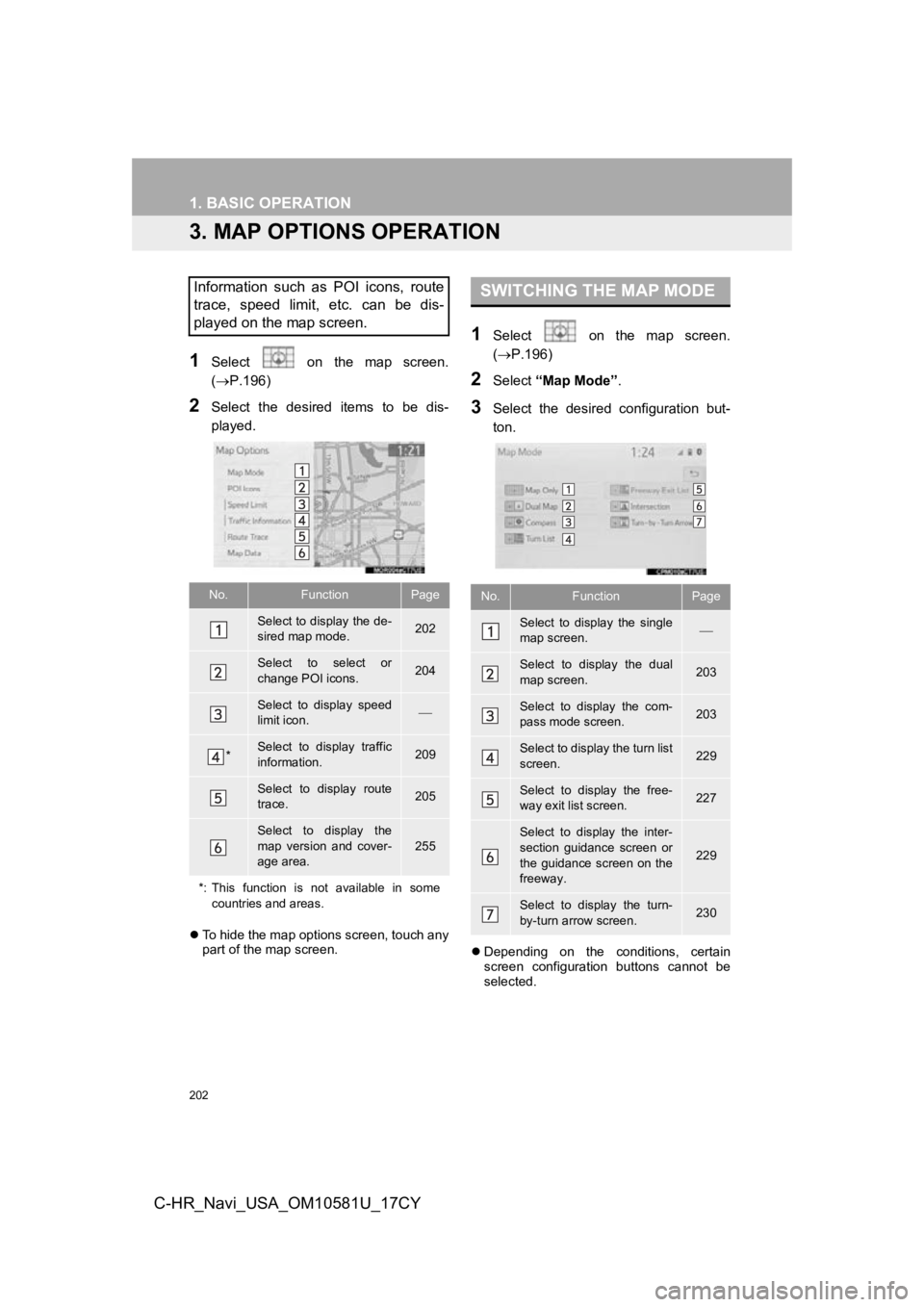

3. MAP OPTIONS OPERATION
1Select on the map screen.
(P.196)
2Select the desired items to be dis-
played.
To hide the map options screen, touch any
part of the map screen.
1Select on the map screen.
( P.196)
2Select “Map Mode” .
3Select the desired configuration but-
ton.
Depending on the conditions, certain
screen configuration buttons cannot be
selected.
Information such as POI icons, route
trace, speed limit, etc. can be dis-
played on the map screen.
No.FunctionPage
Select to display the de-
sired map mode.202
Select to select or
change POI icons.204
Select to display speed
limit icon.
*Select to display traffic
information.209
Select to display route
trace.205
Select to display the
map version and cover-
age area.255
*: This function is not available in some countries and areas.
SWITCHING THE MAP MODE
No.FunctionPage
Select to display the single
map screen. 
Select to display the dual
map screen.203
Select to display the com-
pass mode screen.203
Select to display the turn list
screen.229
Select to display the free-
way exit list screen.227
Select to display the inter-
section guidance screen or
the guidance screen on the
freeway.
229
Select to display the turn-
by-turn arrow screen.230

203
1. BASIC OPERATION
NAVIGATION SYSTEM
8
C-HR_Navi_USA_OM10581U_17CY
1Select any point on the right side map.
2Select the desired item.
3Select “OK”.

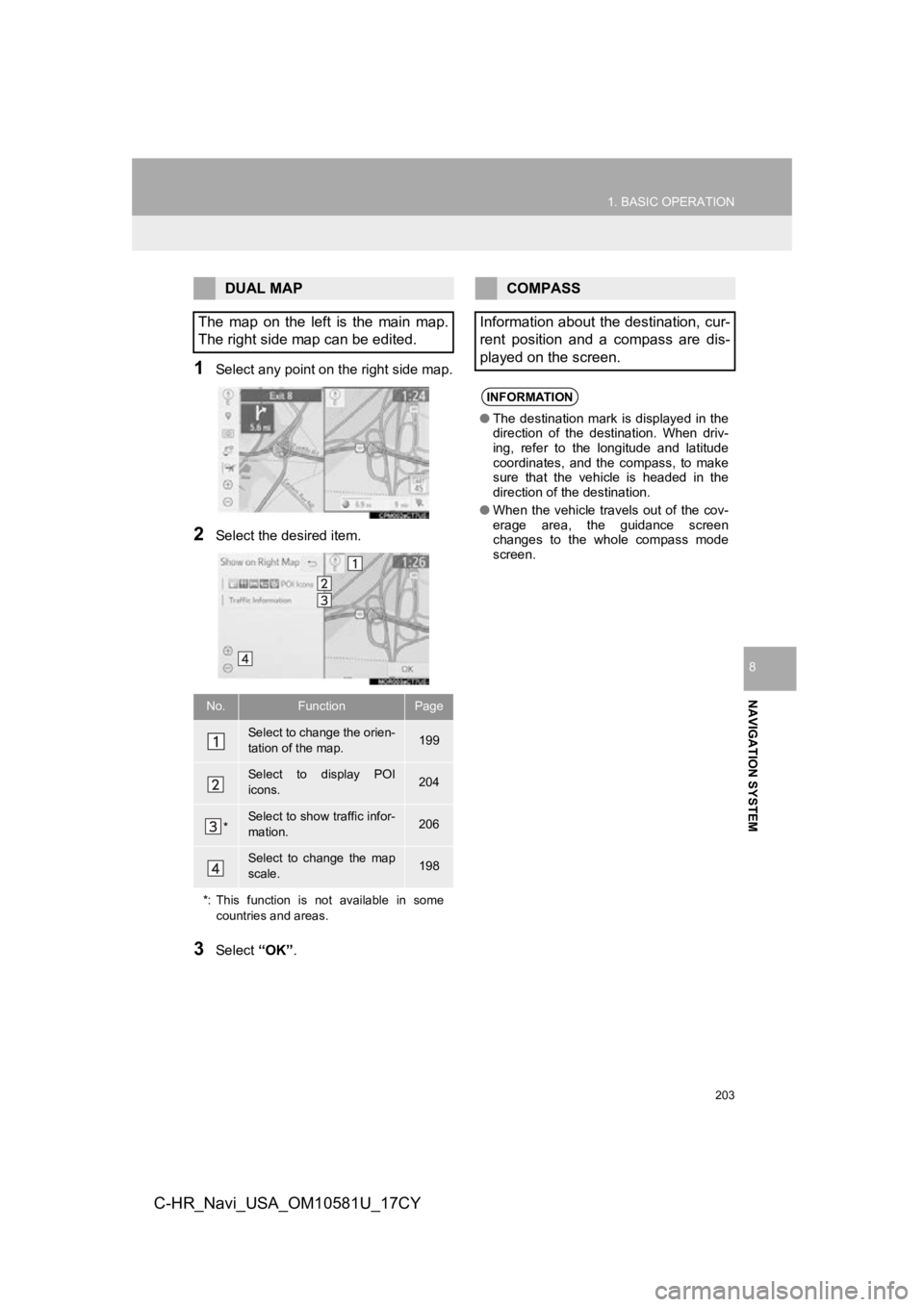

DUAL MAP
The map on the left is the main map.
The right side map can be edited.
No.FunctionPage
Select to change the orien-
tation of the map.199
Select to display POI
icons.204
*Select to show traffic infor-
mation. 206
Select to change the map
scale.198
*: This function is not available in some countries and areas.
COMPASS
Information about the destination, cur-
rent position and a compass are dis-
played on the screen.
INFORMATION
● The destination mark is displayed in the
direction of the destination. When driv-
ing, refer to the longitude and latitude
coordinates, and the compass, to make
sure that the vehicle is headed in the
direction of the destination.
● When the vehicle travels out of the cov-
erage area, the guidance screen
changes to the whole compass mode
screen.

204
1. BASIC OPERATION
C-HR_Navi_USA_OM10581U_17CY
1Select on the map screen.
(P.196)
2Select “POI Icons” .
3Select the desired POI category and
select “OK”.
1Select “Other POIs” .
2Select the desired POI categories and
select “OK”.
“List All Categories” : Select to display all
POI categories.
1Select “Around Me” .
2Select the desired POI.
“Sort/Search Area” : Select to sort (dis-
tance, name, category) POIs or search ar-
ea.
 Select “Near Here” to search for POIs
near the current position.
 Select “Along My Route” to search for
POIs along the route.
3Check that the selected POI is dis-
played on the map screen.

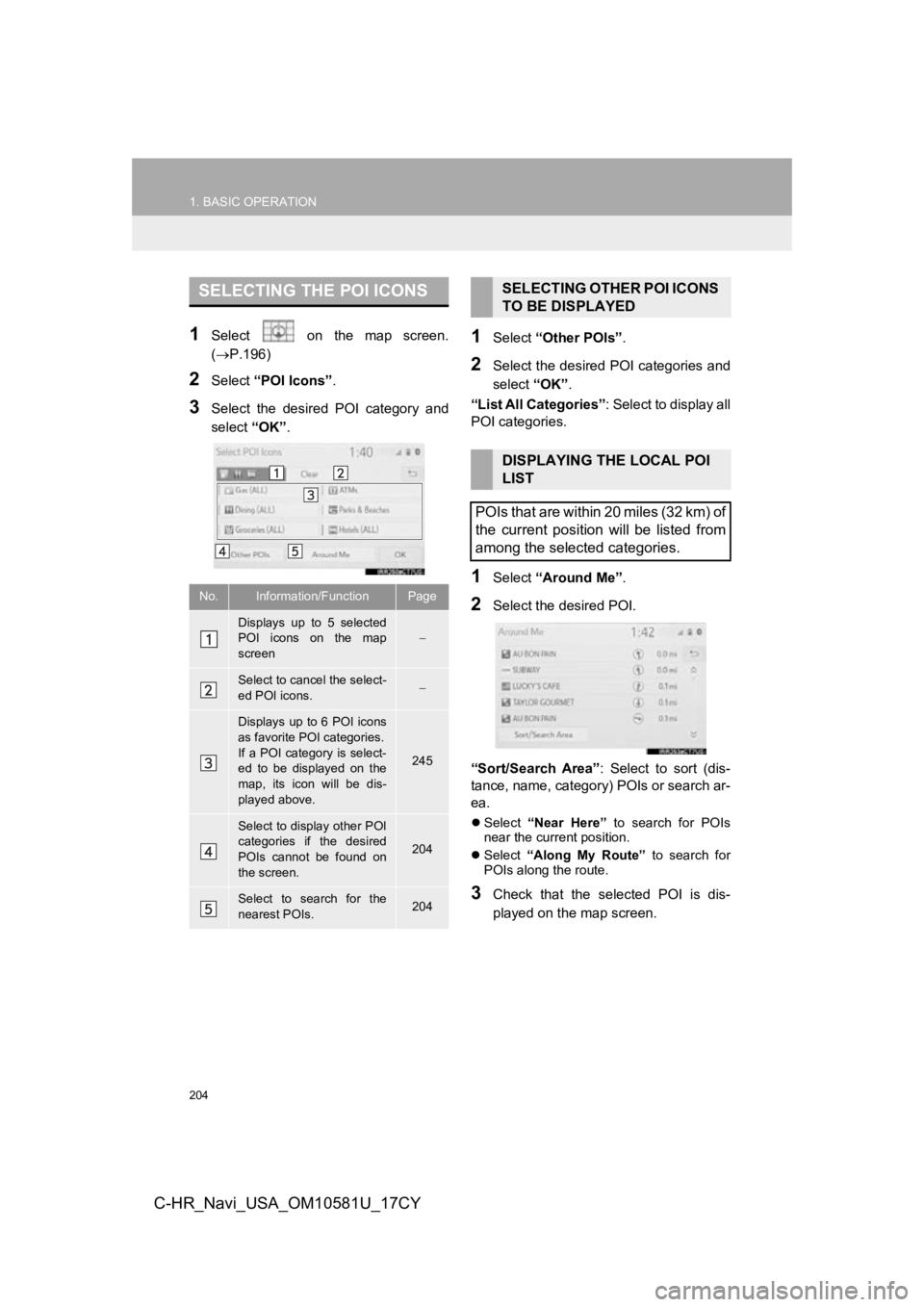

SELECTING THE POI ICONS
No.Information/FunctionPage
Displays up to 5 selected
POI icons on the map
screen

Select to cancel the select-
ed POI icons.
Displays up to 6 POI icons
as favorite POI categories.
If a POI category is select-
ed to be displayed on the
map, its icon will be dis-
played above.
245
Select to display other POI
categories if the desired
POIs cannot be found on
the screen.
204
Select to search for the
nearest POIs.204
SELECTING OTHER POI ICONS
TO BE DISPLAYED
DISPLAYING THE LOCAL POI
LIST
POIs that are within 20 miles (32 km) of
the current position will be listed from
among the selected categories.

205
1. BASIC OPERATION
NAVIGATION SYSTEM
8
C-HR_Navi_USA_OM10581U_17CY
1Select on the map screen.
(P.196)
2Select “Route Trace”.
The route trace starts.
3Check that the traveled line is dis-
played.
1Select on the map screen.
(P.196)
2Select “Route Trace” again.
3A confirmation screen will be dis-
played.
“Yes”: Select to keep the recorded
route trace.
“No” : Select to erase the recorded
route trace.
ROUTE TRACE
The traveled route can be stored and
retraced on the map screen. This fea-
ture is available when the map scale is
30 miles (50 km) or less.
STOP RECORDING THE
ROUTE TRACE
INFORMATION
● The traveled route can be stored up to
124 miles (200 km).

206
1. BASIC OPERATION
C-HR_Navi_USA_OM10581U_17CY

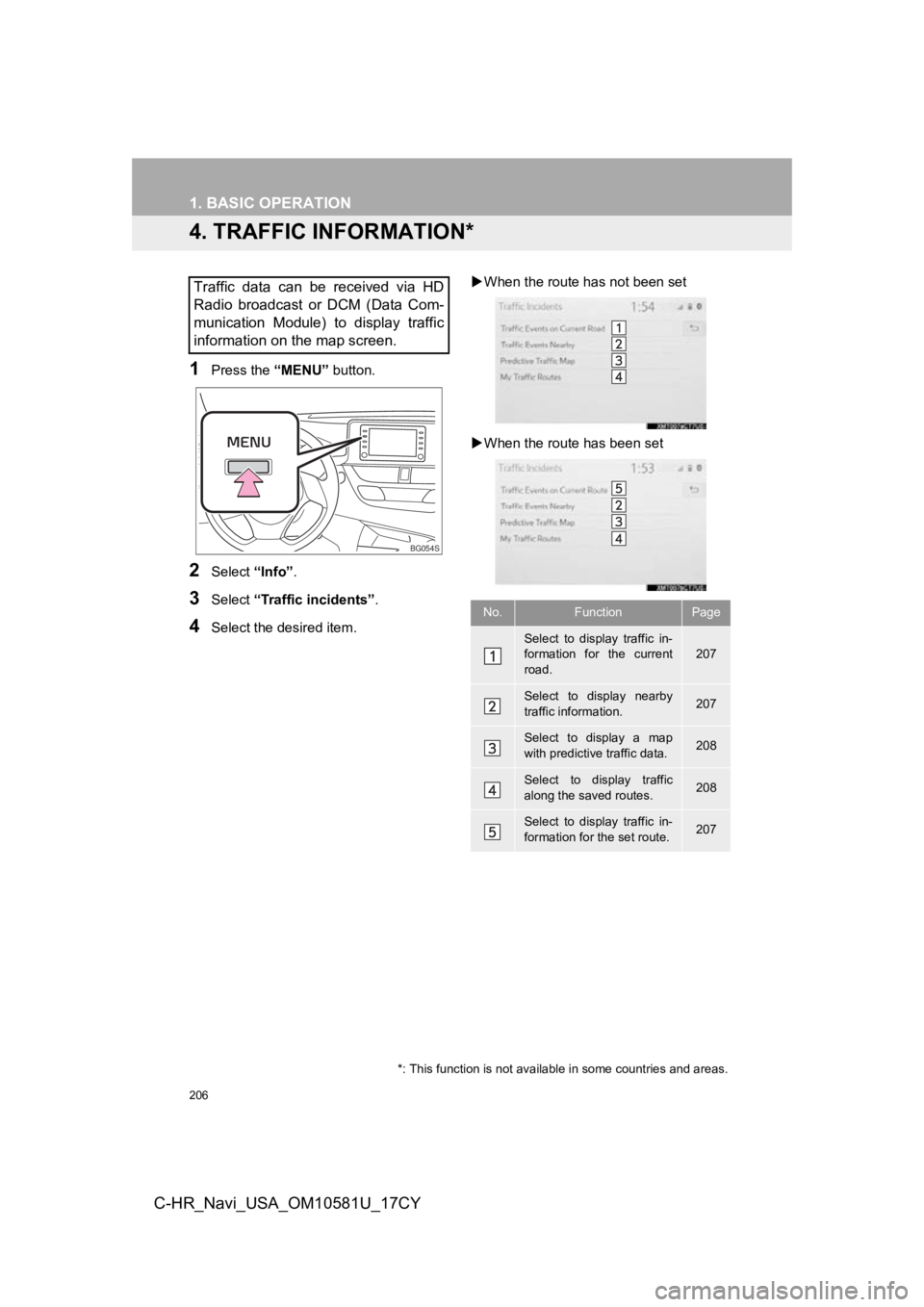

4. TRAFFIC INFORMATION*
1Press the “MENU” button.
2Select “Info”.
3Select “Traffic incidents” .
4Select the desired item. 
When the route ha s not been set
 When the route has been set
Traffic data can be received via HD
Radio broadcast or DCM (Data Com-
munication Module) to display traffic
information on the map screen.
BG054S
1R)XQFWLRQ3DJH
6HOHFW WR GLVSOD\ WUDIILF LQ
IRUPDWLRQ IRU WKH FXUUHQW
URDG
6HOHFW WR GLVSOD\ QHDUE\
WUDIILFLQIRUPDWLRQ
6HOHFW WR GLVSOD\ D PDS
ZLWKSUHGLFWLYHWUDIILF\
GDWD
6HOHFW WR GLVSOD\ WUDIILF
DORQJWKHVDY\
HGURXWHV
6HOHFW WR GLVSOD\ WUDIILF LQ
IRUPDWLRQIRUWKHVHWURXWH

7KLVIXQFWLRQ\
LVQRWDYDLODEOHLQVRPHFR\
XQWULHVDQGDU\
HDV

207
1. BASIC OPERATION
NAVIGATION SYSTEM
8
C-HR_Navi_USA_OM10581U_17CY
1Display the traffic incidents screen.
(P.206)
2Select “Traffic Events on Current
Road” , “Traffic Events on Current
Route” or “Traffic Events Nearby” .
3Select the desired traffic information.
 When “Traffic Events Nearby” is se-
lected, depending on whether the traffic
flow information is enabled/disabled, the
following will be displayed:
When enabled: Traffic event and conges-
tion information
When disabled: Traffic event information
only
4Check that the traffic information is dis-
played.
“Detail” : Select to display detailed traffic
information.
INFORMATION
● If a large amount of information is being
received, it may take longer than normal
for the information to be displayed on
the screen.
● If traffic information cannot be received
because the vehicle is outside of HD
Radio coverage area, it may still be able
to be received using DCM. ( P.144)
DISPLAYING TRAFFIC
INFORMATION
A list of current traffic information can
be displayed along with information on
the location of each incident.

208
1. BASIC OPERATION
C-HR_Navi_USA_OM10581U_17CY
1Display the traffic incidents screen.
(P.206)
2Select “Predictive Traffic Map” .
3Scroll the map to the desired point and
set the time of predictive traffic infor-
mation.
The time of the predictive traffic informa-
tion can be changed in 15-minute intervals
up to +45 minutes.
“<”: Moves the time forward 15 minutes.
“
>”: Moves the time back 15 minutes.
1Display the traffic incidents screen.
( P.206)
2Select “My Traffic Routes” .
If map data has been updated, a confirma-
tion screen will be displayed. Select “OK”
or “Do Not Tell Me Again” .
3Select the desired route.
“Options”: Select to add, edit or delete
personal traffic routes. ( P.249)
If routes have not been registered yet, a
confirmation screen will be displayed.
Select “Yes” to register the route.
4Select the desired traffic information.
5Check that the traffic information is dis-
played.
“Detail” : Select to display detailed traffic
information.
DISPLAYING PREDICTIVE
TRAFFIC INFORMATION
A map with predictive traffic data can
be displayed.MY TRAFFIC ROUTES
Traffic information along the saved
routes can be displayed. To use this
function, it is necessary to register a
route. ( P.249)

209
1. BASIC OPERATION
NAVIGATION SYSTEM
8
C-HR_Navi_USA_OM10581U_17CY
1Select on the map screen.
2Select “Traffic Information”.
3Check that the traffic information is dis-
played.
DISPLAYING TRAFFIC
INFORMATION ON THE MAP
INFORMATION
●The icons indicate traffic incidents such
as construction, accidents, etc. Select
an icon to hear more detail by voice.
● The arrows indicate the flow of traffic.
The color changes depending on the
speed.

210
C-HR_Navi_USA_OM10581U_17CY

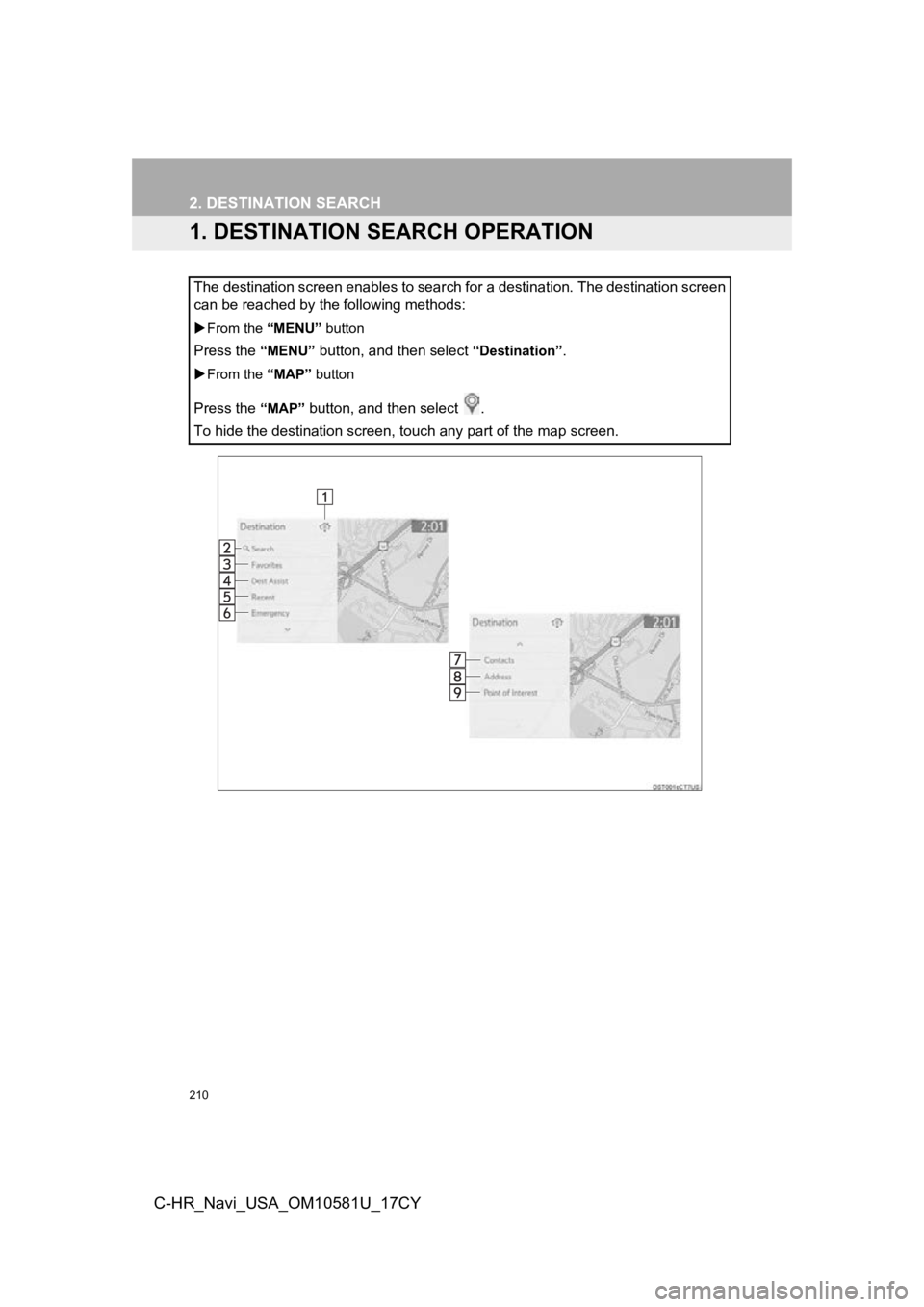

2. DESTINATION SEARCH
1. DESTINATION SEARCH OPERATION
The destination screen enables to search for a destination. The destination screen
can be reached by the following methods:
From the “MENU” button
Press the “MENU” button, and then select “Destination”.
From the “MAP” button
Press the “MAP” button, and then select .
To hide the destination screen, touch any part of the map scree n.
