912. Instrument cluster
2
Instrument cluster
C-HR_OM_USA_OM10569U

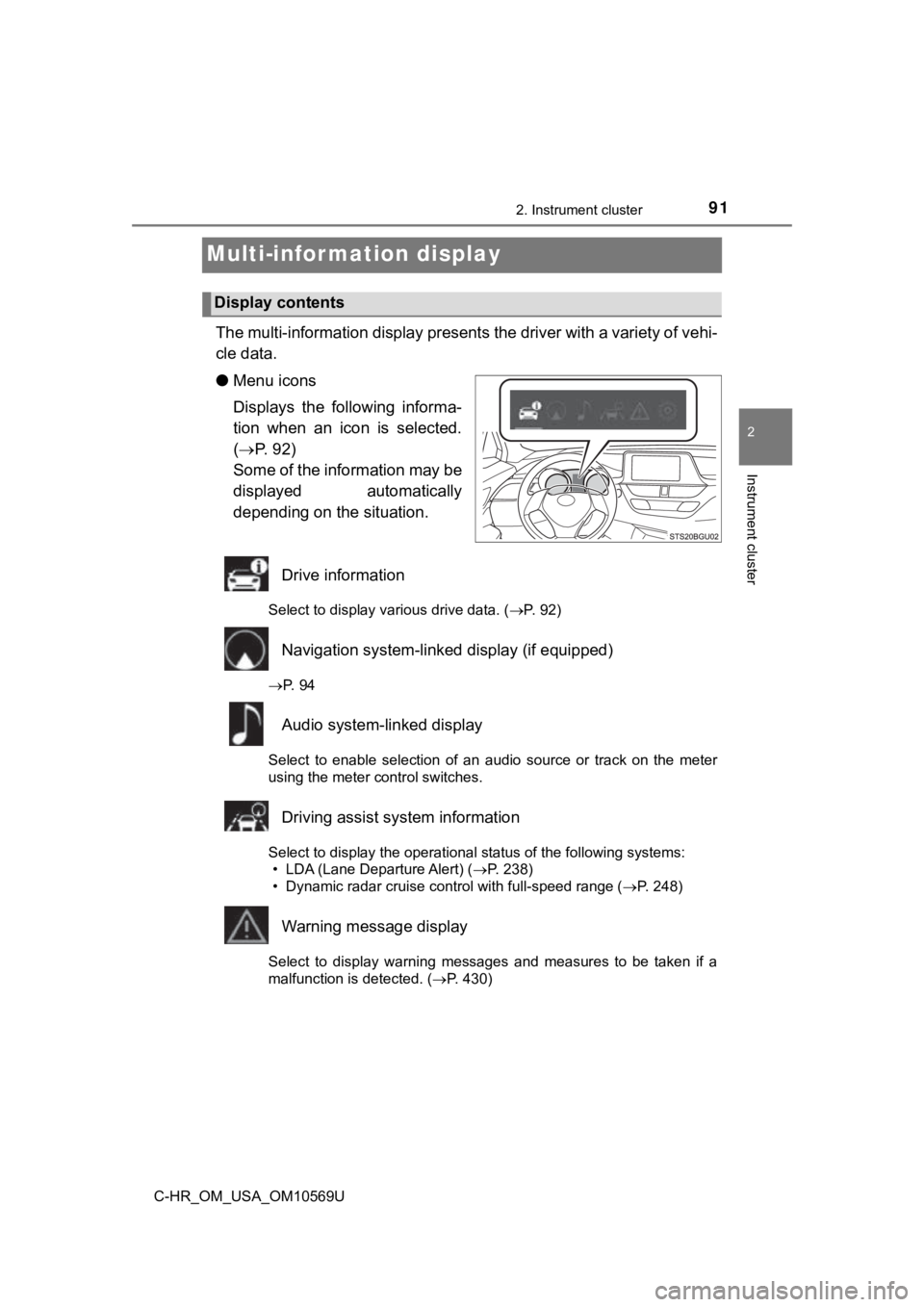

Multi-infor mation display
The multi-information display presents the driver with a variety of vehi-
cle data.
● Menu icons
Displays the following informa-
tion when an icon is selected.
( P. 92)
Some of the information may be
displayed automatically
depending on the situation.
Drive information
Select to display various drive data. ( P. 92)
Navigation system-linked display (if equipped)
P. 9 4
Audio system-linked display
Select to enable selection of an audio source or track on the m eter
using the meter control switches.
Driving assist sys tem information
Select to display the operational status of the following syste ms:
• LDA (Lane Departure Alert) ( P. 238)
• Dynamic radar cruise control with full-speed range ( P. 248)
Warning message display
Select to display warning messages and measures to be taken if a
malfunction is detected. ( P. 430)
Display contents

922. Instrument cluster
C-HR_OM_USA_OM10569U
Settings display
Select to change the meter display settings and the operation set-
tings of some vehicle functions. (P. 94)

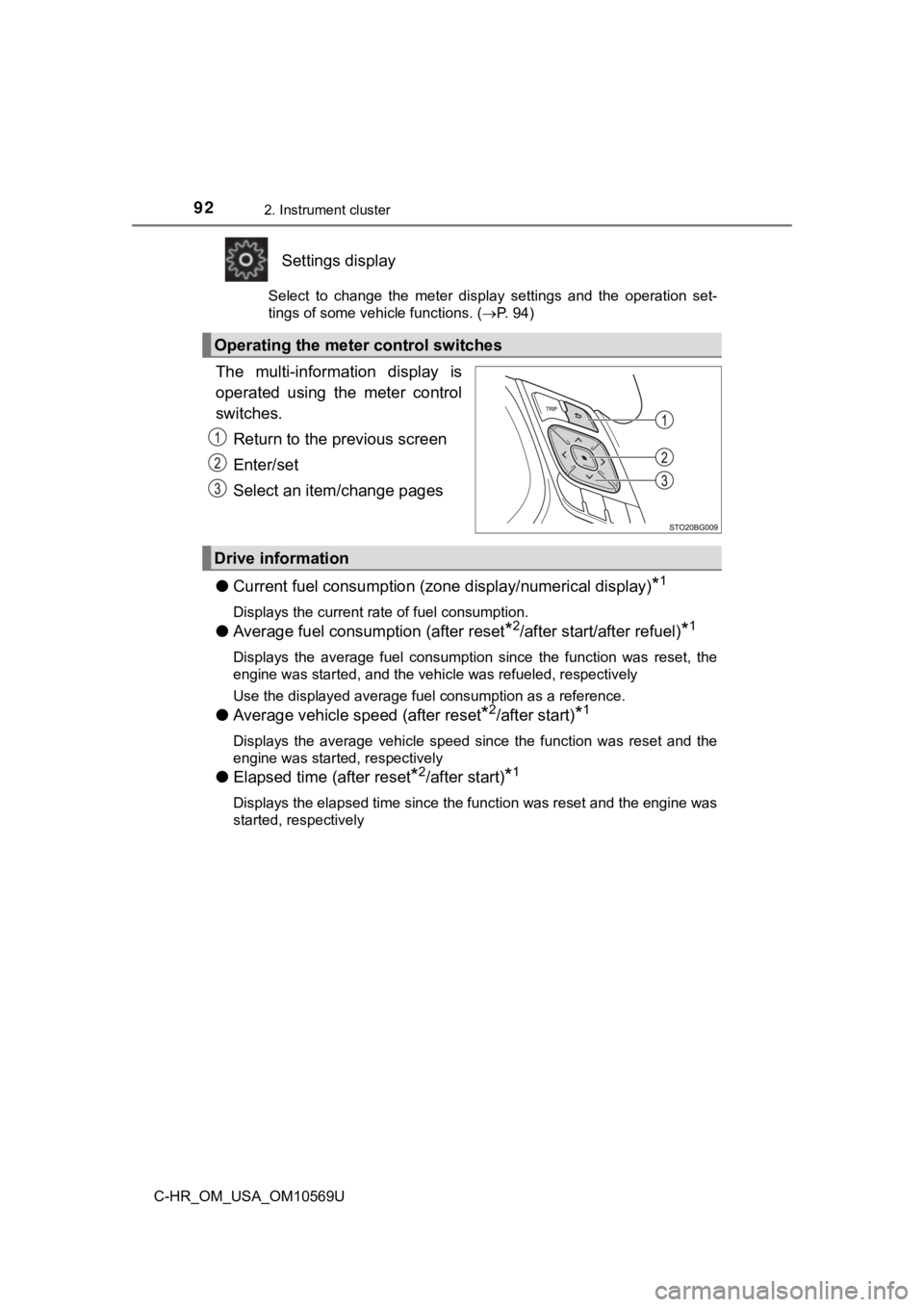

The multi-information display is
operated using the meter control
switches.
Return to the previous screen
Enter/set
Select an item/change pages
● Current fuel consumption (zone display/numerical display)
*1
Displays the current rate of fuel consumption.
●Average fuel consumption (after reset*2/after start/after refuel)*1
Displays the average fuel consumption since the function was reset, the
engine was started, and the vehicle was refueled, respectively
Use the displayed average fuel consumption as a reference.
●Average vehicle speed (after reset*2/after start)*1
Displays the average vehicle speed since the function was reset and the
engine was started, respectively
● Elapsed time (after reset*2/after start)*1
Displays the elapsed time since the function was reset and the engine was
started, respectively
Operating the meter control switches
Drive information

932. Instrument cluster
2
Instrument cluster
C-HR_OM_USA_OM10569U
●Distance (driving range/after start)*1
Displays the estimated maximum distance that can be driven with the
quantity of fuel remaining and the distance driven after the engine was
started, respectively
• This distance is computed based on your average fuel consumpti on. As
a result, the actual distance that can be driven may differ fro m that dis-
played.
• When only a small amount of fuel is added to the tank, the dis play may
not be updated.
When refueling, turn the engine switch off. If the vehicle is r efueled with-
out turning the engine switch off, the display may not be updat ed.
●Eco Driving Indicator Zone Display
P. 9 6
●Speedometer
Displays the vehicle speed.
●G Monitor
P. 9 7
●Sway warning
Detects the sway of the vehicle within a lane, which is often a ssociated
with a decrease in the driver’s attention level, and displays the decrease in
attention using a bar display.
The shorter the bar length, the more the driver may need to res t.
This display is a part of the LDA (Lane Departure Alert with steering con-
trol). The display is enabled when the operating conditions of the vehicle
sway warning are met. ( P. 238)
●Display off
A blank screen is displayed.
*1: Can be registered to Drive information 1 and 2. ( P. 94)
*2: Resetting procedures:
• Select a function to be reset using the meter control switches and then
press and hold to reset.
• If there is more than one function that can be reset, check bo xes will be
displayed next to those functions.

942. Instrument cluster
C-HR_OM_USA_OM10569U

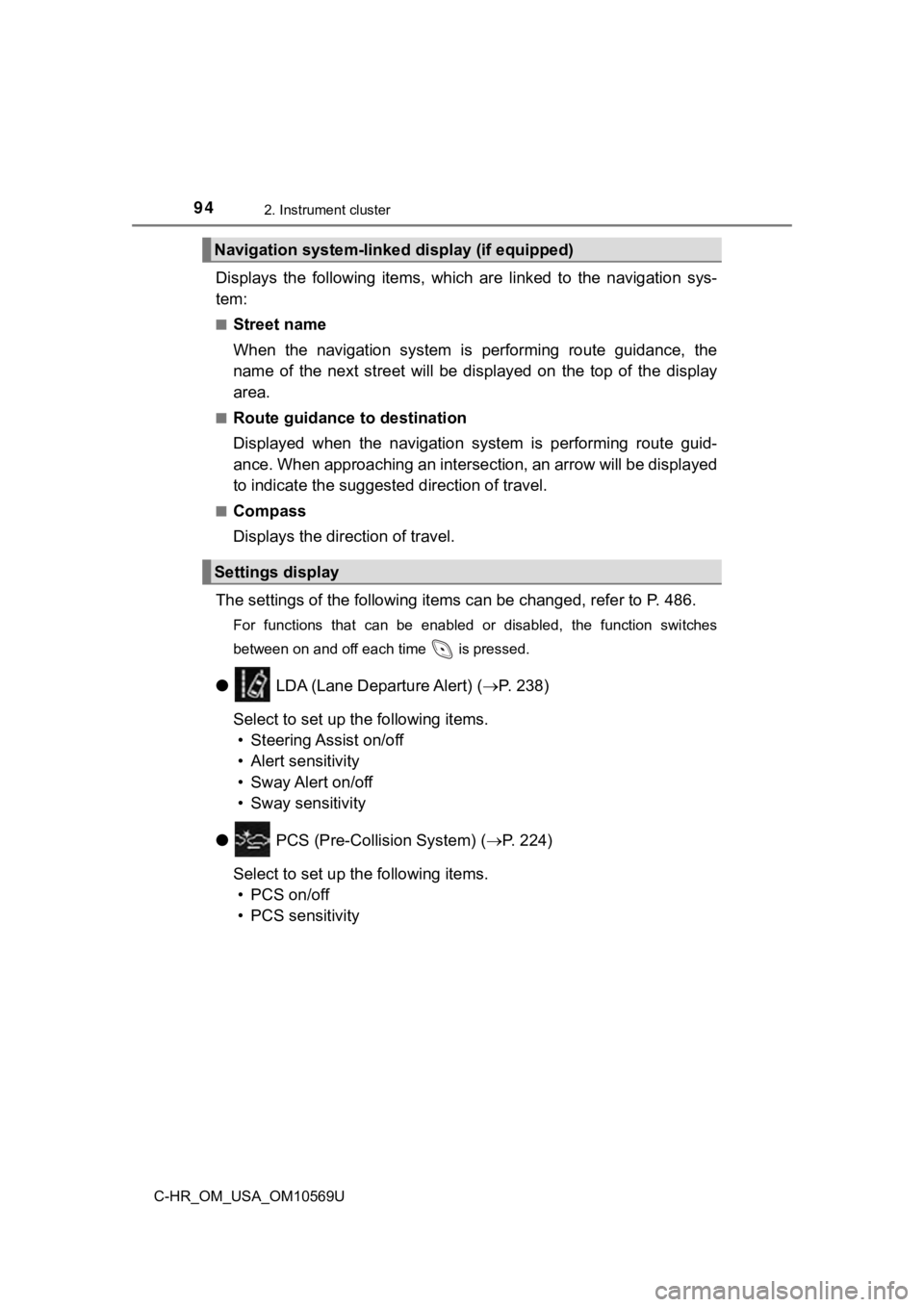

Displays the following items, which are linked to the navigation sys-
tem:
■Street name
When the navigation system is performing route guidance, the
name of the next street will be displayed on the top of the dis play
area.
■Route guidance to destination
Displayed when the navigation s ystem is performing route guid-
ance. When approaching an intersection, an arrow will be displa yed
to indicate the suggeste d direction of travel.
■Compass
Displays the direction of travel.
The settings of the following items can be changed, refer to P. 486.
For functions that can be enabled or disabled, the function swi tches
between on and off each time is pressed.
● LDA (Lane Departure Alert) ( P. 238)
Select to set up the following items. • Steering Assist on/off
• Alert sensitivity
• Sway Alert on/off
• Sway sensitivity
● PCS (Pre-Collis ion System) (P. 224)
Select to set up the following items. • PCS on/off
• PCS sensitivity
Navigation system-linked display (if equipped)
Settings display

952. Instrument cluster
2
Instrument cluster
C-HR_OM_USA_OM10569U
● BSM (Blind Spot Mon itor) (if equipped) (P. 2 6 5 )
Select to set up the following items. • BSM function on/off
• RCTA function on/off
*
*
: The RCTA function can be enabled/disabled only when the BSM fu nc-
tion is enabled.
● Driving mode select ( P. 263)
● Vehicle Settings
(Tire pressure warning system) setup ( P. 367)
Select to initialize the tire pressure warning system.
● Meter settings
Select the menu to set up the following items.
• Language
Select to change the language on the display.
•Units
Select to change the unit of measure for fuel consumption.
• (Eco Driving Indicator Light) setup
Select to activate/deactivate the Eco Driving Indicator Light
• Drive information 1 and 2
Select to select up to 2 items that will be displayed on a Driv e informa-
tion screen, up to 2 Drive information screens can be set.
• Pop-up display
Select to set the pop-up displays*, which may appear in some situa-
tions, on/off.
• Speed limit
Select to setup speed limit indicated based on navigation syste m
(U.S.A. only)
• Default settings
Registered or changed meter settings will be deleted or returne d to their
default setting.
*: Route guidance display of the navigation system-linked system (if
equipped) and incoming call display of the hands-free phone sys tem.

962. Instrument cluster
C-HR_OM_USA_OM10569U
■Setting items
●“Meter Settings” and “Vehicle Settings” setting items are not s electable
during driving and cannot be operated.
Also, the settings screen is temporarily canceled in the follow ing situations.
• A warning message is displayed.
• The vehicle starts off.
● Settings for functions not equipped to the vehicle are not disp layed.
● When a function is turned off, the related settings for that fu nction are not
selectable.
■ Pop-up display
In some situations, such as when a switch operation is performe d, a pop-up
display will be temporarily displayed on the multi-information display.
■ Liquid crystal display
Small spots or light spots may appear on the display. This phen omenon is
characteristic of liquid crystal displays, and there is no prob lem continuing to
use the display.
■ When disconnecting and reco nnecting battery terminals
The drive information will be reset.

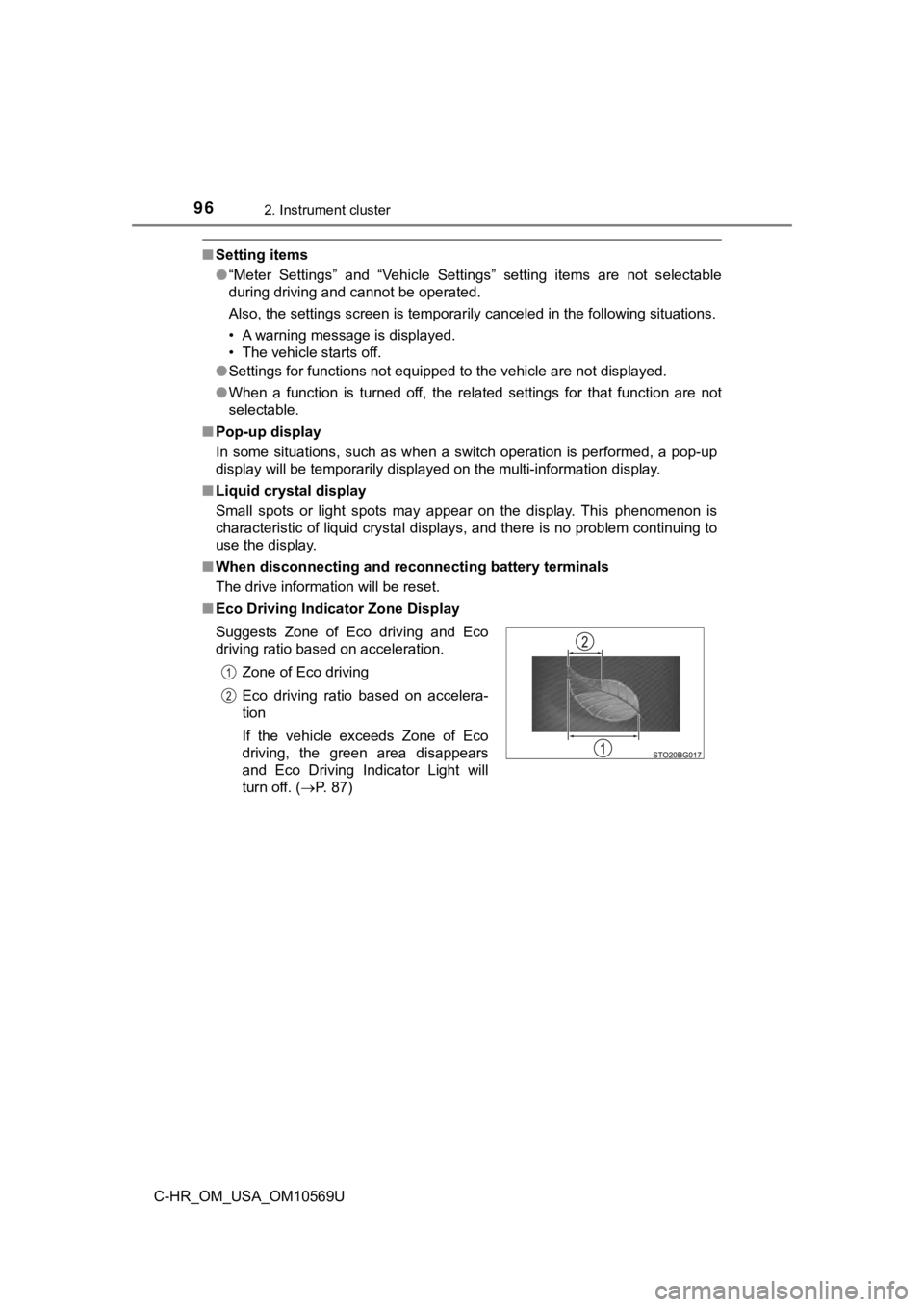

■ Eco Driving Indicator Zone Display
Suggests Zone of Eco driving and Eco
driving ratio based on acceleration.
Zone of Eco driving
Eco driving ratio based on accelera-
tion
If the vehicle exceeds Zone of Eco
driving, the green area disappears
and Eco Driving Indicator Light will
turn off. ( P. 87)

972. Instrument cluster
2
Instrument cluster
C-HR_OM_USA_OM10569U■
G Monitor
■ Ending display
When the engine switch is turned off, each of the following wil l be displayed
on the multi-information display, and will extinguish after approximately
30 seconds.
● Elapsed time
● Distance
● Average fuel consumption
The following item is displayed.
G-force display
Displays the current G-force state.

982. Instrument cluster
C-HR_OM_USA_OM10569U
WARNING
■Caution for use while driving
● When operating the multi-information display while driving, pay extra
attention to the safety of the area around the vehicle.
● Do not look continuously at the multi-information display while driving as
you may fail to see pedestrians, objects on the road, etc. ahea d of the
vehicle.
■ The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and t he new gear
number appearing on the display. This lag could cause the drive r to down-
shift again, causing rapid and excessive engine braking and pos sibly an
accident resulting in death or injury.
■ Cautions during setting up the display
As the engine needs to be running during setting up the display , ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxi de (CO)
may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
■ While setting up the display
To prevent battery discharge, ensure that the engine is running while setting
up the display features.

992. Instrument cluster
2
Instrument cluster
C-HR_OM_USA_OM10569U
Fuel consumption information
Fuel consumption information can be displayed on the audio/
visual system screen.

1002. Instrument cluster
C-HR_OM_USA_OM10569U

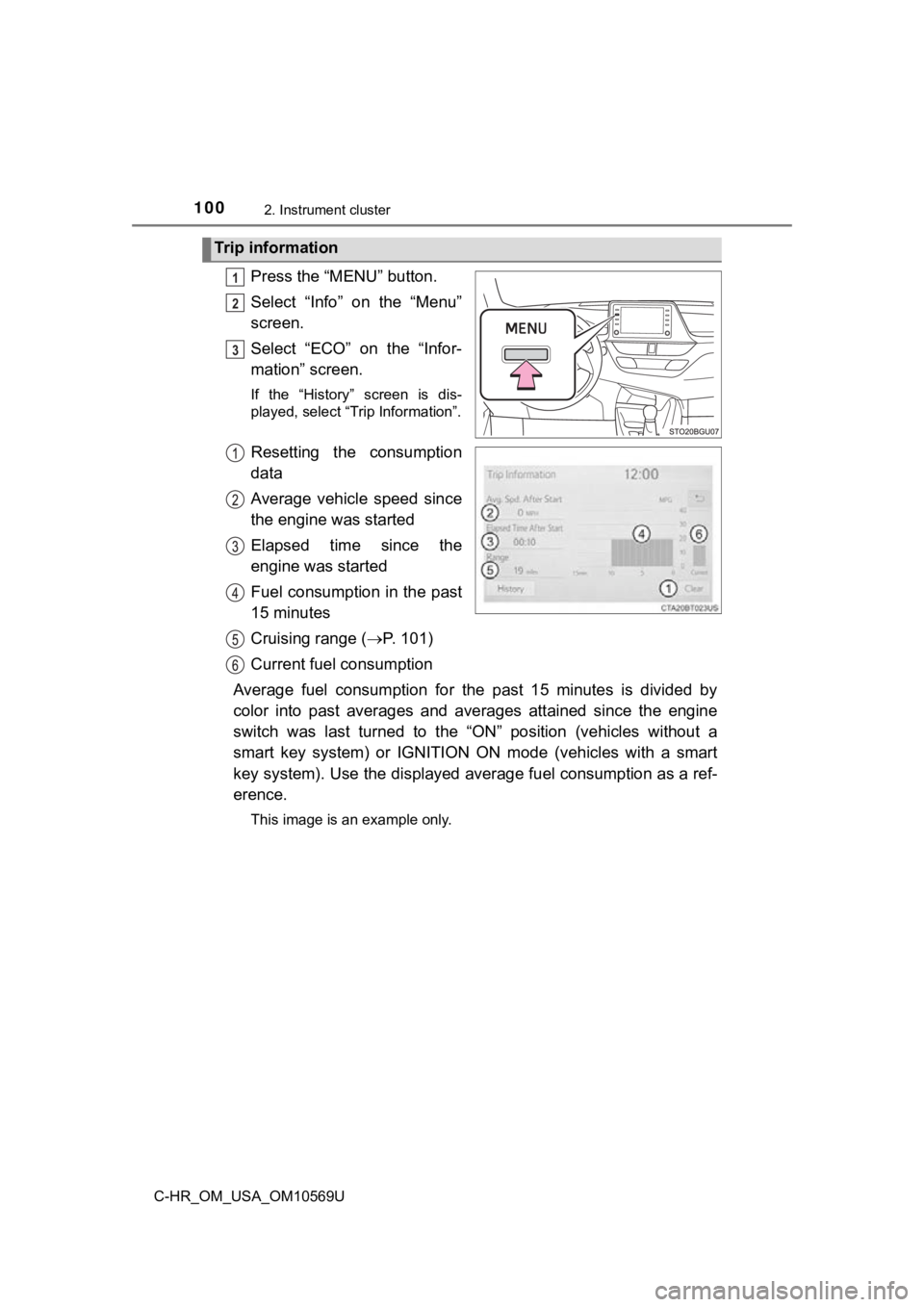

Press the “MENU” button.
Select “Info” on the “Menu”
screen.
Select “ECO” on the “Infor-
mation” screen.
If the “History” screen is dis-
played, select “Trip Information”.
Resetting the consumption
data
Average vehicle speed since
the engine was started
Elapsed time since the
engine was started
Fuel consumption in the past
15 minutes
Cruising range ( P. 101)
Current fuel consumption
Average fuel consumption for the past 15 minutes is divided by
color into past averages and averages attained since the engine
switch was last turned to the “ON” position (vehicles without a
smart key system) or IGNITION ON mode (vehicles with a smart
key system). Use the displayed a verage fuel consumption as a ref-
erence.
This image is an example only.
Trip information
1
2
3
