Instrument cluster
C-HR_OM_USA_OM10569U

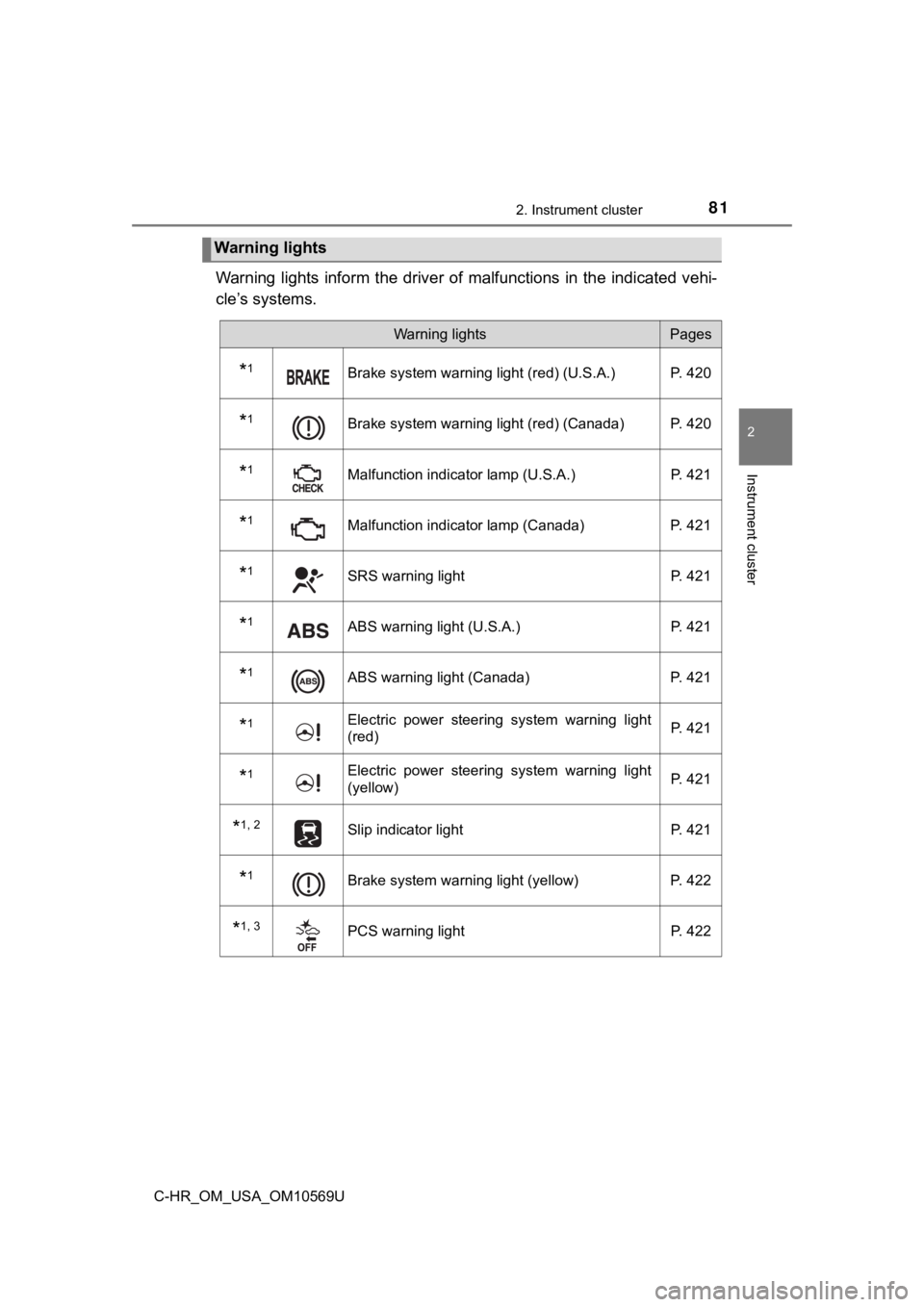

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
Warning lightsPages
*1Brake system warning light (red) (U.S.A.) P. 420
*1Brake system warning light (red) (Canada) P. 420
*1Malfunction indicator lamp (U.S.A.) P. 421
*1Malfunction indicator lamp (Canada)P. 421
*1SRS warning light P. 421
*1ABS warning light (U.S.A.)P. 421
*1ABS warning light (Canada)P. 421
*1Electric power steering system warning light
(red) P. 421
*1Electric power steering system warning light
(yellow)P. 421
*1, 2Slip indicator light
P. 421
*1Brake system warning light (yellow)P. 422
*1, 3PCS warning light P. 422

822. Instrument cluster
C-HR_OM_USA_OM10569U
*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without a smart key system) or IGNITION ON mode (vehi cles
with a smart key system) to indicate that a system check is bei ng per-
formed. They will turn off after the engine is started, or after a few seconds.
There may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by your Toyota dealer.
*2: The light comes on to indicate a malfunction.
*3: The light flashes to indicate a malfunction.

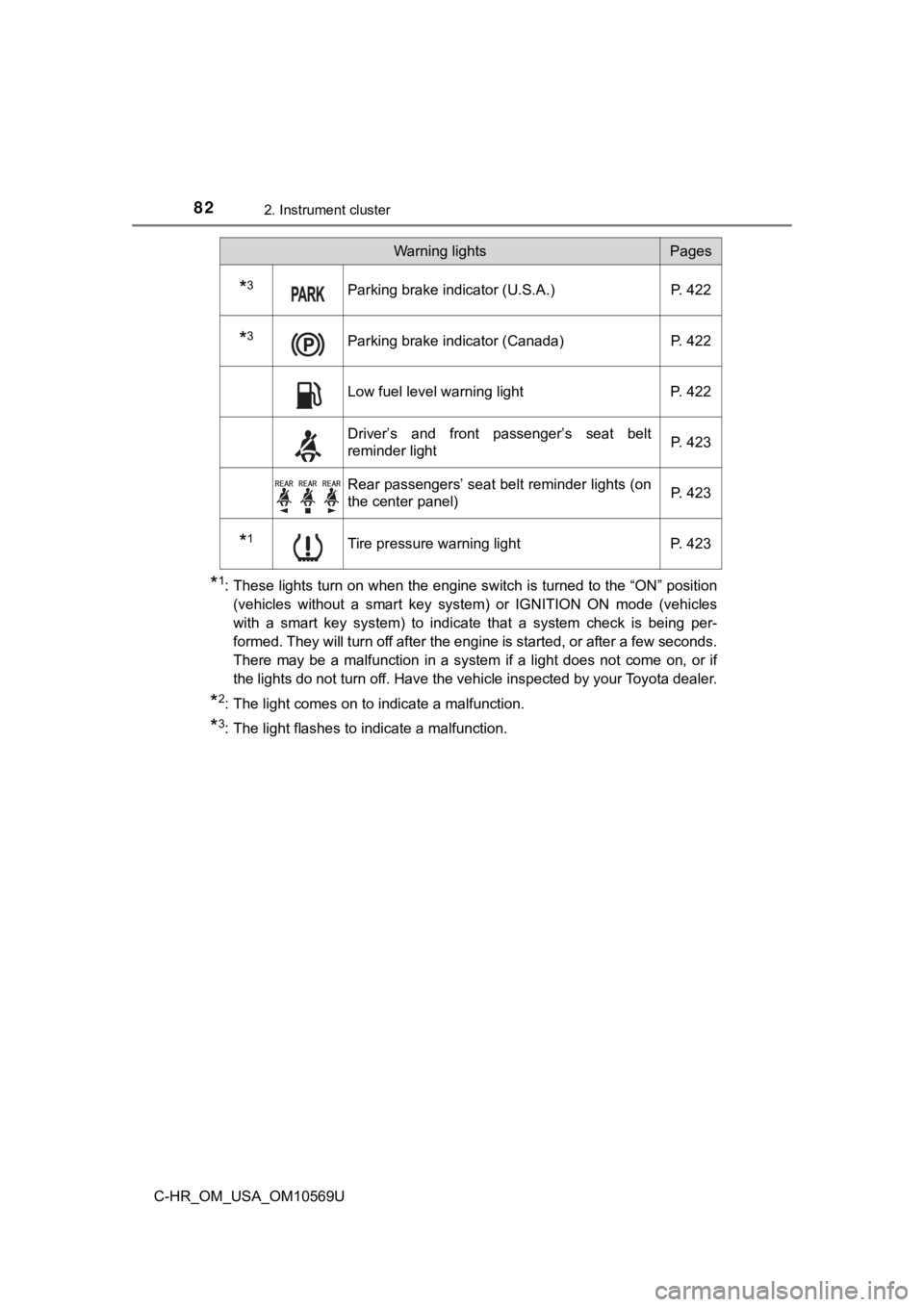

*3Parking brake indicator (U.S.A.)P. 422
*3Parking brake indicator (Canada)P. 422
Low fuel level warning lightP. 422
Driver’s and front passenger’s seat belt
reminder light P. 423
Rear passengers’ seat belt reminder lights (on
the center panel)
P. 423
*1Tire pressure warning light
P. 423
Warning lightsPages

832. Instrument cluster
2
Instrument cluster
C-HR_OM_USA_OM10569U

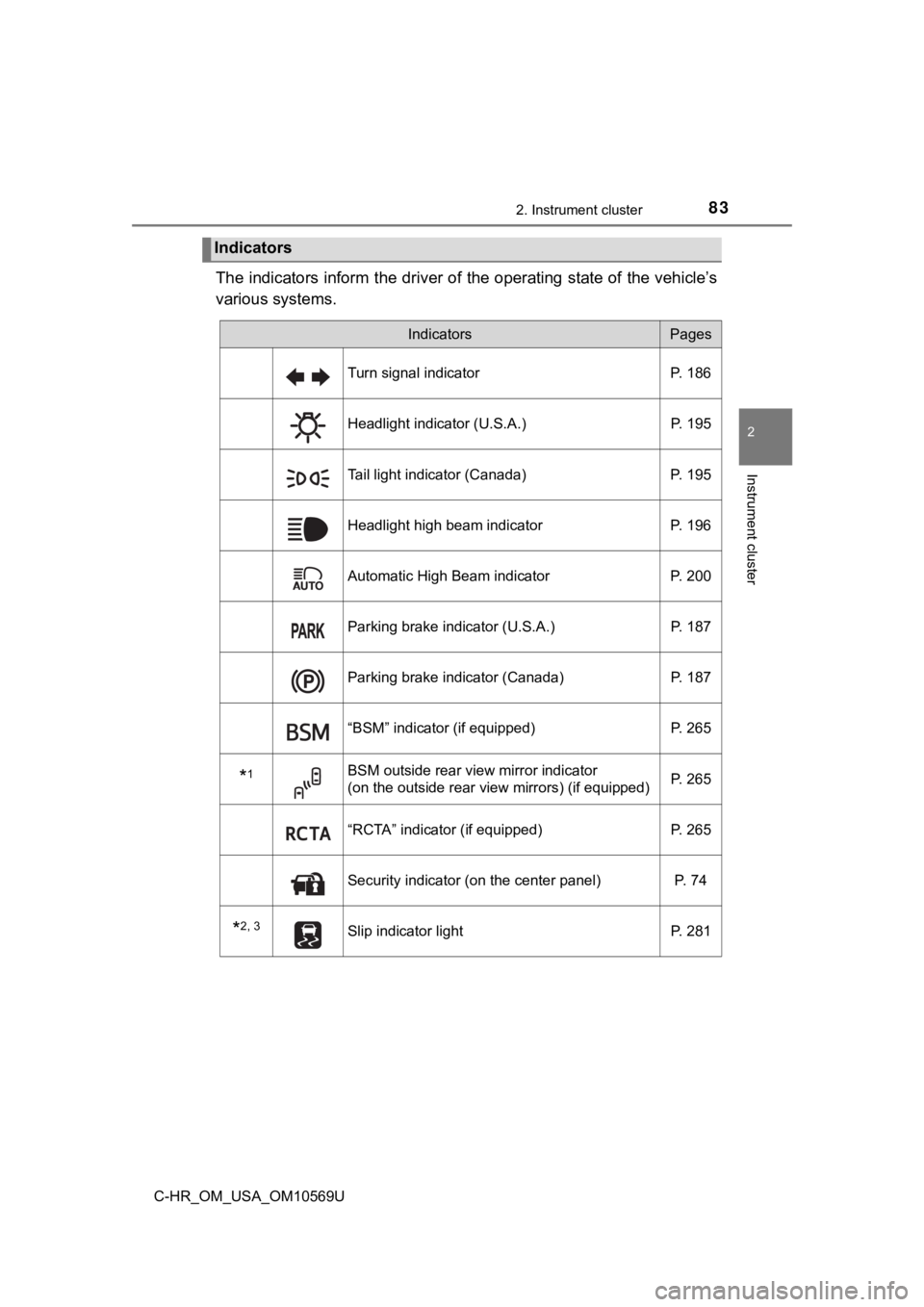

The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
IndicatorsPages
Turn signal indicator P. 186
Headlight indicator (U.S.A.) P. 195
Tail light indicator (Canada)P. 195
Headlight high beam indicatorP. 196
Automatic High Beam indicator P. 200
Parking brake indicator (U.S.A.) P. 187
Parking brake indicator (Canada)P. 187
“BSM” indicator (if equipped)P. 265
*1BSM outside rear view mirror indicator
(on the outside rear view mirrors) (if equipped)P. 265
“RCTA” indicator (if equipped)
P. 265
Security indicator (on the center panel) P. 74
*2, 3Slip indicator lightP. 281

842. Instrument cluster
C-HR_OM_USA_OM10569U
*1: In order to confirm operation, the BSM outside rear view mirror indicators
illuminate in the following situations:
• When the engine switch is turned to the “ON” position (vehicles without a smart key system) or IGNITION ON mode (vehicles with a smart key
system), the BSM function is enabled on the screen of the mult i-
information display.
• When the BSM function is enabled on the screen of the multi-i nfor-
mation display, the engine switch is turned to the “ON” positio n (vehicles
without a smart key system) or IGNITION ON mode (vehicles with a
smart key system).
If the system is functioning correctly, the BSM outside rear vi ew mirror indi-
cators will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not
turn off, there may be a malfunction in the system.
If this occurs, have the vehicle inspected by your Toyota deale r.
*2: These lights turn on when the engine switch is turned to the “ ON” position
(vehicles without a smart key system) or IGNITION ON mode (vehi cles
with a smart key system) to indicate that a system check is bei ng per-
formed. They will turn off after the engine is started, or after a few seconds.
There may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by your Toyota dealer.
*3: The light flashes to indicate that the system is operating.
*4: The light turns on when the system is off.

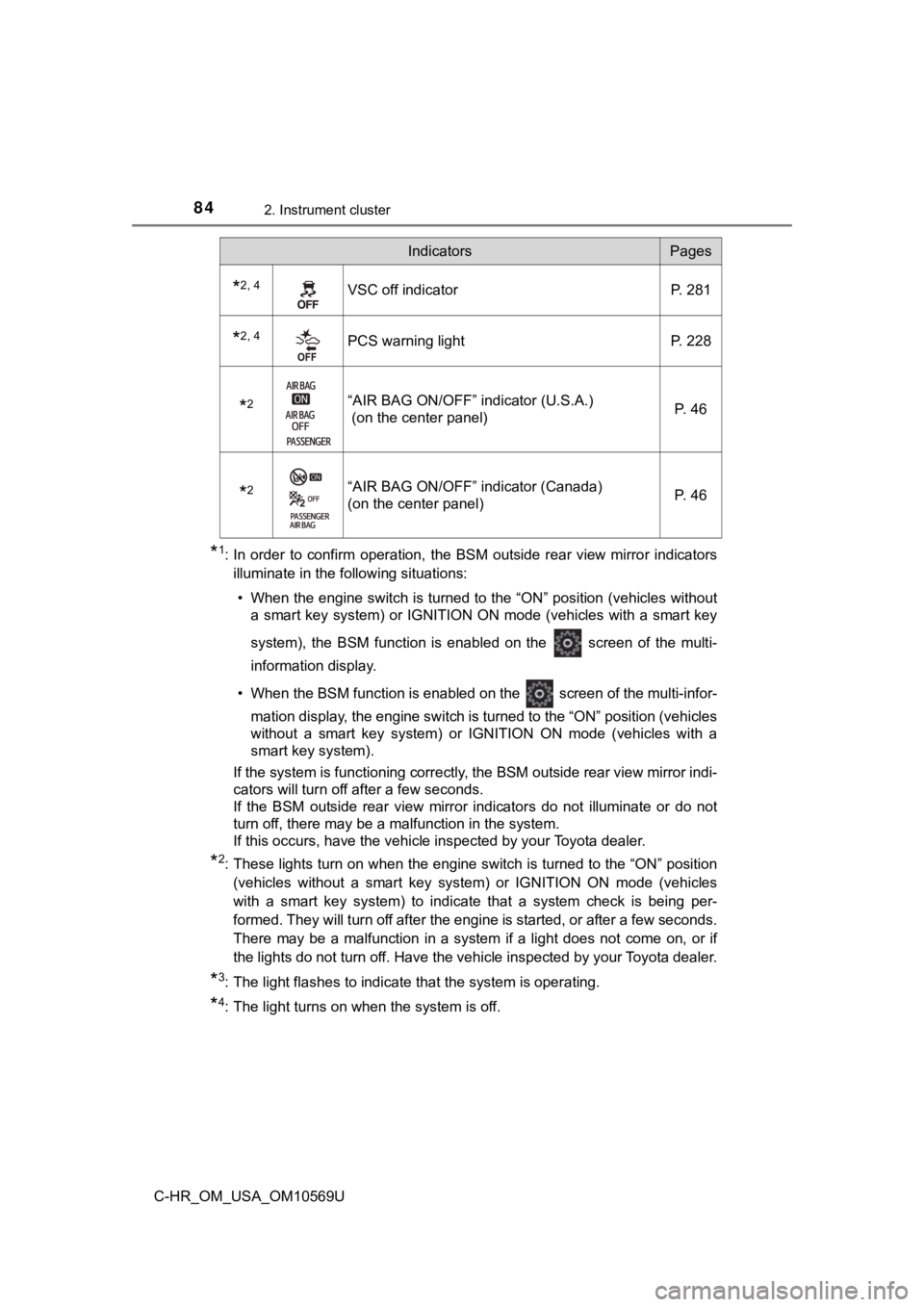

*2, 4VSC off indicatorP. 281
*2, 4PCS warning lightP. 228
*2“AIR BAG ON/OFF” indicator (U.S.A.)
(on the center panel) P. 46
*2“AIR BAG ON/OFF” indicator (Canada)
(on the center panel)P. 46
IndicatorsPages

852. Instrument cluster
2
Instrument cluster
C-HR_OM_USA_OM10569U
*: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without a smart key system) or IGNITION ON mode (vehi cles
with a smart key system) to indicate that a system check is bei ng per-
formed. They will turn off after the engine is started, or after a few seconds.
There may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by your Toyota dealer.

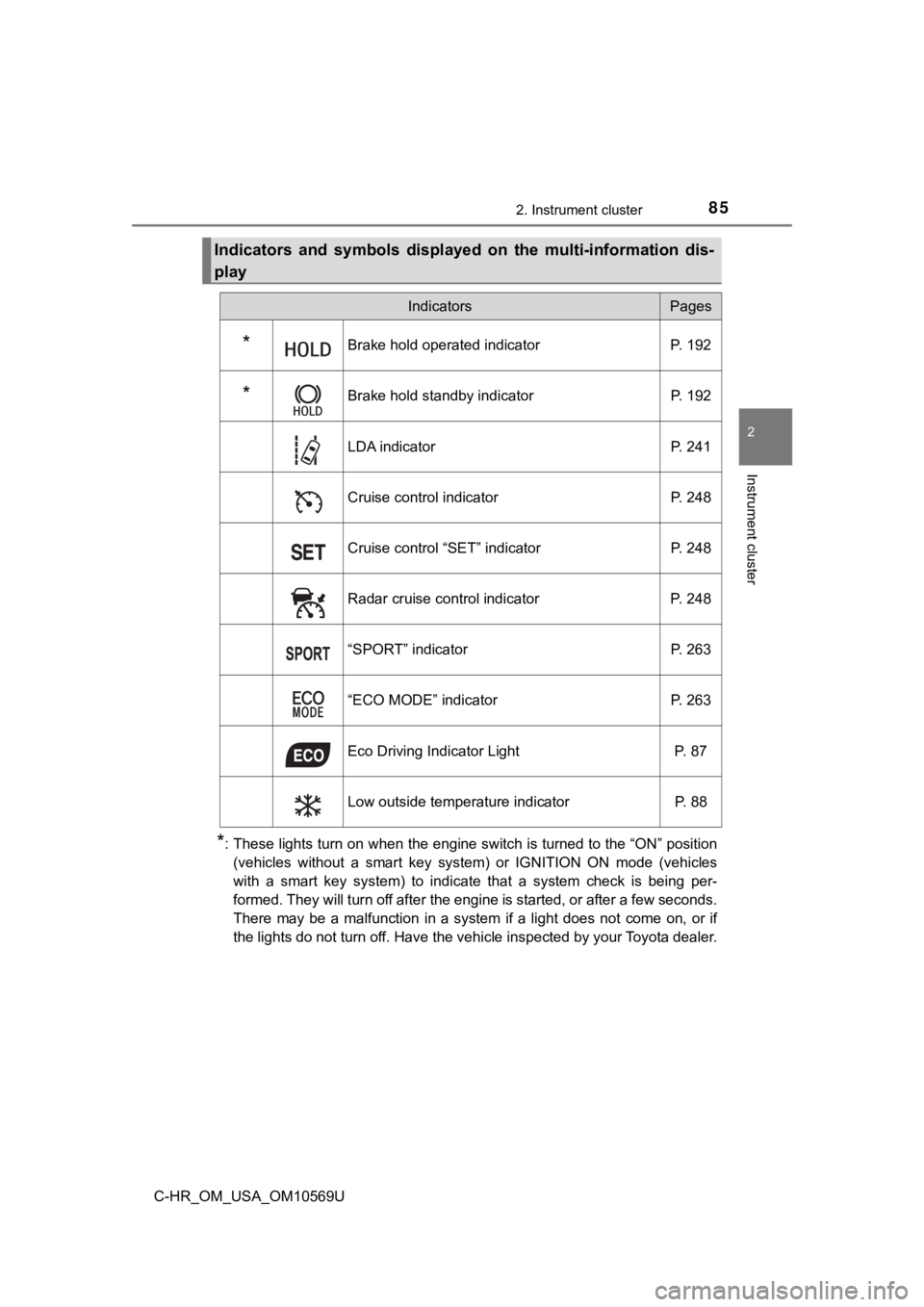

Indicators and symbols displayed on the multi-information dis-
play
IndicatorsPages
*Brake hold operated indicator P. 192
*Brake hold standby indicator P. 192
LDA indicator P. 241
Cruise control indicator P. 248
Cruise control “SET” indicator P. 248
Radar cruise control indicator P. 248
“SPORT” indicator P. 263
“ECO MODE” indicator P. 263
Eco Driving Indicator Light P. 87
Low outside temperature indicator P. 88

862. Instrument cluster
C-HR_OM_USA_OM10569U
Symbols on multi-information displayPages
Charging system warning light P. 420
Low engine oil pressure warning light P. 420
High engine coolant temperature warning light P. 423
Smart key system (if equipped) P. 175
Brake Override System/Drive-Start Control P. 424

872. Instrument cluster
2
Instrument cluster
C-HR_OM_USA_OM10569U
■Eco Driving Indicator Light
Eco Driving Indicator Light will not operate in the following c onditions:
● The shift lever is in anything other than D.
● The vehicle is being driven in “SPORT” mode ( P. 263)
● The vehicle speed is approximately 80 mph (130 km/h) or higher.
During Eco-Friendly acceleration (Eco
driving), Eco Driving Indicator Light will
turn on. When the acceleration exceeds
Zone of Eco driving, and when the vehicle
is stopped, the light turns off.
Eco Driving Indicator Light availability can
be customized. The default setting is on.
(
P. 488)
WARNING
■ If a safety system warning light does not come on
Should a safety system light such as ABS and SRS airbag warning light not
come on when you start the engine, this could mean that these s ystems are
not available to help protect you in an accident, which could r esult in death
or serious injury. Have the vehicle inspected by your Toyota de aler.

882. Instrument cluster
C-HR_OM_USA_OM10569U

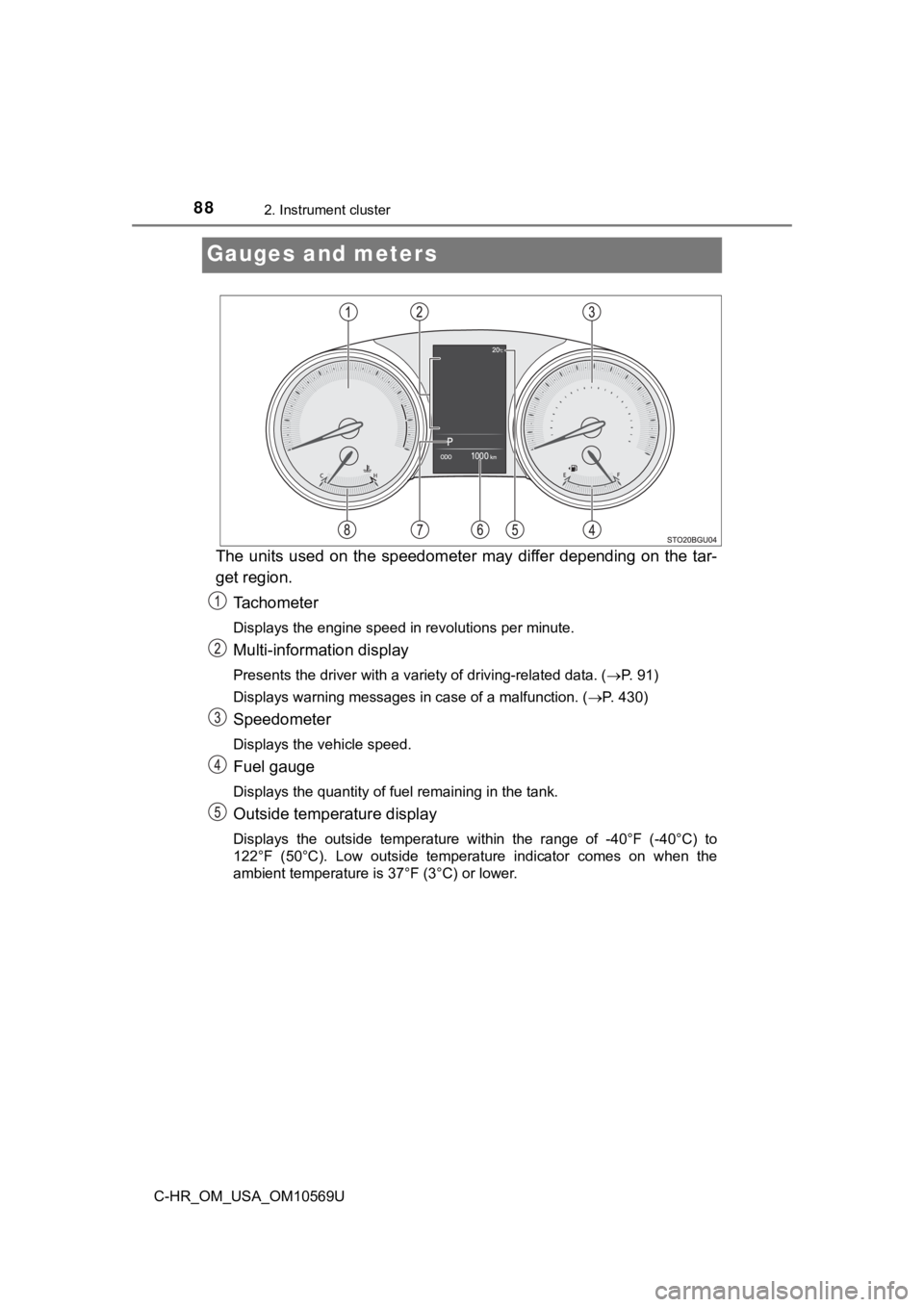

Gauges and meters
The units used on the speedometer may differ depending on the tar-
get region.
Tachometer
Displays the engine speed in revolutions per minute.
Multi-information display
Presents the driver with a variety of driving-related data. ( P. 91)
Displays warning messages in case of a malfunction. ( P. 430)
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Outside temperature display
Displays the outside temperature within the range of -40°F (-40 °C) to
122°F (50°C). Low outside temperat ure indicator comes on when the
ambient temperature is 37°F (3°C) or lower.

892. Instrument cluster
2
Instrument cluster
C-HR_OM_USA_OM10569U
Odometer and trip meter display
Displays the following items.
Odometer:
Displays the total distance the vehicle has been driven.
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters A and B can be used to record and display different dis-
tances independently.
Maintenance required information (U.S.A. only):
Displays the remaining distance until the engine oil should be changed. If
“-” is displayed before distance, it means oil maintenance is o verdue. Have
the engine oil changed by your Toyota dealer. • Displays the maintenance required information when the engine switch
is turned to the “ON” position (vehicles without smart key syst em) or in
IGNITION ON mode (vehicles with smart key system).
• Maintenance required information reset method (P. 337)
Shift position and shift range display
Displays the selected shift position or selected shift range. ( P. 181)
Engine coolant temperature gauge
Displays the engine coolant temperature.
Switches the items of the odome-
ter and trip meter display by
pressing the “TRIP” switch.
When the trip meter is displayed,
pressing and holding the “TRIP”
switch will reset the trip meter.
Changing the display

902. Instrument cluster
C-HR_OM_USA_OM10569U

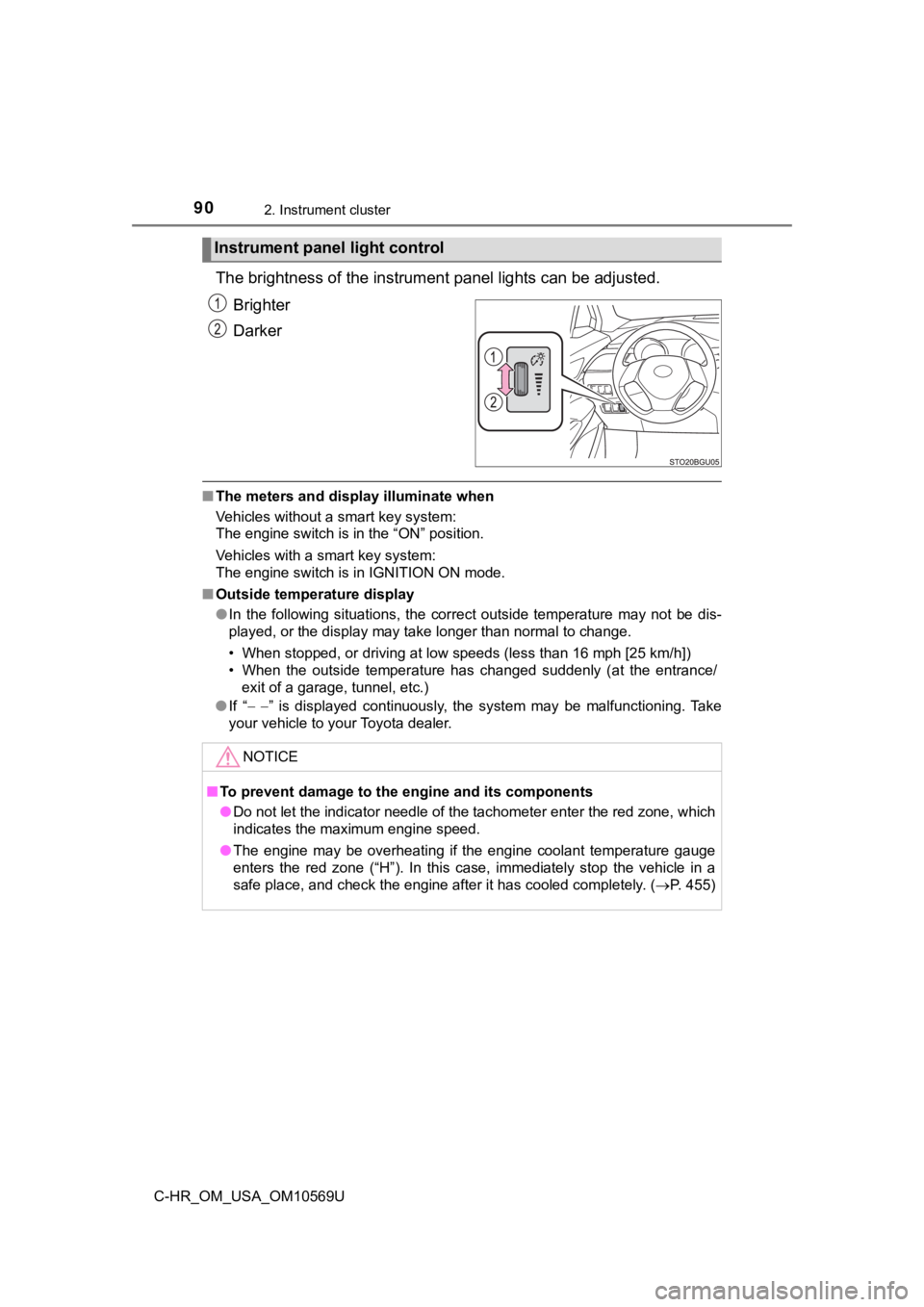

The brightness of the instrument panel lights can be adjusted.
Brighter
Darker
■ The meters and display illuminate when
Vehicles without a smart key system:
The engine switch is in the “ON” position.
Vehicles with a smart key system:
The engine switch is in IGNITION ON mode.
■ Outside temperature display
●In the following situations, the correct outside temperature ma y not be dis-
played, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 16 mph [25 k m/h])
• When the outside temperature has changed suddenly (at the entr ance/
exit of a garage, tunnel, etc.)
● If “  ” is displayed continuously, the system may be malfunctioning. Ta k e
your vehicle to your Toyota dealer.
Instrument panel light control
NOTICE
■ To prevent damage to the engine and its components
● Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● The engine may be overheating if the engine coolant temperature gauge
enters the red zone (“H”). In this case, immediately stop the v ehicle in a
safe place, and check the engine after it has cooled completely . (P. 455)
