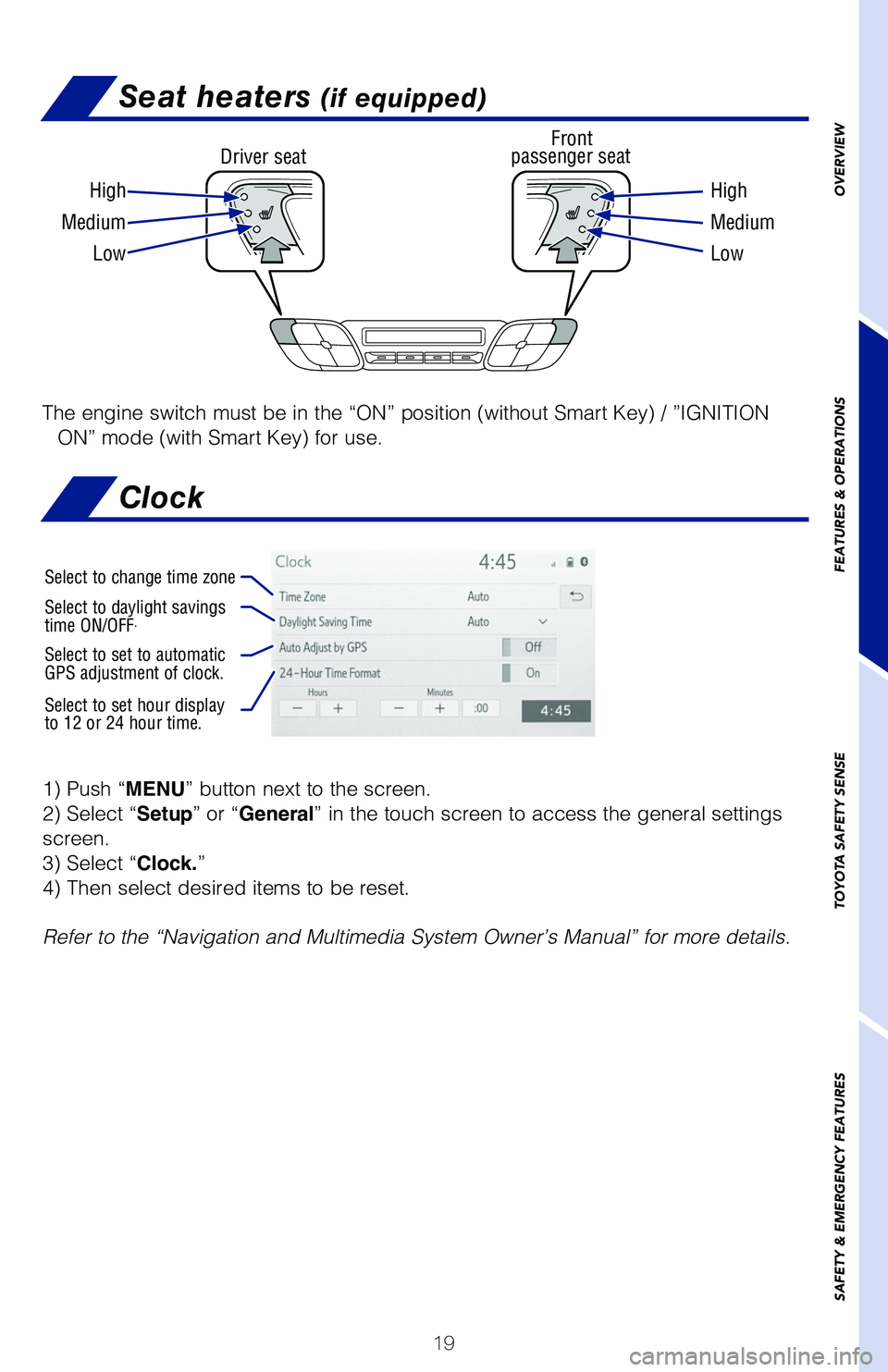

Seat heaters (if equipped)
Driver seat Front
passenger seat
High High
Medium Medium
Low Low
The engine switch must be in the “ON” position (without Smart Key) \
/ ”IGNITION
ON” mode (with Smart Key) for use.
1) Push “MENU” button next to the screen.
2) Select “Setup” or “General” in the touch screen to access the general settings
screen.
3) Select “Clock.”
4) Then select desired items to be reset.

Refer to the “Navigation and Multimedia System Owner’s Manual” for m\
ore details.
Select to change time zone
Select to daylight savings
time ON/OFF.
Select to set to automatic
GPS adjustment of clock.
Select to set hour display
to 12 or 24 hour time.
Clock

20
FEATURES & OPERATIONS
The engine switch must be in the “ACC” or “ON” position (witho\
ut Smart Key) /
“ACCESSORY” or ”IGNITION ON” mode (with Smart Key) for use.
(1)(2)
Pull
Pull
Power outlet-12V DC

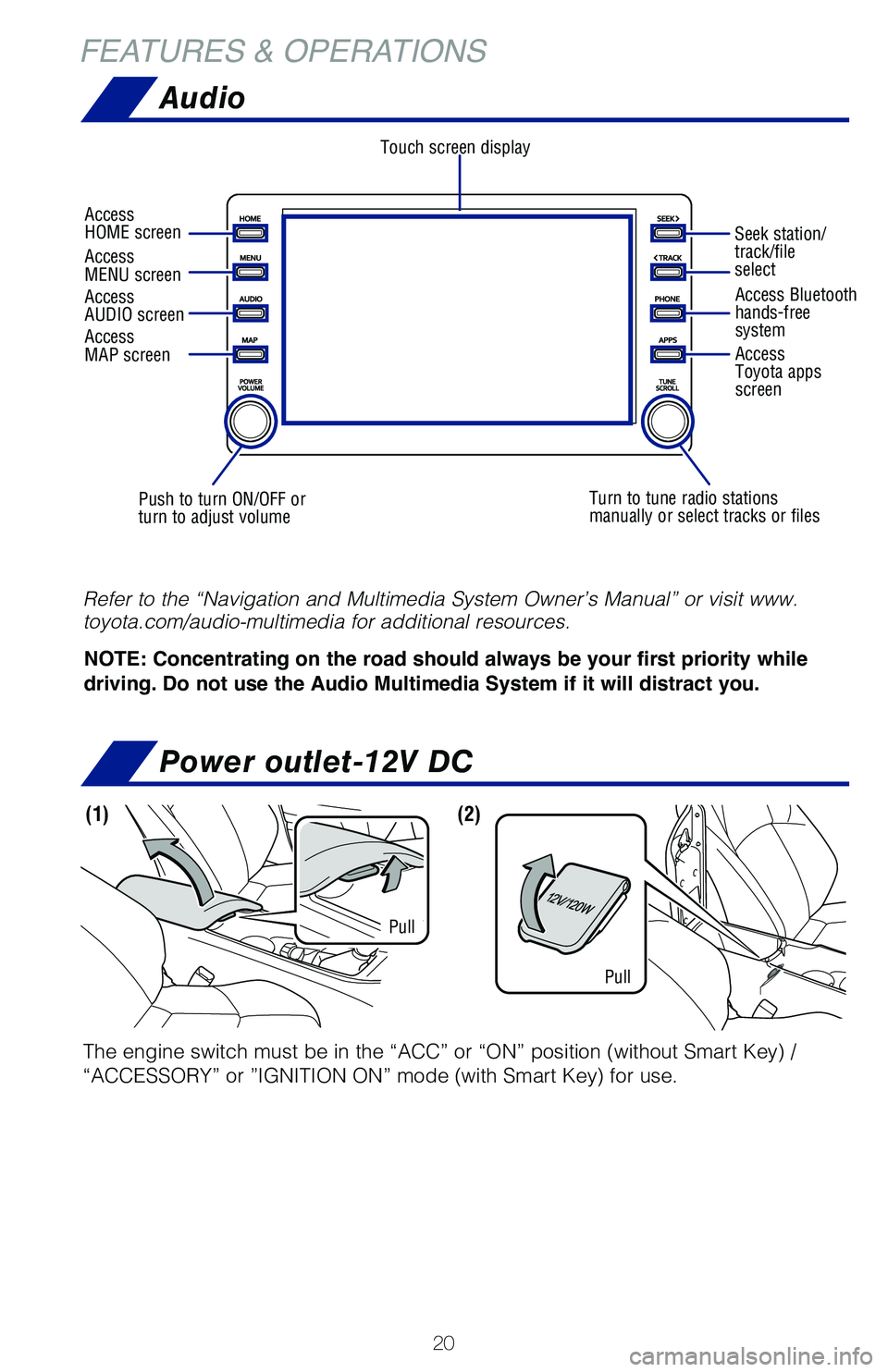

Audio
NOTE: Concentrating on the road should always be your first priority while
driving. Do not use the Audio Multimedia System if it will distract you.
Refer to the “Navigation and Multimedia System Owner’s Manual” or vi\
sit www.
toyota.com/audio-multimedia for additional resources.
Touch screen display
Access
AUDIO screen
Push to turn ON/OFF or
turn to adjust volume Turn to tune radio stations
manually or select tracks or filesAccess Bluetooth
hands-free
system
Seek station/
track/file
select
Access
HOME screen
Access
MENU screen
Access
Toyota apps
screen
Access
MAP screen

21
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
USB media port
Connecting a compatible device and cable into the USB media port will support
charging and music playback through the audio multimedia system.
Bluetooth® technology allows dialing or receipt of calls without removing your han\
ds
from the steering wheel.

Refer to the Bluetooth
® device pairing in this guide or the Navigation and
Multimedia System Owner’s Manual for additional user instructions.
NOTE: Concentrating on the road should always be your first priority while
driving. Do not use the Audio Multimedia System if it will distract you.
Microphone

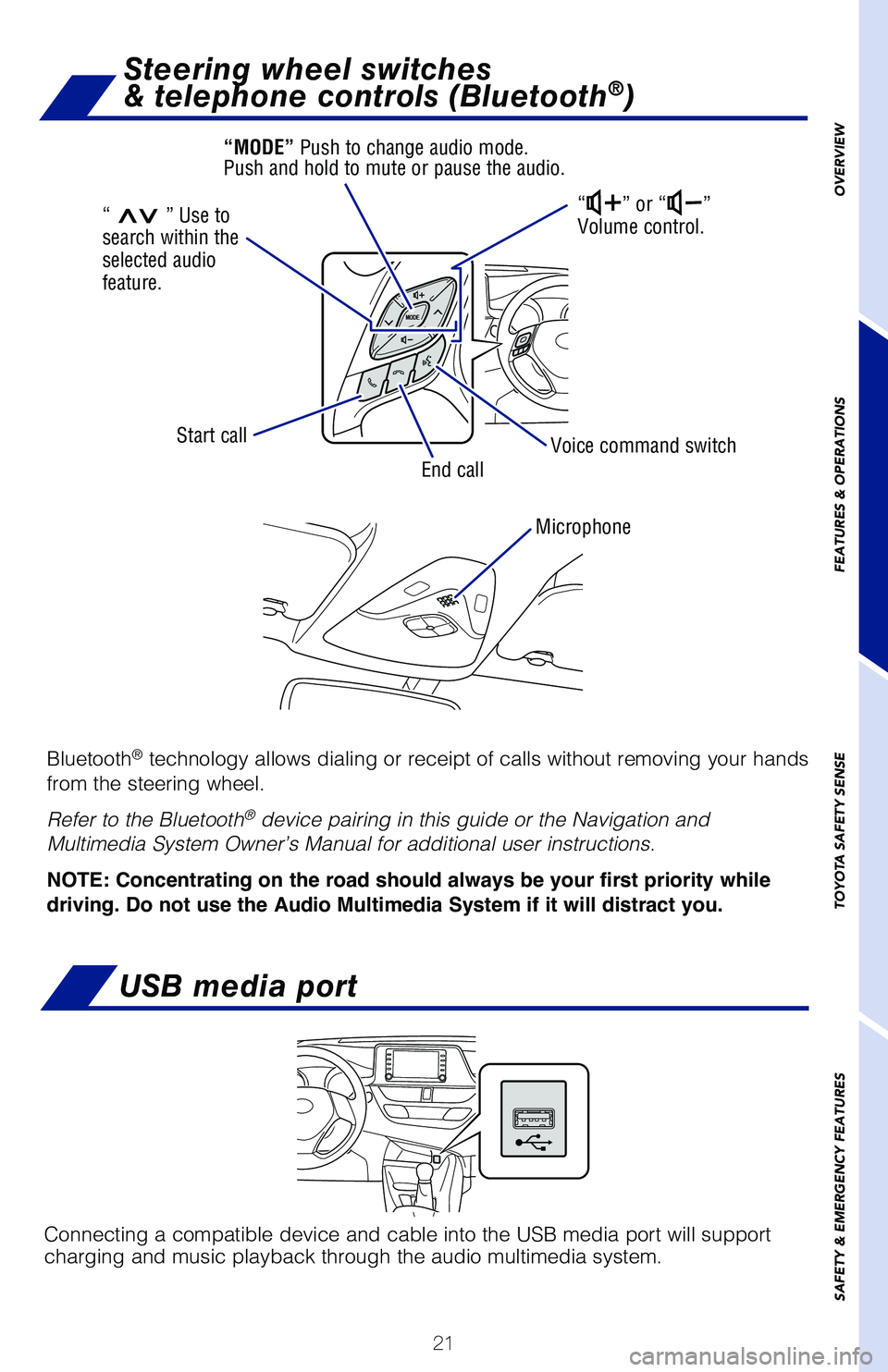

Steering wheel switches
& telephone controls (Bluetooth®)
“” or “”
Volume control.
Voice command switch
End call
Start call
“>>” Use to
search within the
selected audio
feature. “MODE” Push to change audio mode.
Push and hold to mute or pause the audio.

22

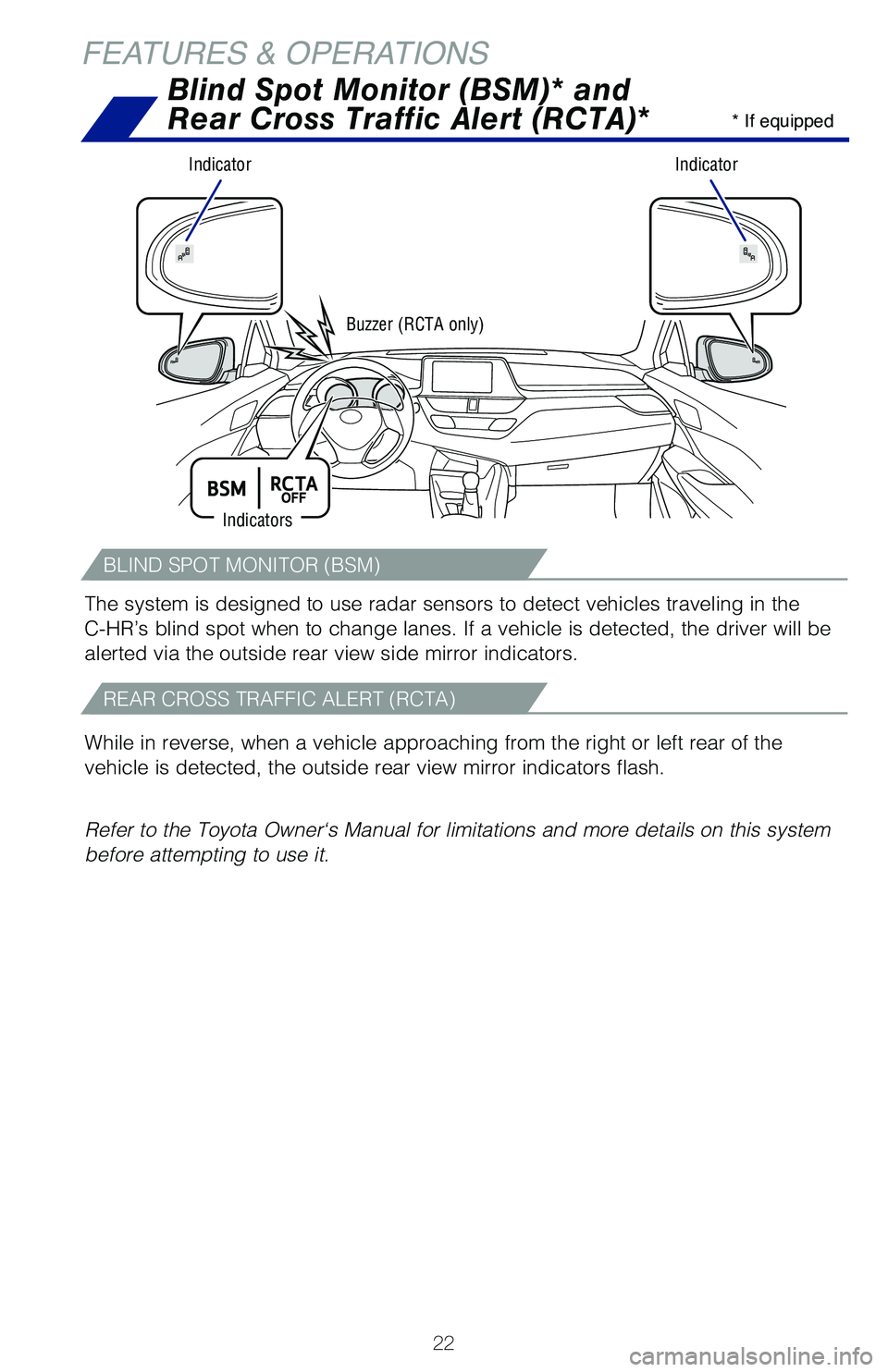

FEATURES & OPERATIONSBlind Spot Monitor (BSM)* and
Rear Cross Traffic Alert (RCTA)*
IndicatorIndicator
Buzzer (RCTA only)
* If equipped
Indicators
The system is designed to use radar sensors to detect vehicles traveling in\
the
C-HR’s blind spot when to change lanes. If a vehicle is detected, the driver w\
ill be
alerted via the outside rear view side mirror indicators.
While in reverse, when a vehicle approaching from the right or left rear of t\
he
vehicle is detected, the outside rear view mirror indicators flash.
Refer to the Toyota Owner‘s Manual for limitations and more details on thi\
s system
before attempting to use it.
BLIND SPOT MONITOR (BSM)
REAR CROSS TRAFFIC ALERT (RCTA)

23
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

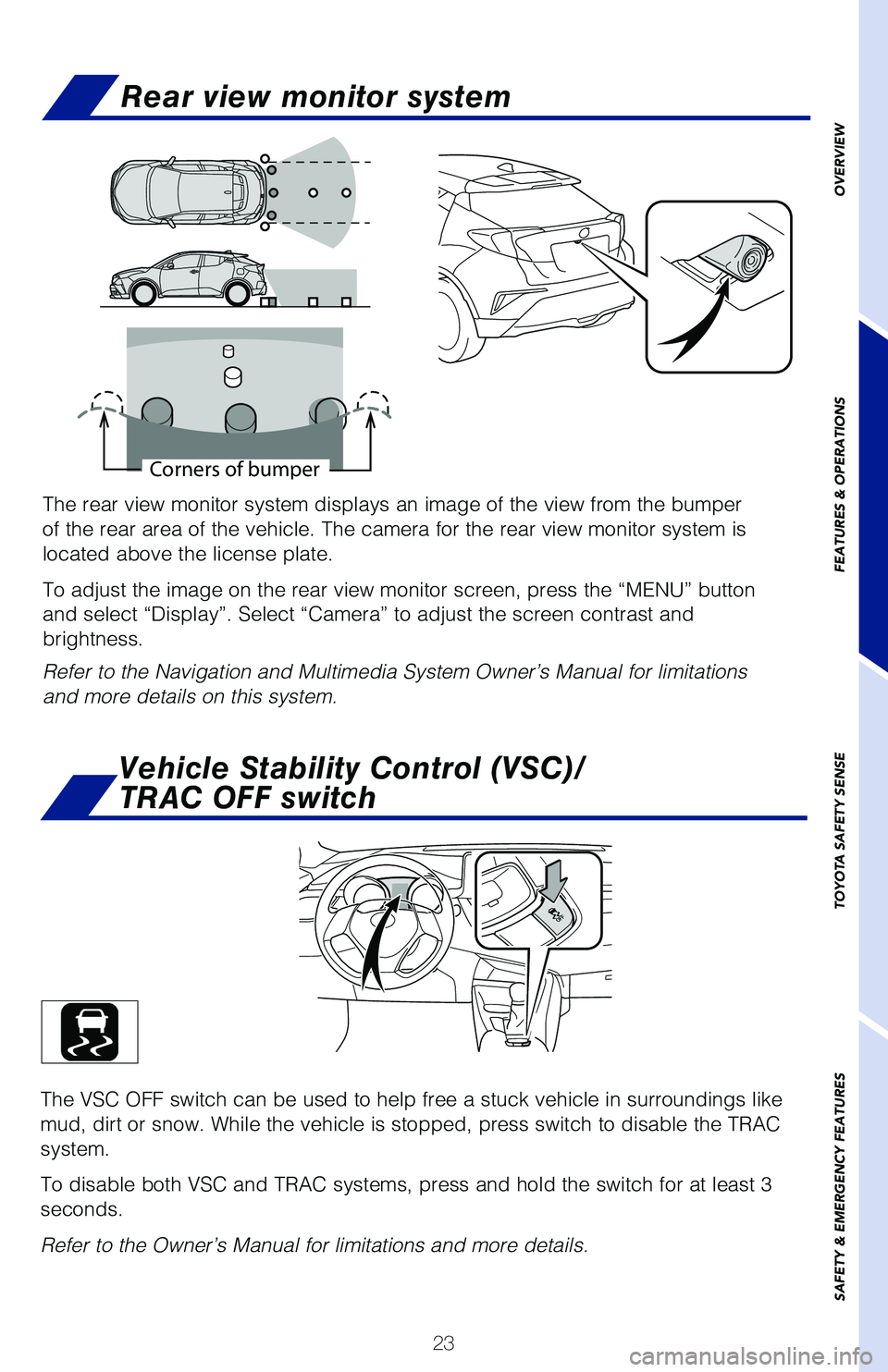

The rear view monitor system displays an image of the view from the bumper
of the rear area of the vehicle. The camera for the rear view monitor syst\
em is
located above the license plate.
To adjust the image on the rear view monitor screen, press the “MENU”\
button
and select “Display”. Select “Camera” to adjust the screen cont\
rast and
brightness.
Refer to the Navigation and Multimedia System Owner’s Manual for limitatio\
ns
and more details on this system.
Corners of bumper
The VSC OFF switch can be used to help free a stuck vehicle in surroundings\
like
mud, dirt or snow. While the vehicle is stopped, press switch to disable the\
TRAC
system.
To disable both VSC and TRAC systems, press and hold the switch for at lea\
st 3
seconds.
Refer to the Owner’s Manual for limitations and more details.
Vehicle Stability Control (VSC)/
TRAC OFF switch
Rear view monitor system

24

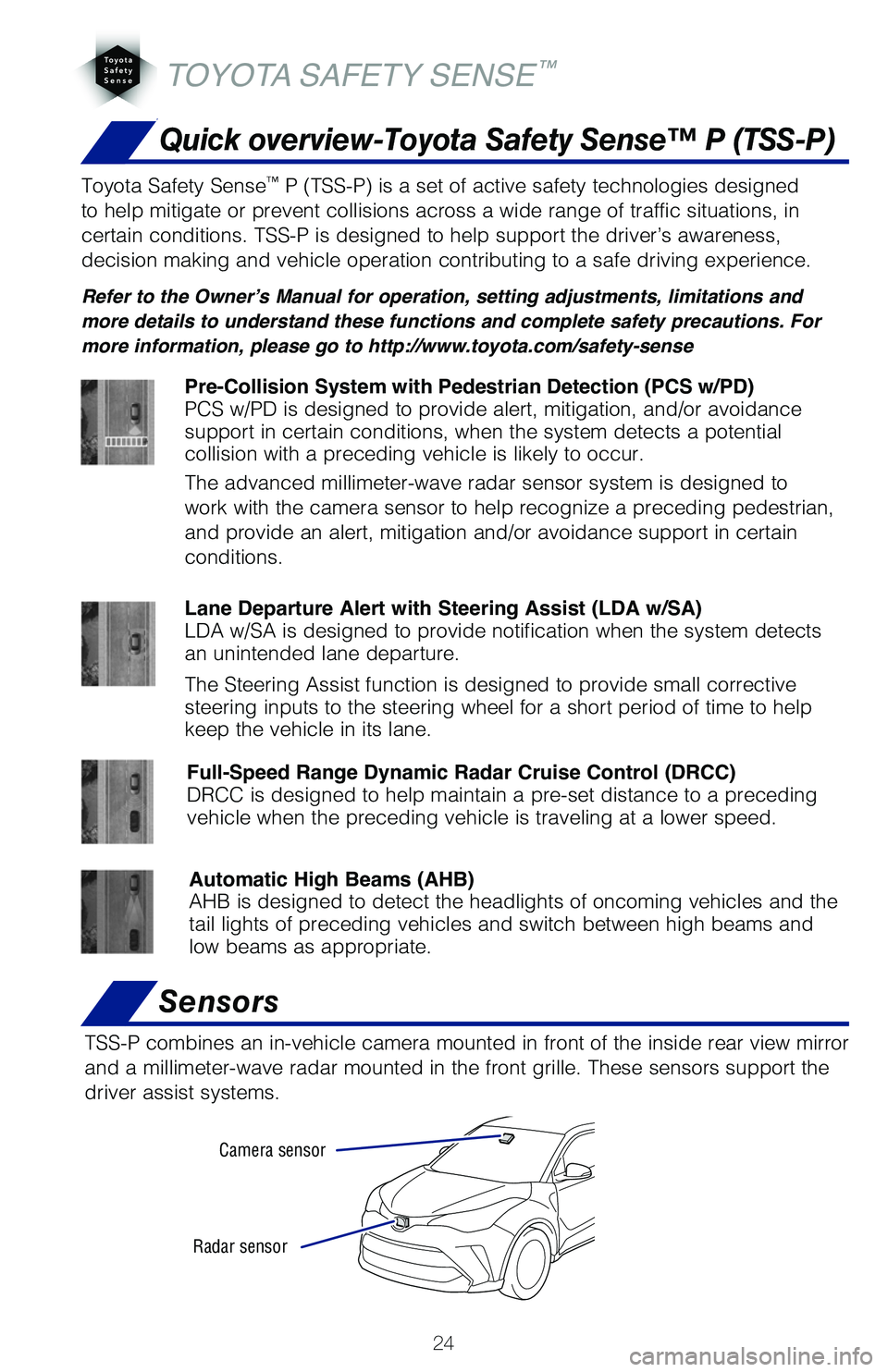

Quick overview-Toyota Safety Sense™ P (TSS-P)
Sensors
TSS-P combines an in-vehicle camera mounted in front of the inside rear view \
mirror
and a millimeter-wave radar mounted in the front grille. These sensors supp\
ort the
driver assist systems.
Camera sensor
Radar sensor
TOYOTA SAFETY SENSE™
Toyota Safety Sense™ P (TSS-P) is a set of active safety technologies designed
to help mitigate or prevent collisions across a wide range of traffic situ\
ations, in
certain conditions. TSS-P is designed to help support the driver’s awareness\
,
decision making and vehicle operation contributing to a safe driving experience.\
Refer to the Owner’s Manual for operation, setting adjustments, limitations and
more details to understand these functions and complete safety precautions. For
more information, please go to http://www.toyota.com/safety-sense
Lane Departure Alert with Steering Assist (LDA w/SA)
LDA w/SA is designed to provide notification when the system detects
an unintended lane departure.
The Steering Assist function is designed to provide small corrective
steering inputs to the steering wheel for a short period of time to help
keep the vehicle in its lane.
Automatic High Beams (AHB)
AHB is designed to detect the headlights of oncoming vehicles and the
tail lights of preceding vehicles and switch between high beams and
low beams as appropriate.
Pre-Collision System with Pedestrian Detection (PCS w/PD)
PCS w/PD is designed to provide alert, mitigation, and/or avoidance
support in certain conditions, when the system detects a potential
collision with a preceding vehicle is likely to occur.
The advanced millimeter-wave radar sensor system is designed to
work with the camera sensor to help recognize a preceding pedestrian,
and provide an alert, mitigation and/or avoidance support in certain
conditions.
Full-Speed Range Dynamic Radar Cruise Control (DRCC)
DRCC is designed to help maintain a pre-set distance to a preceding
vehicle when the preceding vehicle is traveling at a lower speed.

25
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

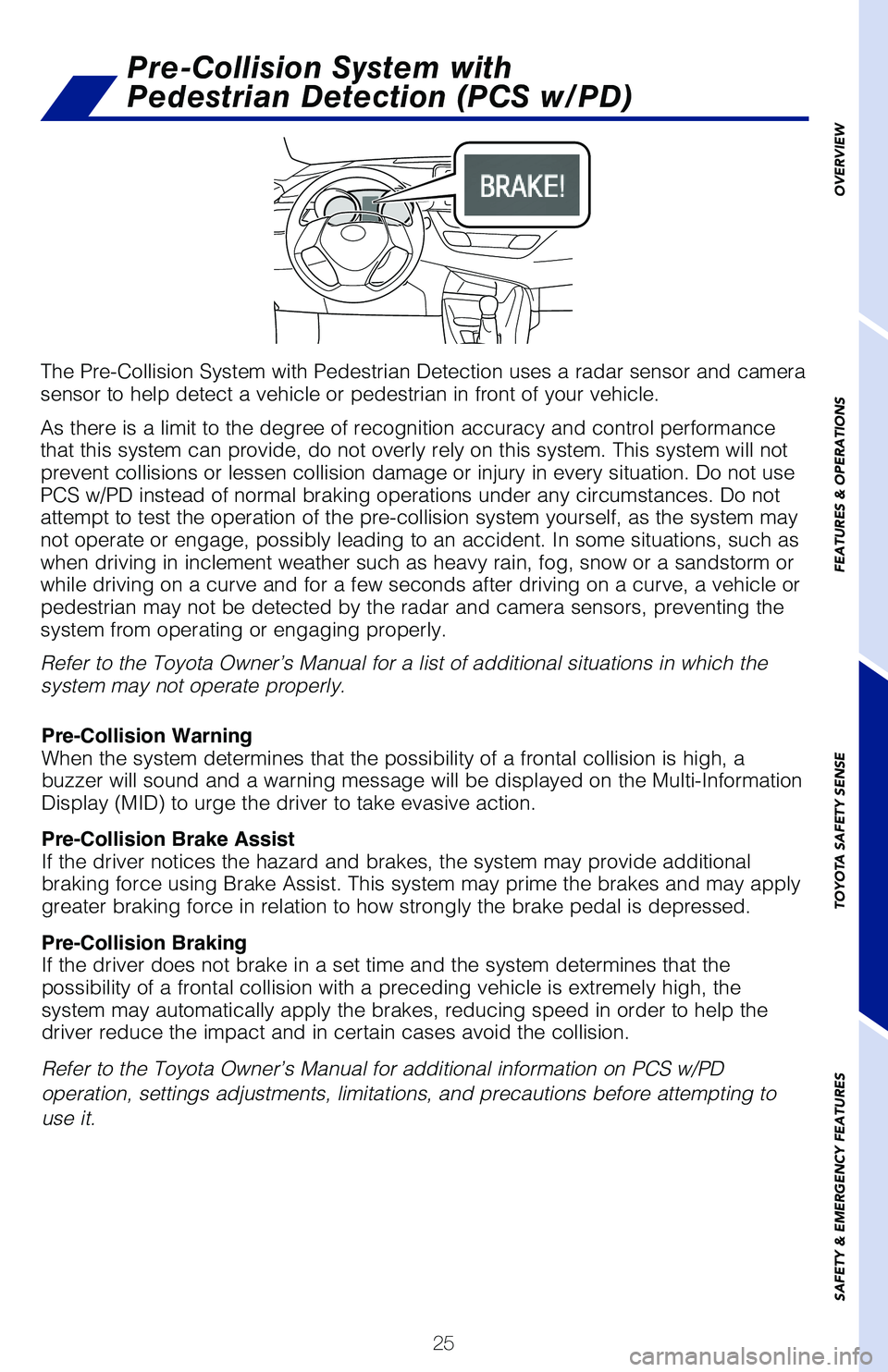

The Pre-Collision System with Pedestrian Detection uses a radar sensor and \
camera
sensor to help detect a vehicle or pedestrian in front of your vehicle.
As there is a limit to the degree of recognition accuracy and control perf\
ormance
that this system can provide, do not overly rely on this system. This system\
will not
prevent collisions or lessen collision damage or injury in every situation. Do \
not use
PCS w/PD instead of normal braking operations under any circumstances. Do n\
ot
attempt to test the operation of the pre-collision system yourself, as the syst\
em may
not operate or engage, possibly leading to an accident. In some situations,\
such as
when driving in inclement weather such as heavy rain, fog, snow or a sandsto\
rm or
while driving on a curve and for a few seconds after driving on a curve, a ve\
hicle or
pedestrian may not be detected by the radar and camera sensors, preventing the
system from operating or engaging properly.
Refer to the Toyota Owner’s Manual for a list of additional situations in \
which the
system may not operate properly.
Refer to the Toyota Owner’s Manual for additional information on PCS w/PD
operation, settings adjustments, limitations, and precautions before attempting to\

use it. Pre-Collision Warning
When the system determines that the possibility of a frontal collision is hi\
gh, a
buzzer will sound and a warning message will be displayed on the Multi-Informa\
tion
Display (MID) to urge the driver to take evasive action.
Pre-Collision Brake Assist
If the driver notices the hazard and brakes, the system may provide additi\
onal
braking force using Brake Assist. This system may prime the brakes and may appl\
y
greater braking force in relation to how strongly the brake pedal is depressed.\
Pre-Collision Braking
If the driver does not brake in a set time and the system determines that \
the
possibility of a frontal collision with a preceding vehicle is extremely high, the
system may automatically apply the brakes, reducing speed in order to help the\

driver reduce the impact and in certain cases avoid the collision.
Pre-Collision System with
Pedestrian Detection (PCS w/PD)

26
CHANGING PCS ALERT TIMING
TOYOTA SAFETY SENSE™
(1) Press “” switches and select from the Multi-Information Display (MID).
(2) Press “
” switches and select the setting function and then press “”.
The setting screen is displayed.
(3) Press “
” switches and select “ Sensitivity” from the MID and then press
“
” to select the desired setting. You can press “” to go back to the menu.
Note: PCS is enabled each time the engine switch is turned to Ignition On. The
system can be disabled/enabled and the alert timing of the system can be changed.
(Alert timing only, brake operation remains the same).
Far Middle
(default) Near
Monocular camera sensor
Millimeter
wave radar

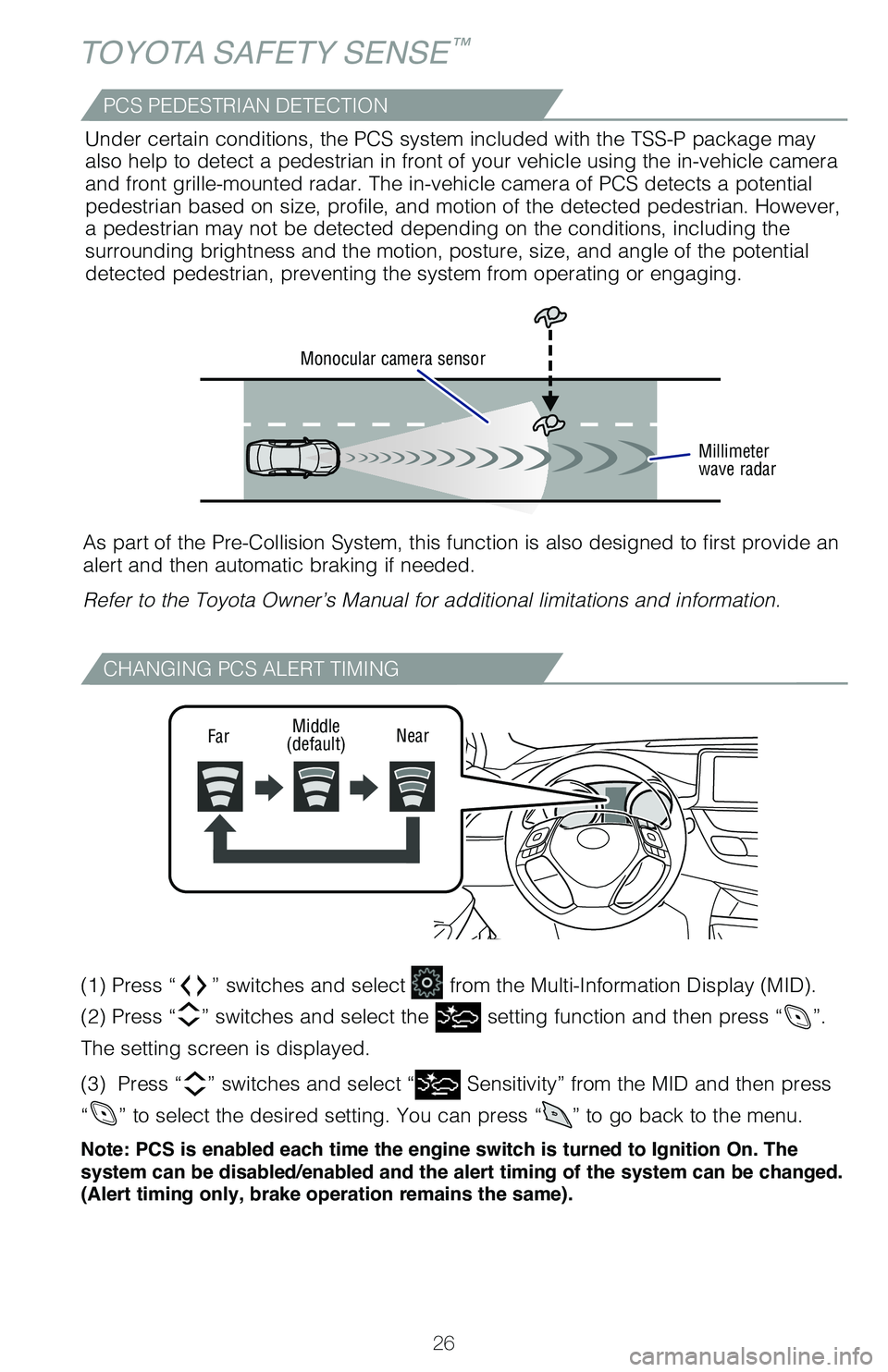

As part of the Pre-Collision System, this function is also designed to fir\
st provide an
alert and then automatic braking if needed.
Refer to the Toyota Owner’s Manual for additional limitations and informat\
ion.Under certain conditions, the PCS system included with the TSS-P package may
also help to detect a pedestrian in front of your vehicle using the in-vehic\
le camera
and front grille-mounted radar. The in-vehicle camera of PCS detects a pote\
ntial
pedestrian based on size, profile, and motion of the detected pedestrian. However,\

a pedestrian may not be detected depending on the conditions, including t\
he
surrounding brightness and the motion, posture, size, and angle of the potential
detected pedestrian, preventing the system from operating or engaging.
PCS PEDESTRIAN DETECTION

27
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

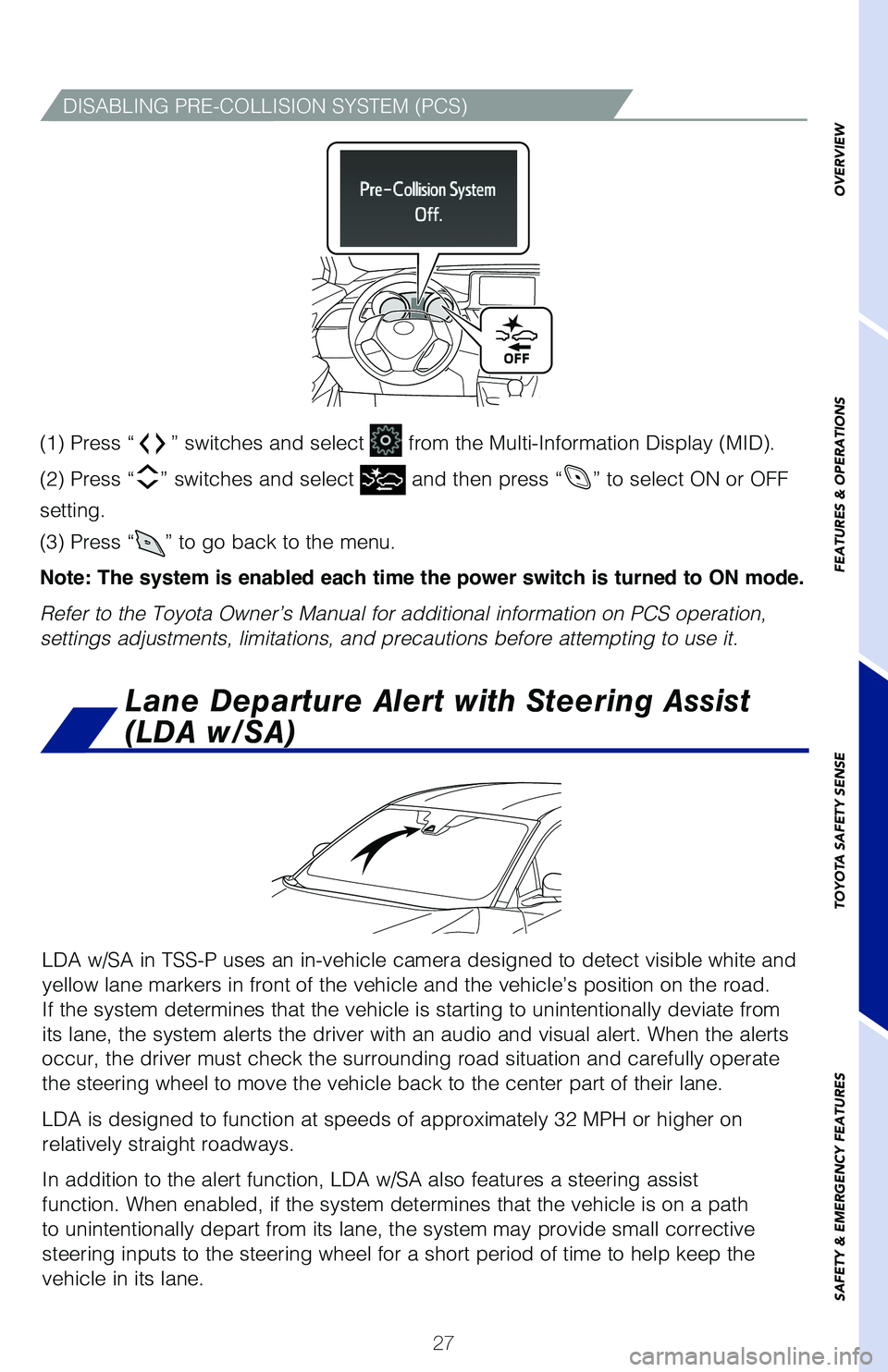

(1) Press “” switches and select from the Multi-Information Display (MID).
(2) Press “
” switches and select and then press “” to select ON or OFF
setting.
(3) Press “
” to go back to the menu.
Note: The system is enabled each time the power switch is turned to ON mode.
Refer to the Toyota Owner’s Manual for additional information on PCS opera\
tion,
settings adjustments, limitations, and precautions before attempting to use it.
DISABLING PRE-COLLISION SYSTEM (PCS)

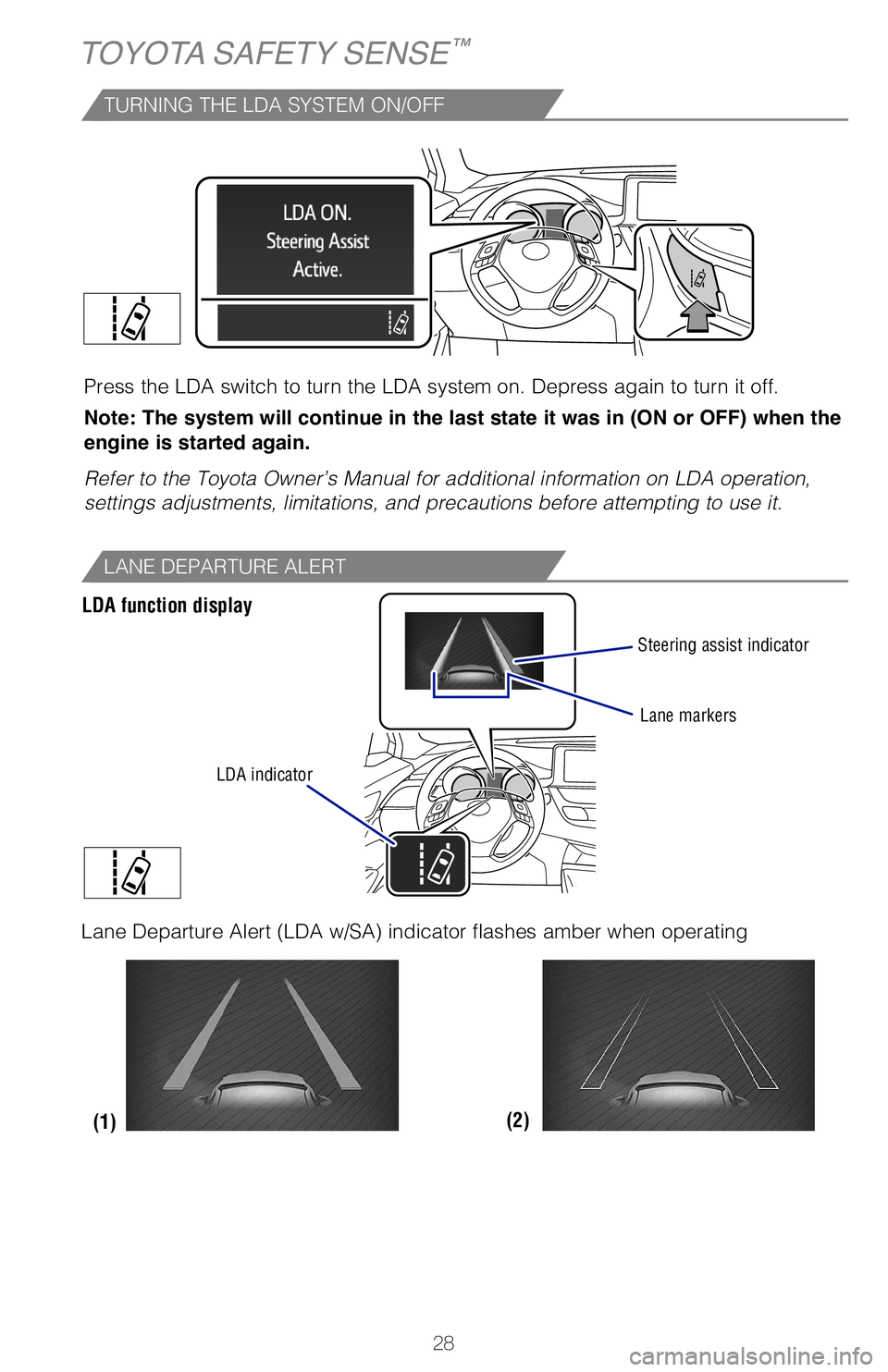

LDA w/SA in TSS-P uses an in-vehicle camera designed to detect visible whit\
e and
yellow lane markers in front of the vehicle and the vehicle’s position on t\
he road.
If the system determines that the vehicle is starting to unintentionally d\
eviate from
its lane, the system alerts the driver with an audio and visual alert. When\
the alerts
occur, the driver must check the surrounding road situation and carefully oper\
ate
the steering wheel to move the vehicle back to the center part of their lan\
e.
LDA is designed to function at speeds of approximately 32 MPH or higher on
relatively straight roadways.
In addition to the alert function, LDA w/SA also features a steering assis\
t
function. When enabled, if the system determines that the vehicle is on a path
to unintentionally depart from its lane, the system may provide small corr\
ective
steering inputs to the steering wheel for a short period of time to help keep th\
e
vehicle in its lane.
Lane Departure Alert with Steering Assist
(LDA w/SA)

28
TOYOTA SAFETY SENSE™
(2)
(1)
TURNING THE LDA SYSTEM ON/OFF
Press the LDA switch to turn the LDA system on. Depress again to turn it off.\
Note: The system will continue in the last state it was in (ON or OFF) when the
engine is started again.
Refer to the Toyota Owner’s Manual for additional information on LDA opera\
tion,
settings adjustments, limitations, and precautions before attempting to use it.
LANE DEPARTURE ALERT
LDA function display
Lane markers
Steering assist indicator
LDA indicator
Lane Departure Alert (LDA w/SA) indicator flashes amber when operating
