TOYOTA C-HR 2020 Owners Manual (in English)

Printed in U. S. A . 9 / 19
19 - M KG -13 5 9 2
Quick Reference Guide 2020
toyota\fcom
QUICK
REFERENCE
GUIDE
2020

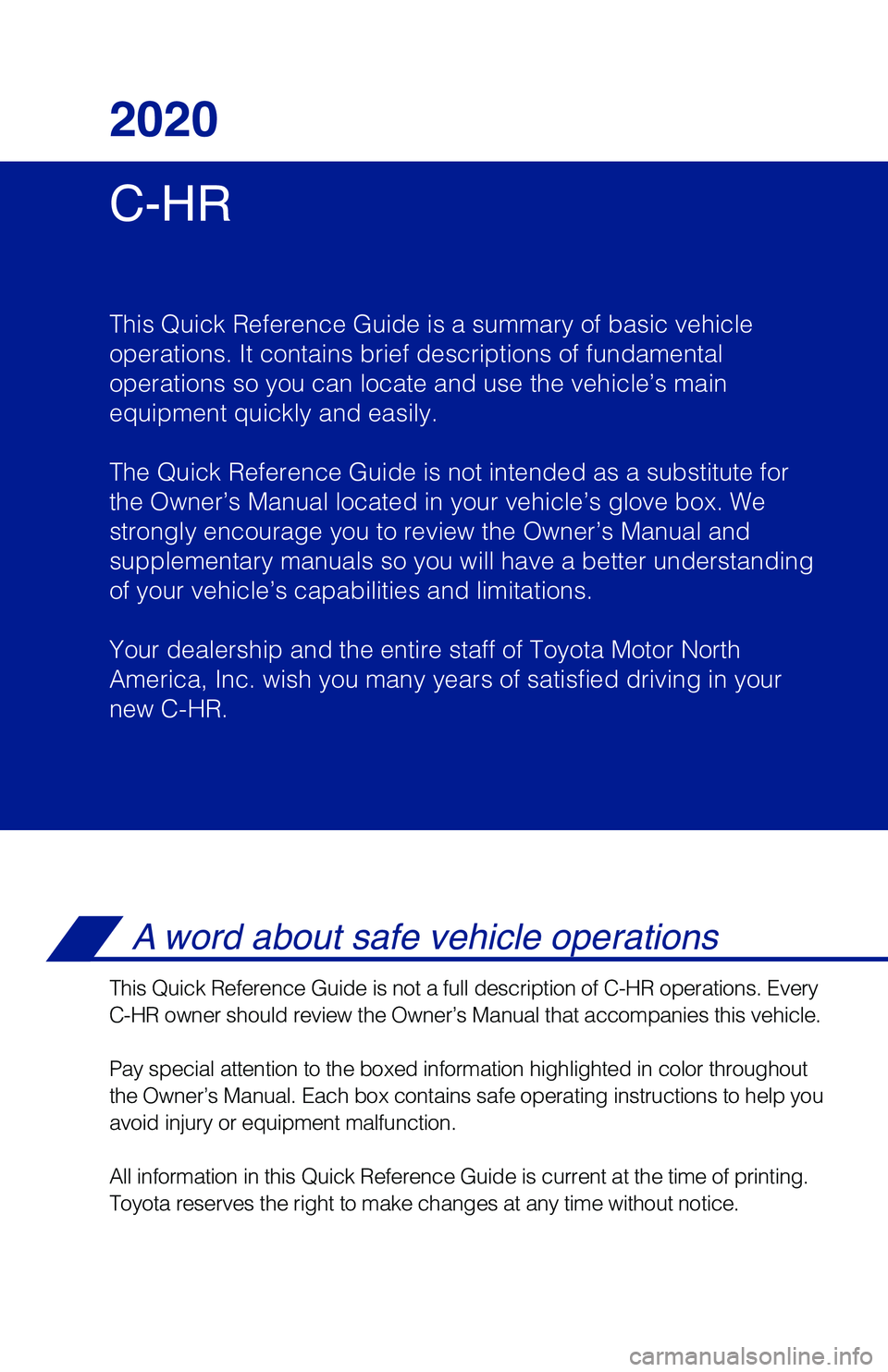

C-HR 2020
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
America, Inc. wish you many years of satisfied driving in your
new C-HR.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of C-HR operations. Every
C-HR owner should review the Owner’s Manual that accompanies this vehicle\
.
Pay special attention to the boxed information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to hel\
p you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of pri\
nting.
Toyota reserves the right to make changes at any time without notice.

1
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructio\
ns and more information.

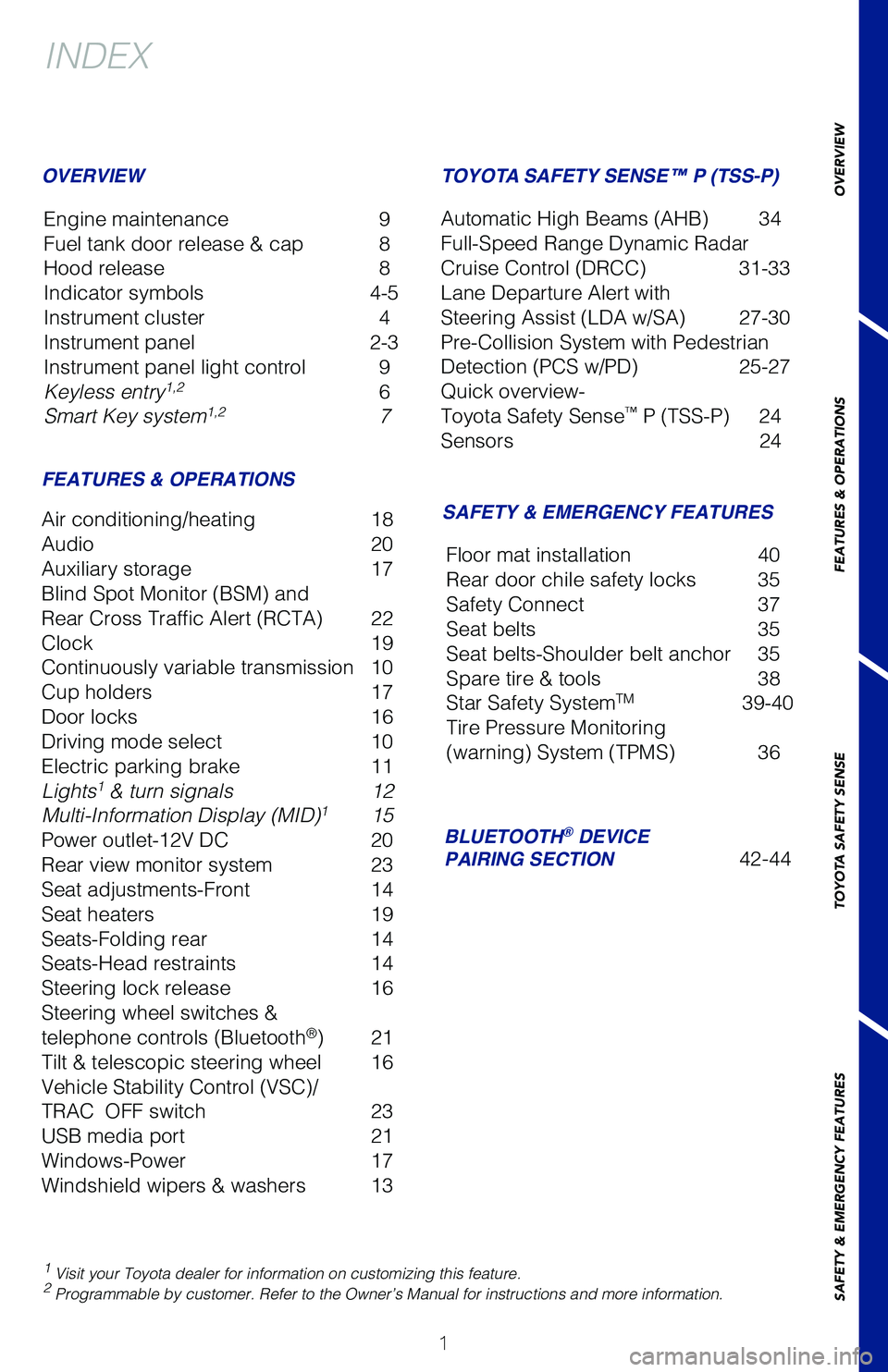

INDEX
Engine maintenance 9
Fuel tank door release & cap 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 9
Keyless entry
1,2 6
Smart Key system1,2 7
OVERVIEW
FEATURES & OPERATIONS
Air conditioning/heating 18
Audio 20
Auxiliary storage 17
Blind Spot Monitor (BSM) and
Rear Cross Traffic Alert (RCTA) 22
Clock 19
Continuously variable transmission 10
Cup holders 17
Door locks 16
Driving mode select 10
Electric parking brake 11
Lights
1 & turn signals 12
Multi-Information Display (MID)1 15
Power outlet-12V DC 20
Rear view monitor system 23
Seat adjustments-Front 14
Seat heaters 19
Seats-Folding rear 14
Seats-Head restraints 14
Steering lock release 16
Steering wheel switches &
telephone controls (Bluetooth
®) 21
Tilt & telescopic steering wheel 16
Vehicle Stability Control (VSC)/
TRAC OFF switch 23
USB media port 21
Windows-Power 17
Windshield wipers & washers 13
SAFETY & EMERGENCY FEATURES
TOYOTA SAFETY SENSE™ P (TSS-P)
Automatic High Beams (AHB) 34
Full-Speed Range Dynamic Radar
Cruise Control (DRCC) 31-33
Lane Departure Alert with
Steering Assist (LDA w/SA) 27-30
Pre-Collision System with Pedestrian
Detection (PCS w/PD) 25-27
Quick overview-
Toyota Safety Sense
™ P (TSS-P) 24
Sensors 24
BLUETOOTH® DEVICE
PAIRING SECTION 42-44
Floor mat installation
40
Rear door chile safety locks 35
Safety Connect 37
Seat belts 35
Seat belts-Shoulder belt anchor 35
Spare tire & tools 38
Star Safety System
TM 39-40
Tire Pressure Monitoring
(warning) System (TPMS) 36

2

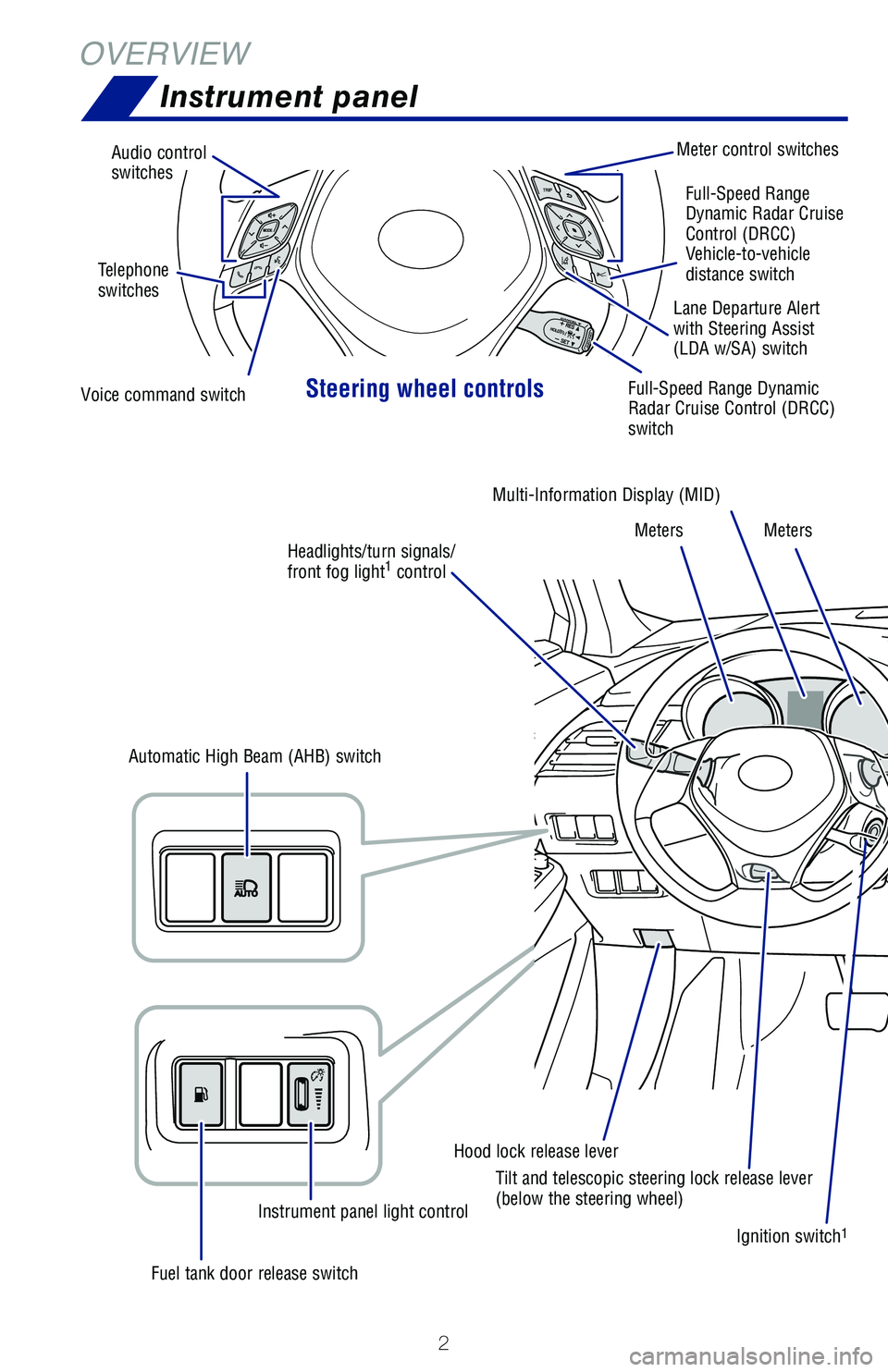

OVERVIEWInstrument panel
Steering wheel controls
Audio control
switches Meter control switches
Voice command switch Full-Speed Range Dynamic
Radar Cruise Control (DRCC)
switch
Ignition switch
1
Hood lock release leverMulti-Information Display (MID)
Meters Meters
Fuel tank door release switch Instrument panel light control
Automatic High Beam (AHB) switch
Tilt and telescopic steering lock release lever
(below the steering wheel)Full-Speed Range
Dynamic Radar Cruise
Control (DRCC)
Vehicle-to-vehicle
distance switch
Telephone
switches
Lane Departure Alert
with Steering Assist
(LDA w/SA) switch
Headlights/turn signals/
front fog light
1 control

3
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

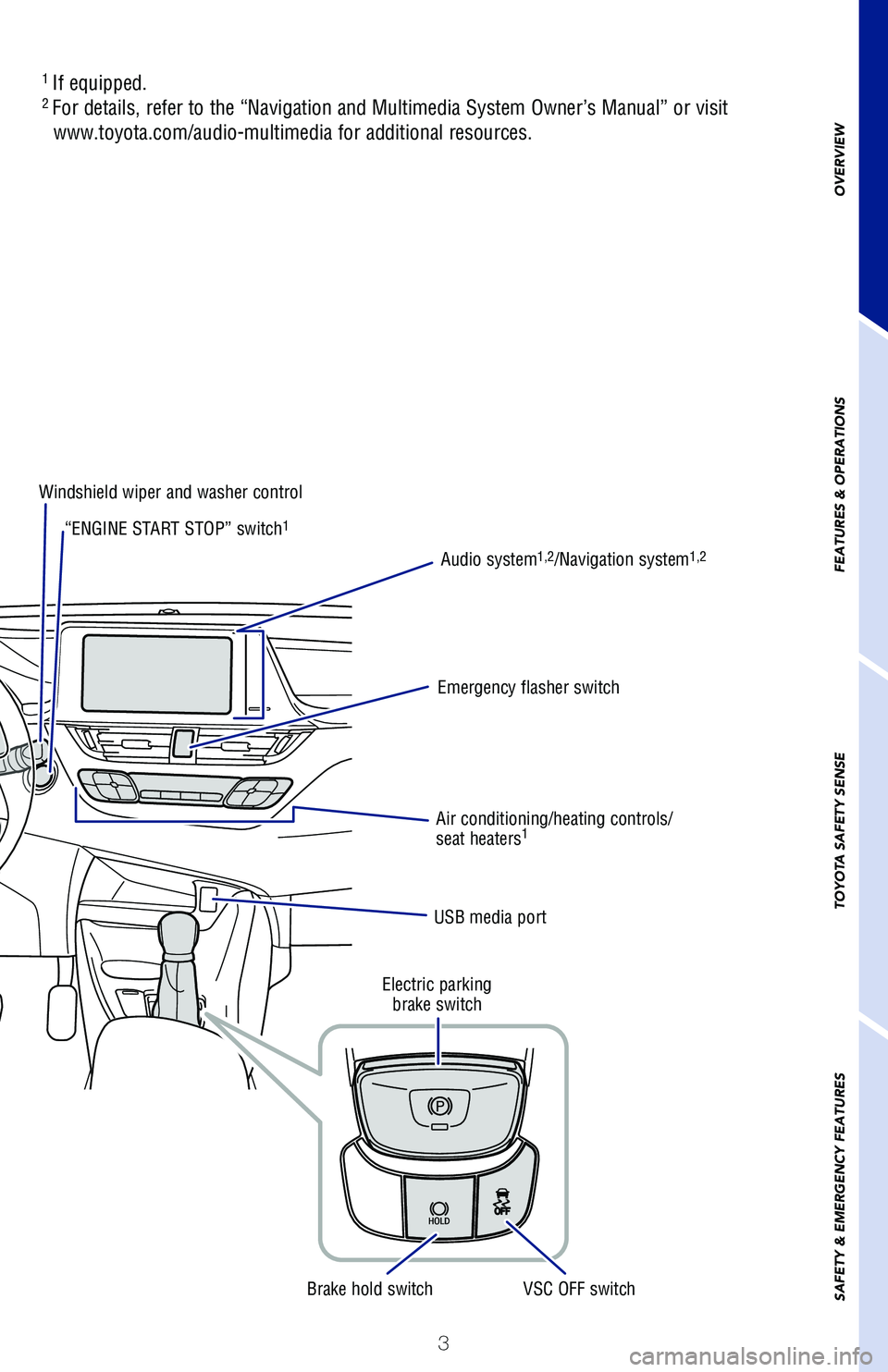

Air conditioning/heating controls/
seat heaters1
USB media port
Windshield wiper and washer control
Emergency flasher switchAudio system
1,2/Navigation system1,2
Electric parking
brake switch
VSC OFF switch
Brake hold switch
“ENGINE START STOP” switch
1
1

If equipped.2 For details, refer to the “Navigation and Multimedia System Owner’s M\
anual” or visit
www.toyota.com/audio-multimedia for additional resources.

4

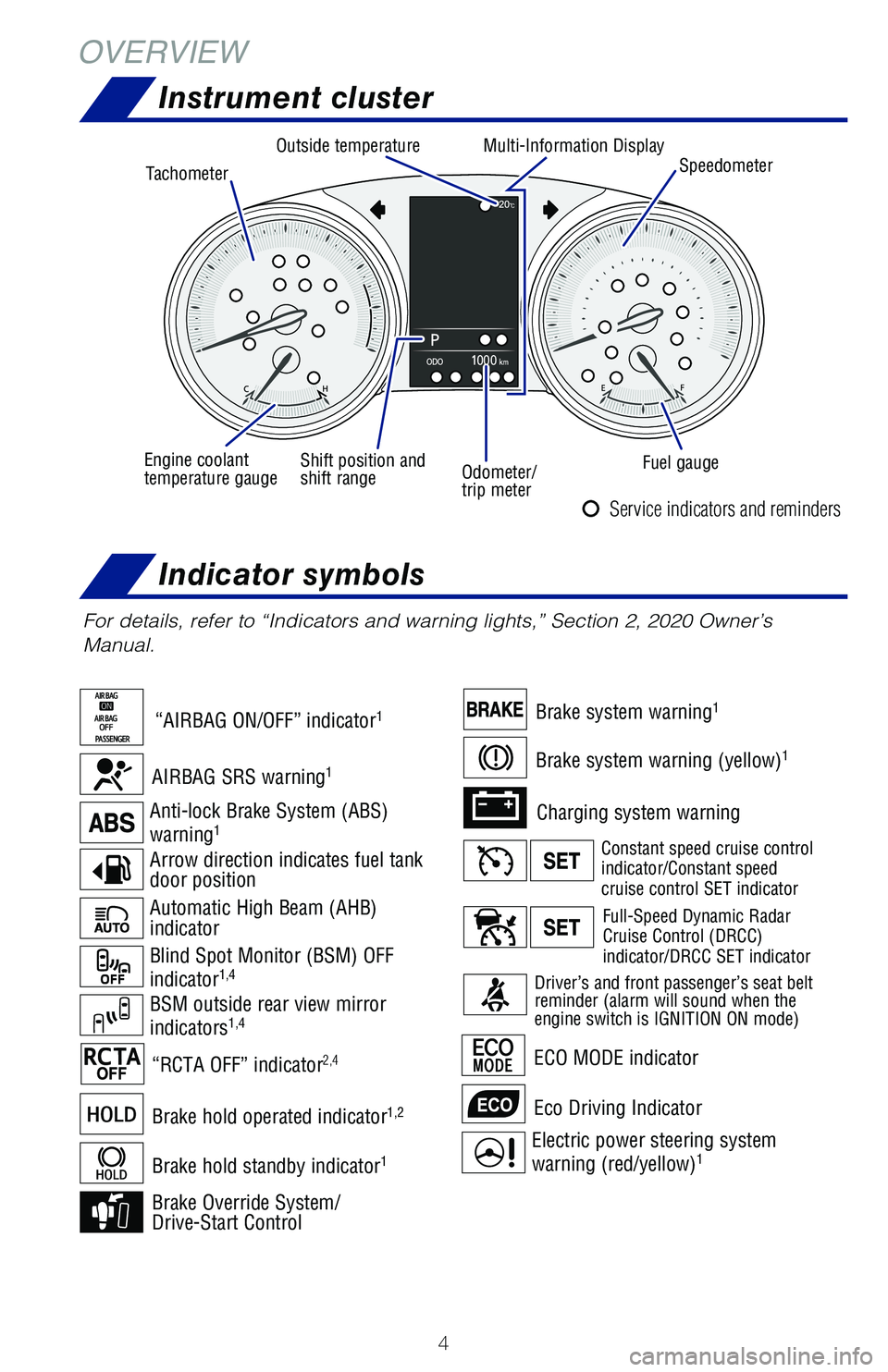

OVERVIEWInstrument cluster
Indicator symbols
For details, refer to “Indicators and warning lights,” Section 2, 202\
0 Owner’s
Manual.
Automatic High Beam (AHB)
indicator
Electric power steering system
warning (red/yellow)1
BSM outside rear view mirror
indicators1,4
Charging system warning
Brake Override System/
Drive-Start Control ECO MODE indicator
Eco Driving Indicator
Arrow direction indicates fuel tank
door position
Anti-lock Brake System (ABS)
warning1
Blind Spot Monitor (BSM) OFF
indicator1,4
Brake system warning1
Brake system warning (yellow)1
Brake hold operated indicator1,2
Brake hold standby indicator1
“AIRBAG ON/OFF” indicator1
AIRBAG SRS warning1
Service indicators and reminders
“RCTA OFF” indicator2,4

Driver’s and front passenger’s seat belt
reminder (alarm will sound when the
engine switch is IGNITION ON mode)
Constant speed cruise control
indicator/Constant speed
cruise control SET indicator
Full-Speed Dynamic Radar
Cruise Control (DRCC)
indicator/DRCC SET indicator
Tachometer Outside temperature
Fuel gauge
Shift position and
shift range
Engine coolant
temperature gauge
Odometer/
trip meterMulti-Information Display
Speedometer

5

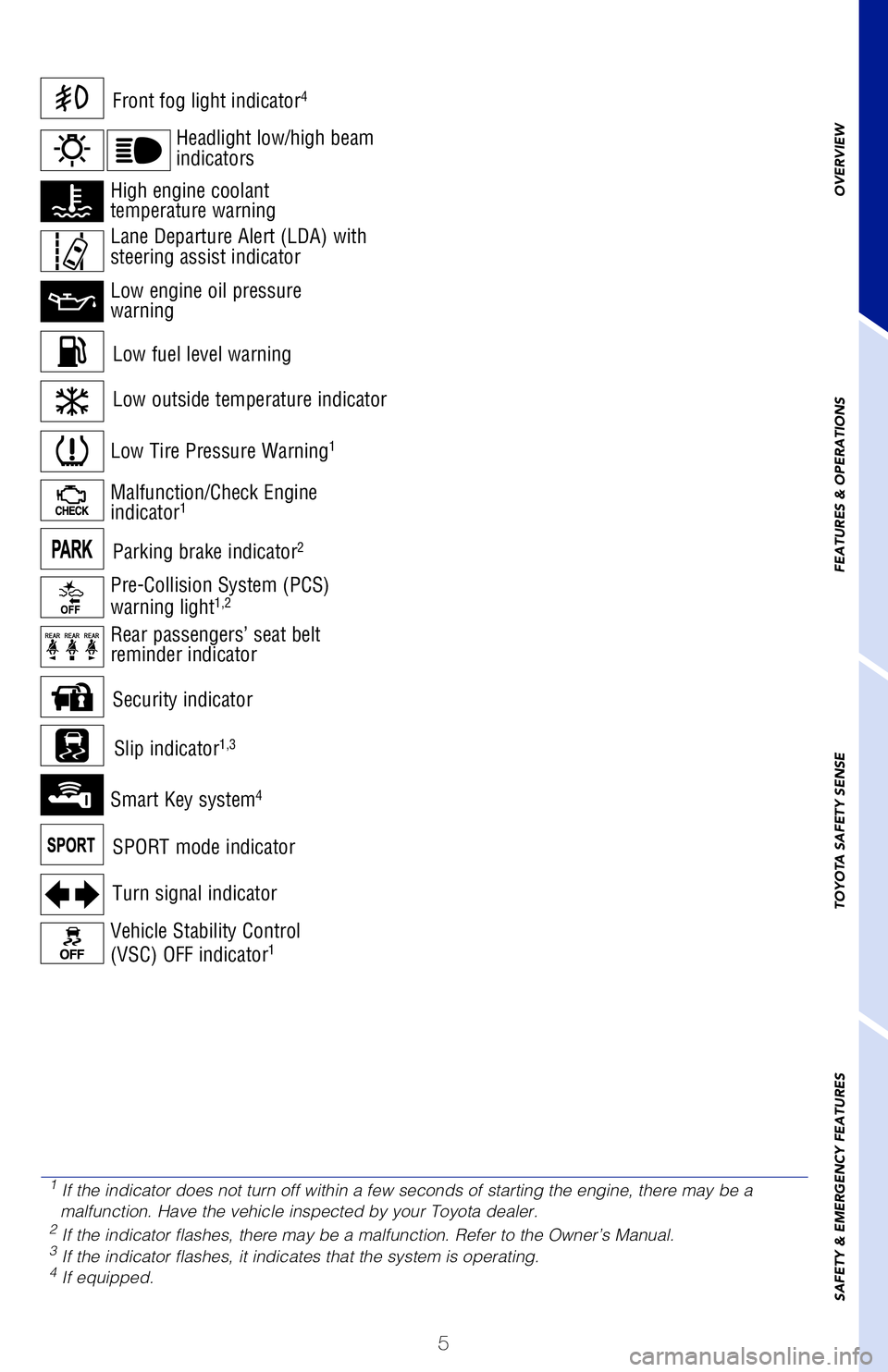

OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Low fuel level warning
Front fog light indicator4
Turn signal indicator
Low Tire Pressure Warning1
Vehicle Stability Control
(VSC) OFF indicator1
Malfunction/Check Engine
indicator1
Low engine oil pressure
warning
High engine coolant
temperature warning
Smart Key system4
ECO MODE indicator
SPORT mode indicator
Parking brake indicator2
Headlight low/high beam
indicators
Pre-Collision System (PCS)
warning light1,2
Rear passengers’ seat belt
reminder indicator Lane Departure Alert (LDA) with
steering assist indicator
Slip indicator1,3
Security indicator
Low outside temperature indicator
1
If the indicator does not turn off within a few seconds of starting the en\
gine, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owne\
r’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 If equipped.

6

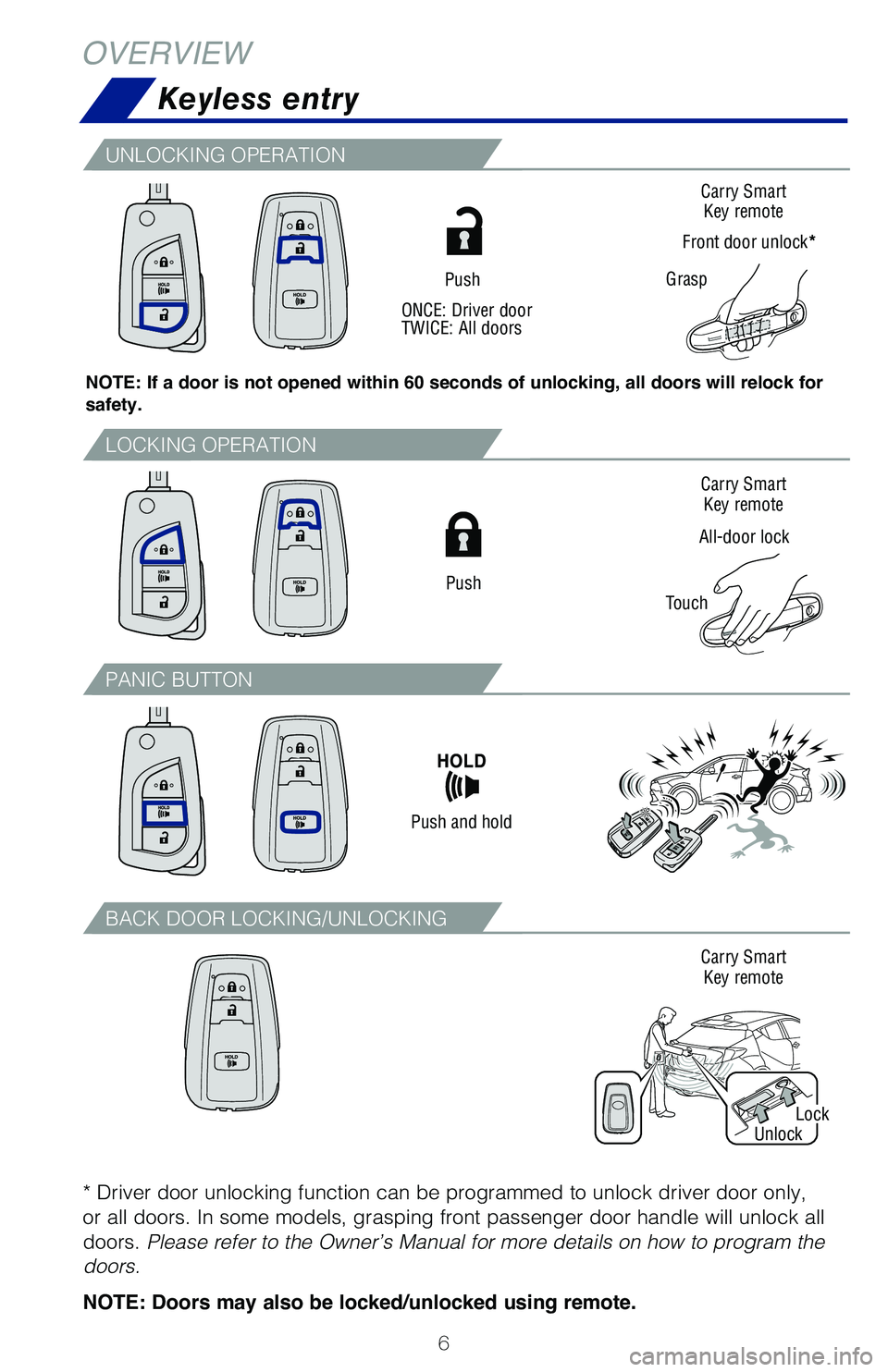

OVERVIEW
Keyless entry
Push
All-door lock
TouchCarry Smart
Key remote
Carry Smart Key remote
Carry Smart Key remote
Grasp
Front door unlock*
Push
Push and hold
ONCE: Driver door
TWICE: All doors
Lock
Unlock
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.
LOCKING OPERATION
PANIC BUTTON
BACK DOOR LOCKING/UNLOCKING
UNLOCKING OPERATION
* Driver door unlocking function can be programmed to unlock driver door \
only,
or all doors. In some models, grasping front passenger door handle will un\
lock all
doors.
Please refer to the Owner’s Manual for more details on how to program the
doors.
NOTE: Doors may also be locked/unlocked using remote.

7
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

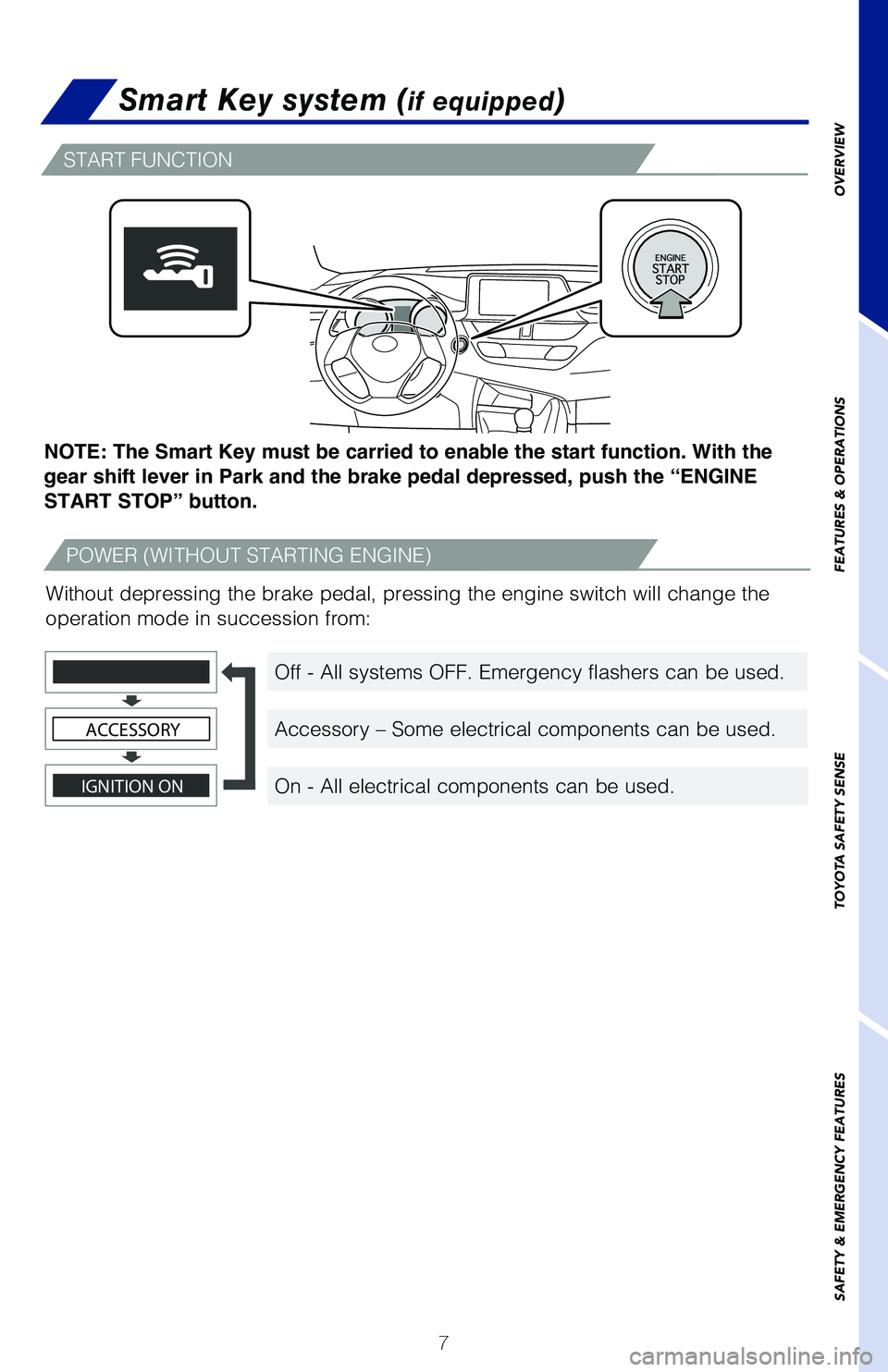

Smart Key system (if equipped)
START FUNCTION
POWER (WITHOUT STARTING ENGINE)
Off - All systems OFF. Emergency flashers can be used.
Accessory – Some electrical components can be used.
On - All electrical components can be used.
NOTE: The Smart Key must be carried to enable the start function. With the
gear shift lever in Park and the brake pedal depressed, push the “ENGINE
START STOP” button.
Without depressing the brake pedal, pressing the engine switch will change the
operation mode in succession from:
IGNITION ON
ACCESSORY

8

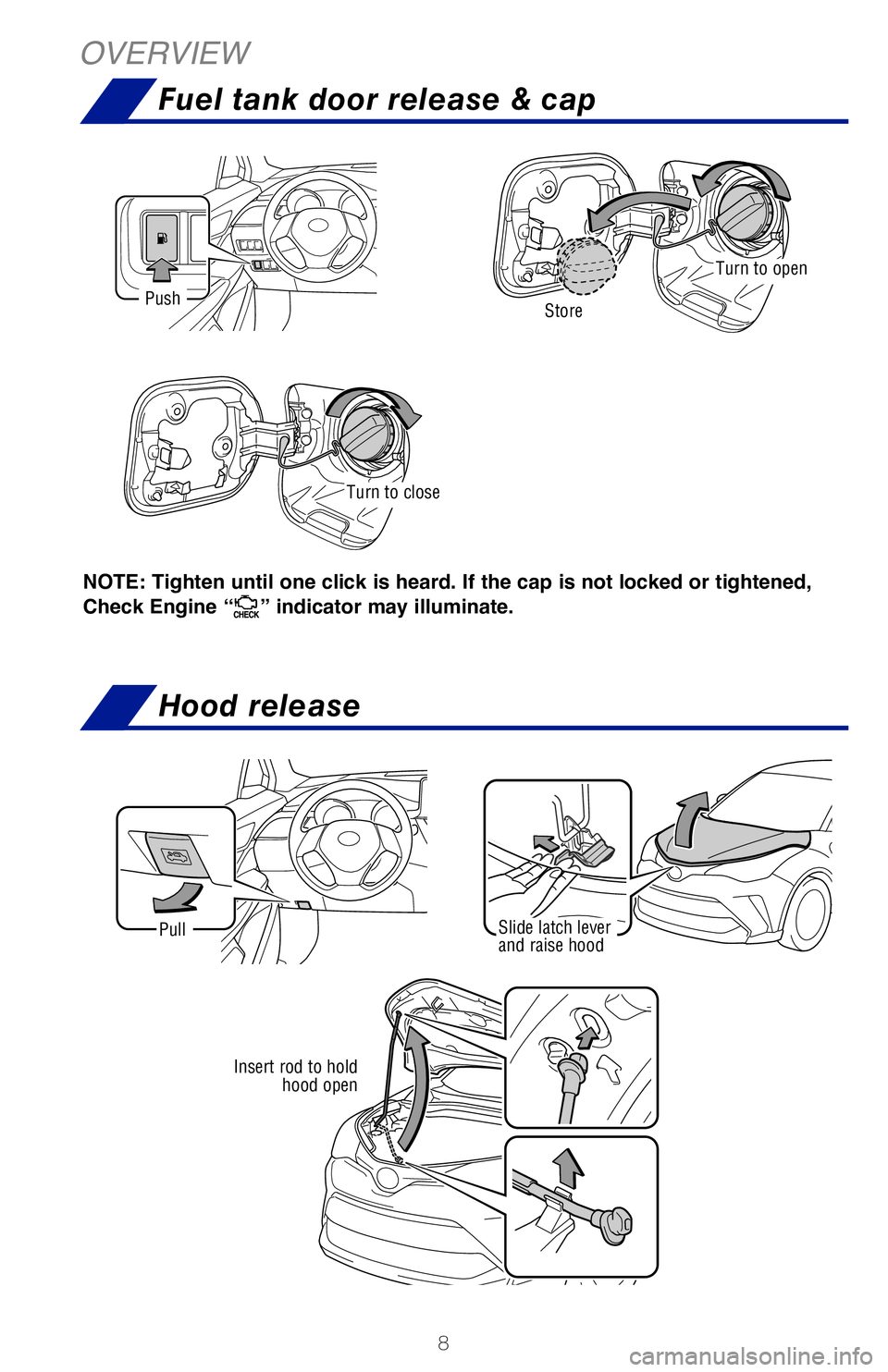

OVERVIEW
Slide latch lever
and raise hoodPull
NOTE: Tighten until one click is heard. If the cap is not locked or tightened,
Check Engine “
” indicator may illuminate.
Push
Turn to open
Turn to closeStore
Insert rod to hold hood open
Fuel tank door release & cap
Hood release
