TOYOTA CAMRY V20 1986 Service Information

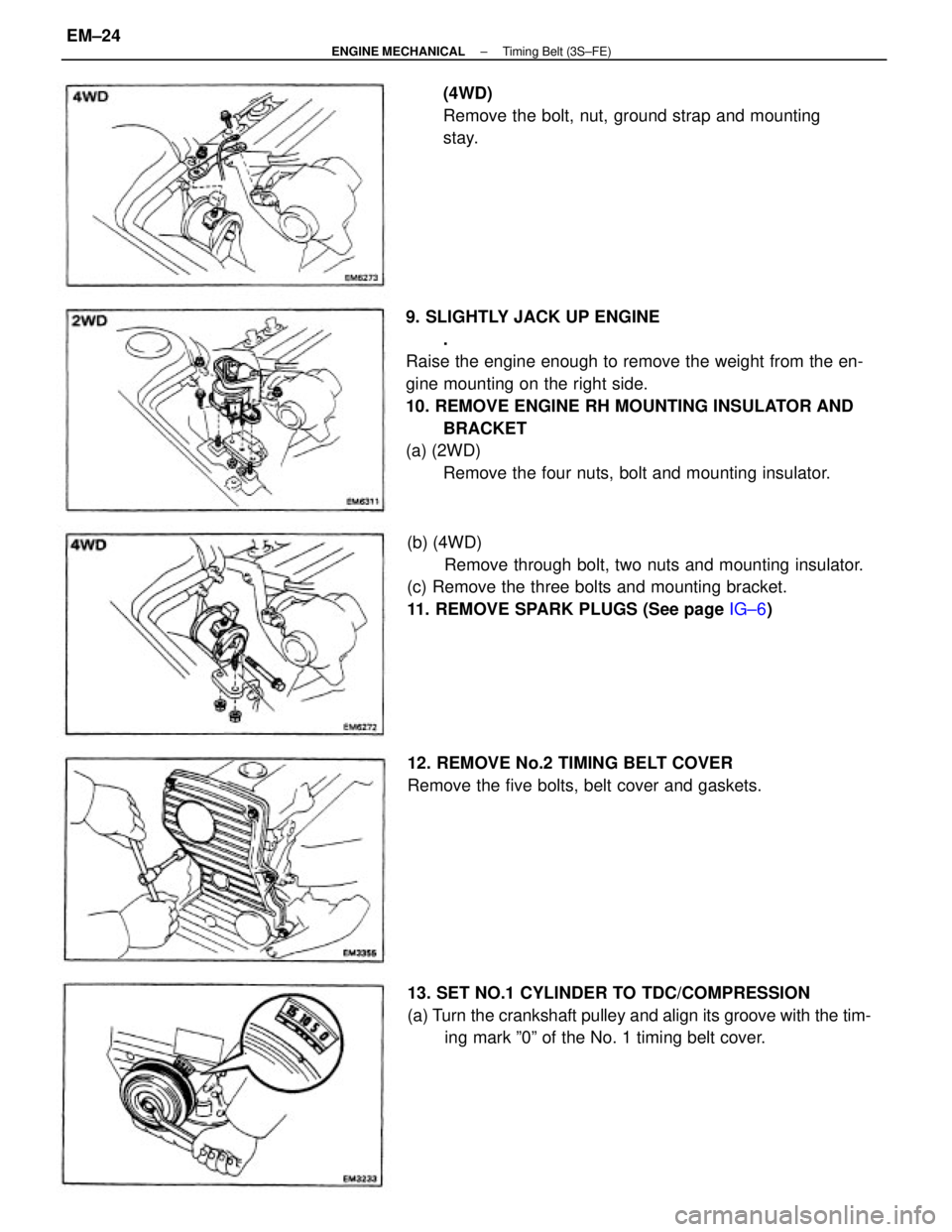

9. SLIGHTLY JACK UP ENGINE
.
Raise the engine enough to remove the weight from the en-
gine mounting on the right side.
10. REMOVE ENGINE RH MOUNTING INSULATOR AND
BRACKET
(a) (2WD)
Remove the four nuts, bolt and mounting insulator.
(b) (4WD)
Remove through bolt, two nuts and mounting insulator.
(c) Remove the three bolts and mounting bracket.
11. REMOVE SPARK PLUGS (See page IG±6)
13. SET NO.1 CYLINDER TO TDC/COMPRESSION
(a) Turn the crankshaft pulley and align its groove with the tim-
ing mark º0º of the No. 1 timing belt cover. (4WD)
Remove the bolt, nut, ground strap and mounting
stay.
12. REMOVE No.2 TIMING BELT COVER
Remove the five bolts, belt cover and gaskets.
± ENGINE MECHANICALTiming Belt (3S±FE)EM±24

(a) Loosen the mount bolt of the No. 1 idler pulley and shift
the pulley toward the left as far as it will go, tempo-
rarily tighten it.
(b) Remove the timing belt from the camshaft tinning
pulley. 14. REMOVE TIMING BELT FROM CAMSHAFT TIMING
PULLEY
HINT: If reusing the timing belt, place the matchmarks on
the timing belt and camshaft timing pulley.
15. REMOVE CAMSHAFT TIMING PULLEY
Using SST, remove the bolt, plate washer and pulley.
SST 09278±54012
16. REMOVE CRANKSHAFT PULLEY
(a) Using SST, remove the pulley mount bolt.

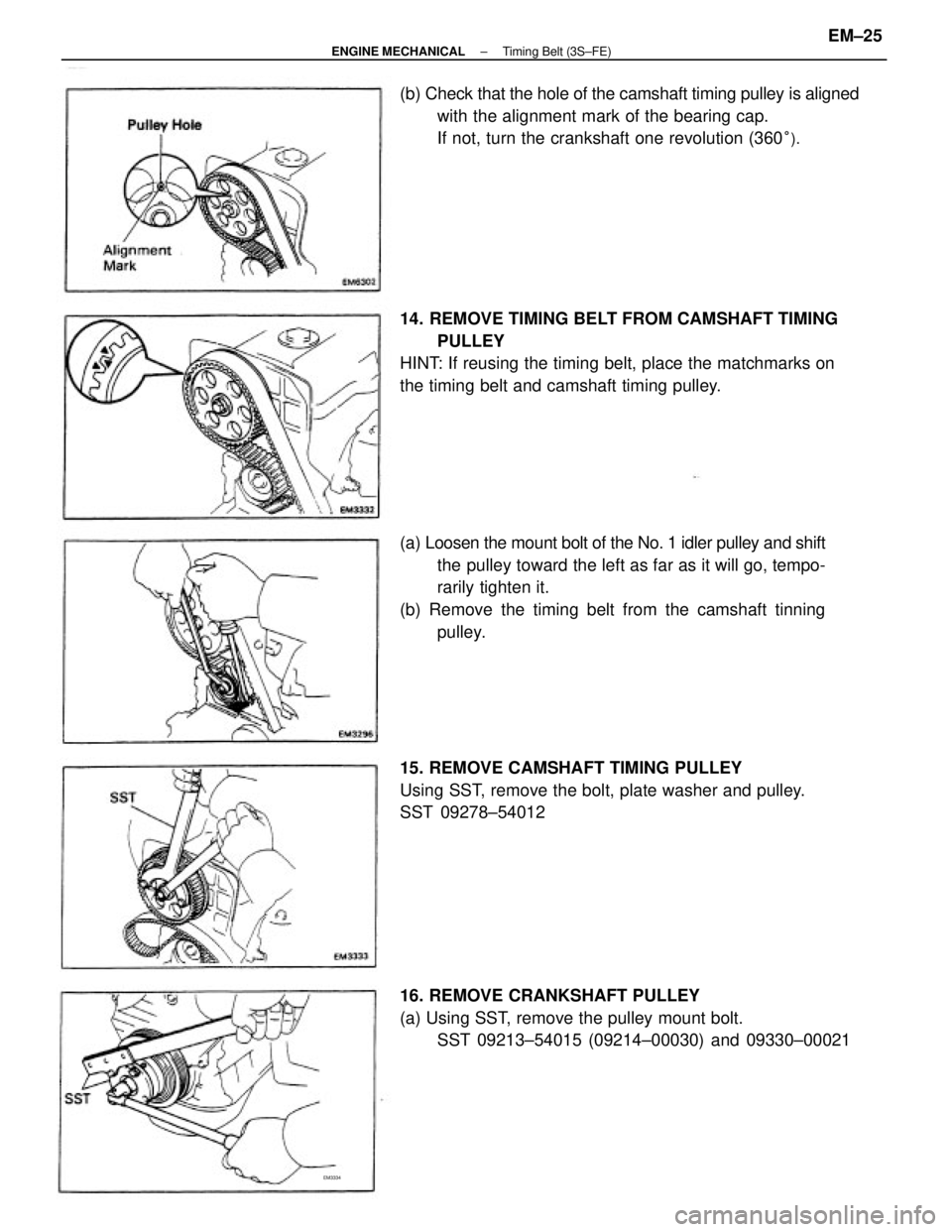

SST 09213±54015 (09214±00030) and 09330±00021 (b) Check that the hole of the camshaft timing pulley is aligned
with the alignment mark of the bearing cap.
If not, turn the crankshaft one revolution (360
°).
EM3334
± ENGINE MECHANICALTiming Belt (3S±FE)EM±25

18. REMOVE TIMING BELT AND BELT GUIDE
HINT: If reusing the tinning belt, draw a direction arrow on
the timing belt (in direction of engine revolution), and place
the matchmarks on the timing belt and crankshaft timing
pulley.
19. REMOVE NO.1 IDLER PULLEY AND TENSION SPRING

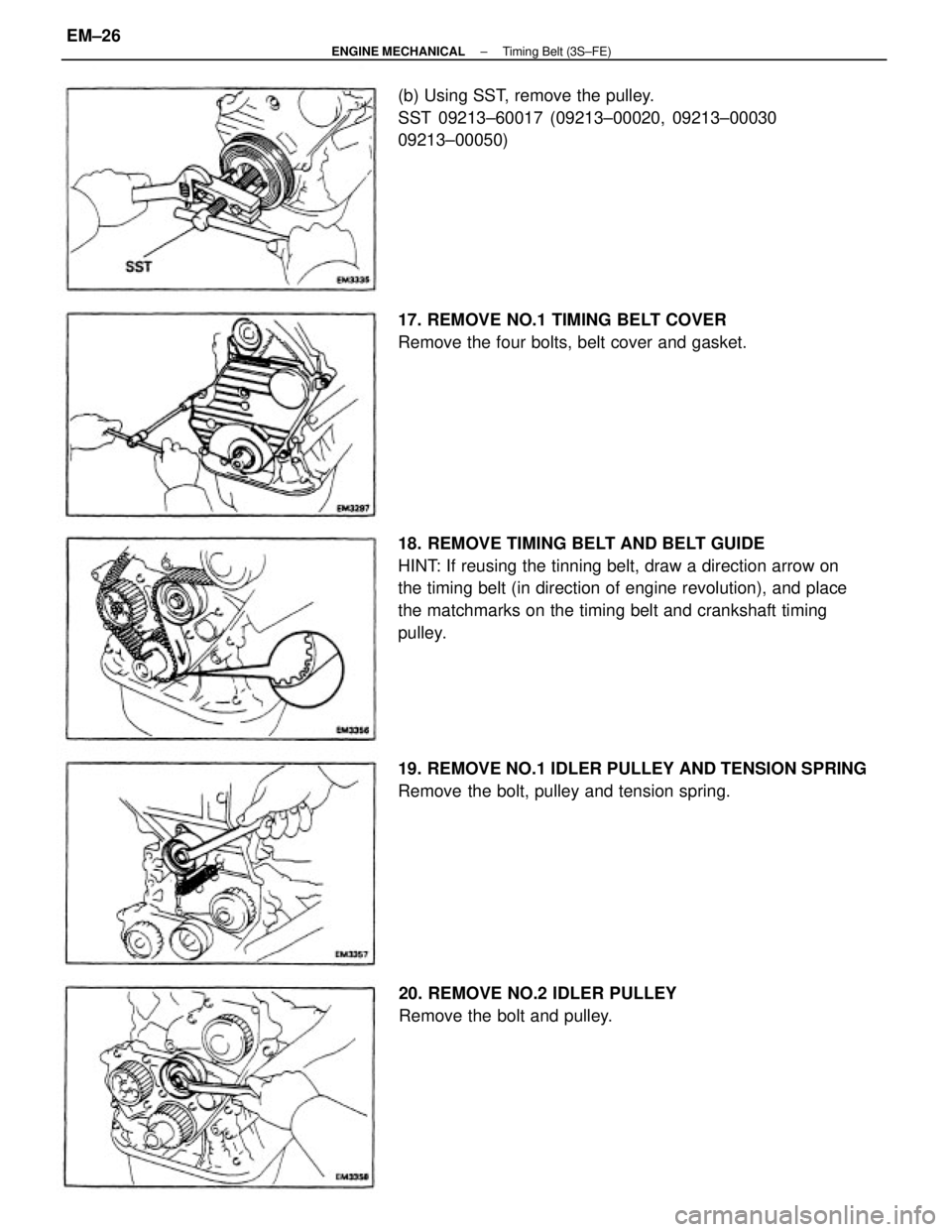

Remove the bolt, pulley and tension spring. (b) Using SST, remove the pulley.
SST 09213±60017 (09213±00020, 09213±00030
09213±00050)
17. REMOVE NO.1 TIMING BELT COVER
Remove the four bolts, belt cover and gasket.
20. REMOVE NO.2 IDLER PULLEY
Remove the bolt and pulley.
± ENGINE MECHANICALTiming Belt (3S±FE)EM±26

INSPECTION OF TIMING BELT COMPONENTS
1. INSPECT TIMING BELT
NOTICE:
wDo not bend, twist or turn the timing belt inside out.
wDo not allow the timing belt to come into contact with
oil, water or steam.
wDo not utilize timing belt tension when installing or
removing the mount bolt of the camshaft timing pulley.
If there are any defects as shown in the figures, check
the following points:
(a) Premature parting
wCheck for proper installation.
wCheck the timing cover gasket for damage and proper

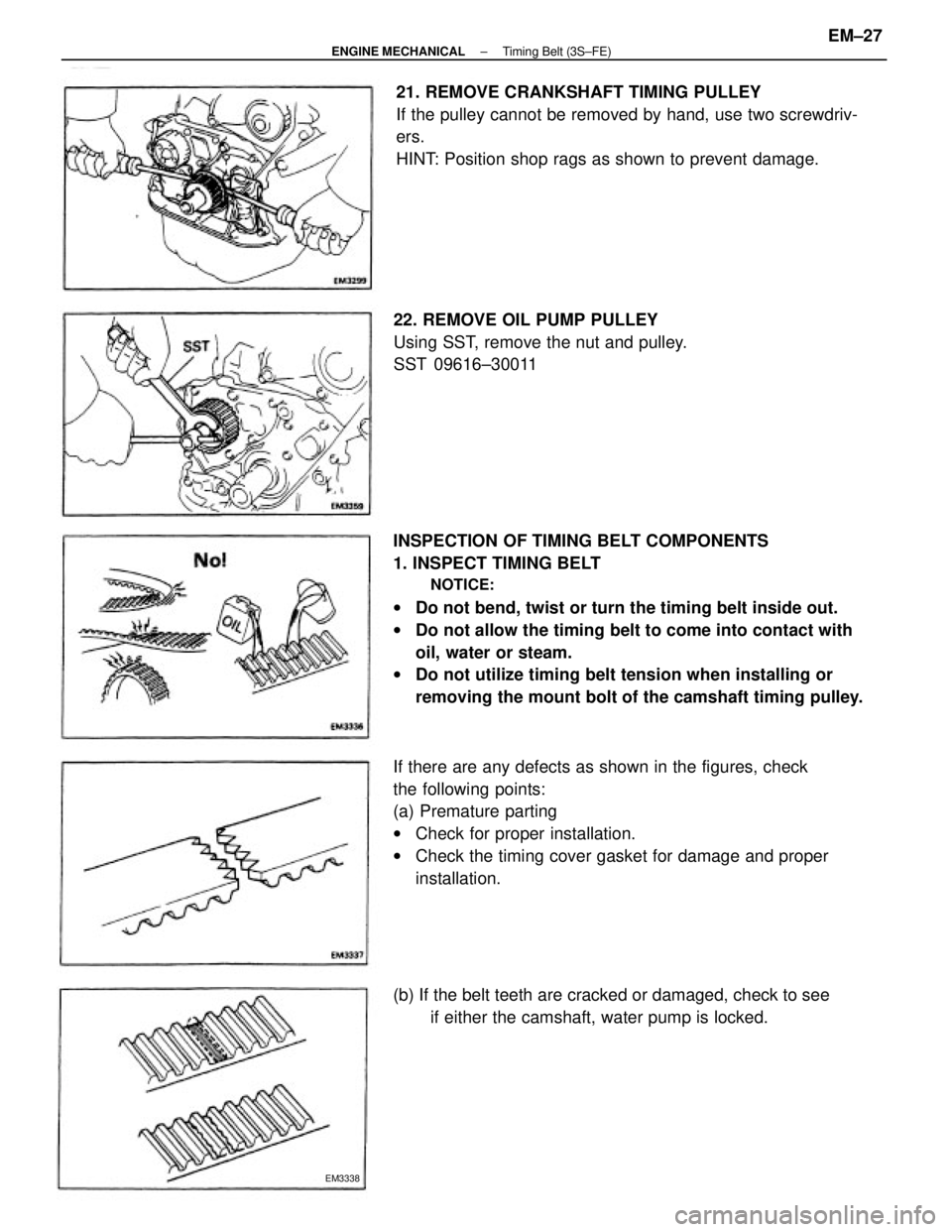

installation. 21. REMOVE CRANKSHAFT TIMING PULLEY
If the pulley cannot be removed by hand, use two screwdriv-
ers.
HINT: Position shop rags as shown to prevent damage.
22. REMOVE OIL PUMP PULLEY
Using SST, remove the nut and pulley.
SST 09616±30011
(b) If the belt teeth are cracked or damaged, check to see
if either the camshaft, water pump is locked.
EM3338
± ENGINE MECHANICALTiming Belt (3S±FE)EM±27

3. INSPECT TENSION SPRING
(a) Measure the free length of tension spring.
Free length: 46.1 mm (1.815 in.)
If the free length is not as specified, replace the tension spring.
(b) Measure the tension of the tension spring at the specified
installed length.
Installed tension:
6.0 ± 7.0 kg (13.2 ± 15.4 Ib, 59 ± 69 N±m)
at 50.5 mm (1.988 in.)
If the installed tension is not as specified, replace the ten-
sion spring. (e) If there is noticeable wear on the belt teeth, check tim-
ing cover for damage and check for correct gasket
installation. Check for foreign material on the pulley
teeth.

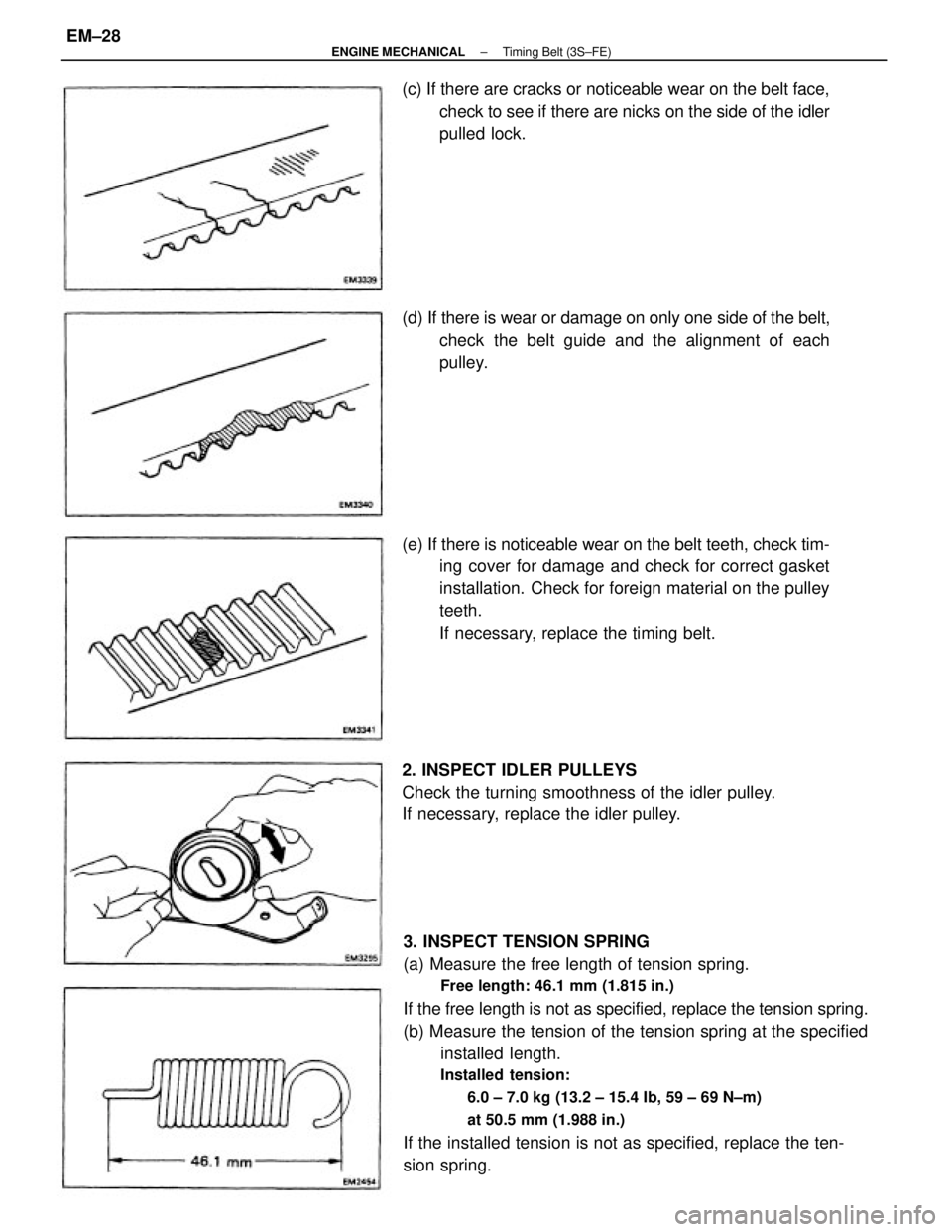

If necessary, replace the timing belt. (c) If there are cracks or noticeable wear on the belt face,
check to see if there are nicks on the side of the idler
pulled lock.
2. INSPECT IDLER PULLEYS
Check the turning smoothness of the idler pulley.
If necessary, replace the idler pulley. (d) If there is wear or damage on only one side of the belt,
check the belt guide and the alignment of each
pulley.
± ENGINE MECHANICALTiming Belt (3S±FE)EM±28

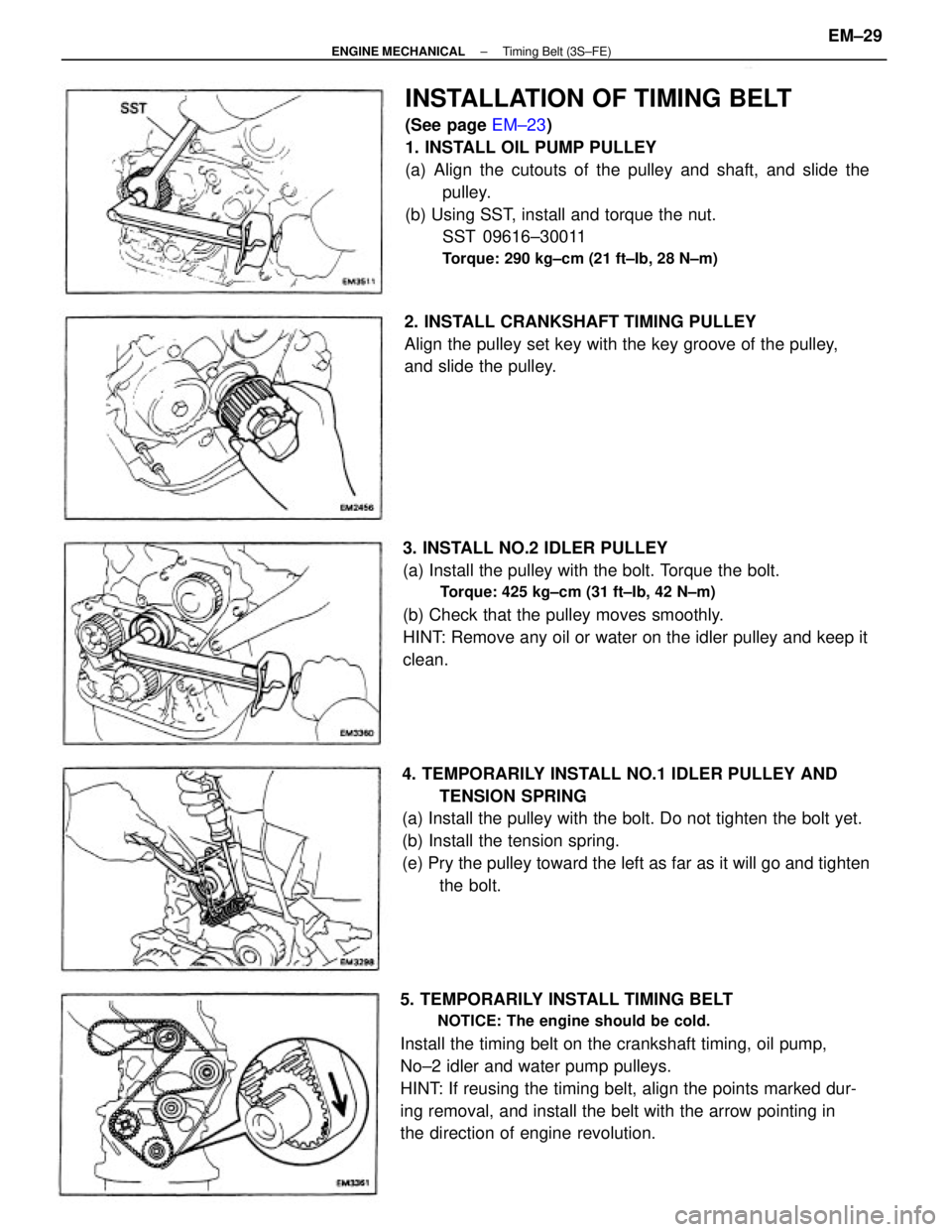

INSTALLATION OF TIMING BELT
(See page EM±23)
1. INSTALL OIL PUMP PULLEY
(a) Align the cutouts of the pulley and shaft, and slide the
pulley.
(b) Using SST, install and torque the nut.
SST 09616±30011
Torque: 290 kg±cm (21 ft±Ib, 28 N±m)
4. TEMPORARILY INSTALL NO.1 IDLER PULLEY AND
TENSION SPRING
(a) Install the pulley with the bolt. Do not tighten the bolt yet.
(b) Install the tension spring.
(e) Pry the pulley toward the left as far as it will go and tighten
the bolt.
5. TEMPORARILY INSTALL TIMING BELT
NOTICE: The engine should be cold.
Install the timing belt on the crankshaft timing, oil pump,
No±2 idler and water pump pulleys.
HINT: If reusing the timing belt, align the points marked dur-
ing removal, and install the belt with the arrow pointing in
the direction of engine revolution.3. INSTALL NO.2 IDLER PULLEY
(a) Install the pulley with the bolt. Torque the bolt.
Torque: 425 kg±cm (31 ft±Ib, 42 N±m)
(b) Check that the pulley moves smoothly.
HINT: Remove any oil or water on the idler pulley and keep it
clean.2. INSTALL CRANKSHAFT TIMING PULLEY
Align the pulley set key with the key groove of the pulley,
and slide the pulley.
± ENGINE MECHANICALTiming Belt (3S±FE)EM±29

9. INSTALL CAMSHAFT TIMING PULLEY
(a) Align the camshaft knock pin with the knock pin groove
of the pulley, and slide the pulley.
(b) Using SST, install the plate washer and bolt.
Torque the bolt.
SST 09278±54012
Torque: 550 kg±cm (40 ft±Ib, 54 N±m)
8. INSTALL CRANKSHAFT PULLEY
(a) Align the pulley set key with the key groove of the pulley, slide
the pulley.
(b) using SST, install and torque the bolt.
SST 09213±54015 (09213±00030) and 09330± 21
Torque: 1,100 kg±cm (80 ft±Ib, 108 N±m)
10. SET NO.1 CYLINDER .TO TDC/COMPRESSION
(a) Turn the crankshaft pulley, and align the its groove with
the º0º timing mark of the No. 1 timing belt cover. 6. INSTALL TIMING BELT GUIDE
Install the guide, facing the cup side outward.
7. INSTALL NO.1 TIMING BELT COVER
(a) Install the gasket to the belt cover.
(b) Install the belt cover with the four bolts.
± ENGINE MECHANICALTiming Belt (3S±FE)EM±30

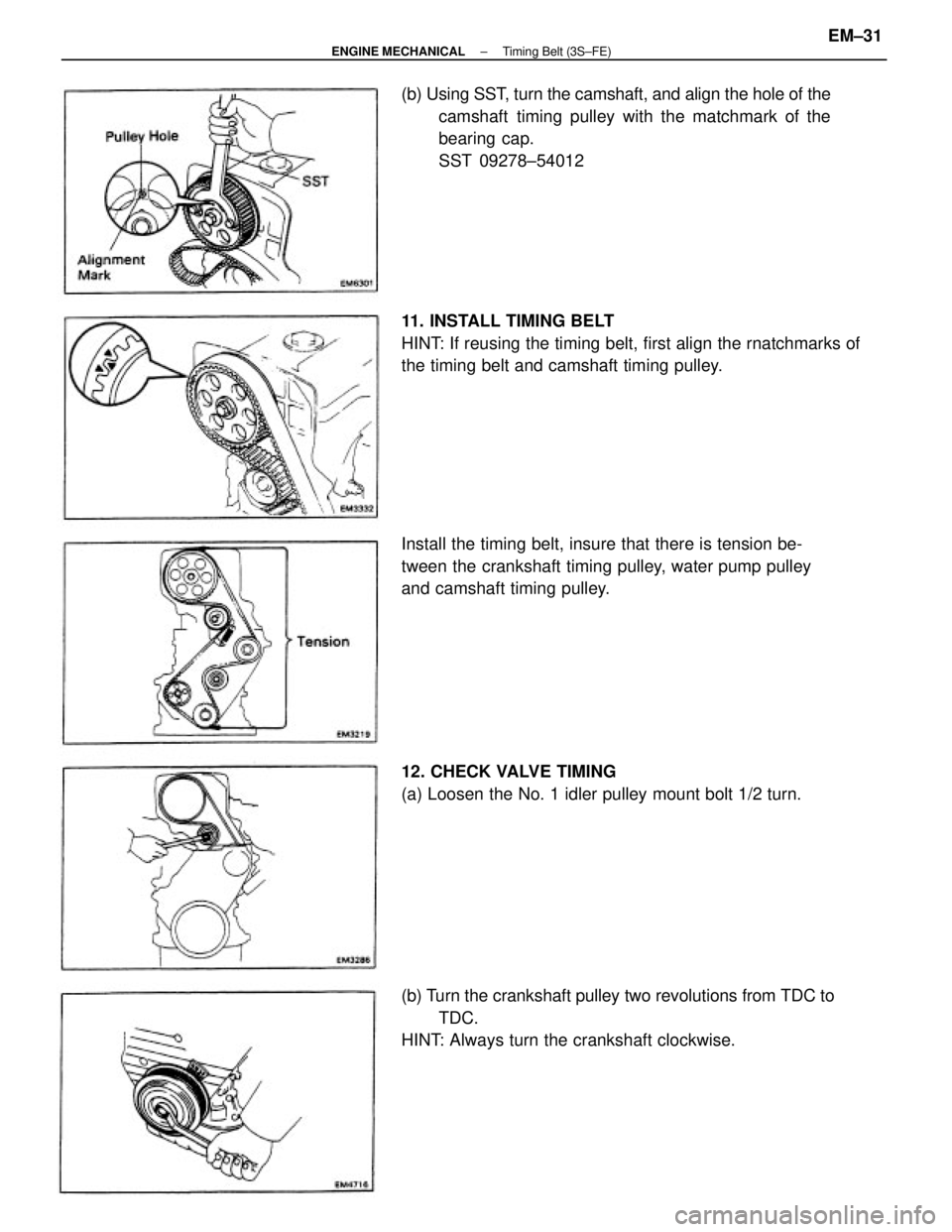

(b) Using SST, turn the camshaft, and align the hole of the
camshaft timing pulley with the matchmark of the
bearing cap.
SST 09278±54012
11. INSTALL TIMING BELT
HINT: If reusing the timing belt, first align the rnatchmarks of
the timing belt and camshaft timing pulley.
(b) Turn the crankshaft pulley two revolutions from TDC to
TDC.
HINT: Always turn the crankshaft clockwise. Install the timing belt, insure that there is tension be-
tween the crankshaft timing pulley, water pump pulley
and camshaft timing pulley.
12. CHECK VALVE TIMING
(a) Loosen the No. 1 idler pulley mount bolt 1/2 turn.
± ENGINE MECHANICALTiming Belt (3S±FE)EM±31

(b) (2WD)
Install the mounting insulator to the mounting bracket
and body, and temporarily install the mounting insula-
tor bolt, four nuts and mounting stay bolt (A). Torque
the mounting insulator bolt and four nuts. Do not
torque the mounting stay bolt (A) yet.
Torque:
Bolt 650 kg±cm (47 ft±lb, 64 N±m)
Nut To bracket 530 kg±cm (38 ft±lb, 52 N±m)
To body 900 kg±cm (65 ft±11b, 88 N±m)
14. INSTALL SPARK PLUGS (See page IG±7)
Torque: 180 kg±cm (13 ft±lb, 18 N±m)
15. INSTALL ENGINE RH MOUNTING INSULATOR AND
BRACKET
(a) Install the bracket with the three bolts. Torque the bolts.
Torque: 530 kg±cm (38 ft±ib, 52 N±m)
13. INSTALL NO±2 TIMING BELT COVER
(a) Install the two gaskets to the No. 1 and No.2 belt covers.

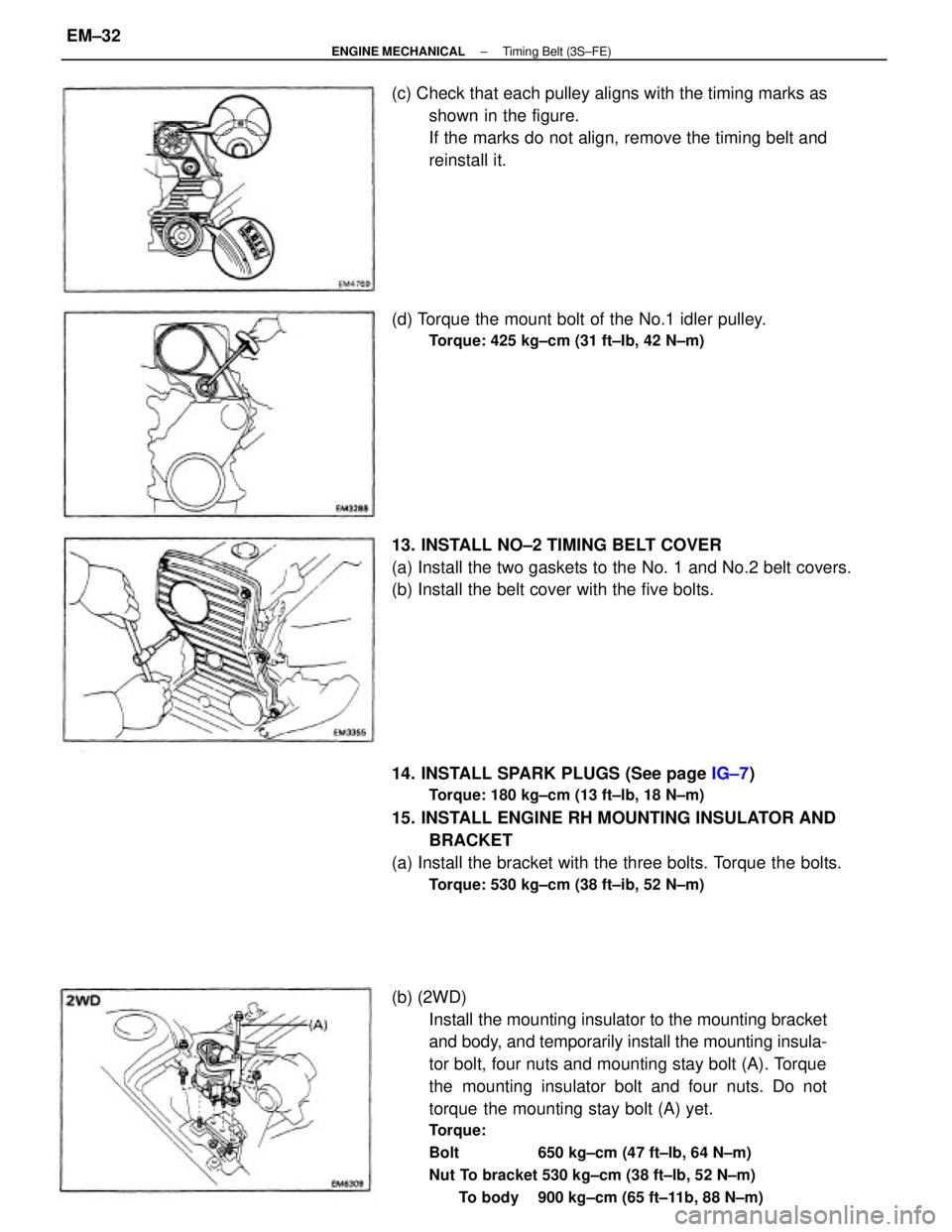

(b) Install the belt cover with the five bolts. (c) Check that each pulley aligns with the timing marks as
shown in the figure.
If the marks do not align, remove the timing belt and
reinstall it.
(d) Torque the mount bolt of the No.1 idler pulley.
Torque: 425 kg±cm (31 ft±Ib, 42 N±m)
± ENGINE MECHANICALTiming Belt (3S±FE)EM±32

(4WD)
Install the mounting stay and ground strap with the bolt and
nut. Torque the bolt and nut.
Torque: 740 kg±cm (54 ft±Ib, 73 N±m)
18. INSTALL ALTERNATOR BRACKET
Torque: 425 kg±cm (31 ft±Ib, 42 N±m)
19. INSTALL ALTERNATOR (See page CH±14)
20. INSTALL DRIVE BELTS
Adjust the drive belts. (See page CH±3)
Drive belt tension:
Alternator w/ A/C . New belt 175 + 5 lb
Used belt 130 + 10 Ib
w/o, A/C New belt 125 + 25 Ib
Used belt 9 5 + 20 Ib
PS pump New belt 125 + 10 lb
Used belt 80 + 20 Ib
21. INSTALL CRUISE CONTROL ACTUATOR
(See step 26 on page EM±137)
22. INSTALL ENGINE RH UNDER COVER
23. INSTALL RH FRONT WHEEL
24. CONNECT CABLE TO NEGATIVE TERMINAL OF

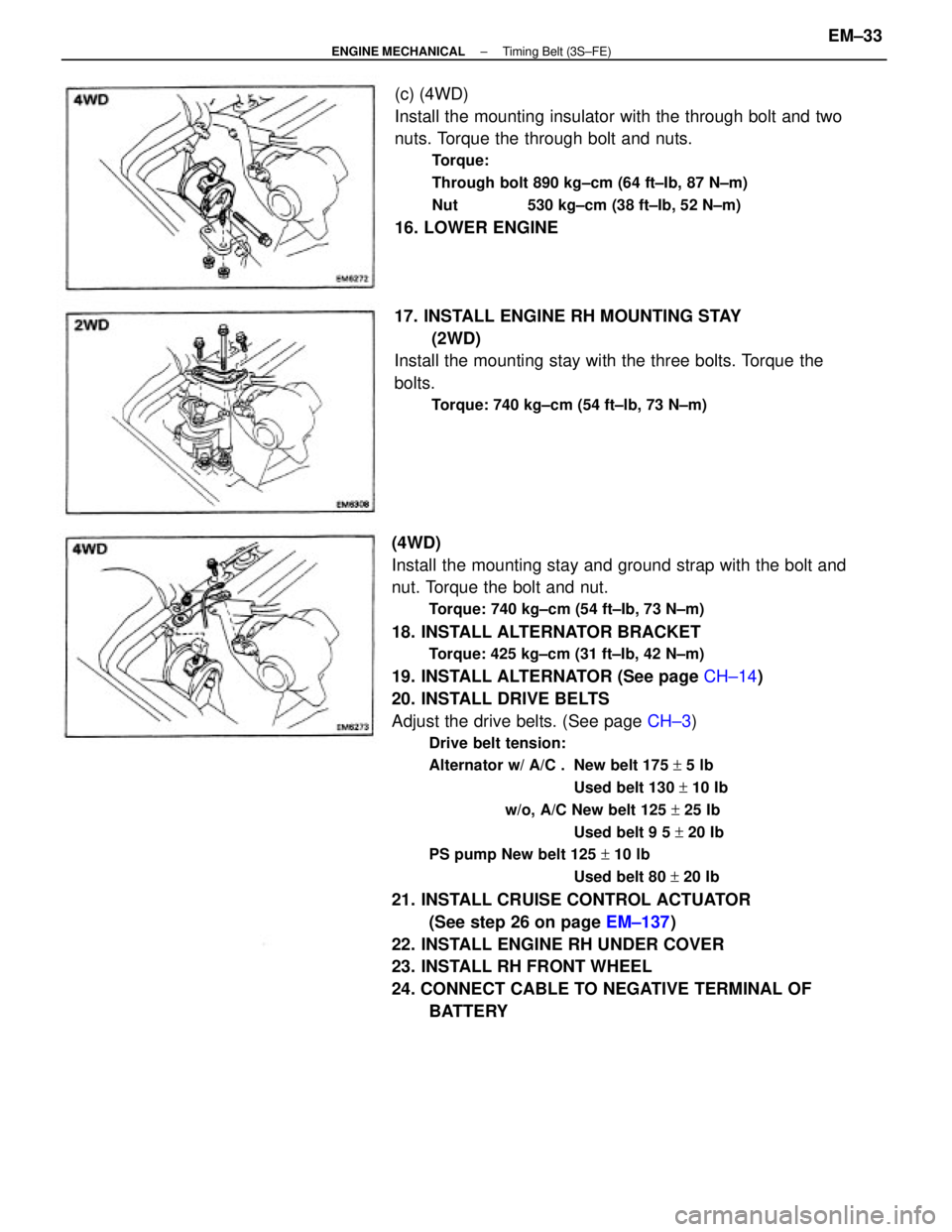

BATTERY (c) (4WD)
Install the mounting insulator with the through bolt and two
nuts. Torque the through bolt and nuts.
Torque:
Through bolt 890 kg±cm (64 ft±Ib, 87 N±m)
Nut 530 kg±cm (38 ft±Ib, 52 N±m)
16. LOWER ENGINE
17. INSTALL ENGINE RH MOUNTING STAY
(2WD)
Install the mounting stay with the three bolts. Torque the
bolts.
Torque: 740 kg±cm (54 ft±lb, 73 N±m)
± ENGINE MECHANICALTiming Belt (3S±FE)EM±33
