Page 221 of 2389

TOYOTA CAMRY V20 1986  Service Information HINT:
wºNew beltº refer to a belt which has been used less
than
5 minutes on a running engine.
wºUsed beltº refer to a belt which has been used on a
running engine for 5 minutes or more.
wAfter in

Page 222 of 2389

TOYOTA CAMRY V20 1986  Service Information 8.  CHECK CONDENSER FAN MOTOR ROTATES
9.  CHECK AMOUNT OF REFRIGERANT
If you can see bubbles in the sight glass, additional refrig-
erant is needed.
(See page AC±22)
10.  IF NO COOLING OR IT IS INSUF

Page 223 of 2389

TOYOTA CAMRY V20 1986  Service Information 8.  CHECK CONDENSER FAN MOTOR ROTATES
9.  CHECK AMOUNT OF REFRIGERANT
If you can see bubbles in the sight glass, additional refrig-
erant is needed.
(See page AC±22)
10.  IF NO COOLING OR IT IS INSUF

Page 224 of 2389

TOYOTA CAMRY V20 1986  Service Information COMPRESSOR
ON±VEHICLE INSPECTION
1.  INSTALL MANIFOLD GAUGE SET
(See page AC±23)
2.  RUN ENGINE AT APPROX. 1,500 RPM
3.  CHECK COMPRESSOR FOR FOLLOWING:
(1)  High pressure gauge reading is not lower

Page 225 of 2389

TOYOTA CAMRY V20 1986  Service Information COMPRESSOR
ON±VEHICLE INSPECTION
1.  INSTALL MANIFOLD GAUGE SET
(See page AC±23)
2.  RUN ENGINE AT APPROX. 1,500 RPM
3.  CHECK COMPRESSOR FOR FOLLOWING:
(1)  High pressure gauge reading is not lower

Page 226 of 2389

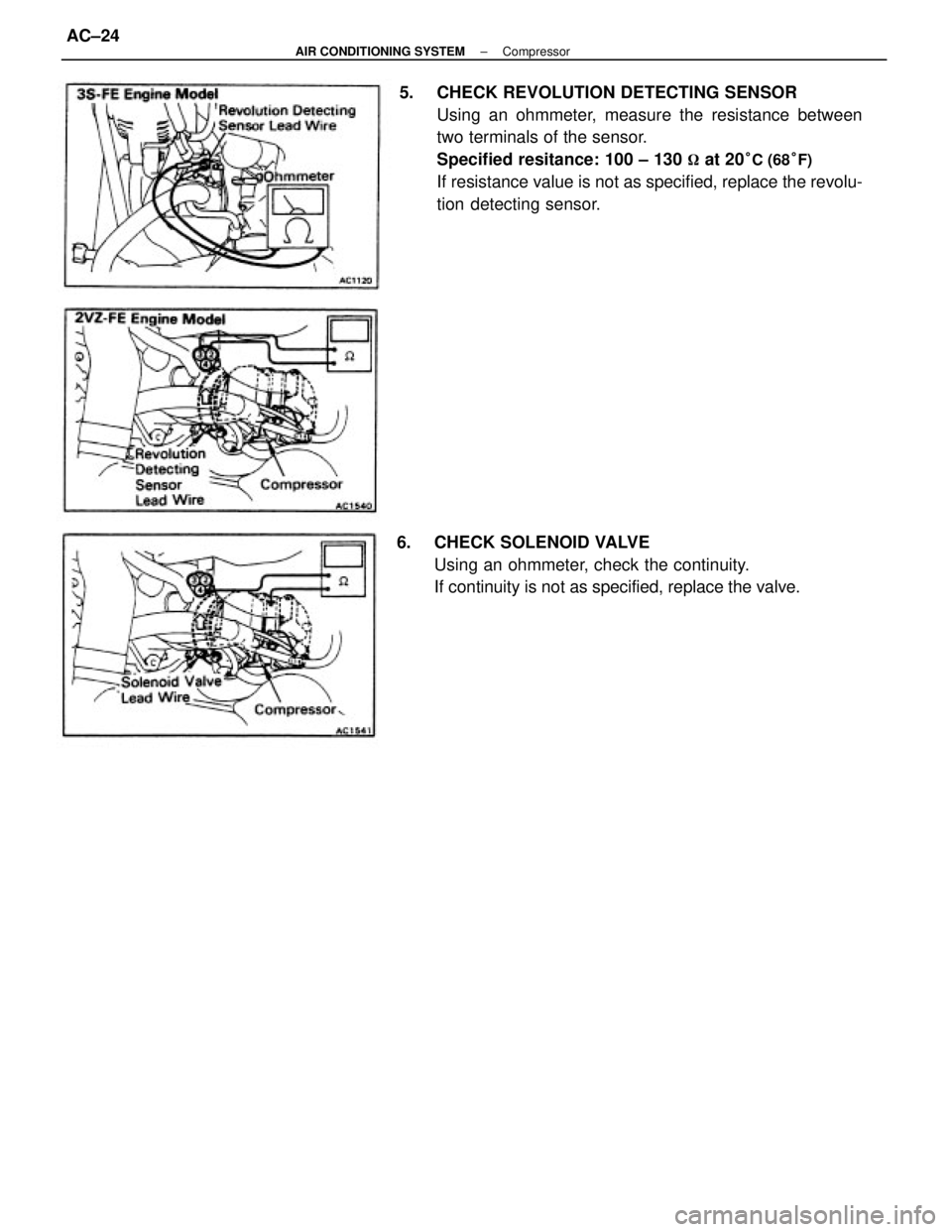

TOYOTA CAMRY V20 1986  Service Information 5.  CHECK REVOLUTION DETECTING SENSOR
Using an ohmmeter, measure the resistance between
two terminals of the sensor.
Specified resitance: 100 ± 130
 at 20°C (68°F)
If resistance value is not as s

Page 227 of 2389

TOYOTA CAMRY V20 1986  Service Information REMOVAL OF COMPRESSOR
3S±FE Engine Model
± AIR CONDITIONING SYSTEMCompressorAC±25

Page 228 of 2389

TOYOTA CAMRY V20 1986  Service Information 1.  RUN± ENGINE AT IDLE SPEED WITH AIR
CONDITIONING ON FOR 10 MINUTES
2. STOP ENGINE
3.  DISCONNECT NEGATIVE CABLE FROM BATTERY
4. REMOVE BATTERY
5. (2VZ±FE ENGINE)
REMOVE IGNITOR BRACKET, RADIATOR

Page 229 of 2389

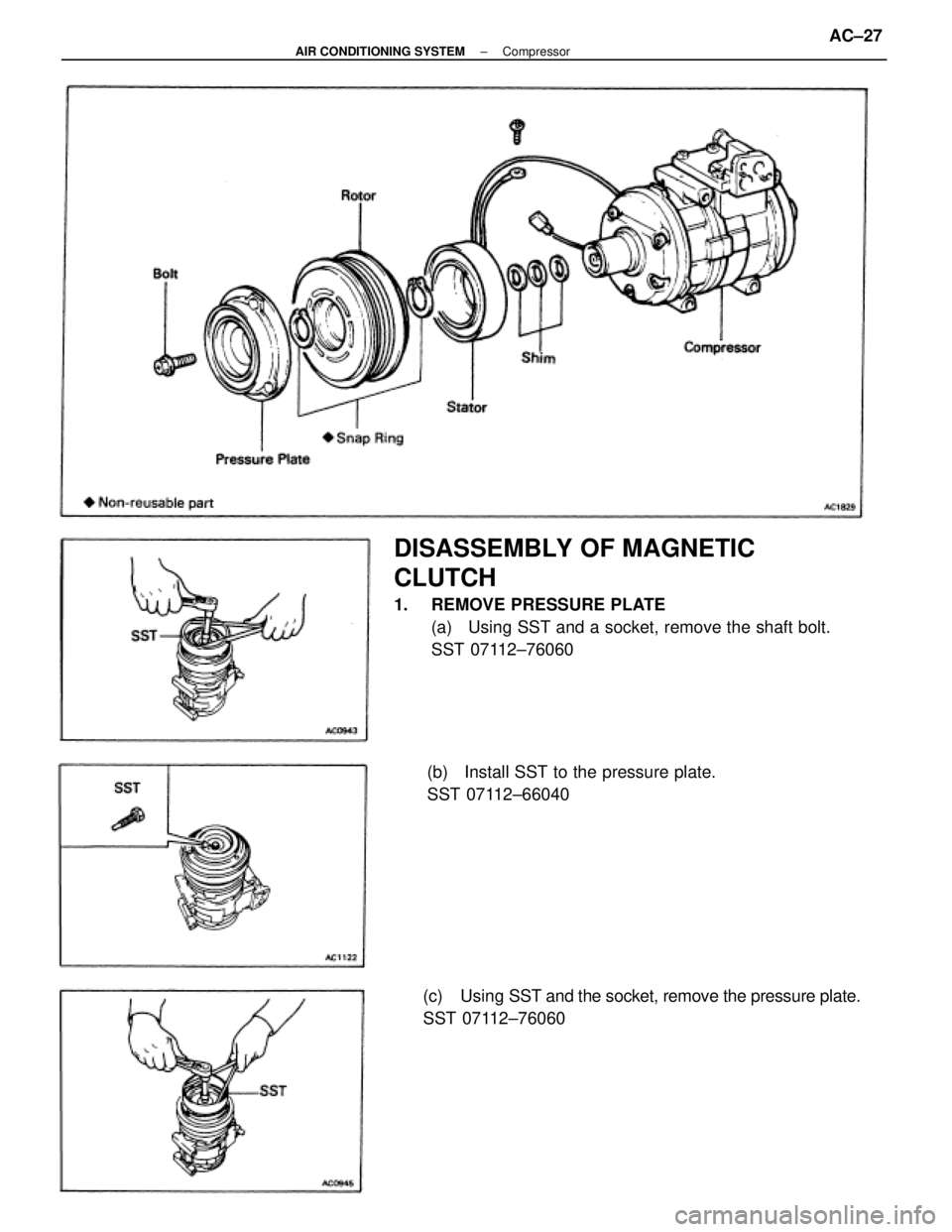

TOYOTA CAMRY V20 1986  Service Information DISASSEMBLY OF MAGNETIC
CLUTCH
1.  REMOVE PRESSURE PLATE
(a)  Using SST and a socket, remove the shaft bolt.
SST 07112±76060
(c) Using SST and the socket, remove the pressure plate.
SST 07112±76060(

Page 230 of 2389

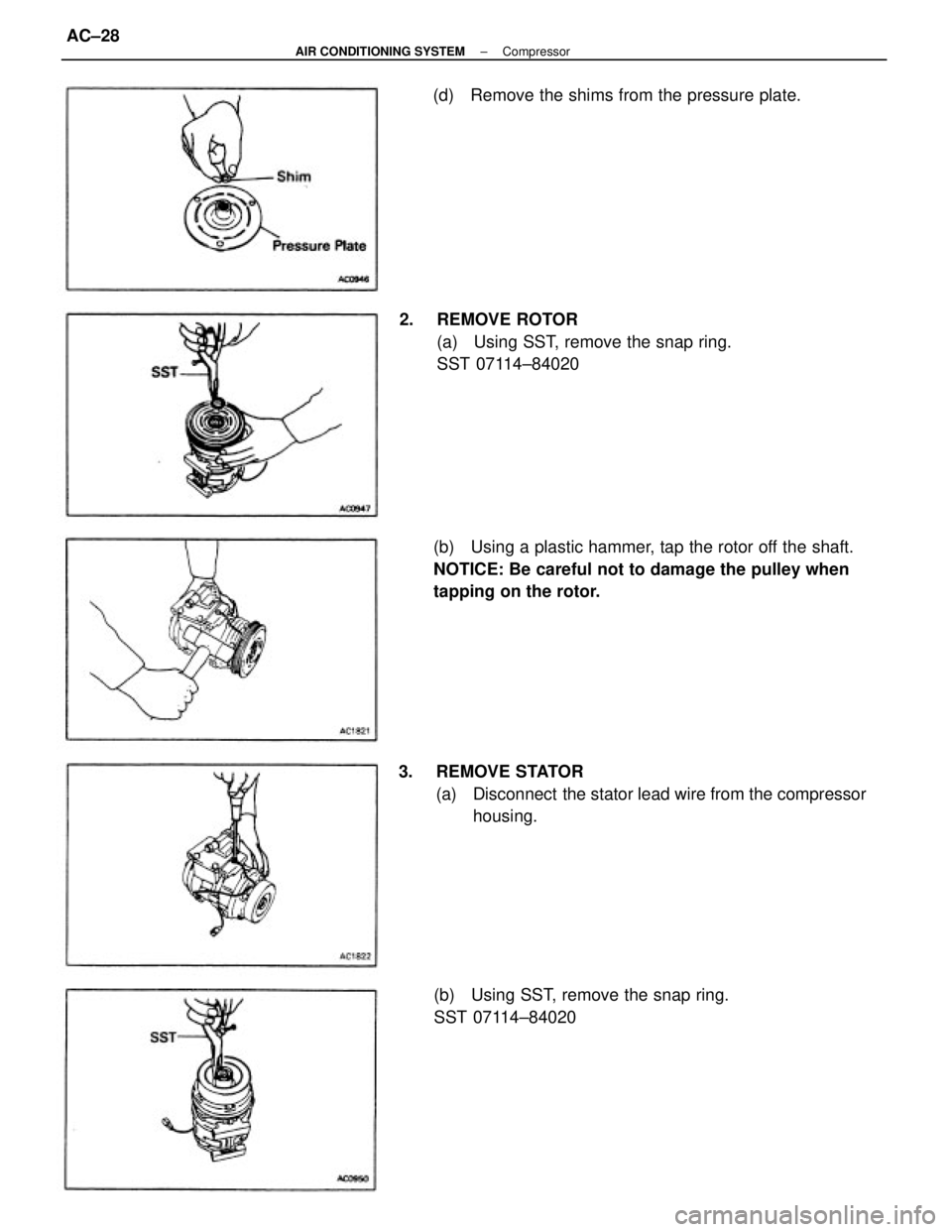

TOYOTA CAMRY V20 1986  Service Information 3. REMOVE STATOR
(a)  Disconnect  the stator lead wire from the compressor
housing. (b)  Using a plastic hammer, tap the rotor off the shaft.
NOTICE: Be careful not to damage the pulley when
tapping o
