TOYOTA CAMRY V20 1986 Service Information

Diagnosis System (A140E)
DESCRIPTION
1. A self±diagnosis function is built into the electrical control system.
Warning is indicated by the overdrive OFF indicator.
HINT: Warning and diagnostic codes can be read only when
the overdrive switch is ON. If OFF, the overdrive OFF
indicator is lit continuously and will not blink.
(a) If a malfunction occurs within the speed sensors (No.
1 or 2) or solenoids (No. 1 or 2), the overdrive OFF
light will blink to. warn the driver. .
However, there will be no warning of a malfunction with
lock±up solenoid.
(b) The diagnostic code can be read by the number of blinks of
the overdrive OFF indicator when terminals
Tt and E1 are short±circuited. (See page AT±17)
tc) The throttle position sensor or brake signal are not indi-
cated, but inspection can be made by checking the voltage at
terminal Tt of the check connector (diagnosis).
(d) The signals to each gear can be checked by measuring the
voltage at terminal Tt of the check connector while driving.
2. The diagnostic (malfunction) code is retained in memory by the
CPU and due to back±up voltage, is not canceled out when the
engine is turned off. Consequently, after repair, it is necessary
to turn the ignition switch off and remove the fuse EFI (15A) or
disconnect the ECT computer connector to cancel out the diag-
nostic (malfunction)
code. (See page AT±18)
HINT:
wLow battery voltage will cause faulty operation of the diag-
nosis system. Therefore, always check the battery first.
w Use a voltmeter and ohmmeter that have an impedance
of at least 10 k 11 IV.
CHECK O/D OFF INDICATOR LIGHT
1. Turn the ignition switch ON.
2. The O/D OFF light will come on when the O/D switch is
placed at OFF.
3. When the O/D switch is set to ON, the O/D OFF light
should go out.
If the O/D OFF light flashes when the O/D switch is set
to ON, the electronic control system is faulty.
± AUTOMATIC TRANSAXLETroubleshooting (Diagnosis System) (A140E)AT±16

wIn the event of a malfunction, the fight will blink once every
0.5 seconds. The number of blinks will equal the first num-
ber and, after 1.5 seconds pause, the second number of the
two digit diagnostic code. If there are two or more codes,
there will be a 2.5 seconds pause between each.
HINT: In the event of several trouble codes occurring
simultaneously, indication will begin from the smaller
value and continue to the larger.
4. REMOVE SST
SST 09843±18020
READ DIAGNOSTIC CODE
1. TURN IGNITION SWITCH AND O/D SWITCH TO ON
Do not start the engine.
HINT: Warning and diagnostic codes can be read only
when the overdrive switch is ON. If OFF, the overdrive OFF
light will light continuously and will not blink.
2. SHORT ECT TERMINAL CIRCUIT OF CHECK
CONNECTOR
Using a SST, short terminals Tt and E1 of the check
connector.
SST 09843±18020
(Diagnostic Code Indication)
wIf the system is operating normally, the light will
blink once every 0.25 seconds. 3. READ DIAGNOSTIC CODE
Read the diagnostic code as indicated by the number
of times the O/D OFF indicator flashes.
± AUTOMATIC TRANSAXLETroubleshooting (Diagnosis System) (A140E)AT±17

CANCEL OUT DIAGNOSTIC CODE
1. After repair of the trouble area, the diagnostic code
retained in memory by the ECT ECU must be canceled by
removing the fuse EFI (15A) for 10 seconds or more, de-
pending on ambient temperature (the lower the tempera-
ture, the longer the fuse must be left out) with the ignition
switch OFF.
HINT:
wCancellation can be also done by removing the battery
negative (±) terminal, but in this case other memory sys-
tems (TCCS diagnosis memory, etc.) will be also can-
celed out.
wThe diagnostic code can be also canceled out by discon-
necting the ECT ECU connector.
wIf the diagnostic code is not canceled out, it will be
retained by the ECT ECU and appear along with a new
code in event of future trouble.
2. After cancellation, perform a road test to confirm that a
ºnormal codeº is now read on the O/D OFF indicator. HINT: If codes 62, 63 or 64 appear, there is an
electrical malfunction in the solenoid.
Causes due to ±mechanical failure, such as a
stuck valve, will not appear.
Defective No. 1 speed sensor (in combination meter) ±
severed wire harness or short circuit
Severed lock±up solenoid or short circuit ±
severed wire harness or short circuit Defective No. 2 speed sensor (in ATM) ±
severed wire harness or short circuit
Severed No. 2 solenoid or short circuit ±
severed wire harness or short circuitSevered No. 1 solenoid or short circuit ±
severed wire harness or short circuit

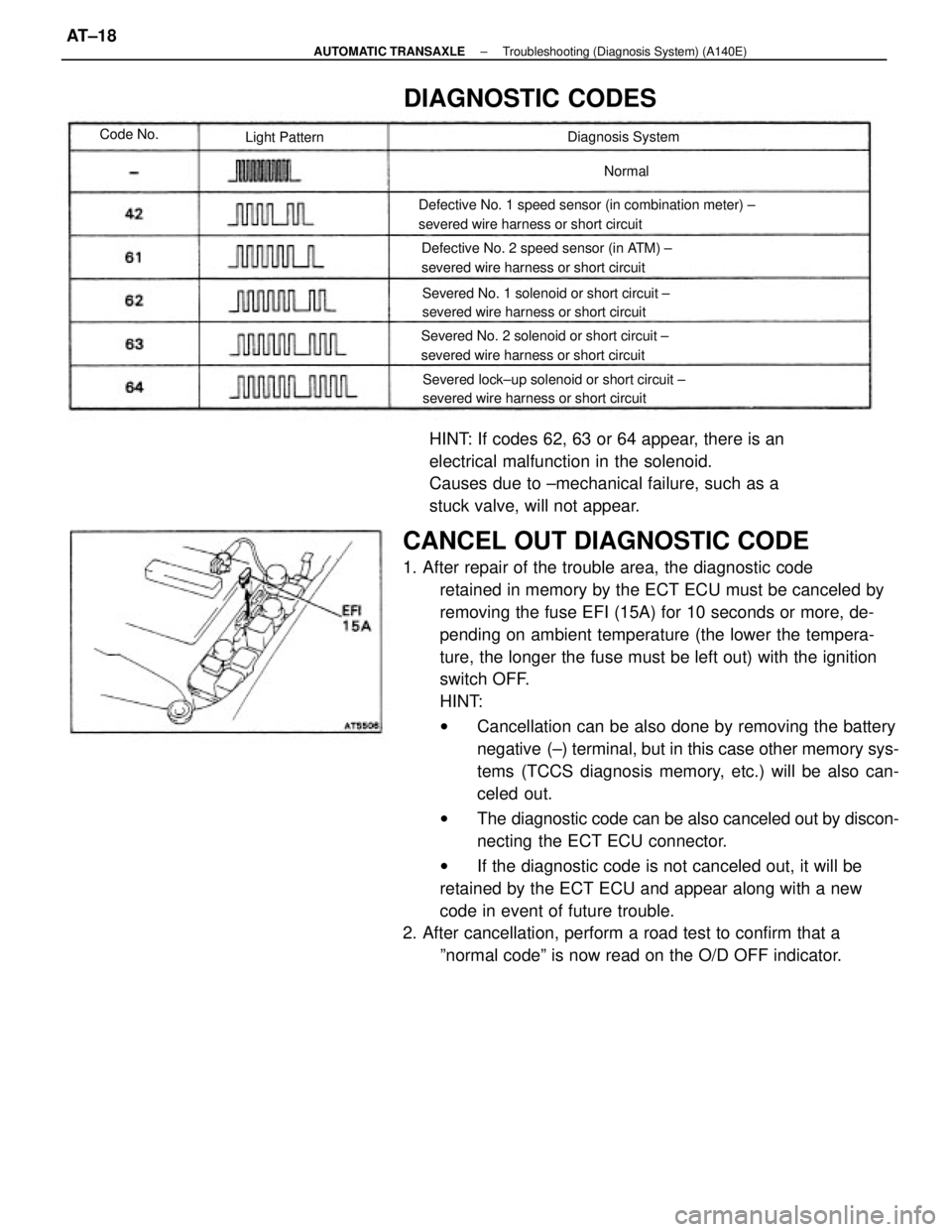

DIAGNOSTIC CODES
Diagnosis System
Light Pattern Code No.
Normal
± AUTOMATIC TRANSAXLETroubleshooting (Diagnosis System) (A140E)AT±18

TROUBLESHOOTING FLOW±CHART
HINT:
wIf diagnostic code Nos. 42, 61, 62 or 63 are output, the overdrive OFF indicator light will begin to
blink immediately to warn the driver. However, an impact or shock may cause the blinking to stop;
but the code will still be retained in the ECT ECU memory until canceled out.
wThere is no warning for diagnostic code No. 64.
wIn the event of a simultaneous malfunction of both No. 1 and No. 2 speed sensors, no diagnostic
code will appear and the fail±safe system will not function. However, when driving in the D range,
the transaxle will not up±shift from first gear, regardless of the vehicle speed.
1. Diagnostic code 42 (No. 1 speed sensor circuitry)
Check continuity between ECT ECU
connector SP, terminal and body ground.
(See page AT±32)
Check continuity between ECT ECU
connector SP2 terminal and body ground.
(See page AT±33)
Check wiring between ECT ECU and No. 2
speed sensor.Check wiring between ECT ECU and
combination meter.
2. Diagnostic code 61 (No. 2 speed sensor circuitry
Repair or replace No. 1 speed
sensor.
Check No. 2 speed sensor.
(See page AT±35)Repair or replace No. 2
speed sensor. Substitute another ECT ECU.
Substitute another ECT ECU.Check No. 1 speed sensor.
± AUTOMATIC TRANSAXLETroubleshooting (Diagnosis System) (A140E)AT±19

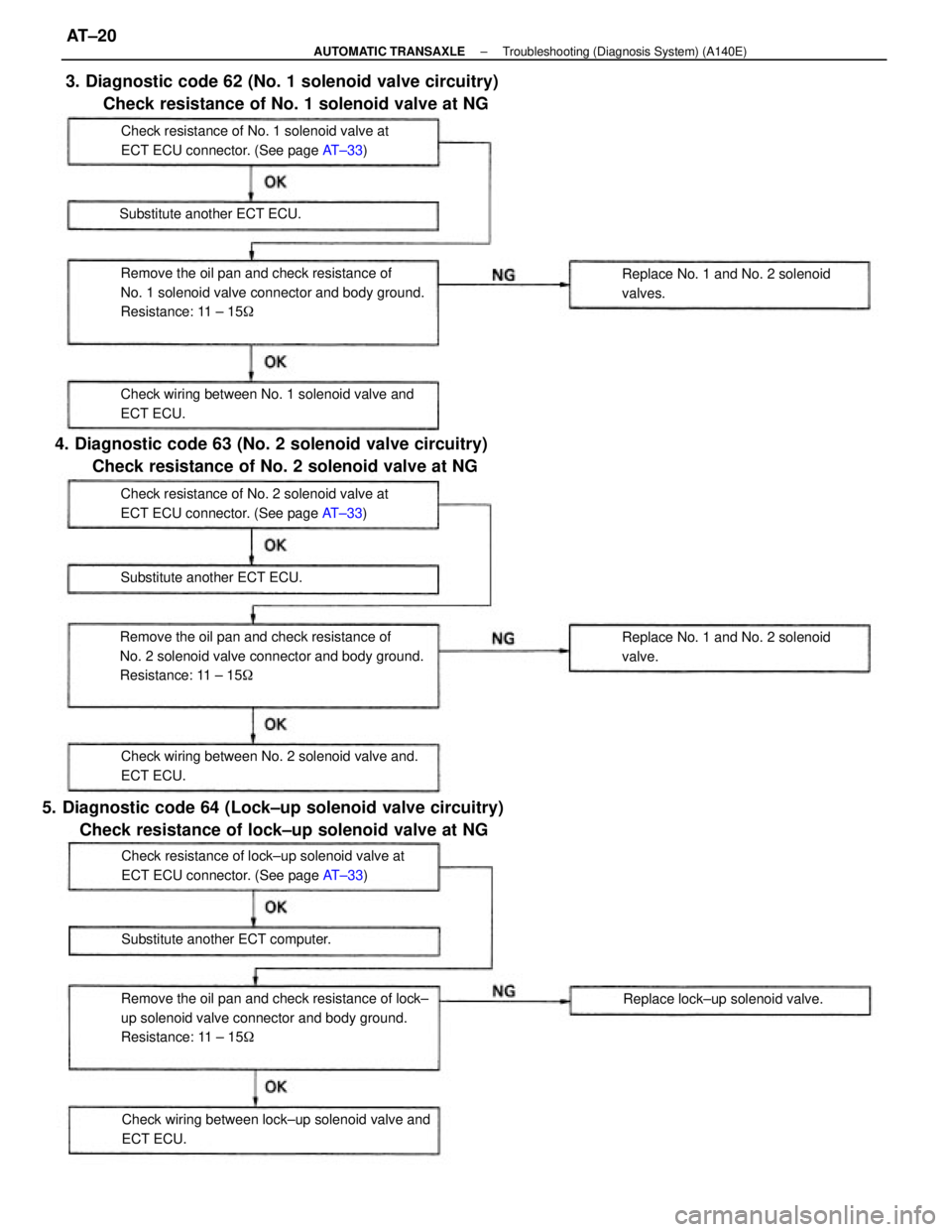

5. Diagnostic code 64 (Lock±up solenoid valve circuitry)
Check resistance of lock±up solenoid valve at NG 4. Diagnostic code 63 (No. 2 solenoid valve circuitry)
Check resistance of No. 2 solenoid valve at NG 3. Diagnostic code 62 (No. 1 solenoid valve circuitry)
Check resistance of No. 1 solenoid valve at NG
Remove the oil pan and check resistance of
No. 1 solenoid valve connector and body ground.
Resistance: 11 ± 15

Remove the oil pan and check resistance of lock±
up solenoid valve connector and body ground.
Resistance: 11 ± 15
Remove the oil pan and check resistance of
No. 2 solenoid valve connector and body ground.
Resistance: 11 ± 15
Check resistance of No. 2 solenoid valve at
ECT ECU connector. (See page AT±33)
Check resistance of lock±up solenoid valve at
ECT ECU connector. (See page AT±33) Check resistance of No. 1 solenoid valve at
ECT ECU connector. (See page AT±33)
Check wiring between lock±up solenoid valve and
ECT ECU. Check wiring between No. 2 solenoid valve and.
ECT ECU. Check wiring between No. 1 solenoid valve and
ECT ECU.Replace No. 1 and No. 2 solenoid
valves.
Replace No. 1 and No. 2 solenoid
valve.
Substitute another ECT computer.
Replace lock±up solenoid valve. Substitute another ECT ECU.
Substitute another ECT ECU.
± AUTOMATIC TRANSAXLETroubleshooting (Diagnosis System) (A140E)AT±20

Preliminary Check
11. CHECK FLUID LEVEL
HINT: The vehicle must have been driven so that the
engine and transmission are at normal operating tem-
perature. (fluid temperature: 158 ± 176
°F or 70 ±80°C)
(a) Park the vehicle on a level surface, set the parking
brake.
(b) With the engine idling, shift the shift lever into all posi-
tions from P to L position and return to P position.
HINT: Depress the brake pedal.
(a) Pull out the transaxle dipstick and wipe it clean.
(b) Push it back fully into the tube.
(c) Pull it out and check that the fluid level is in the HOT
range. If the level is at the low side of the hot range,
add fluid.
Fluid type: ATF DEXRON) II
NOTICE: Do not overfill.
2. CHECK FLUID CONDITION
If the fluid smells burnt or is black, replace it
3. REPLACE ATF
NOTICE: Do not overfill.
(a) Remove the drain plug and drain the fluid.
(b) Reinstall the drain plug securely.
(c) With the engine OFF, and new fluid through the dip
stick tube.
SST 09043±38100
Fluid: ATF DEXRON) II
Capacity:
Dry fill:
A140E 5.3 liters (5.6 US qts, 4.7 Imp. qts)
A140L 5.7 liters (6.0 U S qts, 5.0 Imp. qts)
Drain and refill (Reference):
140E, A140L 2.5 liters (2.6 US qts, 2.2 Imp. qts)
(d) Start the engine and shift the selector into all positions
from P through L and then shift into P.
(e) With the engine idling, check the fluid level. Add fluid
up to the ºCOOLº level on the dipstick.
(f) Check the fluid level with the normal fluid temperature
(158 ± 176
°F or 70 ± 80°C) and add as necessary.
NOTICE: Do not overfill.
± AUTOMATIC TRANSAXLETroubleshooting (Preliminary Check) (A140L and A140E)AT±21

5. INSPECT AND ADJUST SHIFT CABLE
When shifting the shift lever from the N position to oth-
er positions, check that the lever can be shifted
smoothly and accurately to each position and that the
position indicator correctly indicates the position.
If the indicator is not aligned with the correct position,
carry out the following adjustment procedures.
(a) Loosen the swivel nut on manual shift lever.
(b) Push the manual lever fully toward the right side of the
vehicle.
(c) Return the lever two notches to NEUTRAL position.
(d) Set the shift lever to N.
(e) While holding the lever lightly toward the R range
side, tighten the swivel nut.
6. ADJUST NEUTRAL START SWITCH
If the engine will start with the shift selector in any
range other than N or P range, adjustment is required.
(a) Loosen the neutral start switch bolts and set the shift
selector to the N range.
(b) Align the groove and neutral basic line.
(c) Hold in position and tighten the bolts.
Torque: 55 kg±cm (48 in.±Ib, 5.4 N±m)
7. INSPECT IDLE SPEED (N RANGE)
Idle speed: 700 rpm 4. INSPECT AND ADJUST THROTTLE CABLE
(a) Depress the accelerator pedal all the way and check that the
throttle valve opens fully.
HINT: If the valve does not open fully, adjust the accelerator
link.
(b) Fully depress the accelerator pedal.
(c) Loosen the adjustment nuts.
(d) Adjust the outer cable so that the distance between the end
of the boot and stopper on the cable is the standard.
Standard boot and cable stopper distance:
0± 1 mm 10±0.04 in.)
(e) Tighten the adjusting nuts.
(f ) Recheck the adjustments.
± AUTOMATIC TRANSAXLETroubleshooting (Preliminary Check) (A144L and A140E)AT±22

Manual Shifting Test (A140E)
HINT: With this test, it can be determined whether the
trouble lies within the electrical circuit or is a mechani-
cal problem in the transaxle.
1. DISCONNECT ECT ECU CONNECTOR
(a) Remove the glove box.
(b) With the engine OFF, disconnect the ECT connector.
HINT: If the L, 2 and D range gear positions are difficult
to distinguish, perform the following road test.
wWhite driving, shift through the L, 2 and D ranges.
Check that the gear change corresponds to the shift
position.
3. CONNECT ECT ECU CONNECTOR2. INSPECT MANUAL DRIVING OPERATION
Check that the shift and gear positions correspond with
the table below.
Gear position
Shift positionP
' range R
range 2
range V
rangeL
range
Pawl
Lock Reverse
O/D 1st
3rd
± AUTOMATIC TRANSAXLETroubleshooting (Manual Shifting Test) (A140E)AT±23

INSPECTION OF ELECTRONIC CONTROL
COMPONENTS
1. INSPECT O/D SOLENOID
(a) Disconnect the solenoid connector.
(b) Apply voltage between terminals 1 and 2.
At this time, confirm that a solenoid operation sound in heard.
(e) Using an ohmmeter, measure the solenoid coil
resistance between terminals 1 and 2.
Resistance: 13
2


(d) Connect the solenoid connector.
Electronic Control System (A140L)

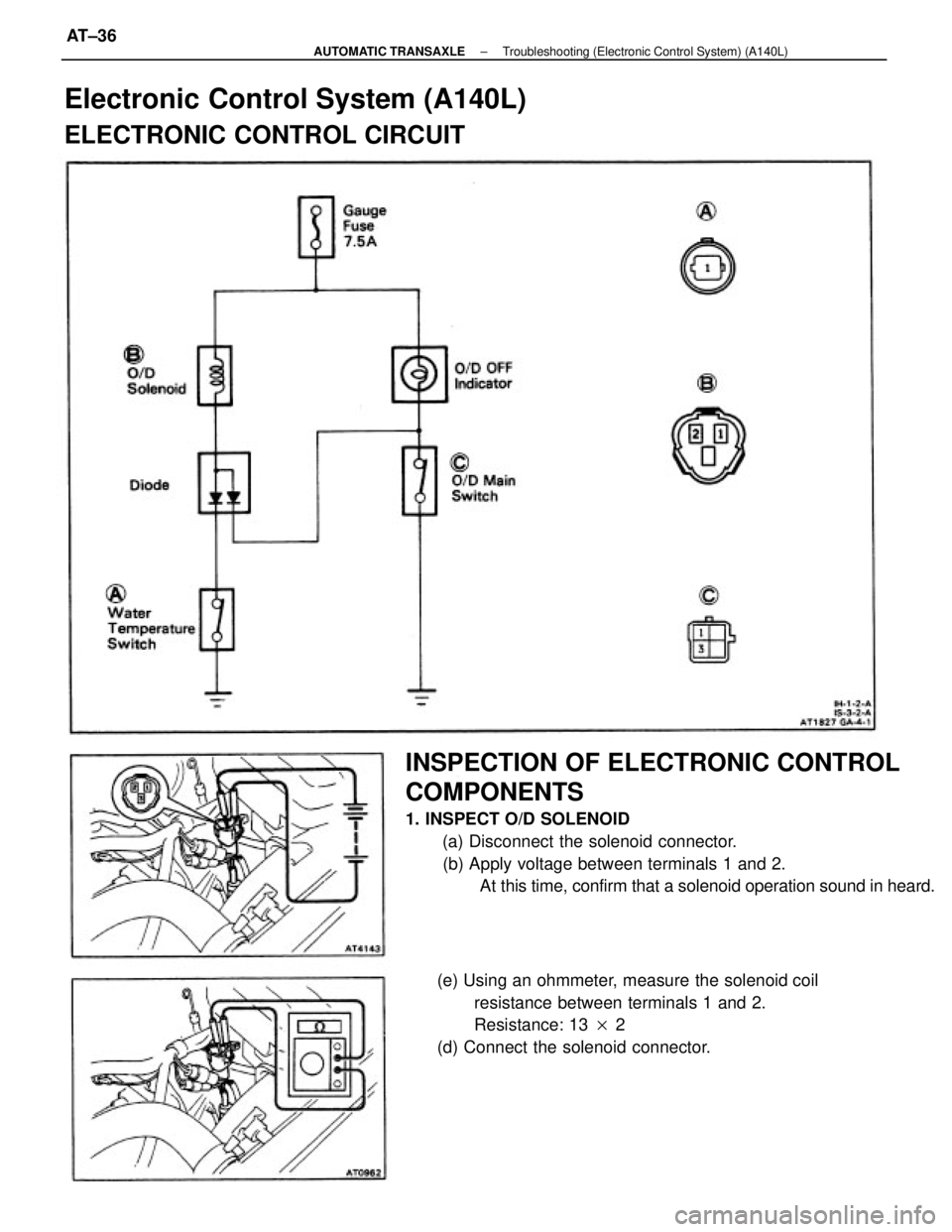

ELECTRONIC CONTROL CIRCUIT
± AUTOMATIC TRANSAXLETroubleshooting (Electronic Control System) (A140L)AT±36

4. INSPECT WATER TEMPERATURE SWITCH
(a) Disconnect the switch connector.
(b) Using an ohmmeter, measure the resistance between
terminal 1 and body ground.
Coolant temperature:
Below 109
°F (43°C) 0

Above 131°F (55°C)
8

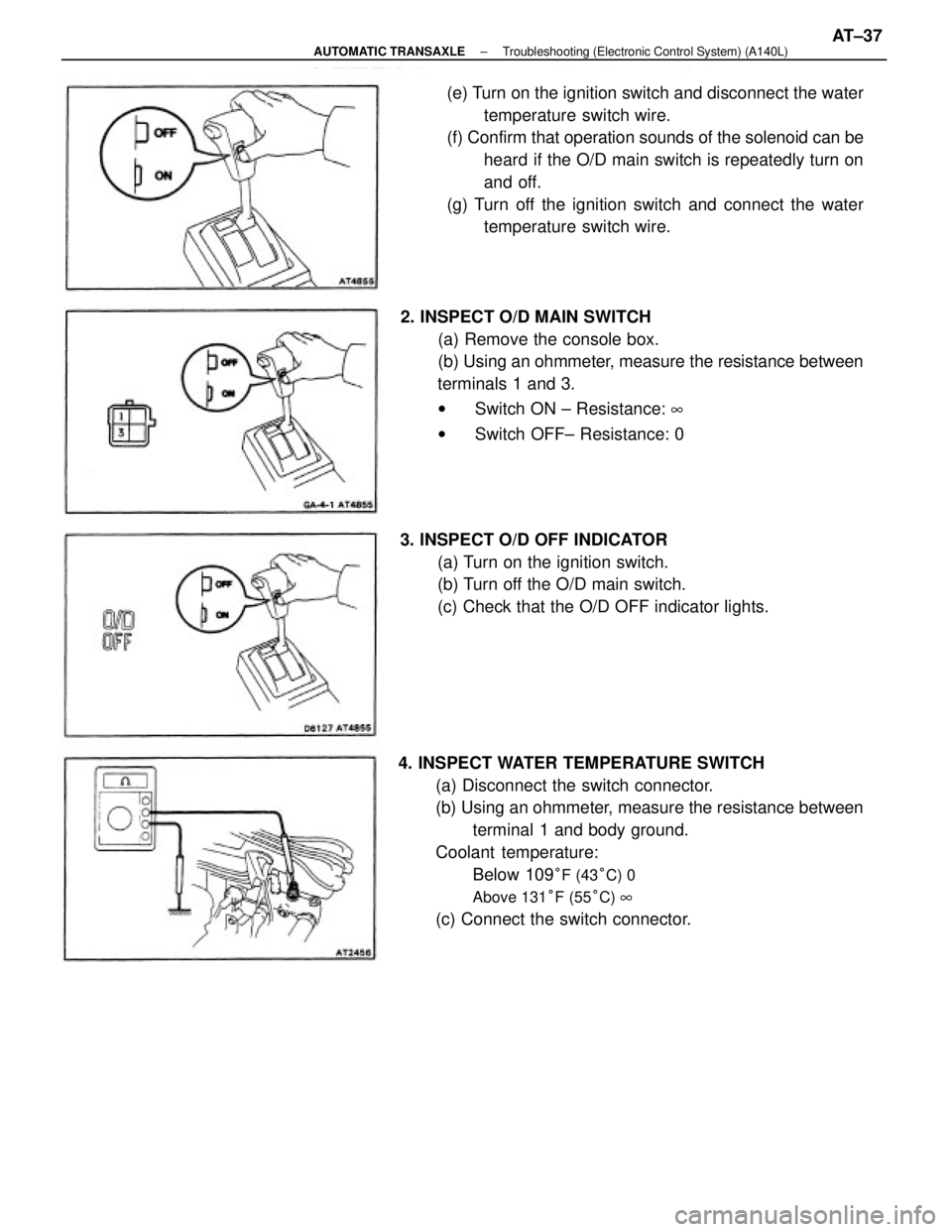

(c) Connect the switch connector.(e) Turn on the ignition switch and disconnect the water
temperature switch wire.
(f) Confirm that operation sounds of the solenoid can be
heard if the O/D main switch is repeatedly turn on
and off.
(g) Turn off the ignition switch and connect the water
temperature switch wire.
2. INSPECT O/D MAIN SWITCH
(a) Remove the console box.
(b) Using an ohmmeter, measure the resistance between
terminals 1 and 3.
wSwitch ON ± Resistance: 8


wSwitch OFF± Resistance: 0

3. INSPECT O/D OFF INDICATOR
(a) Turn on the ignition switch.
(b) Turn off the O/D main switch.
(c) Check that the O/D OFF indicator lights.
± AUTOMATIC TRANSAXLETroubleshooting (Electronic Control System) (A140L)AT±37
