TOYOTA CAMRY V20 1986 Service Information

INSPECT GROUND CONNECTION
Disconnect connector from clutch switch.
Is there continuity between terminal 2 of wire
harness side connector and body ground?wOpen circuit in wire harness between terminal 2
and body ground.
wBody ground faulty.
INSPECT CLUTCH SWITCH CIRCUIT
Is there continuity between terminal 11 and body
ground with clutch pedal depressed?INSPECT CLUTCH SWITCH OPERATION
Is clutch switch operation normal?
(See page BE±90)
INSPECTION OF CLUTCH SWITCH CIRCUIT
Short circuit in wire harness between terminal 11 of
computer and terminal 1 of clutch switch. Open circuit in wire harness between terminal 11 of
computer and terminal 1 of clutch switch.
Is there continuity between terminal 11 and body
ground with clutch pedal released?Disconnect connector from computer and inspect
connector on wire harness side as follows.Connect connector to clutch switch.Turn ignition switch off.
Replace clutch switch.
Replace computer.
CLUTCH SW
COMPUTER
Ye s
Ye s
Ye s
Ye s
± BODY ELECTRICAL SYSTEMCruise Control SystemBE±83

INSPECT GROUND CONNECTION
Disconnect connector from neutral start switch.
Is there continuity between terminal 3 of wire harness
side connector and body ground?
INSPECT NEUTRAL START SWITCH OPERATION
Is neutral start switch operation normal?
(See page BE±90)
INSPECT NEUTRAL START SWITCH CIRCUIT
Is there continuity between terminal 11 and body
ground when shifted to ºNº and ºPº range?
INSPECTION OF NEUTRAL START SWITCH CIRCUIT
Open circuit in wire harness between terminal 11 of
computer and terminal 2 of neutral start switch. Open circuit in wire harness between terminal 3
and body ground.
Disconnect connector from computer and inspect
connector on wire harness side as follows. Connect connector to neutral start switch.Turn ignition switch off.
NEUTRAL START SW
Replace neutral switch.
Replace computer.
COMPUTER
Ye s
Ye sYe s
± BODY ELECTRICAL SYSTEMCruise Control SystemBE±84

INSPECT VACUUM. SWITCH CIRCUIT
Disconnect connector from vacuum switch.
Is there continuity terminal 1 of vacuum switch and
body ground?
INSPECT GROUND CONNECTION
Disconnect connector from vacuum pump.
Is there continuity between terminal 2 of wire
harness side connector and body ground?
wOpen circuit in wire harness between terminal
2 and body ground.
wBody ground faulty. INSPECT VACUUM SWITCH OPERATION
Is vacuum switch normal?
(See page BE±92.)
INSPECT VACUUM PUMP OPERATION
Is vacuum pump operation normal?
(See page BE±92) Are there cracks or other damage on the vacuum
hose?
wVacuum switch improper
installed.
wBody ground faulty.
INSPECTION OF VACUUM CIRCUIT
Connect connector to vacuum switch and pump.
CONTINUED ON PAGE
BE±86
Replace vacuum switch. Turn ignition switch off.
Replace vaccum pump.Replace vacuum hose.
VACUUM PUMPVACUUM HOSE
VACUUM SW
Ye s
Ye sYe s
Ye sYe s
± BODY ELECTRICAL SYSTEMCruise Control SystemBE±85

Is there continuity between terminal 1 and body ground
when disconnect connector from vacuum pump? INSPECT VACUUM SWITCH CIRCUIT
Is there continuity between terminal 9 and body
ground?
INSPECT VACUUM PUMP CIRCUIT
Is there continuity between terminal 1 and body
ground? Disconnect connector from computer and inspect
connector on wire harness side as follows.
Is there continuity between terminal 9 and body
ground?Open circuit in wire harness between terminal 9
of computer and terminal 1 of vacuum switch.
Short circuit in wire harness between terminal 1
of computer and terminal 1 of vacuum pump. Short circuit in wire harness between terminal 9
of computer and terminal 1 of vacuum switch.
Open circuit in wire harness between terminal 1
of computer and terminal 1 of vacuum switch.
CONTINUED FROM PAGE
BE±85
Start engine (idling).
Stop the engine.
Replace computer.
COMPUTER
Ye s
Ye s Ye s
Ye s
± BODY ELECTRICAL SYSTEMCruise Control SystemBE±86

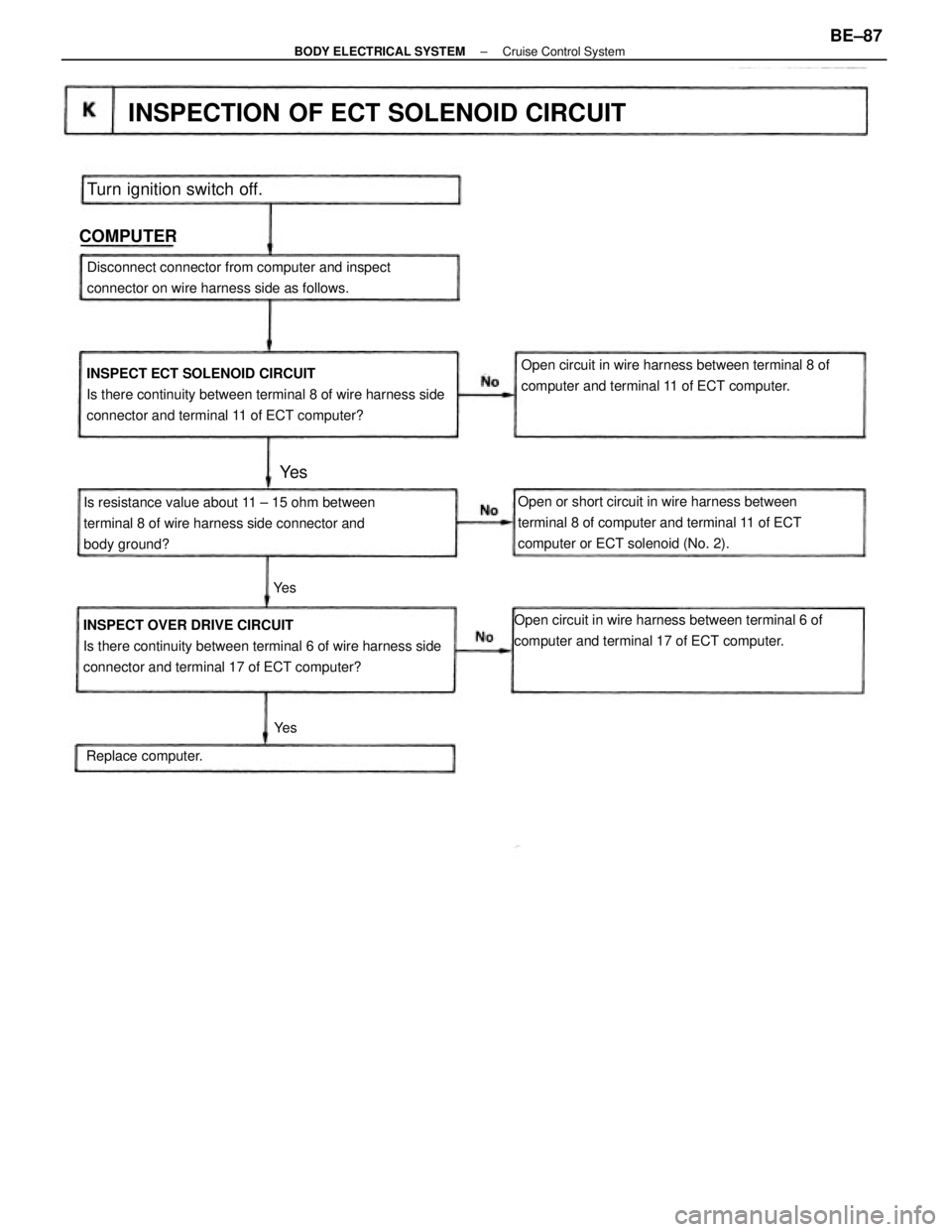

INSPECT ECT SOLENOID CIRCUIT
Is there continuity between terminal 8 of wire harness side
connector and terminal 11 of ECT computer?
INSPECT OVER DRIVE CIRCUIT
Is there continuity between terminal 6 of wire harness side
connector and terminal 17 of ECT computer?Is resistance value about 11 ± 15 ohm between
terminal 8 of wire harness side connector and
body ground?Open or short circuit in wire harness between
terminal 8 of computer and terminal 11 of ECT
computer or ECT solenoid (No. 2).Open circuit in wire harness between terminal 8 of
computer and terminal 11 of ECT computer.
INSPECTION OF ECT SOLENOID CIRCUIT
Open circuit in wire harness between terminal 6 of
computer and terminal 17 of ECT computer. Disconnect connector from computer and inspect
connector on wire harness side as follows.
Turn ignition switch off.
Replace computer.
COMPUTER
Ye s
Ye s
Ye s
± BODY ELECTRICAL SYSTEMCruise Control SystemBE±87

Cruise Control Computer Circuit
INSPECTION OF COMPUTER CIRCUIT
Disconnect the computer and inspect the connector on
wire harness side as shown in the below.
Remove CHARGE fuse and
ignition switch turned on with
parking brake lever released. Clutch pedal released or shifted
into only range except
ºNº and ºPº range
Remove CHARGE fuse and
ignition switch turned on with
parking brake lever pulled up.
Apply vacuum approx. 170
mmHg (fi.69 in.Hg, 22.7 kPa)Turn ignition switch and main
switch on
Turn ignition switch and main
switch off
Turn ignition switch and main
switch off Turn ignition switch and main
switch on
Clutch pedal depressed or
shifted into ºNº range Clutch Switch
(M/T) or Neutral
Start Switch (A/T)1 pulse each 44 cm
(15.75 in.) Stop Light Switch
and Release Valve
Turn resume/accel switch offTurn resume/accel switch on Control Switch
(indicator circuit)
Connection or
measure rtem
Turn set/coast switch off Turn set/coast switch on
Control Switch
(resunne/accel)Control Switch
(set/coast)
Vehicle moving slowlyBrake pedal depressed
Parking Brake
SwitchBrake pedal releasedBrake pedal released
10 ± Body ground
13 ± Body ground16 ± Body ground
17 ± Body ground
12 ± Body ground11 ± Body ground15 ± Body ground Tester connection
Stop Light Switch
3 ± Body ground
5 ± Body ground
7 ± Body ground
1 ± Body ground 9 ± Body groundBattery voltageSpecified value
Battery voltage
Battery voltageBattery voltage
Battery voltage No continuity
Vacuum SwitchControl Switch
Vacuum PumpNo continuity Approx. 68

Speed Sensor
No continuity Approx. 30

No continuity
Body GroundControl Valve
No voltageNo voltage
Continuity
Continuity ContinuityContinuity Resistance
ContinuityContinuity
Continuity Continuity
ContinuityNo voltage
No vacuum
ContinuityContinuityContinuity
ContinuityNo vohage
Condition
Resistance Stop FuseCheck for
VoltageVoltage Voltage
Voltage
Voltage4±142±14
± BODY ELECTRICAL SYSTEMCruise Control SystemBE±88

Main Switch
INSPECTION OF MAIN SWITCH
INSPECT SWITCH CONTINUITY
(a) Connect the positive (+) lead from the battery to
terminal 3 and the negative () lead to terminal 5.
(b) Check that there is continuity b¿¿ween terminals 3
and 4 with the main switch pushed on.
Stop Light Switch
INSPECTION OF SWITCH
INSPECT SWITCH CONTINUITY
Inspect the switch continuity between terminals.
Control Switch
INSPECTION OF SWITCH
INSPECT SWITCH CONTINUITY
Inspect the switch continuity between terminals.(c) Check that there is no continuity between terminals 3
and 4 with the main switch pushed off.
If continuity is not as specified, replace the switch.
If continuity is not as specified, replace the switch.
If continuity is not as specified, replace the switch.
Switch free
(Brake pedal depressed)
Switch pin pushed
(Brake pedal released)RESUME/ACCEL Switch position
Switch positionSET/COAST
Terminal Terminal
OFF
± BODY ELECTRICAL SYSTEMCruise Control SystemBE±89

Clutch Switch
INSPECTION OF SWITCH
INSPECT SWITCH CONTINUITY
(a) Check that there is continuity between terminals with
the switch free.
(Clutch pedal depressed)
(b) Check that there is no continuity between terminals
with the switch pin pushed.
(Clutch pedal released)
If continuity is not as specified, replace the switch.
Parking Brake Switch
INSPECTION OF SWITCH
INSPECT SWITCH CONTINUITY
(a) Check that there is continuity between terminal and
switch set .nu^ with the switch free.
(Parking brake lever pulled up)
(b) Check that there is no cintinuity between terminal
and switch set nut with the switch pin pushed.
(Parking brake lever released)
If continuity is not as specified, replace the switch.
Neutral Start Switch
INSPECTION OF SWITCH
INSPECT SWITCH CONTINUITY
Check that there is continuity between terminals 2 and 3
with switch position ºPº and ºNº ranges.
If continuity is not as specified, replace the switch.
Speed Sensor
INSPECTION OF SENSOR
INSPECT SENSOR CONTINUITY
Check that there is continuity between terminals A and6
four times per each revolution of the shaft.
If continuity is not as specified, replace the sensor.
± BODY ELECTRICAL SYSTEMCruise Control SystemBE±90

Actuator
INSPECTION OF ACTUATOR
1. INSPECT CONTROL CABLE FREEPLAY
Measure the cable stroke to where the throttle valve be-
gins to open.
Standard: Approx. within 10 mm (0.39 in.) with a slight
amount of freeplay.
If freeplay is not as specified, adjust the control cable
freeplay.
2. INSPECT ACTUATOR RESISTANCE
Measure the resistance value between terminals as fol-
lows.
Resistance: 2 ± 3 approx. 30


1 ± 3 approx. 68

If the resistance value is not as specified, replace the ac-
tuator.
3. INSPECT ACTUATOR OPERATION
(a) Connect the positive (+) lead from battery to termi-
nals 1, 2 and the negative H lead to terminal 3.
(b) Slowly apply vacuum from 0 300 mmHg (0 ±11.81
in.Hg, 0 ± 40.0 kPa), and check that the control cable
can be pulled smoothly.
(c) Disconnect terminal 1 or 2, check that the control
cable returns to its original position and the vacuum
returns to 0 mmHg (0 in.Hg, 0 kPa).
If operation is not as specified, replace the actuator.
± BODY ELECTRICAL SYSTEMCruise Control SystemBE±91

Vacuum Switch
INSPECTION OF SWITCH
INSPECT SWITCH OPERATION (w/ A.B.S.)
(a) Check that there is no continuity b¿¿ween terminal
and body with a vacuum of 170
+10 mmHg (6.69 t
0.39 in.Hg, 22.7
+1.3 kPa) or above.
(b) Check that there is continuity between terminal and
body with no vacuum.
If operation is not as specified, replace the switch.
INSPECT SWITCH OPER¿¿ION (w/o A.B.S.)
(a) Check that there is no continuity between terminals
with a vacuum of 170
+10 mmHg (6.69 +0.39 in.Hg,
22.7
+1.3 kPa) or above.
(b) Check that there is continuity between terminals with
no vacuum.
If operation is not as specified, replace the switch.
Vacuum Pump
INSPECTION OF PUMP
INSPECT VACUUM PUMP OPERATION
(a) Connect a vacuum gauge to the ACT side of the
pump.
(b) Connect the positive (+) lead from the battery to
terminal 1 and the negative (±) lead to terminal 2.
(e) Check that there is the vacuum of 200 mmHg (7.87
in±Hg, 26.7 kPa) or above.
If operation is not as specified, replace the pump.
