TOYOTA CAMRY V20 1986 Service Information

1. ASSEMBLE WHEEL CYLINDER
(a) Apply lithium soap base glycol grease to the cups
and pistons as shown.
(b) Assemble the wheel cylinder.
HINT: Install in proper direction only.
wSpring
wTwo cups
wTwo pistons
wTwo boots .
2. INSTALL WHEEL CYLINDER
Install the wheel cylinder on the backing plate with two
bolts.
Torque: 100 kg±cm (7 ft±Ib, 10 N±m)
INSTALLATION OF REAR BRAKE
(See page BR±26)
HINT: Assemble the parts in the correct direction as
shown.
3. CONNECT BRAKE TUBE TO WHEEL CYLINDER
Using SST, connect the brake tube.
SST 09751±36011
Torque: 155 kg±crn (11 ft±Ib, 15 N±m)
± BRAKE SYSTEMRear BrakeBR±30

6. INSTALL REAR SHOE
(a) Using pliers, connect the parking brake cable to the
lever.
(b) Pass the parking brake cable through the notch in the
anchor plate.
(c) Set the rear shoe in place with the end of the shoe
inserted in the wheel cylinder and the other end in the
anchor plate.
(d) Using SST, install the shoe hold±down spring, cups
and pin.
SST 09718± 10
NOTICE: Do not allow oil or grease to get on the ru
bing face. 4. APPLY HIGH TEMPERATURE GREASE TO BACKING
PLATE AND ADJUSTER
(a) Apply high temperature grease to the brake shoe
contact surfaces as shown.
5. INSTALL ADJUSTER ONTO REAR SHOE
Set the adjuster and return spring in place and install the
adjusting lever spring.(b) Apply high temperature grease to the adjuster bolt
threads and ends.
± BRAKE SYSTEMRear BrakeBR±31

8. CHECK OPERATION OF AUTOMATIC ADJUSTING
MECHANISM
(a) Move the parking brake lever of the rear shoe back
and forth, as shown. Check that the adjuster turns.
If the adjuster does not turn, check for incorrect installation
of the rear brakes.
(b) Adjust the adjuster length to the shortest possible
amount. 7. INSTALL FRONT SHOE
(a) Install the anchor spring between the front and rear
shoes.
(b) Set the front shoe in place with the end of the shoe
inserted in the wheel cylinder and the adjuster in
place.
(c) Using SST, install the shoe hold±down spring, cups
and pin.
SST 09718±00010
NOTICE: Do not allow oil or grease to get on the ru
bing face.
(c) Align the adjusting hole on the brake drum and largest
hole on the axle carrier, install the brake drum. (d) Using SST, connect the return spring.
SST 09703±30010
± BRAKE SYSTEMRear BrakeBR±32

9. CHECK CLEARANCE BETWEEN BRAKE SHOES AND
DRUM
(a) Remove the brake drum.
(b) Measure the brake drum inside diameter and diame-
ter of the brake shoes. Check that the difference be-
tween the diameters is the correct shoe clearance.
Shoe clearance: 0.6 mm (0.024 in.)
If incorrect, check the parking brake system.
10. INSTALL BRAKE DRUM
11. INSTALL REAR WHEEL
12. FILL BRAKE RESERVOIR WITH BRAKE FLUID AND
BLEED BRAKE SYSTEM
(See page BR±7)
13. CHECK FOR FLUID LEAKAGE(d) Pull the parking brake lever all the way up until a click-
ing sound can no longer be heard.
± BRAKE SYSTEMRear BrakeBR±33

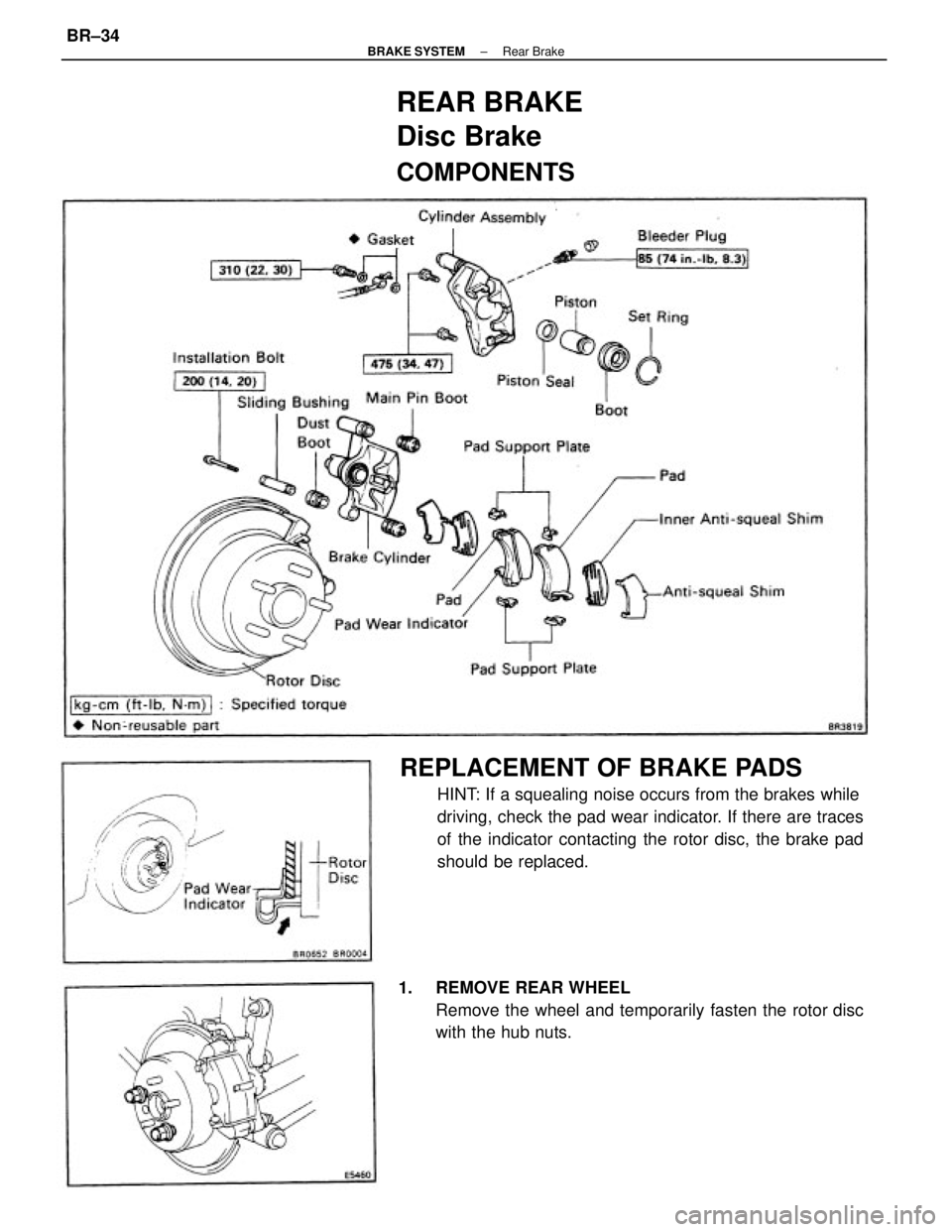

REPLACEMENT OF BRAKE PADS
HINT: If a squealing noise occurs from the brakes while
driving, check the pad wear indicator. If there are traces
of the indicator contacting the rotor disc, the brake pad
should be replaced.
1. REMOVE REAR WHEEL
Remove the wheel and temporarily fasten the rotor disc
with the hub nuts.
REAR BRAKE
Disc Brake
COMPONENTS
± BRAKE SYSTEMRear BrakeBR±34

4. REMOVE FOLLOWING PARTS:
(a) Two brake pads
(b) Four anti±squeal shims
(c) Four pad support plates
5. CHECK ROTOR DISC THICKNESS
(See step 2 on page BR±39)
6. CHECK ROTOR DISC RUNOUT
(See step 3 on page BR±39)
7. INSTALL PAD SUPPORT PLATES
Install the four pad support plates. 2. INSPECT PAD LINING THICKNESS
Check the pad thickness through the cylinder inspection
hole and replace pads if not within specification.
Minimum thickness: 1.0 mm I0.039 in.)
(b) Remove the brake cylinder and suspend it so the
hose is not stretched.
HINT: Do not disconnect the brake hose. 3. REMOVE CYLINDER FROM TORQUE PLATE
(a) Remove the installation bolt from the torque plate.
± BRAKE SYSTEMRear BrakeBR±35

9. INSTALL CYLINDER
(a) Draw out a small amount of brake fluid from the res-
ervoir.
(b) Press in piston with a hammer handle or an equiva-
lent.
HINT: Always change the pad on one wheel at a time as
there is a possibility of the opposite piston flying out.
(c) Insert the brake cylinder carefully so the boot is not
wedged. 8. INSTALL NEW PADS
(a) Install the two anti±squeal shims to the each pad.
HINT: Apply disc brake grease to the both side of the inner
anti±squeal shim.
(b) Install the two pads so the wear indicator plate is at
the bottom side.
NOTICE: Do not allow oil or grease to get on the rub±
bing face.
(d) Install and. torque the installation
bolt.
Torque: 200 kg±cm (14 ft±Ib, 20 N±m)
10. INSTALL REAR WHEEL
11. FILL BRAKE FLUID
± BRAKE SYSTEMRear BrakeBR±36

REMOVAL OF CYLINDER
(See page BR±34)
1. DISCONNECT BRAKE HOSE
Remove the union bolt and disconnect the brake hose.
Use a container to catch the brake fluid.
2. REMOVE CYLINDER FROM TORQUE PLATE
Remove the installation bolt and cylinder.
3. REMOVE PADS
(See step 4 on page BR±35)
± BRAKE SYSTEMRear BrakeBR±37

4. REMOVE PISTON FROM CYLINDER
(a) Put a piece of cloth or an equivalent as shown.
(b) Use compressed air to remove the piston from the
cylinder.
CAUTION: Do not place your fingers in front of the piston
when using compressed air.
3. REMOVE CYLINDER BOOT SET RING AND
CYLINDER BOOT
Using a screwdriver, remove the cylinder boot set ring and
cylinder boot.
DISASSEMBLY OF CYLINDER
(See page BR±34)
1. REMOVE SLIDING BUSHING AND DUST BOOTS
5. REMOVE PISTON SEAL FROM BRAKE CYLINDER
Using a screwdriver, remove the piston seal. 2. REMOVE MAIN PIN BOOT
Pull out the main pin boot.
± BRAKE SYSTEMRear BrakeBR±38

3. MEASURE ROTOR DISC RUNOUT
Measure the rotor disc runout at 10 mm (0.39 in.) from the
outer edge of the rotor disc.
Maximum. disc runout: 0.15 mm (0.0059 in.)
If the runout is greater than the maximum, replace the
disc.
HINT: Before measuring the runout, confirm that the hub
bearing play is within speification.
4. IF NECESSARY, REPLACE ROTOR DISC
(a) Remove the axle carrier mounting bolt and nut of up-
per side.
(b) Remove the torque plate.
(e) Remove the hub nuts of the temporarily installed disc
and pull off the rotor disc.
(d) Install a new rotor disc and loosely install the hub
nuts.
INSPECTION AND REPAIR OF REAR
BRAKE COMPONENTS
1. MEASURE PAD LINING THICKNESS
Standard thickness: 10.0 mm (0.394 in.)
Minimum thickness: 1.0 mm (0.039 in.)
Replace the pad if the thickness is less than the minimum
or if it shows sign of uneven wear.
2. MEASURE ROTOR DISC THICKNESS
Standard thickness: 10.0 mm (0.394 in.)
Minimum thickness: 9.0 mm (0.354 in.)
If the disc is scored or worn, or if thickness is less than
minimum, repair or replace the disc.
(e) Install the torque plate and tighten the mounting bolt.
Torque: 475 kg±cm (34 ft±lb, 47 N±m)
(f) Install the axle carrier mounting bolt and nut of upper
side.
Torque: 2,600 kg±cm (188 ft±lb, 255 N±m)
± BRAKE SYSTEMRear BrakeBR±39
