TOYOTA GR86 2022 Owners Manual (in English)

19
2
2-2. Connectivity settings
Basic function
2-2.Connectivity settings
1 Connect a device
 Turn on the power of the device
if it is not turned on.
●Compatible USB memory
device: P. 8 4
●Compatible iPod/iPhone:P. 8 4
●This unit does not support commer- cially available USB hubs.
●By connecting a device such as a mobile phone, charging starts
depending on the device.
1 Turn the Bluetooth® connection
setting of your Bluetooth®
phone/device on.
 This function is not available
when the Bluetooth® connection
setting of your Bluetooth®
phone/device is set to off.
2 Press the button.
Connecting/Disconnect-
ing a USB memor y
device/por table device
Connecting a device
Registering/Connecting
a Bluetooth® device
To use the hands-free system
or the Bluetooth® audio sys-
tem, it is necessary to register
a Bluetooth® phone/device
with the system.
Once the Bluetooth®
phone/device has been regis-
tered, it is possible to use the
hands-free system and the
Bluetooth® audio system.
Registering a Bluetooth®
phone/device for the first
time

202-2. Connectivity settings
3Select “Yes” to register a
Bluetooth® phone/device.
4 Follow the “STEPS 4 to 7” in
“Registering a Bluetooth®
phone/device”. ( P. 2 4 )
This system supports the following services.
Profiles
Bluetooth®
DeviceSpec.FunctionRequire-
ments
Recommen-
dations
Bluetooth®
Phone/Device
Bluetooth® Spec-
ification
Registering a
Bluetooth®
phone/device
Ve r. 2 . 1Ve r. 4 . 2
Bluetooth®
DeviceProfileFunctionRequire-
ments
Recommen-
dations
Bluetooth®
Phone
HFP
(Hands-Free Pro-
file)
Hands-free sys-
temVe r. 1 . 0Ve r. 1 . 7
PBAP (Phone
Book Access
Profile)
Transferring the
contactsVe r. 1 . 0Ve r. 1 . 2
MAP (Message
Access Profile)
Bluetooth®
phone message-Ve r. 1 . 3
SPP (Serial Port
Profile)APPS function-Ve r. 1 . 2

21
2
2-2. Connectivity settings
Basic function
●If your mobile phone does not support HFP, registering the Bluetooth® phone or
using PBAP, MAP or SPP profiles individually will not be possible.
●If the connected Bluetooth® phone/device version is older than recommended or
incompatible, the Bluetooth® phone/device function may not work properly.
●If the application is not running smoothly or is unstable, disconnect and reconnect
the Bluetooth® phone/device via Bluetooth® ( P.26) and/or USB cable (P.19). If
the problem continues, reboot the Bluetooth® phone/device.
Bluetooth®
Device
A2DP (Advanced
Audio Distribu-
tion Profile)Bluetooth® audio
system
Ve r. 1 . 0Ve r. 1 . 3
AVRCP
(Audio/Video
Remote Control
Profile)
Ve r. 1 . 0Ve r. 1 . 6
Bluetooth®
DeviceProfileFunctionRequire-
ments
Recommen-
dations

222-2. Connectivity settings

3
23
3
Settings
Settings
.3-1. Bluetooth® settings
Bluetooth® settings ............. 24
3-2. Other settings
General settings ................. 29
Sound settings .................... 36
Radio settings ..................... 37
Maintenance settings.......... 38

243-1. Bluetooth® settings
3-1.Bluetooth® settings
1Press the button.
2 Select “Settings”.
3 Select “Phone”.
4 Select the items to be set.
Managing Bluetooth®
phones/devices
Registering a Bluetooth® phone/device:
 P. 2 4
Connecting or disconnecting
Bluetooth® phones/devices: P. 2 6
Deleting Bluetooth® phones/devices:
 P. 2 7
Managing the contacts list
Setting phonebook/recent calls
download: P. 2 7
Sorting the recent calls list and contacts
list: P. 4 6
Deleting all favourites list: P. 4 7
Setting the message: P. 5 0
Changing the device name
Setting Apple CarPlay: P. 5 9
Setting Android Auto: P. 6 2
●“Manage Devices” screen can also be
displayed by selecting “Manage
Devices” or “Add Device” on the
phone screen ( P.42) or Bluetooth® audio control screen ( P. 7 7 ) .
Up to 5 Bluetooth® phones/devices
can be registered.
Bluetooth® compatible phones
(HFP) and devices (AVP) can be
registered simultaneously.
1 Display the phone settings
screen. ( P. 2 4 )
2 Select “Manage Devices”.
3 Select “Add”.
 If a message appears, follow the
guidance on the screen.
Bluetooth® settings
Phone settings screen
A
B
Registering a Bluetooth®
phone/device
C
D
E
F

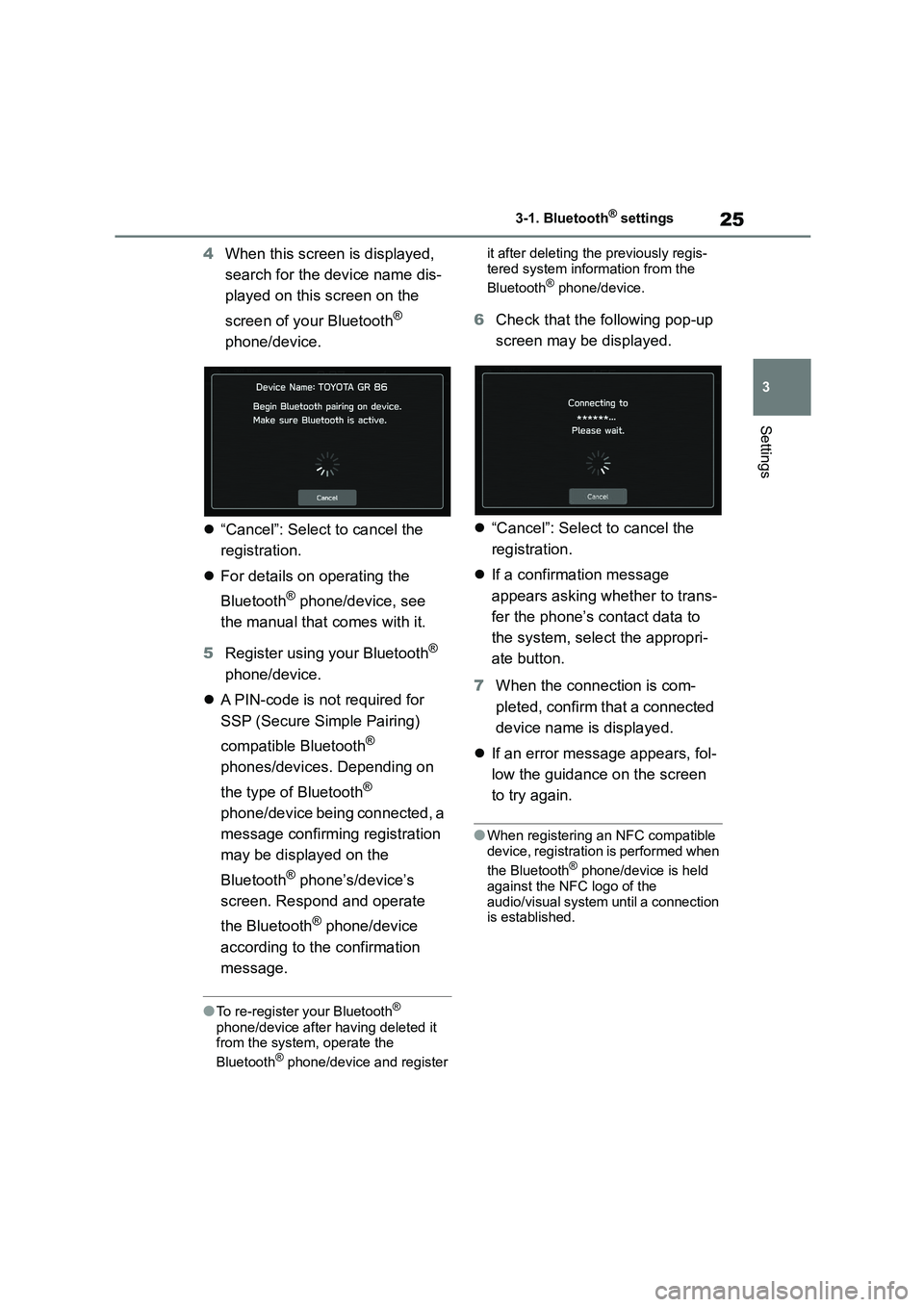

25
3
3-1. Bluetooth® settings
Settings
4 When this screen is displayed,
search for the device name dis-
played on this screen on the
screen of your Bluetooth®
phone/device.
 “Cancel”: Select to cancel the
registration.
 For details on operating the
Bluetooth® phone/device, see
the manual that comes with it.
5 Register using your Bluetooth®
phone/device.
 A P I N - c o d e i s n ot required for
SSP (Secure Simple Pairing)
compatible Bluetooth®
phones/devices. Depending on
the type of Bluetooth®
phone/device being connected, a
message confirming registration
may be displayed on the
Bluetooth® phone’s/device’s
screen. Respond and operate
the Bluetooth® phone/device
according to the confirmation
message.
●To re-register your Bluetooth®
phone/device after having deleted it
from the system, operate the
Bluetooth® phone/device and register
it after deleting the previously regis-
tered system information from the
Bluetooth® phone/device.
6 Check that the following pop-up
screen may be displayed.
 “Cancel”: Select to cancel the
registration.
 If a confirmation message
appears asking whether to trans-
fer the phone’s contact data to
the system, select the appropri-
ate button.
7 When the connection is com-
pleted, confirm that a connected
device name is displayed.
 If an error message appears, fol-
low the guidance on the screen
to try again.
●When registering an NFC compatible
device, registration is performed when
the Bluetooth® phone/device is held
against the NFC logo of the
audio/visual system until a connection is established.

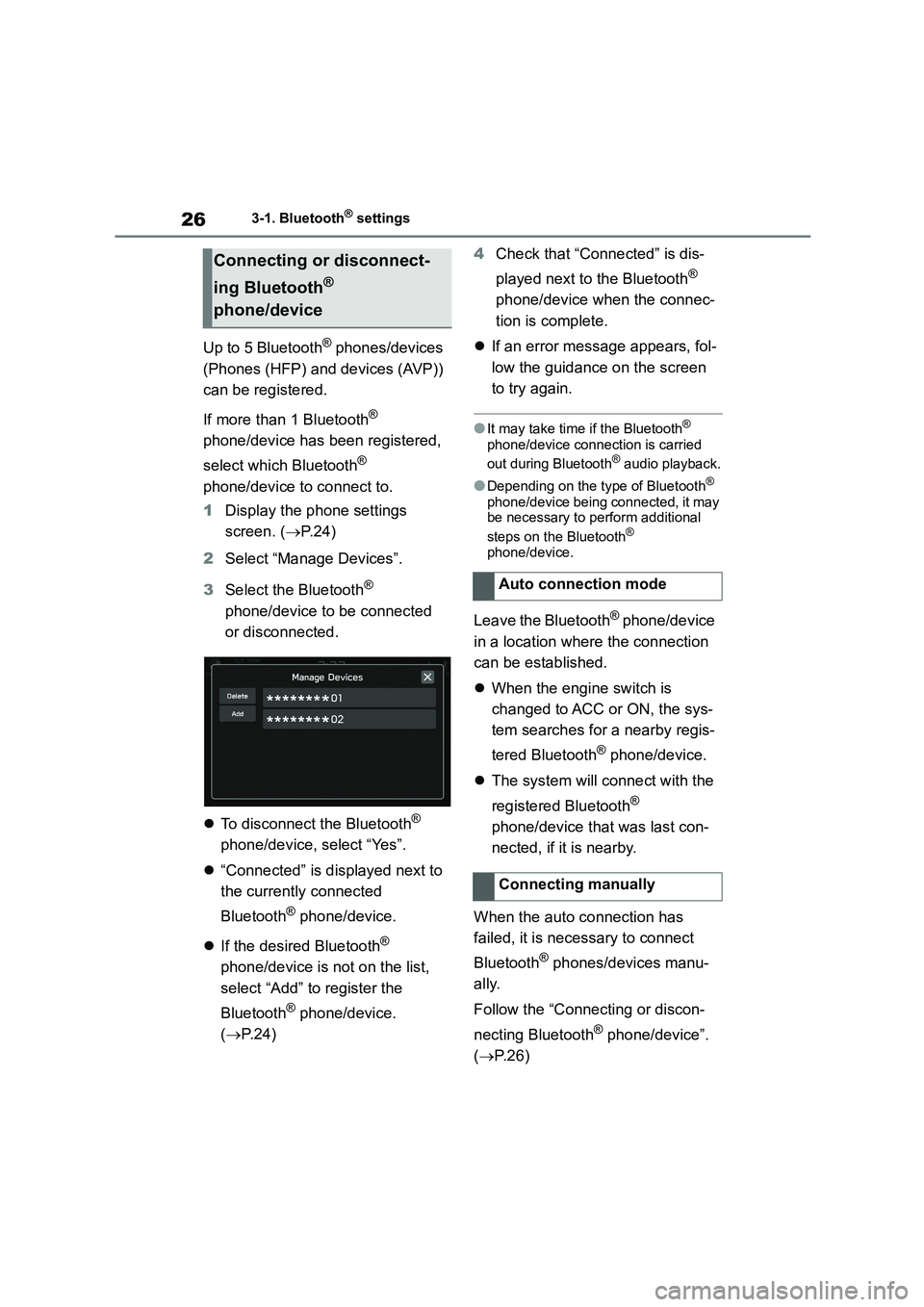

263-1. Bluetooth® settings
Up to 5 Bluetooth® phones/devices
(Phones (HFP) and devices (AVP))
can be registered.
If more than 1 Bluetooth®
phone/device has been registered,
select which Bluetooth®
phone/device to connect to.
1 Display the phone settings
screen. ( P. 2 4 )
2 Select “Manage Devices”.
3 Select the Bluetooth®
phone/device to be connected
or disconnected.
 To disconnect the Bluetooth®
phone/device, select “Yes”.
 “Connected” is displayed next to
the currently connected
Bluetooth® phone/device.
 If the desired Bluetooth®
phone/device is not on the list,
select “Add” to register the
Bluetooth® phone/device.
( P. 2 4 )
4 Check that “Connected” is dis-
played next to the Bluetooth®
phone/device when the connec-
tion is complete.
 If an error message appears, fol-
low the guidance on the screen
to try again.
●It may take time if the Bluetooth®
phone/device connection is carried
out during Bluetooth® audio playback.
●Depending on the type of Bluetooth®
phone/device being connected, it may
be necessary to perform additional
steps on the Bluetooth®
phone/device.
Leave the Bluetooth® phone/device
in a location where the connection
can be established.
 When the engine switch is
changed to ACC or ON, the sys-
tem searches for a nearby regis-
tered Bluetooth® phone/device.
 The system will connect with the
registered Bluetooth®
phone/device that was last con-
nected, if it is nearby.
When the auto connection has
failed, it is nece ssary to connect
Bluetooth® phones/devices manu-
ally.
Follow the “Connecting or discon-
necting Bluetooth® phone/device”.
( P. 2 6 )
Connecting or disconnect-
ing Bluetooth®
phone/device
Auto connection mode
Connecting manually

27
3
3-1. Bluetooth® settings
Settings
If a Bluetooth® phone/device is dis-
connected due to poor reception
from the Bluetooth® network when
the engine switch is changed to
ACC or ON, the system automati-
cally reconnects the Bluetooth®
phone/device.
 If a Bluetooth® phone/device is
disconnected on purpose, such
as turning it off, this does not
happen. Reconnect the
Bluetooth® phone/device manu-
ally.
1 Display the phone settings
screen. ( P. 2 4 )
2 Select “Manage Devices”.
3 Select “Delete”.
4 Select for the Bluetooth®
phone/device you wish to
delete.
5 Select “OK” when the confirma-
tion message appears.
●The Bluetooth® phone/device will still
contain information from this system
even after the Bluetooth®
phone/device has been deleted.
Operate the Bluetooth® phone/device
to delete the system information
saved inside the Bluetooth® phone/device.
When this function is activated, the
phonebook data of the connected
phone will be do wnloaded automat-
ically.
1 Display the phone settings
screen. ( P. 2 4 )
2 Select “Phonebook/Recent
Calls”.
3 Select to turn “Automatically
Download Phonebook/Recent
Calls” on/off.
●The profile version of the connected
Bluetooth® phone may not be compat-
ible with transferring phonebook data. For details, contact your Toyota
dealer.
●The notification setting on the
Bluetooth® phone may need to be
activated in order to download the
phonebook. For details, check the
instructions for the connected
Bluetooth® phone. When the system’s
clock settings are set to auto, the
auto-adjustment function and mes- sage function ( P.50) will not function
properly if the phonebook is not
downloaded.
Reconnecting the Bluetooth®
phone/device
Deleting Bluetooth®
phones/devices
Setting phonebook/recent
calls download

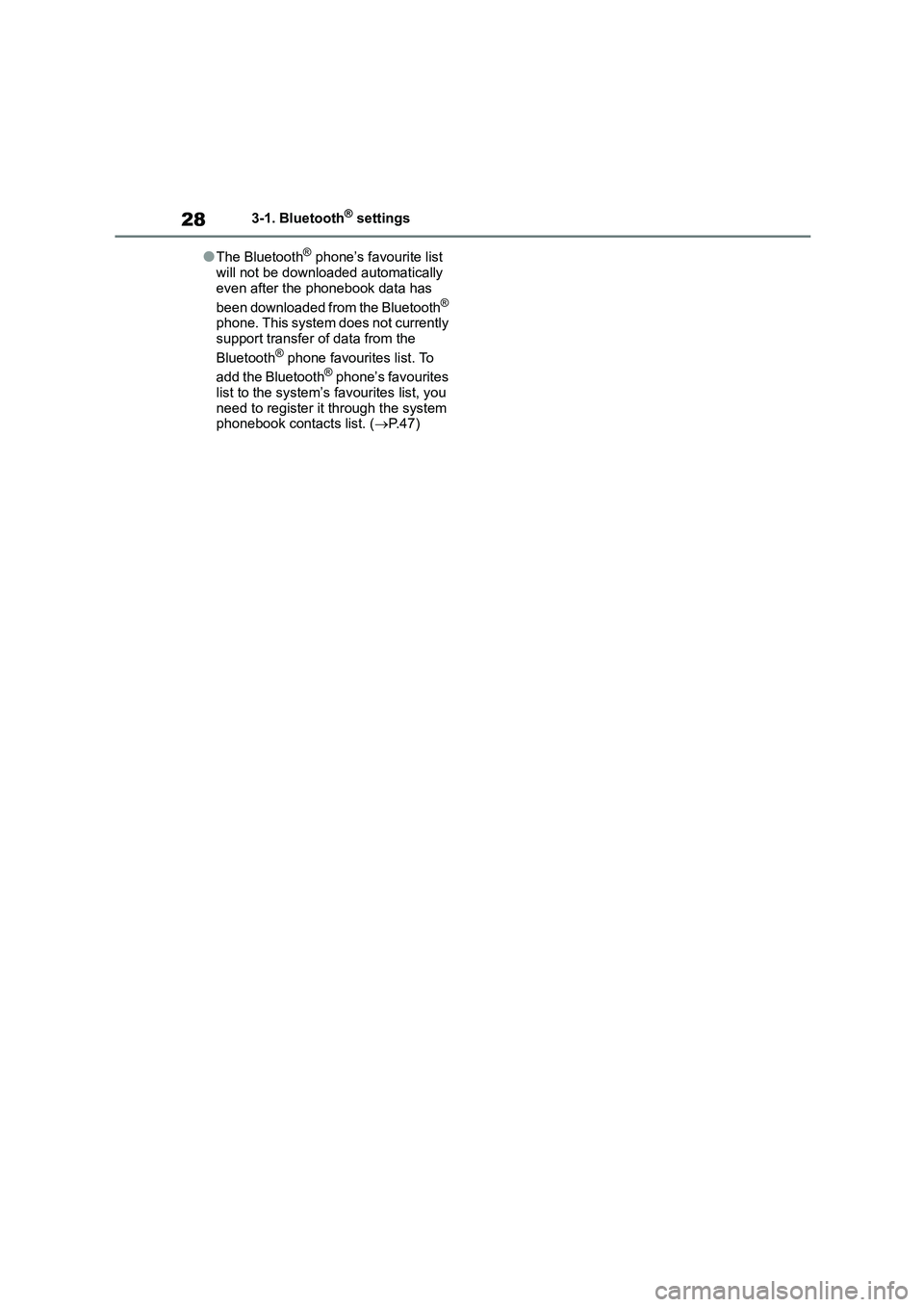

283-1. Bluetooth® settings
●The Bluetooth® phone’s favourite list
will not be downloaded automatically
even after the phonebook data has
been downloaded from the Bluetooth® phone. This system does not currently
support transfer of data from the
Bluetooth® phone favourites list. To
add the Bluetooth® phone’s favourites
list to the system’s favourites list, you
need to register it through the system phonebook contacts list. ( P. 4 7 )
