TOYOTA LAND CRUISER 2012 Owners Manual

5

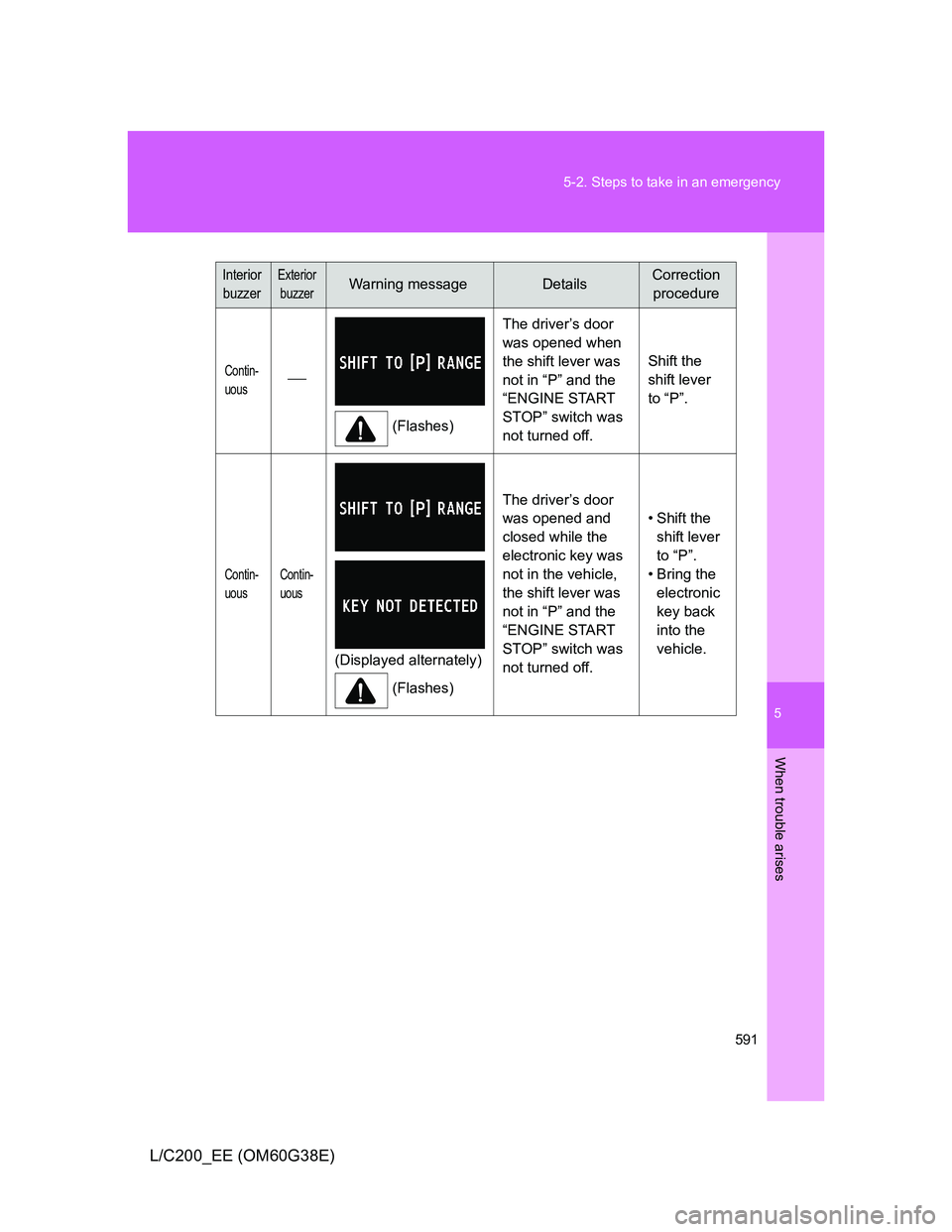

591 5-2. Steps to take in an emergency
When trouble arises
L/C200_EE (OM60G38E)
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
Contin-
uous
(Flashes)The driver’s door
was opened when
the shift lever was
not in “P” and the
“ENGINE START
STOP” switch was
not turned off.Shift the
shift lever
to “P”.
Contin-
uousContin-
uous
(Displayed alternately)
(Flashes)The driver’s door
was opened and
closed while the
electronic key was
not in the vehicle,
the shift lever was
not in “P” and the
“ENGINE START
STOP” switch was
not turned off. • Shift the
shift lever
to “P”.
• Bring the
electronic
key back
into the
vehicle.

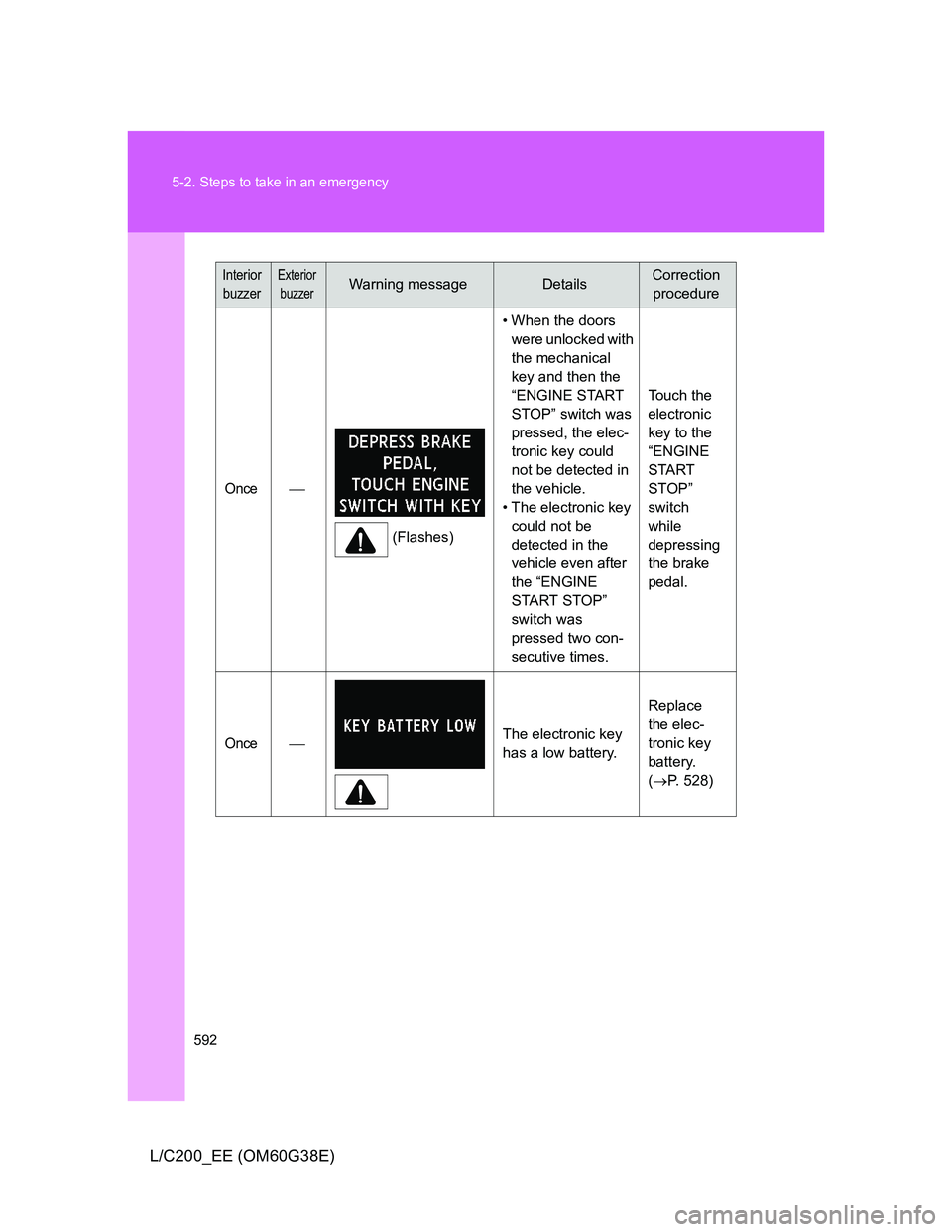

592 5-2. Steps to take in an emergency
L/C200_EE (OM60G38E)
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
Once
(Flashes)• When the doors
were unlocked with
the mechanical
key and then the
“ENGINE START
STOP” switch was
pressed, the elec-
tronic key could
not be detected in
the vehicle.
• The electronic key
could not be
detected in the
vehicle even after
the “ENGINE
START STOP”
switch was
pressed two con-
secutive times. Touch the
electronic
key to the
“ENGINE
START
STOP”
switch
while
depressing
the brake
pedal.
OnceThe electronic key
has a low battery.Replace
the elec-
tronic key
battery.
(P. 528)

5

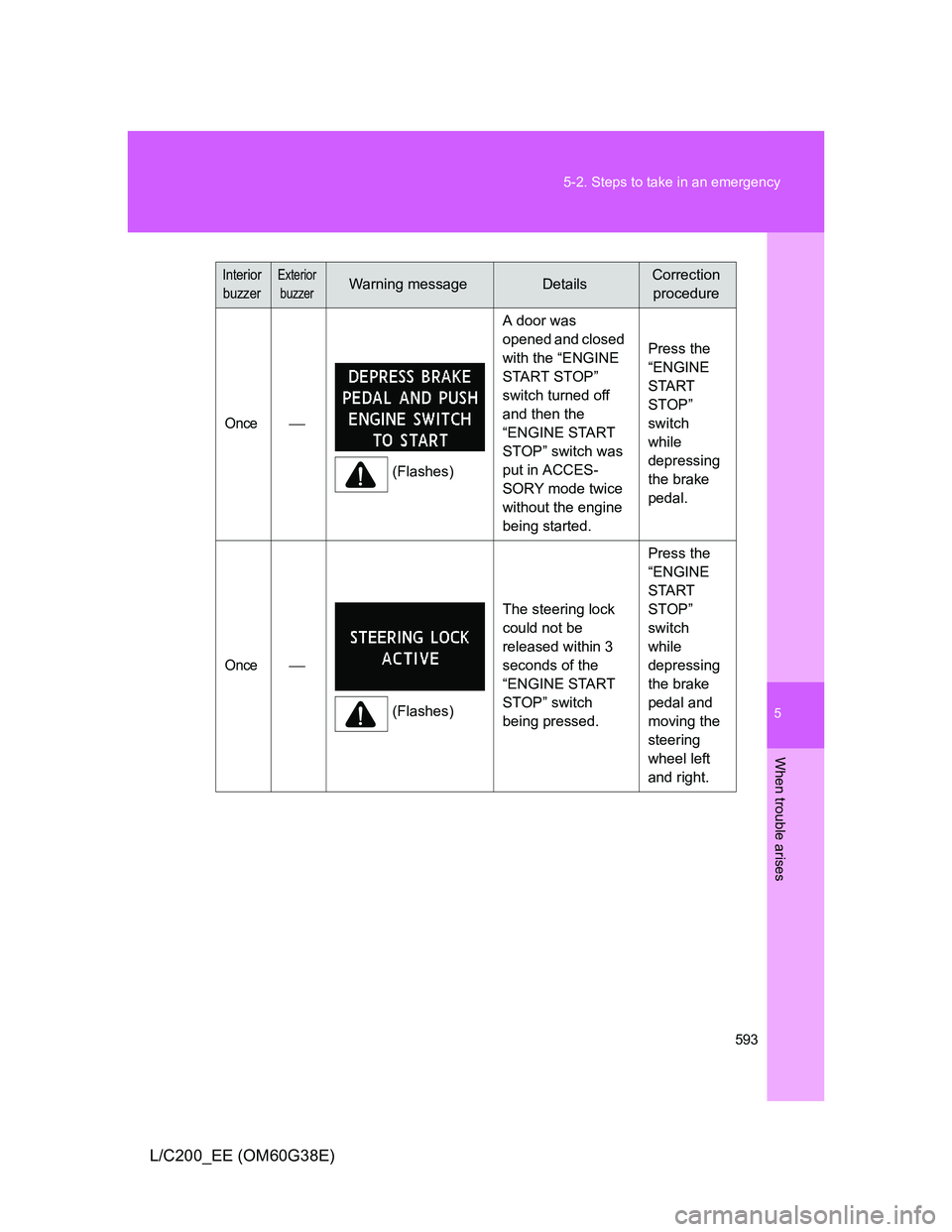

593 5-2. Steps to take in an emergency
When trouble arises
L/C200_EE (OM60G38E)
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
Once
(Flashes)A door was
opened and closed
with the “ENGINE
START STOP”
switch turned off
and then the
“ENGINE START
STOP” switch was
put in ACCES-
SORY mode twice
without the engine
being started.Press the
“ENGINE
START
STOP”
switch
while
depressing
the brake
pedal.
Once
(Flashes)The steering lock
could not be
released within 3
seconds of the
“ENGINE START
STOP” switch
being pressed. Press the
“ENGINE
START
STOP”
switch
while
depressing
the brake
pedal and
moving the
steering
wheel left
and right.

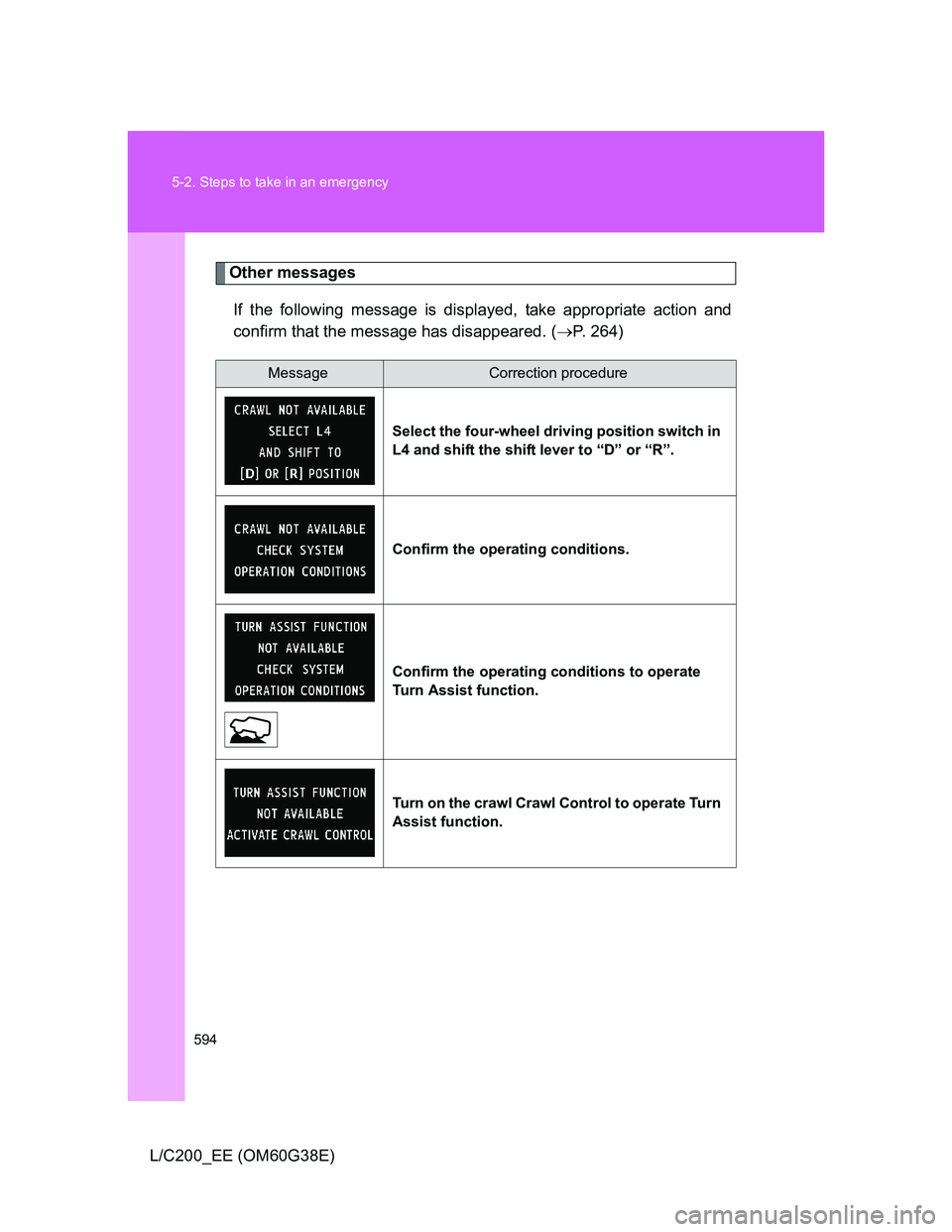

594 5-2. Steps to take in an emergency
L/C200_EE (OM60G38E)
Other messages
If the following message is displayed, take appropriate action and
confirm that the message has disappeared. (P. 264)
MessageCorrection procedure
Select the four-wheel driving position switch in
L4 and shift the shift lever to “D” or “R”.
Confirm the operating conditions.
Confirm the operating conditions to operate
Turn Assist function.
Turn on the crawl Crawl Control to operate Turn
Assist function.

5

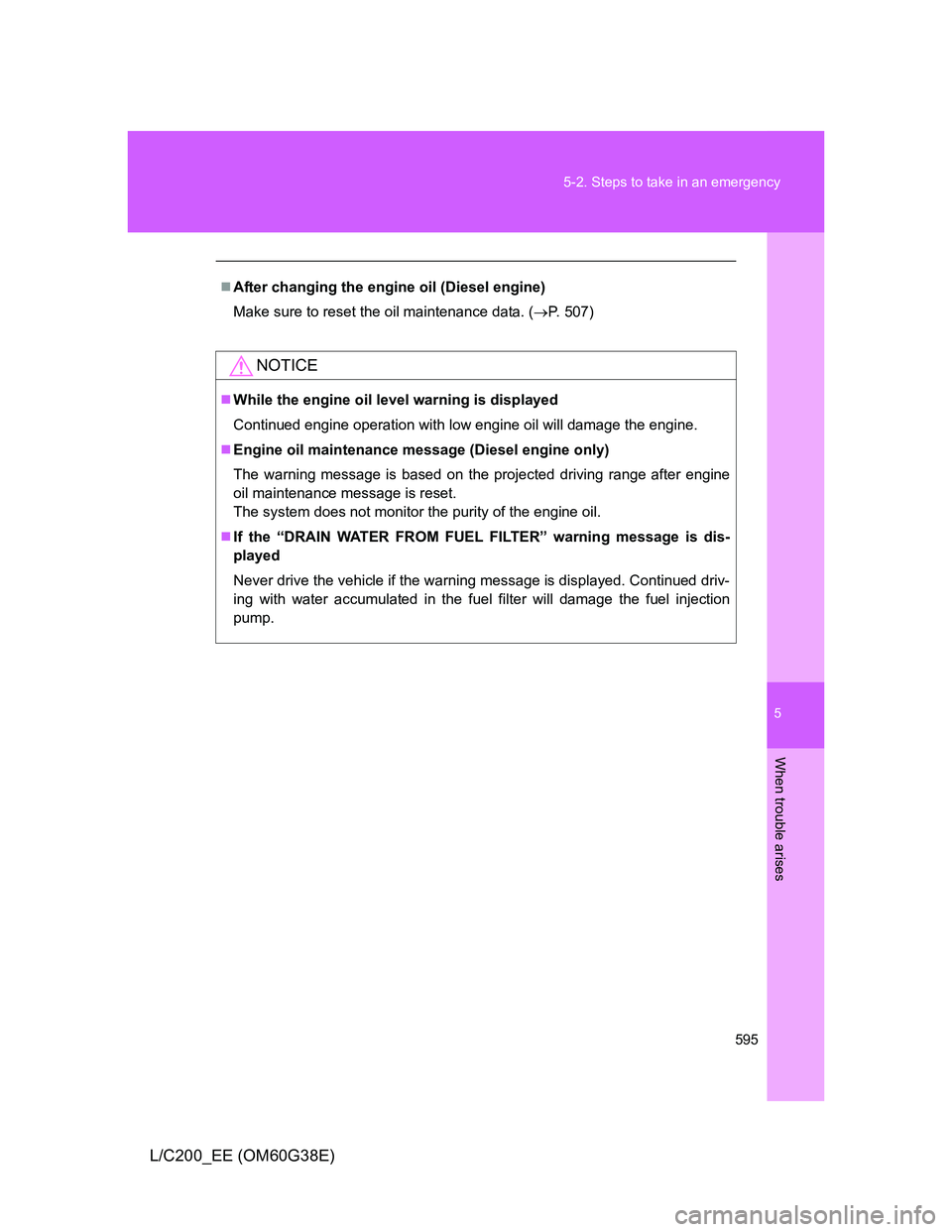

595 5-2. Steps to take in an emergency
When trouble arises
L/C200_EE (OM60G38E)
After changing the engine oil (Diesel engine)
Make sure to reset the oil maintenance data. (P. 507)
NOTICE
While the engine oil level warning is displayed
Continued engine operation with low engine oil will damage the engine.
Engine oil maintenance message (Diesel engine only)
The warning message is based on the projected driving range after engine
oil maintenance message is reset.
The system does not monitor the purity of the engine oil.
If the “DRAIN WATER FROM FUEL FILTER” warning message is dis-
played
Never drive the vehicle if the warning message is displayed. Continued driv-
ing with water accumulated in the fuel filter will damage the fuel injection
pump.

596
5-2. Steps to take in an emergency
L/C200_EE (OM60G38E)
If you have a flat tire (vehicles with a standard spare tire)
: If equipped
Remove the flat tire and replace it with the spare provided.
Before jacking up the vehicle
Stop the vehicle on a hard, flat surface.
Set the parking brake.
Shift the shift lever to “P”.
Turn off the intrusion sensor and tilt sensor (if equipped)
(P. 129)
Turn off the 4-Wheel AHC (if equipped). (P. 248)
Stop the engine.
Turn on the emergency flashers.
Location of the spare tire, jack and tools
JackTool box
Spare tire

5

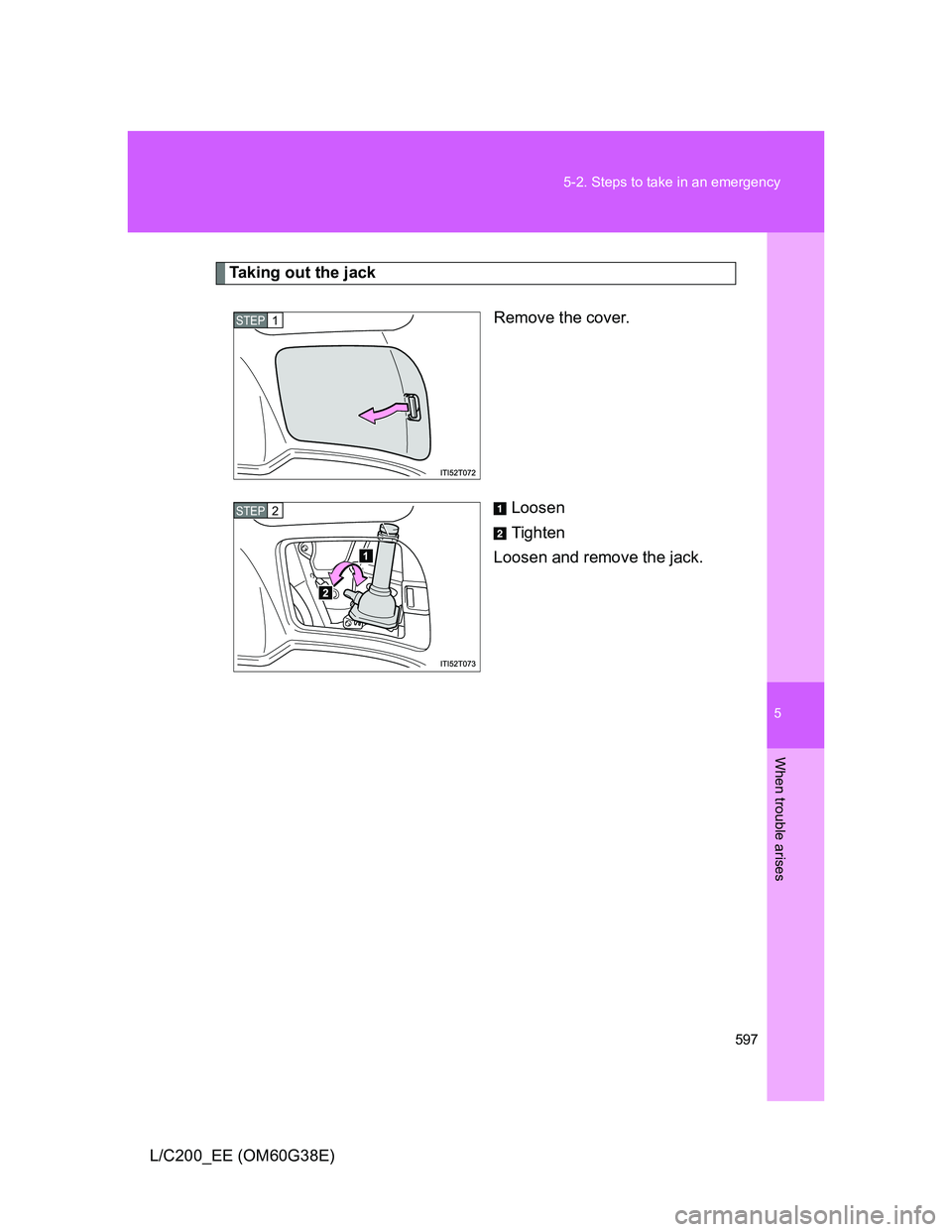

597 5-2. Steps to take in an emergency
When trouble arises
L/C200_EE (OM60G38E)
Taking out the jack
Remove the cover.
Loosen
Tighten
Loosen and remove the jack.
STEP1
STEP2

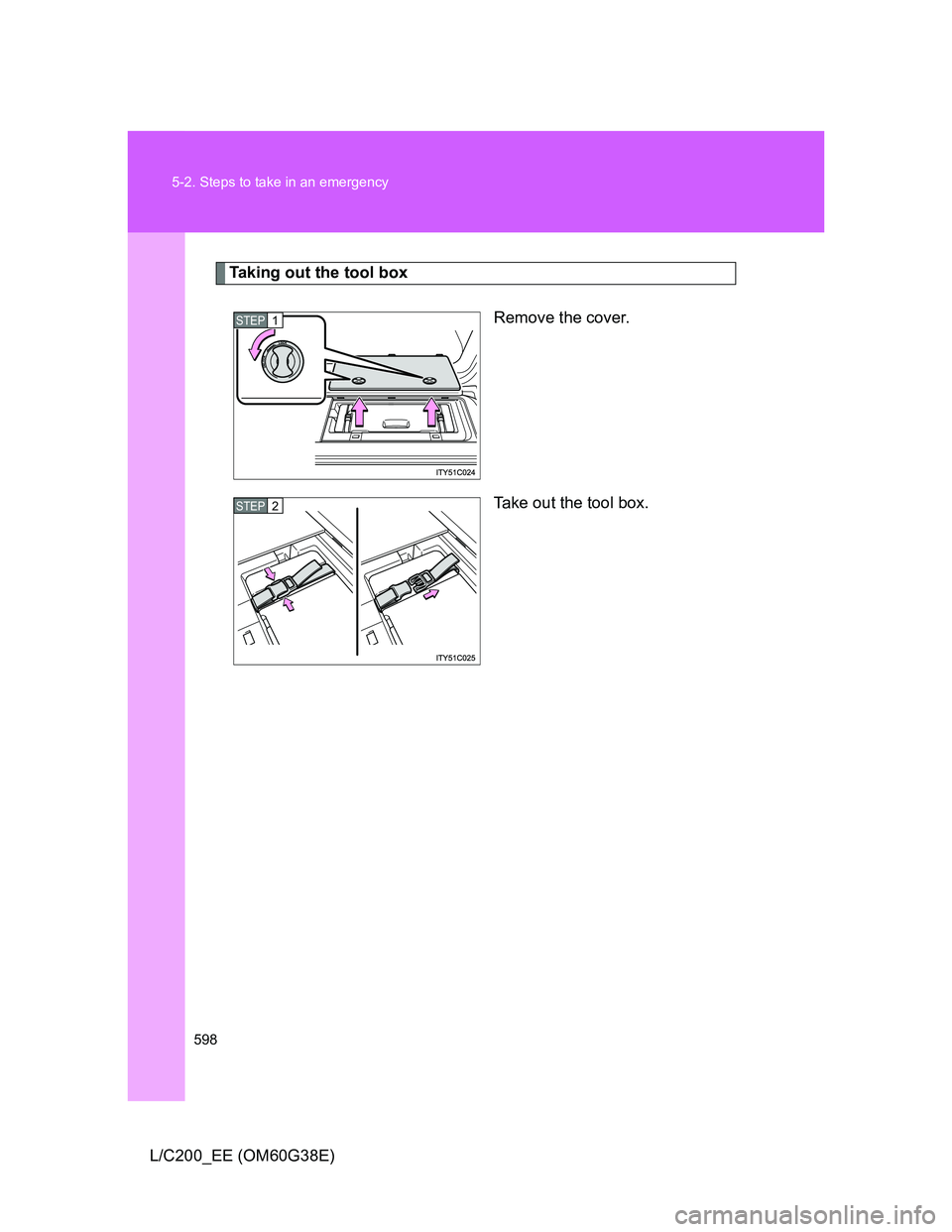

598 5-2. Steps to take in an emergency
L/C200_EE (OM60G38E)
Taking out the tool box
Remove the cover.
Take out the tool box.
STEP1
STEP2

5

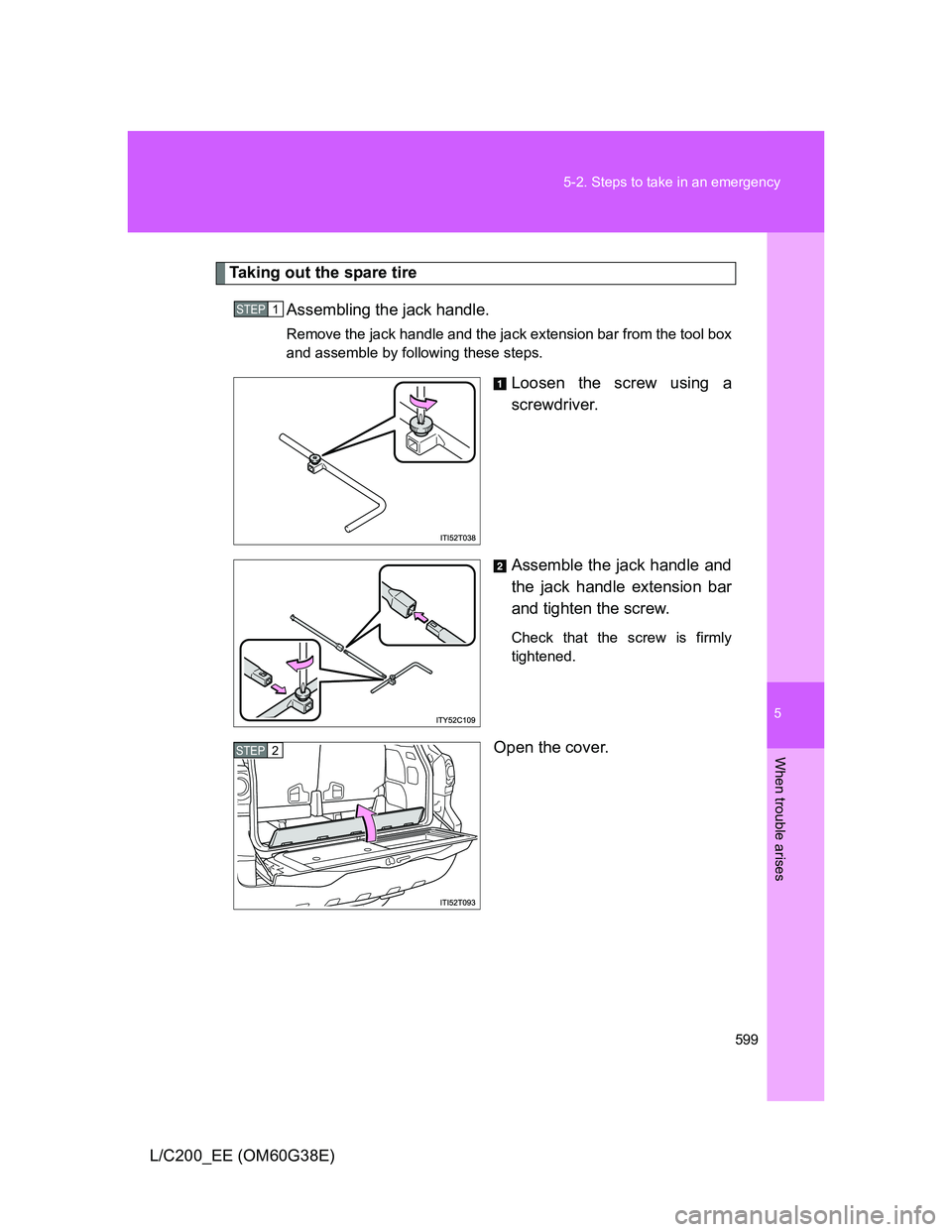

599 5-2. Steps to take in an emergency
When trouble arises
L/C200_EE (OM60G38E)
Taking out the spare tire
Assembling the jack handle.
Remove the jack handle and the jack extension bar from the tool box
and assemble by following these steps.
Loosen the screw using a
screwdriver.
Assemble the jack handle and
the jack handle extension bar
and tighten the screw.
Check that the screw is firmly
tightened.
Open the cover.
STEP1
STEP2

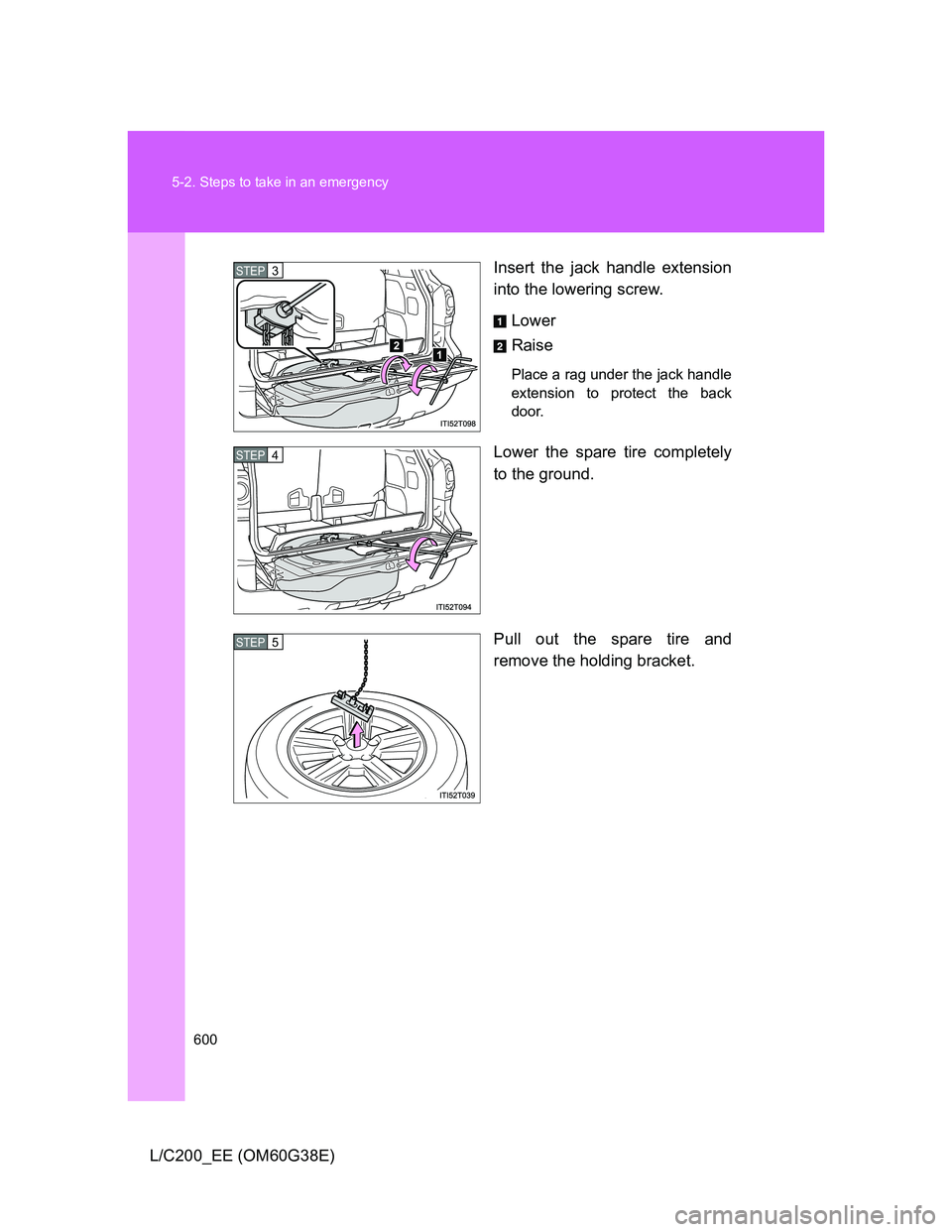

600 5-2. Steps to take in an emergency
L/C200_EE (OM60G38E)Insert the jack handle extension
into the lowering screw.
Lower
Raise
Place a rag under the jack handle
extension to protect the back
door.
Lower the spare tire completely
to the ground.
Pull out the spare tire and
remove the holding bracket.
STEP3
STEP4STEP4
STEP5
