Page 581 of 692
5

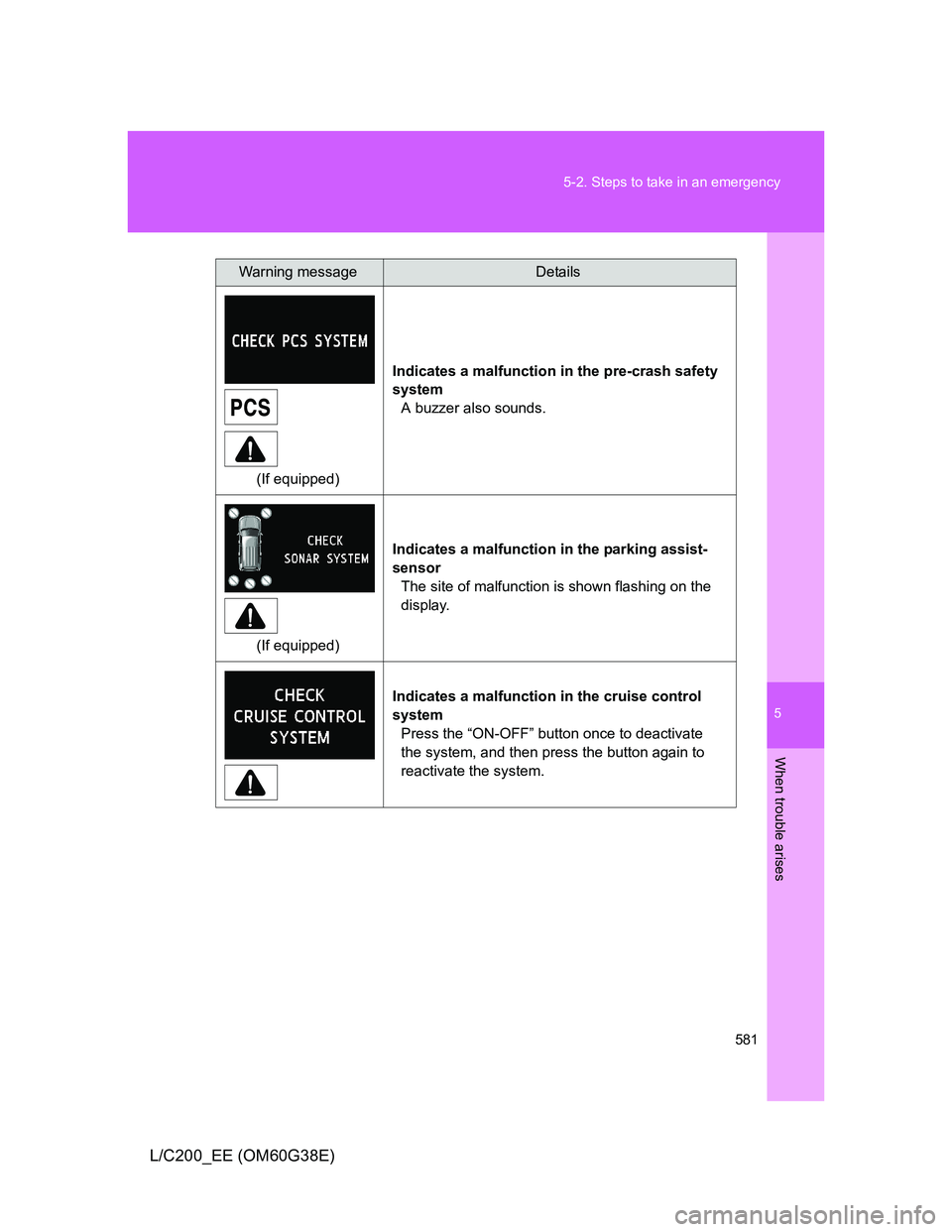

581 5-2. Steps to take in an emergency
When trouble arises
L/C200_EE (OM60G38E)
(If equipped)Indicates a malfunction in the pre-crash safety
system
A buzzer also sounds.
(If equipped)Indicates a malfunction in the parking assist-
sensor
The site of malfunction is shown flashing on the
display.
Indicates a malfunction in the cruise control
system
Press the “ON-OFF” button once to deactivate
the system, and then press the button again to
reactivate the system.
Warning messageDetails
Page 582 of 692

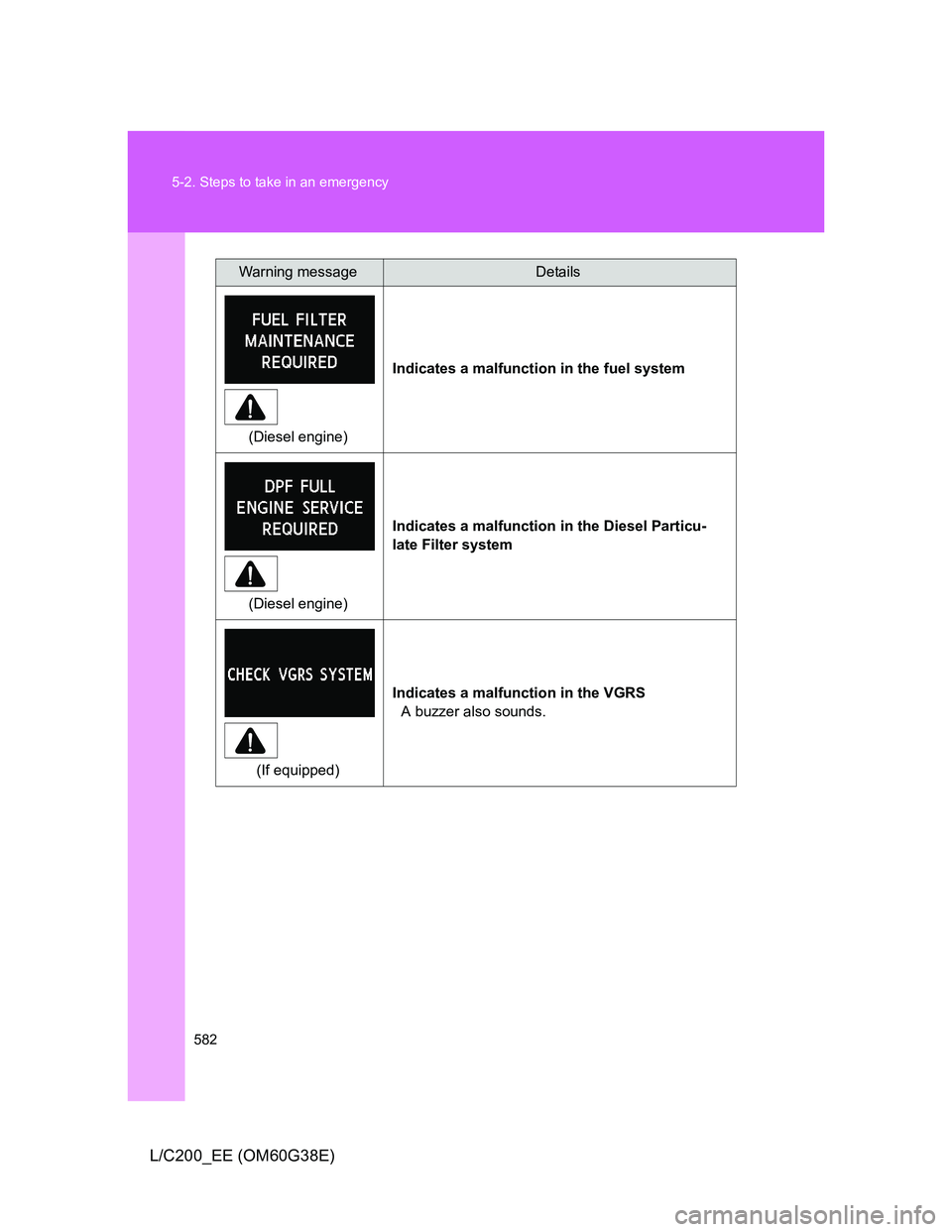

582 5-2. Steps to take in an emergency
L/C200_EE (OM60G38E)
(Diesel engine)Indicates a malfunction in the fuel system
(Diesel engine)Indicates a malfunction in the Diesel Particu-
late Filter system
(If equipped)Indicates a malfunction in the VGRS
A buzzer also sounds.
Warning messageDetails
Page 583 of 692
5

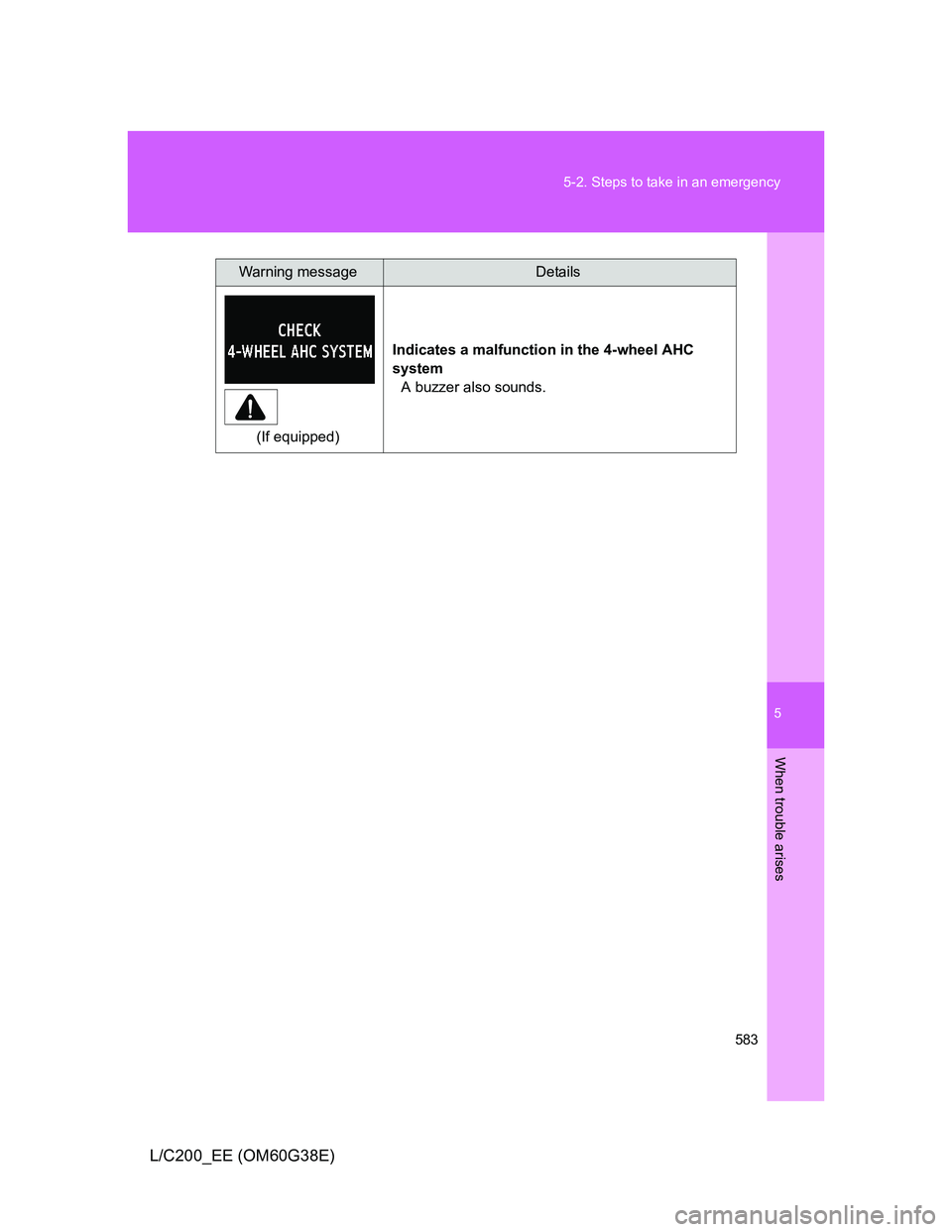

583 5-2. Steps to take in an emergency
When trouble arises
L/C200_EE (OM60G38E)
(If equipped)Indicates a malfunction in the 4-wheel AHC
system
A buzzer also sounds.
Warning messageDetails
Page 584 of 692

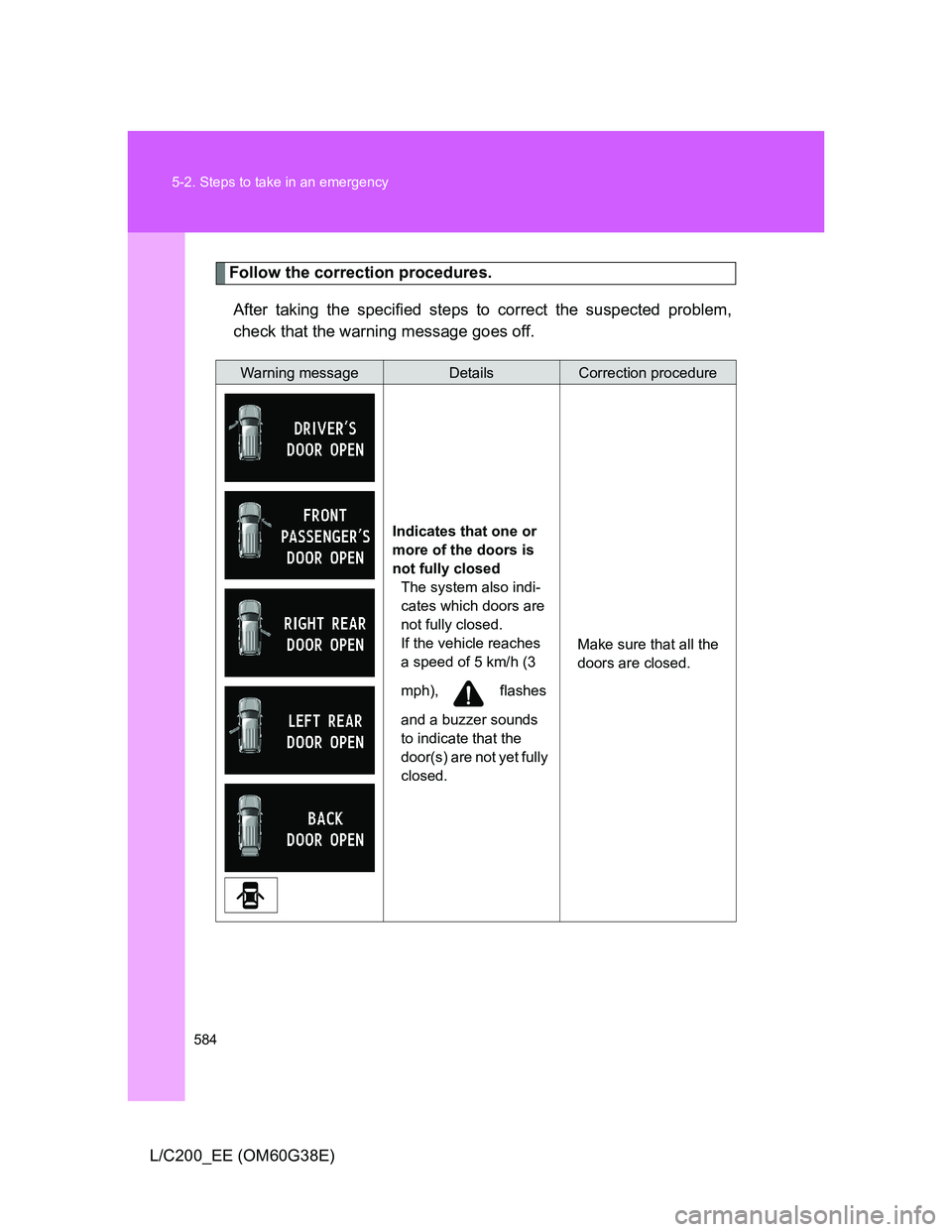

584 5-2. Steps to take in an emergency
L/C200_EE (OM60G38E)
Follow the correction procedures.
After taking the specified steps to correct the suspected problem,
check that the warning message goes off.
Warning messageDetailsCorrection procedure
Indicates that one or
more of the doors is
not fully closed
The system also indi-
cates which doors are
not fully closed.
If the vehicle reaches
a speed of 5 km/h (3
mph), flashes
and a buzzer sounds
to indicate that the
door(s) are not yet fully
closed.Make sure that all the
doors are closed.

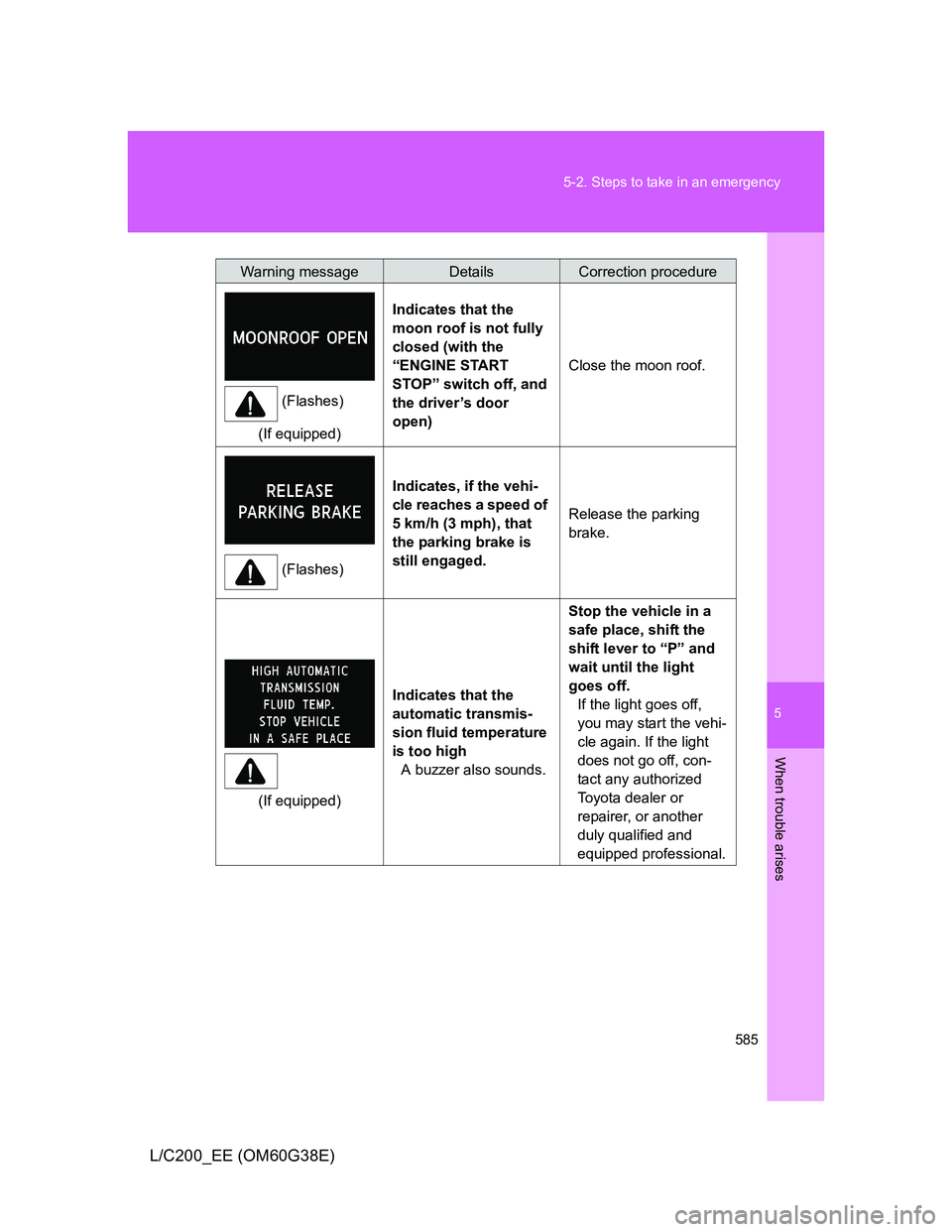

Page 585 of 692
5
585 5-2. Steps to take in an emergency
When trouble arises
L/C200_EE (OM60G38E)
(Flashes)
(If equipped)Indicates that the
moon roof is not fully
closed (with the
“ENGINE START
STOP” switch off, and
the driver’s door
open)Close the moon roof.
(Flashes)Indicates, if the vehi-
cle reaches a speed of
5 km/h (3 mph), that
the parking brake is
still engaged.Release the parking
brake.
(If equipped)Indicates that the
automatic transmis-
sion fluid temperature
is too high
A buzzer also sounds.Stop the vehicle in a
safe place, shift the
shift lever to “P” and
wait until the light
goes off.
If the light goes off,
you may start the vehi-
cle again. If the light
does not go off, con-
tact any authorized
Toyota dealer or
repairer, or another
duly qualified and
equipped professional.
Warning messageDetailsCorrection procedure
Page 586 of 692

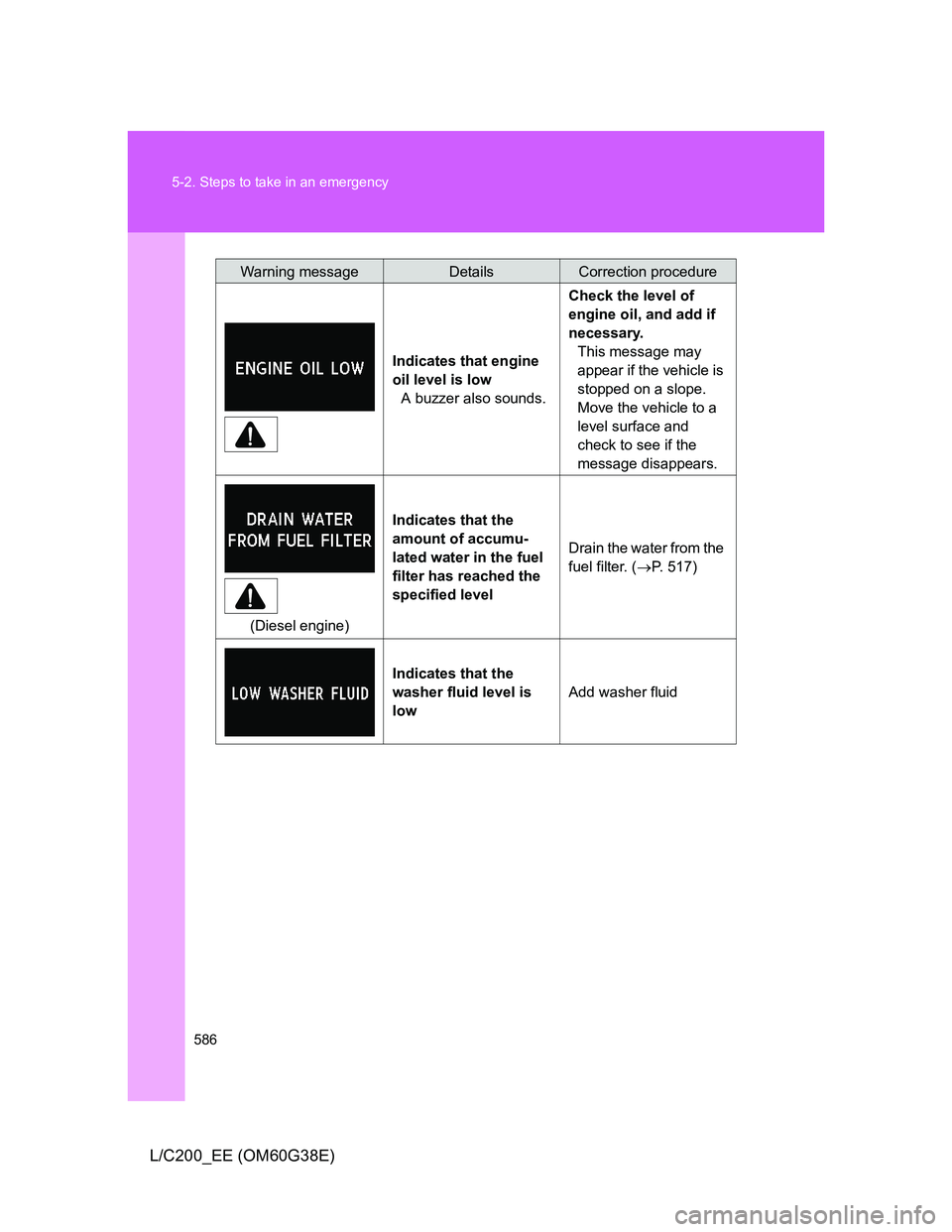

586 5-2. Steps to take in an emergency
L/C200_EE (OM60G38E)
Indicates that engine
oil level is low
A buzzer also sounds.Check the level of
engine oil, and add if
necessary.
This message may
appear if the vehicle is
stopped on a slope.
Move the vehicle to a
level surface and
check to see if the
message disappears.
(Diesel engine)Indicates that the
amount of accumu-
lated water in the fuel
filter has reached the
specified levelDrain the water from the
fuel filter. (P. 517)
Indicates that the
washer fluid level is
lowAdd washer fluid
Warning messageDetailsCorrection procedure

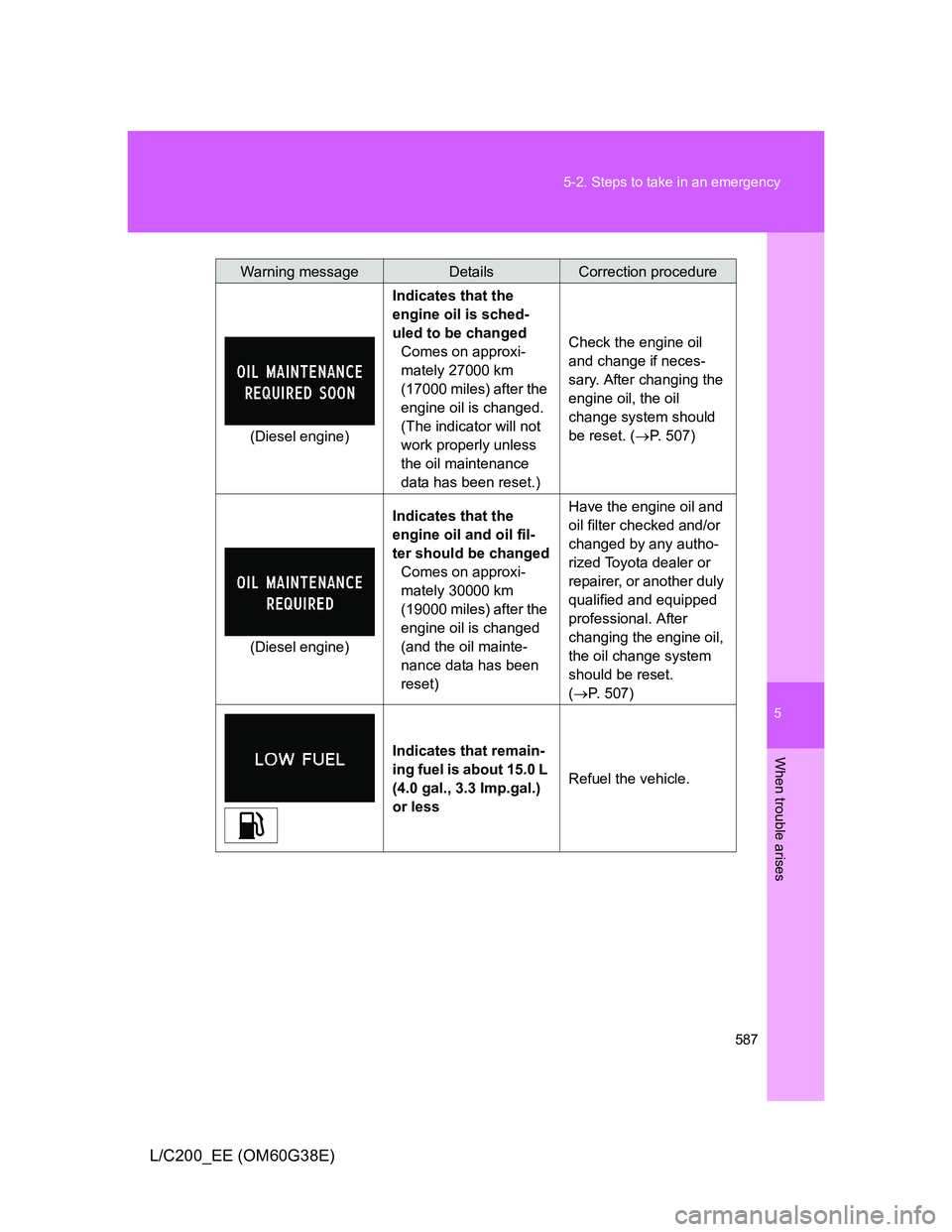

Page 587 of 692

5
587 5-2. Steps to take in an emergency
When trouble arises
L/C200_EE (OM60G38E)
(Diesel engine)Indicates that the
engine oil is sched-
uled to be changed
Comes on approxi-
mately 27000 km
(17000 miles) after the
engine oil is changed.
(The indicator will not
work properly unless
the oil maintenance
data has been reset.)Check the engine oil
and change if neces-
sary. After changing the
engine oil, the oil
change system should
be reset. (P. 507)
(Diesel engine)Indicates that the
engine oil and oil fil-
ter should be changed
Comes on approxi-
mately 30000 km
(19000 miles) after the
engine oil is changed
(and the oil mainte-
nance data has been
reset)Have the engine oil and
oil filter checked and/or
changed by any autho-
rized Toyota dealer or
repairer, or another duly
qualified and equipped
professional. After
changing the engine oil,
the oil change system
should be reset.
(P. 507)
Indicates that remain-
ing fuel is about 15.0 L
(4.0 gal., 3.3 Imp.gal.)
or less Refuel the vehicle.
Warning messageDetailsCorrection procedure
Page 588 of 692

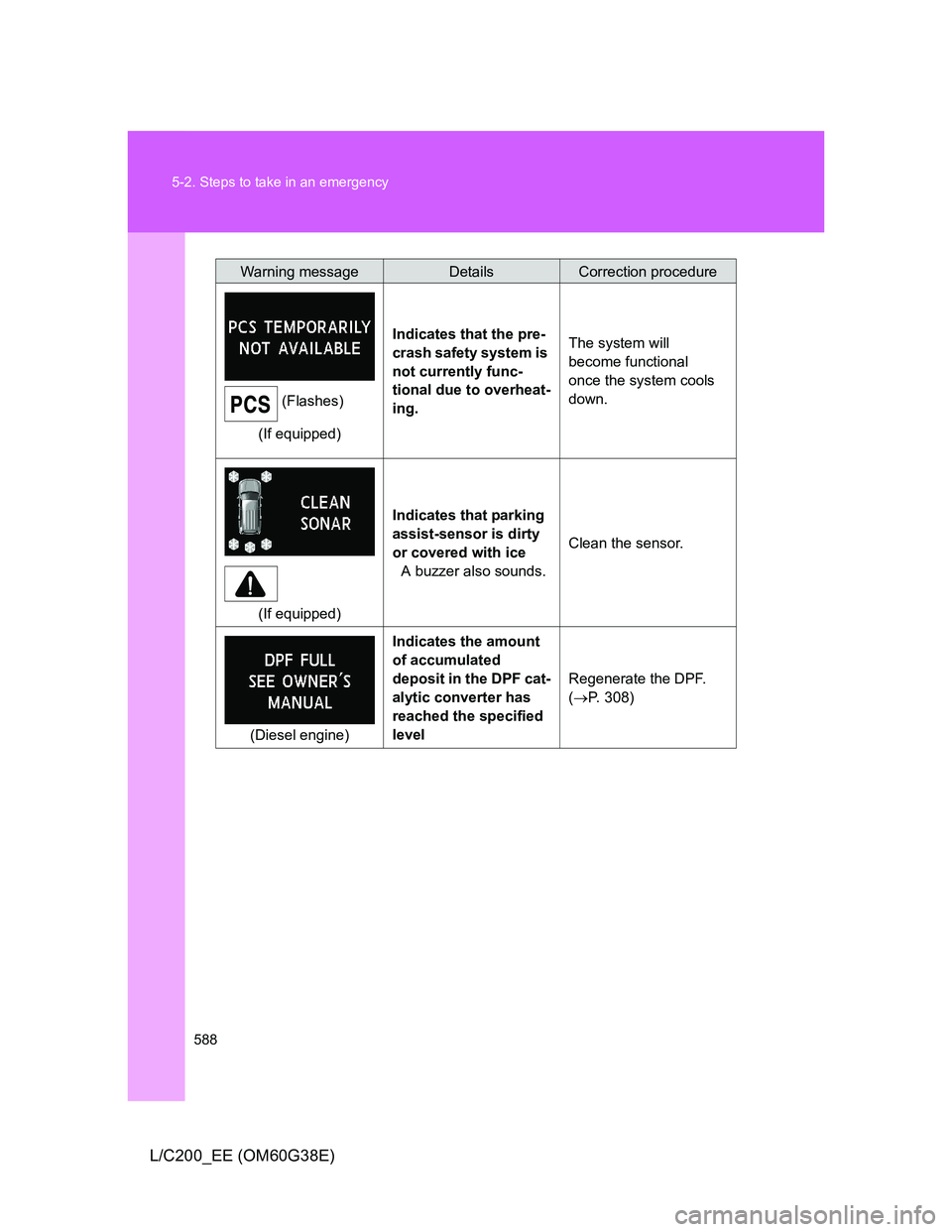

588 5-2. Steps to take in an emergency
L/C200_EE (OM60G38E)
(Flashes)
(If equipped)Indicates that the pre-
crash safety system is
not currently func-
tional due to overheat-
ing.The system will
become functional
once the system cools
down.
(If equipped)Indicates that parking
assist-sensor is dirty
or covered with ice
A buzzer also sounds.Clean the sensor.
(Diesel engine)Indicates the amount
of accumulated
deposit in the DPF cat-
alytic converter has
reached the specified
levelRegenerate the DPF.
(P. 308)
Warning messageDetailsCorrection procedure
Page 589 of 692
5

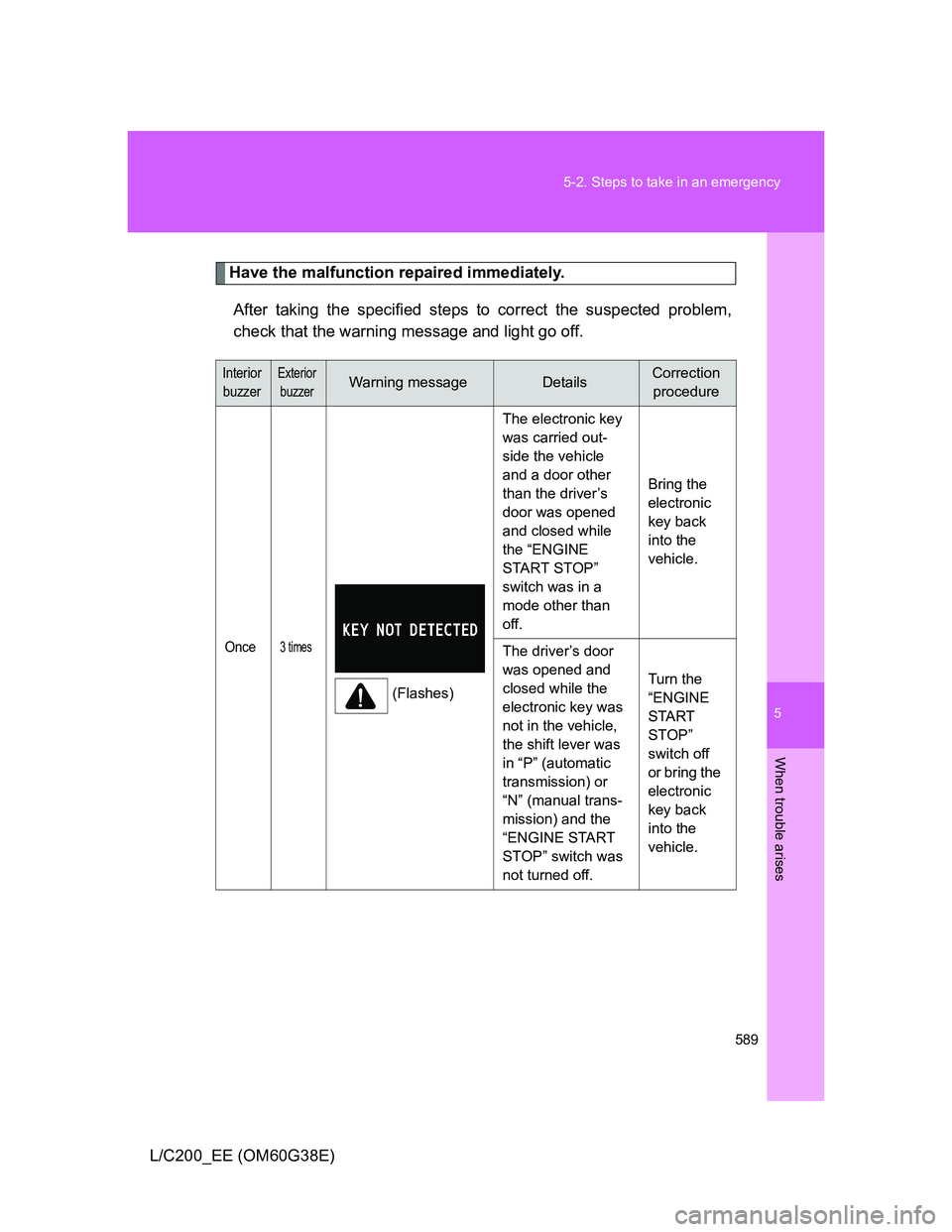

589 5-2. Steps to take in an emergency
When trouble arises
L/C200_EE (OM60G38E)
Have the malfunction repaired immediately.
After taking the specified steps to correct the suspected problem,
check that the warning message and light go off.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
Once3 times
(Flashes)The electronic key
was carried out-
side the vehicle
and a door other
than the driver’s
door was opened
and closed while
the “ENGINE
START STOP”
switch was in a
mode other than
off.Bring the
electronic
key back
into the
vehicle.
The driver’s door
was opened and
closed while the
electronic key was
not in the vehicle,
the shift lever was
in “P” (automatic
transmission) or
“N” (manual trans-
mission) and the
“ENGINE START
STOP” switch was
not turned off. Turn the
“ENGINE
START
STOP”
switch off
or bring the
electronic
key back
into the
vehicle.
Page 590 of 692

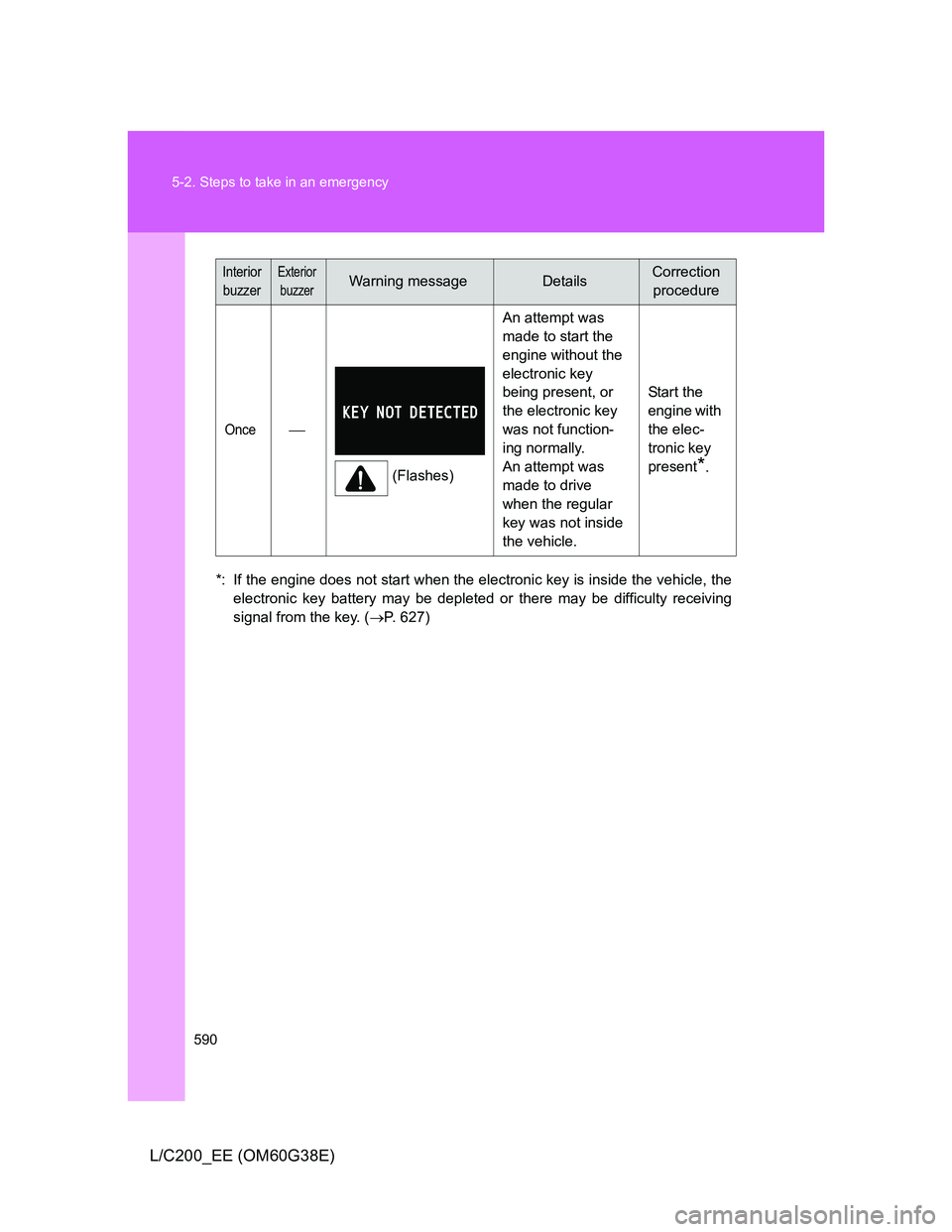

590 5-2. Steps to take in an emergency
L/C200_EE (OM60G38E)
*: If the engine does not start when the electronic key is inside the vehicle, the
electronic key battery may be depleted or there may be difficulty receiving
signal from the key. (P. 627)
Once
(Flashes)An attempt was
made to start the
engine without the
electronic key
being present, or
the electronic key
was not function-
ing normally.
An attempt was
made to drive
when the regular
key was not inside
the vehicle.Start the
engine with
the elec-
tronic key
present
*.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
