2-2. Charging
2
Plug-in hybrid system
Things to know before charging
This vehicle has been designed to allow charging from an external
power source using a charging cabl e for exclusive use with standard
household AC outlets.
However, the vehicle differs greatly from standard household el ectri-
cal goods in the following ways, and incorrect usage could caus e fire
or electric shock, pos sibly leading to death or serious injury.
● The charging operation is designed to operate at 12A continuous ly
for the charge duration (up to 5 hours 10 minutes). ( P. 125)
● Charging can be conducted outdoors.
To charge properly, follow the procedure after reading the expl anation
below. Charging is intended to be carried out by licensed drive rs only
who properly understand the charging procedure.
● Charging should not be carried out by children.
● When charging with a charging equipment, follow the procedures
for using each equipment.
● When charging using a public cha rging facility, check the setting of
the charging timer function. • When the charge schedule is registered, temporarily turn off t he
function or turn “ Charge Now” on. ( P. 154, 156, 164, 165)
• When the charge sche dule is set to ON, charging will not start
even if the charging cable is connected. Also, charging fee may
occur due to connection of the charging cable.
Make sure to read the following precautions before connecting
the charging cable to the vehicle and charging the hybrid batte ry
(traction battery).
Charging precautions
Page 132 of 788

132
PRIUS PRIME_OM_OM47C17U_(U)
2-2. Charging
Before charging, always check the following items.
● The parking brake is applied.( P. 3 3 7 )
● The headlights are switched off or set to AUTO, and lights such as
the emergency flashers and interi or lights etc. are switched off.
If these light switches are turned ON, then these features will consume
electricity, and charging time will increase.
● The power switch is off. ( P. 3 2 4 )
Before charging, make sure that each part of the charging cable is in
good condition. ( P. 11 2 )
■Safety functions
●The hybrid system will not start while the charging cable is at tached to the
vehicle, even if the power switch is operated.
● If the charging cable is connected while the “READY” indicator is illumi-
nated, the hybrid system will stop automatically and driving wi ll not be possi-
ble.
● When the charging cable is connected to the vehicle, the shift position can-
not be changed from P to another position.
■ During charging
The followings occur, however, it does not indicate a malfuncti on.
● The charging starting time may differ depending on the state of the vehicle.
● During charging, the sound of the fan may be heard from the cha rging
equipment cooling air intake vents. ( P. 135)
● During and after charging, the rear seat and its surrounding ar ea in which
the charging equipment is installed may get warm.
Confirm the following before charging
Inspecting the charging cable
Page 133 of 788

PRIUS PRIME_OM_OM47C17U_(U)
1332-2. Charging
2
Plug-in hybrid system
■Capacity reduction of the hybr id battery (traction battery)
The capacity of the hybrid battery (traction battery) will decline gradually
when the hybrid battery (traction battery) is in use. The rate at which it
declines will differ in accordance with environmental condition s and the way
in which the vehicle is used. Observing the following can help suppress bat-
tery capacity decline.
● Avoid parking the vehicle in areas with a high temperature unde r direct sun-
light when the hybrid battery (traction battery) is fully charged.
● Avoid accelerating and decelerating frequently and suddenly when EV driv-
ing.
● Avoid frequent driving near the top speed for EV driving. ( P. 87)
● Leave a low level of charge in the hybrid battery (traction bat tery) when
leaving the vehicle undriven for a long period of time.
After confirming that EV mode has switched to HV mode, turn the power
switch off.
● Use the charging timer function as much as possible in order to fully
charge the hybrid battery (traction battery) immediately before starting
off. ( P. 147)
Also, if the hybrid battery (traction battery) capacity reduces , the distance that
can be driven in EV mode decreases. However, vehicle performanc e does
not significantly become worse.
■ When the remaining charge of the hybrid battery (traction battery) is low
after charging
In the following situations, the remaining charge of the hybrid battery (traction
battery) after charging completes may be less than normal in or der to protect
the system (the EV driving range after the battery is fully charged may be
shorter).
*
● Charging is carried out when the outside temperature is low or high
● Charging is carried out immediately after high-load driving or in extreme
heat
When none of the above situations apply and there is a drastic drop in the
remaining charge of the hybrid battery (traction battery) after charging com-
pletes, have the vehicle inspected by your Toyota dealer.
*: When this occurs, even if the remaining charge display of the hybrid battery
(traction battery) shows that it is fully charged, the remainin g charge rapidly
decreases faster than normal.
■ Certification
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
Page 134 of 788

134
PRIUS PRIME_OM_OM47C17U_(U)
2-2. Charging
WARNING
■Caution when charging
People with implantable cardiac pacemakers or cardiac resynchro nization
therapy-pacemakers should not carry out the charging procedure. Ask
someone else to do it.
● Do not approach the charging equipment and charging cable while
charging.
Charging procedure may affect the operation of such devices.
● Do not remain in the vehicle during charging.
Charging procedure may affect the operation of such devices.
● Do not enter the vehicle even to take something out of the lugg age com-
partment.
Charging procedure may affect the operation of such devices.
■ When the charging cable is connected to the vehicle
Do not operate the shift lever.
In the unlikely event that the charging cable has been damaged, the shift
position may change from P to another position and the vehicle could move,
possibly leading to an accident.
NOTICE
■ Precautions when handl ing charging cable
Make sure to observe the following precautions. Failure to obse rve these
precautions may result in damage to the charging cable and char ging inlet.
● Insert the charging connector straight into the charging inlet.
● After inserting the charging connector, do not apply excessive force to or
twist the connector. Also, do not lean on the connector or hang any objects
from it.
● Do not step on or trip over the charging cable.
● Vehicles with smart lid & connector locking system: Before remo ving the
charging connector, make sure that it is unlocked. ( P. 142)
● After removing the charging cable, promptly return it to its pr oper location.
● After removing the charging connector, securely install the cha rging inlet
cap.
Page 135 of 788

PRIUS PRIME_OM_OM47C17U_(U)
1352-2. Charging
2
Plug-in hybrid system
NOTICE
■Charging equipment cool ing air intake vents
● Do not block the air intake vents with seat covers or luggage
● If the air intake vents are clogged with dust, clean them with a vacuum
cleaner
● Do not allow water or foreign matter to enter the air intake ve nts
● Do not spill large amounts of water near the air intake vents
If water is spilled, have the vehicle inspected by your Toyota dealer and do
not charge the hybrid battery (traction battery) before the ins pection.
The grilles under the rear seats are the
cooling air intake vents for the charging
equipment installed under the seats.
Make sure to observe the following pre-
cautions regarding the cooling air intake
vents. Failure to observe these precau-
tions may result in a charging system
malfunction.
Page 136 of 788

136
PRIUS PRIME_OM_OM47C17U_(U)
2-2. Charging
How to charge
P. 1 3 2
Prepare the charging cable.
Insert the charging cable into
the outlet of the external power
source.
Make sure to hold the body of the
plug and insert it firmly into the out-
let.
Check that the power indicator on
the CCID (Charging Circuit Inter-
rupting Device) is illuminated.
(If it is not illuminated, refer to P. 170)
In order to reduce the load on the
outlet and plug, when inserting the
plug, use a string, etc. to hang the
CCID (Charging Circuit Interrupting
Device) on a hook or equivalent.
Open the charging port lid.
( P. 103)
The charging inlet light will illumi-
nate.
This section explains the proce dure for charging the hybrid bat -
tery (traction battery) with the equipped charging cable.
When using a charging station, make sure to check the opera-
tion instructions on the charging station.
When the charge schedule is registered, make sure “Charge Now”
is turned on before charging. ( P. 156, 165)
Confirm the following before charging
When charging
1
2
Charging inlet lightP
Page 137 of 788

PRIUS PRIME_OM_OM47C17U_(U)
1372-2. Charging
2
Plug-in hybrid system
Remove the charging inlet cap
and secure it as shown in the
illustration.
Remove the protective cap of
the charging connector and
secure it to the cable.
Insert the charging connector
into the charging inlet.
Align the guide position on the bot-
tom of the charging connector, and
push the charging connector
straight into the charging inlet as
far as possible.
Once a “click” sound is heard,
check that the charging connector
is securely locked.
4
5
6
Page 138 of 788

138
PRIUS PRIME_OM_OM47C17U_(U)
2-2. Charging
Confirm that the charging indi-
cator is illuminated.
Charging will not start if the
charging indicator does not illumi-
nate when the charging connector
is inserted. (P. 171)
If the charging indicator is flashing,
the charge schedule is registered.
( P. 139)
If the error warning indicator on the CCID (Charging Circuit In terrupting
Device) flashes during charging, check P. 110 and follow the co rrection
procedure.
Vehicles with smart lid & con-
nector locki ng system:
When you wish to lock the
charging connector, carry an
electronic key and press the
charging connector lock switch.
The charging connector will be
locked by the smart lid & connector
locking system. After the charging
connector is locked, even if some-
one not carrying an electronic key
presses the charging connector
lock switch, they cannot unlock the
charging connector.
The charging indicator will turn off when charging is completed .
7
8
Page 139 of 788

PRIUS PRIME_OM_OM47C17U_(U)
1392-2. Charging
2
Plug-in hybrid system
■During charging
●The surface of the CCID (Charging Circuit Interrupting Device) may become
hot, but this does not indicate a malfunction.
● Depending on radio wave conditions, interference may be heard o n the
radio.
● The current charging condition and the estimated time until cha rging will
complete can be checked on the multi-information display or 11. 6-inch dis-
play (if equipped). ( P. 130)
● During charging, the hybrid battery (traction battery) status i ndicator illumi-
nates and flashes, and changes according to the charging amount .
( P. 104)
■ If the charging indicator flashes after connecting the charging cable
The charge schedule ( P. 147) is registered and charging cannot be per-
formed immediately. To cancel charging using the timer and star t charging
immediately, perform any of the following procedures.
● Turn “Charge Now” on ( P. 156, 165)
● While the charging indicator is flashing, remove and reconnect the charging
connector within 5 seconds
■ When the charging connector cannot be inserted into the chargin g inlet
(vehicles with smart lid & connector locking system)
P. 119
Page 140 of 788

140
PRIUS PRIME_OM_OM47C17U_(U)

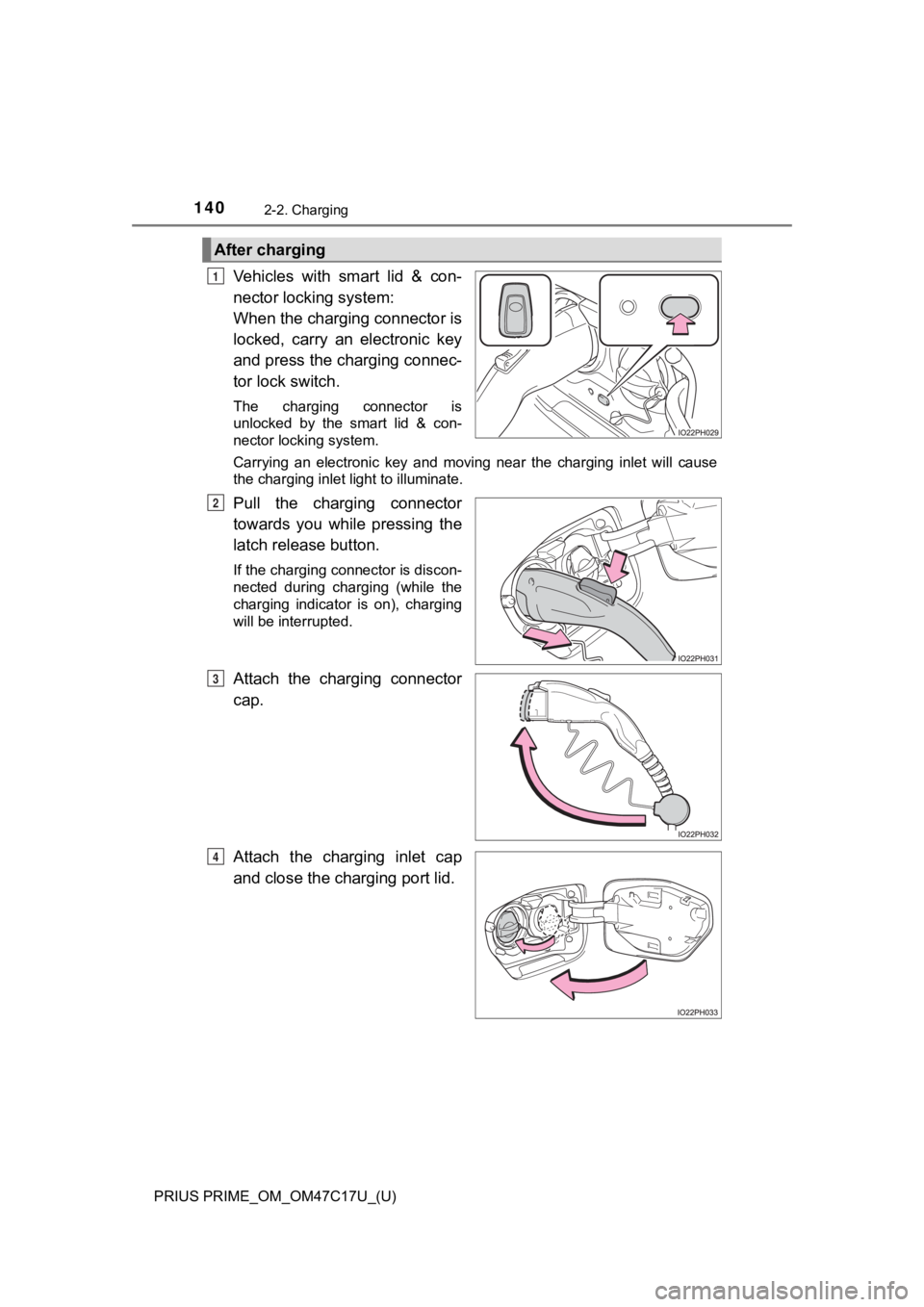

2-2. Charging
Vehicles with smart lid & con-
nector locking system:
When the charging connector is
locked, carry an electronic key
and press the charging connec-
tor lock switch.
The charging connector is
unlocked by the smart lid & con-
nector locking system.
Carrying an electronic key and moving near the charging inlet will cause
the charging inlet light to illuminate.
Pull the charging connector
towards you while pressing the
latch release button.
If the charging connector is discon-
nected during charging (while the
charging indicator is on), charging
will be interrupted.
Attach the charging connector
cap.
Attach the charging inlet cap
and close the charging port lid.
After charging
1
2
3
4
