TOYOTA RAV4 1996 Service Manual PDF

WIRING DIAGRAMS

1996 Toyota 4Runner
AIR BAG RESTRAINT SYSTEM 1996 ACCESSORIES/SAFETY EQUIPMENT Toyota Air Bag Restraint System
Microsoft
Tuesday, August 18, 2009 7:33:32 PMPage 27 © 2005 Mitchell Repair Information Company, LLC.

1996 Toyota 4Runner
AIR BAG RESTRAINT SYSTEM 1996 ACCESSORIES/SAFETY EQUIPMENT Toyota Air Bag Restraint System
Microsoft
Tuesday, August 18, 2009 7:33:32 PMPage 28 © 2005 Mitchell Repair Information Company, LLC.

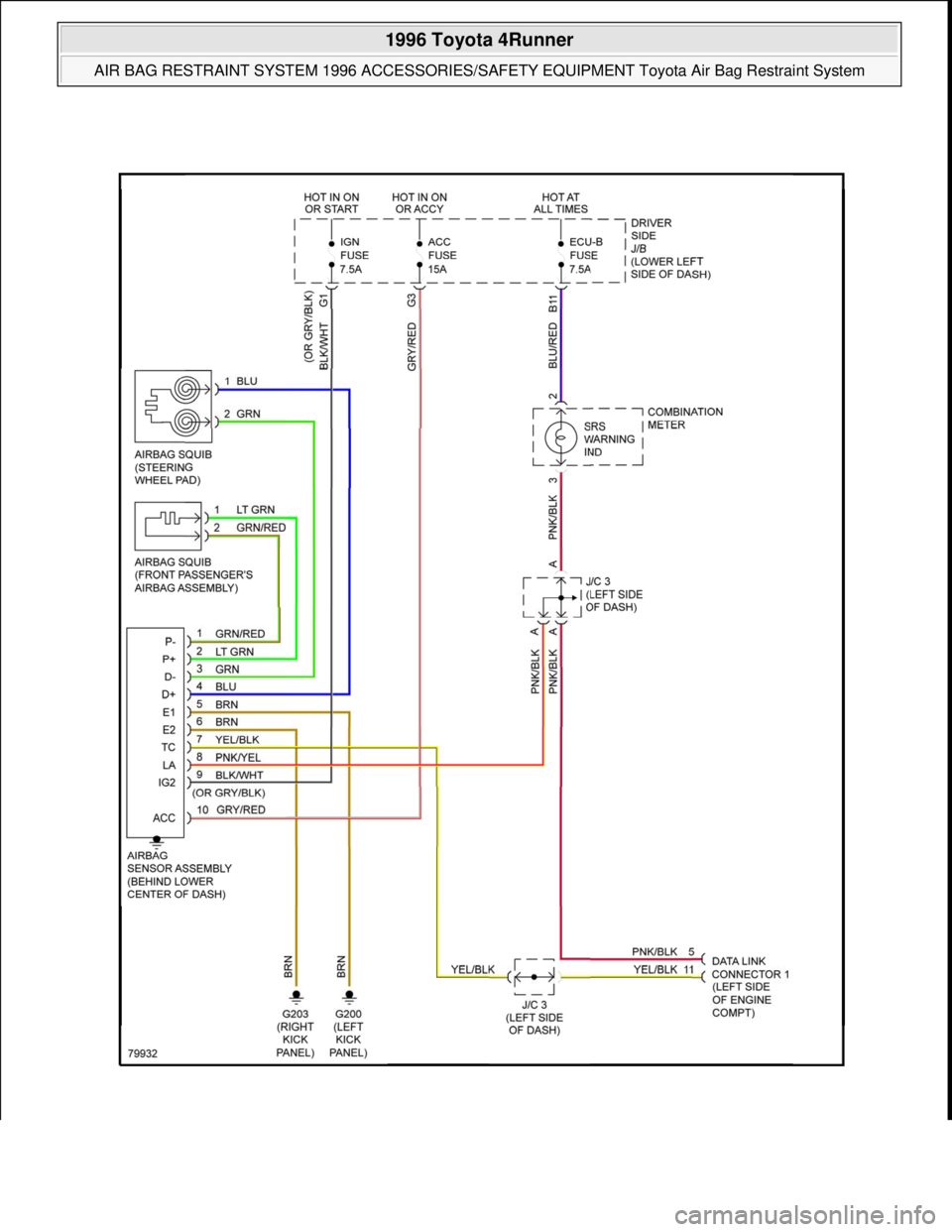

Fig. 16: SRS Wiring Diagram (4-Runner)

1996 Toyota 4Runner
AIR BAG RESTRAINT SYSTEM 1996 ACCESSORIES/SAFETY EQUIPMENT Toyota Air Bag Restraint System
Microsoft
Tuesday, August 18, 2009 7:33:32 PMPage 29 © 2005 Mitchell Repair Information Company, LLC.

AIR BAG RESTRAINT SYSTEM
1999 Toyota
DESCRIPTION & OPERATION

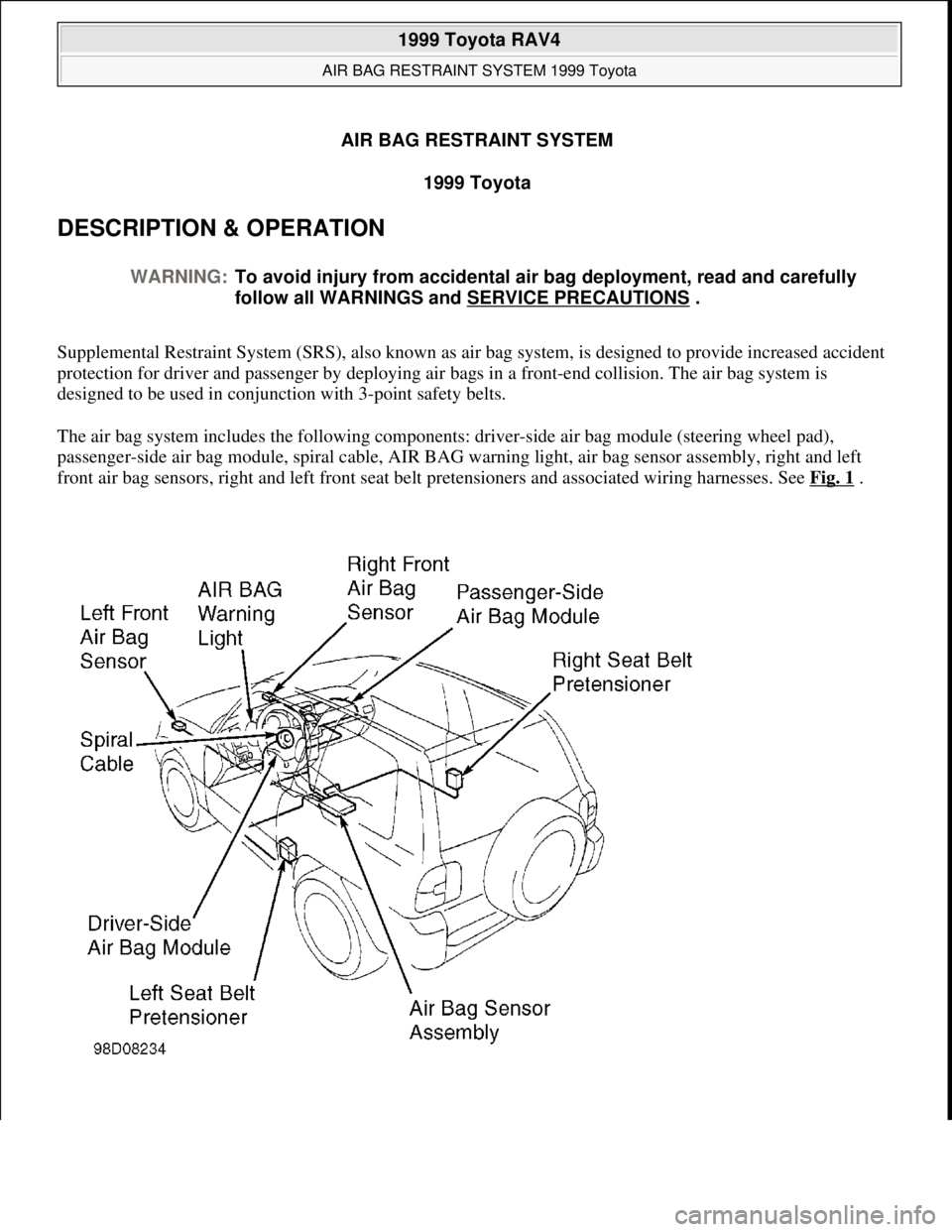

Supplemental Restraint System (SRS), also known as air bag system, is designed to provide increased accident
protection for driver and passenger by deploying air bags in a front-end collision. The air bag system is
designed to be used in conjunction with 3-point safety belts.
The air bag system includes the following components: driver-side air bag module (steering wheel pad),
passenger-side air bag module, spiral cable, AIR BAG warning light, air bag sensor assembly, right and left
front air bag sensors, right and left front seat belt pretensioners and associated wiring harnesses. See Fig. 1
. WARNING:To avoid injury from accidental air bag deployment, read and carefully
follow all WARNINGS and SERVICE PRECAUTIONS
.

1999 Toyota RAV4
AIR BAG RESTRAINT SYSTEM 1999 Toyota

1999 Toyota RAV4
AIR BAG RESTRAINT SYSTEM 1999 Toyota
Microsoft
Sunday, November 22, 2009 10:33:22 AMPage 1 © 2005 Mitchell Repair Information Company, LLC.
Microsoft
Sunday, November 22, 2009 10:33:26 AMPage 1 © 2005 Mitchell Repair Information Company, LLC.

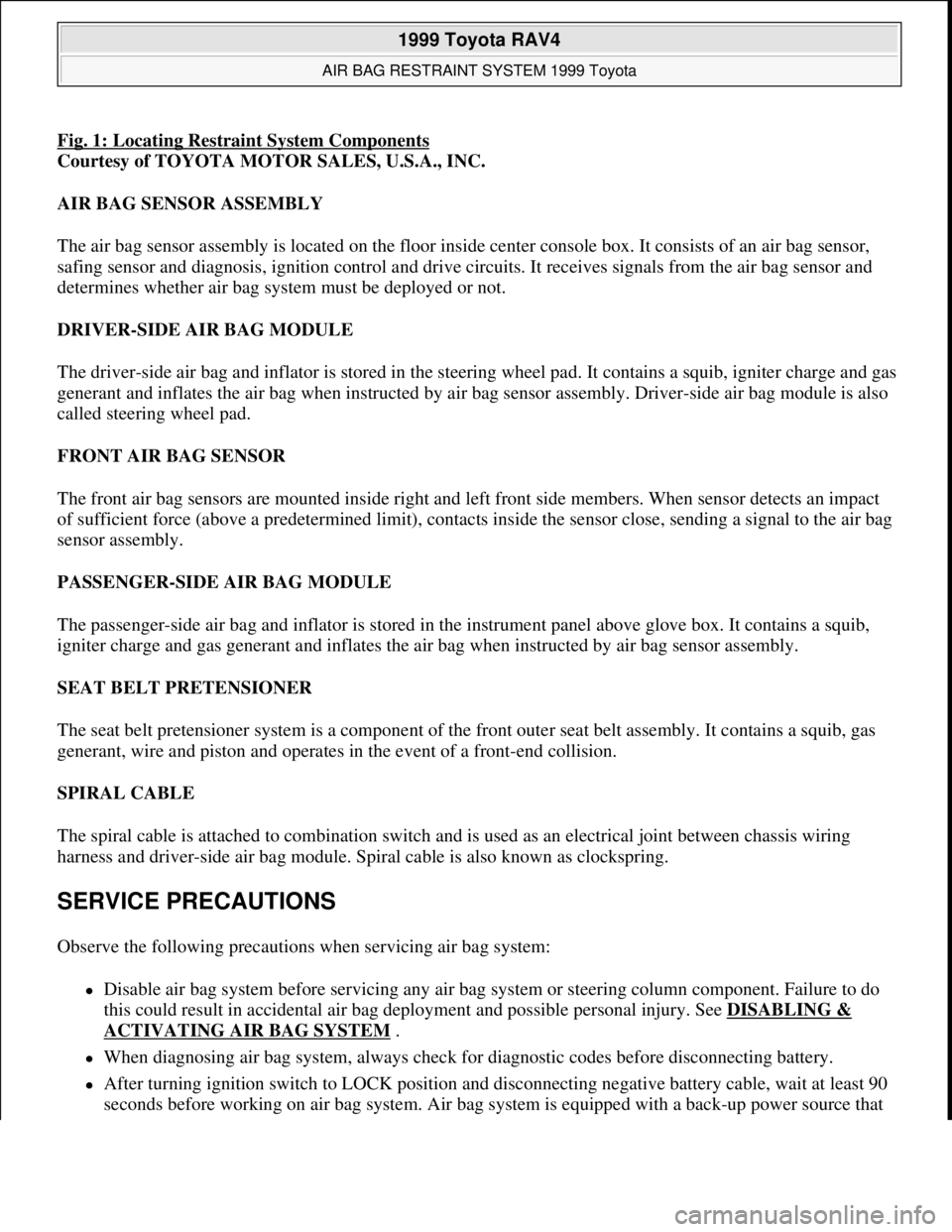

Fig. 1: Locating Restraint System Components
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
AIR BAG SENSOR ASSEMBLY
The air bag sensor assembly is located on the floor inside center console box. It consists of an air bag sensor,
safing sensor and diagnosis, ignition control and drive circuits. It receives signals from the air bag sensor and
determines whether air bag system must be deployed or not.
DRIVER-SIDE AIR BAG MODULE
The driver-side air bag and inflator is stored in the steering wheel pad. It contains a squib, igniter charge and gas
generant and inflates the air bag when instructed by air bag sensor assembly. Driver-side air bag module is also
called steering wheel pad.
FRONT AIR BAG SENSOR
The front air bag sensors are mounted inside right and left front side members. When sensor detects an impact
of sufficient force (above a predetermined limit), contacts inside the sensor close, sending a signal to the air bag
sensor assembly.
PASSENGER-SIDE AIR BAG MODULE
The passenger-side air bag and inflator is stored in the instrument panel above glove box. It contains a squib,
igniter charge and gas generant and inflates the air bag when instructed by air bag sensor assembly.
SEAT BELT PRETENSIONER
The seat belt pretensioner system is a component of the front outer seat belt assembly. It contains a squib, gas
generant, wire and piston and operates in the event of a front-end collision.
SPIRAL CABLE
The spiral cable is attached to combination switch and is used as an electrical joint between chassis wiring
harness and driver-side air bag module. Spiral cable is also known as clockspring.
SERVICE PRECAUTIONS
Observe the following precautions when servicing air bag system:
Disable air bag system before servicing any air bag system or steering column component. Failure to do
this could result in accidental air bag deployment and possible personal injury. See DISABLING &
ACTIVATING AIR BAG SYSTEM .
When diagnosing air bag system, always check for diagnostic codes before disconnecting battery.
After turning ignition switch to LOCK position and disconnecting negative battery cable, wait at least 90
seconds before workin
g on air bag system. Air bag system is equipped with a back-up power source that

1999 Toyota RAV4
AIR BAG RESTRAINT SYSTEM 1999 Toyota
Microsoft
Sunday, November 22, 2009 10:33:22 AMPage 2 © 2005 Mitchell Repair Information Company, LLC.

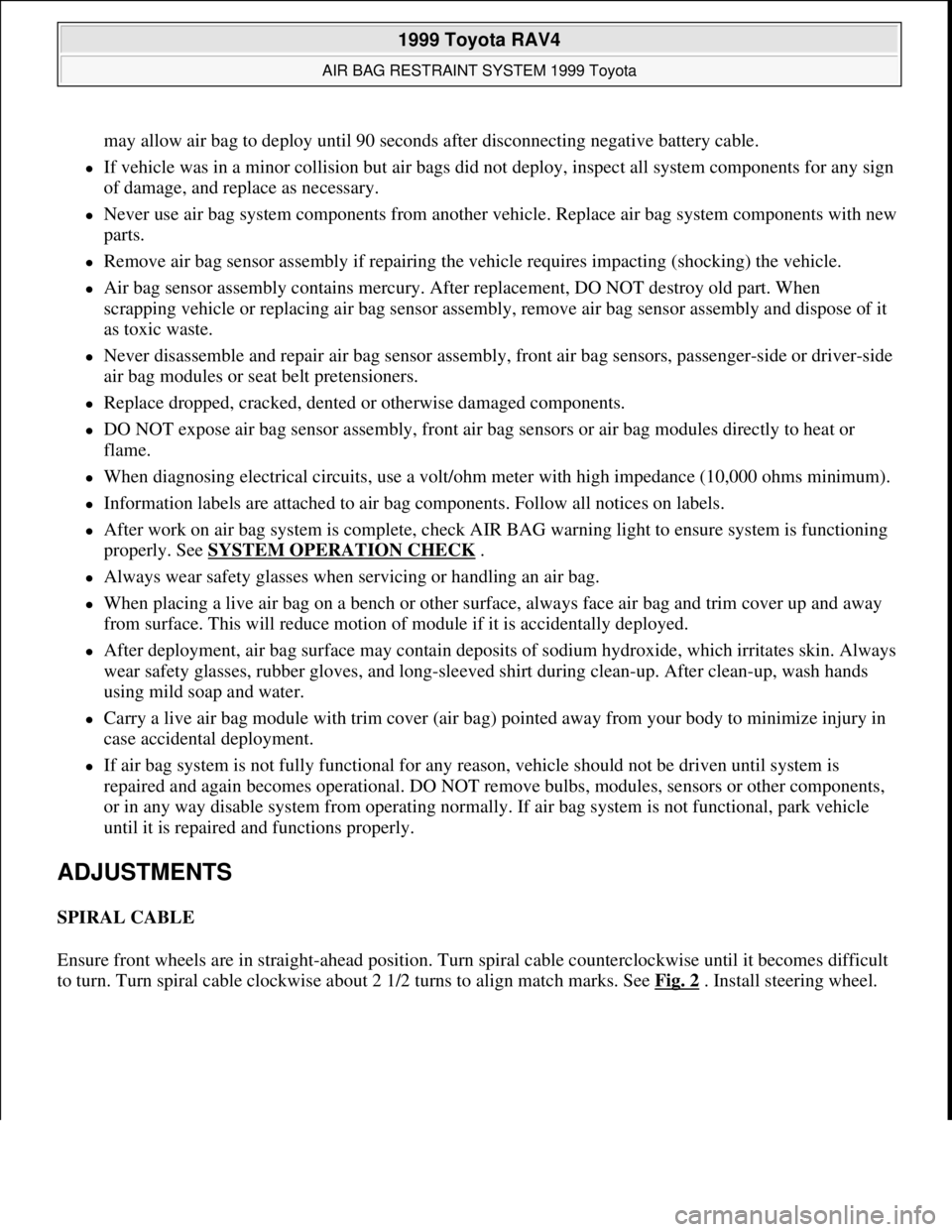

may allow air bag to deploy until 90 seconds after disconnecting negative battery cable.
If vehicle was in a minor collision but air bags did not deploy, inspect all system components for any sign
of damage, and replace as necessary.
Never use air bag system components from another vehicle. Replace air bag system components with new
parts.
Remove air bag sensor assembly if repairing the vehicle requires impacting (shocking) the vehicle.
Air bag sensor assembly contains mercury. After replacement, DO NOT destroy old part. When
scrapping vehicle or replacing air bag sensor assembly, remove air bag sensor assembly and dispose of it
as toxic waste.
Never disassemble and repair air bag sensor assembly, front air bag sensors, passenger-side or driver-side
air bag modules or seat belt pretensioners.
Replace dropped, cracked, dented or otherwise damaged components.
DO NOT expose air bag sensor assembly, front air bag sensors or air bag modules directly to heat or
flame.
When diagnosing electrical circuits, use a volt/ohm meter with high impedance (10,000 ohms minimum).
Information labels are attached to air bag components. Follow all notices on labels.
After work on air bag system is complete, check AIR BAG warning light to ensure system is functioning
properly. See SYSTEM OPERATION CHECK
.
Always wear safety glasses when servicing or handling an air bag.
When placing a live air bag on a bench or other surface, always face air bag and trim cover up and away
from surface. This will reduce motion of module if it is accidentally deployed.
After deployment, air bag surface may contain deposits of sodium hydroxide, which irritates skin. Always
wear safety glasses, rubber gloves, and long-sleeved shirt during clean-up. After clean-up, wash hands
using mild soap and water.
Carry a live air bag module with trim cover (air bag) pointed away from your body to minimize injury in
case accidental deployment.
If air bag system is not fully functional for any reason, vehicle should not be driven until system is
repaired and again becomes operational. DO NOT remove bulbs, modules, sensors or other components,
or in any way disable system from operating normally. If air bag system is not functional, park vehicle
until it is repaired and functions properly.
ADJUSTMENTS
SPIRAL CABLE
Ensure front wheels are in straight-ahead position. Turn spiral cable counterclockwise until it becomes difficult
to turn. Turn spiral cable clockwise about 2 1/2 turns to align match marks. See Fig. 2
. Install steering wheel.

1999 Toyota RAV4
AIR BAG RESTRAINT SYSTEM 1999 Toyota
Microsoft
Sunday, November 22, 2009 10:33:22 AMPage 3 © 2005 Mitchell Repair Information Company, LLC.

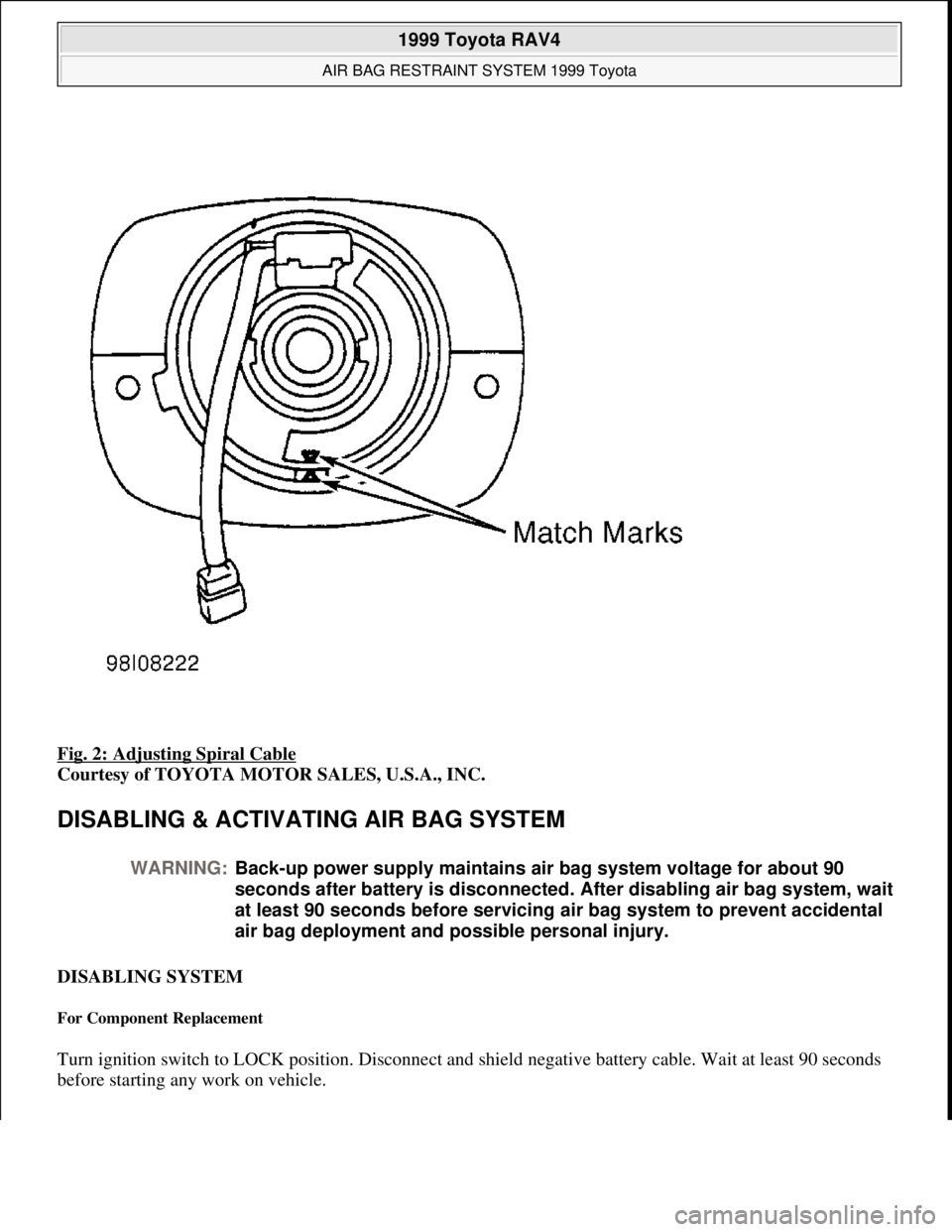

Fig. 2: Adjusting Spiral Cable
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
DISABLING & ACTIVATING AIR BAG SYSTEM
DISABLING SYSTEM
For Component Replacement
Turn ignition switch to LOCK position. Disconnect and shield negative battery cable. Wait at least 90 seconds
before starting any work on vehicle.
WARNING:Back-up power supply maintains air bag system voltage for about 90
seconds after battery is disconnected. After disabling air bag system, wait
at least 90 seconds before servicing air bag system to prevent accidental
air bag deployment and possible personal injury.

1999 Toyota RAV4
AIR BAG RESTRAINT SYSTEM 1999 Toyota
Microsoft
Sunday, November 22, 2009 10:33:22 AMPage 4 © 2005 Mitchell Repair Information Company, LLC.

For Diagnosis & Testing
1. Turn ignition switch to LOCK position. Disconnect and shield negative battery cable. Wait at least 90
seconds. Remove driver-side air bag module. See DRIVER-SIDE AIR BAG MODULE under
REMOVAL & INSTALLATION
. Disconnect passenger-side air bag module connector, accessible by
removal of glove box assembly. See Fig. 3
.
2. Disconnect air bag sensor assembly connectors. See Fig. 4
. See AIR BAG SENSOR ASSEMBLY under
REMOVAL & INSTALLATION
. Disconnect right and left front seat belt pretensioners. See SEAT
BELT PRETENSIONER under REMOVAL & INSTALLATION
. Disconnect right and left front air
bag sensors. See FRONT AIR BAG SENSOR under REMOVAL & INSTALLATION
.

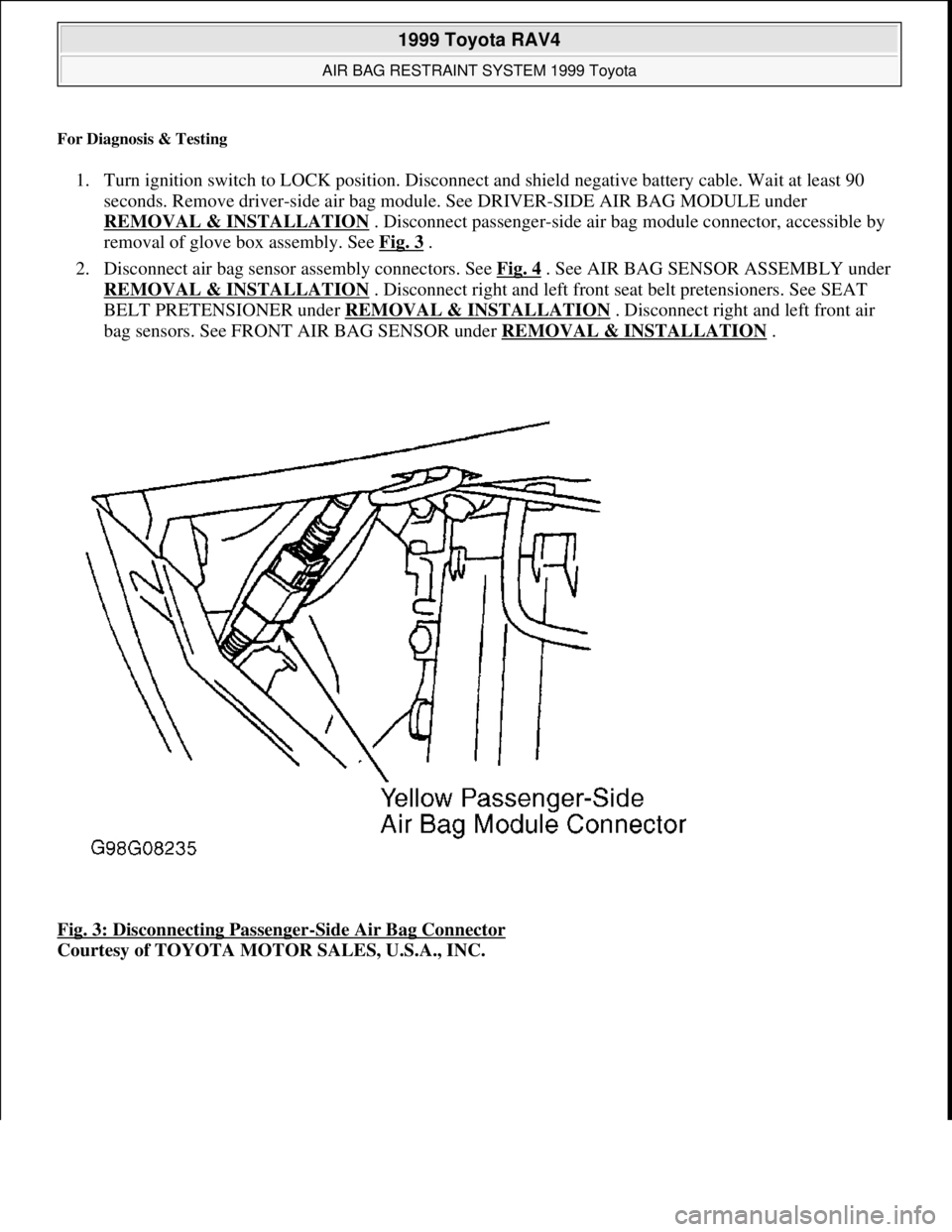

Fig. 3: Disconnecting Passenger
-Side Air Bag Connector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

1999 Toyota RAV4
AIR BAG RESTRAINT SYSTEM 1999 Toyota
Microsoft
Sunday, November 22, 2009 10:33:22 AMPage 5 © 2005 Mitchell Repair Information Company, LLC.

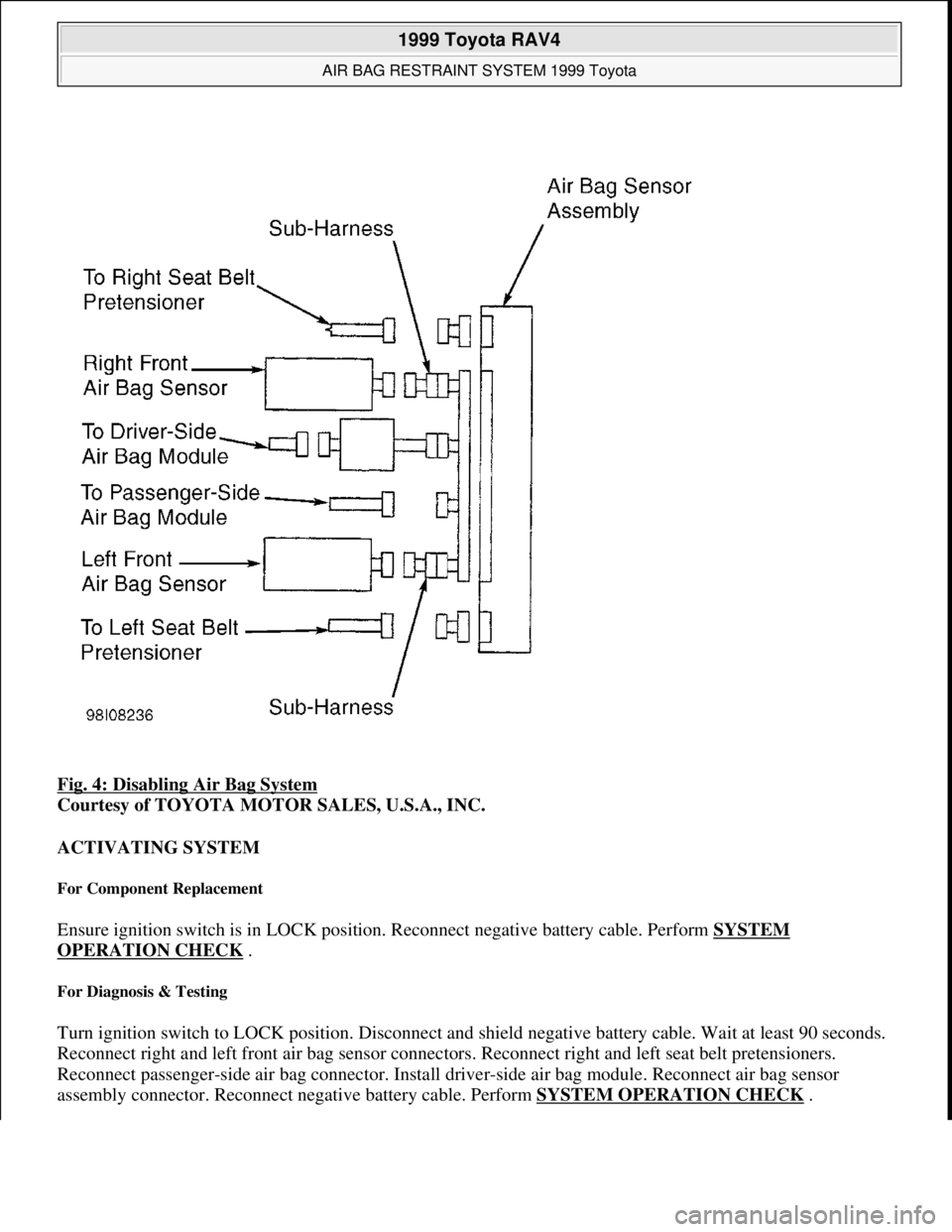

Fig. 4: Disabling Air Bag System
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
ACTIVATING SYSTEM
For Component Replacement
Ensure ignition switch is in LOCK position. Reconnect negative battery cable. Perform SYSTEM
OPERATION CHECK .
For Diagnosis & Testing
Turn ignition switch to LOCK position. Disconnect and shield negative battery cable. Wait at least 90 seconds.
Reconnect right and left front air bag sensor connectors. Reconnect right and left seat belt pretensioners.
Reconnect passenger-side air bag connector. Install driver-side air bag module. Reconnect air bag sensor
assembl
y connector. Reconnect negative battery cable. Perform SYSTEM OPERATION CHECK.

1999 Toyota RAV4
AIR BAG RESTRAINT SYSTEM 1999 Toyota
Microsoft
Sunday, November 22, 2009 10:33:22 AMPage 6 © 2005 Mitchell Repair Information Company, LLC.

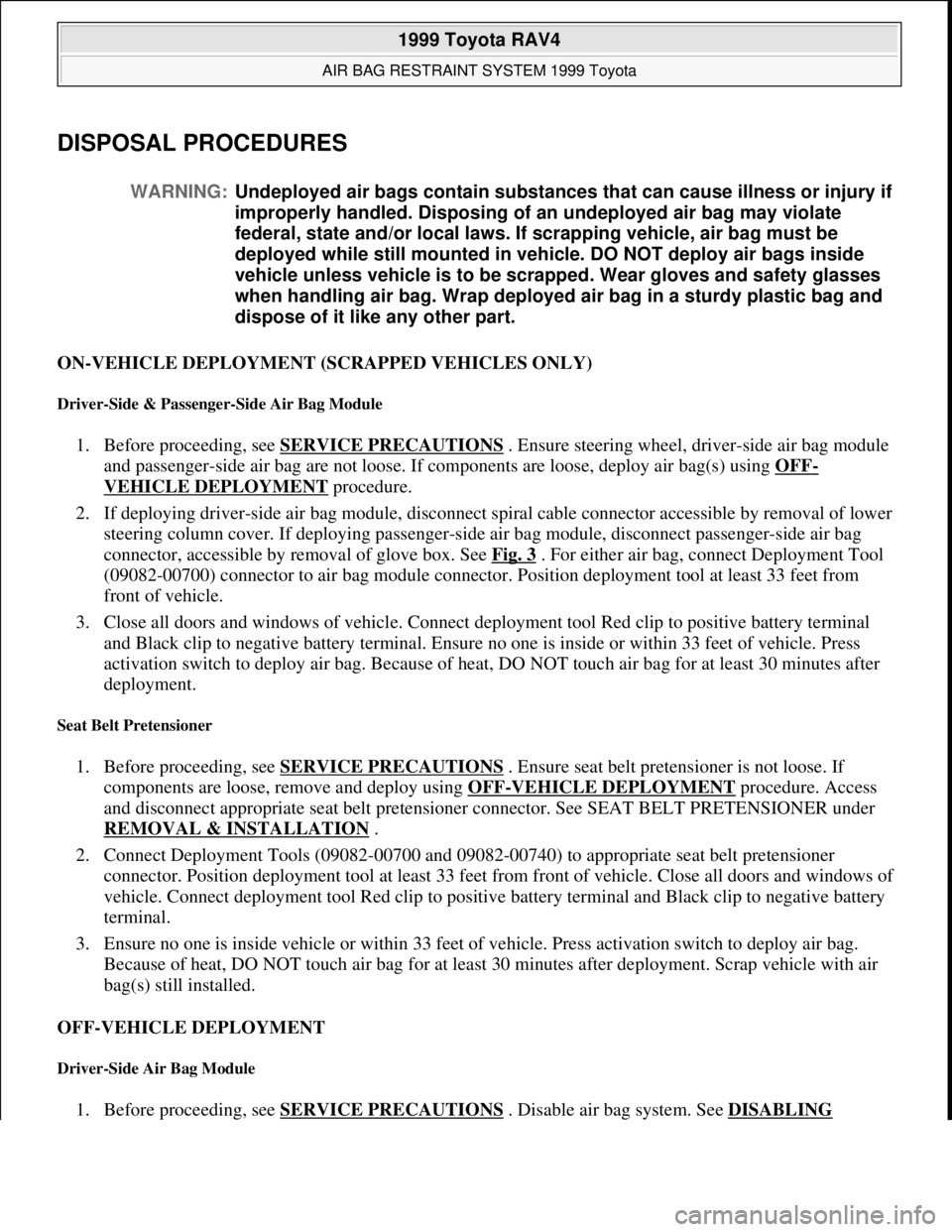

DISPOSAL PROCEDURES
ON-VEHICLE DEPLOYMENT (SCRAPPED VEHICLES ONLY)
Driver-Side & Passenger-Side Air Bag Module
1. Before proceeding, see SERVICE PRECAUTIONS . Ensure steering wheel, driver-side air bag module
and passenger-side air bag are not loose. If components are loose, deploy air bag(s) using OFF
-
VEHICLE DEPLOYMENT procedure.
2. If deploying driver-side air bag module, disconnect spiral cable connector accessible by removal of lower
steering column cover. If deploying passenger-side air bag module, disconnect passenger-side air bag
connector, accessible by removal of glove box. See Fig. 3
. For either air bag, connect Deployment Tool
(09082-00700) connector to air bag module connector. Position deployment tool at least 33 feet from
front of vehicle.
3. Close all doors and windows of vehicle. Connect deployment tool Red clip to positive battery terminal
and Black clip to negative battery terminal. Ensure no one is inside or within 33 feet of vehicle. Press
activation switch to deploy air bag. Because of heat, DO NOT touch air bag for at least 30 minutes after
deployment.
Seat Belt Pretensioner
1. Before proceeding, see SERVICE PRECAUTIONS . Ensure seat belt pretensioner is not loose. If
components are loose, remove and deploy using OFF
-VEHICLE DEPLOYMENT procedure. Access
and disconnect appropriate seat belt pretensioner connector. See SEAT BELT PRETENSIONER under
REMOVAL & INSTALLATION
.
2. Connect Deployment Tools (09082-00700 and 09082-00740) to appropriate seat belt pretensioner
connector. Position deployment tool at least 33 feet from front of vehicle. Close all doors and windows of
vehicle. Connect deployment tool Red clip to positive battery terminal and Black clip to negative battery
terminal.
3. Ensure no one is inside vehicle or within 33 feet of vehicle. Press activation switch to deploy air bag.
Because of heat, DO NOT touch air bag for at least 30 minutes after deployment. Scrap vehicle with air
bag(s) still installed.
OFF-VEHICLE DEPLOYMENT
Driver-Side Air Bag Module
1. Before proceeding, see SERVICE PRECAUTIONS. Disable air bag system. See DISABLING
WARNING:Undeployed air bags contain substances that can cause illness or injury if
improperly handled. Disposing of an undeployed air bag may violate
federal, state and/or local laws. If scrapping vehicle, air bag must be
deployed while still mounted in vehicle. DO NOT deploy air bags inside
vehicle unless vehicle is to be scrapped. Wear gloves and safety glasses
when handling air bag. Wrap deployed air bag in a sturdy plastic bag and
dispose of it like any other part.

1999 Toyota RAV4
AIR BAG RESTRAINT SYSTEM 1999 Toyota
Microsoft
Sunday, November 22, 2009 10:33:22 AMPage 7 © 2005 Mitchell Repair Information Company, LLC.
