2-2. Charging
Plug-in hybrid system
■Charging at a public charging sta-
tion with authentication function
When a door is unlocked during charging, the charging connector is
unlocked and charging will be stopped. In this case, the charging station authentication is canceled and charging
may not be able to restart. Reconnect the charging connector and perform authentication for the charging station.
■Protection function of AC charging
inlet overheating (vehicles with 7 kW onboard traction battery char-ger)
By installing a temperature sensor to the AC charging inlet, prevents parts from melting when the temperature rises due
to foreign matter entering the charging connector. When a certain temperature increase is detected, charging is
stopped immediately and a message is displayed on the multi-information dis-play. After the temperature has
decreased, charging resumes by per- forming the operation to start charging again.
WARNING
■When charging
Observe the following precautions.
Failure to do so may cause an unex-
pected accident, resulting in death or serious injury.
●Connect to a power source suitable
for charging. ( P.124)
●Check that the AC charging cable,
plug and socket are free of foreign matter.
●Before charging, check that the AC charging inlet is not deformed, damaged or corroded, and check
that the inlet is free of foreign mat- ter such as dirt, snow and ice. If there is dirt or dust in these areas,
remove completely before inserting the charging connector.
●Before inserting the charging plug into the charger, make sure there is no dirt or dust on the terminal
areas. If there is dirt or dust in these areas, remove completely before inserting the charging plug.
●Do not get the terminals of the AC charging inlet wet.
●Only use sockets where the plug can be securely inserted.
●Do not bundle or wind the AC charging cable while charging, as
doing so may result in overheating.
●Do not touch the terminals of the
charging connector and AC charging inlet with a sharp metal objects (needles etc.) or hands, or
short them with foreign objects.
●When charging outdoors, make
sure to connect to a rain-tight socket for outdoor use. Ensure the rain-tight cover closes completely. If
the rain-tight cover cannot be closed, install a rain-tight cover that will close.
●In order to stop charging at the charging station, follow the instruc-
tions of the charger.
●If any heat, smoke, odors, noise or
other abnormalities are noticed during charging, stop charging immediately.
●Do not insert the plug if the socket is submerged in water or snow.
●When charging while it is raining or snowing, do not connect or discon-
nect the plug if your hands are wet. Also, do not get the plug or outlet wet.
●Do not charge the vehicle during a lightning storm.
●Prevent the AC charging cable from being caught in the door or back
door.

1442-2. Charging
■Calendar settings
The current date and time is automati-
cally set using GPS. However, if the
automatic setting of the clock is turned
off on the Multimedia Display, it is nec-
essary to set the calendar on the multi-
information display (P.206, 217). For
details, refer to the “Multimedia owner’s
manual”.
If the calendar settings check screen is
displayed when an attempt is made to
register a charging schedule, make sure
that the calendar settings are correctly.
If the calendar is not set correctly, the
charging schedule function will not oper-
ate properly.
When registering the charging
schedule, the following settings can
be changed.
■Select the charging mode
One of the two following charging
modes can be selected.
“Start” or “Start at set time”
Starts charging at the set time*1, 2 and
finishes charging when fully charged.
“Departure” or “Departure time”
Starts charging to finish at the set
time.
*3, 4
When this setting is selected, the air
conditioning-linked function can be
used.
*1: There might be a slight error in the
timing when charging starts due to
the state of the hybrid battery (trac-
tion battery).
*2: Charging schedule function is per-
formed in accordance with the clock.
Before registering the charging
schedule, check and set the clock to
the proper time.
*3: If the system determines that
charging cannot be completed by
the set departure time, it will start
charging. Check the charging sched-
ule.
*4: If the outside temperature changes
suddenly or the state of the power
source being used is changed during
charging, the system may not com-
plete the charging as estimated.
■Repeated setting
The periodic charging schedule can
be set by selecting your desired
day of the week. (If no days are
selected, charging is only carried
out once.)
■Air conditioning-linked set-
ting (“Climate Prep” or “Cli-
mate preparation”)
When the charging mode is set to
Using the charging
schedule function
Charging can be carried out at
the desired time by registering
the charging schedule. Also, it
is possible to set the charging
schedule to one’s prefer-
ences, such as having
charging complete by a certain
departure time or be carried
out at the same time on certain
days.
Settings of the charging
schedule function

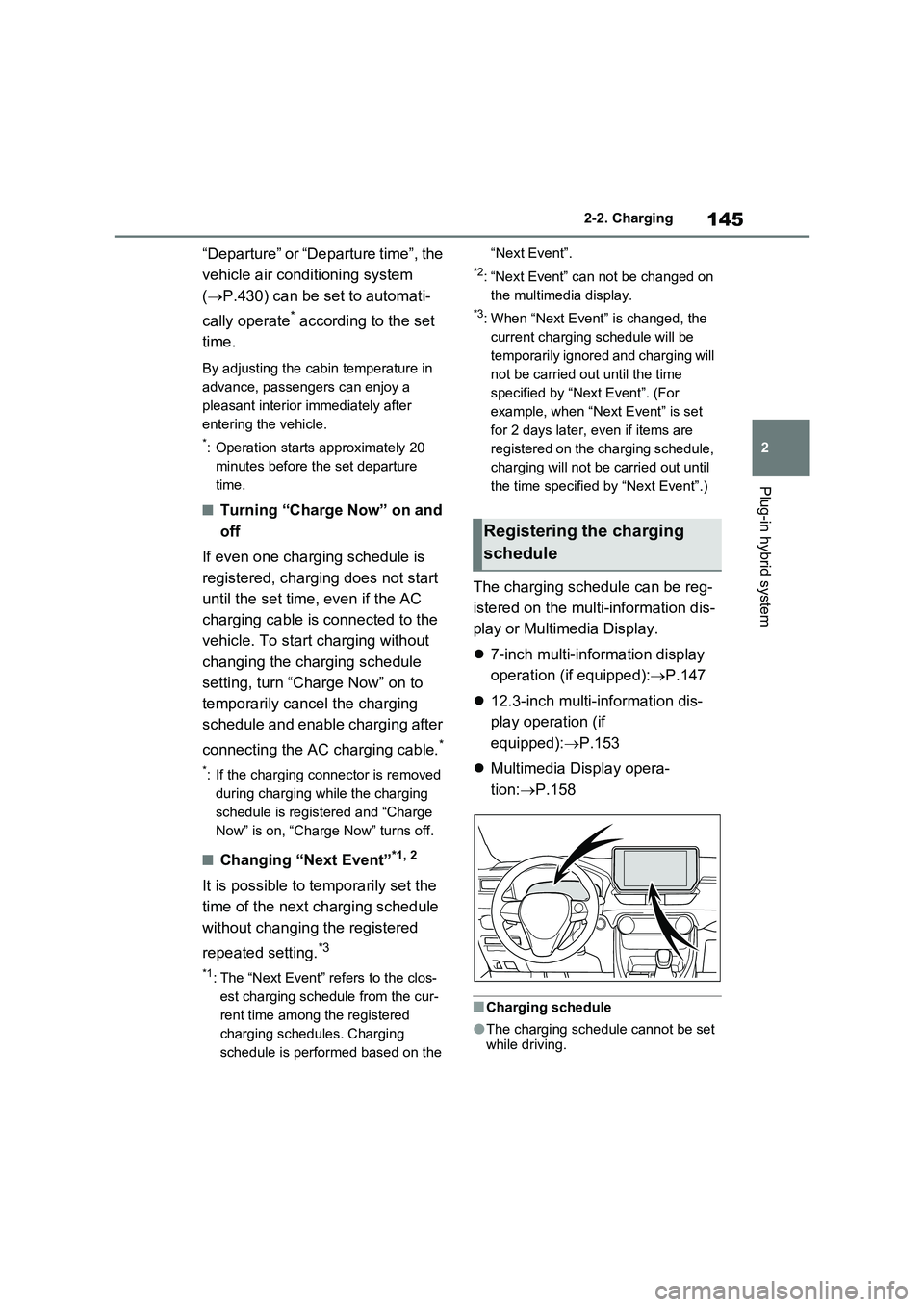

145
2 2-2. Charging
Plug-in hybrid system
“Departure” or “Departure time”, the
vehicle air conditioning system
(P.430) can be set to automati-
cally operate
* according to the set
time.
By adjusting the cabin temperature in
advance, passengers can enjoy a
pleasant interior immediately after
entering the vehicle.
*: Operation starts approximately 20
minutes before the set departure
time.
■Turning “Charge Now” on and
off
If even one charging schedule is
registered, charging does not start
until the set time, even if the AC
charging cable is connected to the
vehicle. To start charging without
changing the charging schedule
setting, turn “Charge Now” on to
temporarily cancel the charging
schedule and enable charging after
connecting the AC charging cable.
*
*: If the charging connector is removed
during charging while the charging
schedule is registered and “Charge
Now” is on, “Charge Now” turns off.
■Changing “Next Event”*1, 2
It is possible to temporarily set the
time of the next charging schedule
without changing the registered
repeated setting.
*3
*1: The “Next Event” refers to the clos-
est charging schedule from the cur-
rent time among the registered
charging schedules. Charging
schedule is performed based on the “Next Event”.
*2: “Next Event” can not be changed on
the multimedia display.
*3: When “Next Event” is changed, the
current charging schedule will be
temporarily ignored and charging will
not be carried out until the time
specified by “Next Event”. (For
example, when “Next Event” is set
for 2 days later, even if items are
registered on the charging schedule,
charging will not be carried out until
the time specified by “Next Event”.)
The charging schedule can be reg-
istered on the multi-information dis-
play or Multimedia Display.
7-inch multi-information display
operation (if equipped):P.147
12.3-inch multi-information dis-
play operation (if
equipped):P.153
Multimedia Display opera-
tion:P.158
■Charging schedule
●The charging schedule cannot be set
while driving.
Registering the charging
schedule

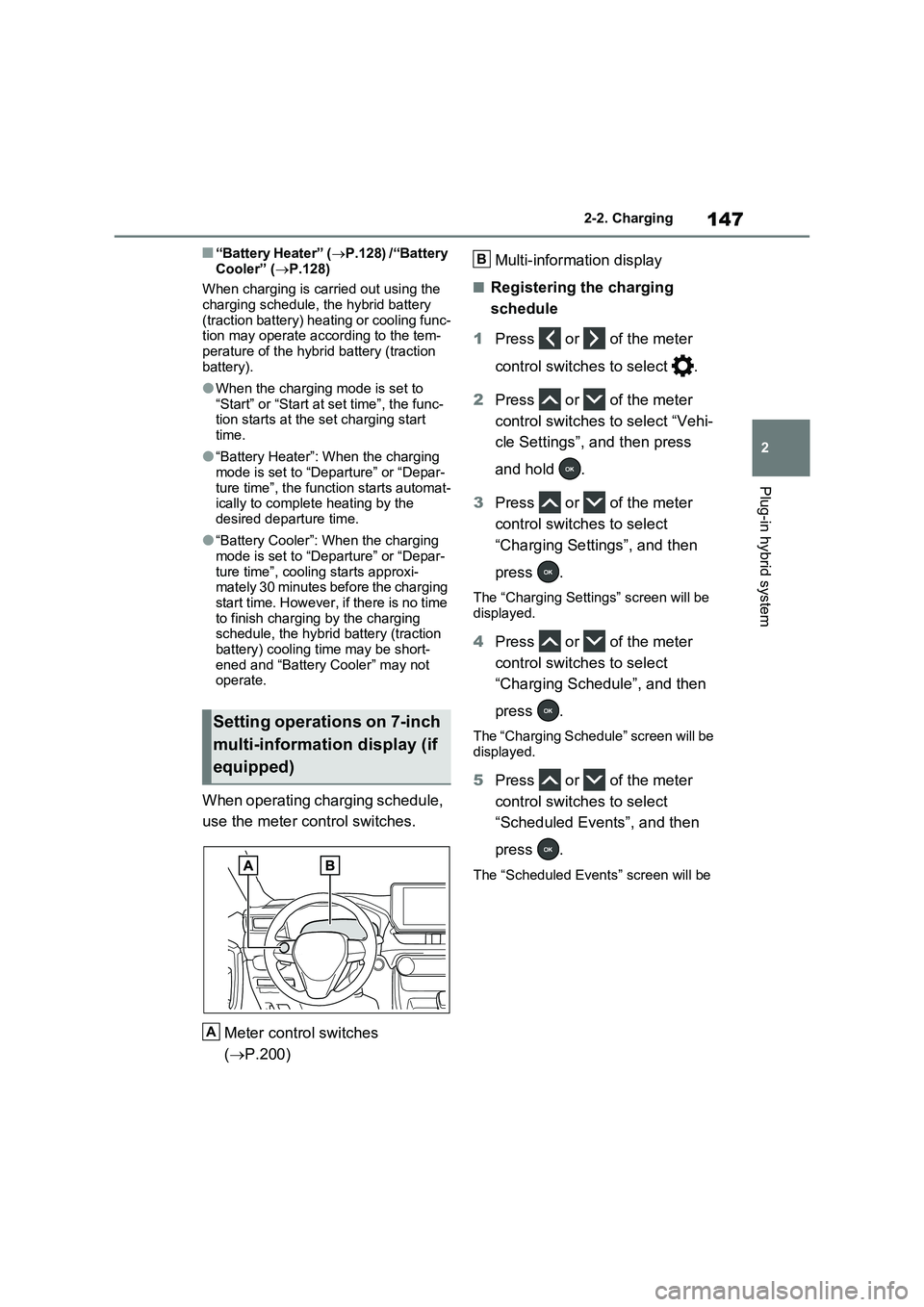

147
2 2-2. Charging
Plug-in hybrid system
■“Battery Heater” (P.128) /“Battery
Cooler” (P.128)
When charging is carried out using the
charging schedule, the hybrid battery
(traction battery) heating or cooling func-
tion may operate according to the tem-
perature of the hybrid battery (traction
battery).
●When the charging mode is set to
“Start” or “Start at set time”, the func-
tion starts at the set charging start
time.
●“Battery Heater”: When the charging
mode is set to “Departure” or “Depar-
ture time”, the function starts automat-
ically to complete heating by the
desired departure time.
●“Battery Cooler”: When the charging
mode is set to “Departure” or “Depar-
ture time”, cooling starts approxi-
mately 30 minutes before the charging
start time. However, if there is no time
to finish charging by the charging
schedule, the hybrid battery (traction
battery) cooling time may be short-
ened and “Battery Cooler” may not
operate.
When operating charging schedule,
use the meter control switches.
Meter control switches
(P.200)Multi-information display
■Registering the charging
schedule
1Press or of the meter
control switches to select .
2Press or of the meter
control switches to select “Vehi-
cle Settings”, and then press
and hold .
3Press or of the meter
control switches to select
“Charging Settings”, and then
press .
The “Charging Settings” screen will be
displayed.
4Press or of the meter
control switches to select
“Charging Schedule”, and then
press .
The “Charging Schedule” screen will be
displayed.
5Press or of the meter
control switches to select
“Scheduled Events”, and then
press .
The “Scheduled Events” screen will be
Setting operations on 7-inch
multi-information display (if
equipped)
A
B

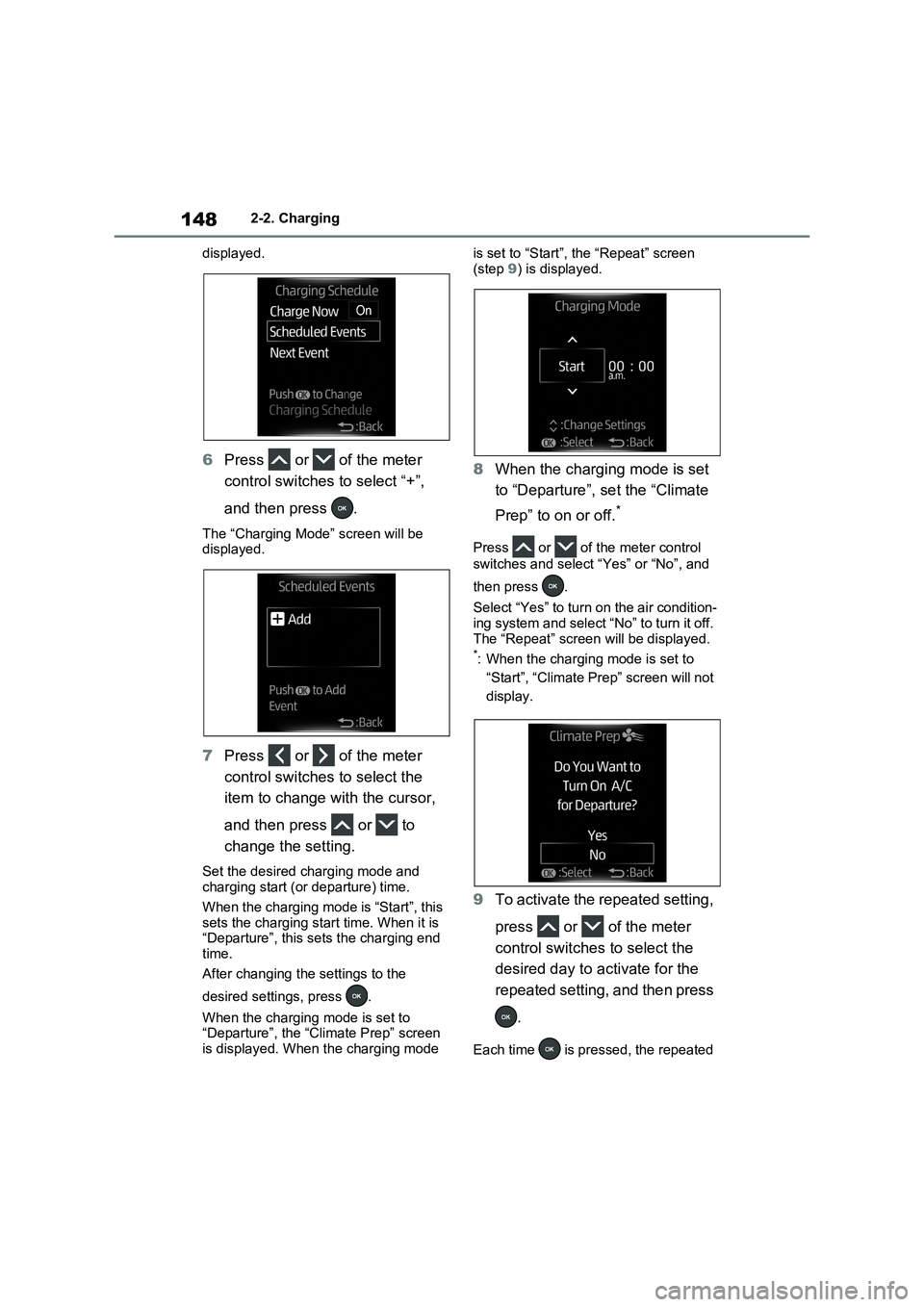

1482-2. Charging
displayed.
6Press or of the meter
control switches to select “+”,
and then press .
The “Charging Mode” screen will be
displayed.
7Press or of the meter
control switches to select the
item to change with the cursor,
and then press or to
change the setting.
Set the desired charging mode and
charging start (or departure) time.
When the charging mode is “Start”, this
sets the charging start time. When it is
“Departure”, this sets the charging end
time.
After changing the settings to the
desired settings, press .
When the charging mode is set to
“Departure”, the “Climate Prep” screen
is displayed. When the charging mode is set to “Start”, the “Repeat” screen
(step 9) is displayed.
8When the charging mode is set
to “Departure”, set the “Climate
Prep” to on or off.
*
Press or of the meter control
switches and select “Yes” or “No”, and
then press .
Select “Yes” to turn on the air condition-
ing system and select “No” to turn it off.
The “Repeat” screen will be displayed.
*: When the charging mode is set to
“Start”, “Climate Prep” screen will not
display.
9To activate the repeated setting,
press or of the meter
control switches to select the
desired day to activate for the
repeated setting, and then press
.
Each time is pressed, the repeated

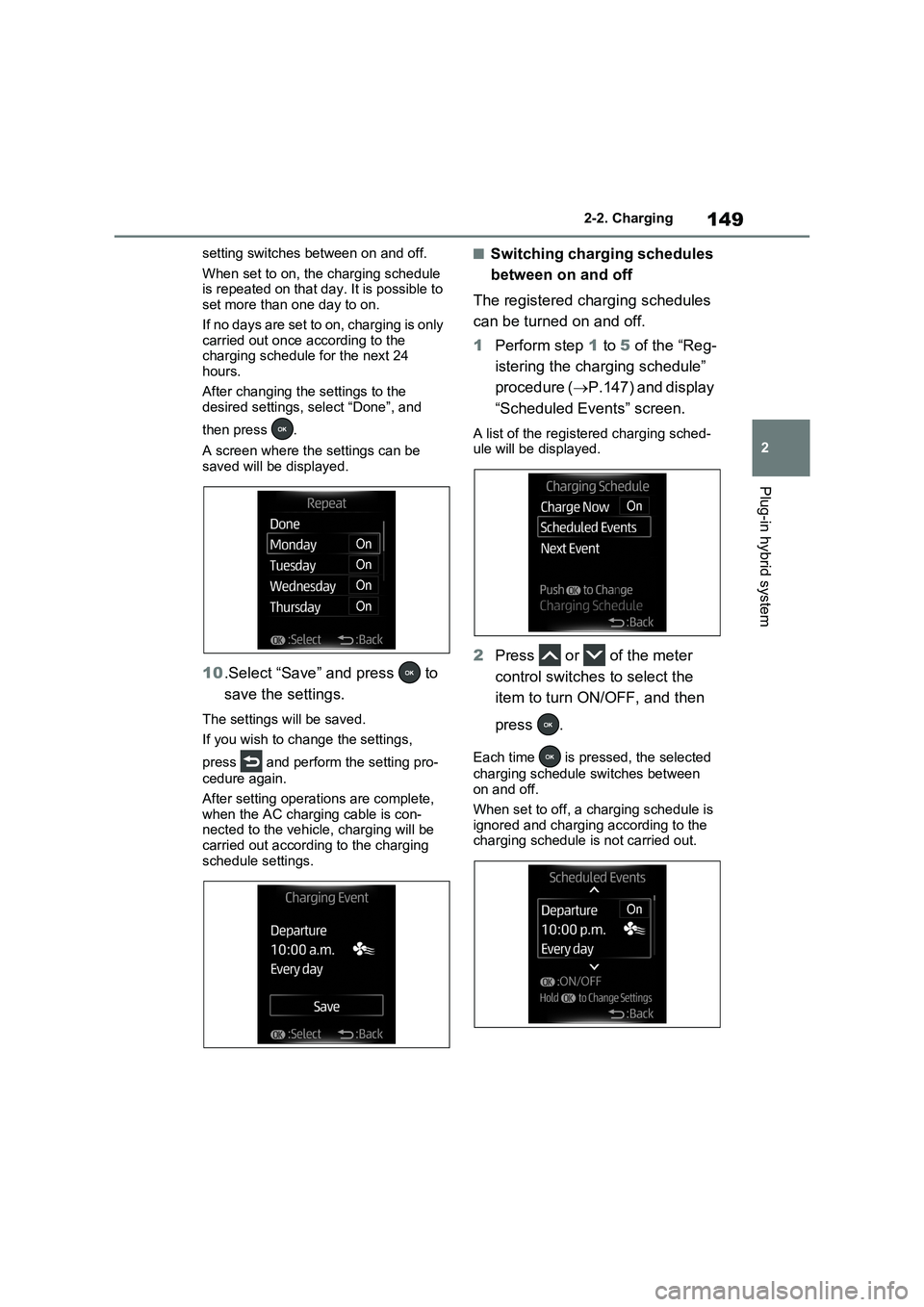

149
2 2-2. Charging
Plug-in hybrid system
setting switches between on and off.
When set to on, the charging schedule
is repeated on that day. It is possible to
set more than one day to on.
If no days are set to on, charging is only
carried out once according to the
charging schedule for the next 24
hours.
After changing the settings to the
desired settings, select “Done”, and
then press .
A screen where the settings can be
saved will be displayed.
10.Select “Save” and press to
save the settings.
The settings will be saved.
If you wish to change the settings,
press and perform the setting pro-
cedure again.
After setting operations are complete,
when the AC charging cable is con-
nected to the vehicle, charging will be
carried out according to the charging
schedule settings.
■Switching charging schedules
between on and off
The registered charging schedules
can be turned on and off.
1Perform step 1 to 5 of the “Reg-
istering the charging schedule”
procedure (P.147) and display
“Scheduled Events” screen.
A list of the registered charging sched-
ule will be displayed.
2Press or of the meter
control switches to select the
item to turn ON/OFF, and then
press .
Each time is pressed, the selected
charging schedule switches between
on and off.
When set to off, a charging schedule is
ignored and charging according to the
charging schedule is not carried out.

1502-2. Charging

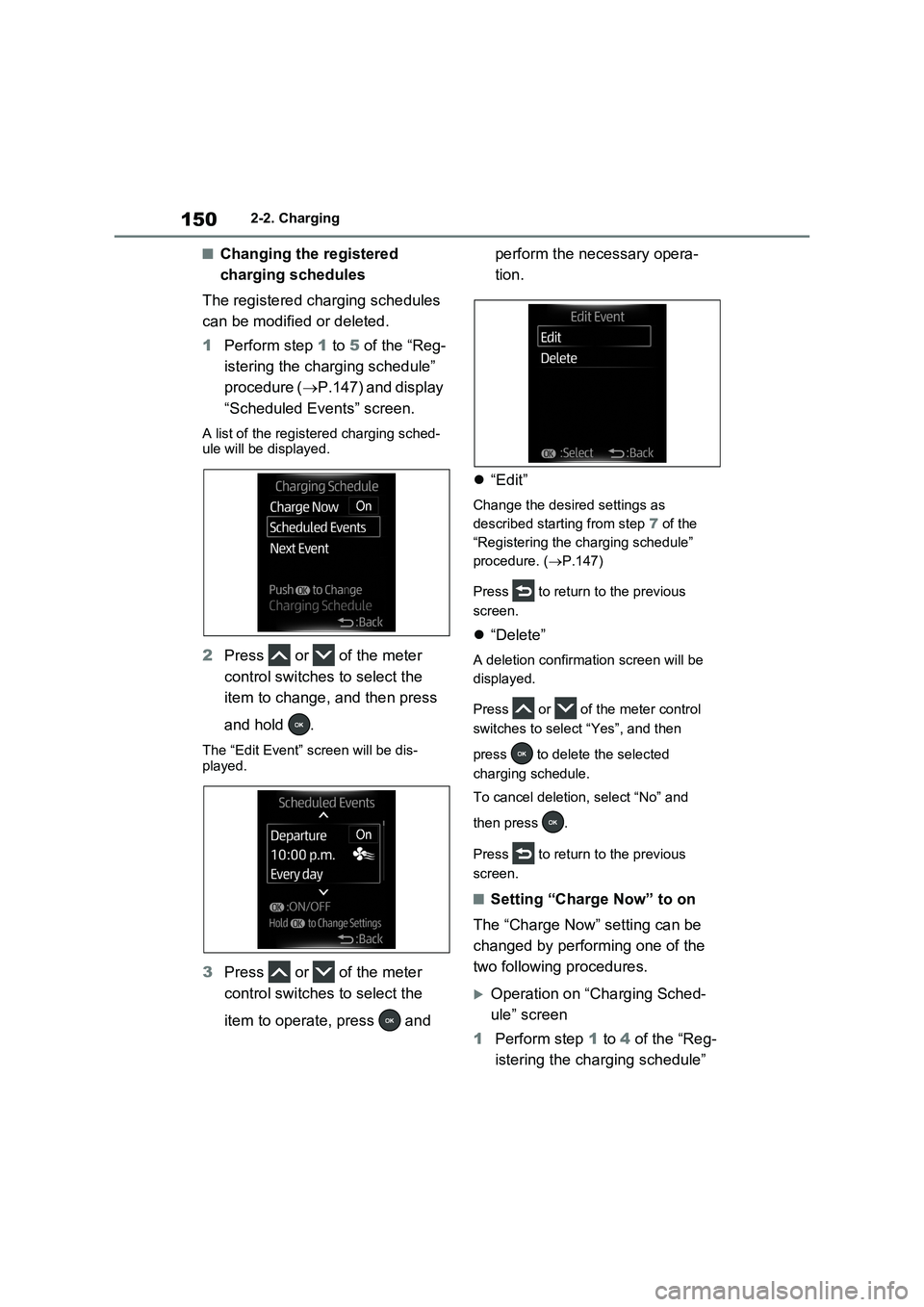

■Changing the registered
charging schedules
The registered charging schedules
can be modified or deleted.
1Perform step 1 to 5 of the “Reg-
istering the charging schedule”
procedure (P.147) and display
“Scheduled Events” screen.
A list of the registered charging sched-
ule will be displayed.
2Press or of the meter
control switches to select the
item to change, and then press
and hold .
The “Edit Event” screen will be dis-
played.
3Press or of the meter
control switches to select the
item to operate, press and perform the necessary opera-
tion.
“Edit”
Change the desired settings as
described starting from step 7 of the
“Registering the charging schedule”
procedure. (P.147)
Press to return to the previous
screen.
“Delete”
A deletion confirmation screen will be
displayed.
Press or of the meter control
switches to select “Yes”, and then
press to delete the selected
charging schedule.
To cancel deletion, select “No” and
then press .
Press to return to the previous
screen.
■Setting “Charge Now” to on
The “Charge Now” setting can be
changed by performing one of the
two following procedures.
Operation on “Charging Sched-
ule” screen
1Perform step 1 to 4 of the “Reg-
istering the charging schedule”

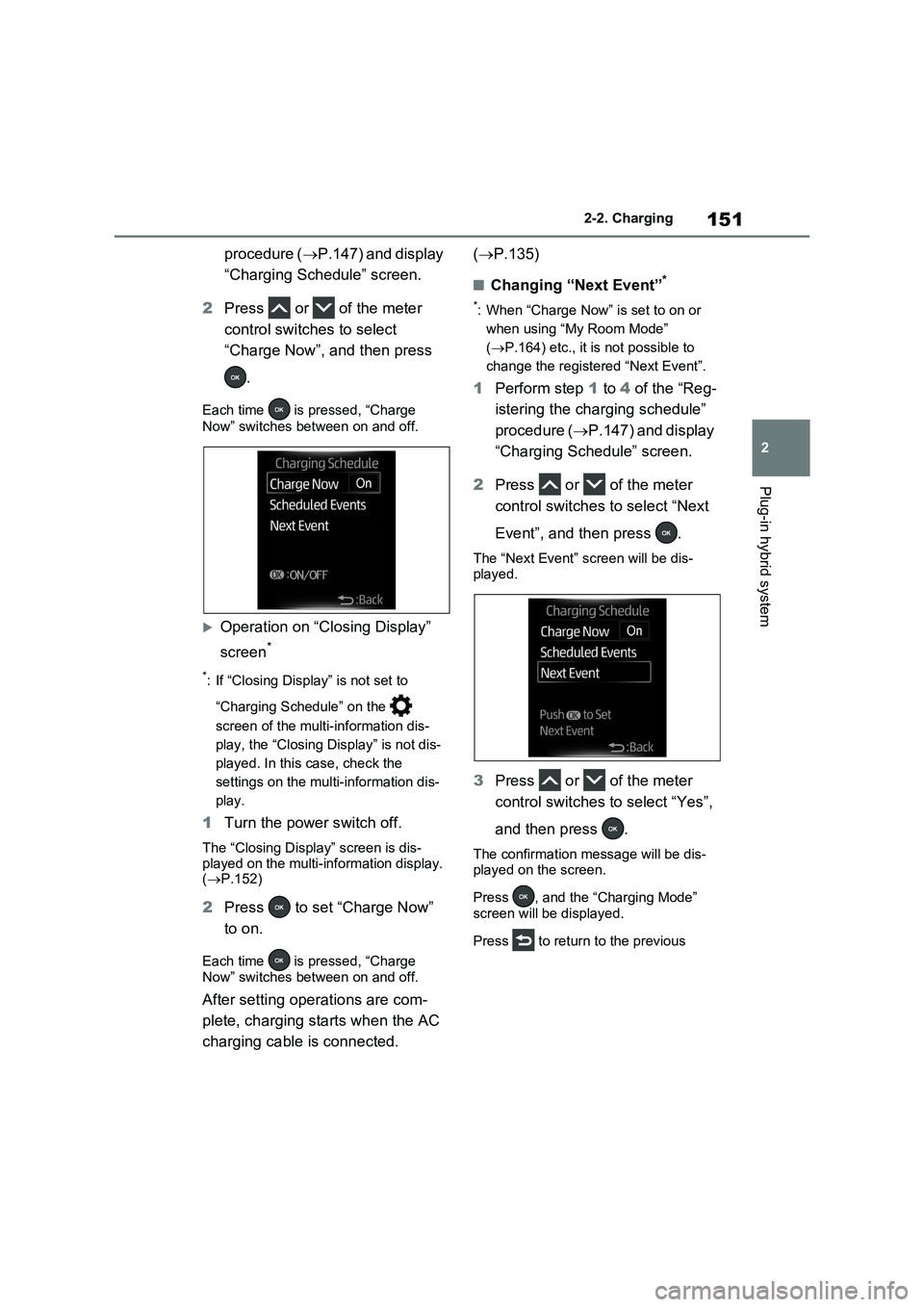

151
2 2-2. Charging
Plug-in hybrid system
procedure (P.147) and display
“Charging Schedule” screen.
2Press or of the meter
control switches to select
“Charge Now”, and then press
.
Each time is pressed, “Charge
Now” switches between on and off.
Operation on “Closing Display”
screen
*
*: If “Closing Display” is not set to
“Charging Schedule” on the
screen of the multi-information dis-
play, the “Closing Display” is not dis-
played. In this case, check the
settings on the multi-information dis-
play.
1Turn the power switch off.
The “Closing Display” screen is dis-
played on the multi-information display.
(P.152)
2Press to set “Charge Now”
to on.
Each time is pressed, “Charge
Now” switches between on and off.
After setting operations are com-
plete, charging starts when the AC
charging cable is connected. (P.135)
■Changing “Next Event”*
*: When “Charge Now” is set to on or
when using “My Room Mode”
(P.164) etc., it is not possible to
change the registered “Next Event”.
1Perform step 1 to 4 of the “Reg-
istering the charging schedule”
procedure (P.147) and display
“Charging Schedule” screen.
2Press or of the meter
control switches to select “Next
Event”, and then press .
The “Next Event” screen will be dis-
played.
3Press or of the meter
control switches to select “Yes”,
and then press .
The confirmation message will be dis-
played on the screen.
Press , and the “Charging Mode”
screen will be displayed.
Press to return to the previous

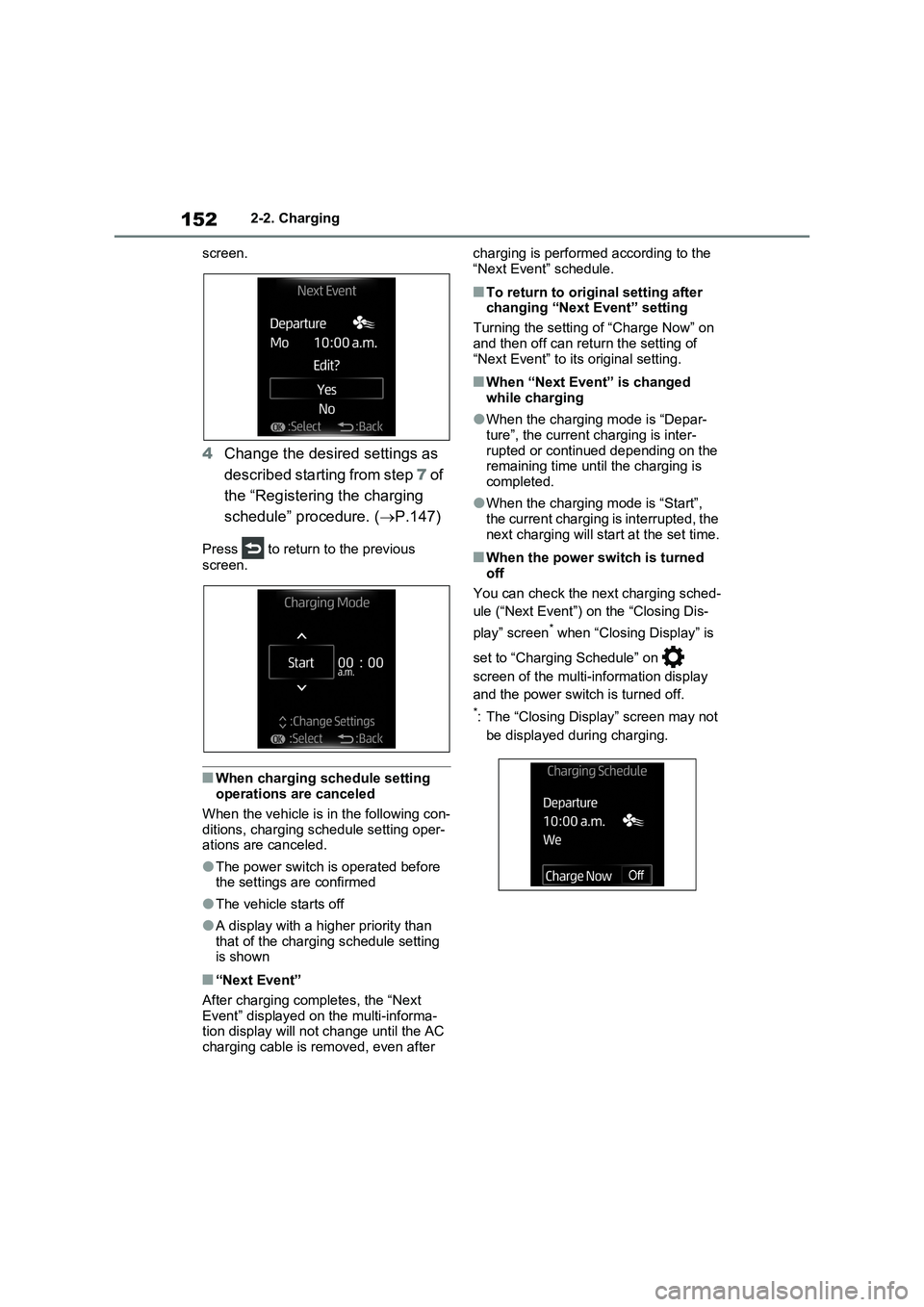

1522-2. Charging
screen.
4Change the desired settings as
described starting from step 7 of
the “Registering the charging
schedule” procedure. (P.147)
Press to return to the previous
screen.
■When charging schedule setting
operations are canceled
When the vehicle is in the following con-
ditions, charging schedule setting oper-
ations are canceled.
●The power switch is operated before
the settings are confirmed
●The vehicle starts off
●A display with a higher priority than
that of the charging schedule setting
is shown
■“Next Event”
After charging completes, the “Next
Event” displayed on the multi-informa-
tion display will not change until the AC
charging cable is removed, even after charging is performed according to the
“Next Event” schedule.
■To return to original setting after
changing “Next Event” setting
Turning the setting of “Charge Now” on
and then off can return the setting of
“Next Event” to its original setting.
■When “Next Event” is changed
while charging
●When the charging mode is “Depar-
ture”, the current charging is inter-
rupted or continued depending on the
remaining time until the charging is
completed.
●When the charging mode is “Start”,
the current charging is interrupted, the
next charging will start at the set time.
■When the power switch is turned
off
You can check the next charging sched-
ule (“Next Event”) on the “Closing Dis-
play” screen
* when “Closing Display” is
set to “Charging Schedule” on
screen of the multi-information display
and the power switch is turned off.
*: The “Closing Display” screen may not
be displayed during charging.

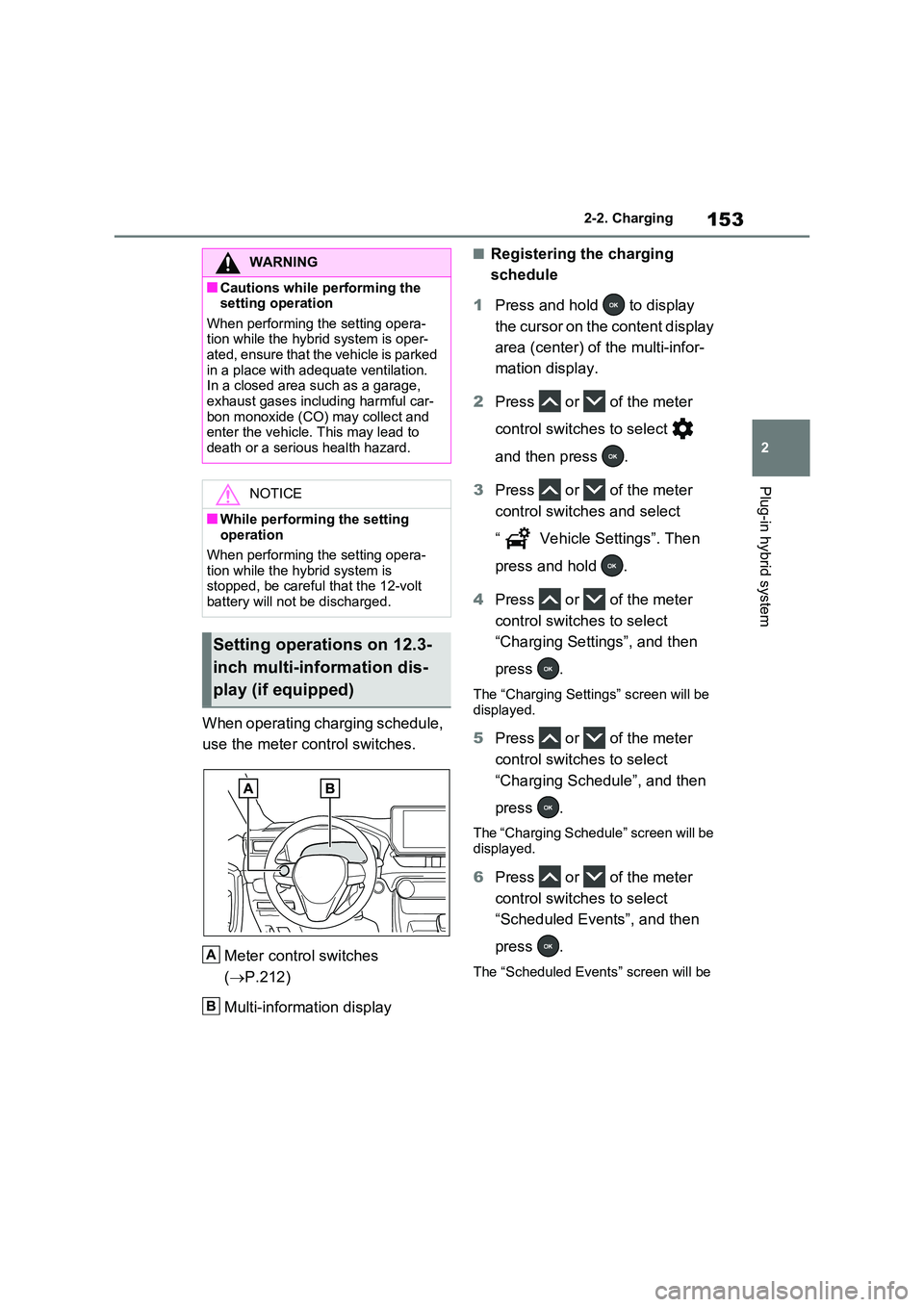

153
2
2-2. Charging
Plug-in hybrid system
When operating charging schedule,
use the meter control switches.
Meter control switches
( P.212)
Multi-information display
■Registering the charging
schedule
1 Press and hold to display
the cursor on the content display
area (center) of the multi-infor-
mation display.
2 Press or of the meter
control switches to select
and then press .
3 Press or of the meter
control switches and select
“ Vehicle Settings”. Then
press and hold .
4 Press or of the meter
control switches to select
“Charging Settings”, and then
press .
The “Charging Settings” screen will be
displayed.
5 Press or of the meter
control switches to select
“Charging Schedule”, and then
press .
The “Charging Schedule” screen will be displayed.
6 Press or of the meter
control switches to select
“Scheduled Events”, and then
press .
The “Scheduled Events” screen will be
WARNING
■Cautions while performing the setting operation
When performing the setting opera- tion while the hybrid system is oper-ated, ensure that the vehicle is parked
in a place with adequate ventilation. In a closed area such as a garage, exhaust gases including harmful car-
bon monoxide (CO) may collect and enter the vehicle. This may lead to death or a serious health hazard.
NOTICE
■While performing the setting operation
When performing the setting opera- tion while the hybrid system is stopped, be careful that the 12-volt
battery will not be discharged.
Setting operations on 12.3-
inch multi-information dis-
play (if equipped)
A
B
