TOYOTA VERSO 2016 Owners Manual

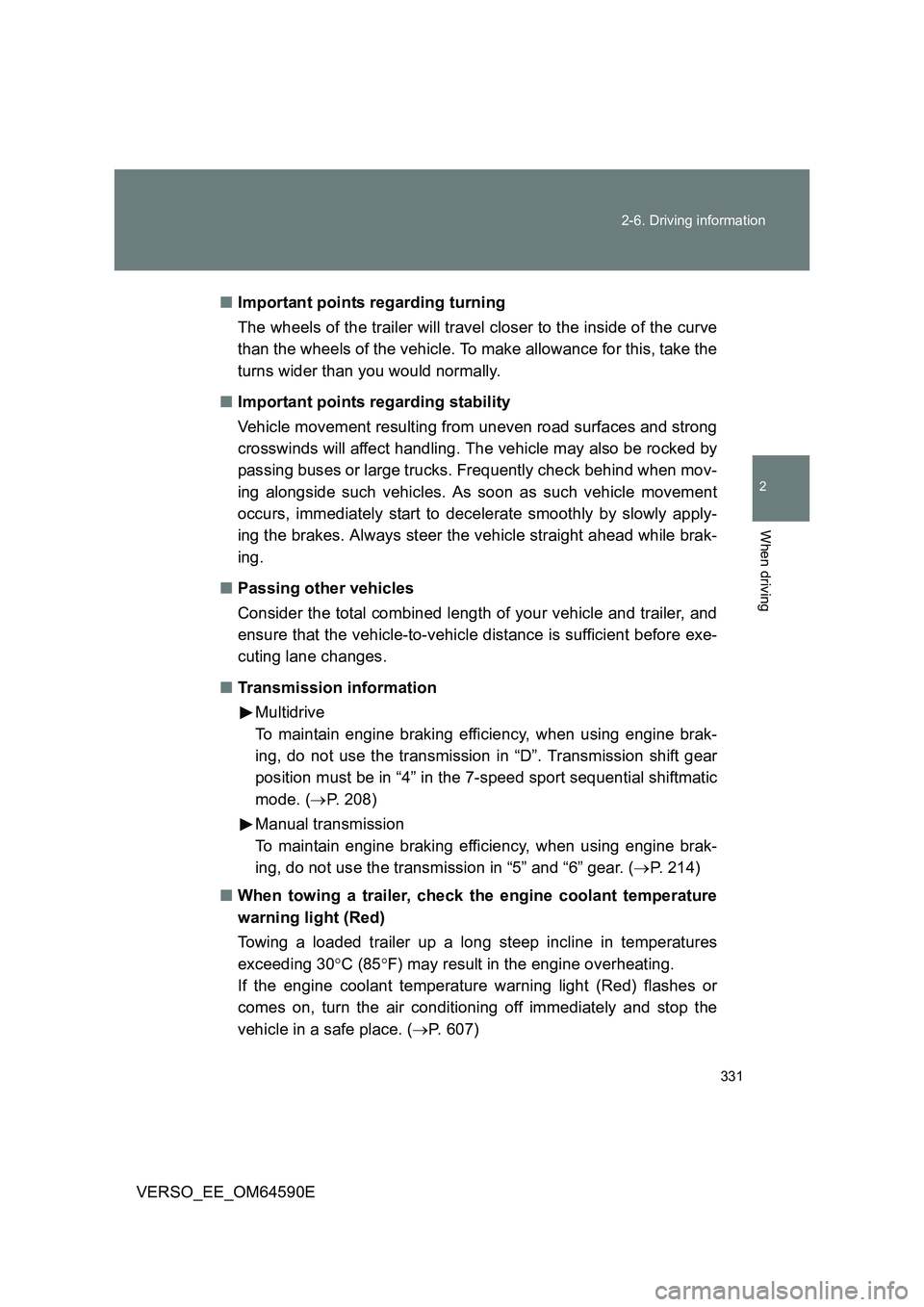

331
2-6. Driving information
2
When driving
VERSO_EE_OM64590E
■ Important points regarding turning
The wheels of the trailer will travel closer to the inside of the curve
than the wheels of the vehicle. To make allowance for this, take the
turns wider than you would normally.
■ Important points regarding stability
Vehicle movement resulting from uneven road surfaces and strong
crosswinds will affect handling. The vehicle may also be rocked by
passing buses or large trucks. Frequently check behind when mov-
ing alongside such vehicles. As soon as such vehicle movement
occurs, immediately start to decelerate smoothly by slowly apply-
ing the brakes. Always steer the vehicle straight ahead while brak-
ing.
■ Passing other vehicles
Consider the total combined length of your vehicle and trailer, and
ensure that the vehicle-to-vehicle distance is sufficient before exe-
cuting lane changes.
■ Transmission information
Multidrive
To maintain engine braking efficiency, when using engine brak-
ing, do not use the transmission in “D”. Transmission shift gear
position must be in “4” in the 7-speed sport sequential shiftmatic
mode. ( P. 208)
Manual transmission
To maintain engine braking efficiency, when using engine brak-
ing, do not use the transmission in “5” and “6” gear. ( P. 214)
■ When towing a trailer, check the engine coolant temperature
warning light (Red)
Towing a loaded trailer up a long steep incline in temperatures
exceeding 30 C (85F) may result in the engine overheating.
If the engine coolant temperature warning light (Red) flashes or
comes on, turn the air conditioning off immediately and stop the
vehicle in a safe place. ( P. 607)

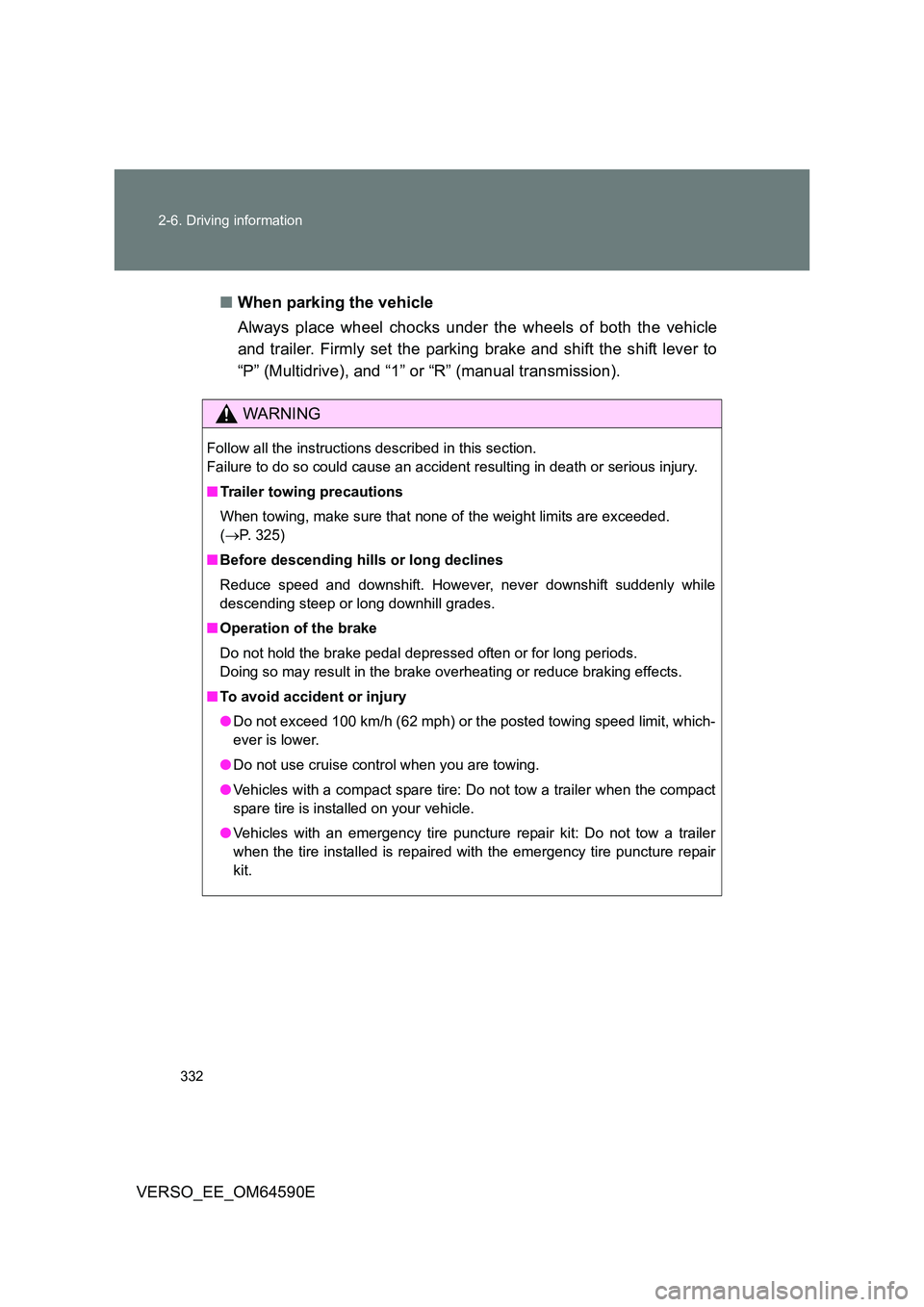

332
2-6. Driving information
VERSO_EE_OM64590E
■ When parking the vehicle
Always place wheel chocks under the wheels of both the vehicle
and trailer. Firmly set the parking brake and shift the shift lever to
“P” (Multidrive), and “1” or “R” (manual transmission).
WARNING
Follow all the instructions described in this section.
Failure to do so could cause an accident resulting in death or serious injury.
■ Trailer towing precautions
When towing, make sure that none of the weight limits are exceeded.
( P. 325)
■ Before descending hills or long declines
Reduce speed and downshift. However, never downshift suddenly while
descending steep or long downhill grades.
■ Operation of the brake
Do not hold the brake pedal depressed often or for long periods.
Doing so may result in the brake overheating or reduce braking effects.
■ To avoid accident or injury
● Do not exceed 100 km/h (62 mph) or the posted towing speed limit, which-
ever is lower.
● Do not use cruise control when you are towing.
● Vehicles with a compact spare tire: Do not tow a trailer when the compact
spare tire is installed on your vehicle.
● Vehicles with an emergency tire puncture repair kit: Do not tow a trailer
when the tire installed is repaired with the emergency tire puncture repair
kit.

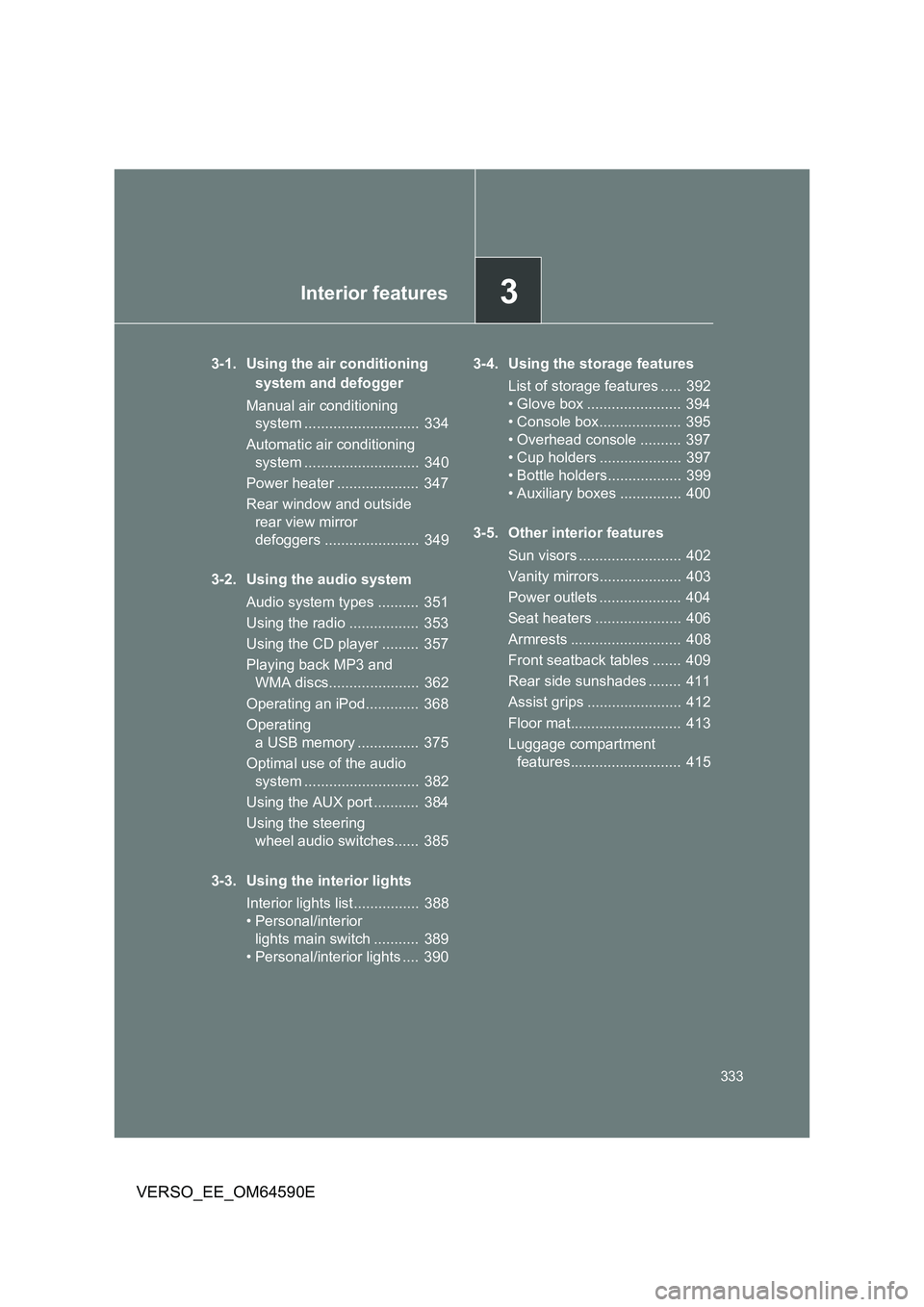

3Interior features
333
VERSO_EE_OM64590E
3-1. Using the air conditioning
system and defogger
Manual air conditioning
system ............................ 334
Automatic air conditioning
system ............................ 340
Power heater .................... 347
Rear window and outside
rear view mirror
defoggers ....................... 349
3-2. Using the audio system
Audio system types .......... 351
Using the radio ................. 353
Using the CD player ......... 357
Playing back MP3 and
WMA discs...................... 362
Operating an iPod............. 368
Operating
a USB memory ............... 375
Optimal use of the audio
system ............................ 382
Using the AUX port ........... 384
Using the steering
wheel audio switches...... 385
3-3. Using the interior lights
Interior lights list................ 388
• Personal/interior
lights main switch ........... 389
• Personal/interior lights .... 390
3-4. Using the storage features
List of storage features ..... 392
• Glove box ....................... 394
• Console box.................... 395
• Overhead console .......... 397
• Cup holders .................... 397
• Bottle holders.................. 399
• Auxiliary boxes ............... 400
3-5. Other interior features
Sun visors ......................... 402
Vanity mirrors.................... 403
Power outlets .................... 404
Seat heaters ..................... 406
Armrests ........................... 408
Front seatback tables ....... 409
Rear side sunshades ........ 411
Assist grips ....................... 412
Floor mat........................... 413
Luggage compartment
features........................... 415

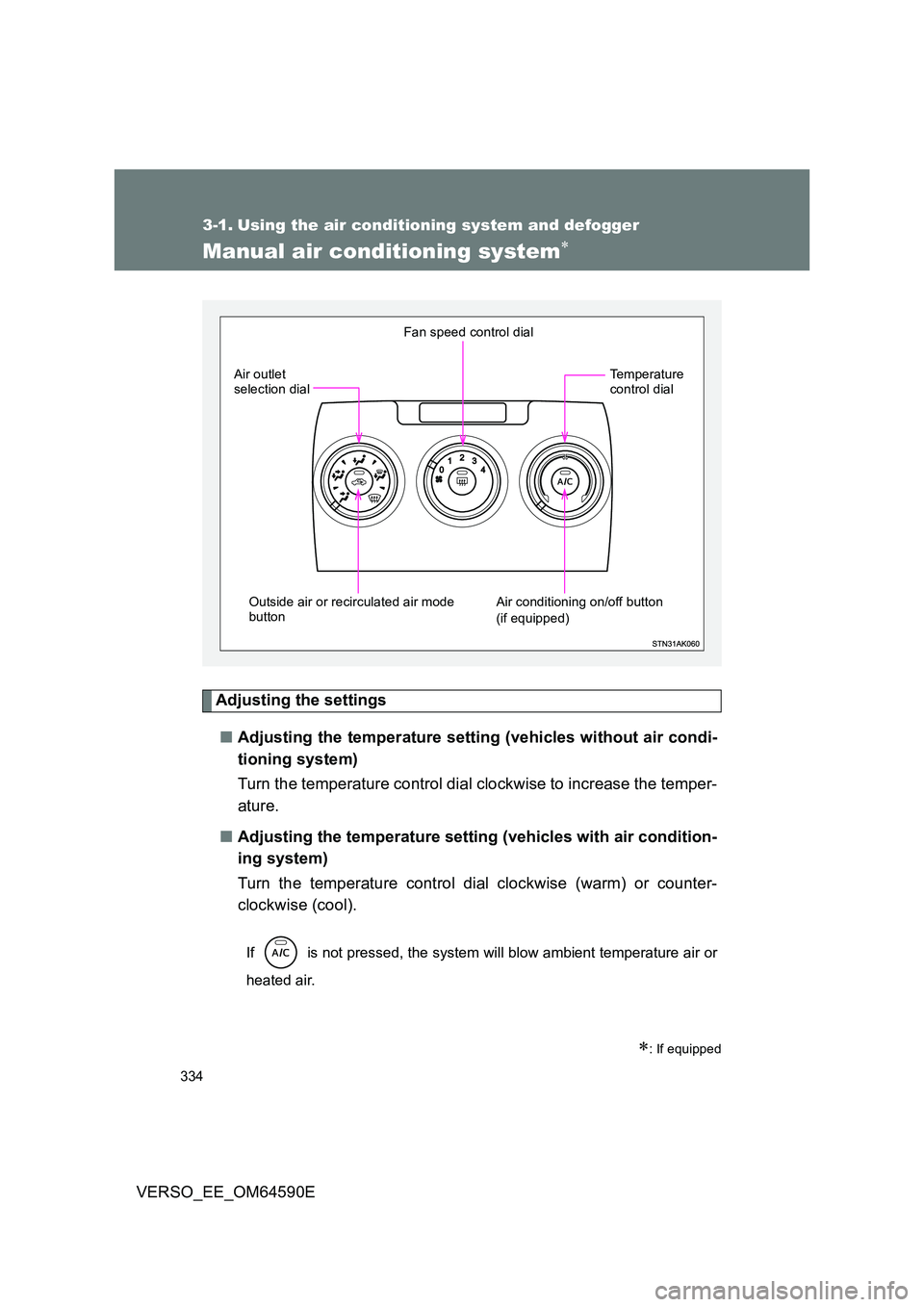

334
VERSO_EE_OM64590E
3-1. Using the air conditioning system and defogger
Manual air conditioning system
Adjusting the settings
■ Adjusting the temperature setting (vehicles without air condi-
tioning system)
Turn the temperature control dial clockwise to increase the temper-
ature.
■ Adjusting the temperature setting (vehicles with air condition-
ing system)
Turn the temperature control dial clockwise (warm) or counter-
clockwise (cool).
If is not pressed, the system will blow ambient temperature air or
heated air.
: If equipped
Fan speed control dial
Outside air or recirculated air mode button
Air outlet selection dial
Air conditioning on/off button
(if equipped)
Temperature control dial

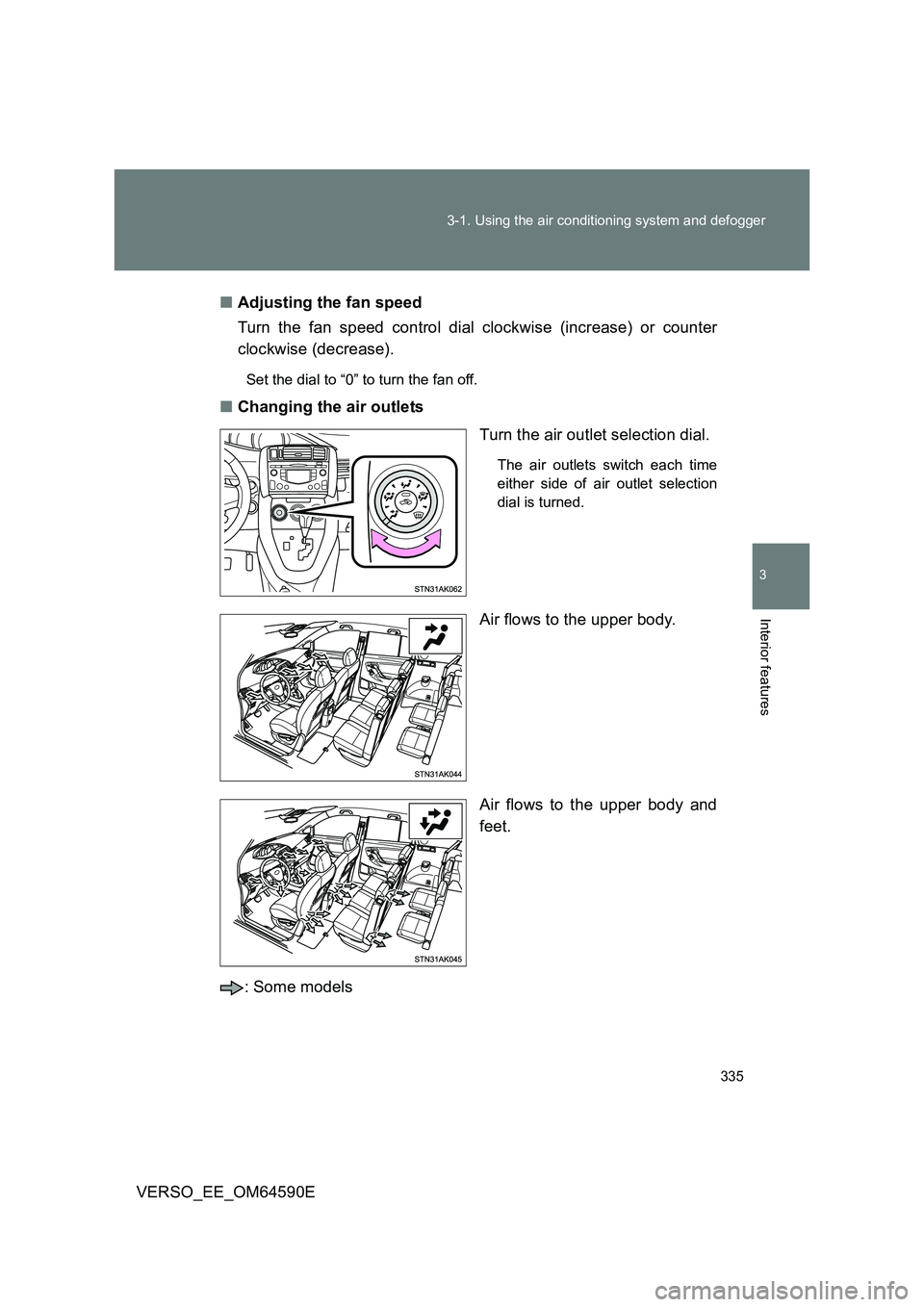

335
3-1. Using the air conditioning system and defogger
3
Interior features
VERSO_EE_OM64590E
■ Adjusting the fan speed
Turn the fan speed control dial clockwise (increase) or counter
clockwise (decrease).
Set the dial to “0” to turn the fan off.
■ Changing the air outlets
Turn the air outlet selection dial.
The air outlets switch each time
either side of air outlet selection
dial is turned.
Air flows to the upper body.
Air flows to the upper body and
feet.
: Some models

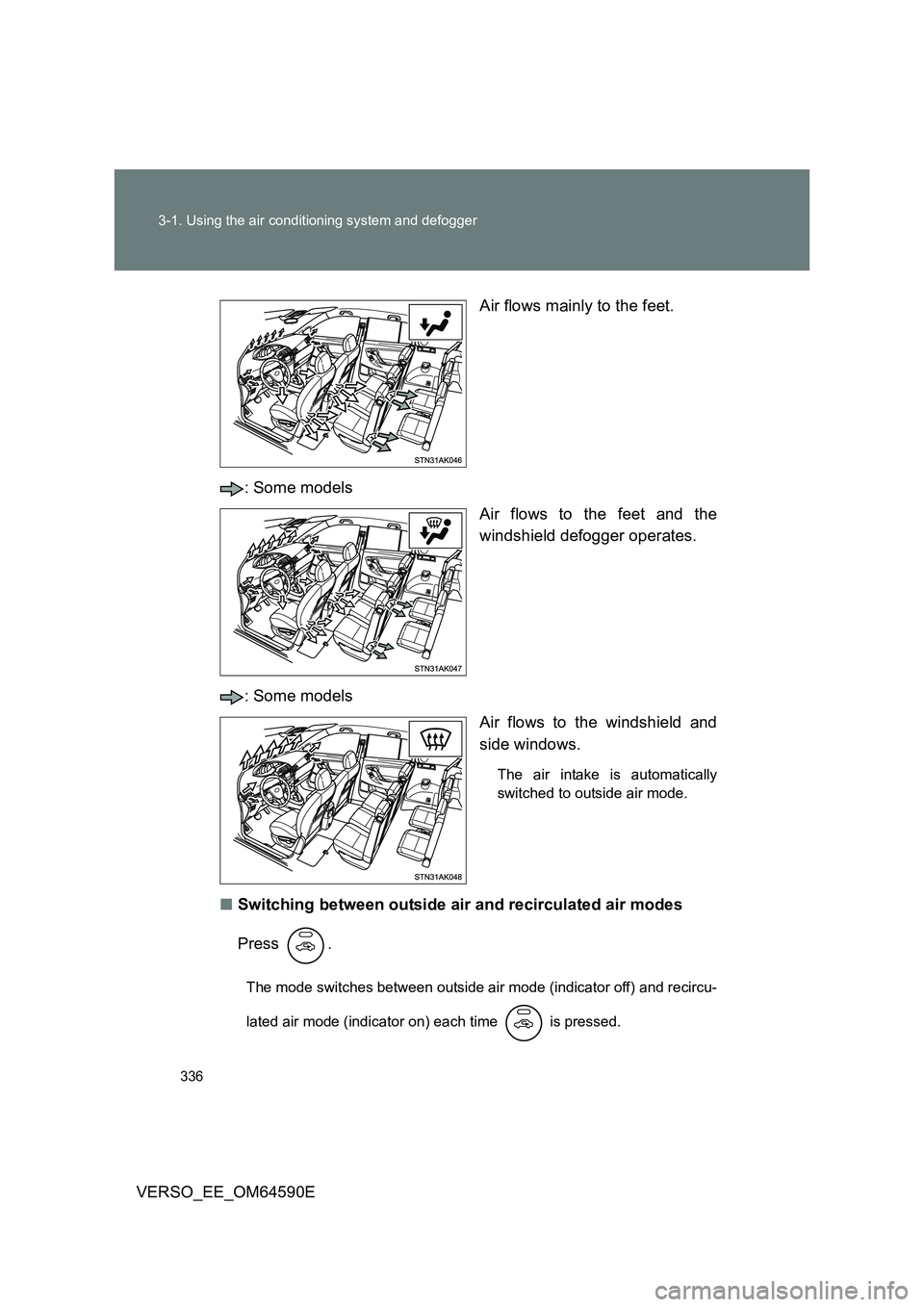

336
3-1. Using the air conditioning system and defogger
VERSO_EE_OM64590E
Air flows mainly to the feet.
: Some models
Air flows to the feet and the
windshield defogger operates.
: Some models
Air flows to the windshield and
side windows.
The air intake is automatically
switched to outside air mode.
■ Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode (indicator off) and recircu-
lated air mode (indicator on) each time is pressed.

337
3-1. Using the air conditioning system and defogger
3
Interior features
VERSO_EE_OM64590E
Adjusting the position of and opening and closing the air outlets
Center outlets
Direct air flow to the left or
right, up or down.
Turn the knob to open or close
the vent.
Right and left side outlets
Direct air flow to the left or
right, up or down.
Turn the knob to open or close
the vent.

338
3-1. Using the air conditioning system and defogger
VERSO_EE_OM64590E

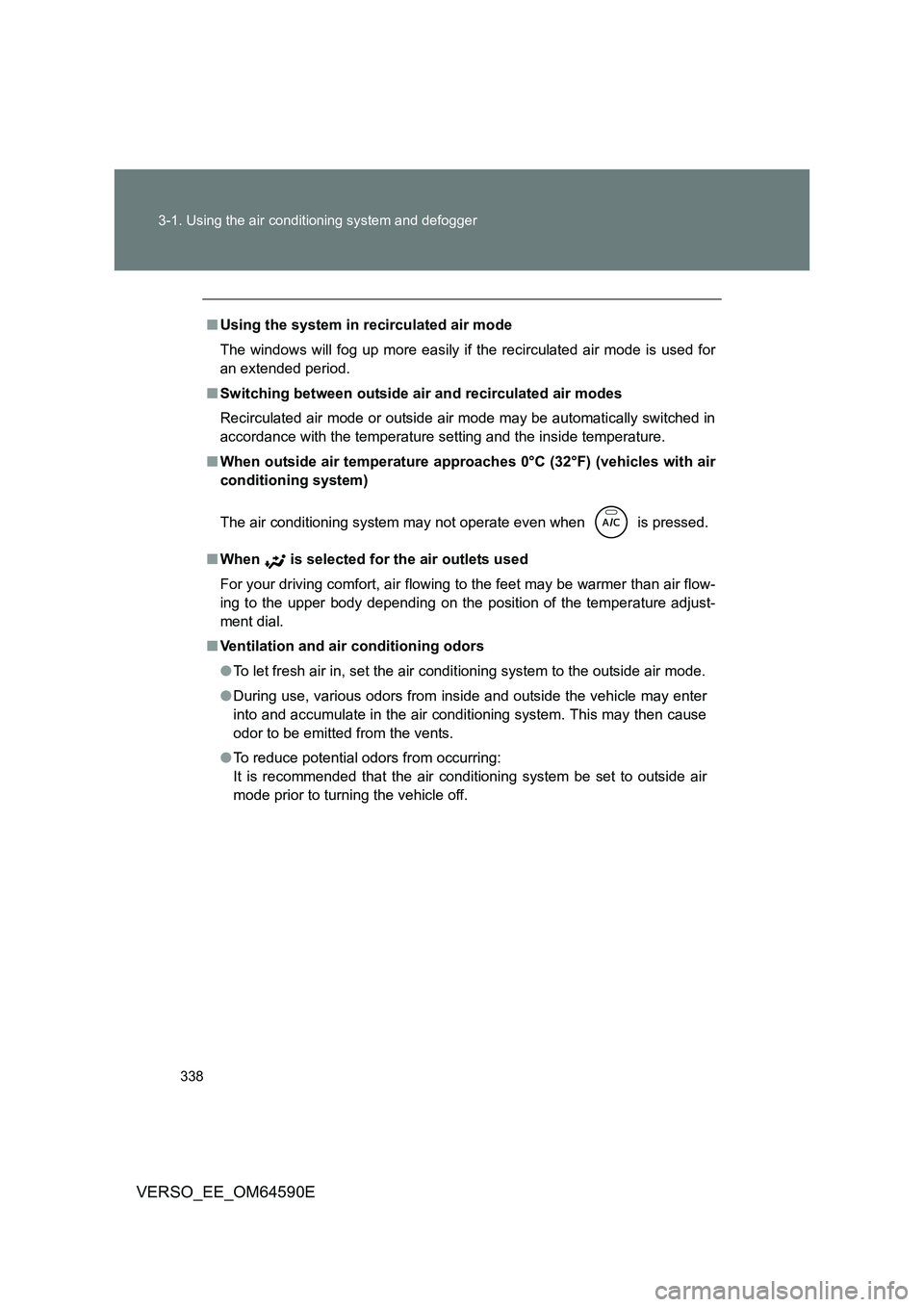

■ Using the system in recirculated air mode
The windows will fog up more easily if the recirculated air mode is used for
an extended period.
■ Switching between outside air and recirculated air modes
Recirculated air mode or outside air mode may be automatically switched in
accordance with the temperature setting and the inside temperature.
■ When outside air temperature approaches 0°C (32°F) (vehicles with air
conditioning system)
The air conditioning system may not operate even when is pressed.
■ When is selected for the air outlets used
For your driving comfort, air flowing to the feet may be warmer than air flow-
ing to the upper body depending on the position of the temperature adjust-
ment dial.
■ Ventilation and air conditioning odors
● To let fresh air in, set the air conditioning system to the outside air mode.
● During use, various odors from inside and outside the vehicle may enter
into and accumulate in the air conditioning system. This may then cause
odor to be emitted from the vents.
● To reduce potential odors from occurring:
It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.

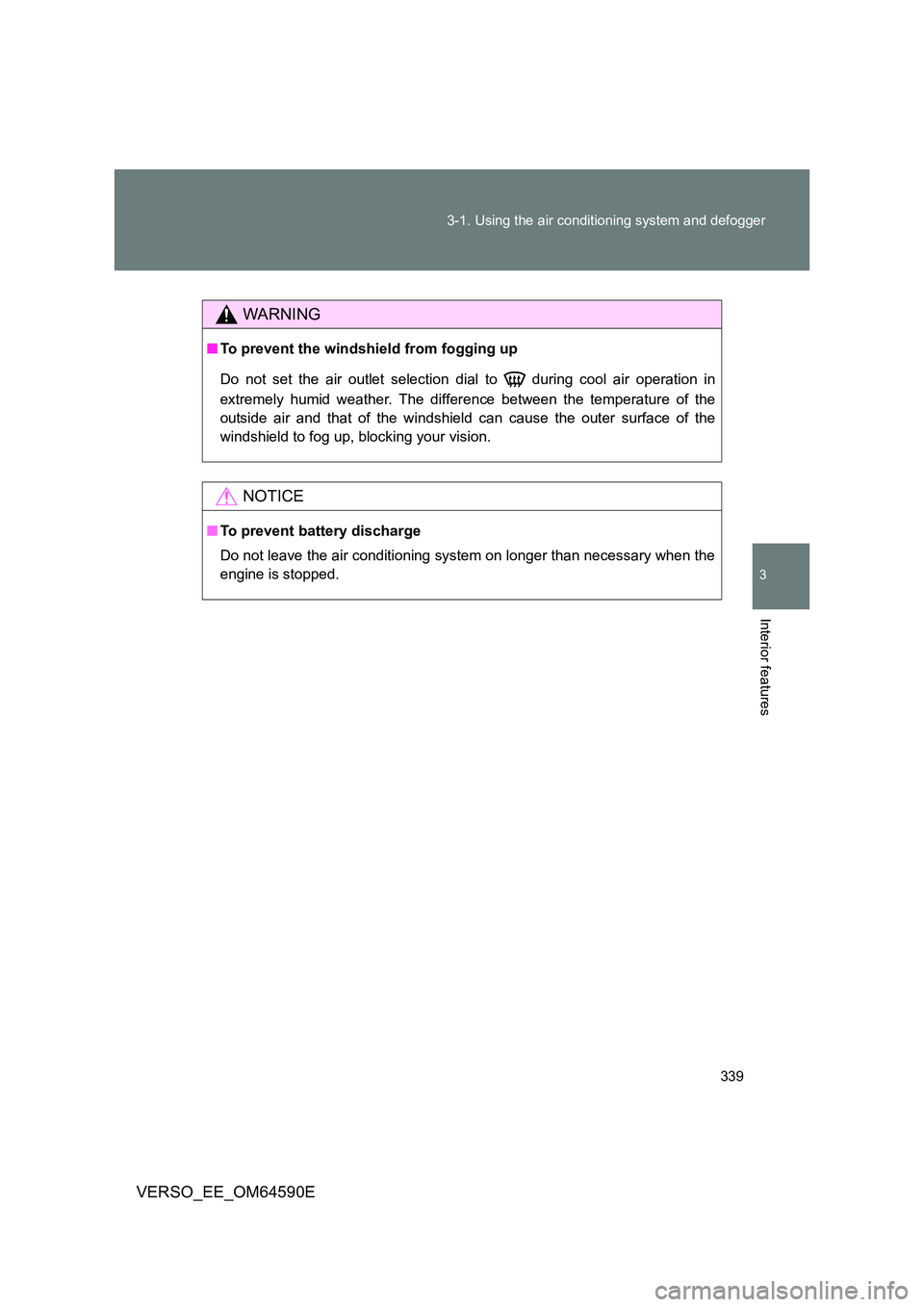

339
3-1. Using the air conditioning system and defogger
3
Interior features
VERSO_EE_OM64590E
WARNING
■ To prevent the windshield from fogging up
Do not set the air outlet selection di al to during cool air operation in
extremely humid weather. The difference between the temperature of the
outside air and that of the windshield can cause the outer surface of the
windshield to fog up, blocking your vision.
NOTICE
■ To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.

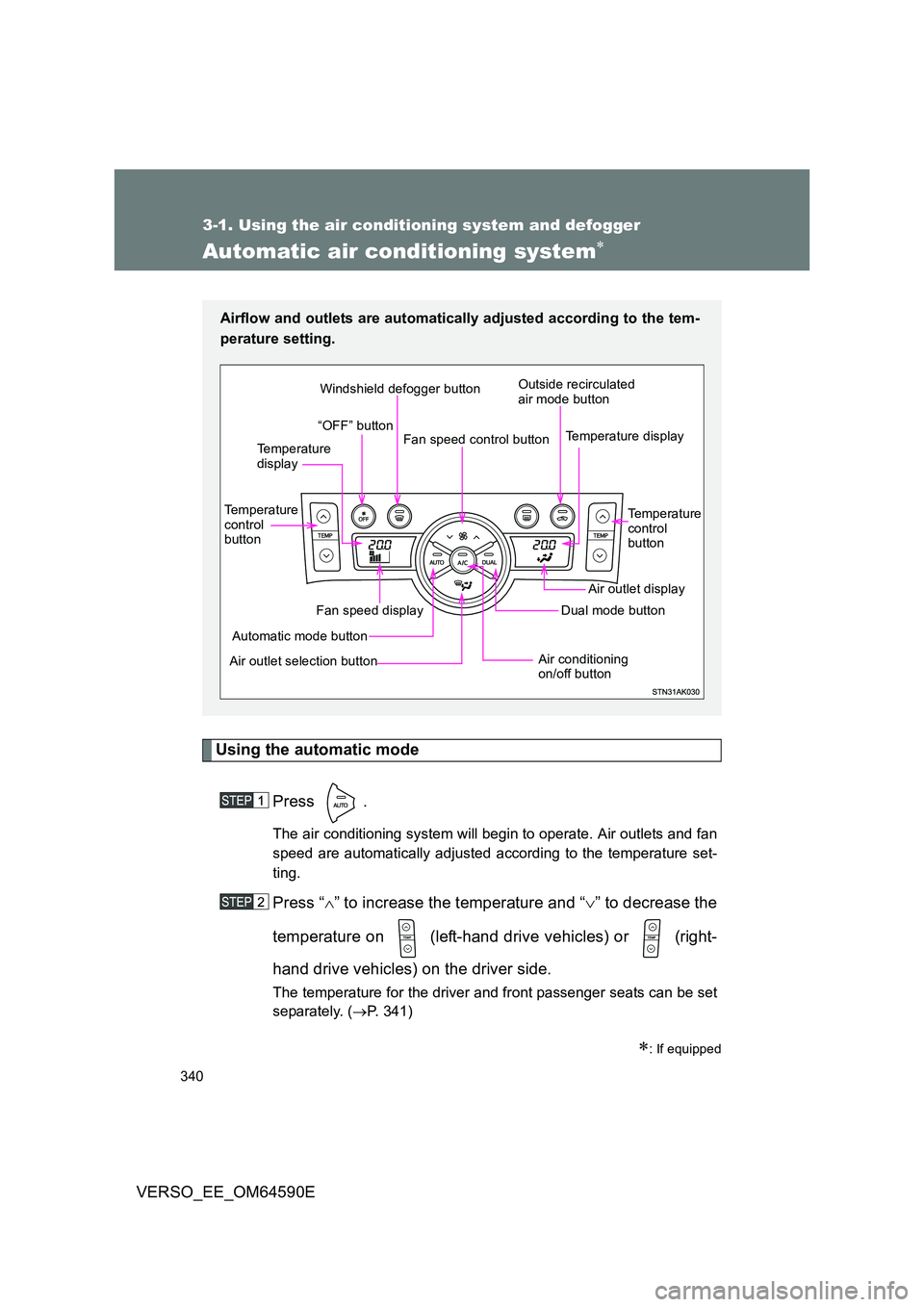

340
3-1. Using the air conditioning system and defogger
VERSO_EE_OM64590E
Automatic air conditioning system
Using the automatic mode
Press .
The air conditioning system will begin to operate. Air outlets and fan
speed are automatically adjusted according to the temperature set-
ting.
Press “ ” to increase the temperature and “” to decrease the
temperature on (left-hand drive vehicles) or (right-
hand drive vehicles) on the driver side.
The temperature for the driver and front passenger seats can be set
separately. ( P. 341)
: If equipped
Airflow and outlets are automatically adjusted according to the tem-
perature setting.
Outside recirculated air mode button
Temperature display
Temperature control button
Air outlet display
Dual mode button
Air conditioning on/off button Air outlet selection button
Automatic mode button
Fan speed display
Temperature controlbutton
Temperature display
Fan speed control button “OFF” button
Windshield defogger button
