TOYOTA VERSO 2016 Owners Manual

501
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64590E

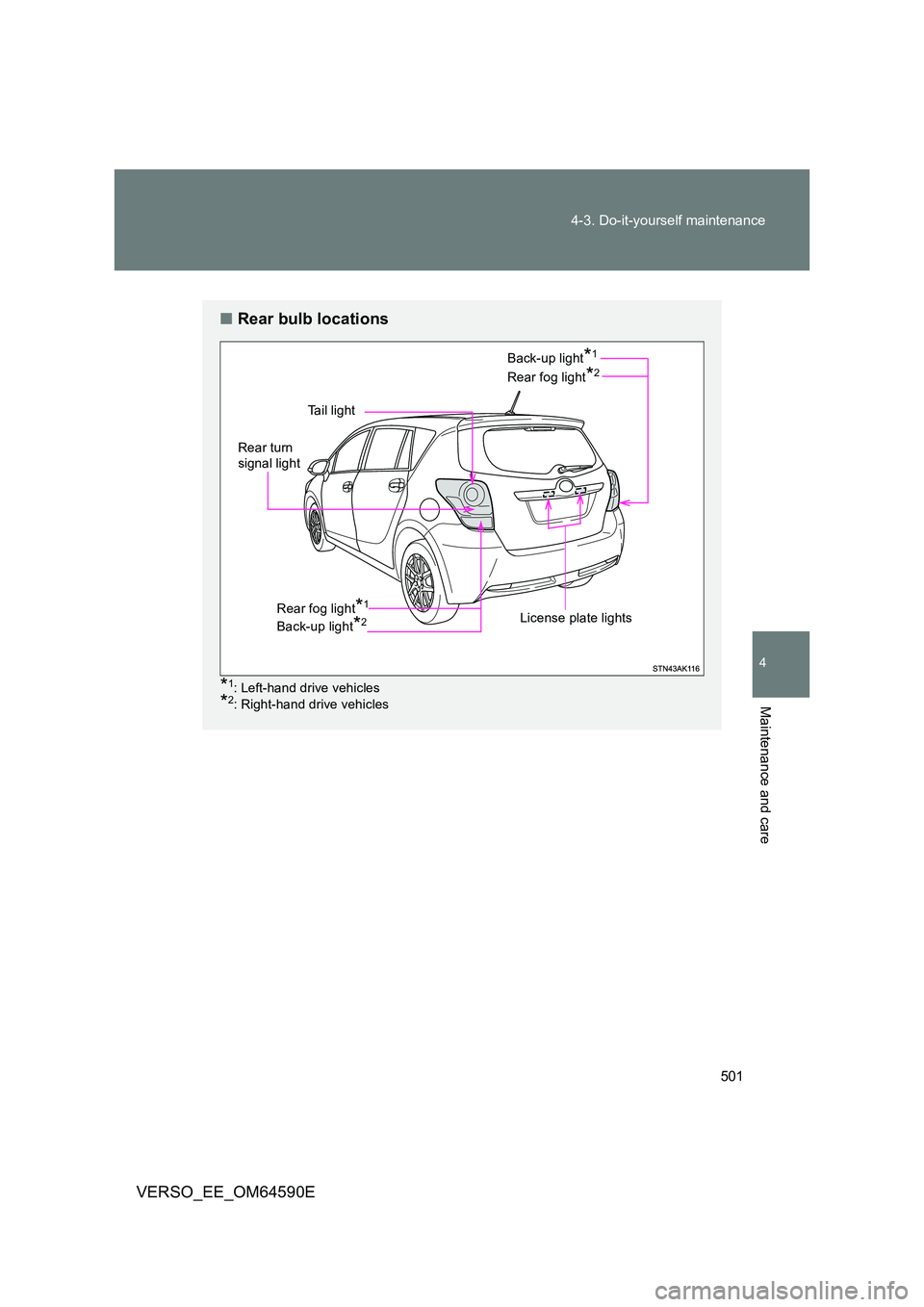

■ Rear bulb locations
*1: Left-hand drive vehicles
*2: Right-hand drive vehicles
Ta i l l i g h t
Rear fog light*2
License plate lights
Rear turn signal light
Back-up light*1
Rear fog light*1
Back-up light*2

502
4-3. Do-it-yourself maintenance
VERSO_EE_OM64590E
When replacing the light bulbs
■ When replacing the following bulbs:
● Headlight (halogen headlights)
● Front position light/daytime running light (halogen headlights)
● Front turn signal light
■ Before replacing the bulbs
Left side
Remove the upper part of the air cleaner duct.
Remove the securing clip.
Move the upper part of the air
cleaner duct forward and
back.
Remove the duct part while
turning it.
After replacing the bulbs, make
sure to firmly install the upper part
of the air cleaner duct and secure
it with the clip.

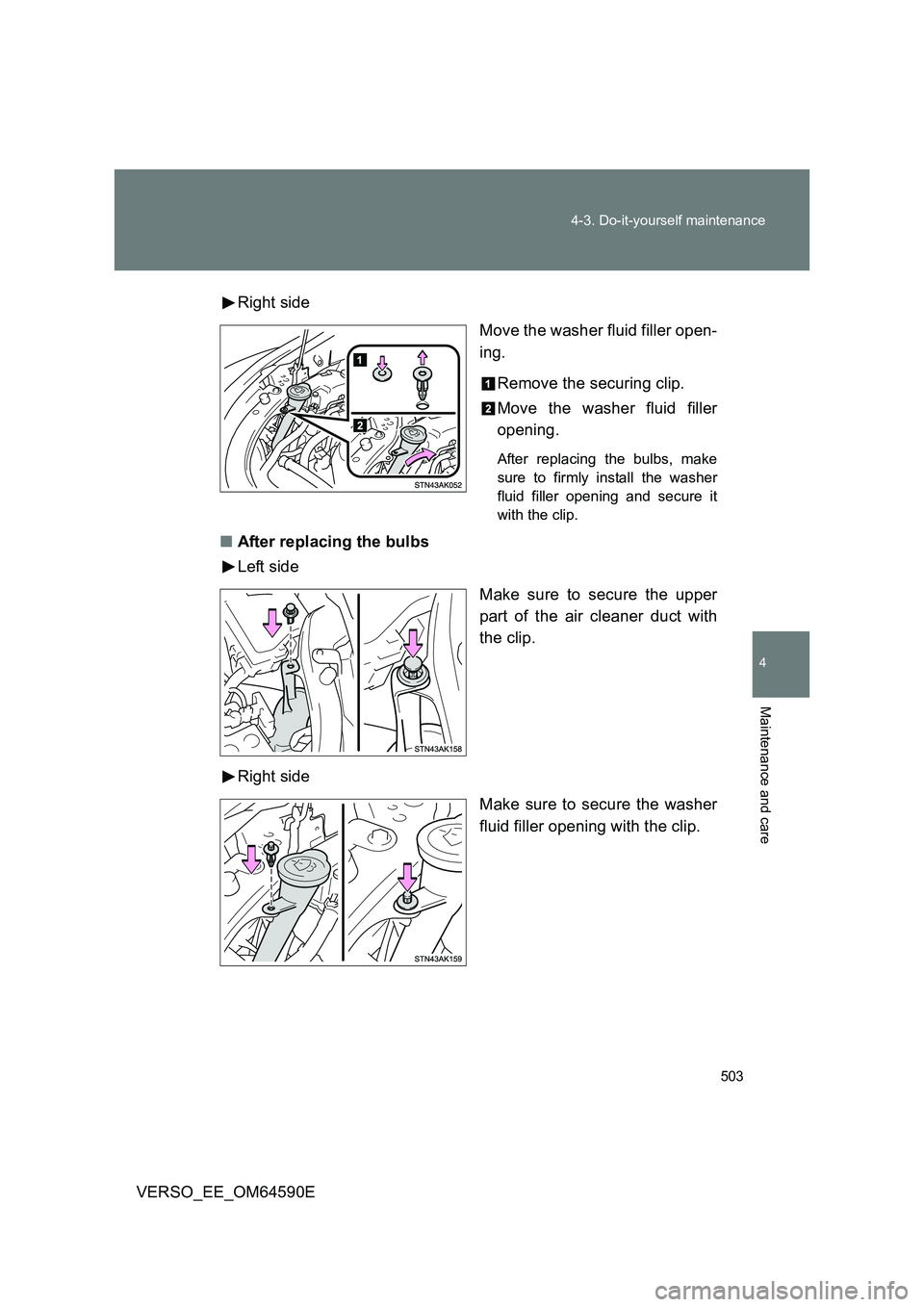

503
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64590E
Right side
Move the washer fluid filler open-
ing.
Remove the securing clip.
Move the washer fluid filler
opening.
After replacing the bulbs, make
sure to firmly install the washer
fluid filler opening and secure it
with the clip.
■ After replacing the bulbs
Left side
Make sure to secure the upper
part of the air cleaner duct with
the clip.
Right side
Make sure to secure the washer
fluid filler opening with the clip.

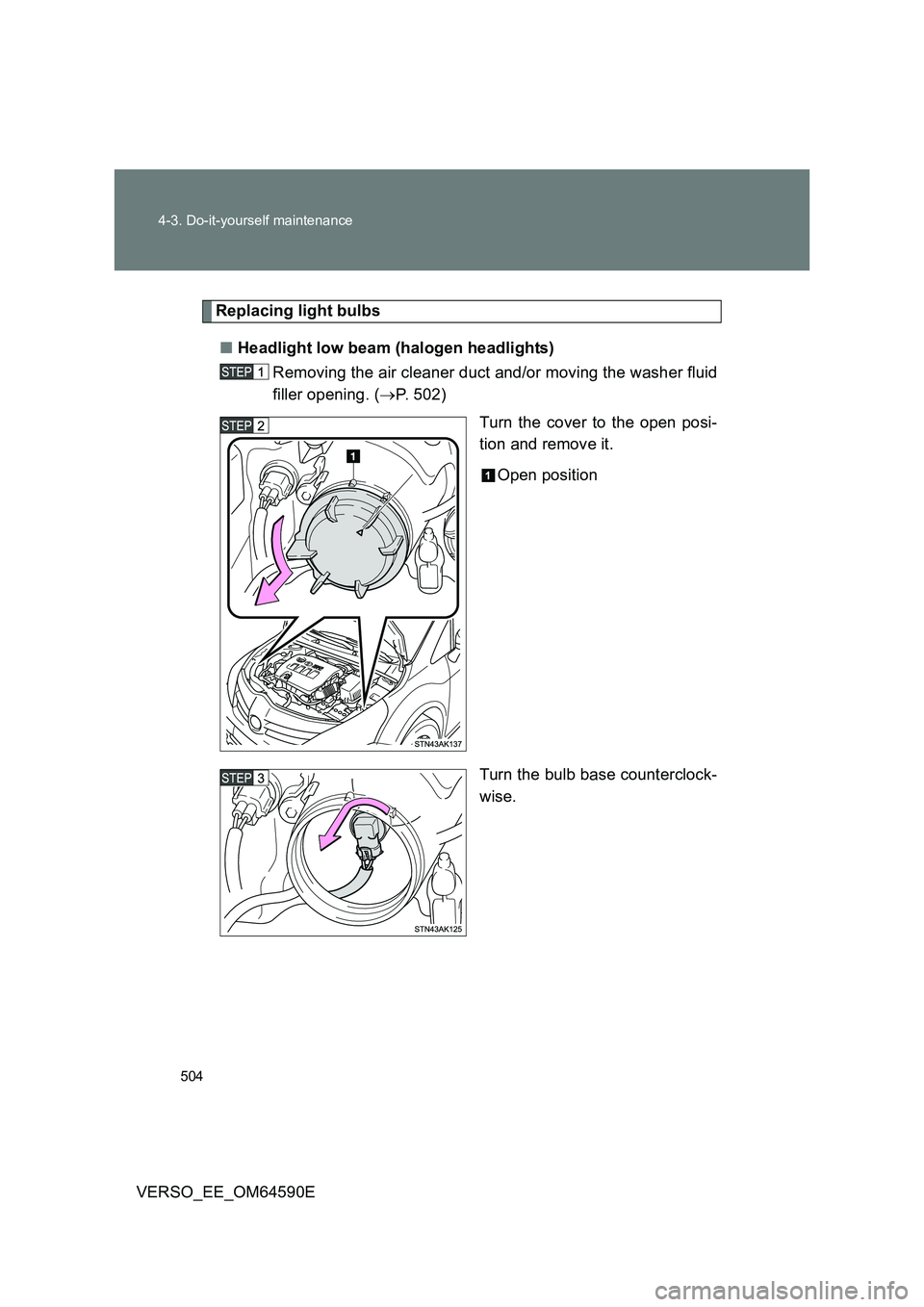

504
4-3. Do-it-yourself maintenance
VERSO_EE_OM64590E
Replacing light bulbs
■ Headlight low beam (halogen headlights)
Removing the air cleaner duct and/or moving the washer fluid
filler opening. ( P. 502)
Turn the cover to the open posi-
tion and remove it.
Open position
Turn the bulb base counterclock-
wise.

505
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64590E
Unplug the connector while pull-
ing the lock release.
Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlight low beam on once and
visually confirm that no light is
leaking through the mounting.
Install and turn the cover to the
closed position.
Closed position

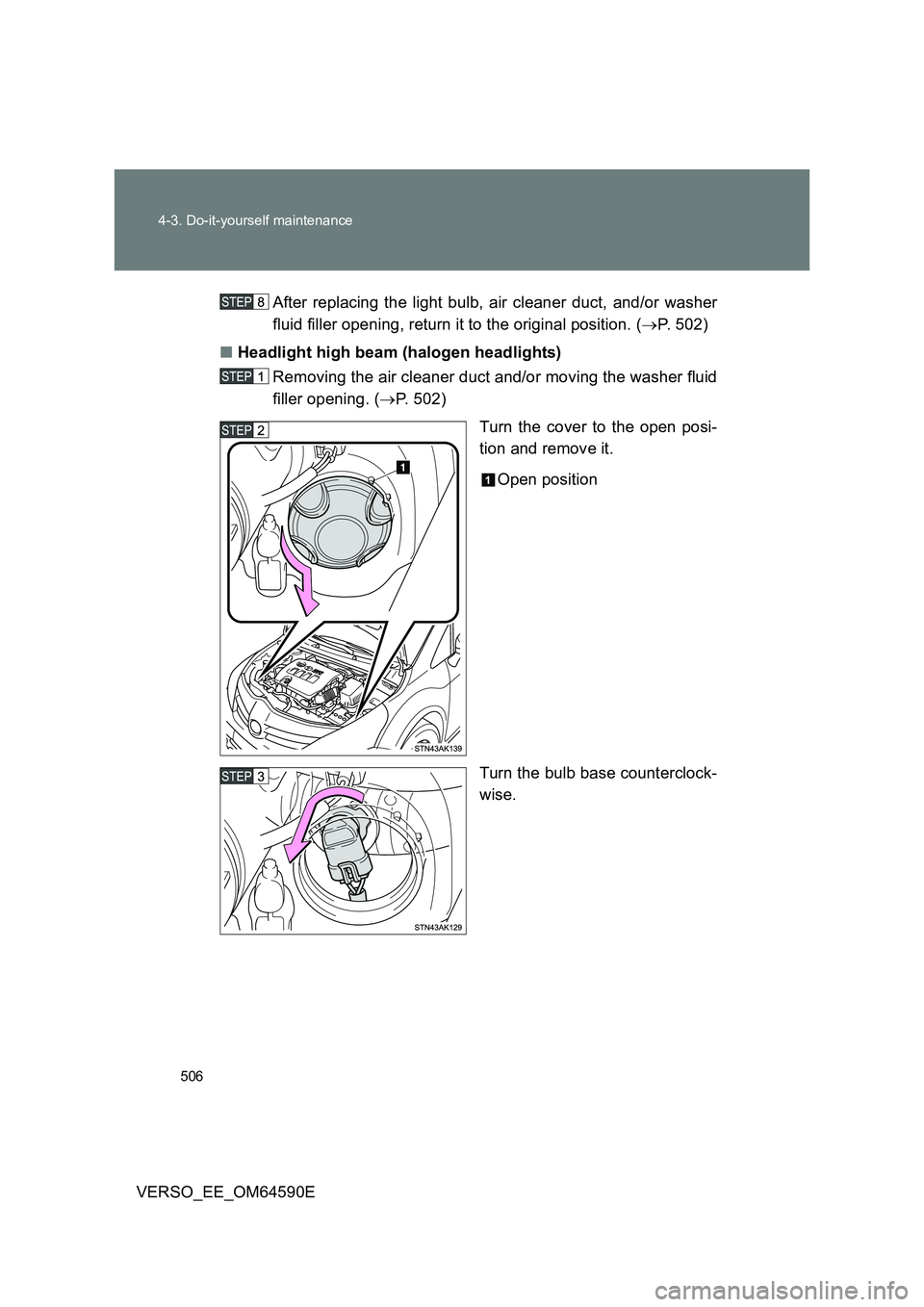

506
4-3. Do-it-yourself maintenance
VERSO_EE_OM64590E
After replacing the light bulb, air cleaner duct, and/or washer
fluid filler opening, return it to the original position. ( P. 502)
■ Headlight high beam (halogen headlights)
Removing the air cleaner duct and/or moving the washer fluid
filler opening. ( P. 502)
Turn the cover to the open posi-
tion and remove it.
Open position
Turn the bulb base counterclock-
wise.

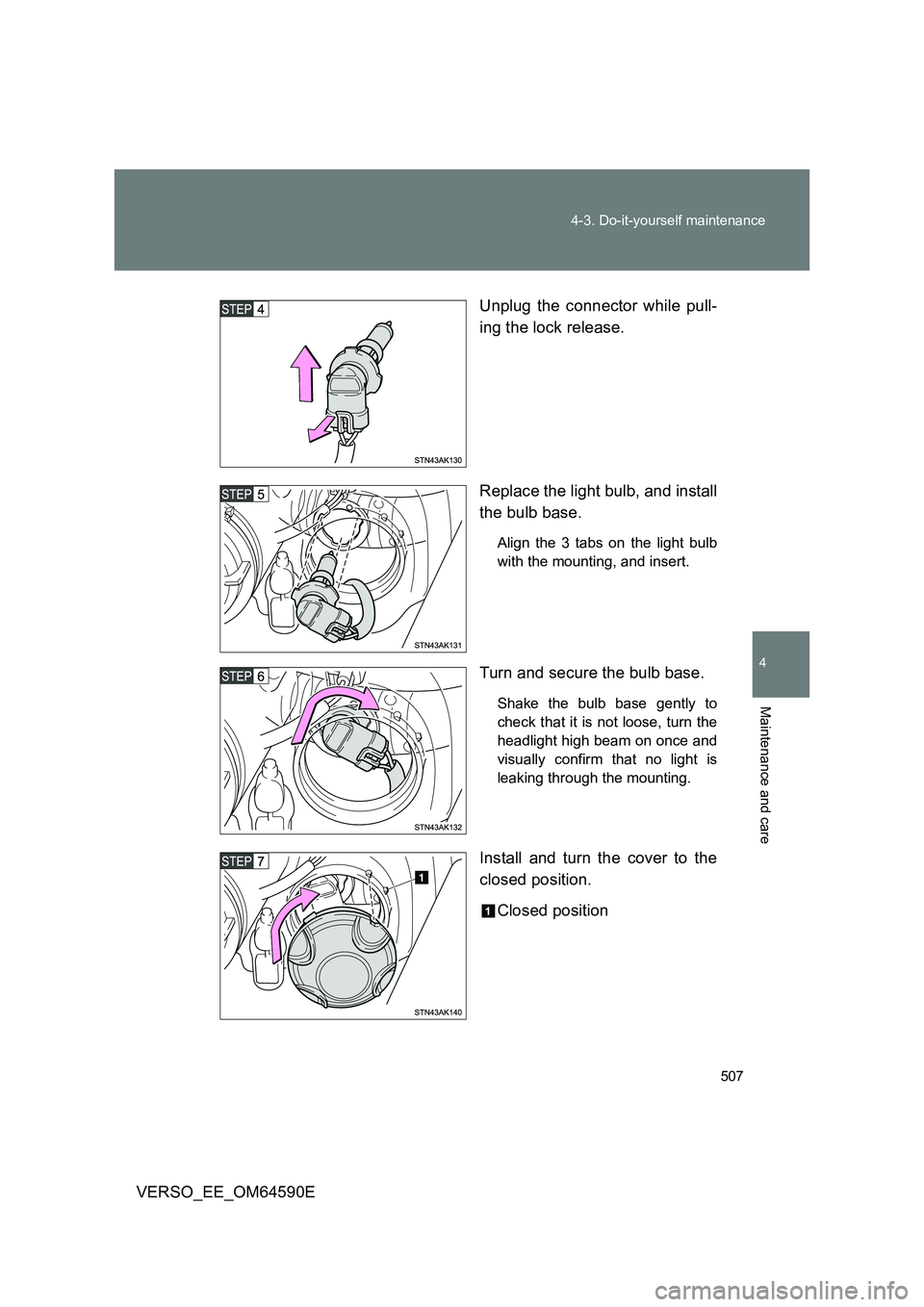

507
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64590E
Unplug the connector while pull-
ing the lock release.
Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlight high beam on once and
visually confirm that no light is
leaking through the mounting.
Install and turn the cover to the
closed position.
Closed position

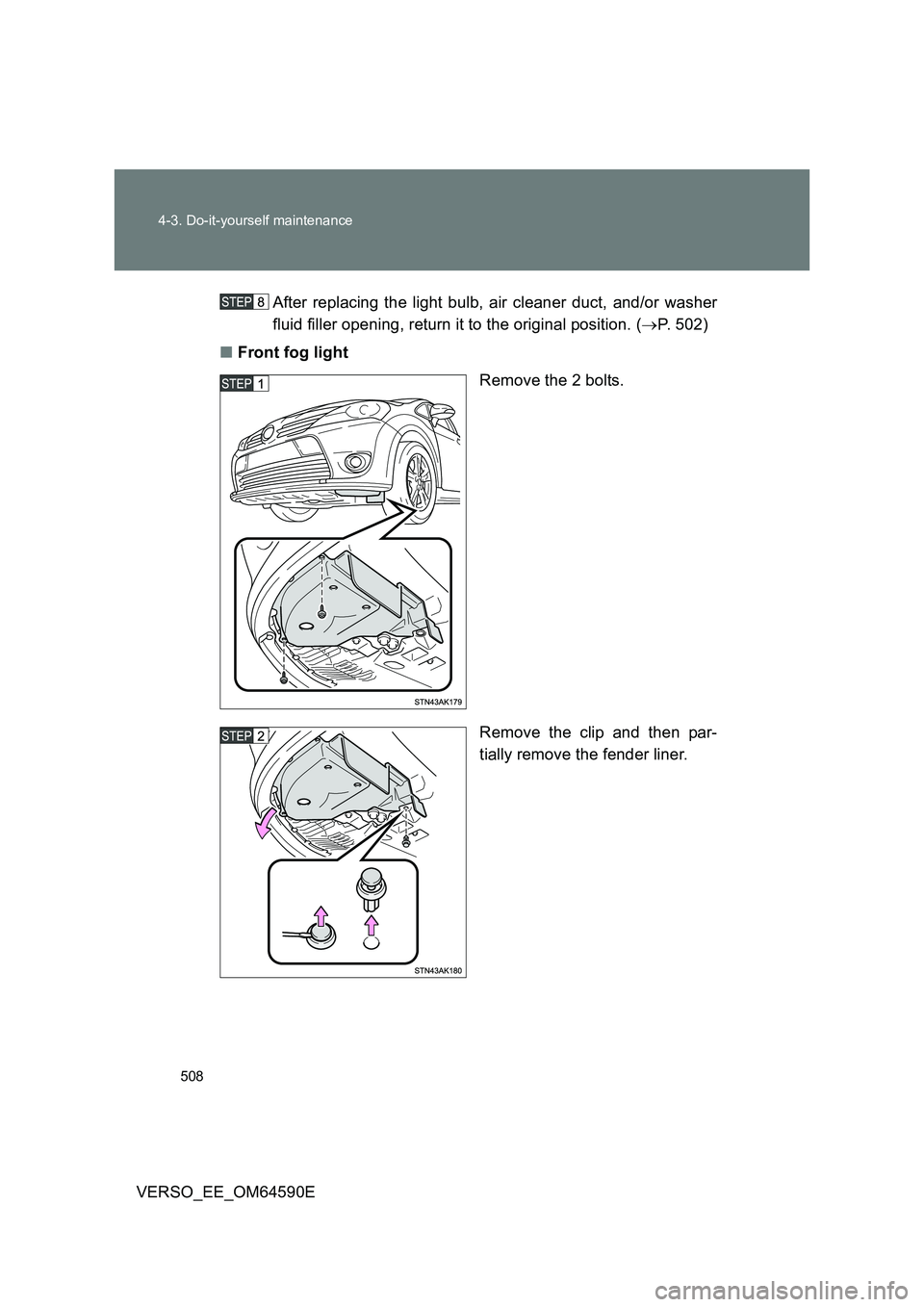

508
4-3. Do-it-yourself maintenance
VERSO_EE_OM64590E
After replacing the light bulb, air cleaner duct, and/or washer
fluid filler opening, return it to the original position. ( P. 502)
■ Front fog light
Remove the 2 bolts.
Remove the clip and then par-
tially remove the fender liner.

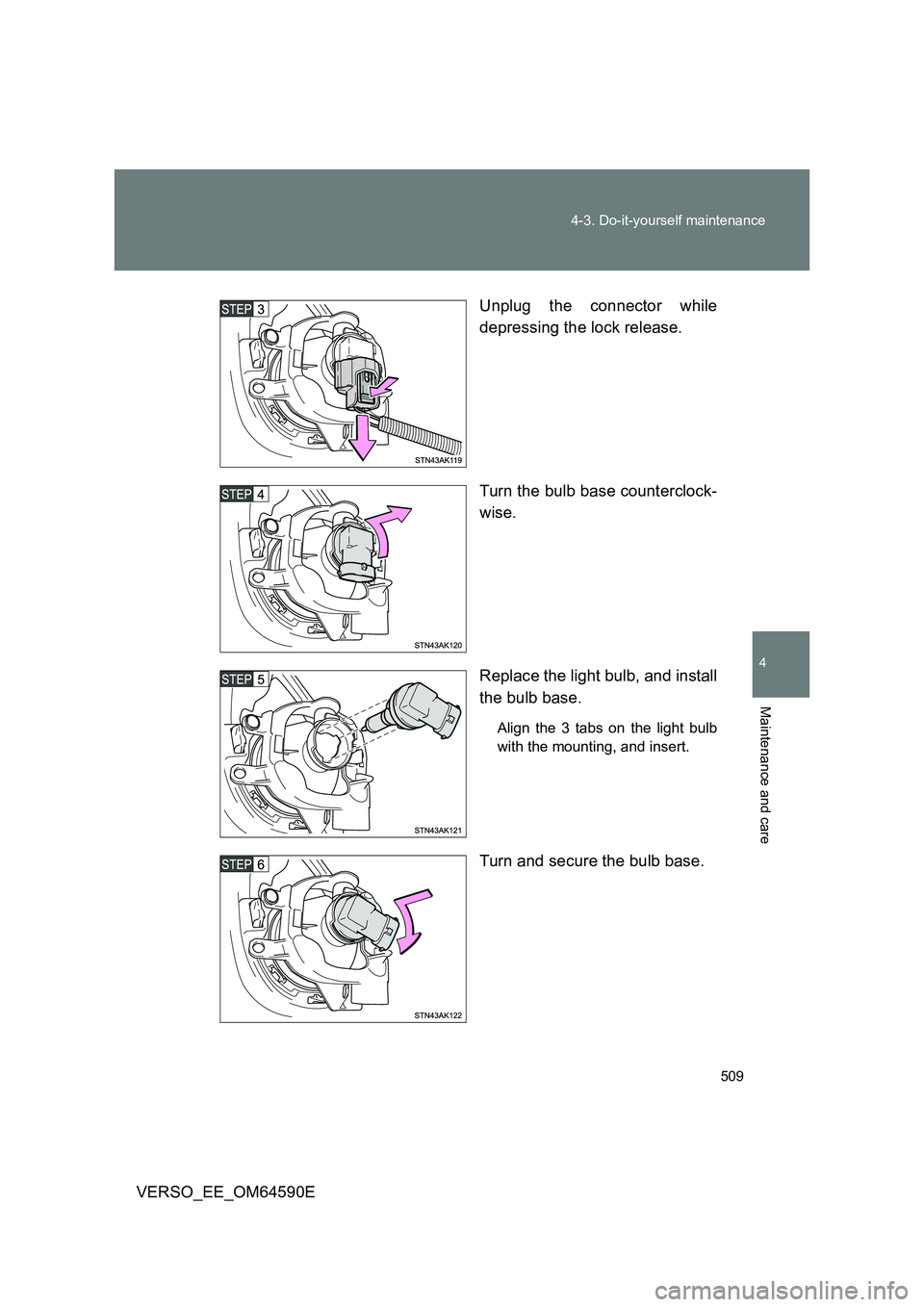

509
4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_EE_OM64590E
Unplug the connector while
depressing the lock release.
Turn the bulb base counterclock-
wise.
Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base.

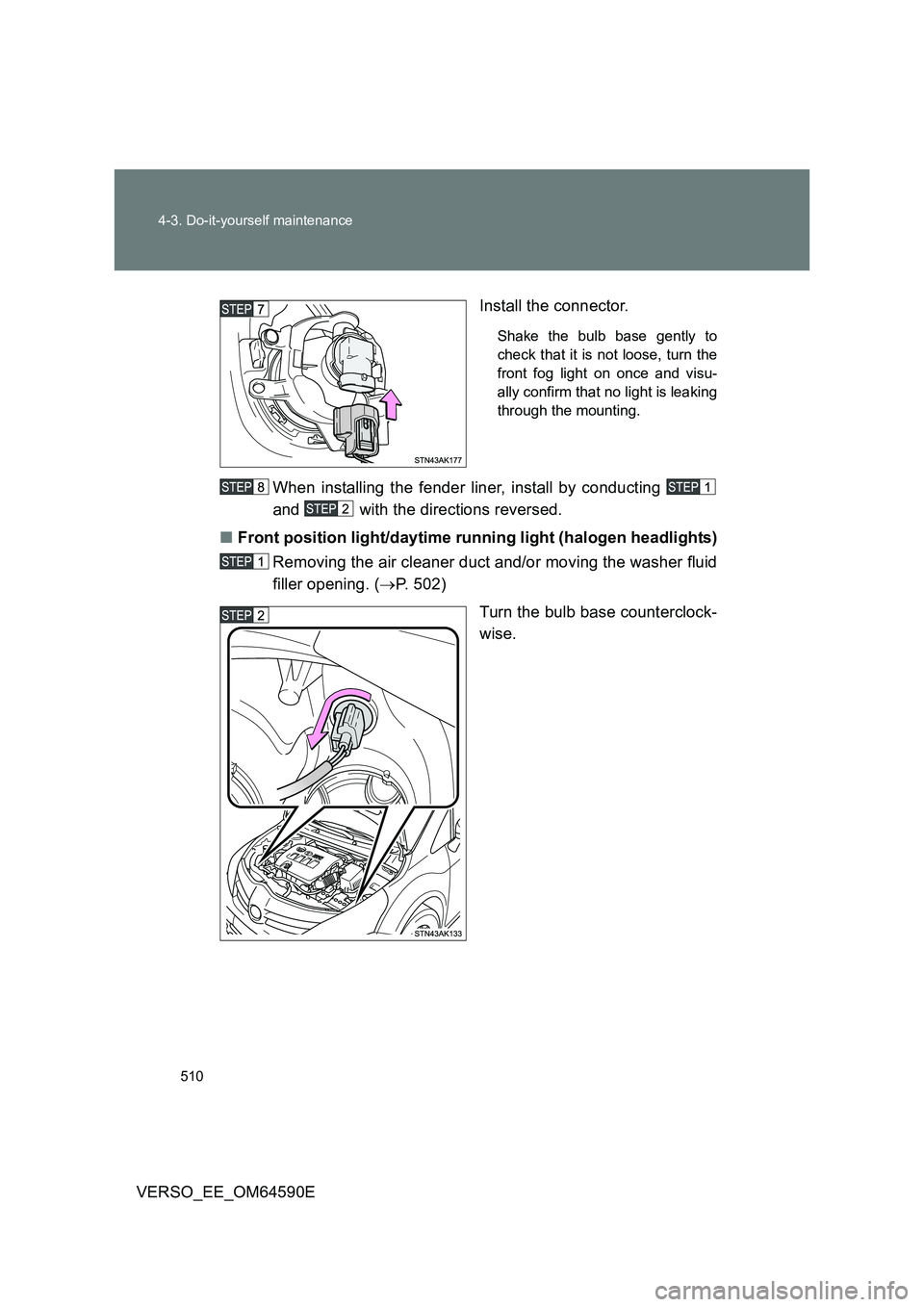

510
4-3. Do-it-yourself maintenance
VERSO_EE_OM64590E
Install the connector.
Shake the bulb base gently to
check that it is not loose, turn the
front fog light on once and visu-
ally confirm that no light is leaking
through the mounting.
When installing the fender liner, install by conducting
and with the directions reversed.
■ Front position light/daytime running light (halogen headlights)
Removing the air cleaner duct and/or moving the washer fluid
filler opening. ( P. 502)
Turn the bulb base counterclock-
wise.
