TOYOTA YARIS 2022 Owners Manual

2
89
HV Owner's Manual_Europe_M52N30_en
2
Vehicle status information and indicators
Vehicle status informa-
tion and indicators
2-1. Instrument cluster
Warning lights and indicators
......................................... 90
Gauges and meters (vertical
display) ............................. 94
Gauges and meters (horizontal
display) ............................. 99
Multi-information display (verti-
cal display)...................... 103
Multi-information display (hori-
zontal display)................. 109
Head-up display................ 116
Energy monitor/consumption
screen ............................. 120

90
HV Owner's Manual_Europe_M52N30_en
2-1. Instrument cluster
2-1.In strument clu ste r
For the purpose of explanation, the following illustrations display all warning
lights and indicators illuminated.
Vertical display
The units of measure may differ depending on the intended desti nation of
the vehicle.
Warning lights and indicators
The warning lights and indicators on the instrument cluster, center
panel and outside rear view mirrors inform the driver of the st atus of
the vehicle’s various systems.
Warning lights and indicators displayed on the instrument
cluster

91
2
HV Owner's Manual_Europe_M52N30_en
2-1. Instrument cluster
Vehicle status information and indicators

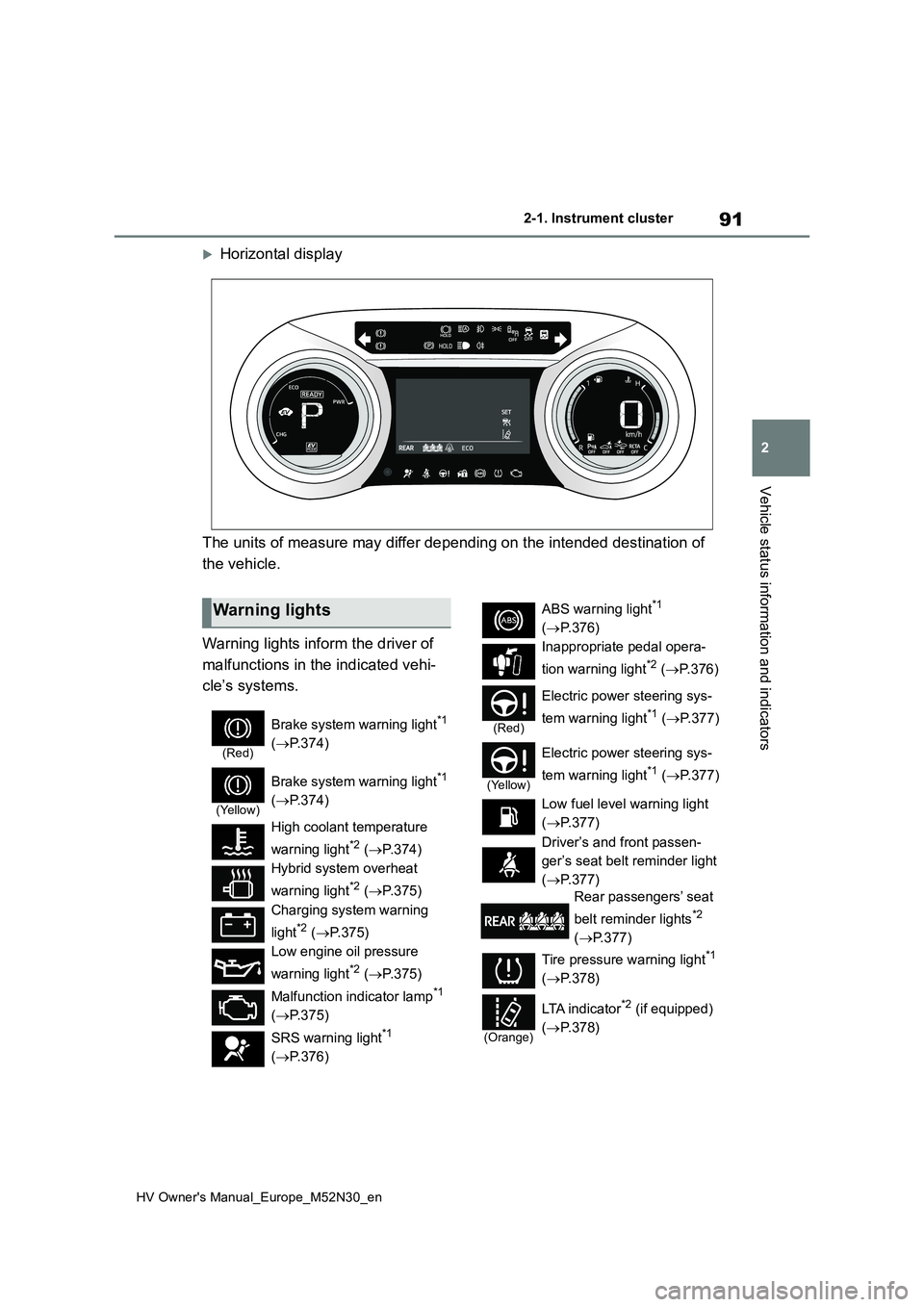

Horizontal display
The units of measure may differ depending on the intended desti nation of
the vehicle.
Warning lights inform the driver of
malfunctions in the indicated vehi-
cle’s systems.
Warning lights
(Red)
Brake system warning light*1
( P.374)
(Yellow)
Brake system warning light*1
( P.374)
High coolant temperature
warning light*2 ( P.374)
Hybrid system overheat
warning light*2 ( P.375)
Charging system warning
light*2 ( P.375)
Low engine oil pressure
warning light*2 ( P.375)
Malfunction indicator lamp*1
( P.375)
SRS warning light*1
( P.376)
ABS warning light*1
( P.376)
Inappropriate pedal opera-
tion warning light*2 ( P. 3 7 6 )
(Red)
Electric power steering sys-
tem warning light*1 ( P.377)
(Yellow)
Electric power steering sys-
tem warning light*1 ( P.377)
Low fuel level warning light
( P.377)
Driver’s and front passen-
ger’s seat belt reminder light
( P.377)
Rear passengers’ seat
belt reminder lights*2
( P.377)
Tire pressure warning light*1
( P.378)
(Orange)
LTA i n d i c a t o r*2 (if equipped)
( P.378)

92
HV Owner's Manual_Europe_M52N30_en
2-1. Instrument cluster
*1: These lights come on when the
power switch is turned to ON to indi-
cate that a system check is being
performed. They will turn off after the
hybrid system is started, or after a
few seconds. There may be a mal-
function in a system if the lights do
not come on, or turn off. Have the
vehicle inspected by any authorized
Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
*2: This light illuminates on the multi-
information display.
The indicators inform the driver of
the operating state of the vehicle’s
various systems.
(Flashes)
Toyota parking assist-sensor
OFF indicator*1 (if equipped)
( P.379)
(Flashes)
“RCTA OFF” indicator*1 (if
equipped) ( P.379)
PKSB OFF indicator*1 (if
equipped) ( P.379)
(Flashes or illuminates)
PCS warning light*1 (if
equipped) ( P.380)
Slip indicator*1 ( P.380)
(Flashes)
Parking brake indicator
( P.380)
(Flashes)
Brake hold operated indica-
tor*1 ( P.381)
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not come on when you start the hybrid
system, this could mean that these systems are not available to help pro-tect you in an accident, which could
result in death or serious injury. Have the vehicle inspected by any autho-rized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer immediately if this occurs.
Indicators
Turn signal indicator
( P.184)
Tail light indicator ( P.190)
Headlight high beam indica-
tor ( P.192)
Automatic High Beam indica-
tor (if equipped) ( P.193)
Front fog light indicator (if
equipped) ( P.196)
Rear fog light indicator
( P.196)
PCS warning light*1, 2 (if
equipped) ( P.212)
Cruise control indicator*3 (if
equipped) ( P.230)
Dynamic radar cruise control
indicator*3 (if equipped)
( P.230)
Cruise control “SET” indica-
tor*3 (if equipped) ( P.230)

93
2
HV Owner's Manual_Europe_M52N30_en
2-1. Instrument cluster
Vehicle status information and indicators
*1: These lights come on when the
power switch is turned to ON to indi-
cate that a system check is being
performed. They will turn off after the
hybrid system is started, or after a
few seconds. There may be a mal-
function in a system if the lights do
not come on, or turn off. Have the
vehicle inspected by any authorized
Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
*2: This light comes on when the system
is turned off.
*3: This light illuminates on the multi-
information display.
*4: Depending on the operating condi-
tion, the color and illuminating/flash-
ing state of the light change.
*5: This light illuminates on the outside
rear view mirrors.
*6: For vehicles with vertical display, this
light illuminates on the multi-informa-
tion display.
*7: When the outside temperature is
approximately 3°C (37°F) or lower,
this indicator will flash for approxi-
mately 10 seconds, then stay on.
*8: This light illuminates on the center
panel.
*4
LTA indicator*3 (if equipped)
( P.209, 225)
BSM outside rear view mirror
indicators*1, 5 (if equipped)
( P.249, 260)
BSM OFF indicator*2 (if
equipped) ( P.249)
Toyota parking assist-sensor
OFF indicator*1, 2 (if
equipped) ( P.254)
“RCTA OFF” indicator*1, 2 (if
equipped) ( P.260)
PKSB OFF indicator*1, 2 (if
equipped) ( P.266)
Speed limiter indicator*3 (if
equipped) ( P.242)
(Flashes)
Slip indicator*1 (P.278)
VSC OFF indicator*1, 2
( P.278)
Smart entry & start system
indicator*3 ( P.175)
“READY” indicator ( P.175)
EV drive mode indicator*6
( P.179)
Parking brake indicator
( P.184)
Brake hold standby indica-
tor*1 ( P.187)
Brake hold operated indica-
tor*1 ( P.187)
EV indicator*6 ( P. 7 7 )
Low outside temperature
indicator*3, 7 ( P.94, 99)
Security indicator ( P. 8 4 ,
86)
“PASSENGER AIR
BAG” indicator*1, 8
( P.45)
Eco drive mode indicator*3
( P.275)
Power mode indicator*3
( P.275)

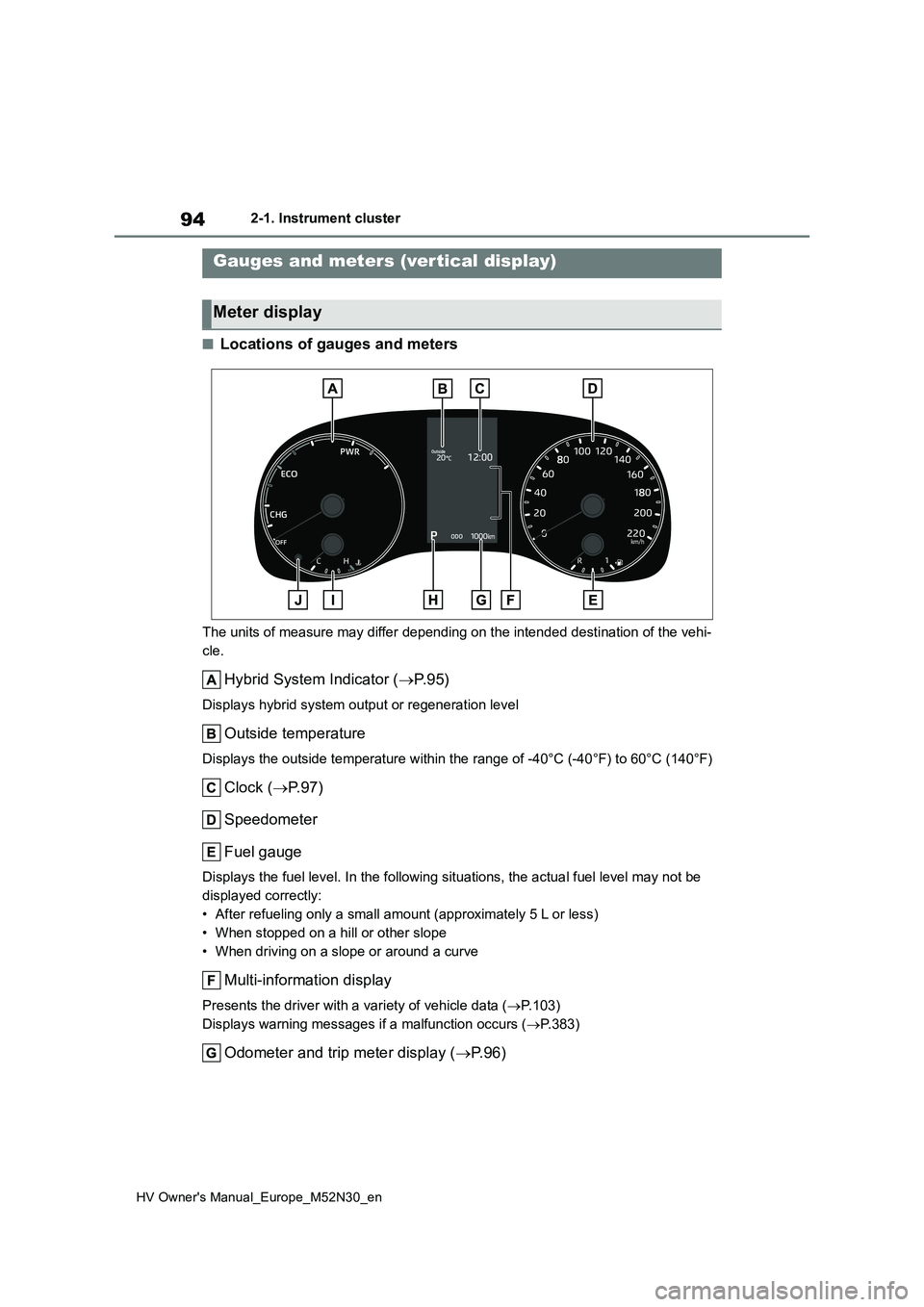

94
HV Owner's Manual_Europe_M52N30_en
2-1. Instrument cluster
■Locations of gauges and meters
The units of measure may differ depending on the intended destination of the vehi-
cle.
Hybrid System Indicator ( P. 9 5 )
Displays hybrid system output or regeneration level
Outside temperature
Displays the outside temperature within the range of -40°C (-40°F) to 60°C (140°F)
Clock (P.97)
Speedometer
Fuel gauge
Displays the fuel level. In the following situations, the actua l fuel level may not be
displayed correctly:
• After refueling only a small amount (approximately 5 L or less )
• When stopped on a hill or other slope
• When driving on a slope or around a curve
Multi-information display
Presents the driver with a variety of vehicle data ( P.103)
Displays warning messages if a malfunction occurs ( P.383)
Odometer and trip meter display (P. 9 6 )
Gauges and meters (vertical display)
Meter display

95
2
HV Owner's Manual_Europe_M52N30_en
2-1. Instrument cluster
Vehicle status information and indicators

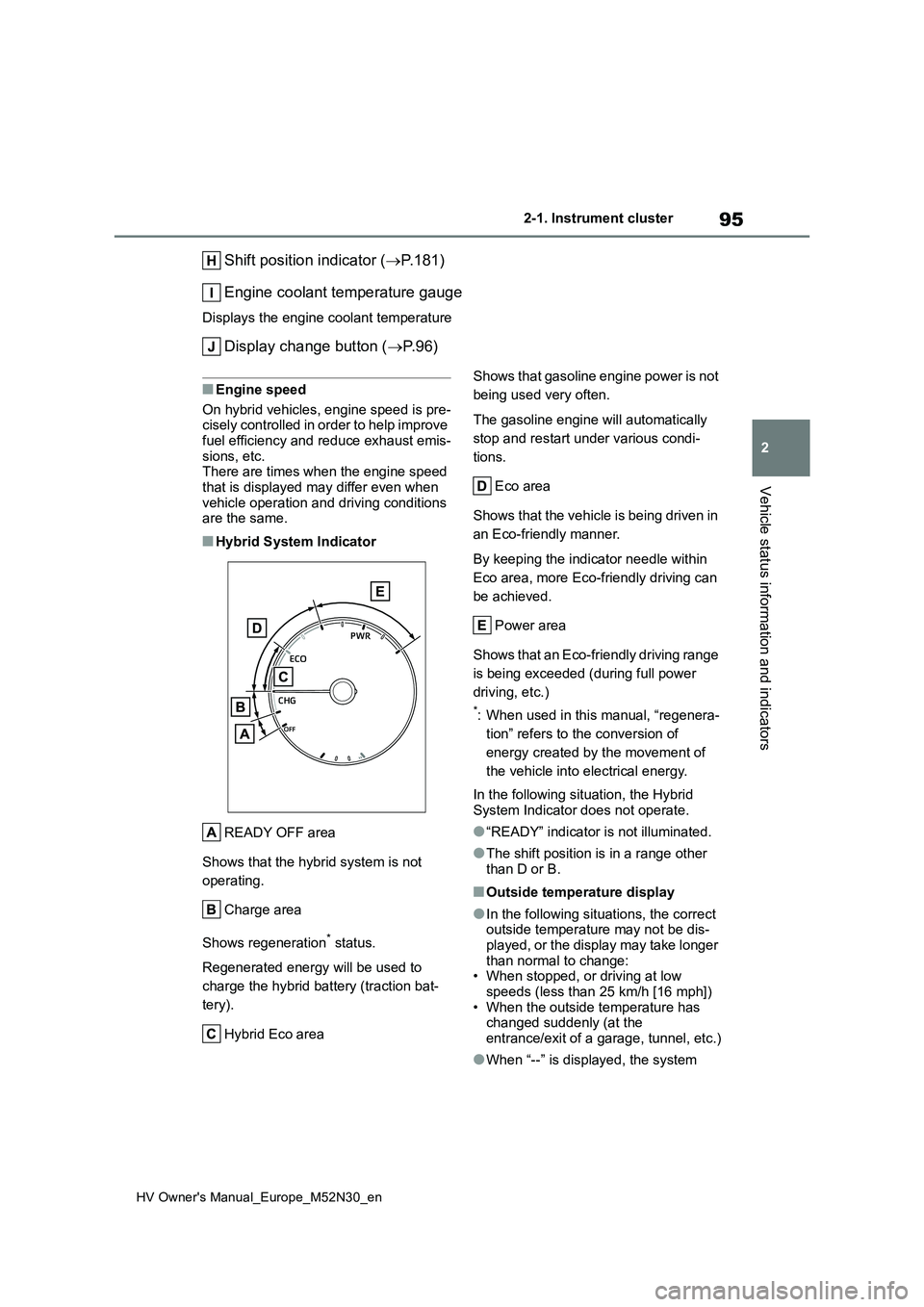

Shift position indicator (P.181)
Engine coolant temperature gauge
Displays the engine coolant temperature
Display change button ( P. 9 6 )
■Engine speed
On hybrid vehicles, engine speed is pre- cisely controlled in order to help improve
fuel efficiency and reduce exhaust emis- sions, etc.There are times when the engine speed
that is displayed may differ even when vehicle operation and driving conditions are the same.
■Hybrid System Indicator
READY OFF area
Shows that the hybrid system is not
operating.
Charge area
Shows regeneration* status.
Regenerated energy will be used to
charge the hybrid battery (traction bat-
tery).
Hybrid Eco area
Shows that gasoline engine power is not
being used very often.
The gasoline engine will automatically
stop and restart under various condi-
tions.
Eco area
Shows that the vehicle is being driven in
an Eco-friendly manner.
By keeping the indicator needle within
Eco area, more Eco-friendly driving can
be achieved.
Power area
Shows that an Eco-friendly driving range
is being exceeded (during full power
driving, etc.)
*: When used in this manual, “regenera-
tion” refers to the conversion of
energy created by the movement of
the vehicle into electrical energy.
In the following situation, the Hybrid
System Indicator does not operate.
●“READY” indicator is not illuminated.
●The shift position is in a range other than D or B.
■Outside temperature display
●In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change:• When stopped, or driving at low
speeds (less than 25 km/h [16 mph]) • When the outside temperature has changed suddenly (at the
entrance/exit of a garage, tunnel, etc.)
●When “--” is displayed, the system

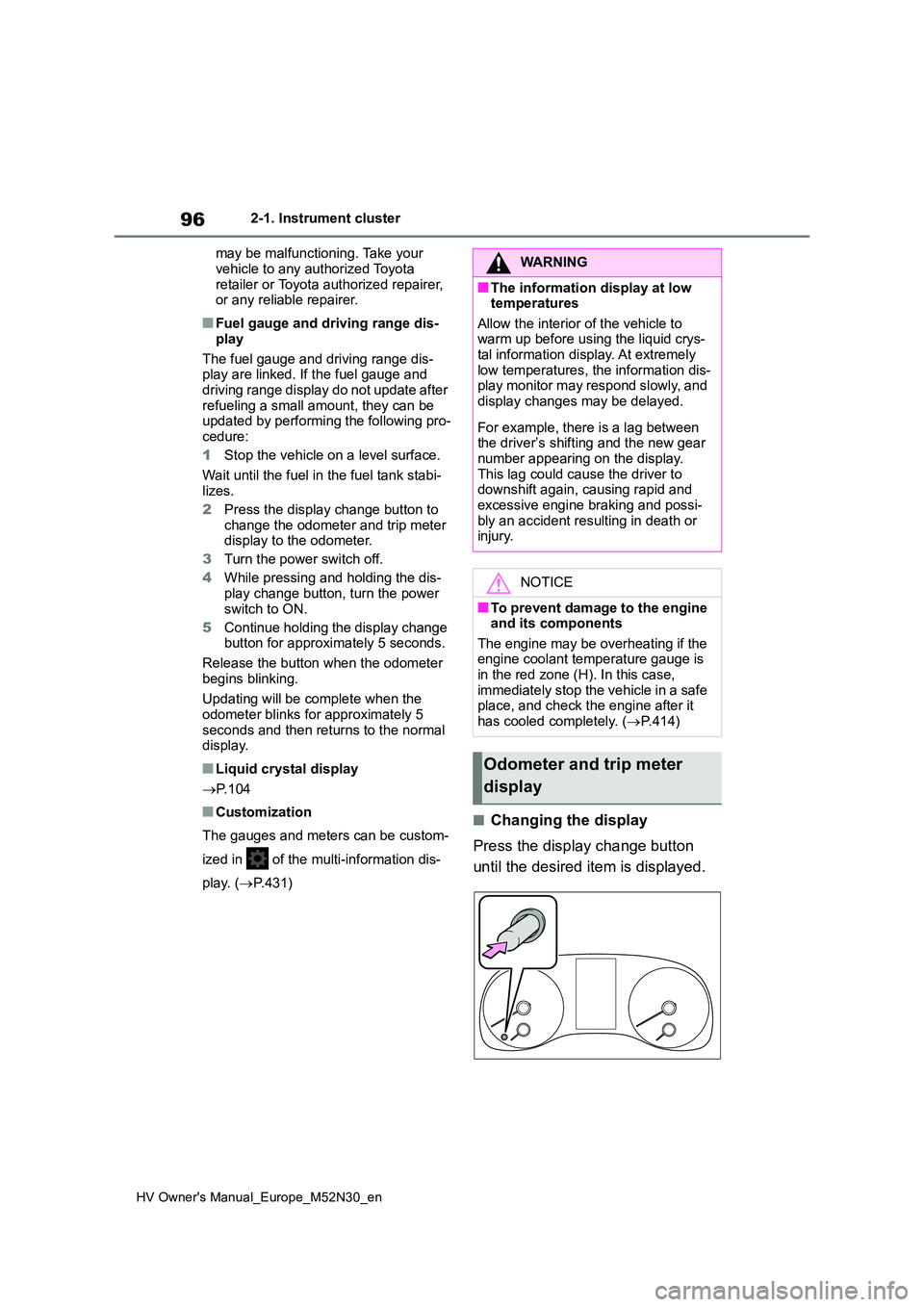

96
HV Owner's Manual_Europe_M52N30_en
2-1. Instrument cluster
may be malfunctioning. Take your
vehicle to any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
■Fuel gauge and driving range dis-
play
The fuel gauge and driving range dis- play are linked. If the fuel gauge and
driving range display do not update after refueling a small amount, they can be updated by performing the following pro-
cedure:
1 Stop the vehicle on a level surface.
Wait until the fuel in the fuel tank stabi- lizes.
2 Press the display change button to
change the odometer and trip meter display to the odometer.
3 Turn the power switch off.
4 While pressing and holding the dis- play change button, turn the power
switch to ON.
5 Continue holding the display change button for approximately 5 seconds.
Release the button when the odometer
begins blinking.
Updating will be complete when the odometer blinks for approximately 5
seconds and then returns to the normal display.
■Liquid crystal display
 P. 1 0 4
■Customization
The gauges and meters can be custom-
ized in of the multi-information dis-
play. ( P.431)
■Changing the display
Press the display change button
until the desired item is displayed.
WARNING
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crys-tal information display. At extremely
low temperatures, the information dis- play monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to downshift again, causing rapid and
excessive engine braking and possi- bly an accident resulting in death or injury.
NOTICE
■To prevent damage to the engine and its components
The engine may be overheating if the engine coolant temperature gauge is in the red zone (H). In this case,
immediately stop the vehicle in a safe place, and check the engine after it
has cooled completely. ( P.414)
Odometer and trip meter
display

97
2
HV Owner's Manual_Europe_M52N30_en
2-1. Instrument cluster
Vehicle status information and indicators

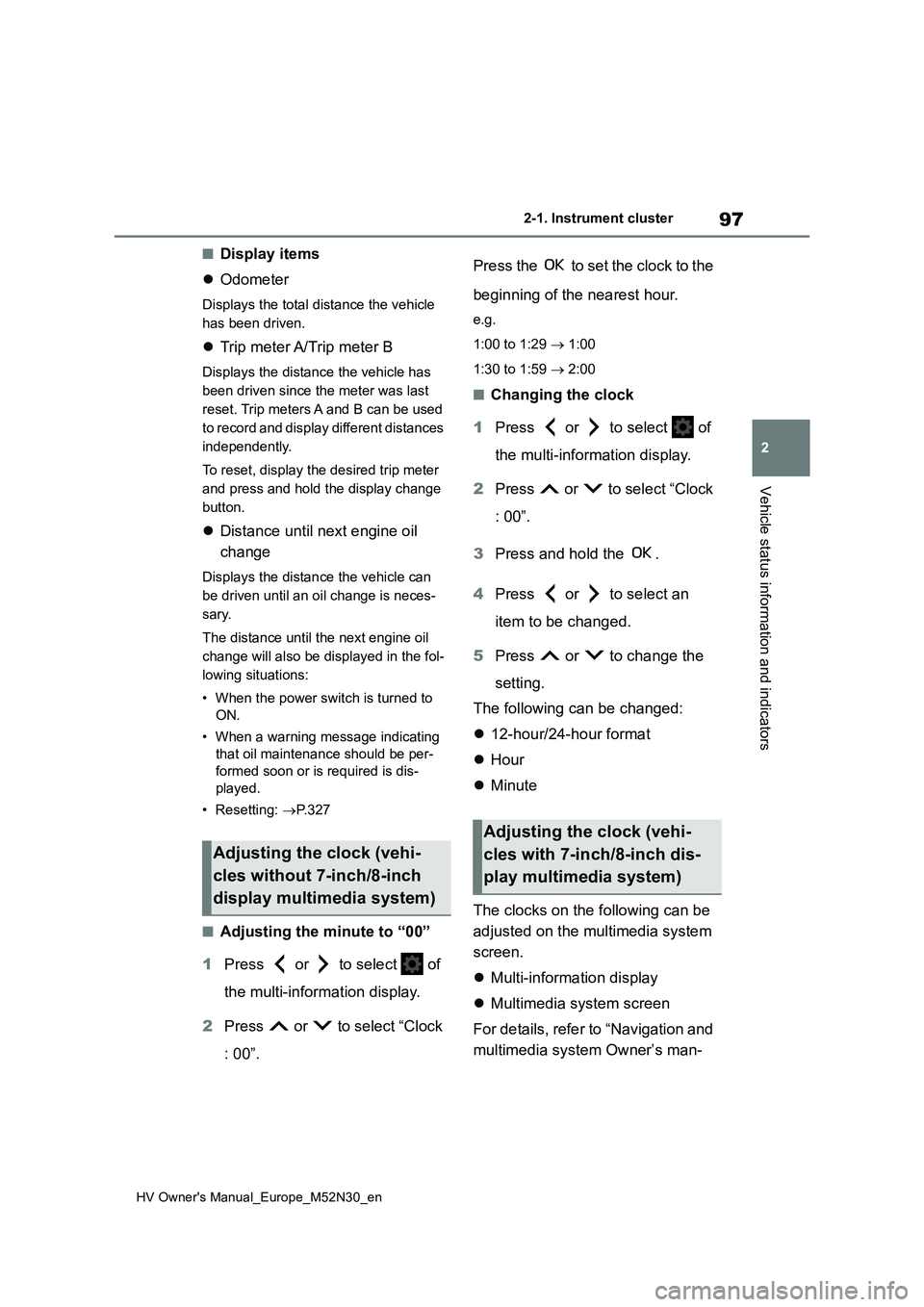

■Display items
 Odometer
Displays the total distance the vehicle
has been driven.
 Trip meter A/Trip meter B
Displays the distance the vehicle has
been driven since the meter was last
reset. Trip meters A and B can be used
to record and display different distances
independently.
To reset, display the desired trip meter
and press and hold the display change
button.
 Distance until next engine oil
change
Displays the distance the vehicle can
be driven until an oil change is neces-
sary.
The distance until the next engine oil
change will also be displayed in the fol-
lowing situations:
• When the power switch is turned to
ON.
• When a warning message indicating
that oil maintenance should be per-
formed soon or is required is dis-
played.
• Resetting: P. 3 2 7
■Adjusting the minute to “00”
1 Press or to select of
the multi-information display.
2 Press or to select “Clock
: 00”.
Press the to set the clock to the
beginning of the nearest hour.
e.g.
1:00 to 1:29  1:00
1:30 to 1:59  2:00
■Changing the clock
1 Press or to select of
the multi-information display.
2 Press or to select “Clock
: 00”.
3 Press and hold the .
4 Press or to select an
item to be changed.
5 Press or to change the
setting.
The following can be changed:
 12-hour/24-hour format
 Hour
 Minute
The clocks on the following can be
adjusted on the multimedia system
screen.
 Multi-information display
 Multimedia system screen
For details, refer to “Navigation and
multimedia system Owner’s man-
Adjusting the clock (vehi-
cles without 7-inch/8-inch
display multimedia system)
Adjusting the clock (vehi-
cles with 7-inch/8-inch dis-
play multimedia system)

98
HV Owner's Manual_Europe_M52N30_en

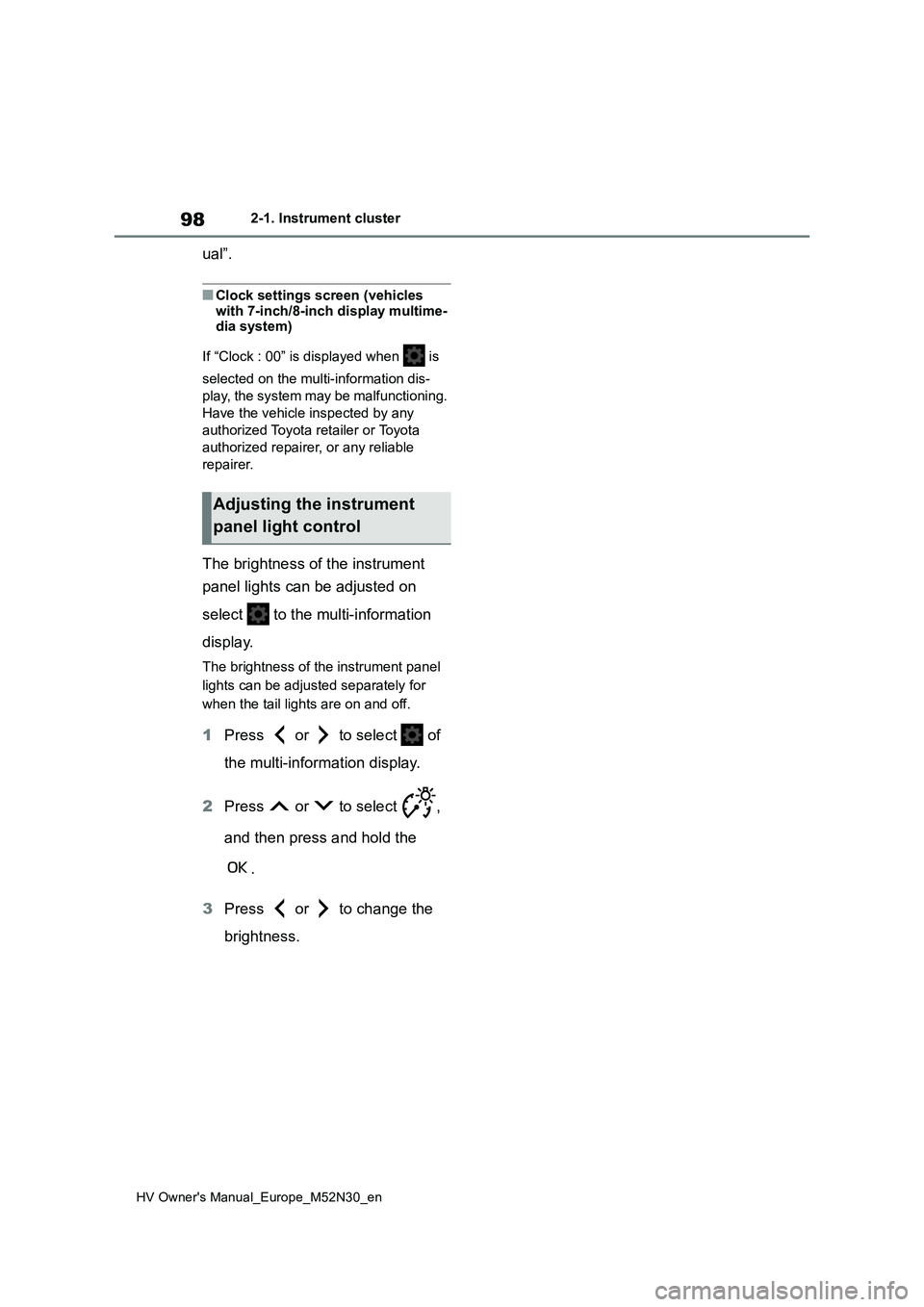

2-1. Instrument cluster
ual”.
■Clock settings screen (vehicles
with 7-inch/8-inch display multime- dia system)
If “Clock : 00” is displayed when is
selected on the multi-information dis-
play, the system may be malfunctioning.
Have the vehicle inspected by any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.
The brightness of the instrument
panel lights can be adjusted on
select to the multi-information
display.
The brightness of the instrument panel
lights can be adjusted separately for
when the tail lights are on and off.
1 Press or to select of
the multi-information display.
2 Press or to select ,
and then press and hold the
.
3 Press or to change the
brightness.
Adjusting the instrument
panel light control
