YAMAHA GIGGLE50 2009 User Guide
Manufacturer: YAMAHA, Model Year: 2009, Model line: GIGGLE50, Model: YAMAHA GIGGLE50 2009Pages: 74, PDF Size: 0.9 MB
Page 11 of 74

1-11
EAU10221
Q QQ Q
Q
SAFETY INFORMATION
1
2
3
4
5
6
7
8
9
1-4

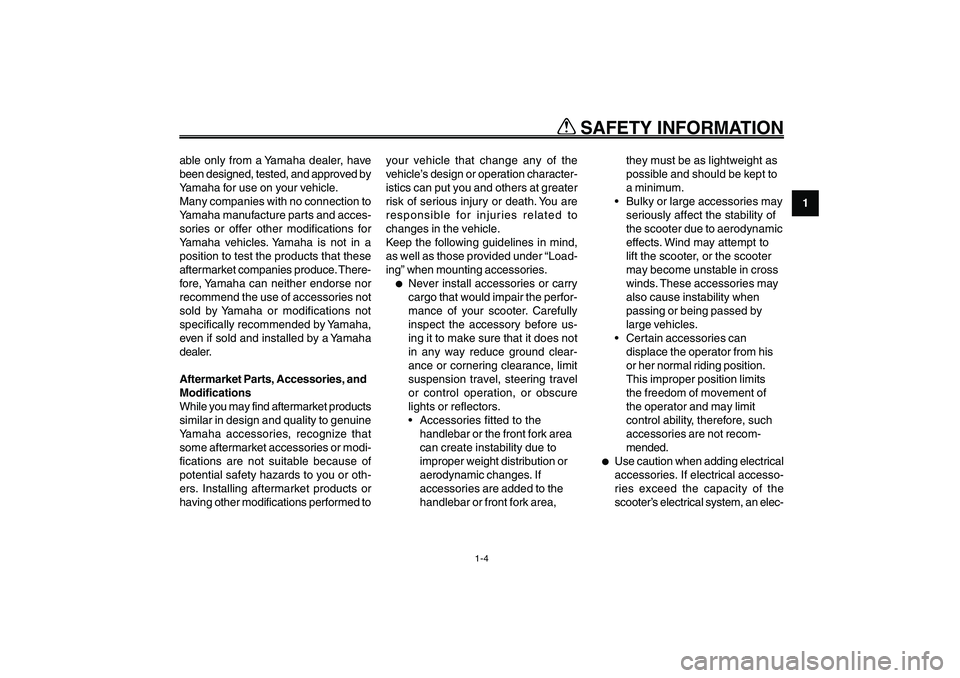

able only from a Yamaha dealer, have
been designed, tested, and approved by
Yamaha for use on your vehicle.
Many companies with no connection to
Yamaha manufacture parts and acces-
sories or offer other modifications for
Yamaha vehicles. Yamaha is not in a
position to test the products that these
aftermarket companies produce. There-
fore, Yamaha can neither endorse nor
recommend the use of accessories not
sold by Yamaha or modifications not
specifically recommended by Yamaha,
even if sold and installed by a Yamaha
dealer.
Aftermarket Parts, Accessories, and
Modifications
While you may find aftermarket products
similar in design and quality to genuine
Yamaha accessories, recognize that
some aftermarket accessories or modi-
fications are not suitable because of
potential safety hazards to you or oth-
ers. Installing aftermarket products or
having other modifications performed toyour vehicle that change any of the
vehicle’s design or operation character-
istics can put you and others at greater
risk of serious injury or death. You are
responsible for injuries related to
changes in the vehicle.
Keep the following guidelines in mind,
as well as those provided under “Load-
ing” when mounting accessories.
●
Never install accessories or carry
cargo that would impair the perfor-
mance of your scooter. Carefully
inspect the accessory before us-
ing it to make sure that it does not
in any way reduce ground clear-
ance or cornering clearance, limit
suspension travel, steering travel
or control operation, or obscure
lights or reflectors.
Accessories fitted to the
handlebar or the front fork area
can create instability due to
improper weight distribution or
aerodynamic changes. If
accessories are added to the
handlebar or front fork area,they must be as lightweight as
possible and should be kept to
a minimum.
Bulky or large accessories may
seriously affect the stability of
the scooter due to aerodynamic
effects. Wind may attempt to
lift the scooter, or the scooter
may become unstable in cross
winds. These accessories may
also cause instability when
passing or being passed by
large vehicles.
Certain accessories can
displace the operator from his
or her normal riding position.
This improper position limits
the freedom of movement of
the operator and may limit
control ability, therefore, such
accessories are not recom-
mended.
●
Use caution when adding electrical
accessories. If electrical accesso-
ries exceed the capacity of the
scooter’s electrical system, an elec-
Page 12 of 74

1-12
EAU10221
Q QQ Q
Q
SAFETY INFORMATION
1
2
3
4
5
6
7
8
9
EAUT2030
Further safe-riding points●
Make sure to signal clearly when
making turns.
●
Braking can be extremely difficult
on a wet road. Avoid hard braking,
because the scooter could slide.
Apply the brakes slowly when stop-
ping on a wet surface.
●
Slow down as you approach a cor-
ner or turn. Once you have com-
pleted a turn, accelerate slowly.
●
Be careful when passing parked
cars. A driver might not see you and
open a door in your path.
●
Railroad crossings, streetcar rails,
iron plates on road construction
sites, and manhole covers become
extremely slippery when wet. Slow
down and cross them with caution.
Keep the scooter upright, otherwise
it could slide out from under you.
●
The brake lining could get wet when
you wash the scooter. After wash-
ing the scooter, check the brakes
before riding.
●
Always wear a helmet, gloves, trou-
sers (tapered around the cuff and
ankle so they do not flap), and a
bright colored jacket.
●
Do not carry too much luggage on
the scooter. An overloaded scooter
is unstable.

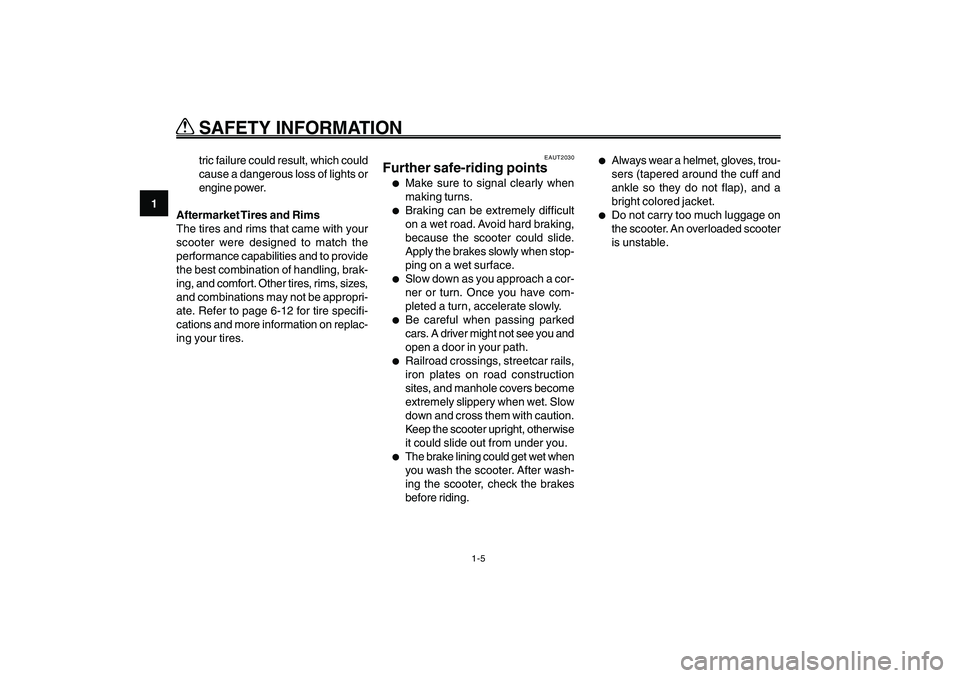

1-5
Safe-riding points
tric failure could result, which could
cause a dangerous loss of lights or
engine power.
Aftermarket Tires and Rims
The tires and rims that came with your
scooter were designed to match the
performance capabilities and to provide
the best combination of handling, brak-
ing, and comfort. Other tires, rims, sizes,
and combinations may not be appropri-
ate. Refer to page 6-12 for tire specifi-
cations and more information on replac-
ing your tires.
Page 13 of 74

1-13
EAU10221
Q QQ Q
Q
SAFETY INFORMATION
1
2
3
4
5
6
7
8
9

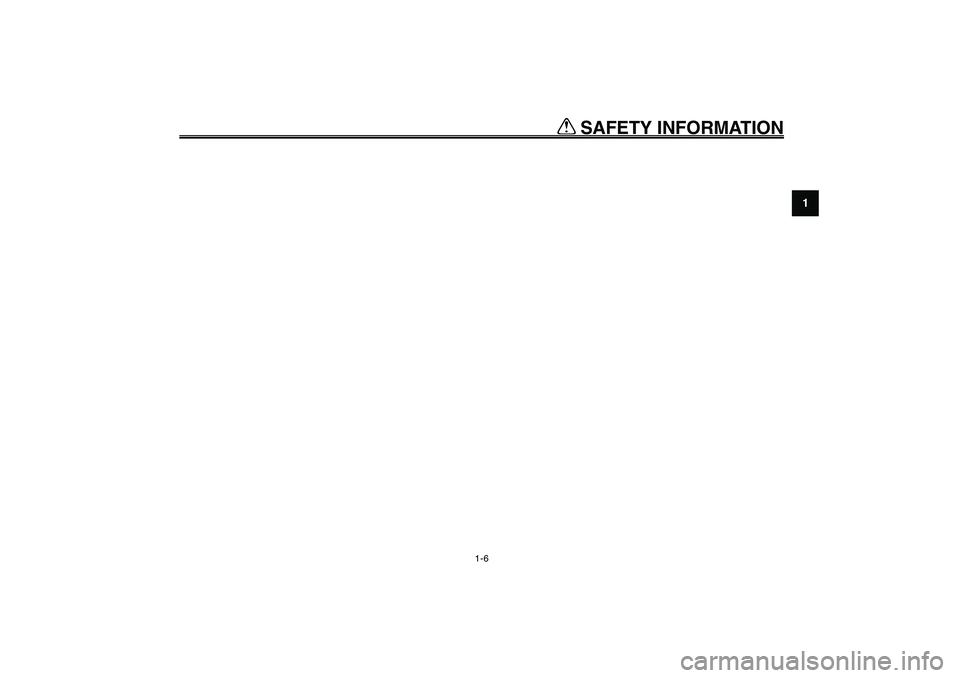

1-6
Page 14 of 74

2-14
1
2
3
4
5
6
7
8
9
EAU10401
DESCRIPTION
EAU10401
DESCRIPTION
2-1
EAU10410

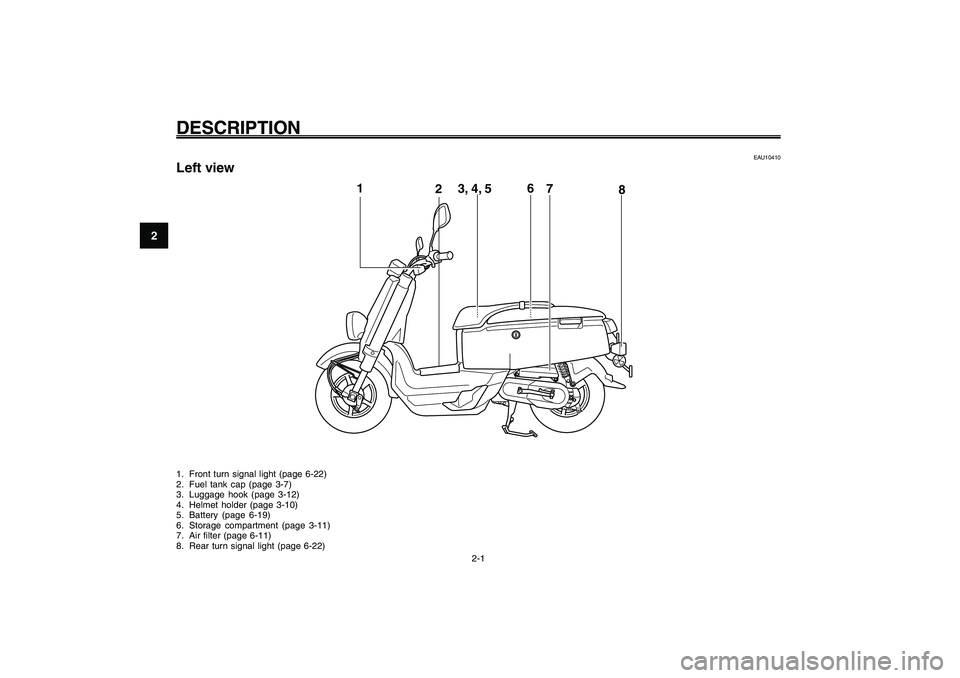

Left view1. Front turn signal light (page 6-22)
2. Fuel tank cap (page 3-7)
3. Luggage hook (page 3-12)
4. Helmet holder (page 3-10)
5. Battery (page 6-19)
6. Storage compartment (page 3-11)
7. Air filter (page 6-11)
8. Rear turn signal light (page 6-22)Part locations
1
23, 4, 56
8
7
Page 15 of 74

2-15
1
2
3
4
5
6
7
8
9
EAU10401
DESCRIPTION
2-2
EAU10420

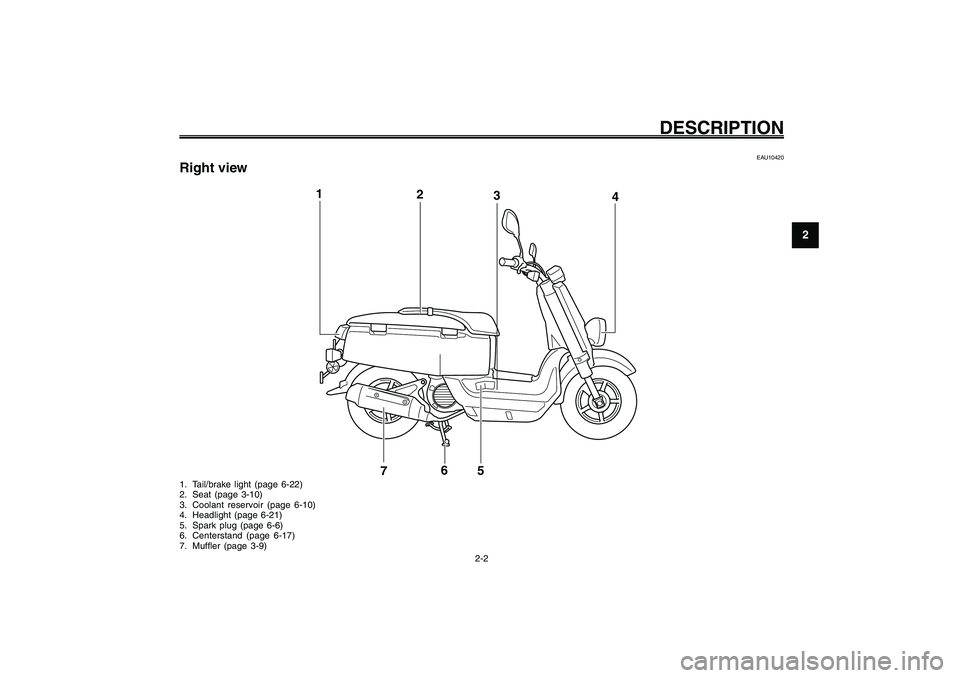

Right view1. Tail/brake light (page 6-22)
2. Seat (page 3-10)
3. Coolant reservoir (page 6-10)
4. Headlight (page 6-21)
5. Spark plug (page 6-6)
6. Centerstand (page 6-17)
7. Muffler (page 3-9)
2
3 1
4
5
6
7
Page 16 of 74

2-16
1
2
3
4
5
6
7
8
9
EAU10401
DESCRIPTION
2-3
EAU10430

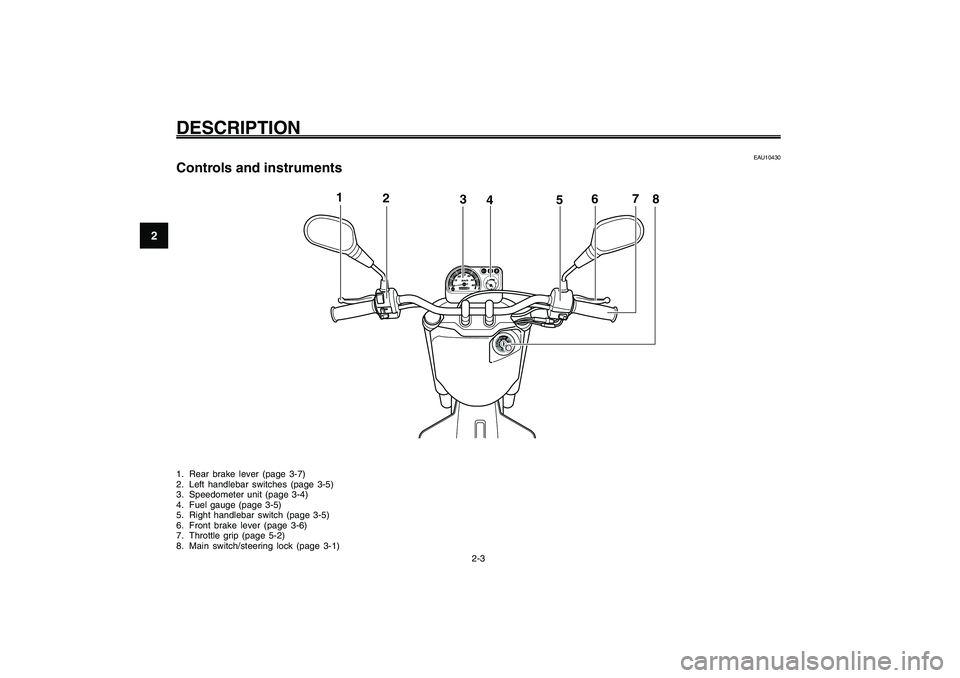

Controls and instruments1. Rear brake lever (page 3-7)
2. Left handlebar switches (page 3-5)
3. Speedometer unit (page 3-4)
4. Fuel gauge (page 3-5)
5. Right handlebar switch (page 3-5)
6. Front brake lever (page 3-6)
7. Throttle grip (page 5-2)
8. Main switch/steering lock (page 3-1)
1
2
3
4
5
6
7
8
Page 17 of 74

3-17
1
2
3
4
5
6
7
8
9
EAU1044E
INSTRUMENT AND CONTROL FUNCTIONS
3-1

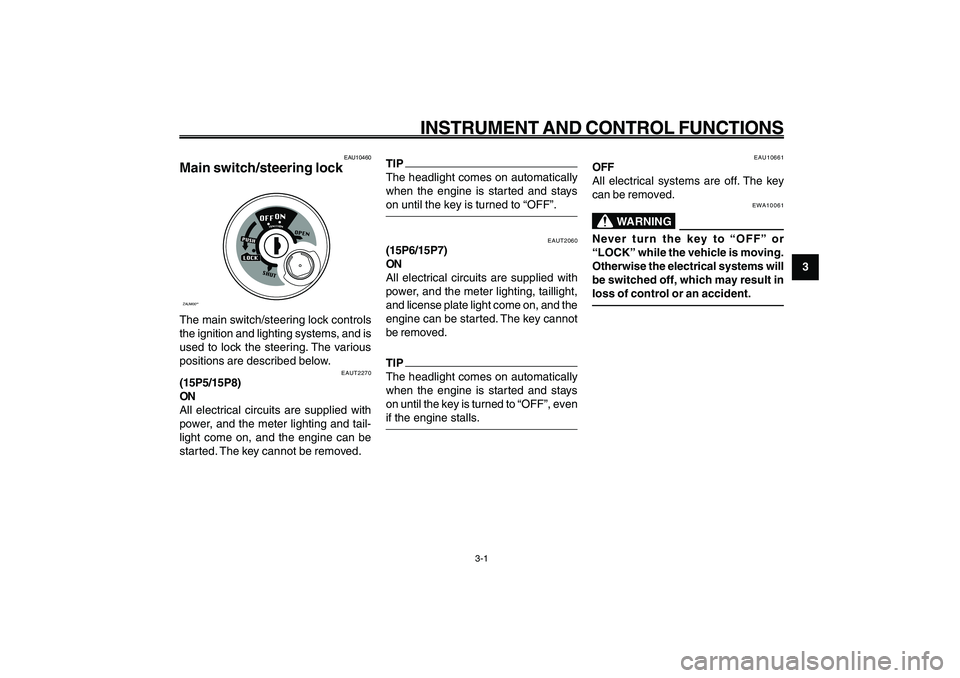

Main switch/steering lock
EAU10460
Main switch/steering lockZAUM00**The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
EAUT2270
(15P5/15P8)
ON
All electrical circuits are supplied with
power, and the meter lighting and tail-
light come on, and the engine can be
started. The key cannot be removed.
EAUT2060
(15P6/15P7)
ON
All electrical circuits are supplied with
power, and the meter lighting, taillight,
and license plate light come on, and the
engine can be started. The key cannot
be removed.TIP
The headlight comes on automatically
when the engine is started and stays
on until the key is turned to “OFF”, even
if the engine stalls.
EAU10661
OFF
All electrical systems are off. The key
can be removed.
EWA10061
WARNING
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving.
Otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident.
EAU1044E
INSTRUMENT AND CONTROL FUNCTIONS
TIP
The headlight comes on automatically
when the engine is started and stays
on until the key is turned to “OFF”.
Page 18 of 74

3-18
1
2
3
4
5
6
7
8
9
EAU1044E
INSTRUMENT AND CONTROL FUNCTIONS
To unloc
k the steer
ing
12
ZAUM00**1. Turn.
2. Release.Push the key in, and then turn it to “OFF”
while still pushing it.
EAUT2121
Keyhole coverZAUM00**To close the keyhole cover
Insert the key bow into the keyhole cover
receptacle as shown, and then turn the
key to “SHUT” to close the cover.
To open the keyhole cover
Insert the key bow into the keyhole cover
receptacle as shown, and then turn the
key to “OPEN” to open the cover. Keyhole cover
3-2

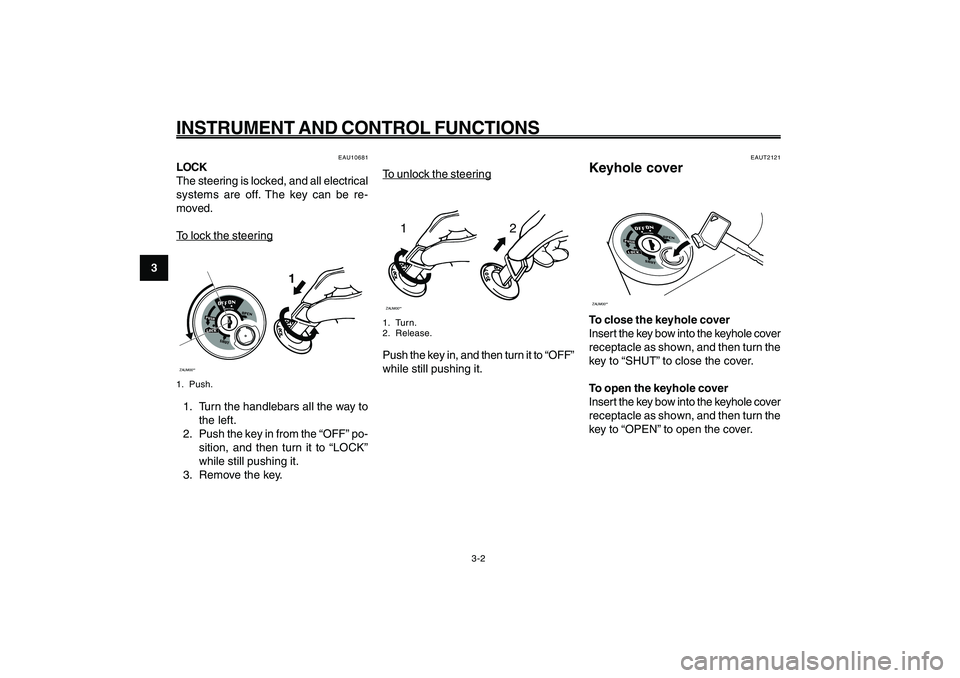

EAU10681
LOCK
The steering is locked, and all electrical
systems are off. The key can be re-
moved.To loc
k the steer
ing
ZAUM00**
1
1. Push.1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF” po-
sition, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.
Page 19 of 74

3-19
1
2
3
4
5
6
7
8
9
EAU1044E
INSTRUMENT AND CONTROL FUNCTIONS
EAU11020
Turn signal indicator light “
5 55 5
5”
This indicator light flashes when the turn
signal switch is pushed to the left or right.
EAU11080
High beam indicator light “
& && &
&”
This indicator light comes on when the
high beam of the headlight is switched
on. Indicator and warning lights
Turn signal indicator light
High beam indicator light
Coolant temperature warning light
EAU11442
Coolant temperature warning light
“
”
This warning light comes on if the en-
gine overheats. If this occurs, stop the
engine immediately and allow the engine
to cool.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
3-3

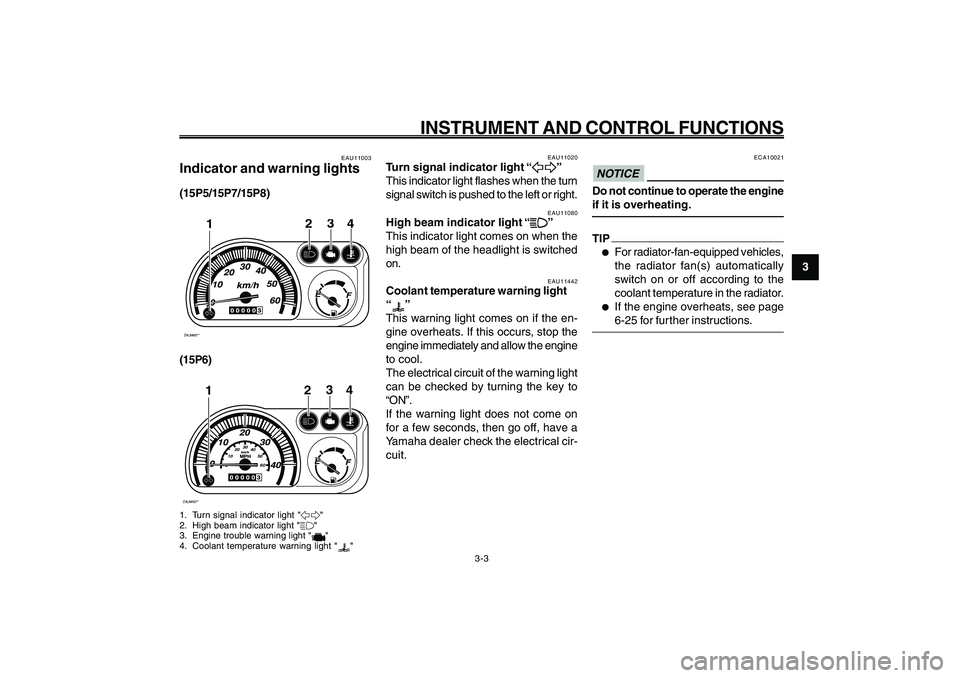

EAU11003
Indicator and warning lights(15P5/15P7/15P8)ZAUM00**
3
24
1
(15P6)ZAUM00**
0102030
40
50
60
3
24
1
1. Turn signal indicator light "5"
2. High beam indicator light "&"
3. Engine trouble warning light "
"
4. Coolant temperature warning light "
"
ECA10021
NOTICEDo not continue to operate the engine
if it is overheating.TIP●
For radiator-fan-equipped vehicles,
the radiator fan(s) automatically
switch on or off according to the
coolant temperature in the radiator.
●
If the engine overheats, see page
6-25 for further instructions.
Page 20 of 74

3-20
1
2
3
4
5
6
7
8
9
EAU1044E
INSTRUMENT AND CONTROL FUNCTIONS
3-4

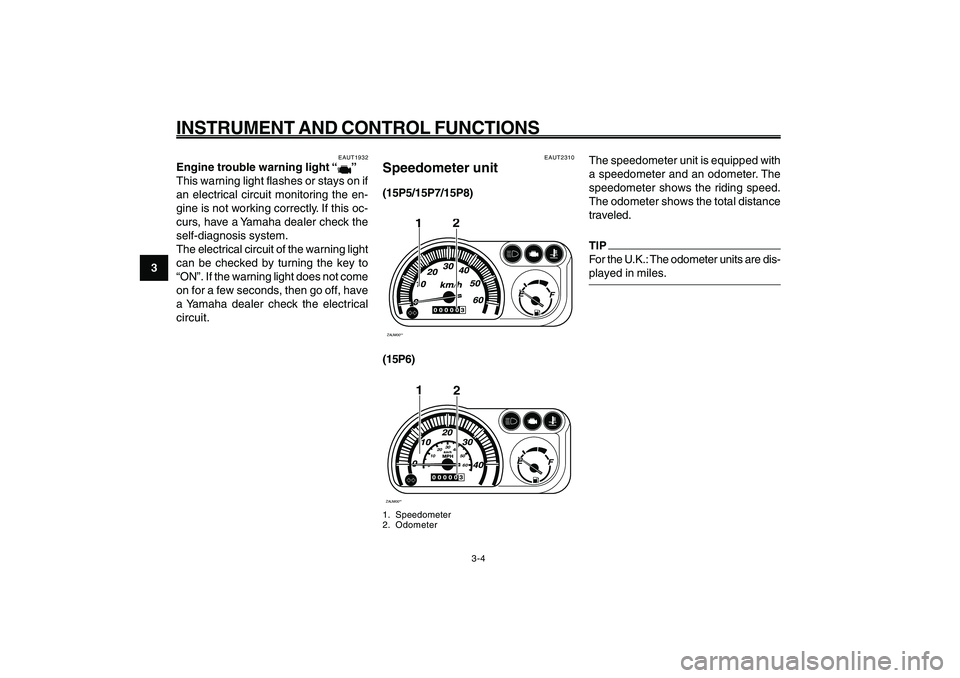

EAUT2310
Speedometer unit(15P5/15P7/15P8)ZAUM00**
2
1
(15P6)ZAUM00**
2
0102030
40
50
60
1
1. Speedometer
2. Odometer
Engine trouble warning light
Speedometer unit
The speedometer unit is equipped with
a speedometer and an odometer. The
speedometer shows the riding speed.
The odometer shows the total distance
traveled.
TIP
For the U.K.: The odometer units are dis-
played in miles.
EAUT1932
Engine trouble warning light “
”
This warning light flashes or stays on if
an electrical circuit monitoring the en-
gine is not working correctly. If this oc-
curs, have a Yamaha dealer check the
self-diagnosis system.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. If the warning light does not come
on for a few seconds, then go off, have
a Yamaha dealer check the electrical
circuit.
