7. Push the button for at least two
seconds to start the clock.
NOTE:
After setting the clock, be sure to
push the button for at least two
seconds before turning the key to
“e”, otherwise the clock will not be
set.
Odometer and tripmeter modes
Pushing the button switches the dis-
play between the odometer mode
“ODO” and the tripmeter “TRIP” in
the following order:
ODO
TRIP ODO
1. Odometer
2. Tripmeter
To reset the tripmeter, select it by
pushing the button, and then push it
again for at least two seconds.
Fuel gauge
The fuel gauge indicates the amount
of fuel in the fuel tank. The display
segments of the fuel gauge disappear
towards “E” (Empty) as the fuel level
decreases. When only one segment is
left near “E”, refuel as soon as possi-
ble.
Self-diagnosis device
This model is equipped with a self-
diagnosis device for the fuel electrical
circuit.If the fuel electrical circuit is defective,
all LCD segments of the fuel gauge
will flash. If this occurs, have a Yama-
ha dealer check the vehicle.
PRESS
BUTTON
PRESS
BUTTON
INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
5RW-F8199-E4.QXD 19/11/07 08:01 Página 21

EAU12347
Handlebar switches
1. Dimmer switch “j/k”
2. Turn signal switch “c/d”
3. Horn switch “a”
1. Start “g”
EAU12400
Dimmer switch “j/k”
Set this switch to “j” for the high
beam and to “k” for the low beam.
EAU12460
Turn signal switch “c/d”
To signal a right-hand turn, push this
switch to “d”. To signal a left-hand
turn, push this switch to “c”. When
released, the switch returns to the
center position. To cancel the turn
signal lights, push the switch in after it
has returned to the center position.
EAU12500
Horn switch “a”
Press this switch to sound the horn.
EAUM1131
Start switch “g”
Push this switch while applying the
front or rear brake to crank the engine
with the starter.
ECA10050
CAUTION:
See page 5-1 for starting instruc-
tions prior to starting the engine.
EAU12900
Front brake lever
1. Front brake lever
The front brake lever is located on the
right handlebar grip. To apply the
front brake, pull this lever toward the
handlebar grip.
1
Right
1
2
3 Left
INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
5RW-F8199-E4.QXD 19/11/07 08:01 Página 22

EAU12950
Rear brake lever
1. Rear brake lever
The rear brake lever is located on the
left handlebar grip. To apply the rear
brake, pull this lever toward the hand-
lebar grip.
EAU13201
Fuel and 2-stroke engine oil
tank caps
1. Oil tank cap
2. Fuel tank cap
The fuel tank cap and the 2-stroke
engine oil tank cap are located under
the seat. (See page 3-10.)
Fuel tank cap
To remove the fuel tank cap, turn it
counterclockwise, and then pull it off.
To install the fuel tank cap, turn it
clockwise.
2-stroke engine oil tank cap
To remove the 2-stroke engine oil tank
cap, pull it off.
To install the 2-stroke engine oil tank
cap, push it into the oil tank opening.
EWA10140
s s
WARNING
Make sure that the fuel and 2-stro-
ke engine oil tank caps are properly
installed before riding the scooter.
INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
5RW-F8199-E4.QXD 19/11/07 08:01 Página 23

EAU13211
Fuel
1. Fuel tank filler tube
2. Fuel level
Make sure that there is sufficient fuel
in the tank. Fill the fuel tank to the
bottom of the filler tube as shown.
EWA10880
s s
WARNING
●Do not overfill the fuel tank,
otherwise it may overflow
when the fuel warms up and
expands.
●Avoid spilling fuel on the hot
engine.
ECA10070
CAUTION:
Immediately wipe off spilled fuel
with a clean, dry, soft cloth, since
fuel may deteriorate painted surfa-
ces or plastic parts.
EAU13270
Your Yamaha engine has been desig-
ned to use regular unleaded gasoline
with a research octane number of 91
or higher. If knocking (or pinging)
occurs, use a gasoline of a different
brand or premium unleaded fuel. Use
of unleaded fuel will extend spark
plug life and reduce maintenance
costs.
EAU13431
Catalytic converter
This model is equipped with a cataly-
tic converter in the exhaust system.
EWA10860
s s
WARNING
The exhaust system is hot after
operation. Make sure that the
exhaust system has cooled down
before doing any maintenance
work.
ECA10700
CAUTION:
The following precautions must be
observed to prevent a fire hazard or
other damages.
●Use only unleaded gasoline.
The use of leaded gasoline will
cause unrepairable damage to
the catalytic converter.
●Never park the vehicle near
possible fire hazards such as
grass or other materials that
easily burn.
●Do not allow the engine to idle
too long.
Recommended fuel:
REGULAR UNLEADED GASOLINE
ONLY
Fuel tank capacity:
5.5 L (1.45 US gal) (1.21 Imp.gal)
Fuel reserve amount:
1.9 L (0.50 US gal) (0.42 Imp.gal)
1
2
ZAUM0020
INSTRUMENT AND CONTROL FUNCTIONS
3-8
3
5RW-F8199-E4.QXD 19/11/07 08:01 Página 24

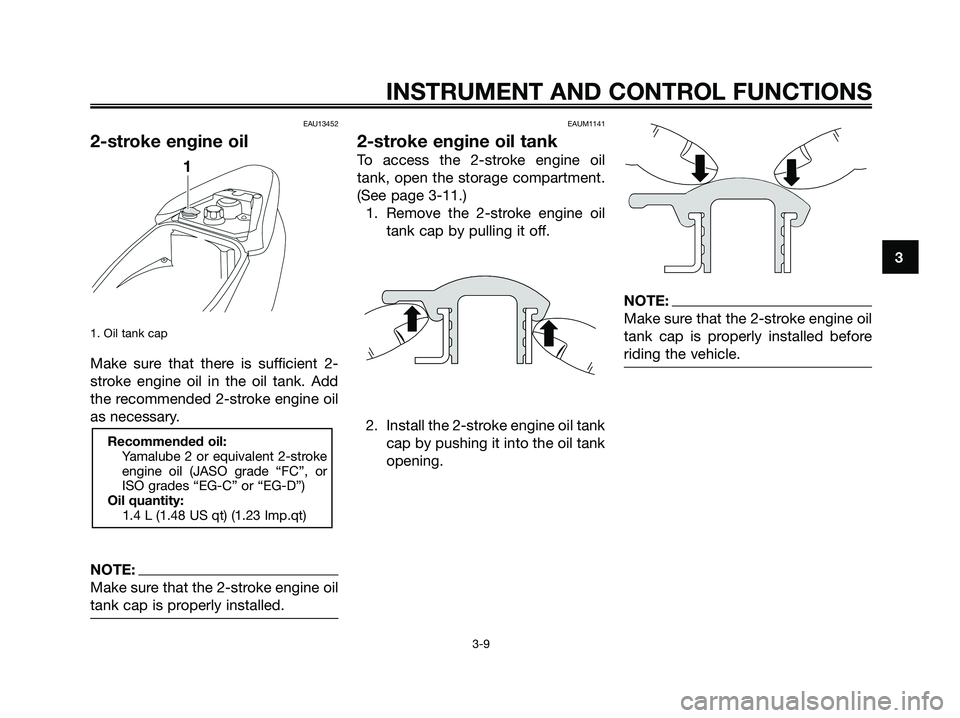

EAU13452
2-stroke engine oil
1. Oil tank cap
Make sure that there is sufficient 2-
stroke engine oil in the oil tank. Add
the recommended 2-stroke engine oil
as necessary.
NOTE:
Make sure that the 2-stroke engine oil
tank cap is properly installed.
EAUM1141
2-stroke engine oil tank
To access the 2-stroke engine oil
tank, open the storage compartment.
(See page 3-11.)
1. Remove the 2-stroke engine oil
tank cap by pulling it off.
2. Install the 2-stroke engine oil tank
cap by pushing it into the oil tank
opening.
NOTE:
Make sure that the 2-stroke engine oil
tank cap is properly installed before
riding the vehicle.
Recommended oil:
Yamalube 2 or equivalent 2-stroke
engine oil (JASO grade “FC”, or
ISO grades “EG-C” or “EG-D”)
Oil quantity:
1.4 L (1.48 US qt) (1.23 Imp.qt)
INSTRUMENT AND CONTROL FUNCTIONS
3-9
3
5RW-F8199-E4.QXD 19/11/07 08:01 Página 25

EAUS1050
Kickstarter
To start the engine, push the kickstar-
ter down lightly with your foot until the
gears engage, and then push it down
smoothly but forcefully.
1. Kickstarter
EAU14160
Seat
To open the seat
1. Place the scooter on the centers-
tand.
2. Insert the key into the main
switch, and then turn it counter-
clockwise.
1. Open
NOTE:
Do not push inward when turning the
key.
3. Fold the rider up.
1. Seat
To close the seat
1. Fold the seat down, and then
push it down to lock it in place.
2. Remove the key from the main
switch if the scooter will be left
unattended.
NOTE:
Make sure that the seat is properly
secured before riding.
1
INSTRUMENT AND CONTROL FUNCTIONS
3-10
3
5RW-F8199-E4.QXD 19/11/07 08:01 Página 26

EAU14510

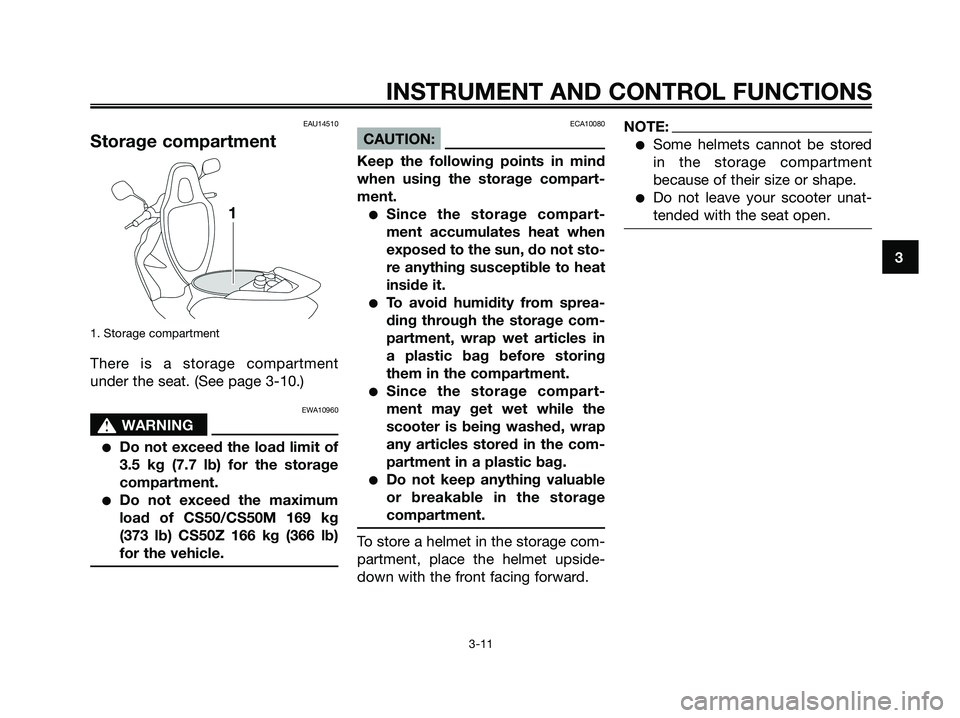

Storage compartment
1. Storage compartment
There is a storage compartment
under the seat. (See page 3-10.)
EWA10960
s s
WARNING
●Do not exceed the load limit of
3.5 kg (7.7 lb) for the storage
compartment.
●Do not exceed the maximum
load of CS50/CS50M 169 kg
(373 lb) CS50Z 166 kg (366 lb)
for the vehicle.
ECA10080
CAUTION:
Keep the following points in mind
when using the storage compart-
ment.
●Since the storage compart-
ment accumulates heat when
exposed to the sun, do not sto-
re anything susceptible to heat
inside it.
●To avoid humidity from sprea-
ding through the storage com-
partment, wrap wet articles in
a plastic bag before storing
them in the compartment.
●Since the storage compart-
ment may get wet while the
scooter is being washed, wrap
any articles stored in the com-
partment in a plastic bag.
●Do not keep anything valuable
or breakable in the storage
compartment.
To store a helmet in the storage com-
partment, place the helmet upside-
down with the front facing forward.
NOTE:
●Some helmets cannot be stored
in the storage compartment
because of their size or shape.
●Do not leave your scooter unat-
tended with the seat open.
INSTRUMENT AND CONTROL FUNCTIONS
3-11
3
5RW-F8199-E4.QXD 19/11/07 08:01 Página 27

EAUT1070

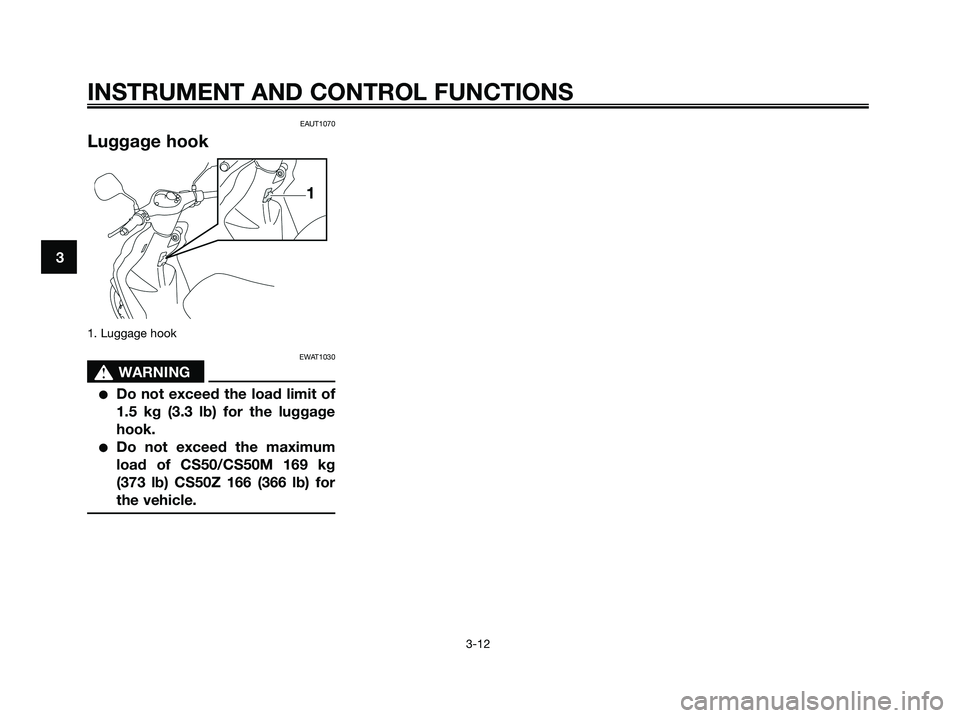

Luggage hook
1. Luggage hook
EWAT1030
s s
WARNING
●Do not exceed the load limit of
1.5 kg (3.3 lb) for the luggage
hook.
●Do not exceed the maximum
load of CS50/CS50M 169 kg
(373 lb) CS50Z 166 (366 lb) for
the vehicle.
INSTRUMENT AND CONTROL FUNCTIONS
3-12
3
5RW-F8199-E4.QXD 19/11/07 08:01 Página 28

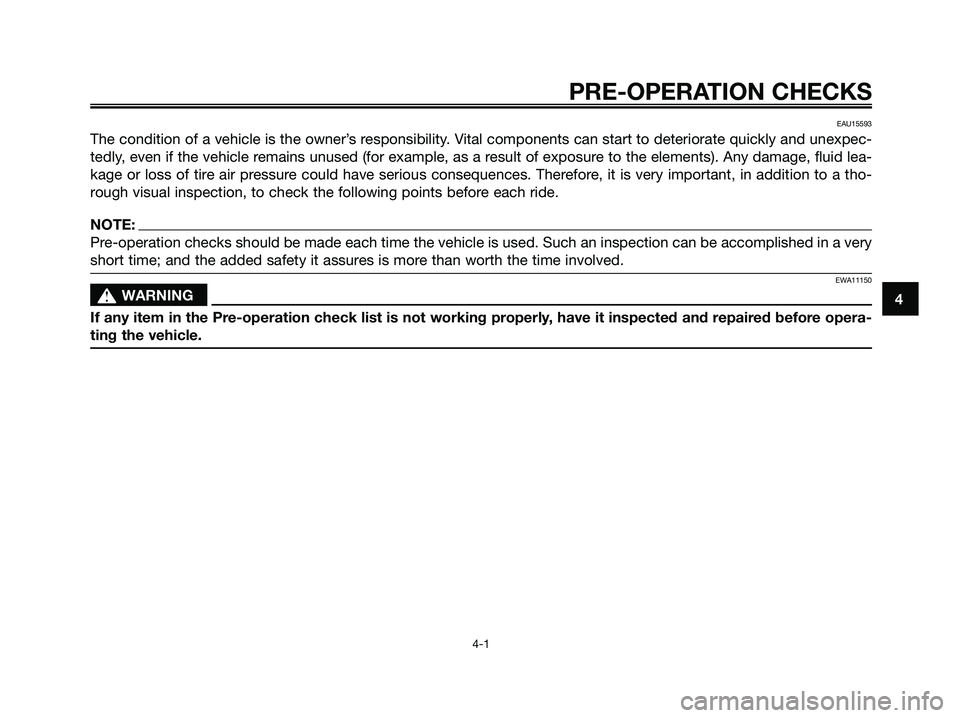

EAU15593
The condition of a vehicle is the owner’s responsibility. Vital components can start to deteriorate quickly and unexpec-
tedly, even if the vehicle remains unused (for example, as a result of exposure to the elements). Any damage, fluid lea-
kage or loss of tire air pressure could have serious consequences. Therefore, it is very important, in addition to a tho-
rough visual inspection, to check the following points before each ride.
NOTE:
Pre-operation checks should be made each time the vehicle is used. Such an inspection can be accomplished in a very
short time; and the added safety it assures is more than worth the time involved.
EWA11150
s s
WARNING
If any item in the Pre-operation check list is not working properly, have it inspected and repaired before opera-
ting the vehicle.
PRE-OPERATION CHECKS
4-1
4
5RW-F8199-E4.QXD 19/11/07 08:01 Página 29

PRE-OPERATION CHECKS
4-2
4
EAU15605
Pre-operation check list
ITEM CHECKS PAGE
• Check fuel level in fuel tank.
Fuel• Refuel if necessary.3-8
• Check fuel line for leakage.
• Check oil level in oil tank.
2-stroke engine oil• If necessary, add recommended oil to specified level. 3-9
• Check vehicle for oil leakage.
Final transmission oil• Check vehicle for oil leakage. 6-7
• Check coolant level in reservoir.
Coolant (for CS50Z)• If necessary, add recommended coolant to specified level. 6-8
• Check cooling system for leakage.
• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
• Check brake pads for wear.
Front brake• Replace if necessary. 6-13, 6-14, 6-15
• Check fluid level in reservoir.
• If necessary, add recommended brake fluid to specified level.
• Check hydraulic system for leakage.
• Check operation.
Rear brake• Lubricate cable if necessary.
6-13, 6-14
• Check lever free play.
• Adjust if necessary.
• Make sure that operation is smooth.
Throttle grip• Check cable free play.
6-10, 6-16
• If necessary, have Yamaha dealer adjust cable free play and lubricate
cable and grip housing.
• Check for damage.
Wheels and tires• Check tire condition and tread depth.
6-11, 6-12
• Check air pressure.
• Correct if necessary.
Brake levers• Make sure that operation is smooth.
• Lubricate lever pivoting points if necessary.6-16
5RW-F8199-E4.QXD 19/11/07 08:01 Página 30
