Page 721 of 912

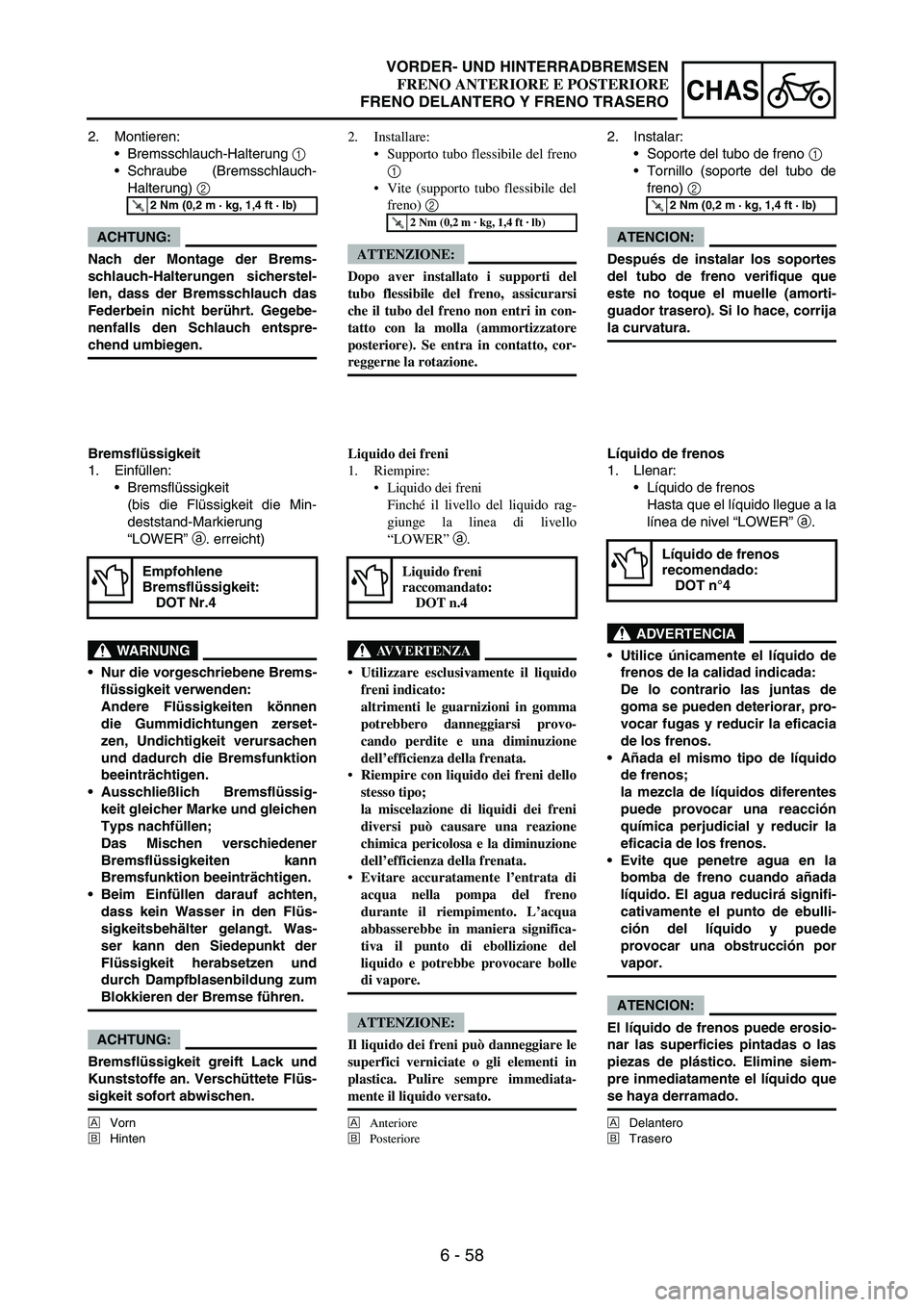

YAMAHA WR 250F 2007  Notices Demploi (in French) 6 - 58
CHAS
2. Montieren:
Bremsschlauch-Halterung
1
Schraube (Bremsschlauch-
Halterung)
2
ACHTUNG:
Nach der Montage der Brems-
schlauch-Halterungen sicherstel-
len, dass der Bremsschlauch das
Fe

Page 722 of 912

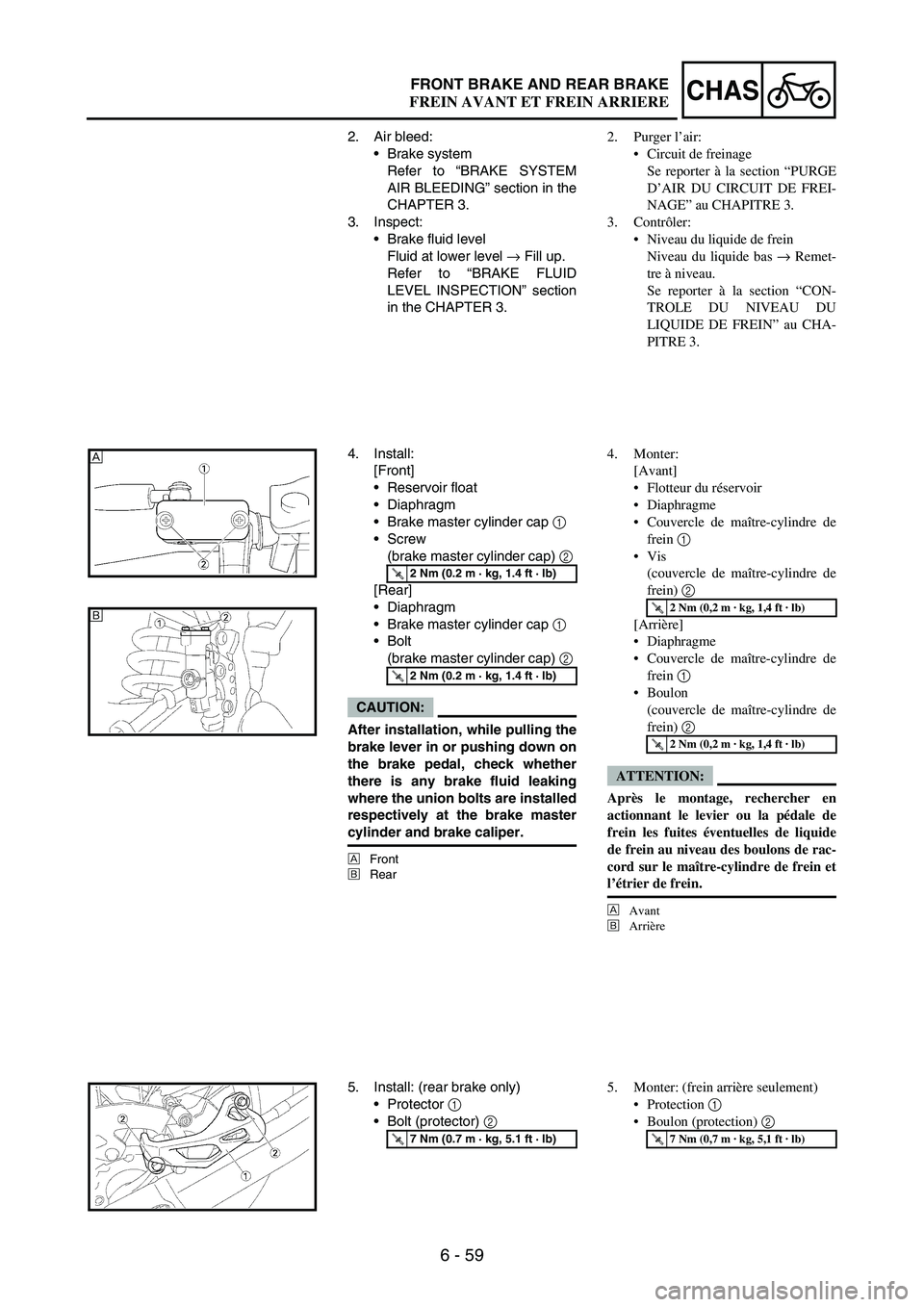

YAMAHA WR 250F 2007  Notices Demploi (in French) 6 - 59
CHASFRONT BRAKE AND REAR BRAKE
2. Air bleed:
Brake system
Refer to “BRAKE SYSTEM
AIR BLEEDING” section in the
CHAPTER 3.
3. Inspect:
Brake fluid level
Fluid at lower level
→ Fill up.
R

Page 723 of 912

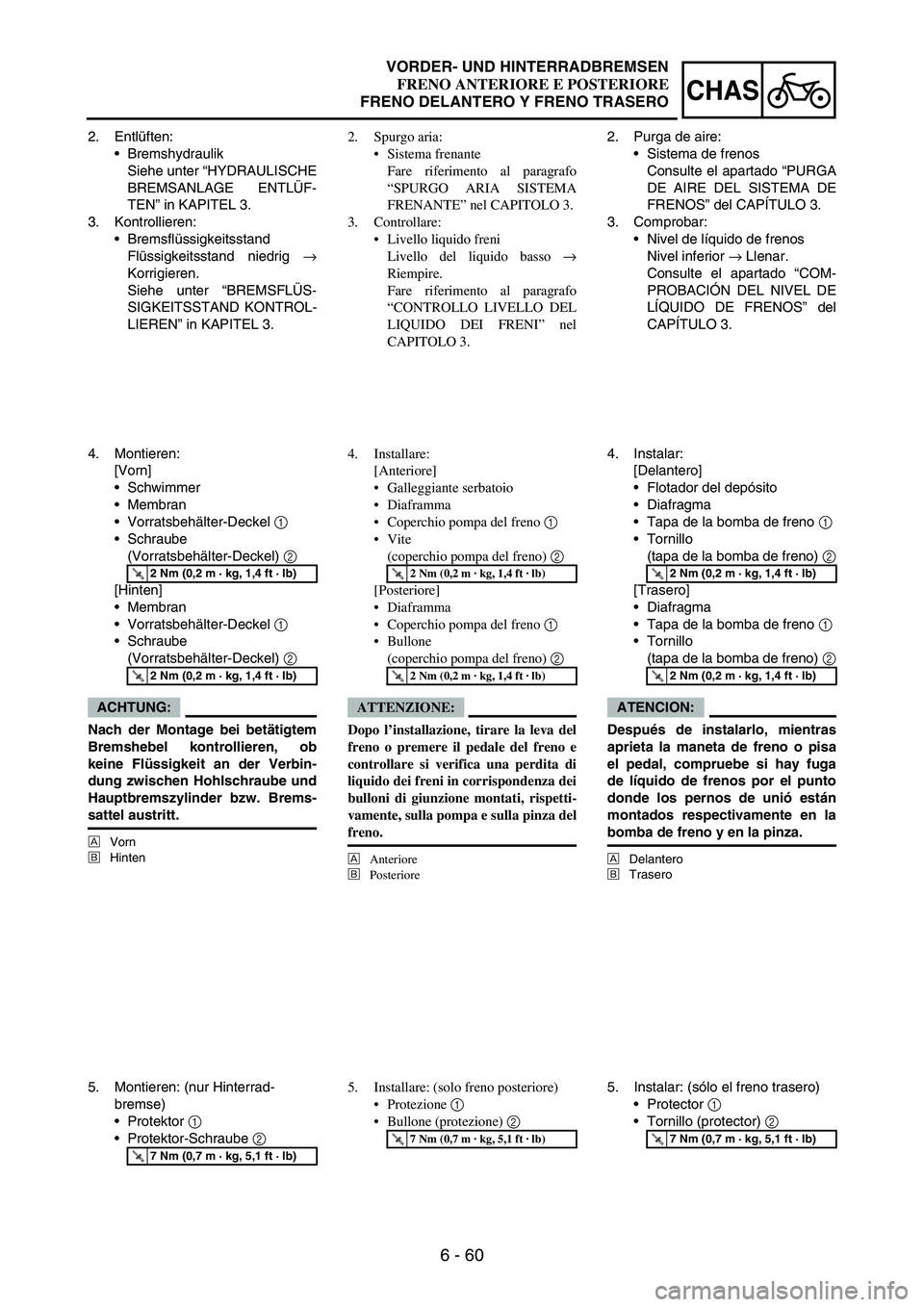

YAMAHA WR 250F 2007  Notices Demploi (in French) 6 - 60
CHAS
2. Entlüften:
Bremshydraulik
Siehe unter “HYDRAULISCHE
BREMSANLAGE ENTLÜF-
TEN” in KAPITEL 3.
3. Kontrollieren:
Bremsflüssigkeitsstand
Flüssigkeitsstand niedrig
→
Korrigieren.

Page 724 of 912

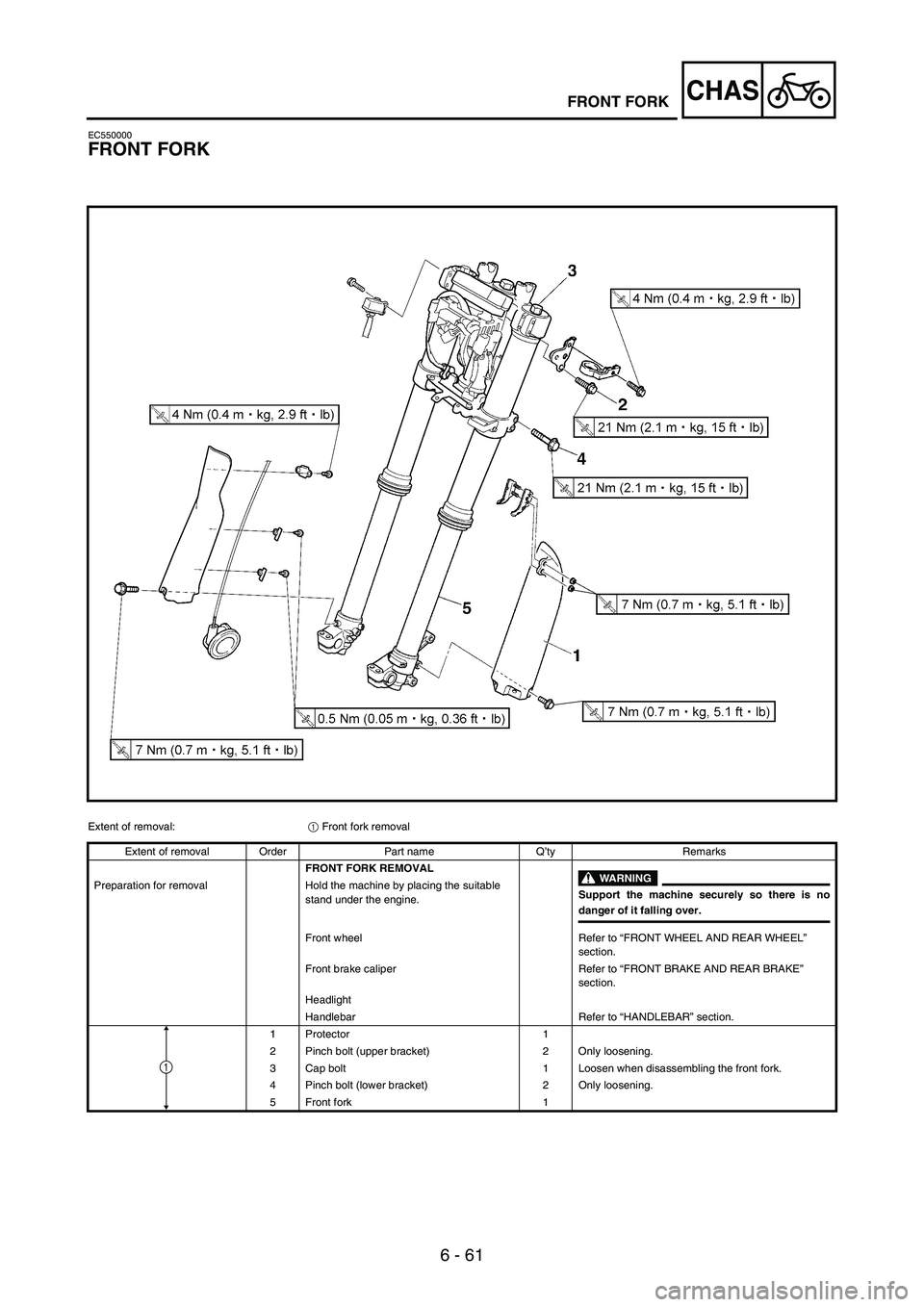

YAMAHA WR 250F 2007  Notices Demploi (in French) 6 - 61
CHASFRONT FORK
EC550000
FRONT FORK
Extent of removal:
1 Front fork removal
Extent of removal Order Part name Q’ty Remarks
FRONT FORK REMOVAL
WARNING
Support the machine securely so there is

Page 725 of 912

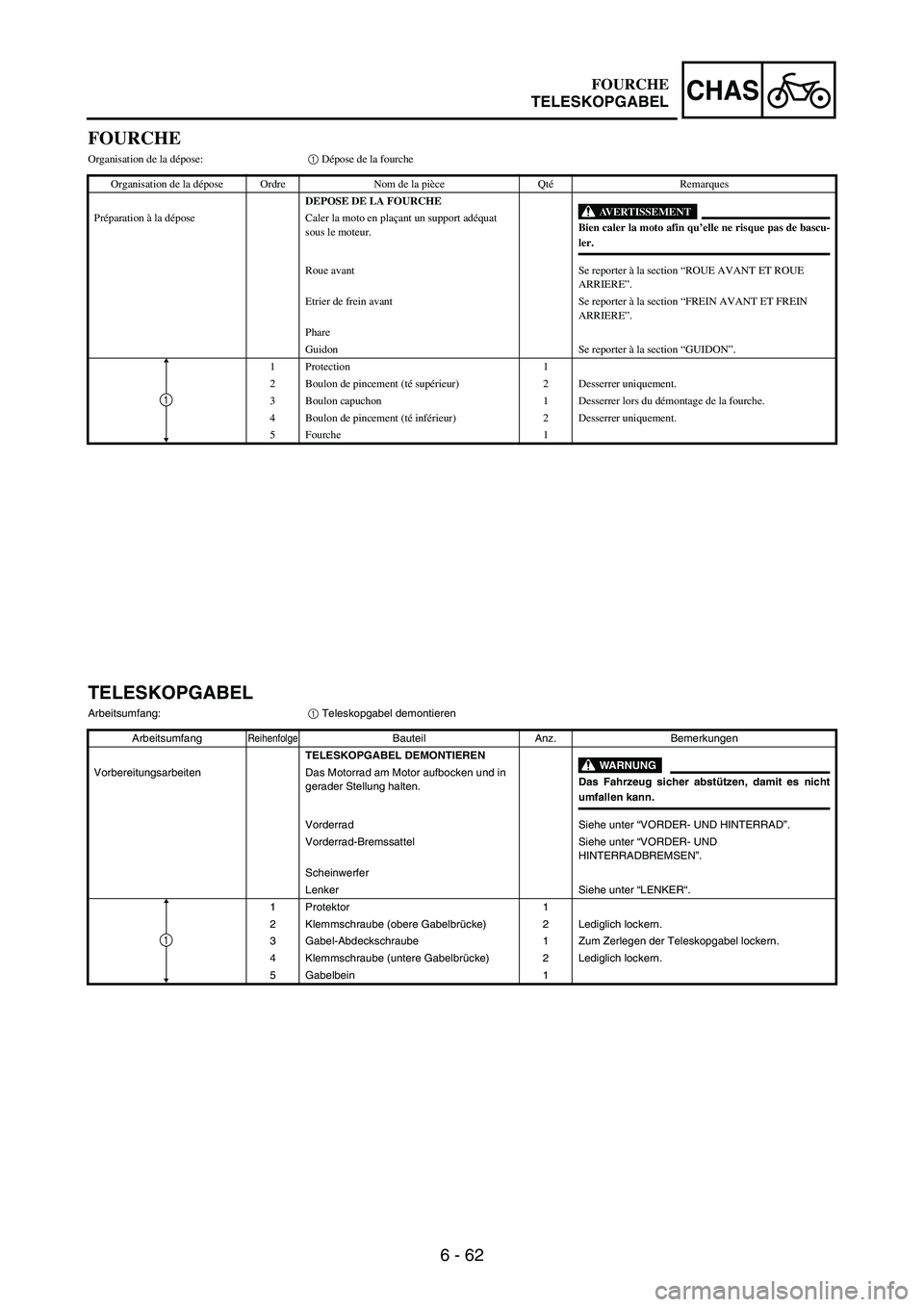

YAMAHA WR 250F 2007  Notices Demploi (in French) 6 - 62
CHAS
FOURCHE
Organisation de la dépose:1 Dépose de la fourche
Organisation de la dépose Ordre Nom de la pièce QtéRemarques
DEPOSE DE LA FOURCHE
AVERTISSEMENTBien caler la moto afin qu’e

Page 726 of 912

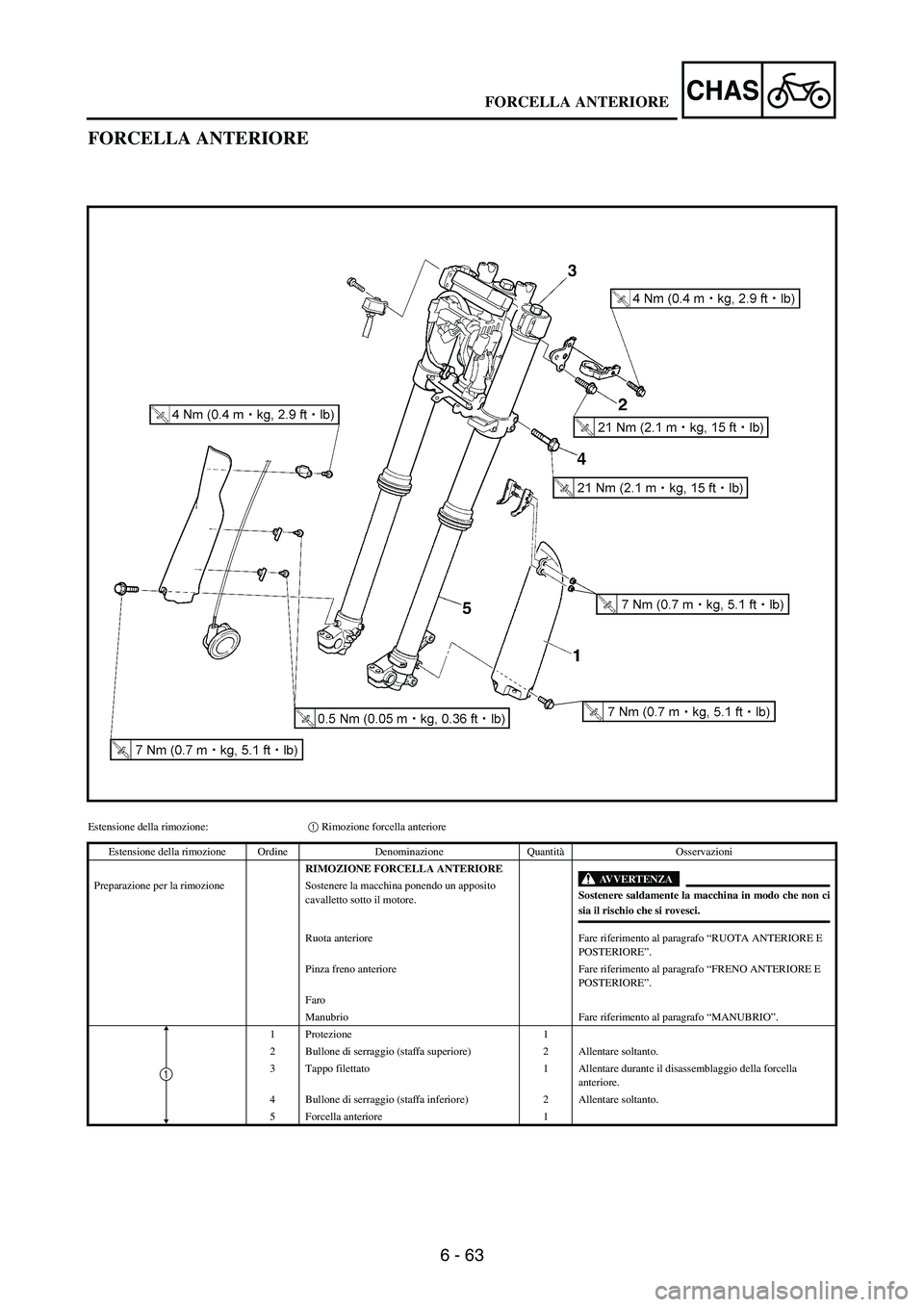

YAMAHA WR 250F 2007  Notices Demploi (in French) 6 - 63
CHAS
FORCELLA ANTERIORE
Estensione della rimozione:1 Rimozione forcella anteriore
Estensione della rimozione Ordine Denominazione QuantitàOsservazioni
RIMOZIONE FORCELLA ANTERIORE
AVVERTENZA

Page 727 of 912

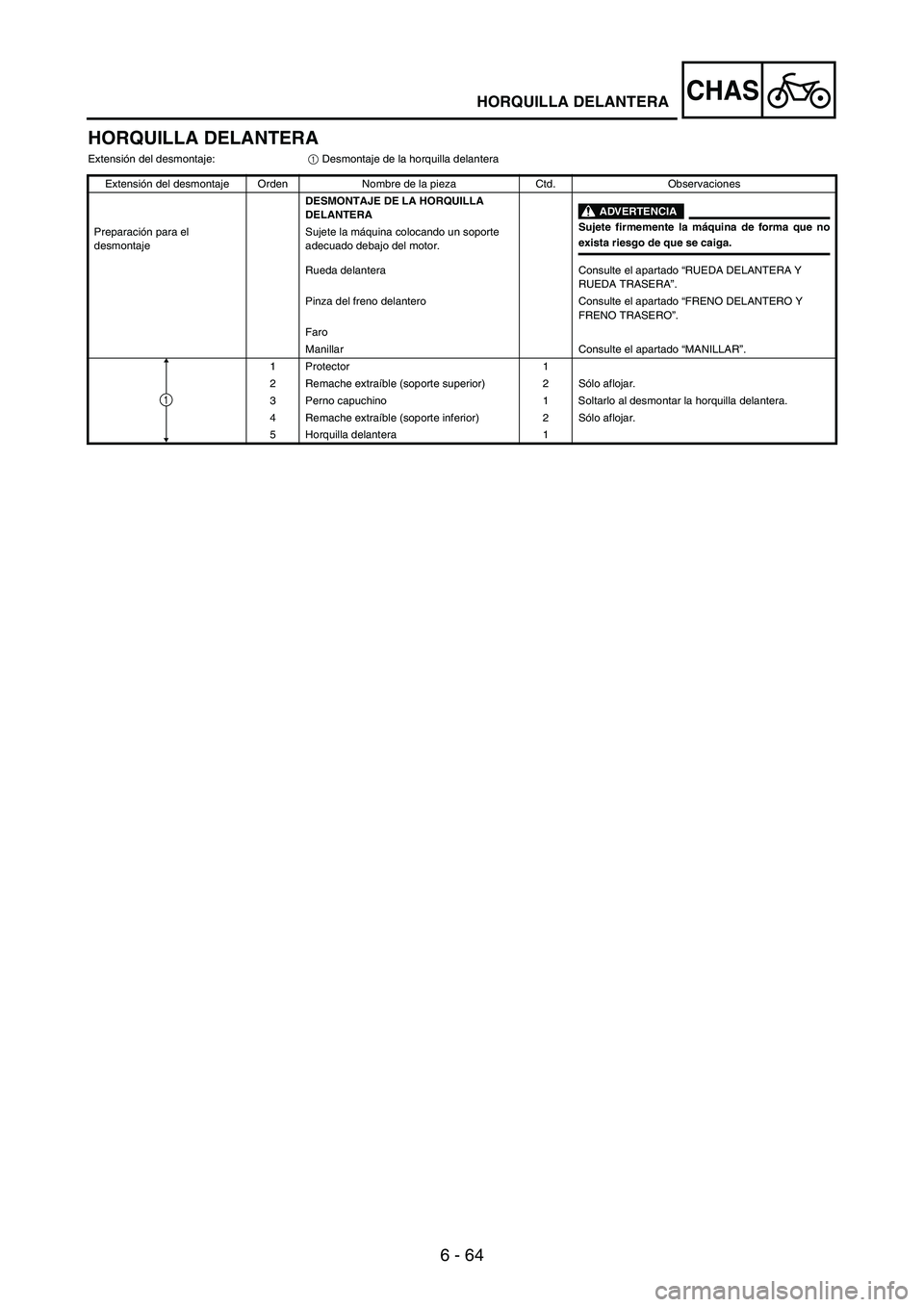

YAMAHA WR 250F 2007  Notices Demploi (in French) 6 - 64
CHAS
HORQUILLA DELANTERA
Extensión del desmontaje:
1 Desmontaje de la horquilla delantera
Extensión del desmontaje Orden Nombre de la pieza Ctd. Observaciones
DESMONTAJE DE LA HORQUILLA
DEL

Page 728 of 912

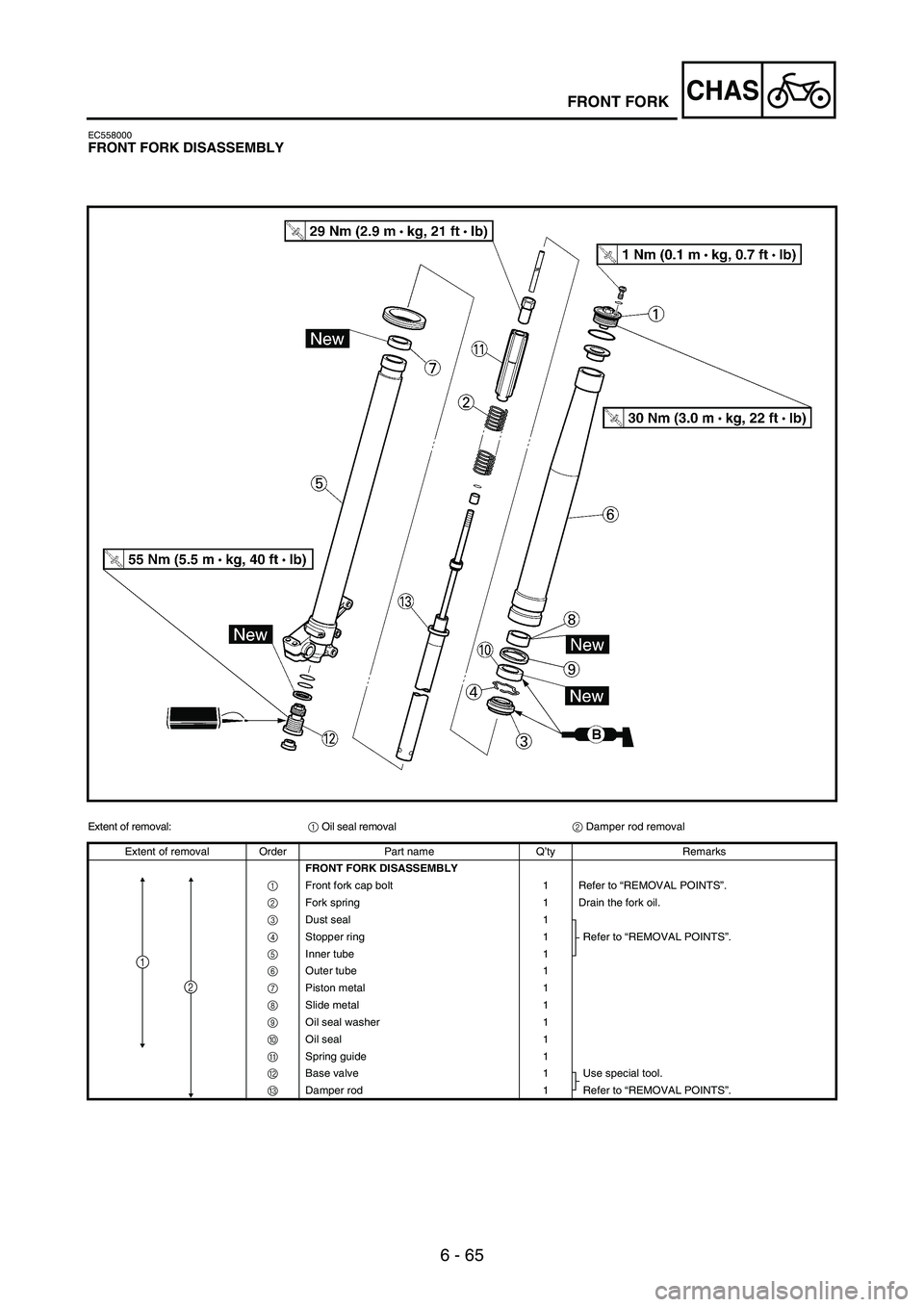

YAMAHA WR 250F 2007  Notices Demploi (in French) 6 - 65
CHASFRONT FORK
EC558000FRONT FORK DISASSEMBLY
Extent of removal:
1 Oil seal removal
2 Damper rod removal
Extent of removal Order Part name Q’ty Remarks
FRONT FORK DISASSEMBLY
1  Front fork ca

Page 729 of 912

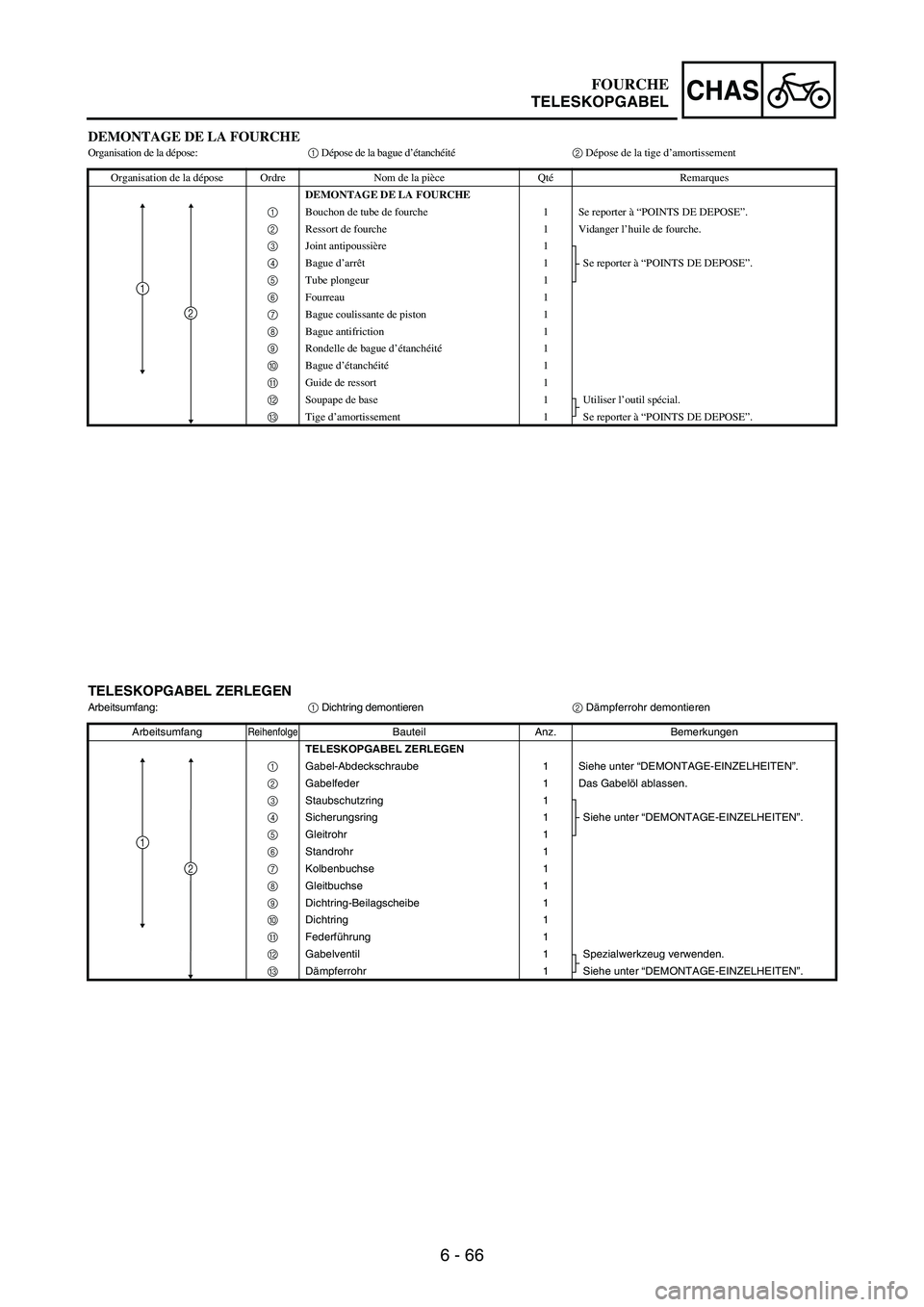

YAMAHA WR 250F 2007  Notices Demploi (in French) 6 - 66
CHAS
DEMONTAGE DE LA FOURCHEOrganisation de la dépose:1 Dépose de la bague d’étanchéité2 Dépose de la tige d’amortissement
Organisation de la dépose Ordre Nom de la pièce QtéRemarq

Page 730 of 912

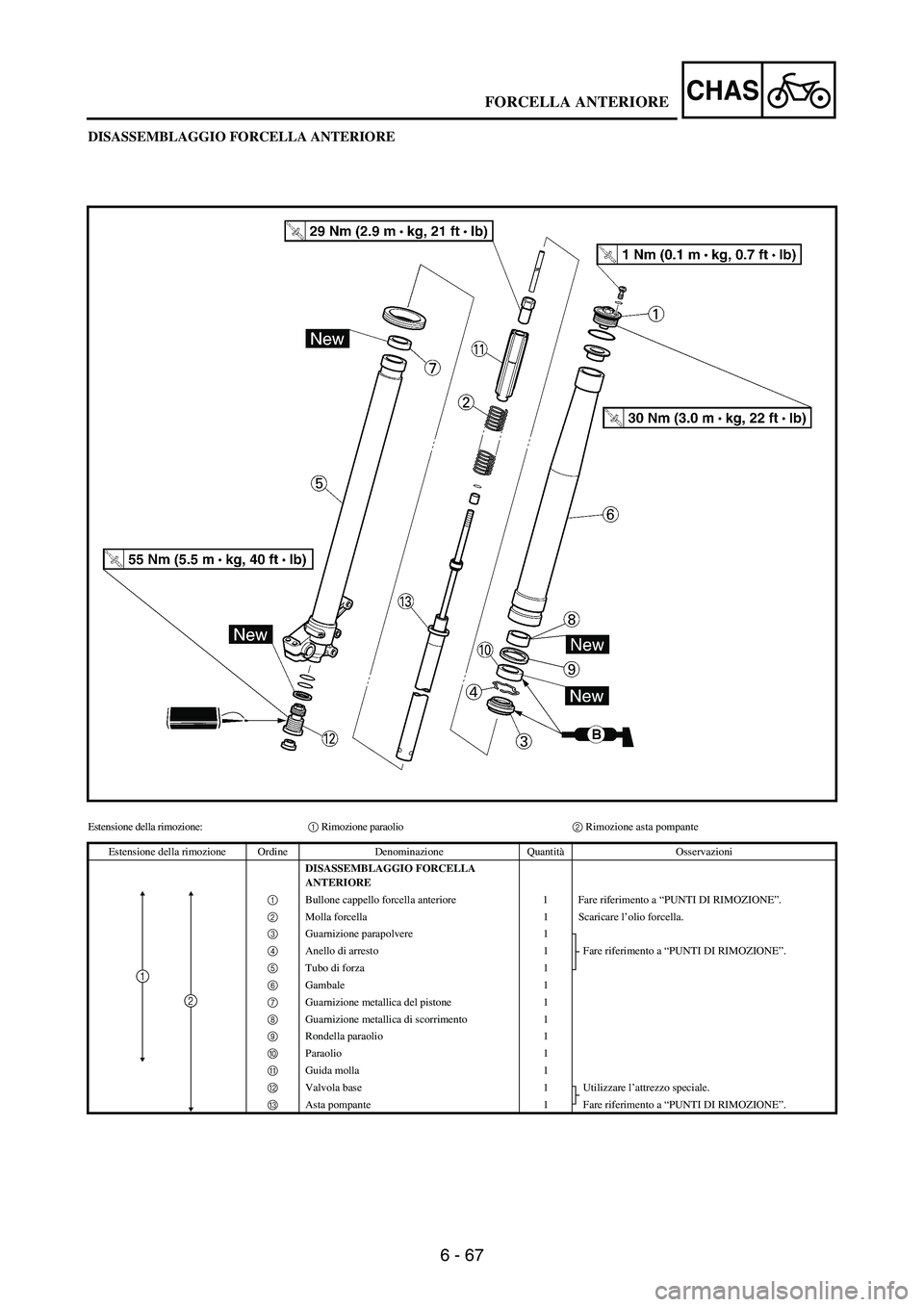

YAMAHA WR 250F 2007  Notices Demploi (in French) 6 - 67
CHAS
DISASSEMBLAGGIO FORCELLA ANTERIORE
Estensione della rimozione:1 Rimozione paraolio2 Rimozione asta pompante
Estensione della rimozione Ordine Denominazione QuantitàOsservazioni
DISASSEMBL
