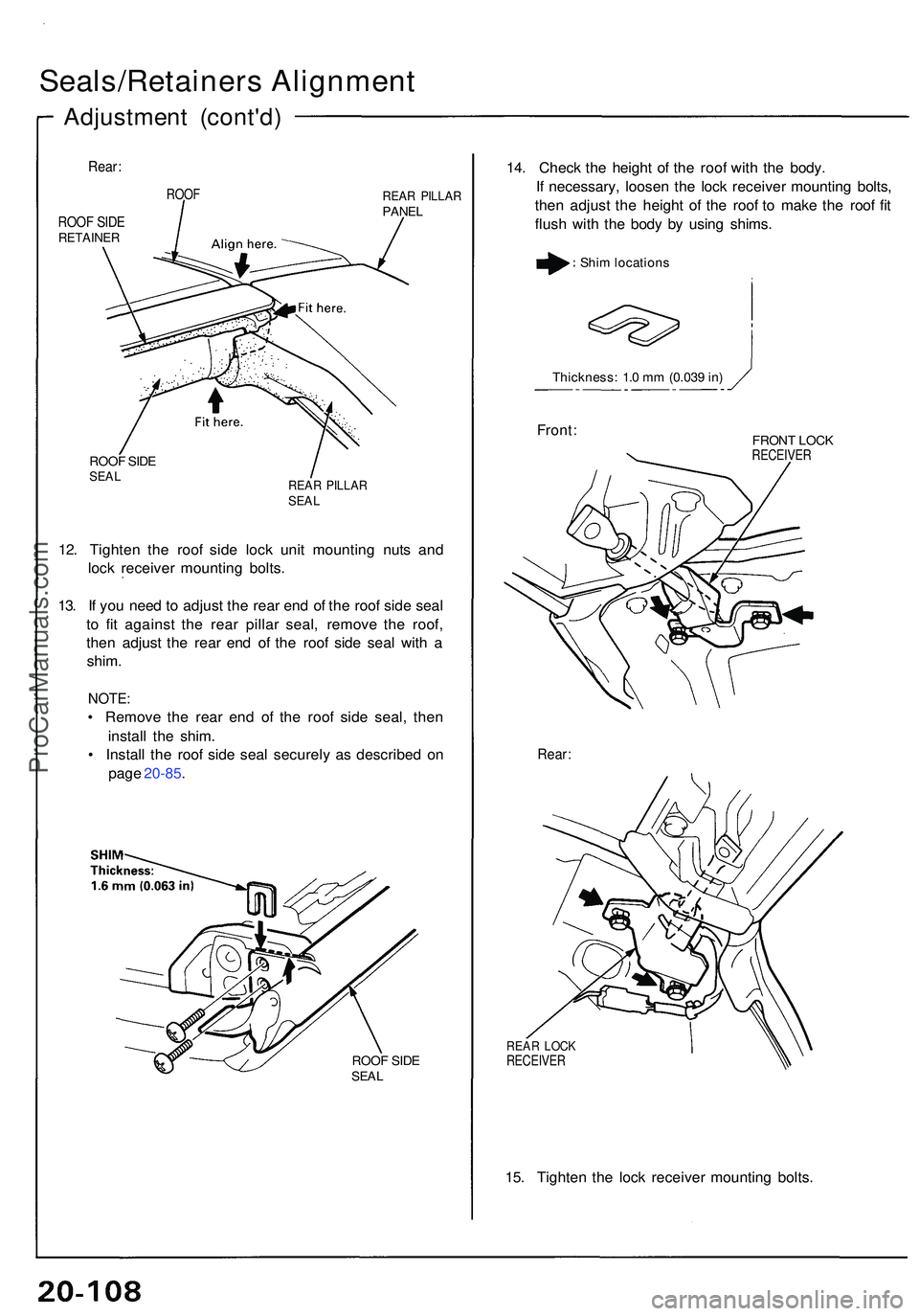

Seals/Retainers Alignmen t
Adjustmen t (cont'd )
Rear:
ROO F SID ERETAINE R
ROOFREAR PILLA RPANEL
ROOF SID ESEA LREA R PILLA RSEAL
12. Tighte n th e roo f sid e loc k uni t mountin g nut s an d
loc k receive r mountin g bolts .
13 . I f yo u nee d t o adjus t th e rea r en d o f th e roo f sid e sea l
t o fi t agains t th e rea r pilla r seal , remov e th e roof ,
the n adjus t th e rea r en d o f th e roo f sid e sea l wit h a
shim .
NOTE :
• Remov e th e rea r en d o f th e roo f sid e seal , the n
instal l th e shim .
• Instal l th e roo f sid e sea l securel y a s describe d o n
pag e 20-85 .
ROOF SID ESEA L
14. Chec k th e heigh t o f th e roo f wit h th e body .
I f necessary , loose n th e loc k receive r mountin g bolts ,
the n adjus t th e heigh t o f th e roo f t o mak e th e roo f fi t
flus h wit h th e bod y b y usin g shims .
Thickness : 1. 0 m m (0.03 9 in )
Front :FRON T LOC KRECEIVE R
Rear:
REAR LOC KRECEIVE R
15. Tighte n th e loc k receive r mountin g bolts .
Shim location s
ProCarManuals.com
Page 1172 of 1503

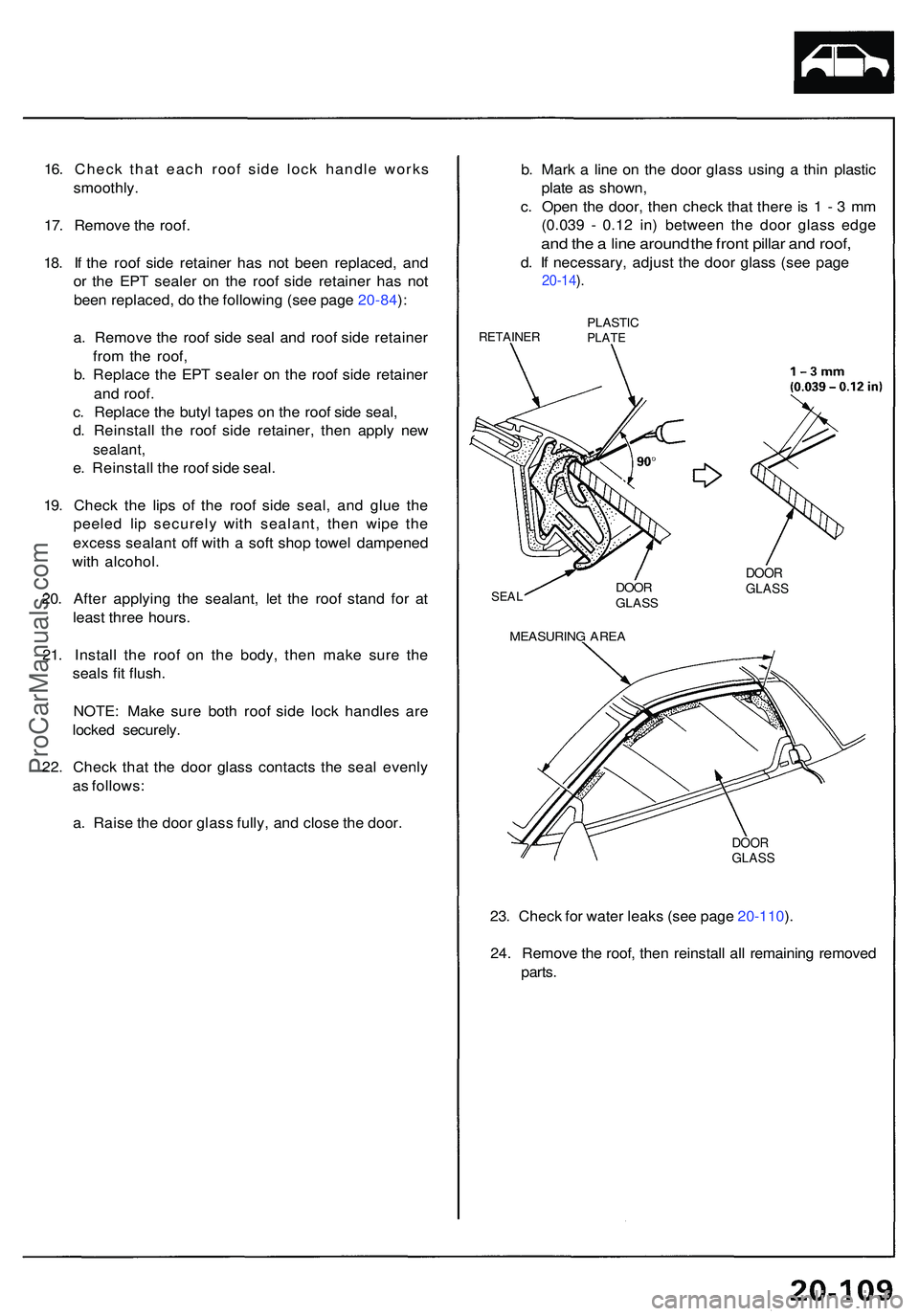

16. Chec k tha t eac h roo f sid e loc k handl e work s
smoothly .
17 . Remov e th e roof .
18 . I f th e roo f sid e retaine r ha s no t bee n replaced , an d
o r th e EP T seale r o n th e roo f sid e retaine r ha s no t
bee n replaced , d o th e followin g (se e pag e 20-84 ):
a . Remov e th e roo f sid e sea l an d roo f sid e retaine r
fro m th e roof ,
b . Replac e th e EP T seale r o n th e roo f sid e retaine r
an d roof .
c . Replac e th e buty l tape s o n th e roo f sid e seal ,
d . Reinstal l th e roo f sid e retainer , the n appl y ne w
sealant ,
e. Reinstal l th e roo f sid e seal .
19 . Chec k th e lip s o f th e roo f sid e seal , an d glu e th e
peele d li p securel y wit h sealant , the n wip e th e
exces s sealan t of f wit h a sof t sho p towe l dampene d
wit h alcohol .
20 . Afte r applyin g th e sealant , le t th e roo f stan d fo r a t
leas t thre e hours .
21 . Instal l th e roo f o n th e body , the n mak e sur e th e
seal s fi t flush .
NOTE : Mak e sur e bot h roo f sid e loc k handle s ar e
locke d securely .
22 . Chec k tha t th e doo r glas s contact s th e sea l evenl y
a s follows :
a . Rais e th e doo r glas s fully , an d clos e th e door . b
. Mar k a lin e o n th e doo r glas s usin g a thi n plasti c
plat e a s shown ,
c . Ope n th e door , the n chec k tha t ther e is 1 - 3 m m
(0.03 9 - 0.1 2 in ) betwee n th e doo r glas s edg e
and th e a lin e aroun d th e fron t pilla r an d roof ,
d. I f necessary , adjus t th e doo r glas s (se e pag e
20-14 ).
RETAINE RPLASTICPLATE
SEAL
MEASURIN G ARE A
DOORGLAS S
DOORGLAS S
DOORGLAS S
23. Chec k fo r wate r leak s (se e pag e 20-110 ).
24 . Remov e th e roof , the n reinstal l al l remainin g remove d
parts .
ProCarManuals.com
Page 1173 of 1503

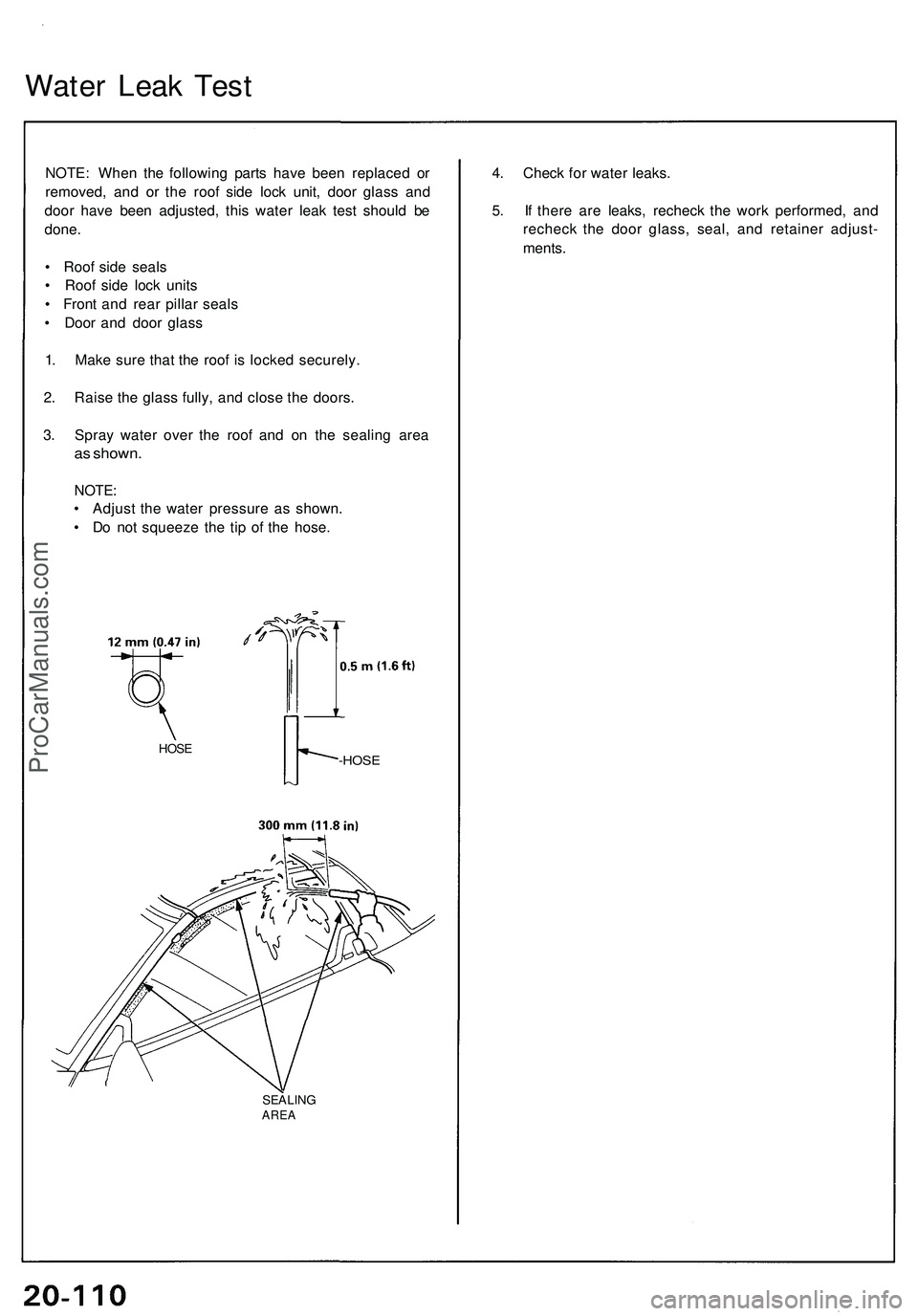

Water Leak Test
NOTE: When the following parts have been replaced or
removed, and or the roof side lock unit, door glass and
door have been adjusted, this water leak test should be
done.
• Roof side seals
• Roof side lock units
• Front and rear pillar seals
• Door and door glass
1. Make sure that the roof is locked securely.
2. Raise the glass fully, and close the doors.
3. Spray water over the roof and on the sealing area
as shown.
NOTE:
• Adjust the water pressure as shown.
• Do not squeeze the tip of the hose.
HOSE
-HOSE
SEALING
AREA
4. Check for water leaks.
5. If there are leaks, recheck the work performed, and
recheck the door glass, seal, and retainer adjust-
ments.ProCarManuals.com
Page 1174 of 1503

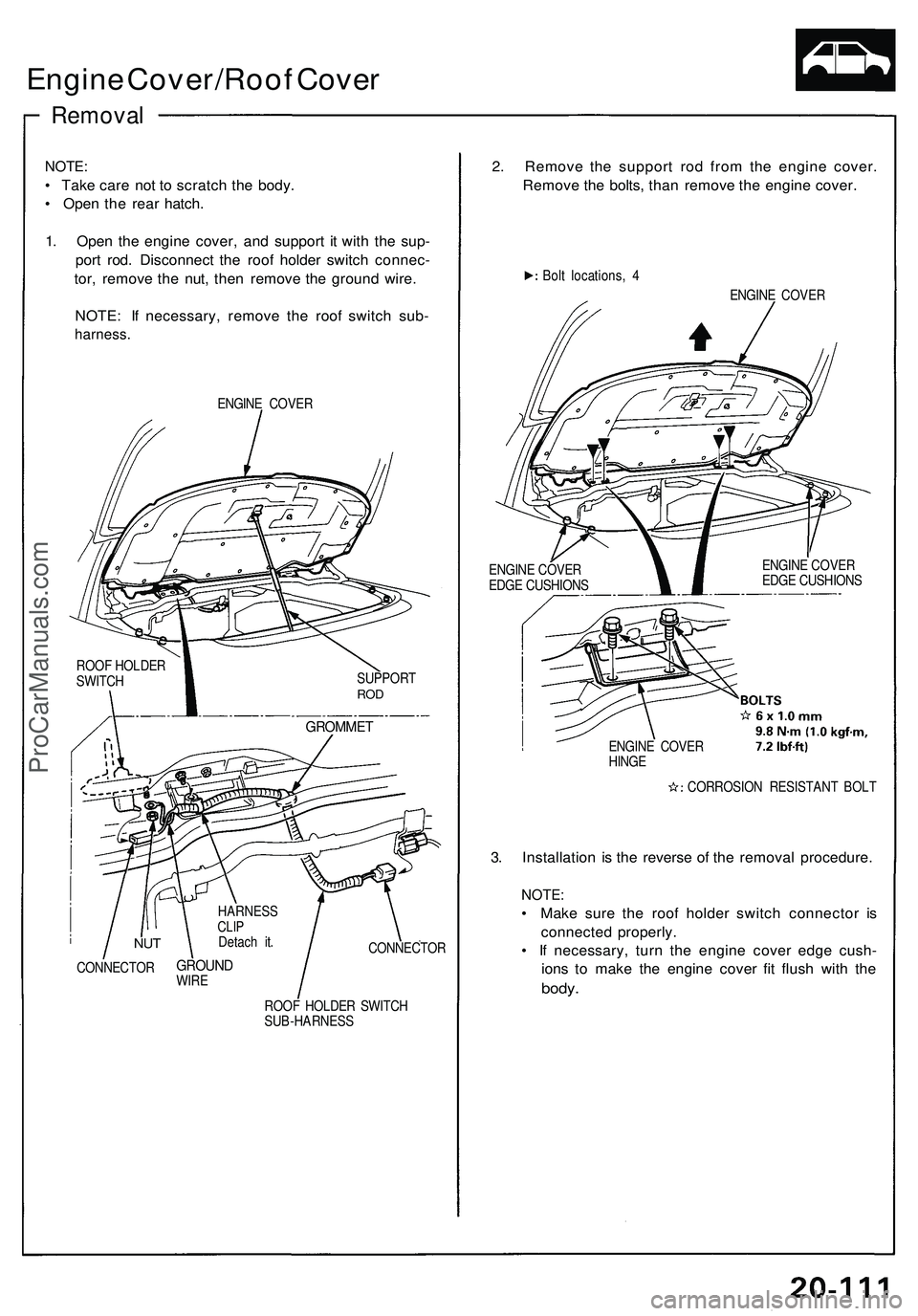

Engine Cover/Roo f Cove r
Remova l
NOTE:
• Tak e car e no t t o scratc h th e body .
• Ope n th e rea r hatch .
1 . Ope n th e engin e cover , an d suppor t i t wit h th e sup -
por t rod . Disconnec t th e roo f holde r switc h connec -
tor , remov e th e nut , the n remov e th e groun d wire .
NOTE : I f necessary , remov e th e roo f switc h sub -
harness .
ENGINE COVE R
NUT
CONNECTO R CONNECTO
RGROUNDWIRE
ROOF HOLDE R SWITC H
SUB-HARNES S
2. Remov e th e suppor t ro d fro m th e engin e cover .
Remov e th e bolts , tha n remov e th e engin e cover .
Bolt locations , 4
ENGINE COVE R
ENGIN E COVE R
HING E
CORROSIO N RESISTAN T BOL T
3. Installatio n i s th e revers e o f th e remova l procedure .
NOTE:
• Mak e sur e th e roo f holde r switc h connecto r i s
connecte d properly .
• I f necessary , tur n th e engin e cove r edg e cush -
ion s t o mak e th e engin e cove r fi t flus h wit h th e
body .
ROO F HOLDE R
SWITC H
SUPPOR
T
ROD
GROMME T
HARNESSCLIPDetac h it . ENGIN
E COVE R
EDG E CUSHION S
ENGIN
E COVE R
EDG E CUSHION S
ProCarManuals.com
Page 1175 of 1503

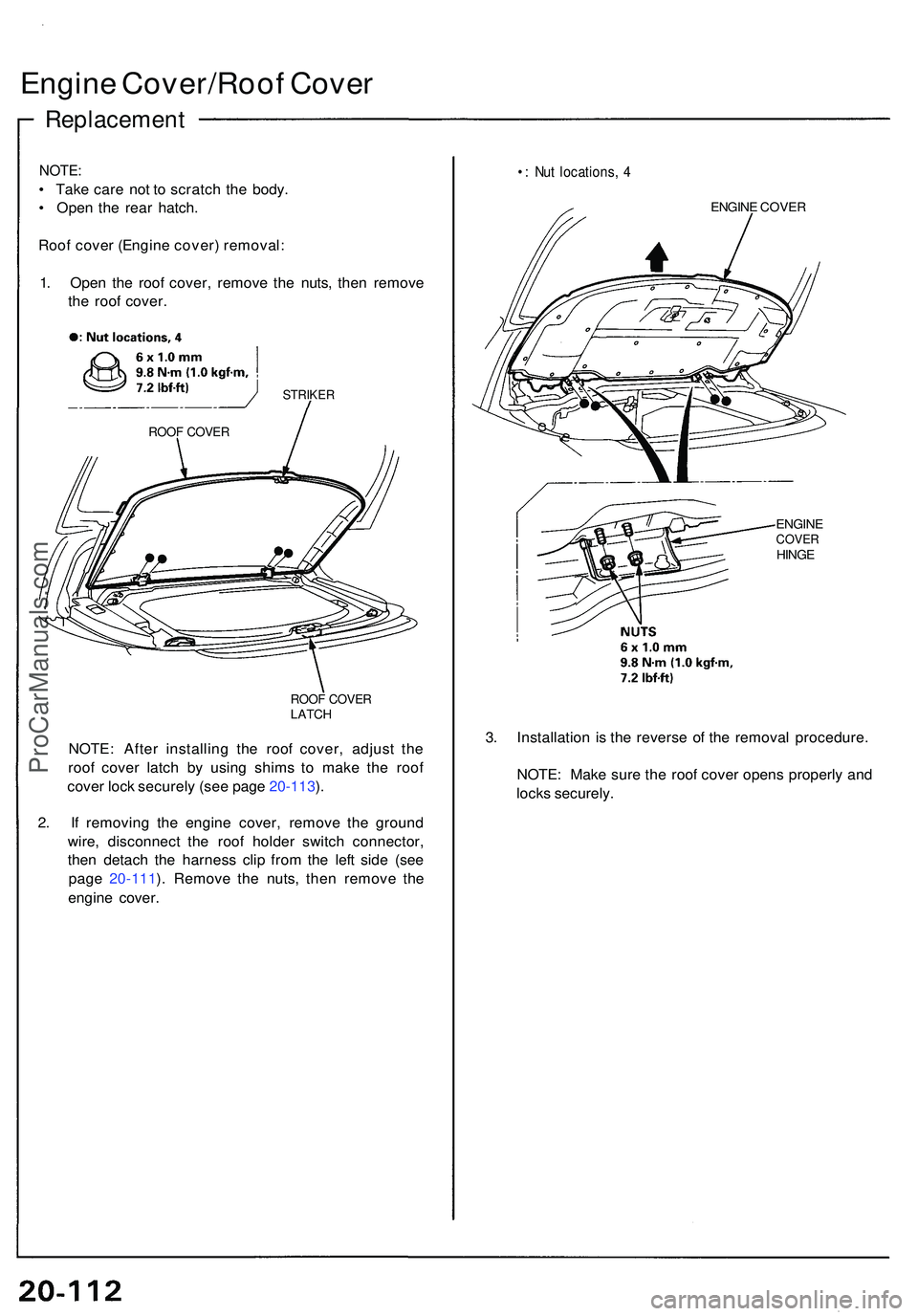

Engine Cover/Roo f Cove r
Replacemen t
ROOF COVE RLATCH
NOTE : Afte r installin g th e roo f cover , adjus t th e
roo f cove r latc h b y usin g shim s t o mak e th e roo f
cove r loc k securel y (se e pag e 20-113 ).
2 . I f removin g th e engin e cover , remov e th e groun d
wire , disconnec t th e roo f holde r switc h connector ,
the n detac h th e harnes s cli p fro m th e lef t sid e (se e
pag e 20-111 ). Remov e th e nuts , the n remov e th e
engine cover.
• : Nu t locations , 4
ENGIN E COVE R
ENGIN E
COVERHINGE
3. Installatio n i s th e revers e o f th e remova l procedure .
NOTE : Mak e sur e th e roo f cove r open s properl y an d
lock s securely .
NOTE:
• Tak e car e no t t o scratc h th e body .
• Ope n th e rea r hatch .
Roo f cove r (Engin e cover ) removal :
1 . Ope n th e roo f cover , remov e th e nuts , the n remov e
th e roo f cover .
ROOF COVE R
STRIKE R
ProCarManuals.com
Page 1176 of 1503

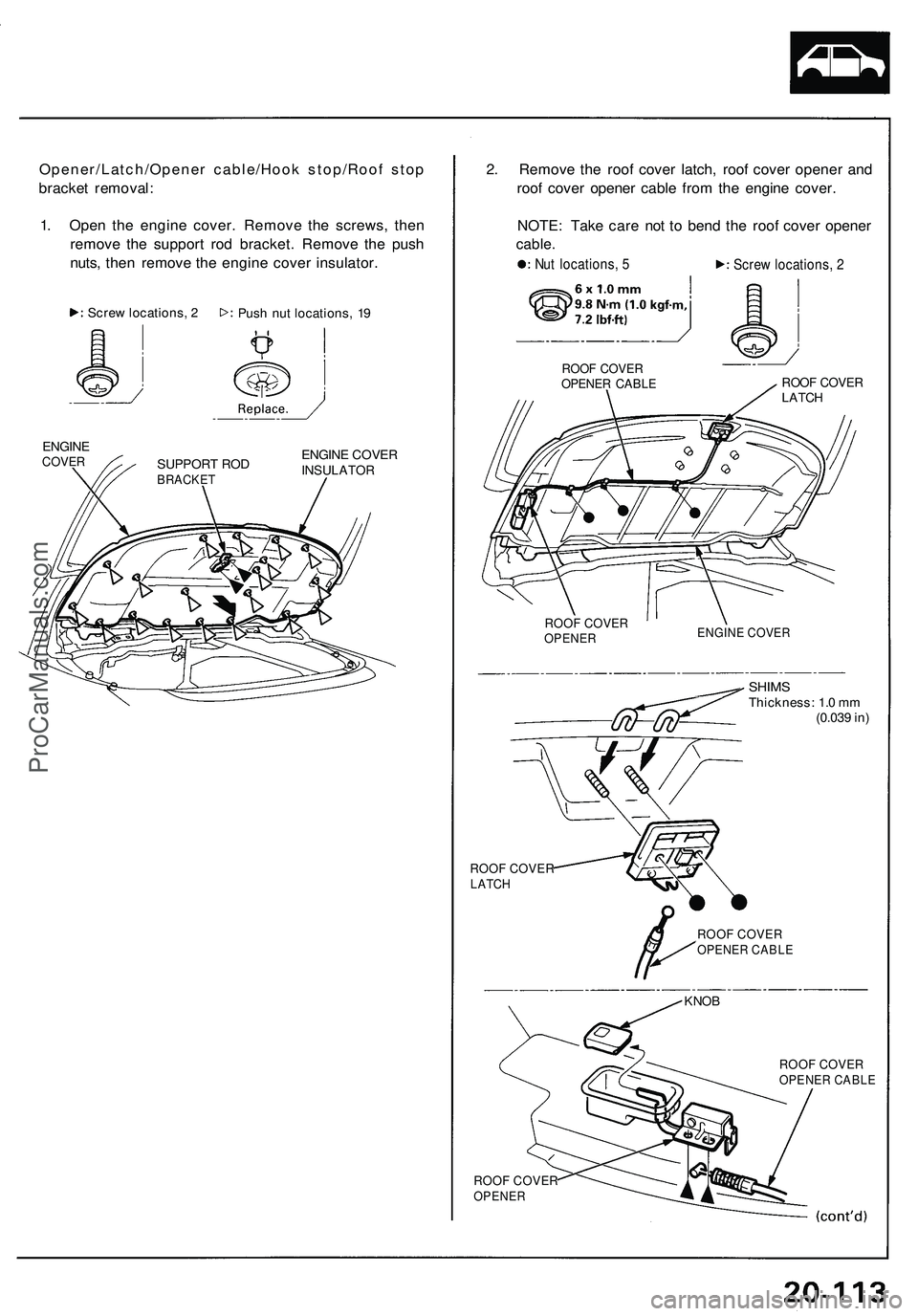

Opener/Latch/Opener cable/Hoo k stop/Roo f sto p
bracke t removal :
1 . Ope n th e engin e cover . Remov e th e screws , the n
remov e th e suppor t ro d bracket . Remov e th e pus h
nuts , the n remov e th e engin e cove r insulator .
ENGINECOVERSUPPOR T RO DBRACKE T
ENGINE COVE RINSULATO R
2. Remov e th e roo f cove r latch , roo f cove r opene r an d
roo f cove r opene r cabl e fro m th e engin e cover .
NOTE : Tak e car e no t t o ben d th e roo f cove r opene r
cable.
Nut locations , 5Scre w locations , 2
ROO F COVE ROPENE R ENGINE COVE R
SHIMSThickness : 1. 0 m m
(0.03 9 in )
ROO F COVE RLATCH
ROOF COVE ROPENE R CABL E
ROOF COVE ROPENE R
PROOF COVE ROPENE R CABL E
KNOB
ROO F COVE RLATCH
ROOF COVE ROPENE R CABL E
Screw locations , 2
Push nu t locations , 1 9
ProCarManuals.com
Page 1177 of 1503

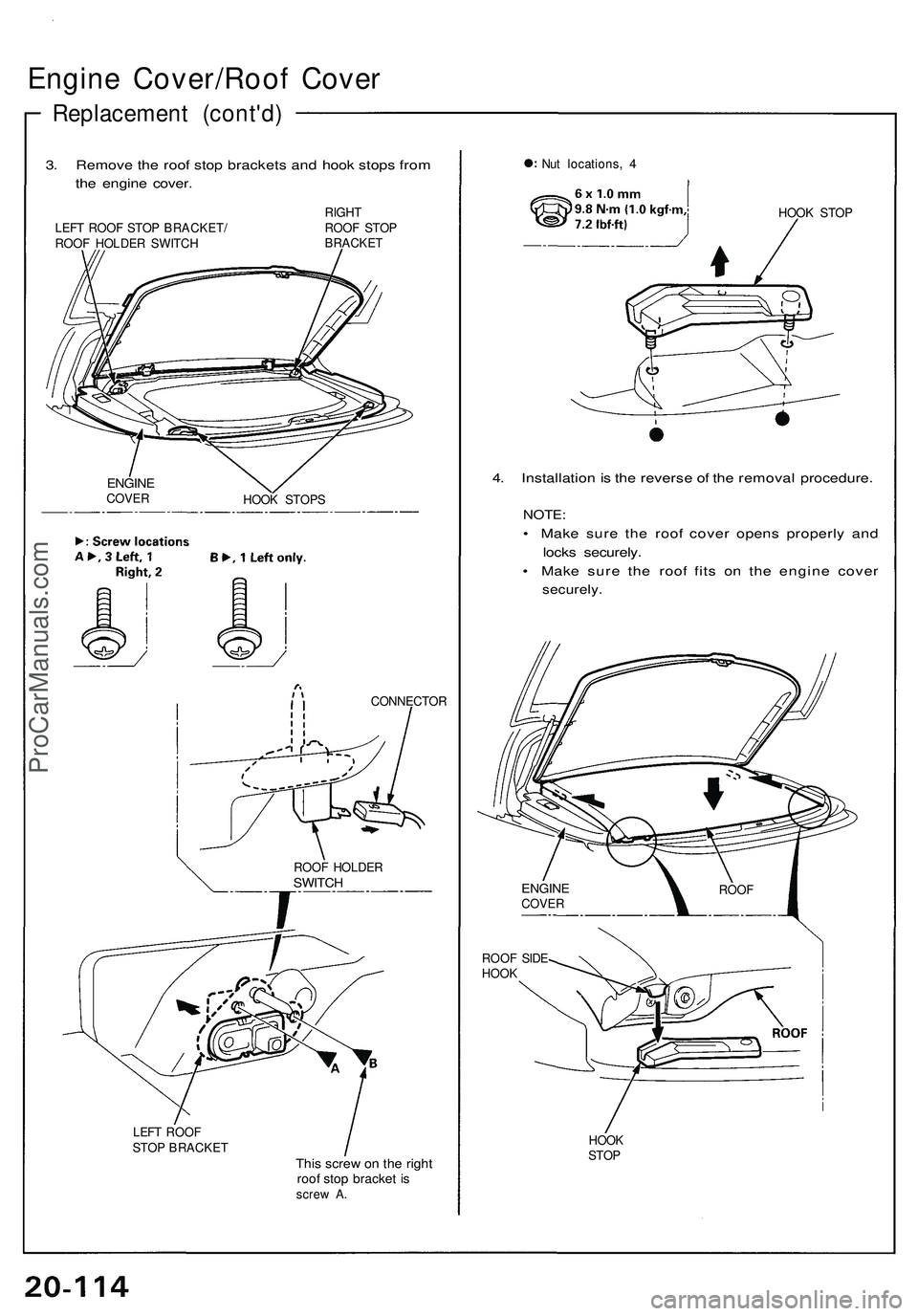

Engine Cover/Roo f Cove r
Replacemen t (cont'd )
3. Remov e th e roo f sto p bracket s an d hoo k stop s fro m
th e engin e cover .
LEFT ROO F STO P BRACKET /
ROO F HOLDE R SWITC H RIGH
T
ROO F STO PBRACKE T
ENGINECOVER
HOOK STOP S
CONNECTO R
LEF T ROO F
STO P BRACKE T
This scre w o n th e righ troof sto p bracke t i sscre w A . Nu
t locations , 4
HOOK STO P
4. Installatio n is th e revers e o f th e remova l procedure .
NOTE:
• Mak e sur e th e roo f cove r open s properl y an d
lock s securely .
• Mak e sur e th e roo f fit s o n th e engin e cove r
securely .
HOOK
STO P
ROO
F HOLDE R
SWITCH
ROOF SID E
HOO K
ENGIN ECOVER ROO
F
ProCarManuals.com
Page 1178 of 1503

22-88
22-49
Specia l Tool s
ProCarManuals.com
Page 1179 of 1503

MODE CONTRO L MOTO R
Replacement , pag e 22-5 7
Test , pag e 22-5 8
EVAPORATO RTEMPERATUR ESENSORRemoval , pag e 22-6 5
Test , pag e 22-6 5 SUNLIGH
T SENSO R
Removal , pag e 22-6 3
Test , pag e 22-6 3
CLIMAT E CONTRO L UNI T
Replacement , pag e 22-5 4
Adjustment , pag e 22-5 5COMPRESSO R (NIPPONDENSO )
Compresse s th e refrigeran t an d
the n force s i t throug h th e condenser .
"DEF " DOO R
Adjustment , pag e 22-7 7"HEAT " DOO RAdjustment , pag e 22-7 7
BLOWE R UNI T
Replacement , pag e 22-6 7
Overhaul , pag e 22-6 8
RECEIVER/DRYE RServes a s a reservoi r whic h filter s an dremove s moistur e fro m th e refrigerant .
IN-CAR TEMPERATUR E SENSO R
Removal , pag e 22-6 1
Test , pag e 22-6 1
HEATER-EVAPORATO R
UNITReplacement , pag e 22-7 4
Overhaul , pag e 22-7 6
OUTSID E AI R TEMPERATUR E SENSO R
Removal , pag e 22-6 2
Test, pag e 22-6 2DUAL CONDENSE RDissipates th e hea t whic h wa sabsorbe d b y th e refrigerant .
Replacement , pag e 22-7 9
Overhaul , pag e 22-8 0
HEATE R COR E
TEMPERATUR E SENSO R
Removal , pag e 22-6 4
Test, pag e 22-6 4
AIR MI X CONTRO L
MOTO R
Replacement , pag e 22-5 6
Test , pag e 22-5 7
RECIRCULATIO
N
CONTRO L MOTO R
Replacement , pag e 22-5 9
Test , pag e 22-5 9 HEATE
R VALV E CABL E
Adjustment , pag e 22-58 , 22-7 5
VENT DOO R CONTRO L
MOTO R
Replacement , pag e 22-6 0Test, pag e 22-6 0
A/C TRIPL EPRESSUR E SWITC H
ProCarManuals.com
Page 1180 of 1503

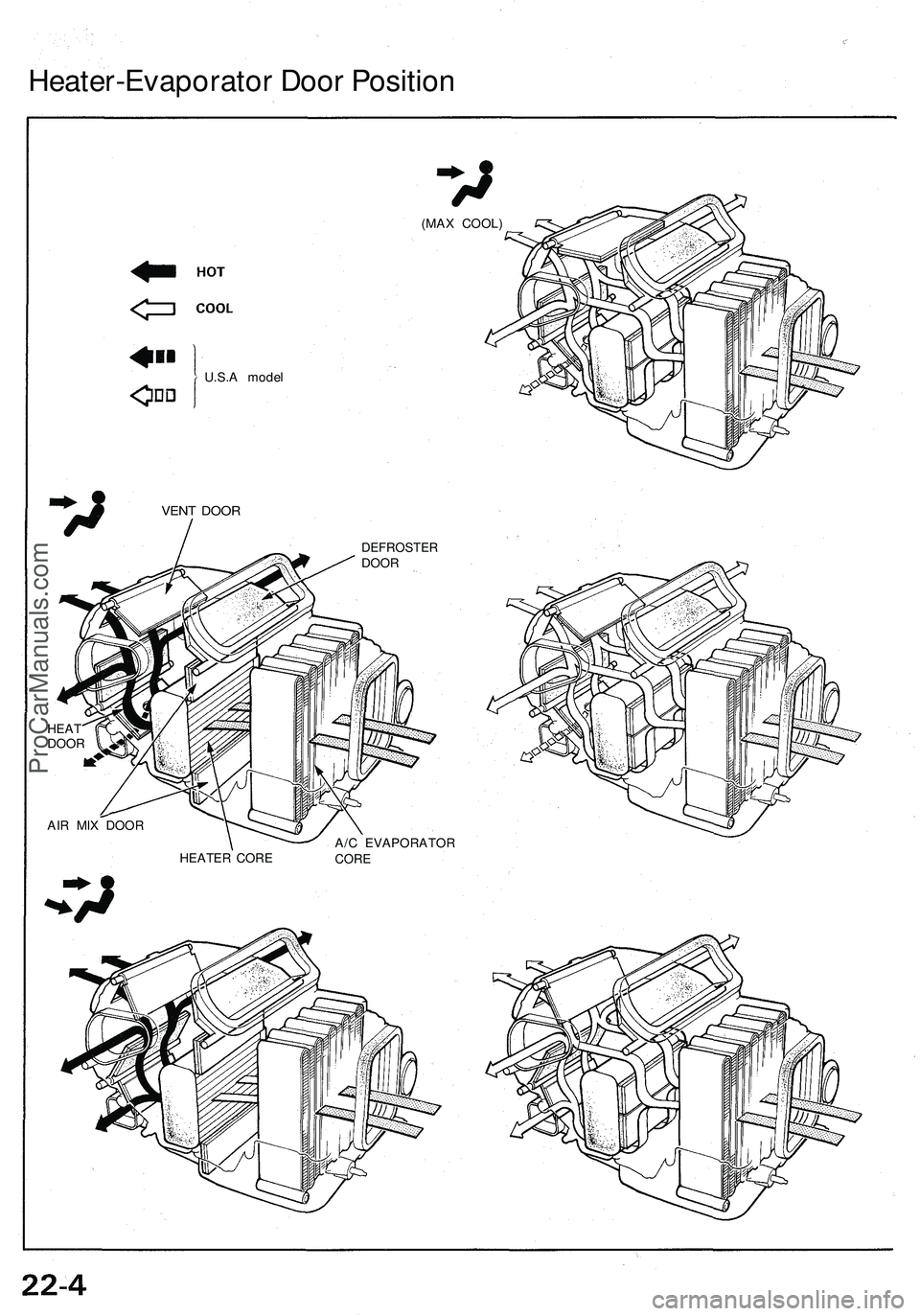

Heater-Evaporator Door Position
