ACURA NSX 1997 Service Repair Manual

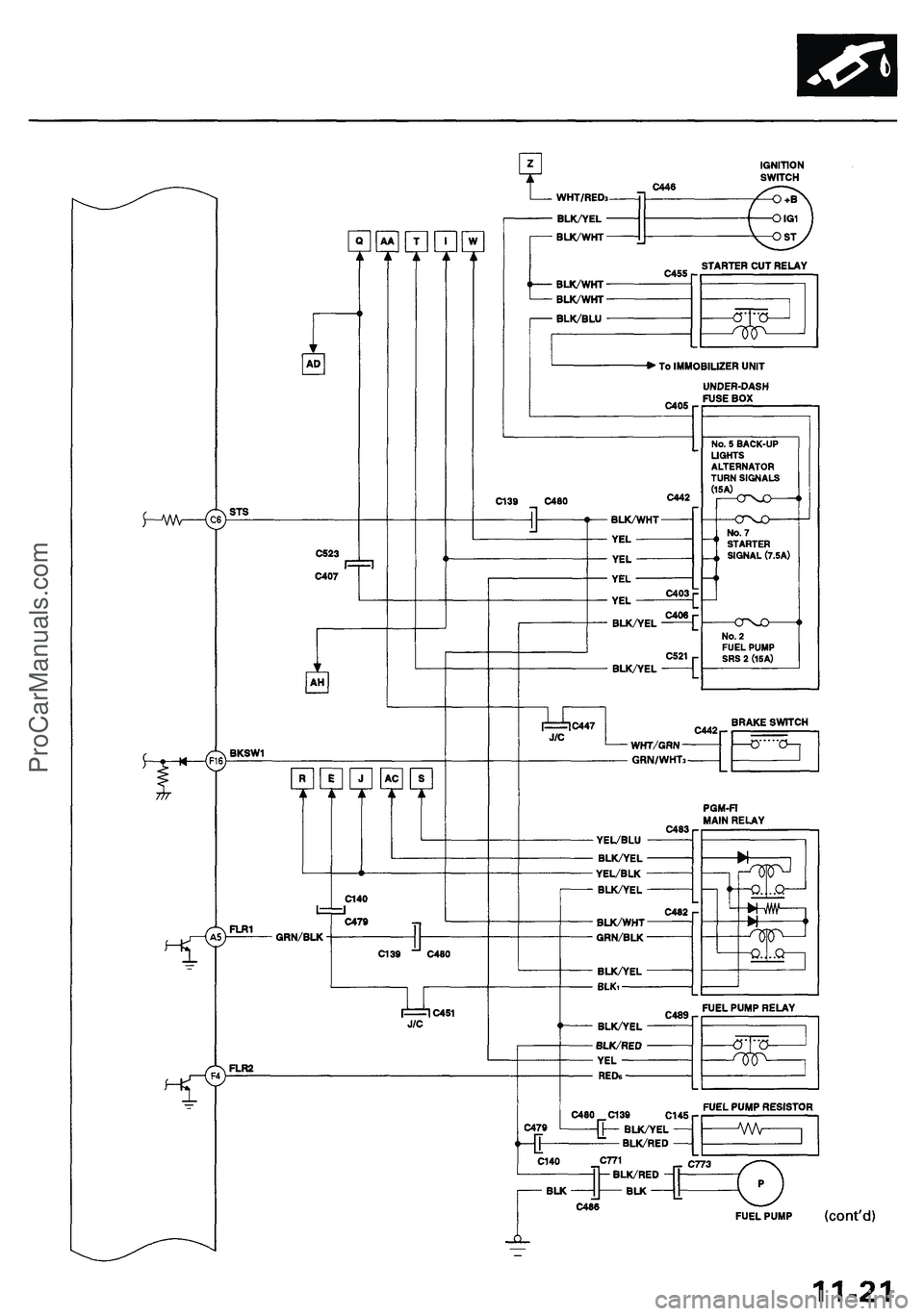

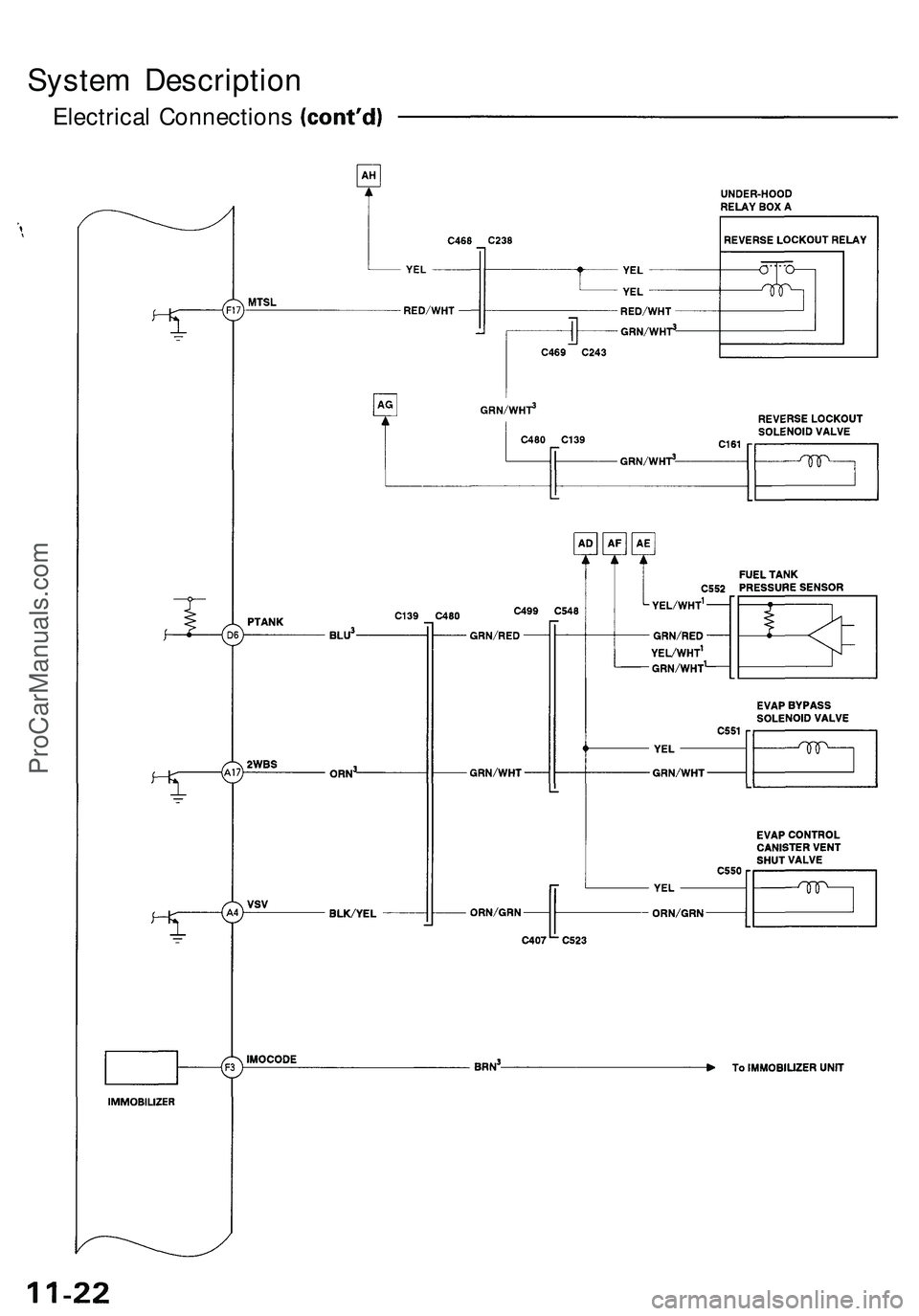

System Description

Electrical ConnectionsProCarManuals.com

ProCarManuals.com

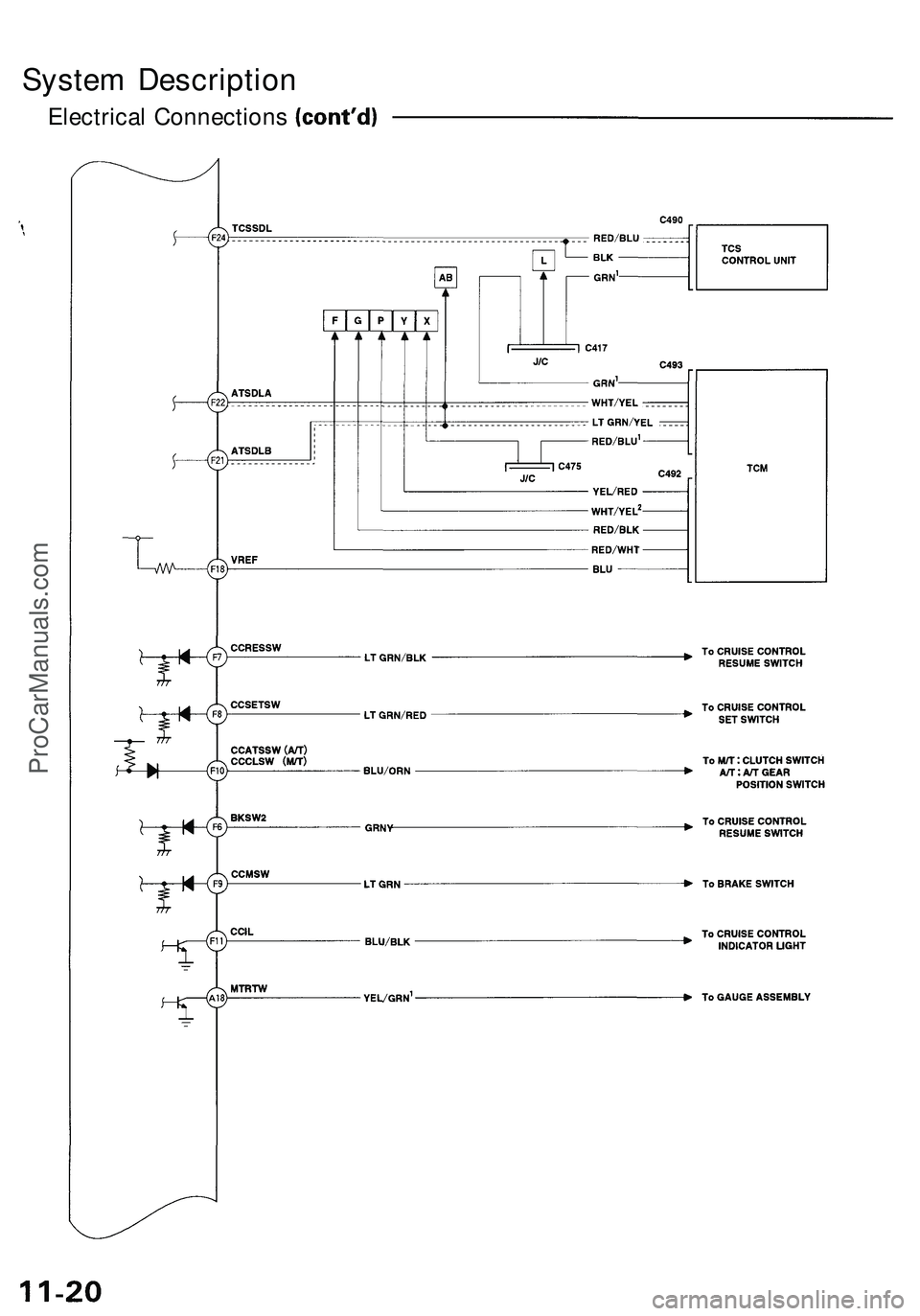

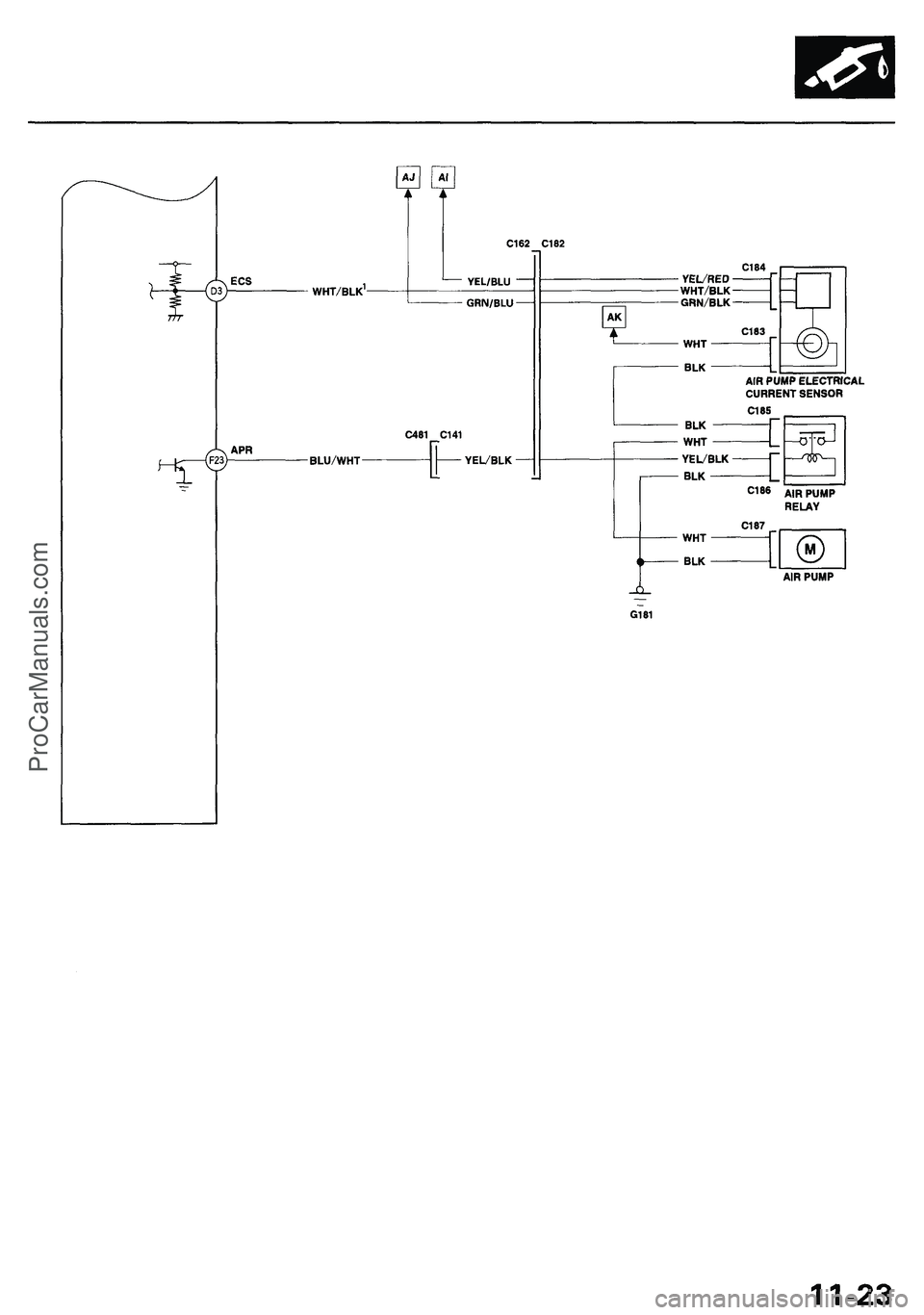

System Description

Electrical ConnectionsProCarManuals.com

ProCarManuals.com

System Description

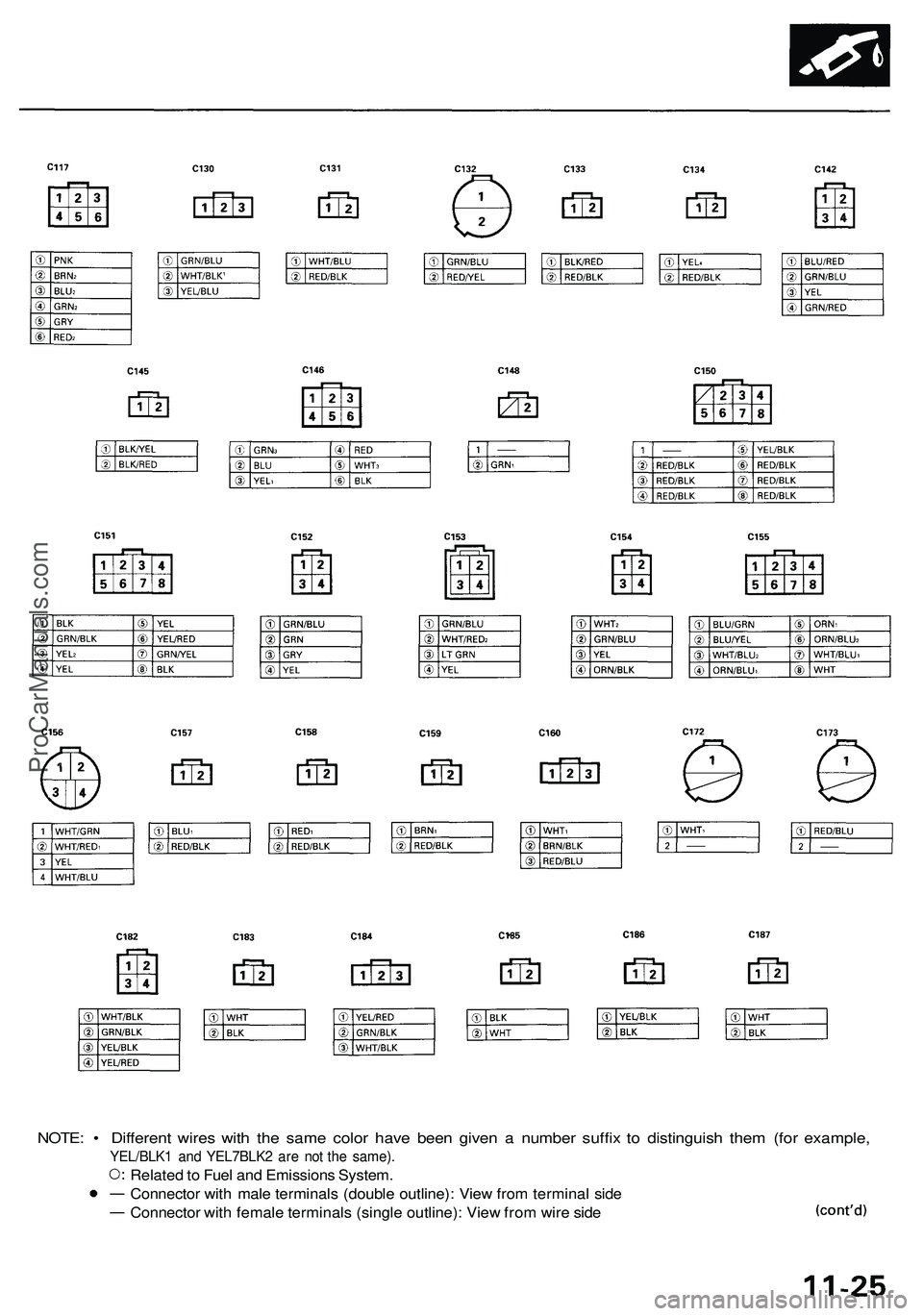

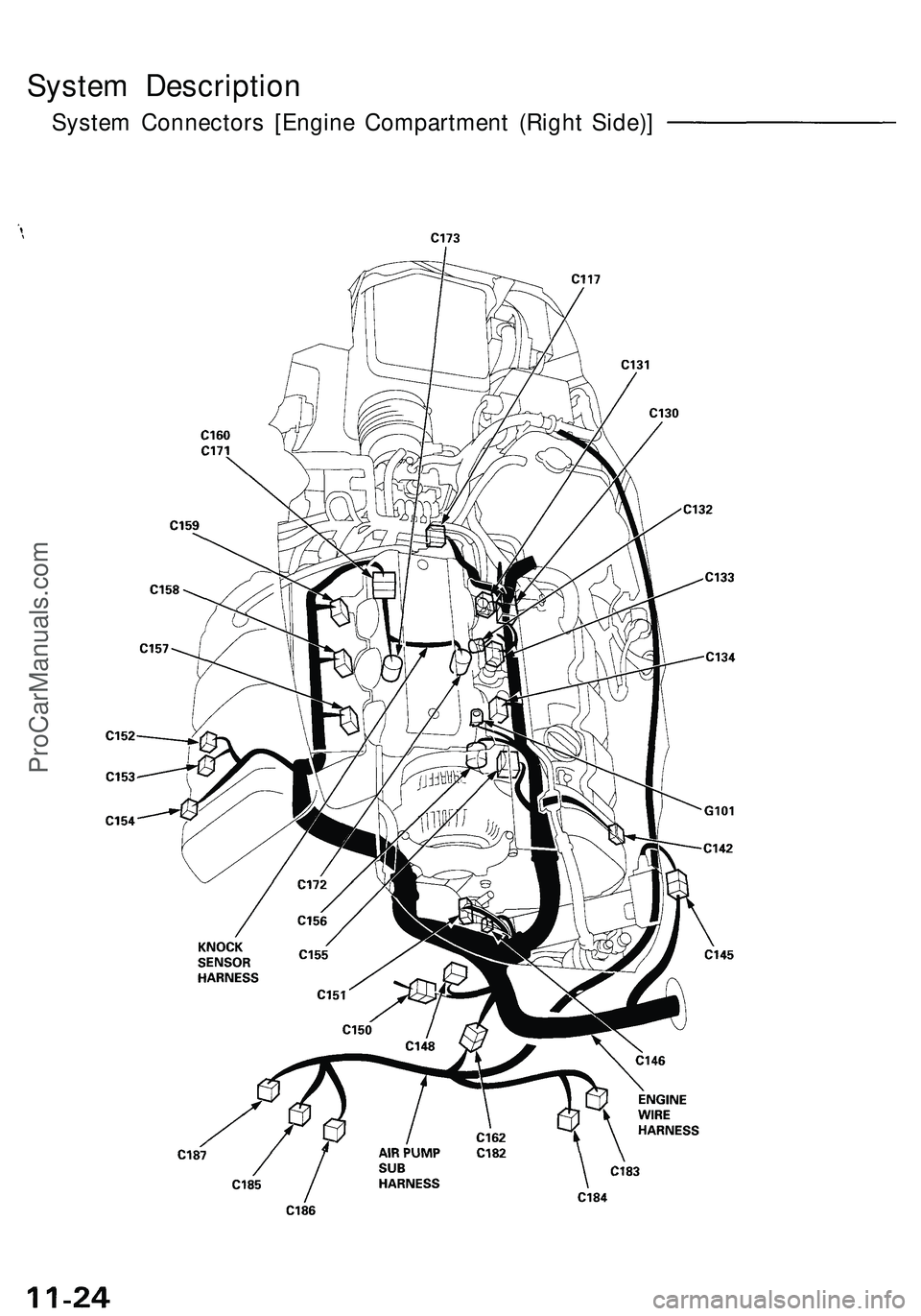

System Connectors [Engine Compartment (Right Side)]ProCarManuals.com

NOTE: • Different wires with the same color have been given a number suffix to distinguish them (for example,

YEL/BLK1 and YEL7BLK2 are not the same).

Related to Fuel and Emissions System.

Connector with male terminals (double outline): View from terminal side

Connector with female terminals (single outline): View from wire sideProCarManuals.com

System Description

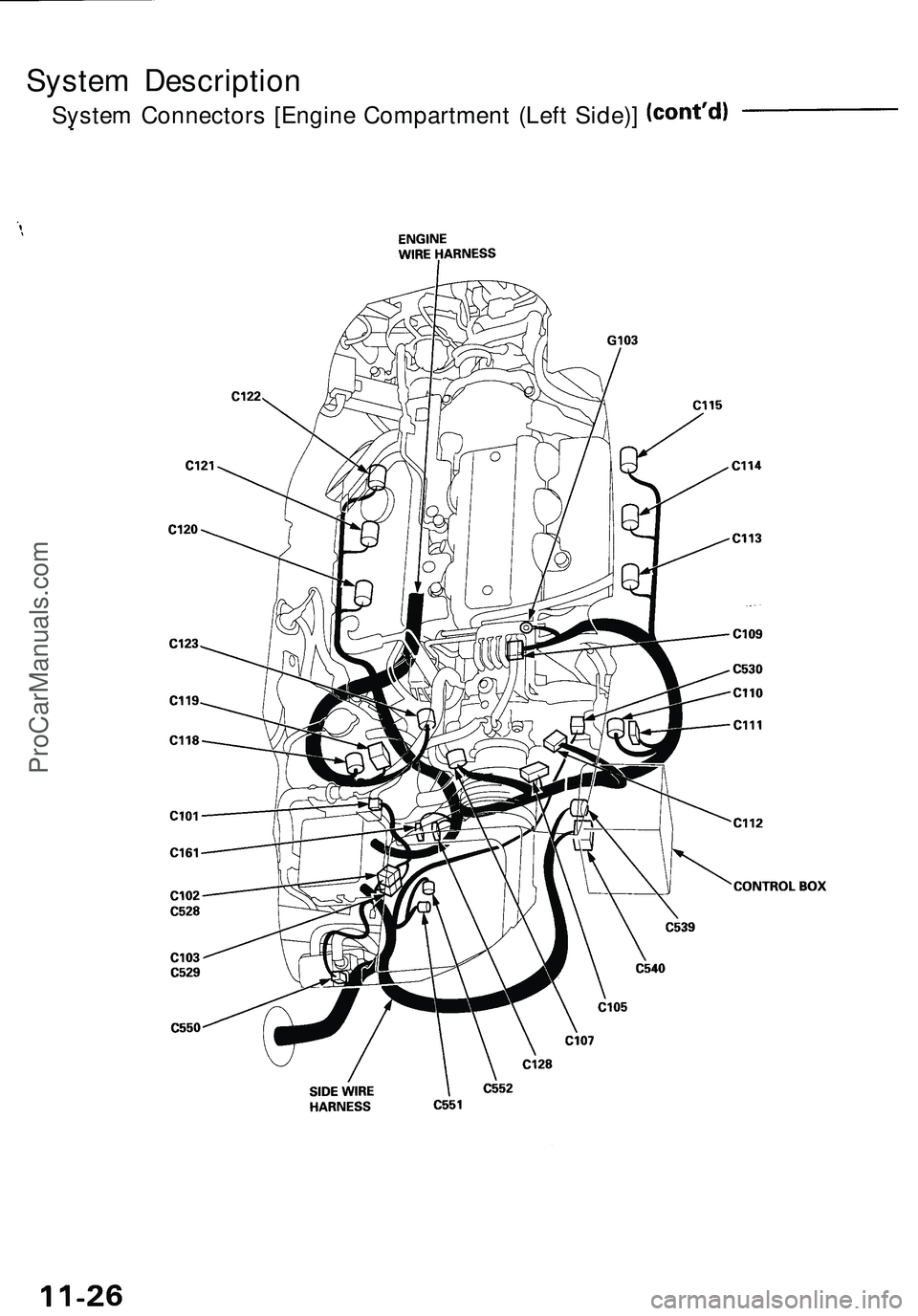

System Connectors [Engine Compartment (Left Side)]ProCarManuals.com

NOTE: • Different wires with the same color have been given a number suffix to distinguish them (for example,

YEL/BLK1 and YEL/BLK2 are not the same).

Related to Fuel and Emissions System.

Connector with male terminals (double outline): View from terminal side

Connector with female terminals (single outline): View from wire sideProCarManuals.com

System Description

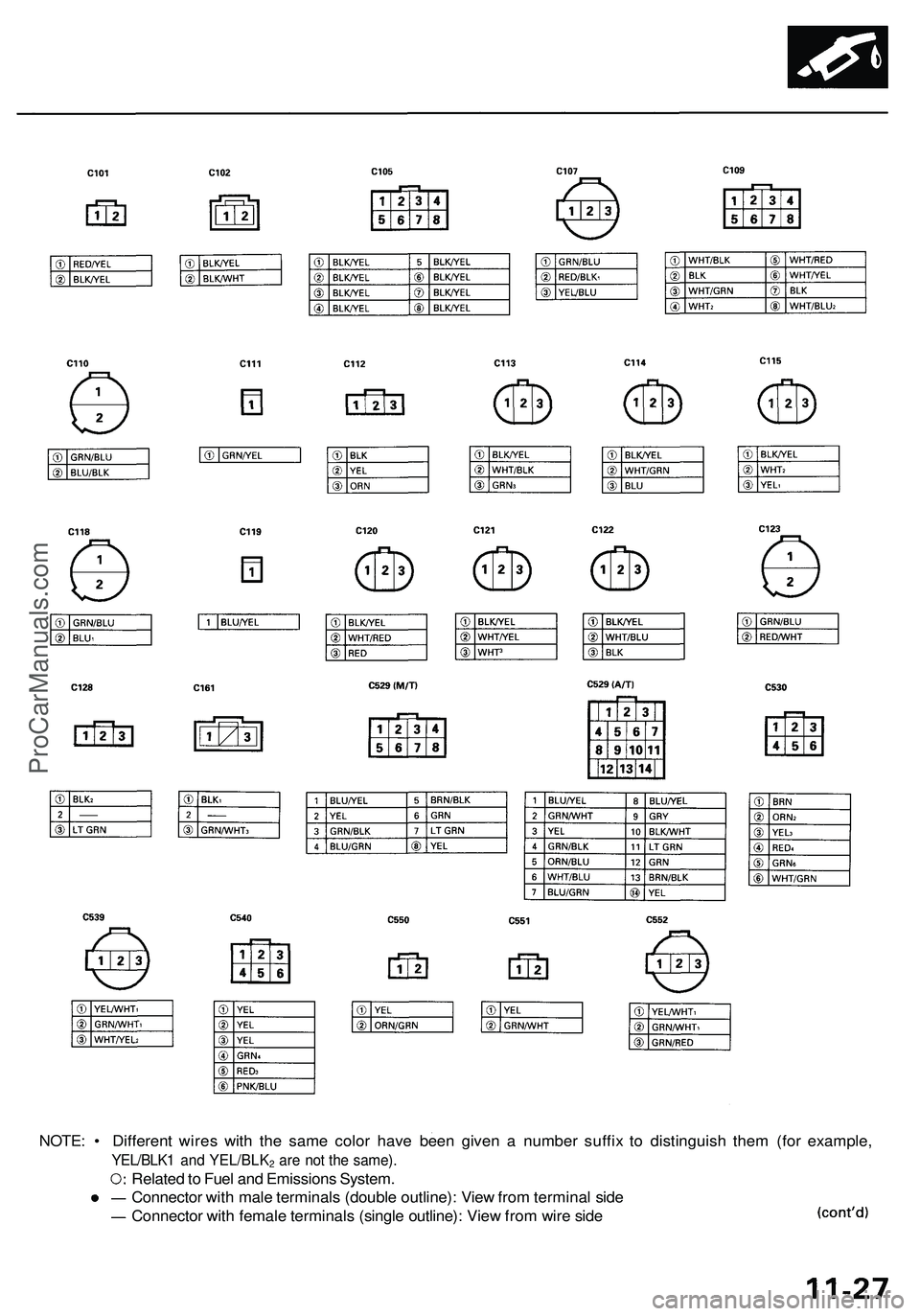

System Connectors [Behind the bulkhead panels] (cont'd)ProCarManuals.com

NOTE: • Different wires with the same color have been given a number suffix to distinguish them (for example, YEL/BLK1

and YEL/BLK2 are not the same).

Related to Fuel and Emissions System.

Connector with male terminals (double outline): View from terminal side

Connector with female terminals (single outline): View from wire sideProCarManuals.com
