ACURA NSX 1997 Service Repair Manual

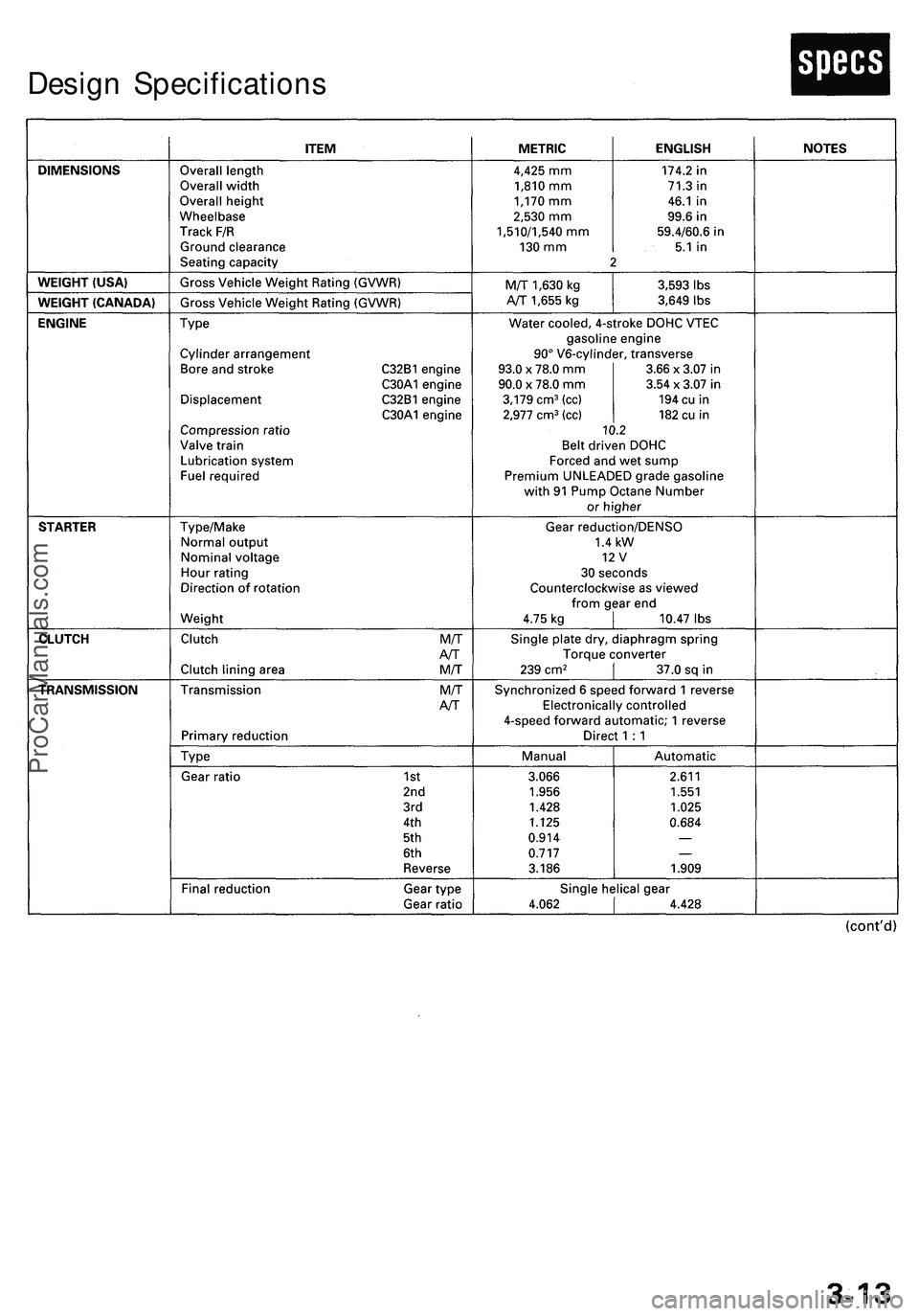

Design SpecificationsProCarManuals.com

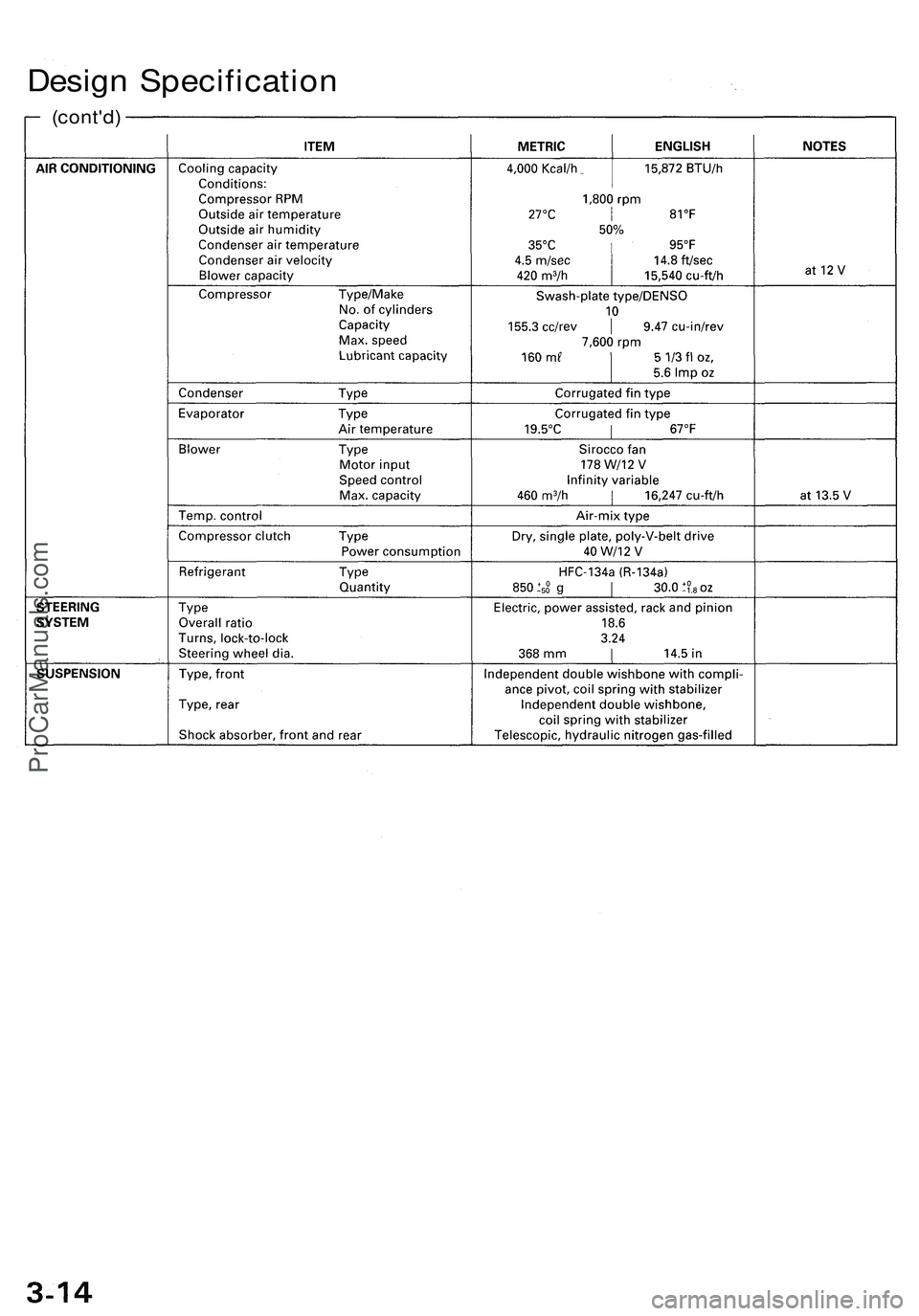

Design Specificatio n
(cont'd)
ProCarManuals.com

ProCarManuals.com

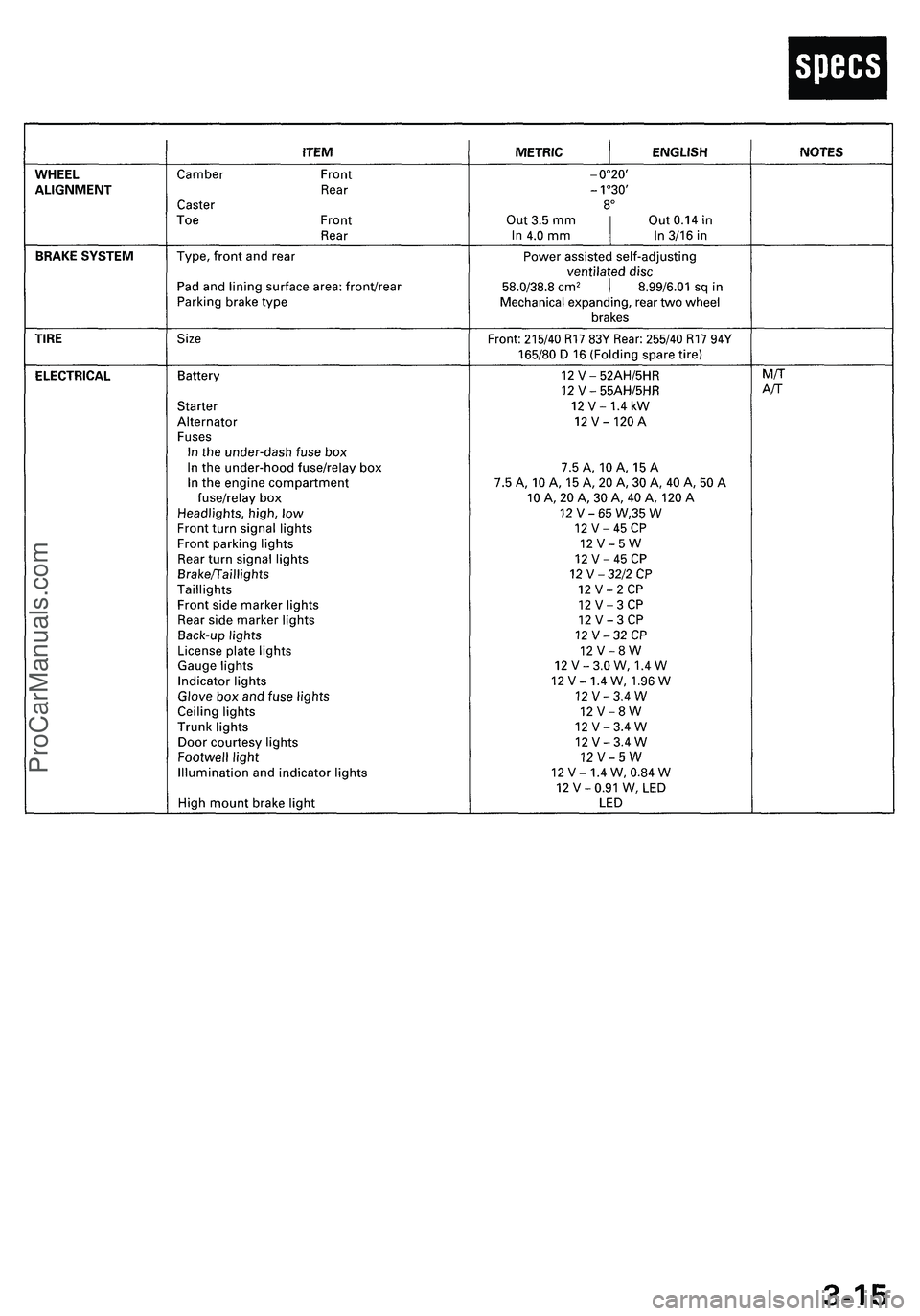

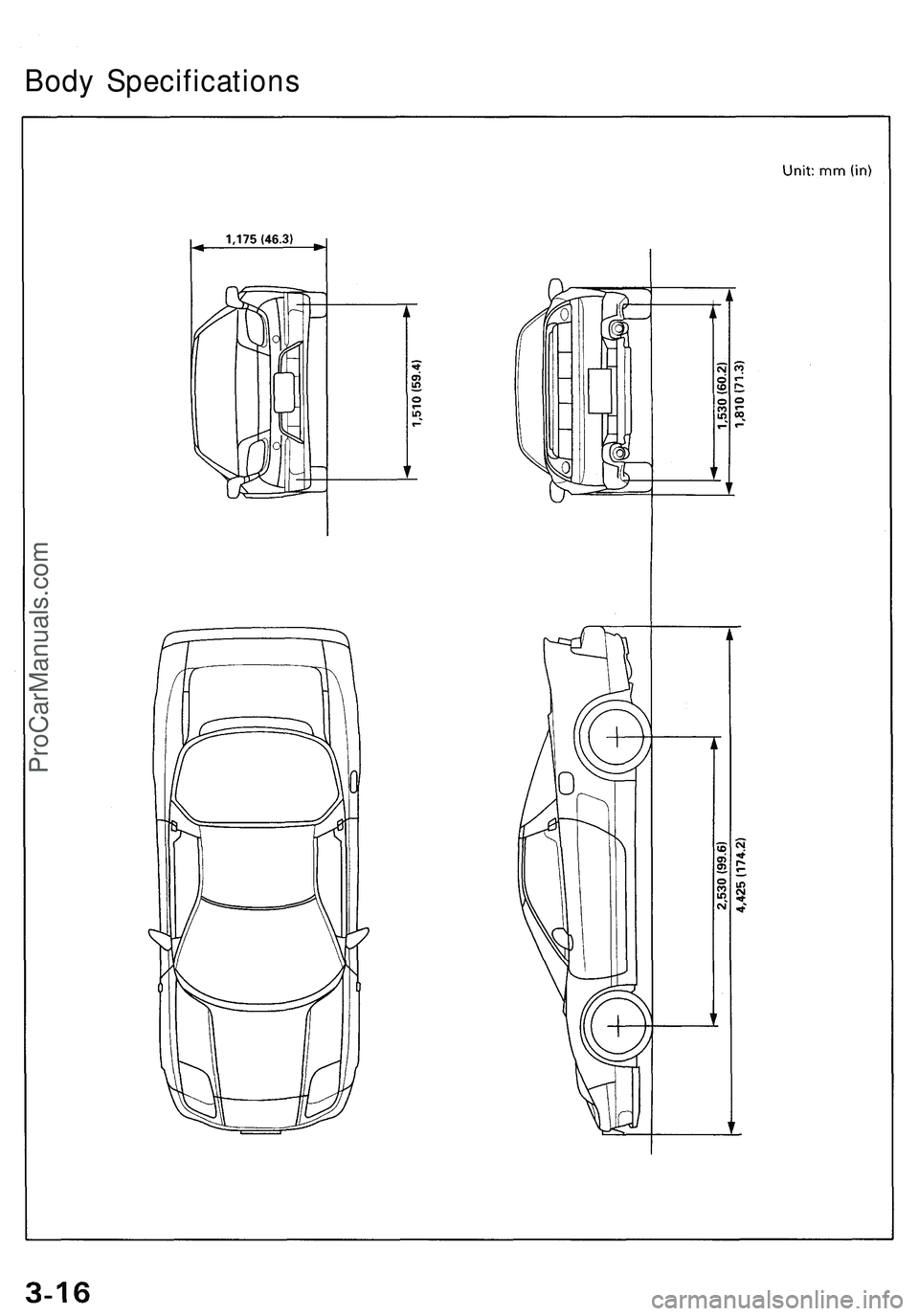

Body SpecificationsProCarManuals.com

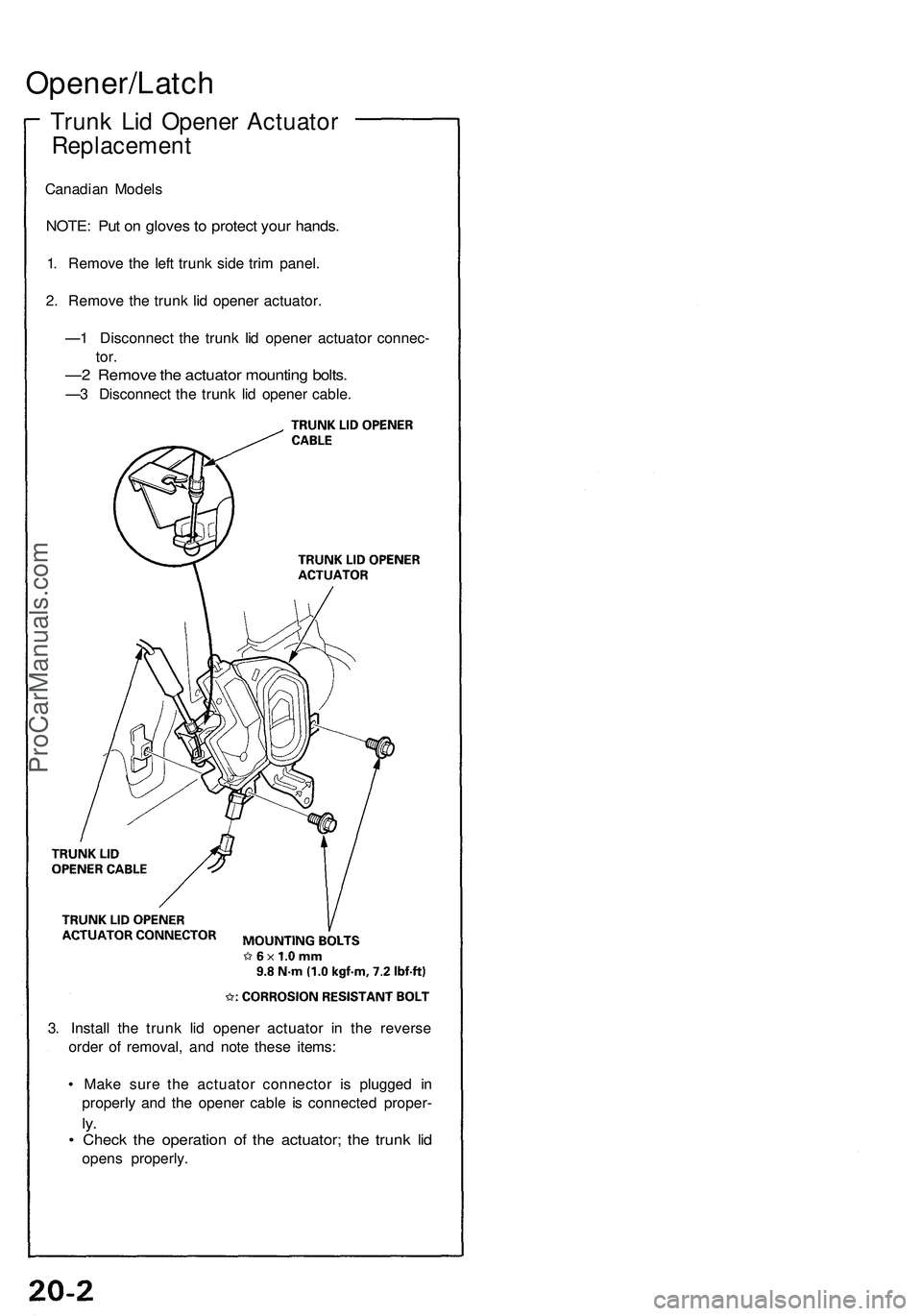

Opener/Latch

Trunk Lid Opener Actuator

Replacement

Canadian Models

NOTE: Put on gloves to protect your hands.

1. Remove the left trunk side trim panel.

2. Remove the trunk lid opener actuator.

—1 Disconnect the trunk lid opener actuator connec-

tor.

—2 Remove the actuator mounting bolts.

—3 Disconnect the trunk lid opener cable.

3. Install the trunk lid opener actuator in the reverse

order of removal, and note these items:

• Make sure the actuator connector is plugged in

properly and the opener cable is connected proper-

ly.

• Check the operation of the actuator; the trunk lid

opens properly.ProCarManuals.com

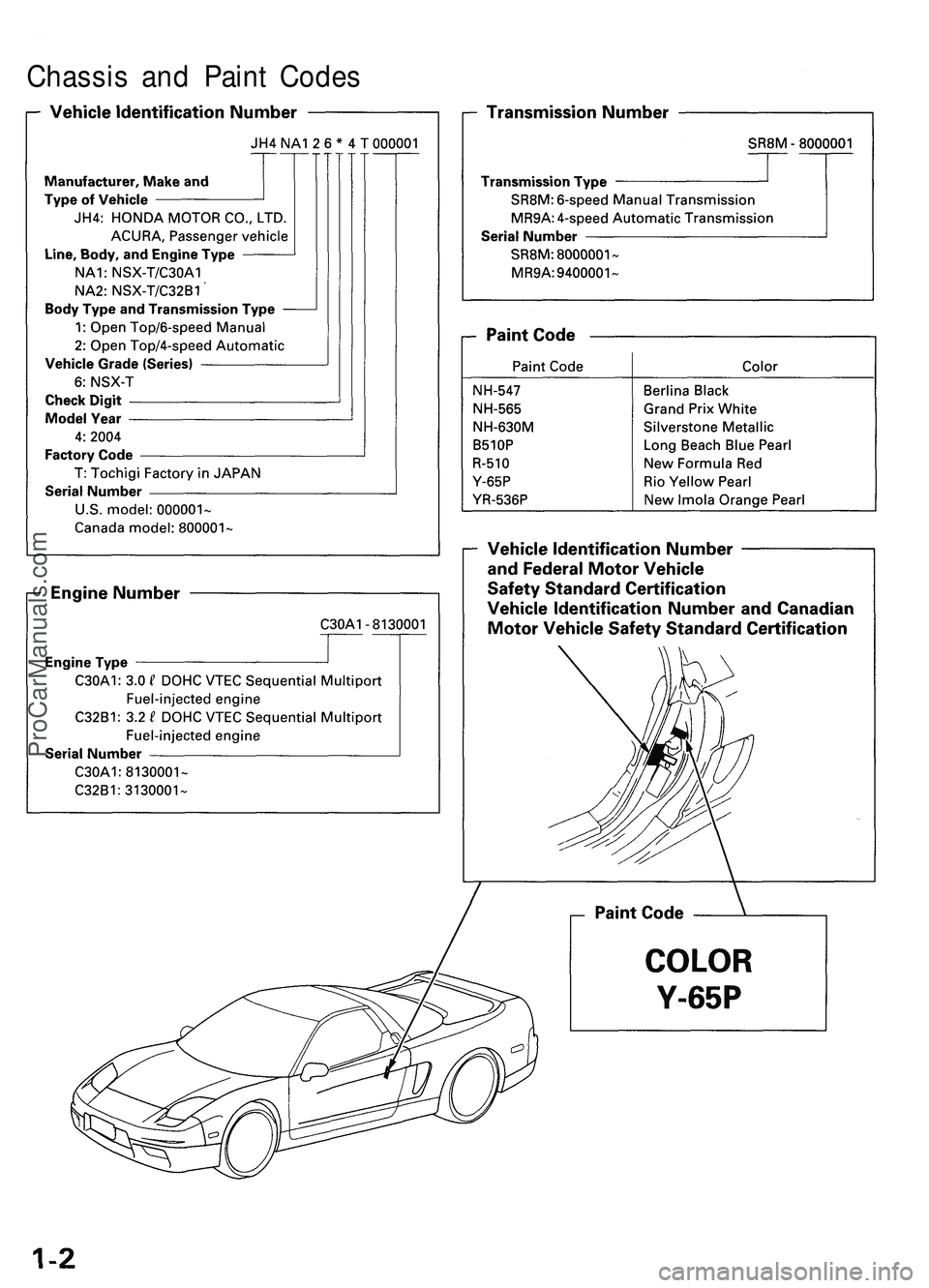

Chassis and Paint CodesProCarManuals.com

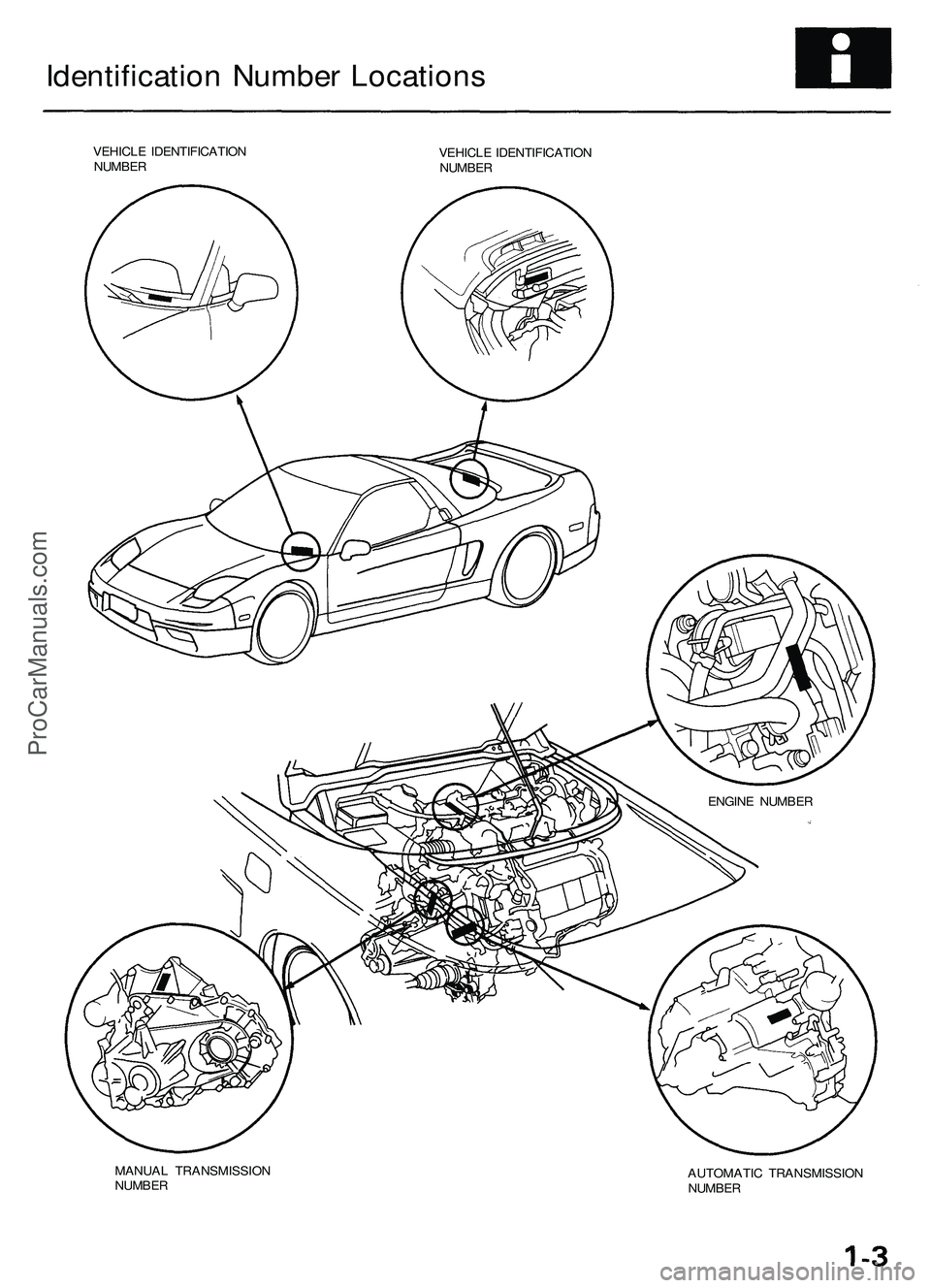

Identification Number Locations

VEHICLE IDENTIFICATION

NUMBER
VEHICLE IDENTIFICATION

NUMBER

ENGINE NUMBER

AUTOMATIC TRANSMISSION

NUMBER
MANUAL TRANSMISSION

NUMBERProCarManuals.com

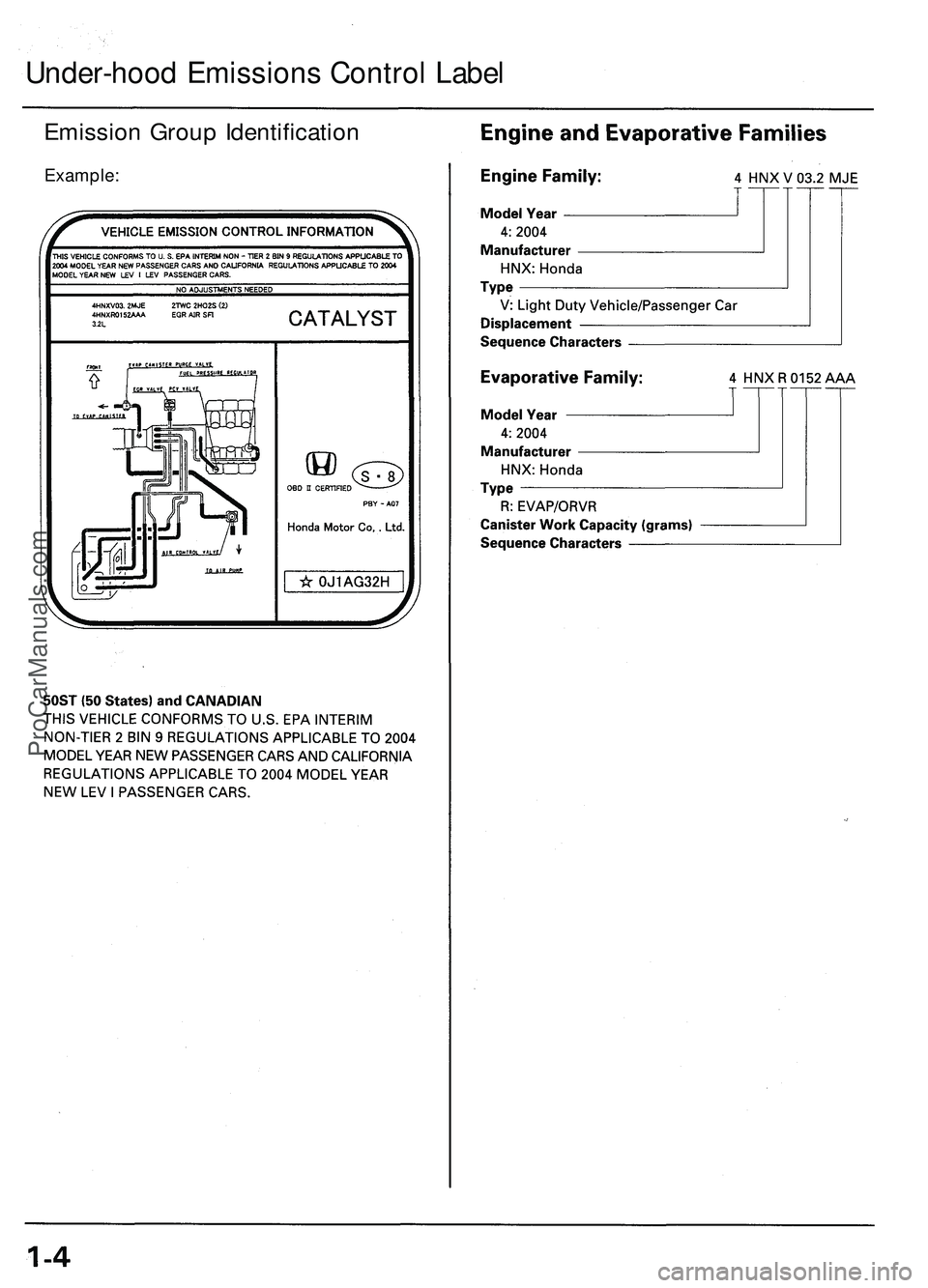

Under-hood Emissions Control Label

Emission Group Identification

Example:ProCarManuals.com

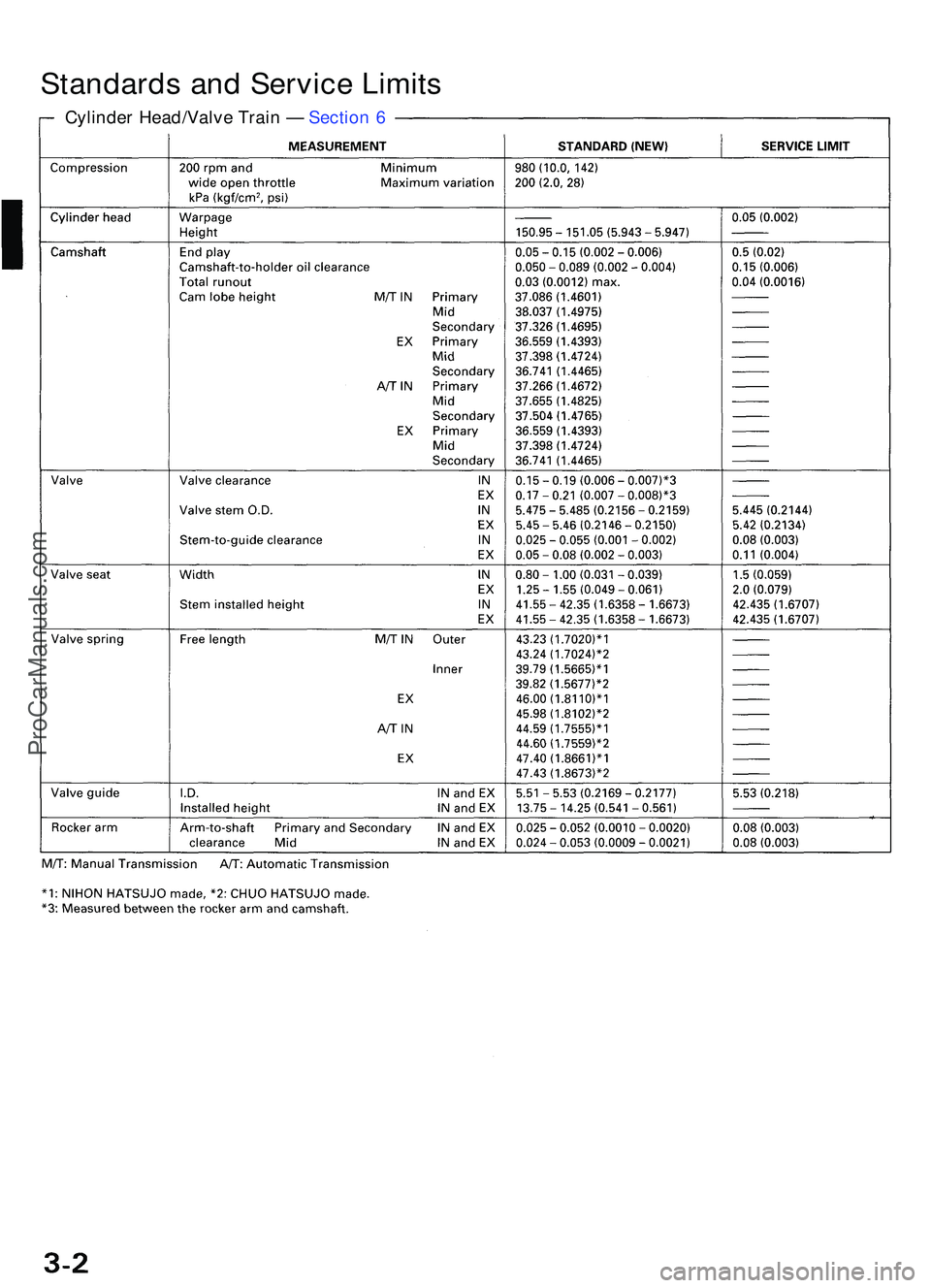

Standards an d Servic e Limit s
Cylinde r Head/Valv e Trai n — Sectio n 6
ProCarManuals.com

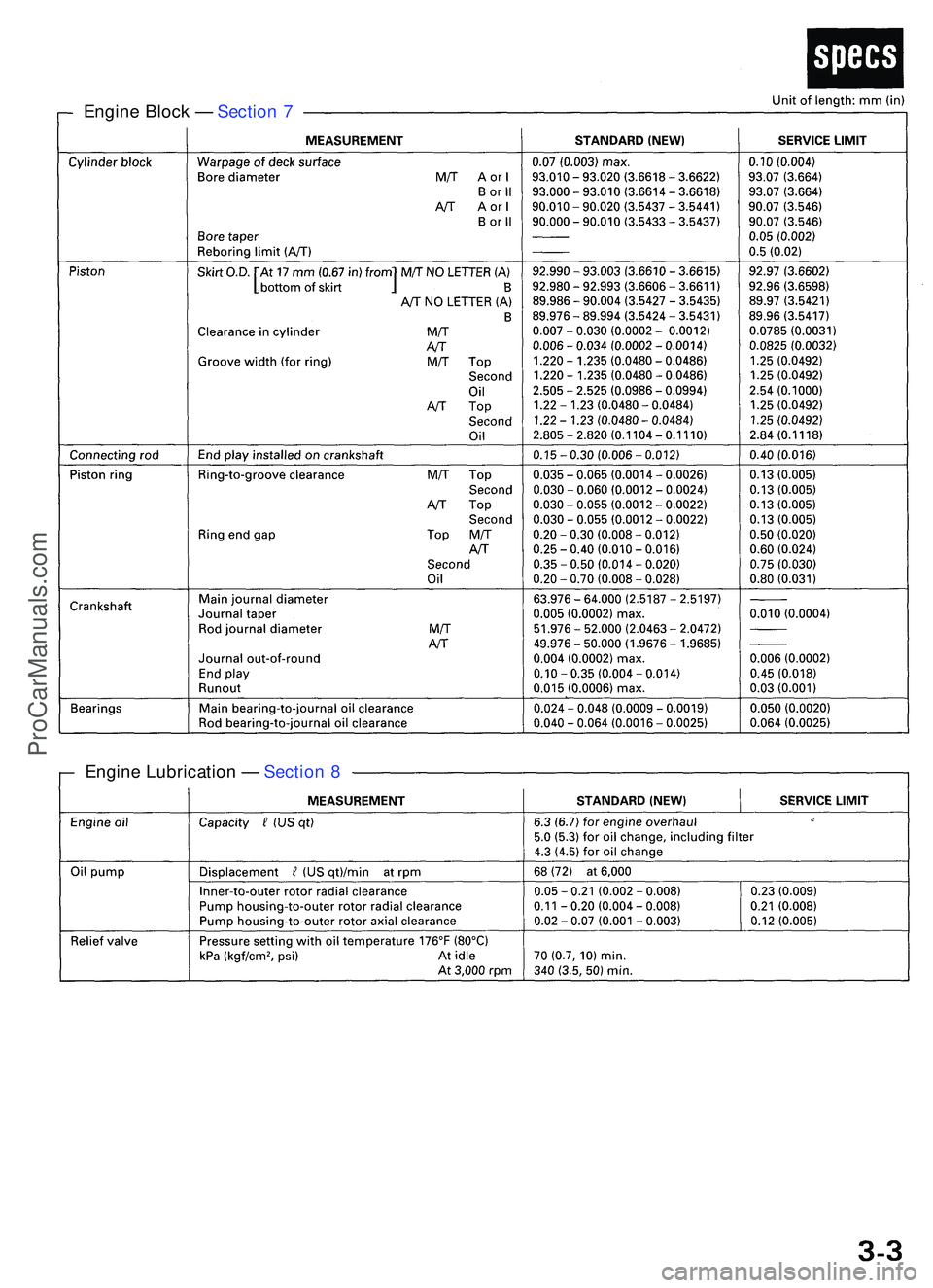

Engine Bloc k — Sectio n 7
Engin e Lubricatio n — Sectio n 8
