ACURA RL KA9 1996 Service Repair Manual

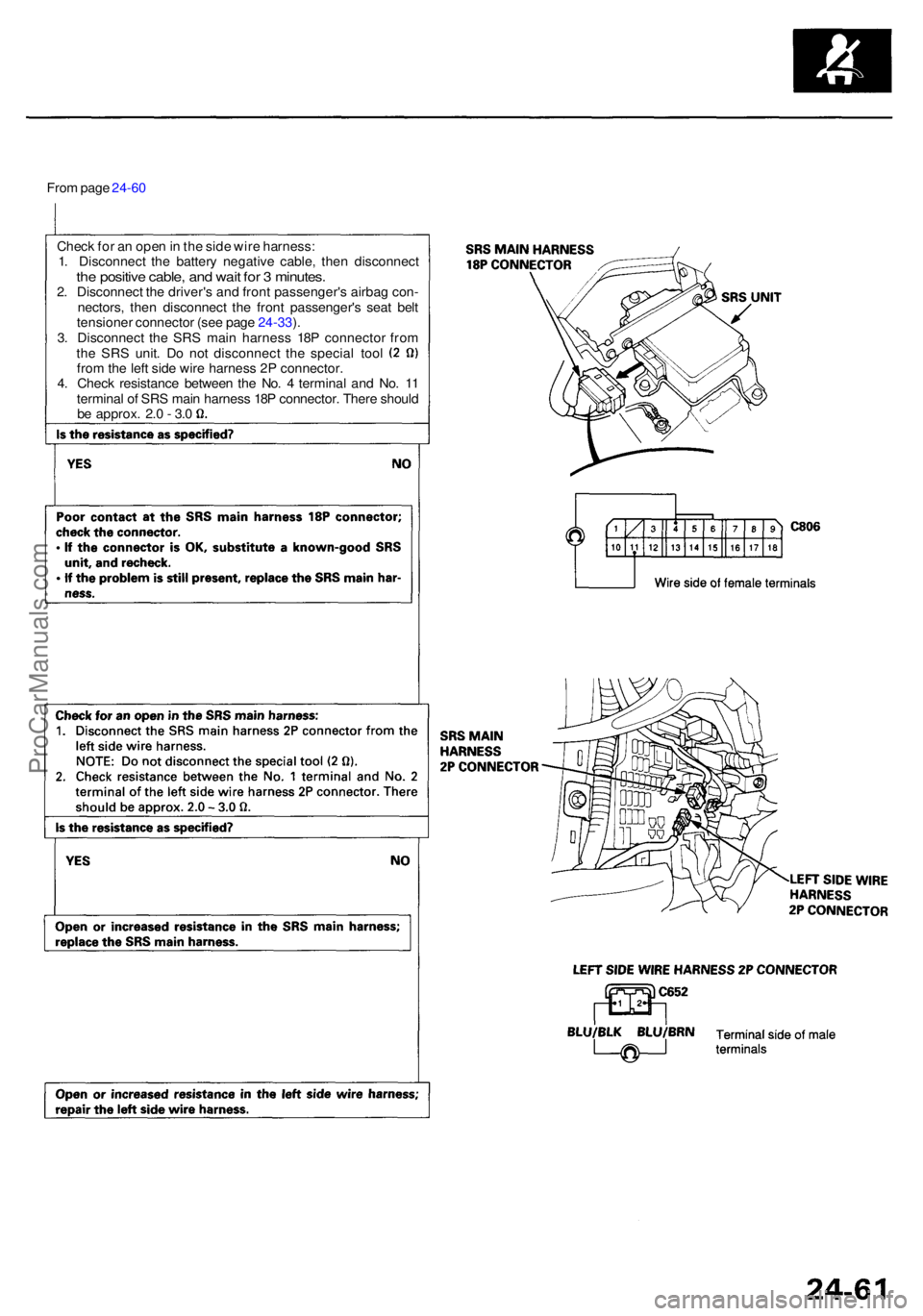

From pag e 24-6 0
Chec k fo r a n ope n in th e sid e wir e harness :
1 . Disconnec t th e batter y negativ e cable , the n disconnec t
the positiv e cable , an d wai t fo r 3 minutes .2. Disconnec t th e driver' s an d fron t passenger' s airba g con -
nectors , the n disconnec t th e fron t passenger' s sea t bel t
tensione r connecto r (se e pag e 24-33 ).
3 . Disconnec t th e SR S mai n harnes s 18 P connecto r fro m
the SR S unit . D o no t disconnec t th e specia l too l
fro m th e lef t sid e wire harnes s 2 P connector .
4 . Chec k resistanc e betwee n th e No . 4 termina l an d No . 1 1
termina l o f SR S mai n harnes s 18 P connector . Ther e shoul d
be approx . 2. 0 - 3. 0
ProCarManuals.com

Troubleshooting - '9 6 - 9 8 Model s

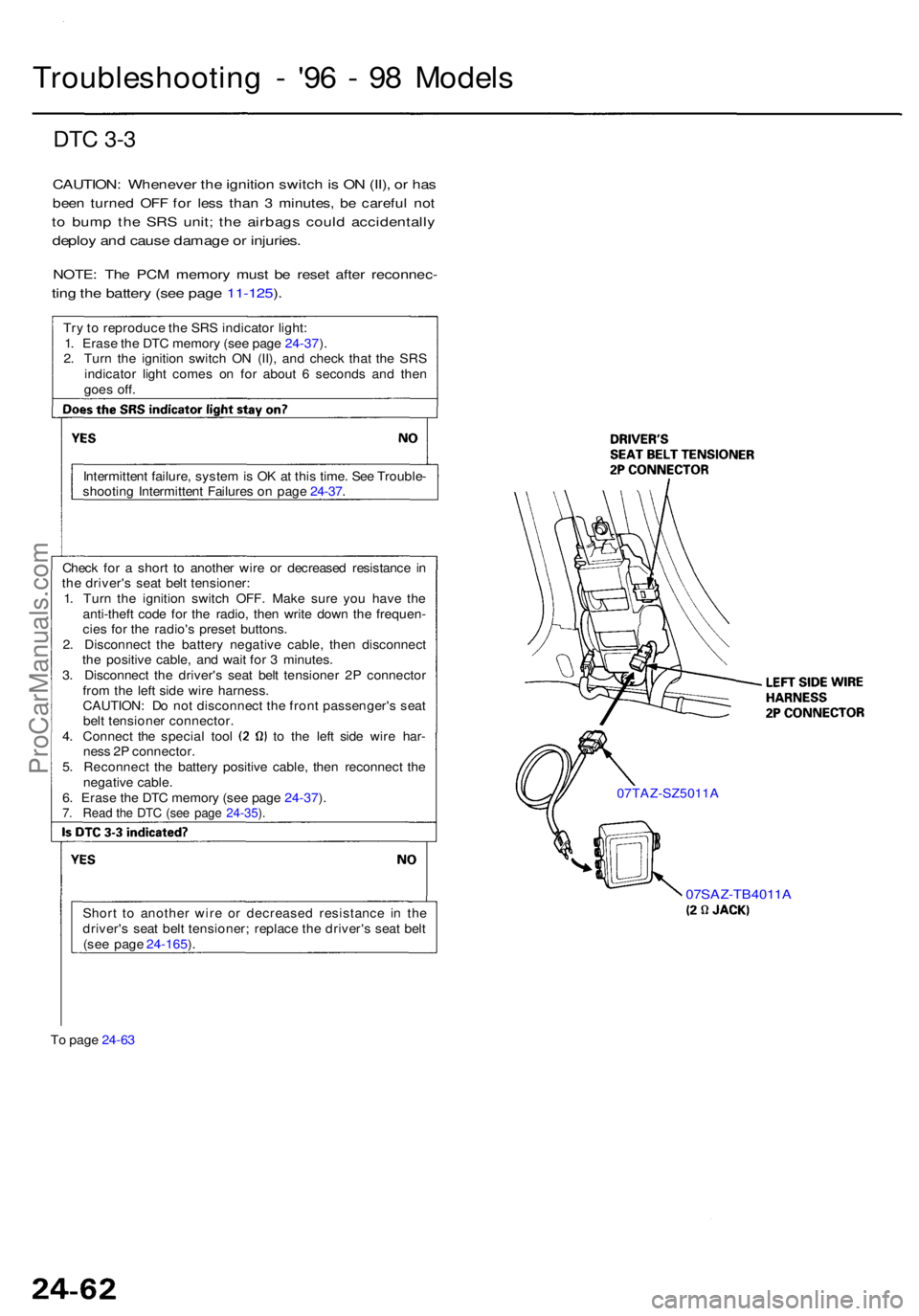

DTC 3- 3
CAUTION : Wheneve r th e ignitio n switc h is O N (II) , o r ha s
bee n turne d OF F fo r les s tha n 3 minutes , b e carefu l no t
to bum p th e SR S unit ; th e airbag s coul d accidentall y
deploy an d caus e damag e o r injuries .
NOTE: Th e PC M memor y mus t b e rese t afte r reconnec -
ting th e batter y (se e pag e 11-125 ).
Tr y to reproduc e th e SR S indicato r light :
1 . Eras e th e DT C memor y (se e pag e 24-37 ).
2 . Tur n th e ignitio n switc h O N (II) , an d chec k tha t th e SR S
indicato r ligh t come s o n fo r abou t 6 second s an d the n
goe s off .
Intermitten t failure , syste m is O K a t thi s time . Se e Trouble -
shootin g Intermitten t Failure s o n pag e 24-37 .
Chec k fo r a shor t t o anothe r wir e o r decrease d resistanc e i n
th e driver' s sea t bel t tensioner :
1 . Tur n th e ignitio n switc h OFF . Mak e sur e yo u hav e th e
anti-thef t cod e fo r th e radio , the n writ e dow n th e frequen -
cie s fo r th e radio' s prese t buttons .
2 . Disconnec t th e batter y negativ e cable , the n disconnec t
th e positive cable, an d wai t fo r 3 minutes .
3 . Disconnec t th e driver' s sea t bel t tensione r 2 P connecto r
fro m th e lef t sid e wir e harness .
CAUTION : D o no t disconnec t th e fron t passenger' s sea t
bel t tensione r connector .
4. Connec t th e specia l too l t o th e lef t sid e wir e har -
nes s 2 P connector .
5 . Reconnec t th e batter y positiv e cable , the n reconnec t th e
negativ e cable .
6 . Eras e th e DT C memor y (se e pag e 24-37 ).
7 . Rea d th e DT C (se e pag e 24-35 ).
Shor t t o anothe r wir e o r decrease d resistanc e i n th e
driver' s sea t bel t tensioner ; replac e th e driver' s sea t bel t
(se e pag e 24-165 ).
T o pag e 24-6 3
07SAZ-TB4011 A
07TAZ-SZ5011 A
ProCarManuals.com

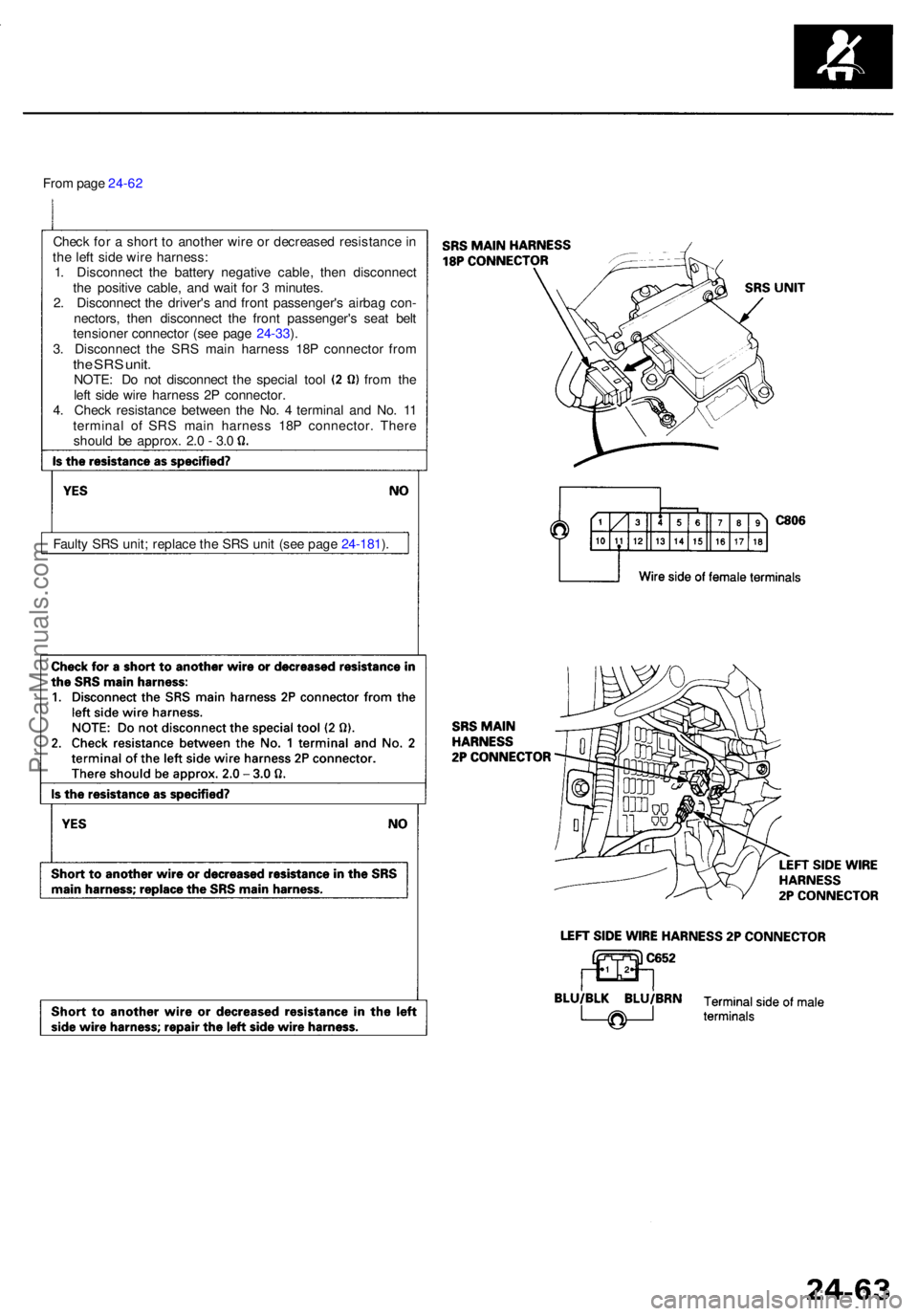

From pag e 24-6 2
Chec k fo r a shor t t o anothe r wir e o r decrease d resistanc e in
th e lef t sid e wir e harness :
1 . Disconnec t th e batter y negativ e cable , the n disconnec t
th e positiv e cable , an d wai t fo r 3 minutes .
2 . Disconnec t th e driver' s an d fron t passenger' s airba g con -
nectors , the n disconnec t th e fron t passenger' s sea t bel t
tensione r connecto r (se e pag e 24-33 ).
3 . Disconnec t th e SR S mai n harnes s 18 P connecto r fro m
the SR S unit .NOTE : D o no t disconnec t th e specia l too l fro m th e
lef t sid e wir e harnes s 2 P connector .
4 . Chec k resistanc e betwee n th e No . 4 termina l an d No . 1 1
termina l o f SR S mai n harnes s 18 P connector . Ther e
should b e approx . 2. 0 - 3. 0
Fault y SR S unit ; replac e th e SR S uni t (se e pag e 24-181 ).
ProCarManuals.com

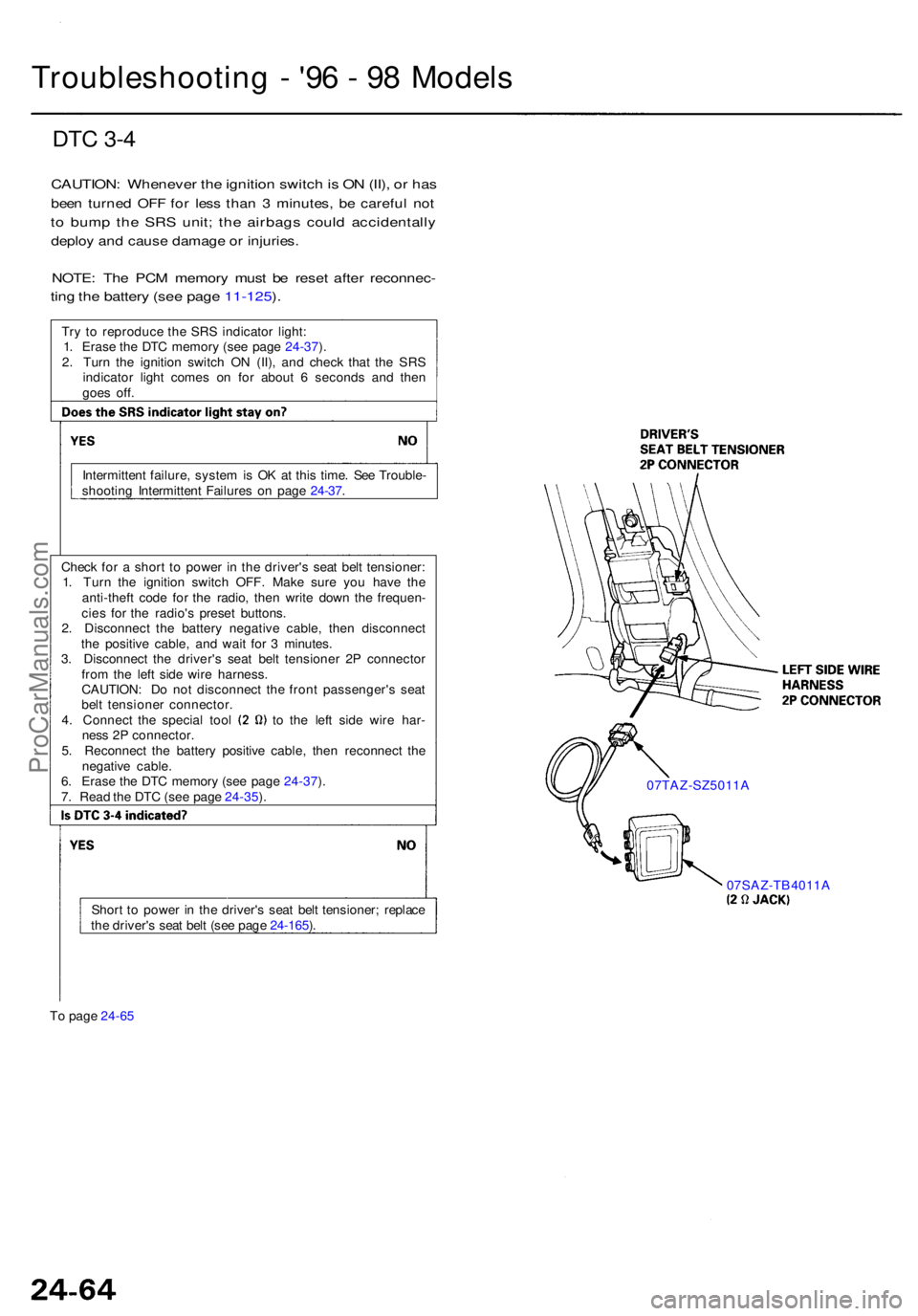

DTC 3- 4
CAUTION : Wheneve r th e ignitio n switc h is O N (II) , o r ha s
bee n turne d OF F fo r les s tha n 3 minutes , b e carefu l no t
to bum p th e SR S unit ; th e airbag s coul d accidentall y
deploy an d caus e damag e o r injuries .
NOTE: Th e PC M memor y mus t b e rese t afte r reconnec -
ting th e batter y (se e pag e 11-125 ).
Troubleshootin g - '9 6 - 9 8 Model s
Try t o reproduc e th e SR S indicato r light :
1 . Eras e th e DT C memor y (se e pag e 24-37 ).
2 . Tur n th e ignitio n switc h O N (II) , an d chec k tha t th e SR S
indicato r ligh t come s o n fo r abou t 6 second s an d the n
goe s off .
Intermitten t failure , syste m is O K a t thi s time . Se e Trouble -
shootin g Intermitten t Failure s o n pag e 24-37 .
Chec k fo r a shor t t o powe r i n th e driver' s sea t bel t tensioner :
1 . Tur n th e ignitio n switc h OFF . Mak e sur e yo u hav e th e
anti-thef t cod e fo r th e radio , the n writ e dow n th e frequen -
cie s fo r th e radio' s prese t buttons .
2 . Disconnec t th e batter y negativ e cable , the n disconnec t
th e positive cable, an d wai t fo r 3 minutes .
3 . Disconnec t th e driver' s sea t bel t tensione r 2 P connecto r
fro m th e lef t sid e wir e harness .
CAUTION : D o no t disconnec t th e fron t passenger' s sea t
bel t tensione r connector .
4. Connec t th e specia l too l t o th e lef t sid e wir e har -
nes s 2 P connector .
5 . Reconnec t th e batter y positiv e cable , the n reconnec t th e
negativ e cable .
6 . Eras e th e DT C memor y (se e pag e 24-37 ).
7 . Rea d th e DT C (se e pag e 24-35 ).
Shor t t o powe r i n th e driver' s sea t bel t tensioner ; replac e
th e driver' s sea t bel t (se e pag e 24-165 ).
T o pag e 24-65 07TAZ-SZ5011
A
07SAZ-TB4011 A
ProCarManuals.com

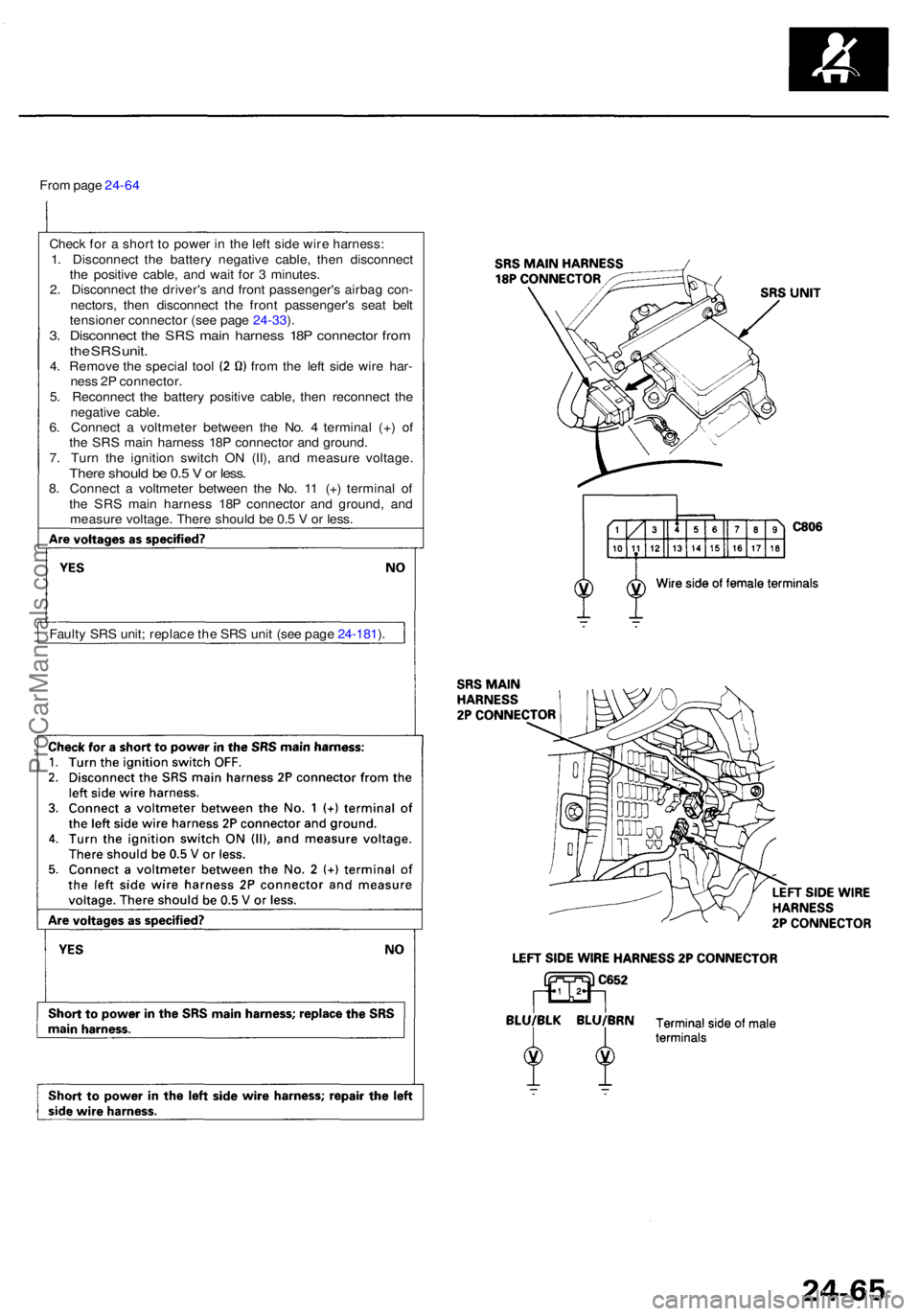

From pag e 24-6 4
Chec k fo r a shor t t o powe r i n th e lef t sid e wir e harness :
1 . Disconnec t th e batter y negativ e cable , the n disconnec t
th e positiv e cable , an d wai t fo r 3 minutes .
2 . Disconnec t th e driver' s an d fron t passenger' s airba g con -
nectors , the n disconnec t th e fron t passenger' s sea t bel t
tensione r connecto r (se e pag e 24-33 ).
3 . Disconnec t th e SR S mai n harnes s 18 P connecto r fro mthe SR S unit .4. Remov e th e specia l too l fro m th e lef t sid e wir e har -
nes s 2 P connector .
5 . Reconnec t th e batter y positive cable, the n reconnec t th e
negativ e cable .
6 . Connec t a voltmete r betwee n th e No . 4 termina l (+ ) o f
th e SR S mai n harnes s 18 P connecto r an d ground .
7 . Tur n th e ignitio n switc h O N (II) , an d measur e voltage .
There shoul d b e 0. 5 V or less .8. Connec t a voltmete r betwee n th e No . 1 1 (+ ) termina l o f
th e SR S mai n harnes s 18 P connecto r an d ground , an d
measur e voltage . Ther e shoul d b e 0. 5 V or less .
Fault y SR S unit ; replac e th e SR S uni t (se e pag e 24-181 ).
ProCarManuals.com

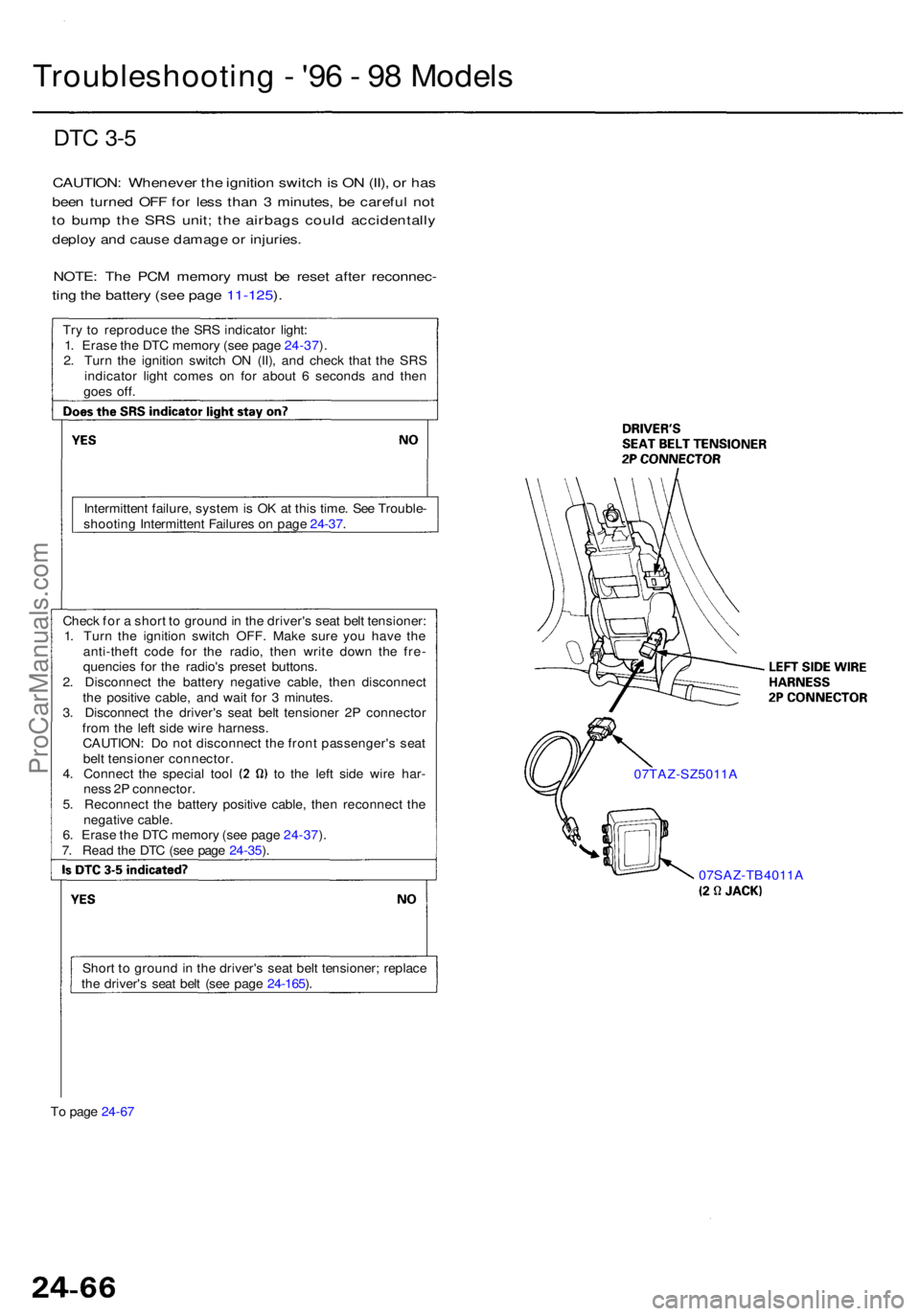

DTC 3- 5
CAUTION : Wheneve r th e ignitio n switc h is O N (II) , o r ha s
bee n turne d OF F fo r les s tha n 3 minutes , b e carefu l no t
to bum p th e SR S unit ; th e airbag s coul d accidentall y
deploy an d caus e damag e o r injuries .
NOTE: Th e PC M memor y mus t b e rese t afte r reconnec -
ting th e batter y (se e pag e 11-125 ).
Troubleshootin g - '9 6 - 9 8 Model s
Try t o reproduc e th e SR S indicato r light :
1 . Eras e th e DT C memor y (se e pag e 24-37 ).
2 . Tur n th e ignitio n switc h O N (II) , an d chec k tha t th e SR S
indicato r ligh t come s o n fo r abou t 6 second s an d the n
goe s off .
Intermitten t failure , syste m is O K a t thi s time . Se e Trouble -
shootin g Intermitten t Failure s o n pag e 24-37 .
Chec k fo r a shor t t o groun d in th e driver' s sea t bel t tensioner :
1 . Tur n th e ignitio n switc h OFF . Mak e sur e yo u hav e th e
anti-thef t cod e fo r th e radio , the n writ e dow n th e fre -
quencie s fo r th e radio' s prese t buttons .
2 . Disconnec t th e batter y negativ e cable , the n disconnec t
th e positiv e cable , an d wai t fo r 3 minutes .
3 . Disconnec t th e driver' s sea t bel t tensione r 2 P connecto r
fro m th e lef t sid e wir e harness .
CAUTION : D o no t disconnec t th e fron t passenger' s sea t
bel t tensione r connector .
4. Connec t th e specia l too l t o th e lef t sid e wir e har -
nes s 2 P connector .
5 . Reconnec t th e batter y positiv e cable , the n reconnec t th e
negativ e cable .
6 . Eras e th e DT C memor y (se e pag e 24-37 ).
7 . Rea d th e DT C (se e pag e 24-35 ). 07TAZ-SZ5011
A
07SAZ-TB4011 A
T o pag e 24-6 7
Shor
t t o groun d in th e driver' s sea t bel t tensioner ; replac e
th e driver' s sea t bel t (se e pag e 24-165 ).
ProCarManuals.com

Faulty SR S unit ; replac e th e SR S uni t (se e pag e 24-181 ).

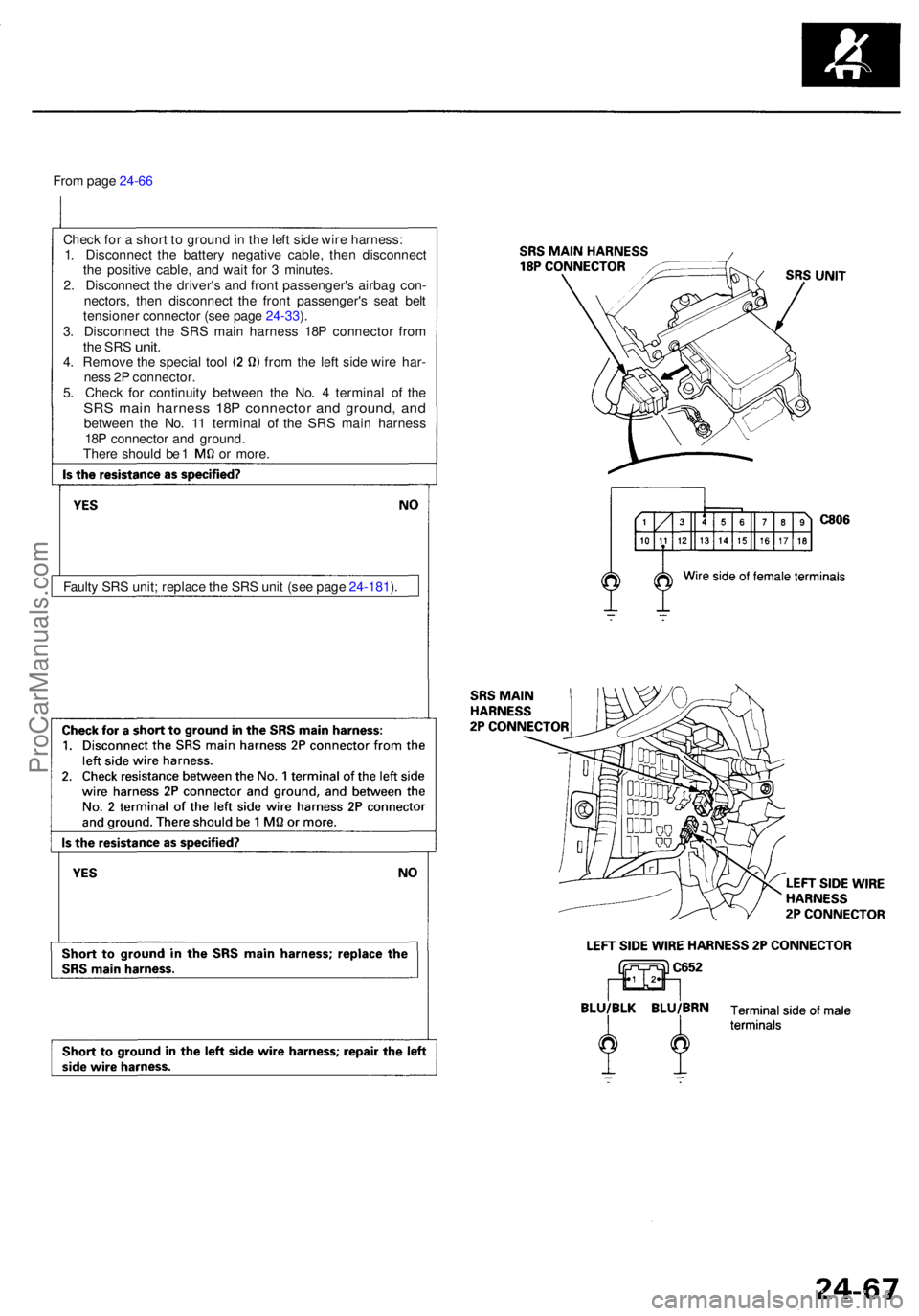

Fro
m pag e 24-6 6
Chec k fo r a shor t t o groun d in th e lef t sid e wir e harness :
1 . Disconnec t th e batter y negativ e cable , the n disconnec t
th e positiv e cable , an d wai t fo r 3 minutes .
2 . Disconnec t th e driver' s an d fron t passenger' s airba g con -
nectors , the n disconnec t th e fron t passenger' s sea t bel t
tensione r connecto r (se e pag e 24-33 ).
3 . Disconnec t th e SR S mai n harnes s 18 P connecto r fro m
the SR S unit .4. Remov e th e specia l too l fro m th e lef t sid e wir e har -
nes s 2 P connector .
5 . Chec k fo r continuit y betwee n th e No . 4 termina l o f th e
SR S mai n harnes s 18 P connecto r an d ground , an dbetwee n th e No . 1 1 termina l o f th e SR S mai n harnes s
18 P connecto r an d ground .
There shoul d b e 1 o r more .
ProCarManuals.com

To pag e 24-6 9
Ope
n o r increase d resistanc e i n th e fron t passenger' s sea t
bel t tensioner ; replac e th e passenger' s sea t bel t (se e pag e
24-165 ).
07SAZ-TB4011 A
07TAZ-SZ5011
A
Chec
k fo r a n ope n in th e passenger' s sea t bel t tensioner :
1 . Tur n th e ignitio n switc h OFF . Mak e sur e yo u hav e th e
anti-thef t cod e fo r th e radio , the n writ e dow n th e fre -
quencie s fo r th e radio' s prese t buttons .
2 . Disconnec t th e batter y negativ e cable , the n disconnec t
th e positiv e cable , an d wai t fo r 3 minutes .
3 . Disconnec t th e fron t passenger' s sea t bel t tensione r 2 P
connecto r fro m th e righ t sid e wire harness .
CAUTION : D o no t disconnec t th e driver' s sea t bel t ten -
sione r connector .
4. Connec t th e specia l too l t o th e righ t sid e wire har-
nes s 2 P connector .
5 . Reconnec t th e batter y positiv e cable , the n reconnec t th e
negativ e cable .
6 . Eras e th e DT C memor y (se e pag e 24-37 ).
7 . Rea d th e DT C (se e pag e 24-35 ).

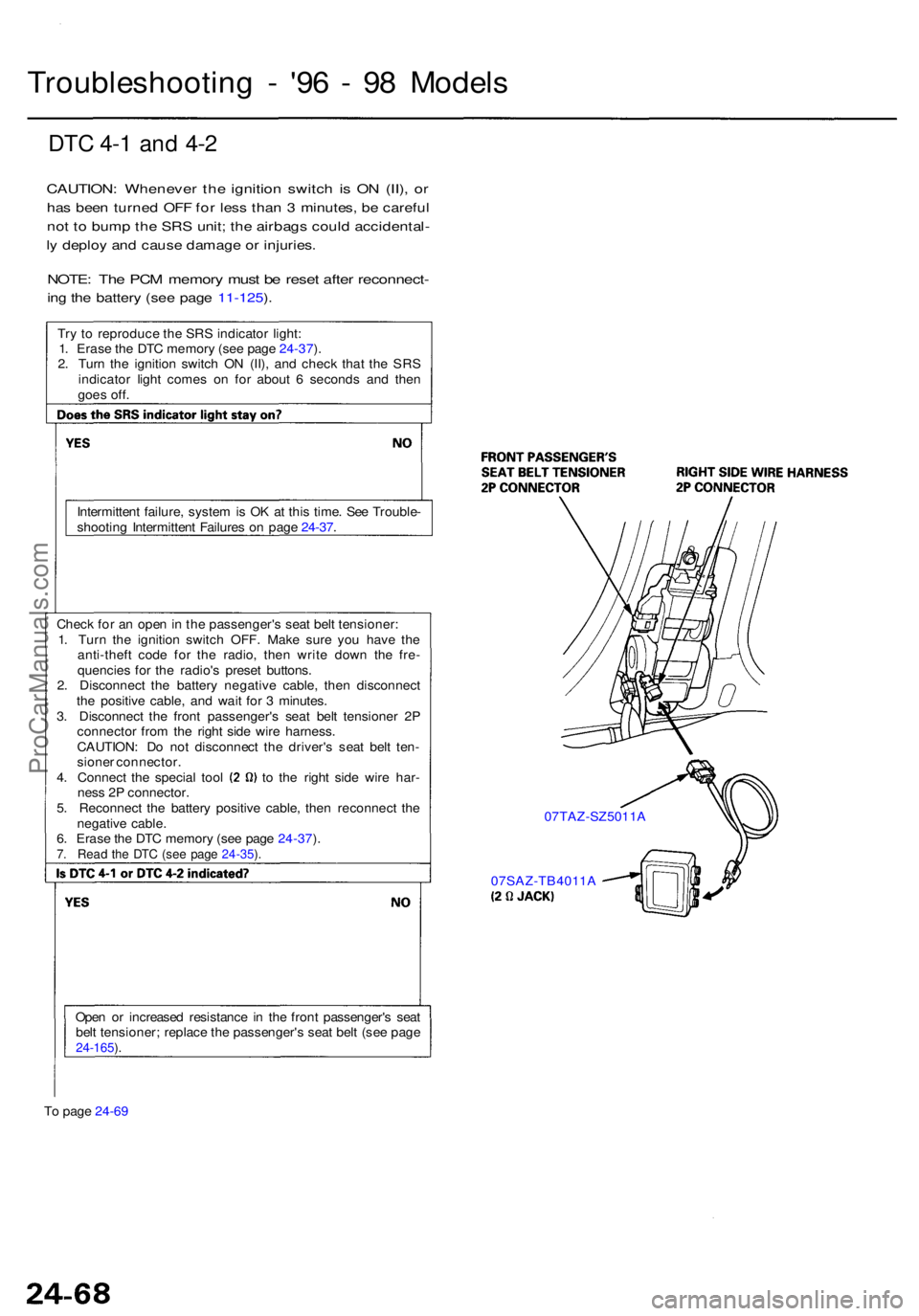

DT C 4- 1 an d 4- 2
CAUTION : Wheneve r th e ignitio n switc h is O N (II) , o r
ha s bee n turne d OF F fo r les s tha n 3 minutes , b e carefu l
not t o bum p th e SR S unit ; th e airbag s coul d accidental -
ly deplo y an d caus e damag e o r injuries .
NOTE: Th e PC M memor y mus t b e rese t afte r reconnect -
ing th e batter y (se e pag e 11-125 ).
Troubleshootin g - '9 6 - 9 8 Model s
Try t o reproduc e th e SR S indicato r light :
1 . Eras e th e DT C memor y (se e pag e 24-37 ).
2 . Tur n th e ignitio n switc h O N (II) , an d chec k tha t th e SR S
indicato r ligh t come s o n fo r abou t 6 second s an d the n
goe s off .
Intermitten t failure , syste m is O K a t thi s time . Se e Trouble -
shootin g Intermitten t Failure s o n pag e 24-37 .
ProCarManuals.com

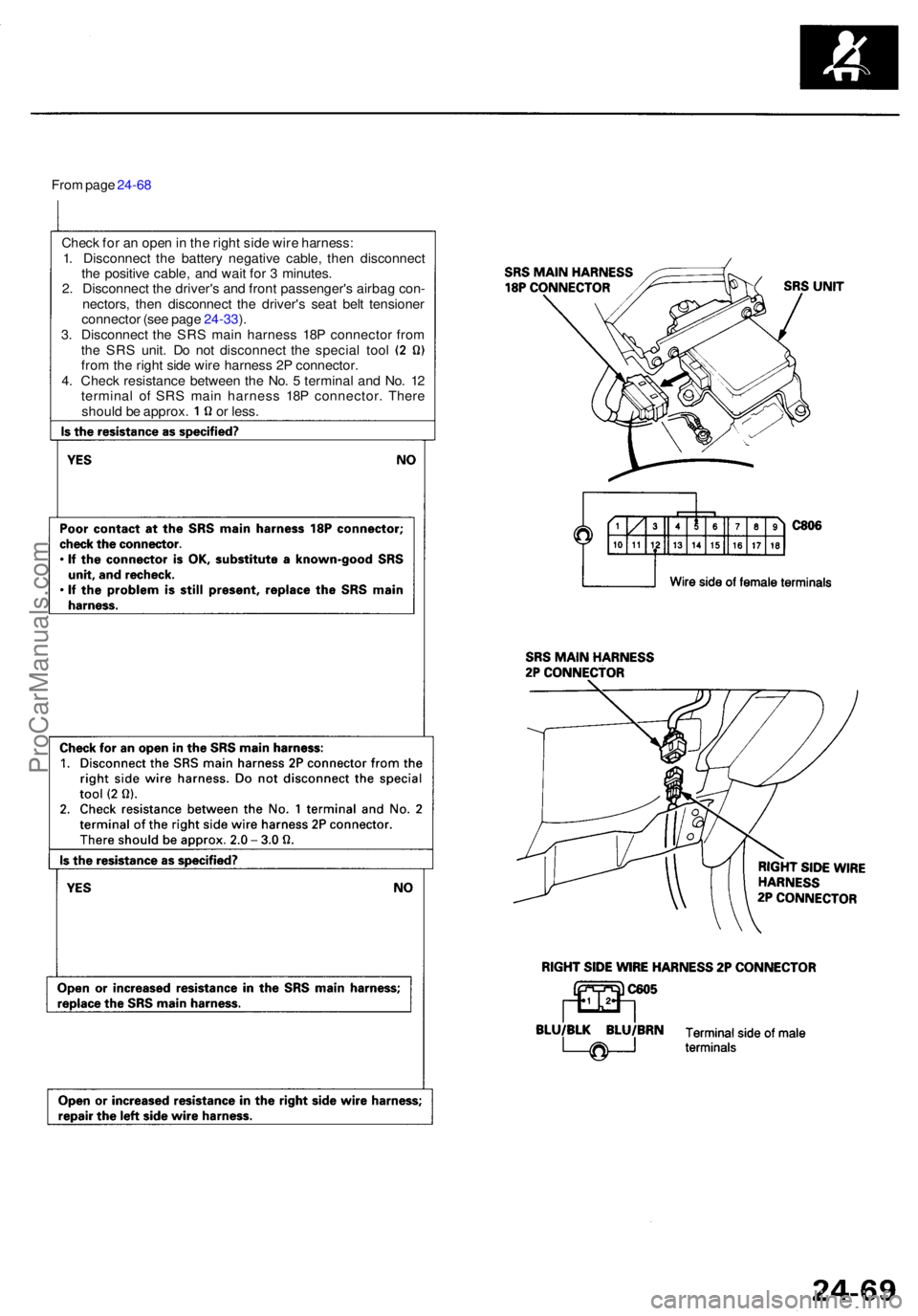

From pag e 24-6 8
Chec k fo r a n ope n in th e righ t sid e wir e harness :
1 . Disconnec t th e batter y negativ e cable , the n disconnec t
th e positiv e cable , an d wai t fo r 3 minutes .
2 . Disconnec t th e driver' s an d fron t passenger' s airba g con -
nectors , the n disconnec t th e driver' s sea t bel t tensione r
connecto r (se e pag e 24-33 ).
3 . Disconnec t th e SR S mai n harnes s 18 P connecto r fro m
the SR S unit . D o no t disconnec t th e specia l too l
fro m th e righ t sid e wir e harnes s 2 P connector .
4 . Chec k resistanc e betwee n th e No . 5 termina l an d No . 1 2
termina l o f SR S mai n harnes s 18 P connector . Ther e
should b e approx . o r less .
ProCarManuals.com

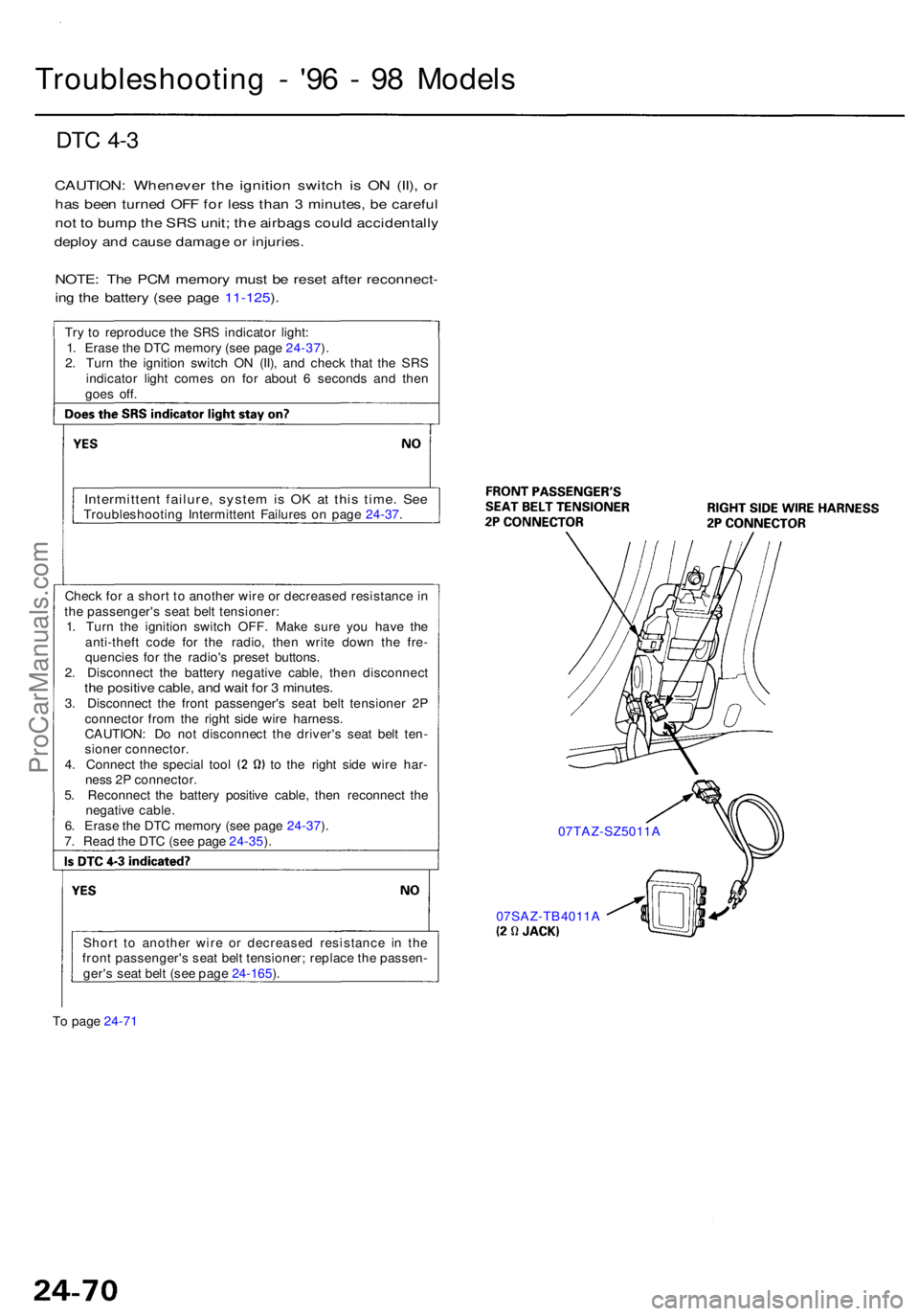

Troubleshooting - '9 6 - 9 8 Model s
DTC 4- 3
CAUTION : Wheneve r th e ignitio n switc h i s O N (II) , o r
ha s bee n turne d OF F fo r les s tha n 3 minutes , b e carefu l
not t o bum p th e SR S unit ; th e airbag s coul d accidentall y
deploy an d caus e damag e o r injuries .
NOTE: Th e PC M memor y mus t b e rese t afte r reconnect -
ing th e batter y (se e pag e 11-125 ).
Tr y t o reproduc e th e SR S indicato r light :
1 . Eras e th e DT C memor y (se e pag e 24-37 ).
2 . Tur n th e ignitio n switc h O N (II) , an d chec k tha t th e SR S
indicato r ligh t come s o n fo r abou t 6 second s an d the n
goe s off .
Intermitten t failure , syste m is O K a t thi s time . Se eTroubleshootin g Intermitten t Failure s o n pag e 24-37 .
Chec k fo r a shor t t o anothe r wir e o r decrease d resistanc e in
th e passenger' s sea t bel t tensioner :
1 . Tur n th e ignitio n switc h OFF . Mak e sur e yo u hav e th e
anti-thef t cod e fo r th e radio , the n writ e dow n th e fre -
quencie s fo r th e radio' s prese t buttons .
2 . Disconnec t th e batter y negativ e cable , the n disconnec t
the positiv e cable , an d wai t fo r 3 minutes .3. Disconnec t th e fron t passenger's seat bel t tensione r 2 P
connecto r fro m th e righ t sid e wir e harness .
CAUTION : D o no t disconnec t th e driver' s sea t bel t ten -
sione r connector .
4. Connec t th e specia l too l t o th e righ t sid e wir e har -
nes s 2 P connector .
5 . Reconnec t th e batter y positiv e cable , the n reconnec t th e
negativ e cable .
6 . Eras e th e DT C memor y (se e pag e 24-37 ).
7 . Rea d th e DT C (se e pag e 24-35 ). 07TAZ-SZ5011
A
07SAZ-TB4011 A
T o pag e 24-7 1
Shor
t t o anothe r wir e o r decrease d resistanc e i n th e
fron t passenger' s sea t bel t tensioner ; replac e th e passen -
ger' s sea t bel t (se e pag e 24-165 ).
ProCarManuals.com
