Page 841 of 1771

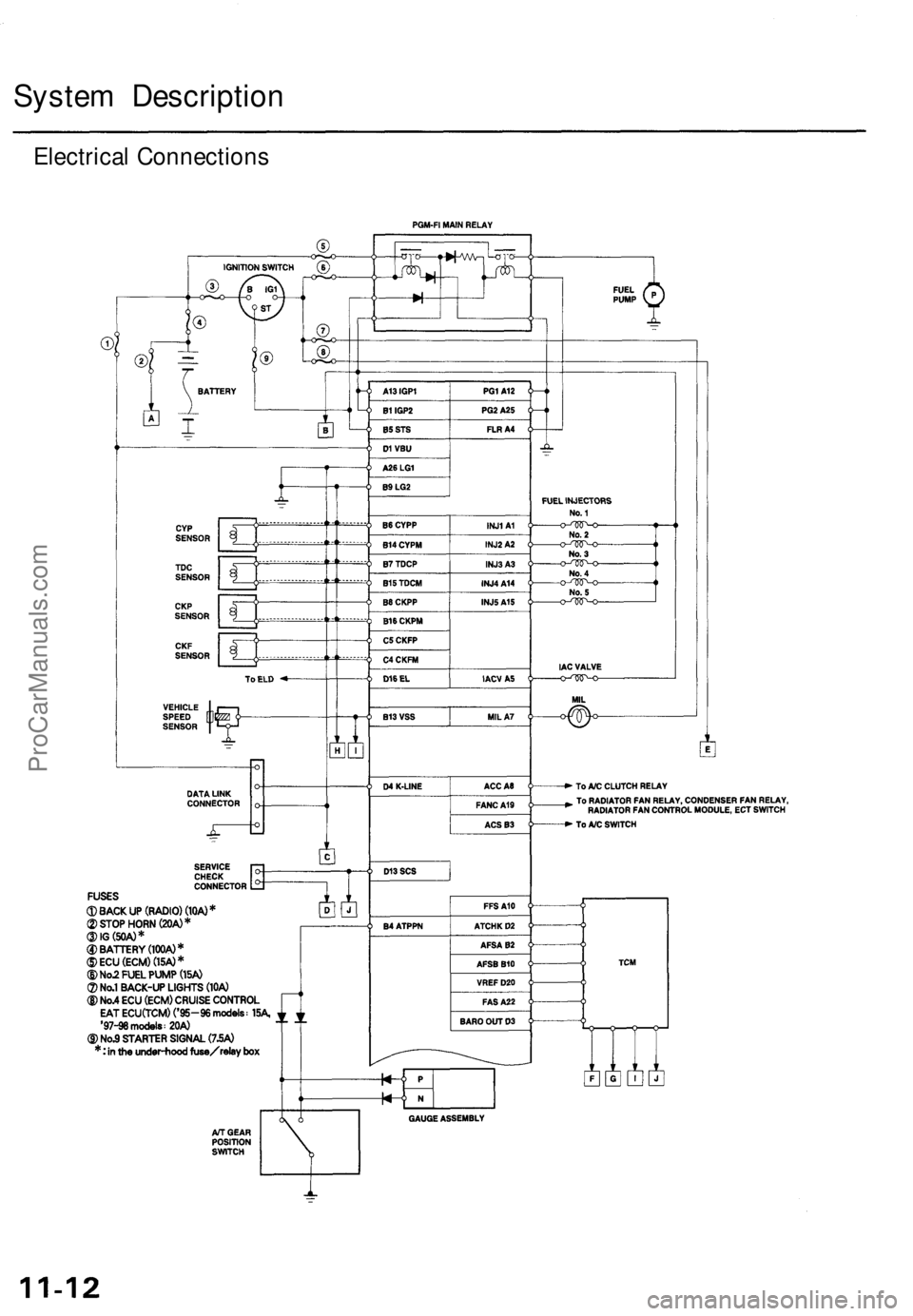

ACURA TL 1995 Service Repair Manual System Description Electrical ConnectionsProCarManuals.com

Page 842 of 1771

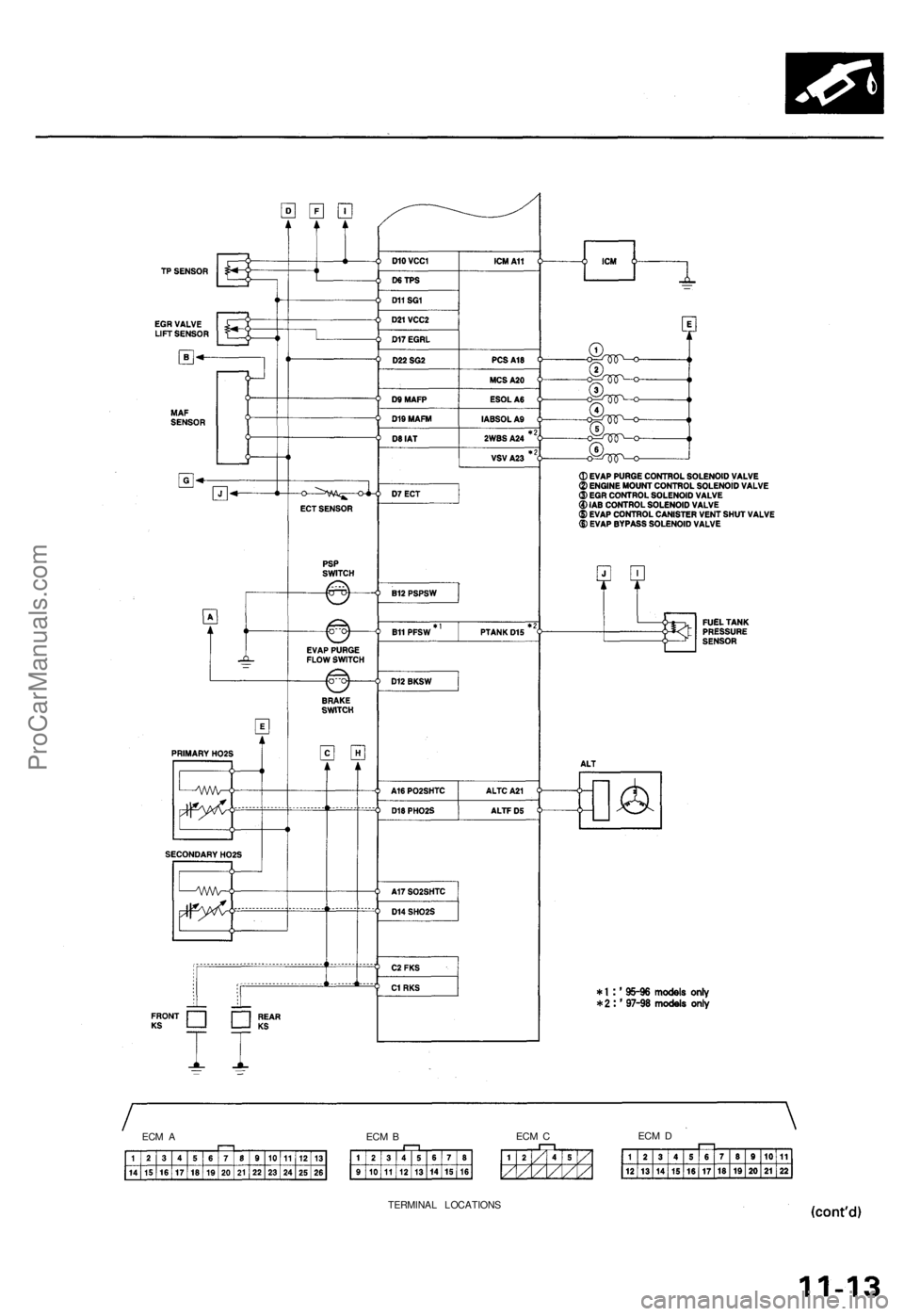

ACURA TL 1995 Service Repair Manual ECM A ECM B ECM C ECM D TERMINAL LOCATIONSProCarManuals.com

Page 843 of 1771

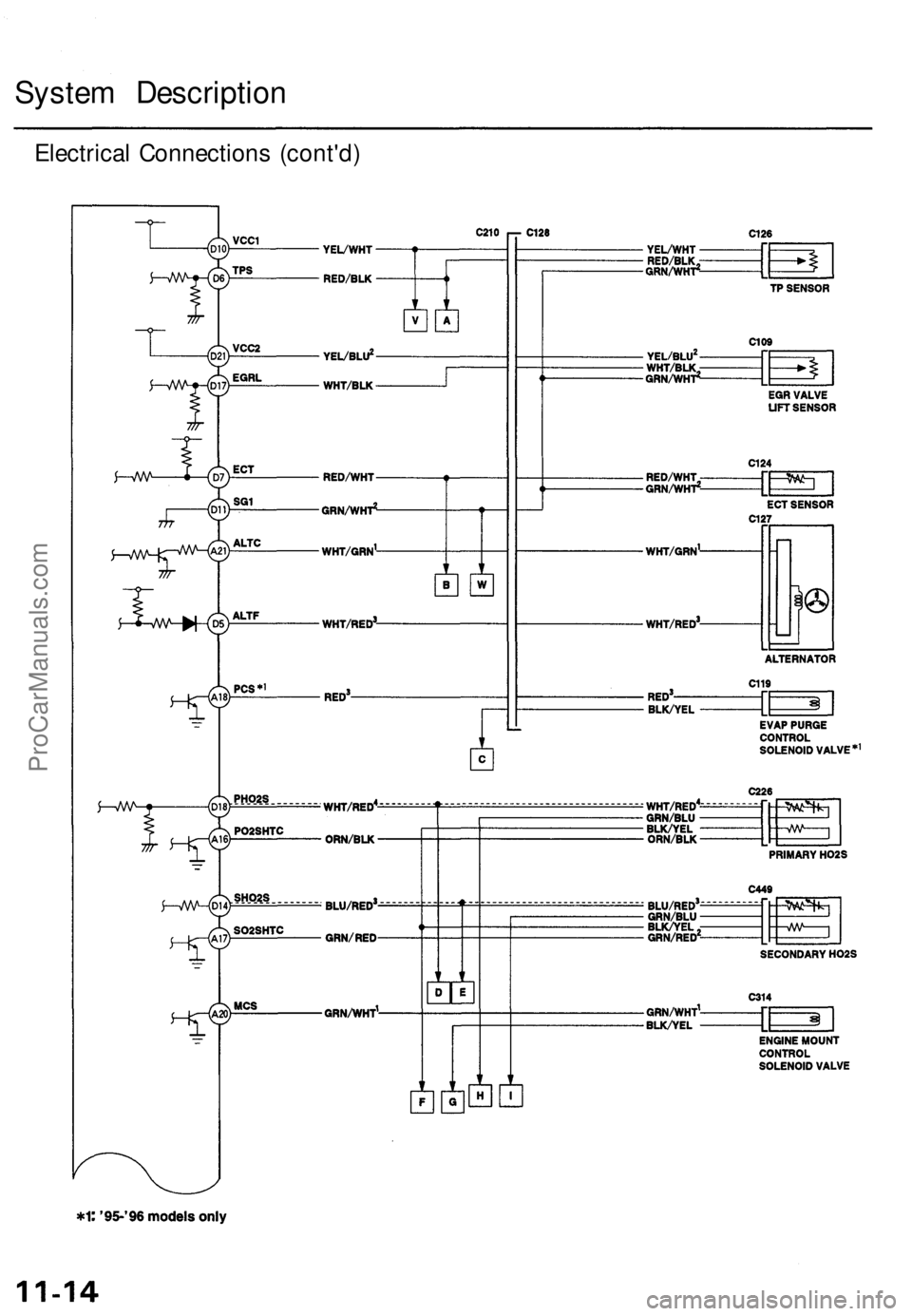

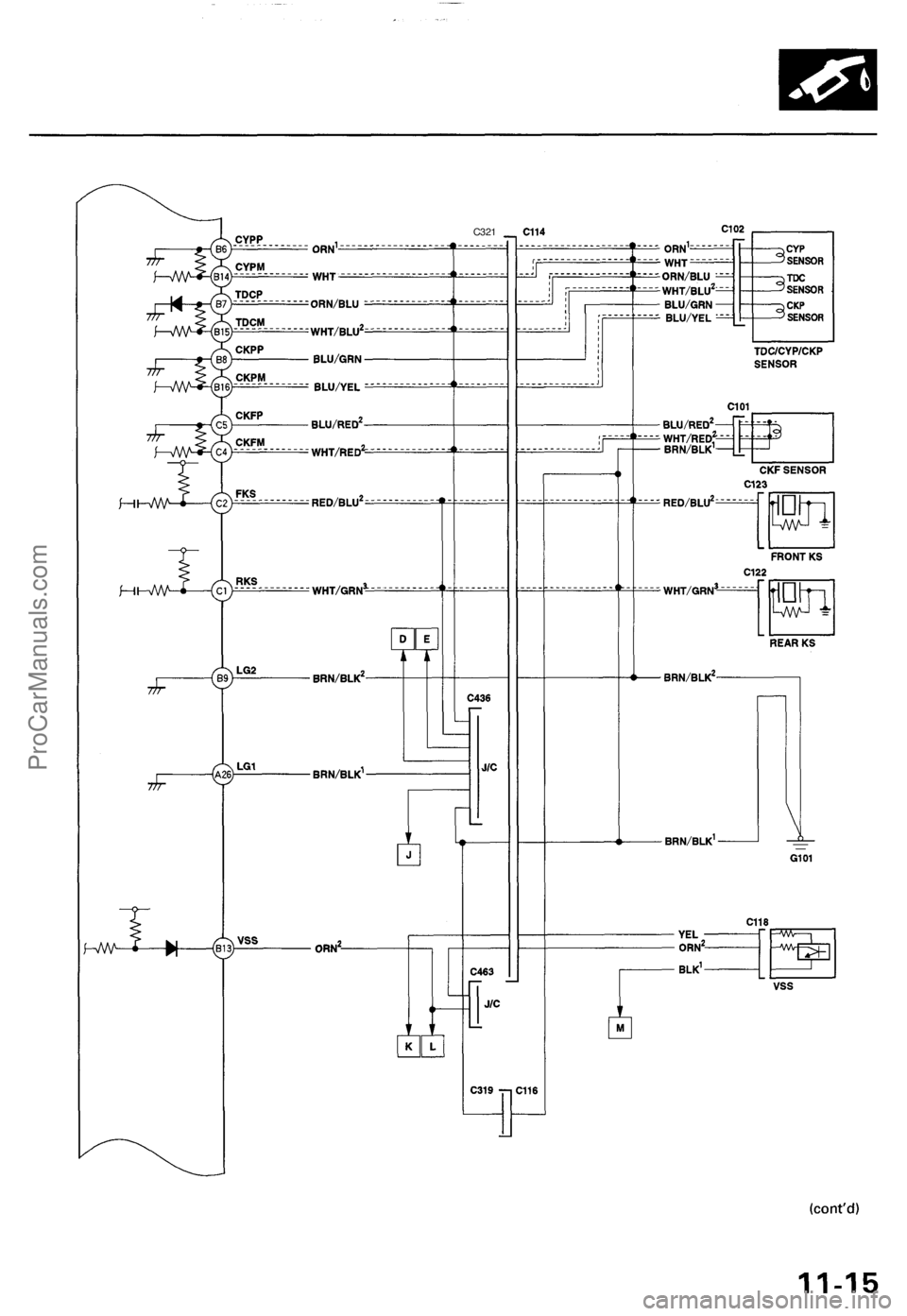

ACURA TL 1995 Service Repair Manual System Description Electrical Connections (cont'd)ProCarManuals.com

Page 844 of 1771

ACURA TL 1995 Service Repair Manual C321ProCarManuals.com

Page 845 of 1771

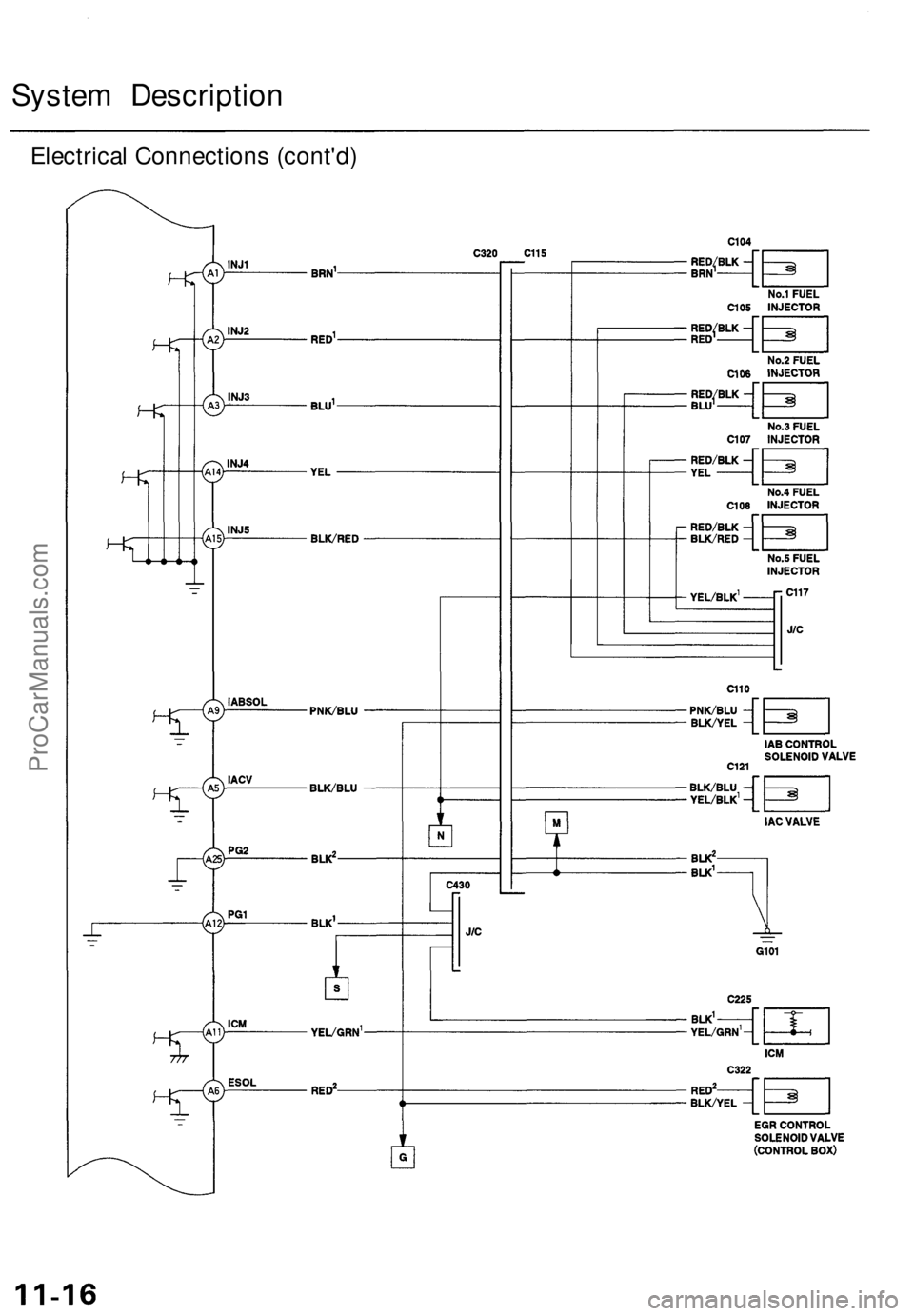

ACURA TL 1995 Service Repair Manual System Description Electrical Connections (cont'd)ProCarManuals.com

Page 846 of 1771

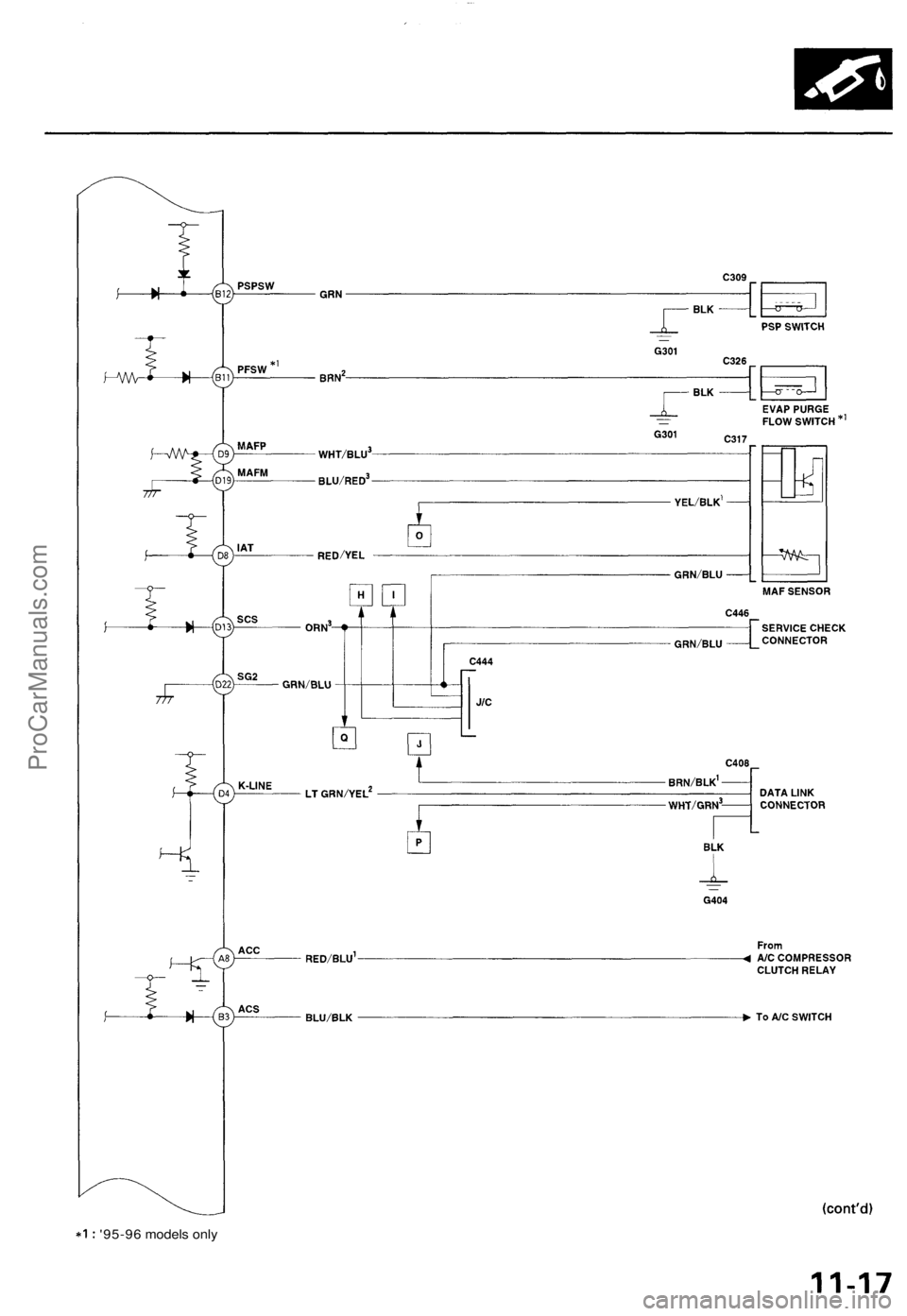

ACURA TL 1995 Service Repair Manual '95-96 models onlyProCarManuals.com

Page 847 of 1771

ACURA TL 1995 Service Repair Manual System Description Electrical Connections (cont'd)ProCarManuals.com

Page 848 of 1771

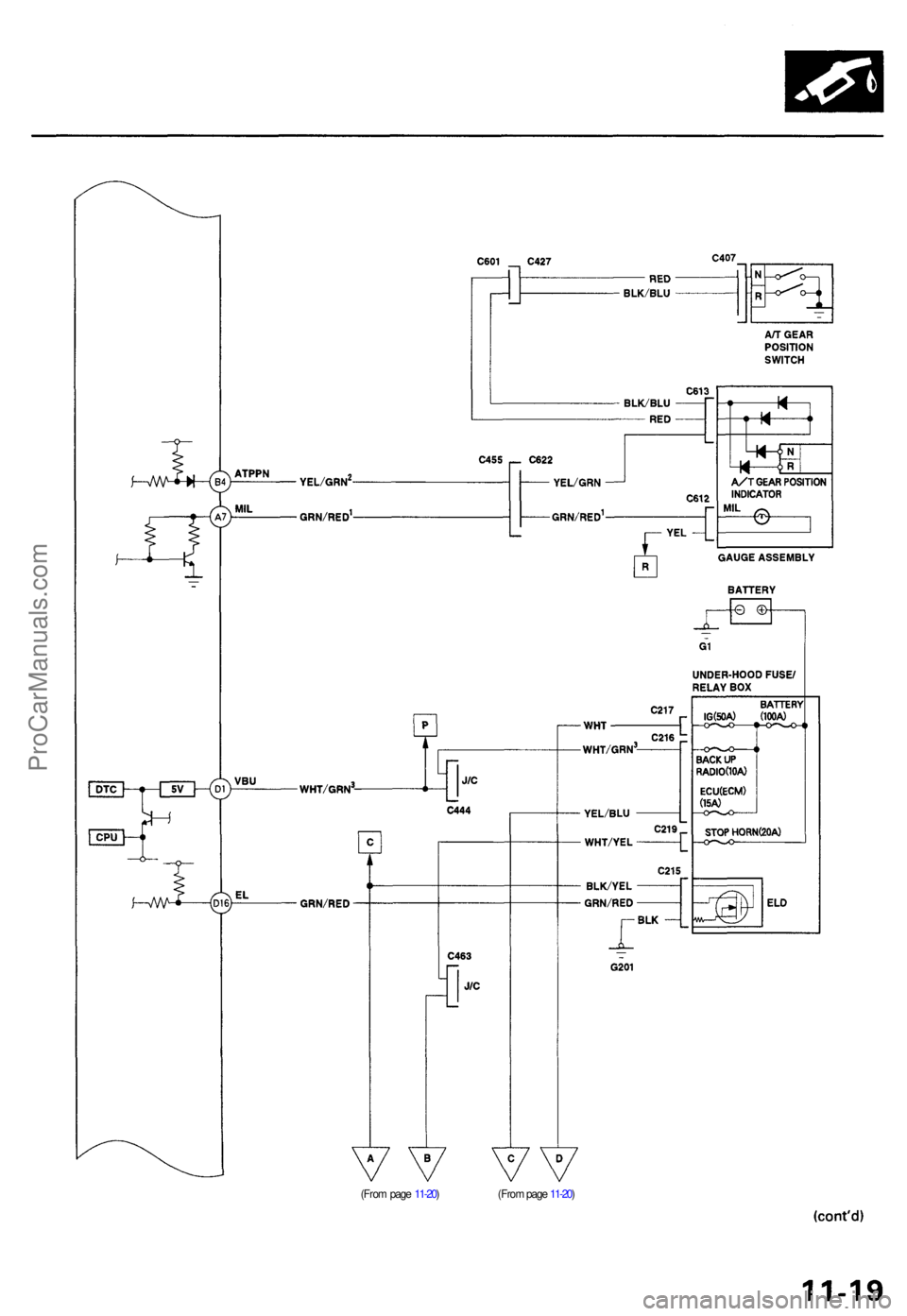

ACURA TL 1995 Service Repair Manual (From pag e 11-20 ) (Fro m pag e 11-20 ) ProCarManuals.com

Page 849 of 1771

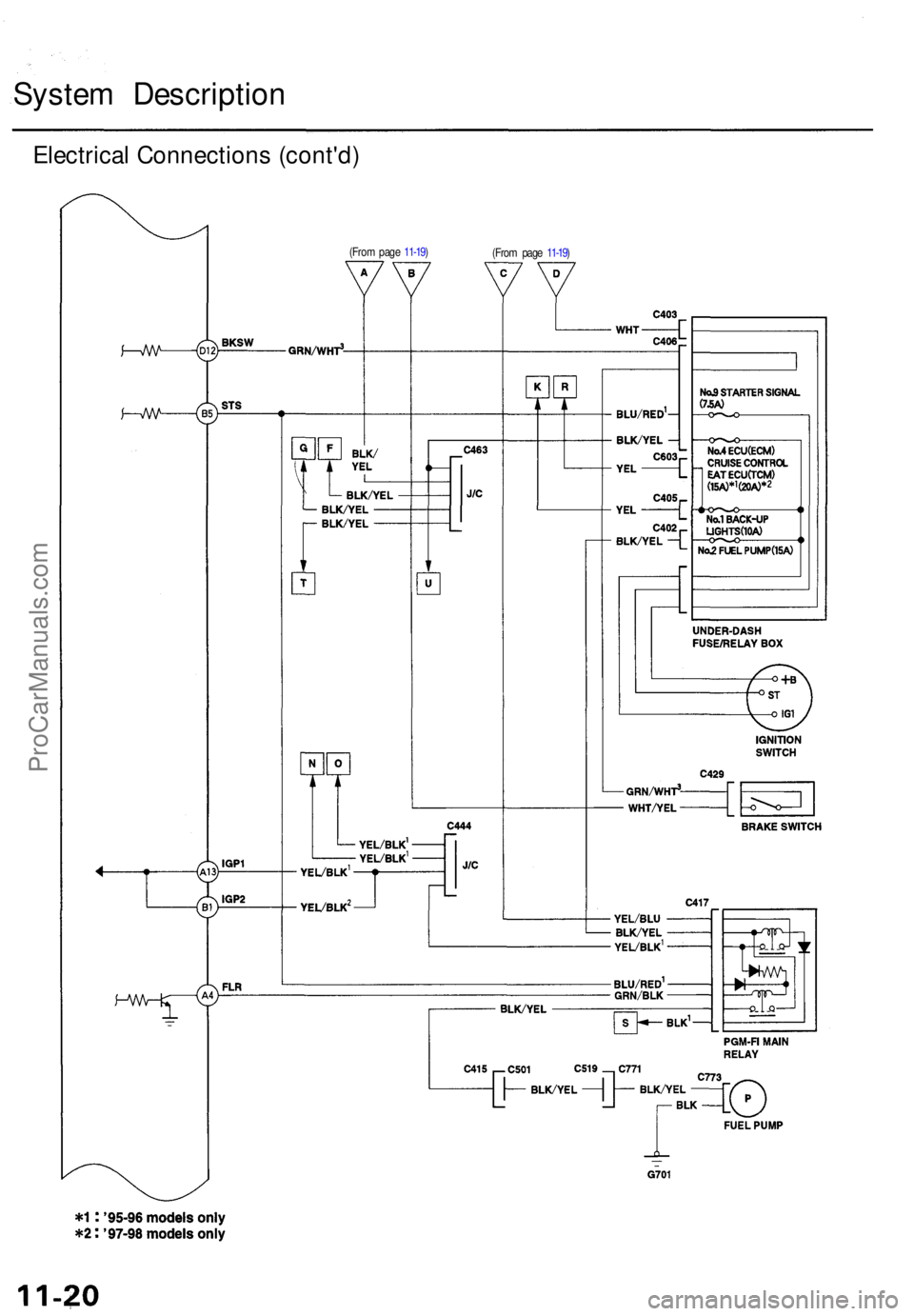

ACURA TL 1995 Service Repair Manual System Descriptio n Electrical Connection s (cont'd ) (From pag e 11-19 ) (From pag e 11-19 ) ProCarManuals.com

Page 850 of 1771

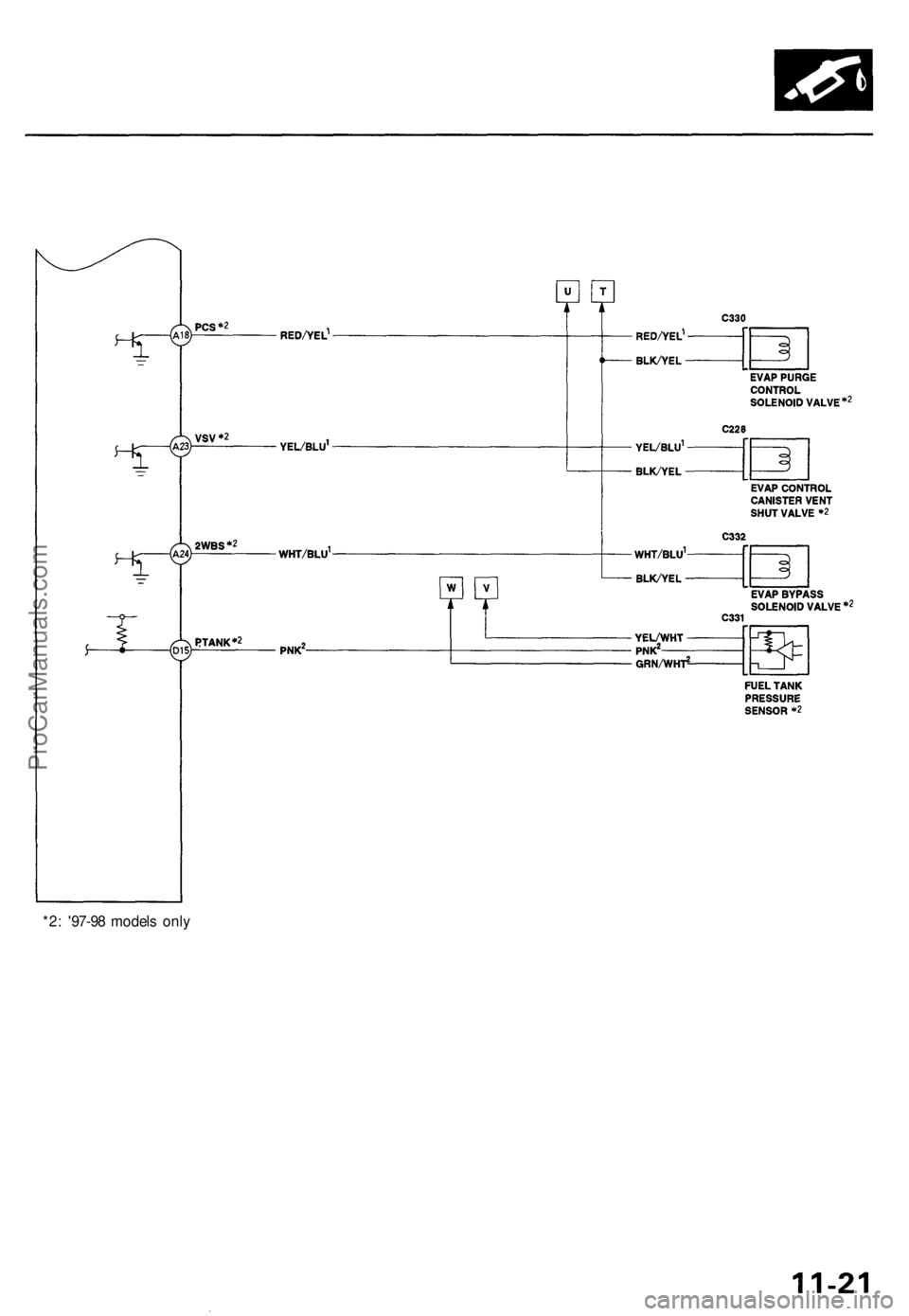

ACURA TL 1995 Service Repair Manual *2: '97-98 models onlyProCarManuals.com
