ACURA TL 1995 Service Repair Manual

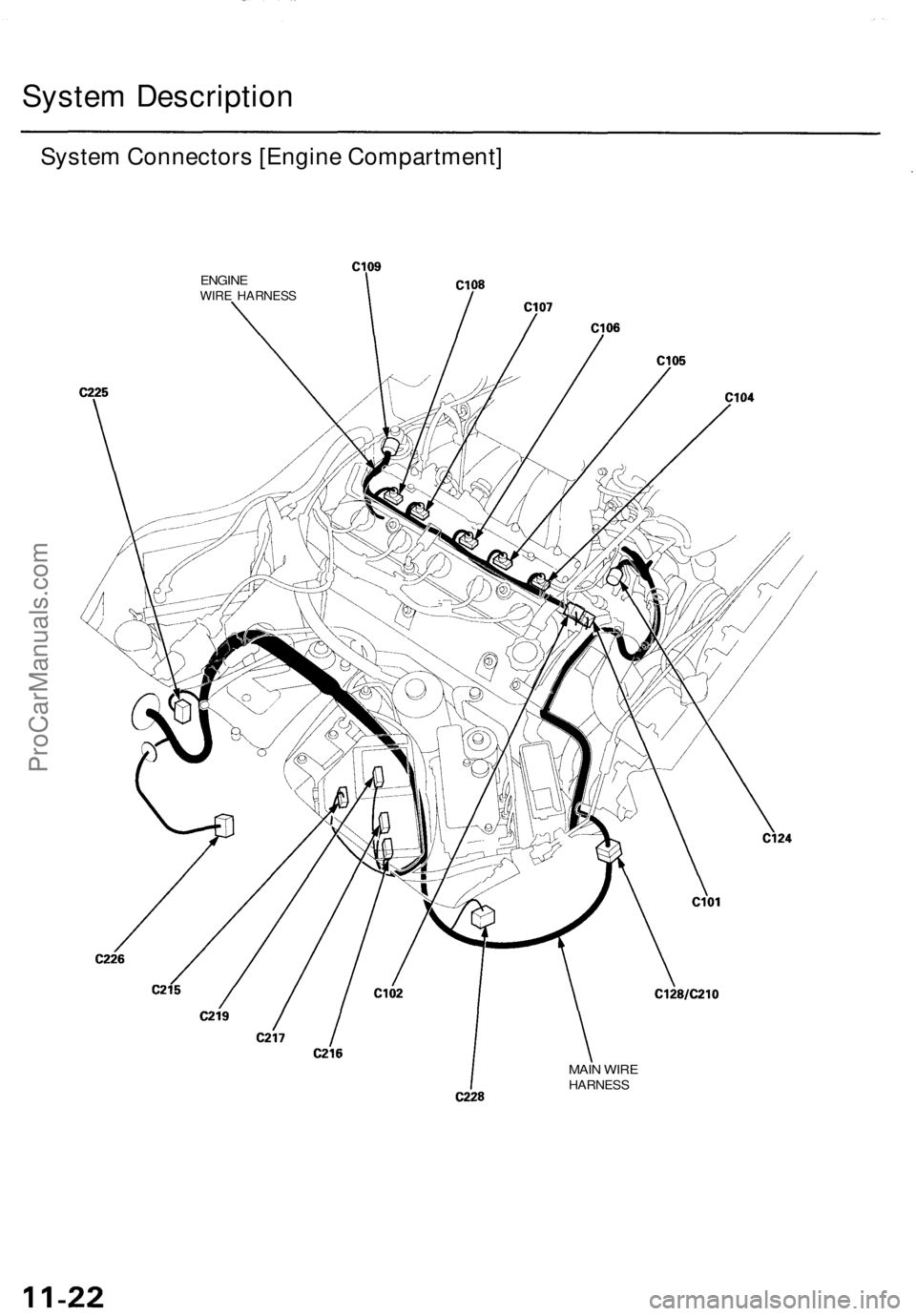

System Descriptio n
System Connector s [Engin e Compartment ]
ENGINEWIRE HARNES S
MAIN WIR EHARNES S
ProCarManuals.com

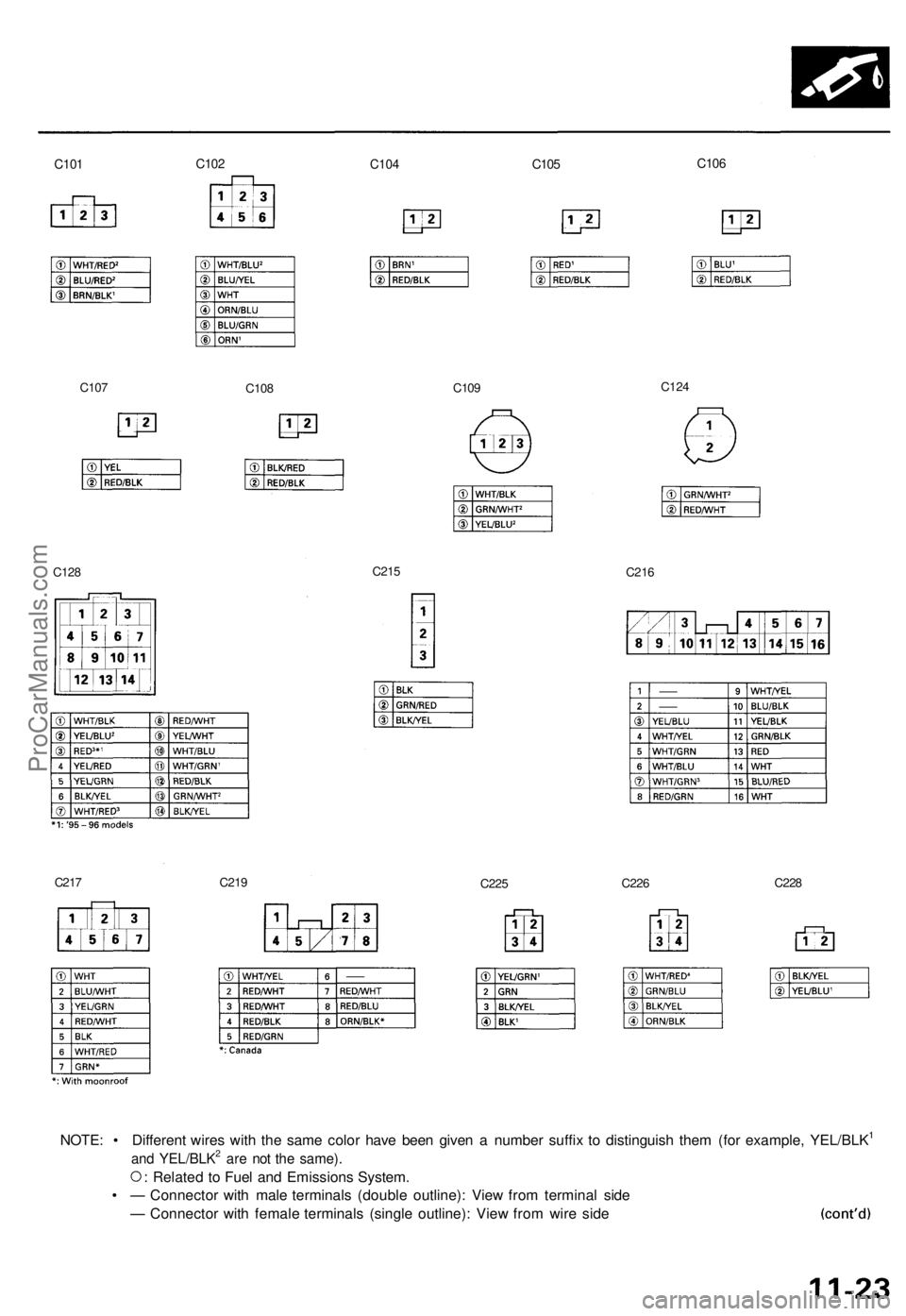

C101 C10 2 C10 4 C105 C10 6
C10 7
C108 C10
9 C12
4
C12 8 C21
5
C216
C21 7 C219
C22 5 C22
6 C22
8
NOTE : • Differen t wire s wit h th e sam e colo r hav e bee n give n a numbe r suffi x t o distinguis h the m (fo r example , YEL/BLK1
an d YEL/BLK2 ar e no t th e same) .
: Relate d t o Fue l an d Emission s System .
• — Connecto r wit h mal e terminal s (doubl e outline): View fro m termina l sid e
— Connecto r wit h femal e terminal s (singl e outline) : Vie w fro m wir e sid e
ProCarManuals.com

System Description

System Connectors [Engine Compartment] (cont'd)

C309
ENGINE

WIRE

HARNESS

G101 C322

C110

C122

C123
C119 ('95-96 models)

C115/C320

C114/C321

C332

('97-98 models)

C326

'95 - 96 models)

C331

('97-98 models)

C330

('97-98 models)

C314

MAIN WIRE

HARNESS
C121

C317

C127
C126
C118
C116/C319
C117ProCarManuals.com

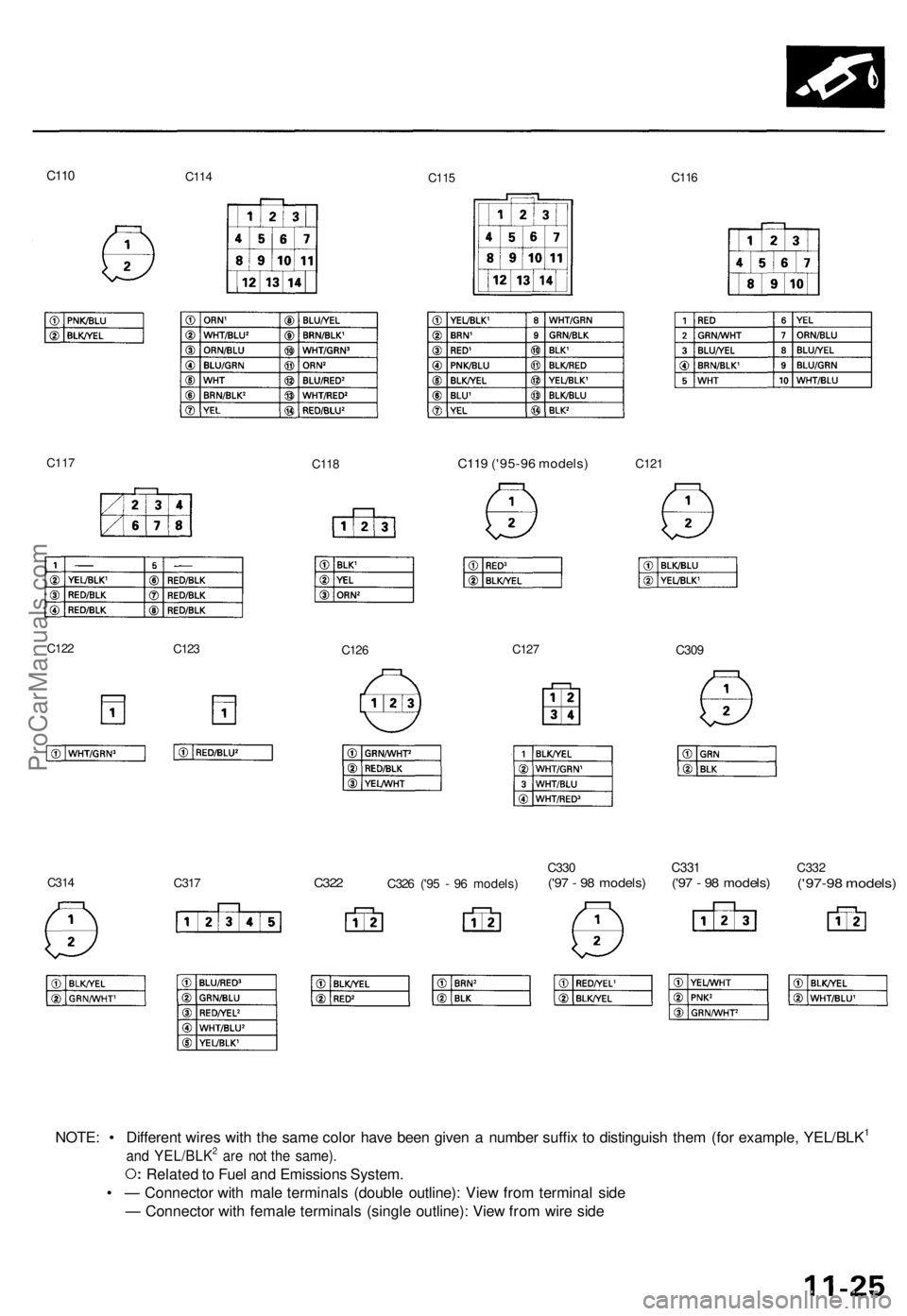

C110

C114

C115
C116

C117

C118
C119 ('95-96 models)
C121

C122

C123

C126
C127

C309

C314

C317
C322

C326 ('95 - 96 models)
C330

('97 - 98 models)
C331

('97 - 98 models)
C332

('97-98 models)

NOTE: • Different wires with the same color have been given a number suffix to distinguish them (for example, YEL/BLK1

and YEL/BLK2 are not the same).

Related to Fuel and Emissions System.

• — Connector with male terminals (double outline): View from terminal side

— Connector with female terminals (single outline): View from wire sideProCarManuals.com

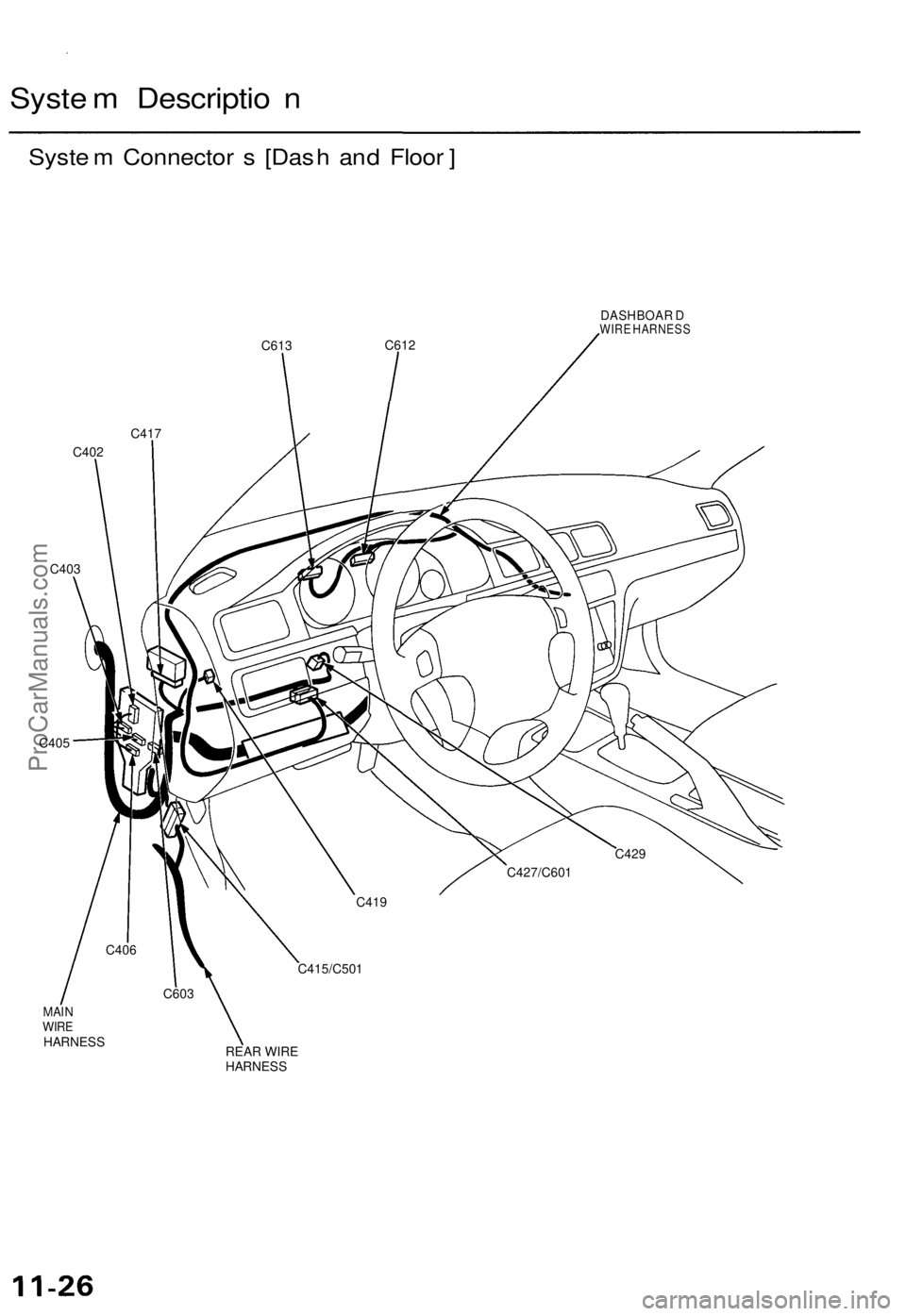

System Descriptio n
System Connector s [Das h an d Floor ]
C613
C417
C402
C403
C405 C612
DASHBOAR
DWIRE HARNES S
MAIN
WIR E
HARNES SREAR WIREHARNESS
C415/C501 C419
C427/C601
C429
C603
C406
ProCarManuals.com

NOTE: • Different wires with the same color have been given a number suffix to distinguish them (for example,

YEL/BLK1 and YEL/BLK2 are not the same).

: Related to Fuel and Emissions System.

• — Connector with male terminals (double outline): View from terminal side

— Connector with female terminals (single outline): View from wire side

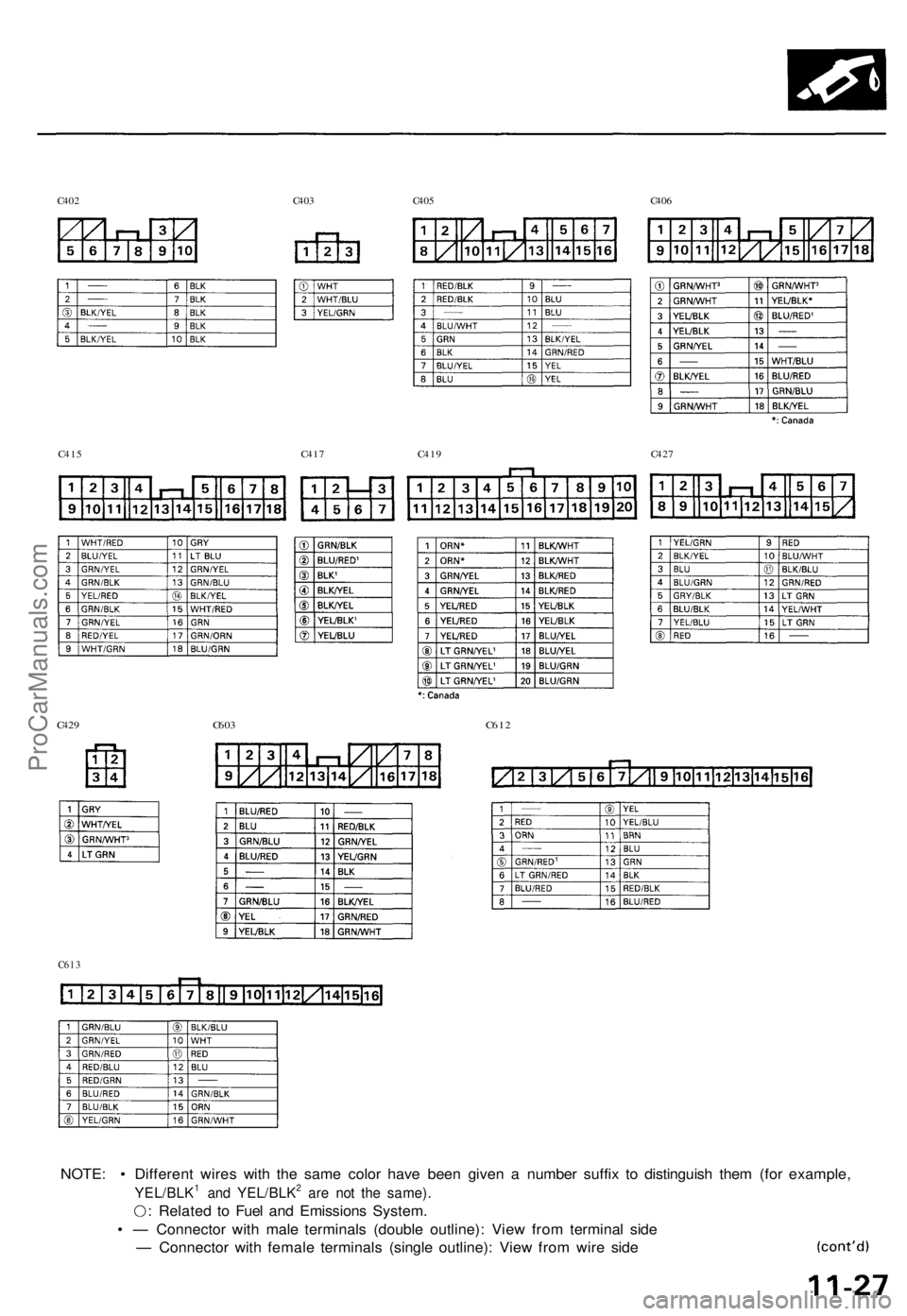

C402 C403 C405 C406

C415 C417 C419 C427

C429 C603 C612

C613ProCarManuals.com

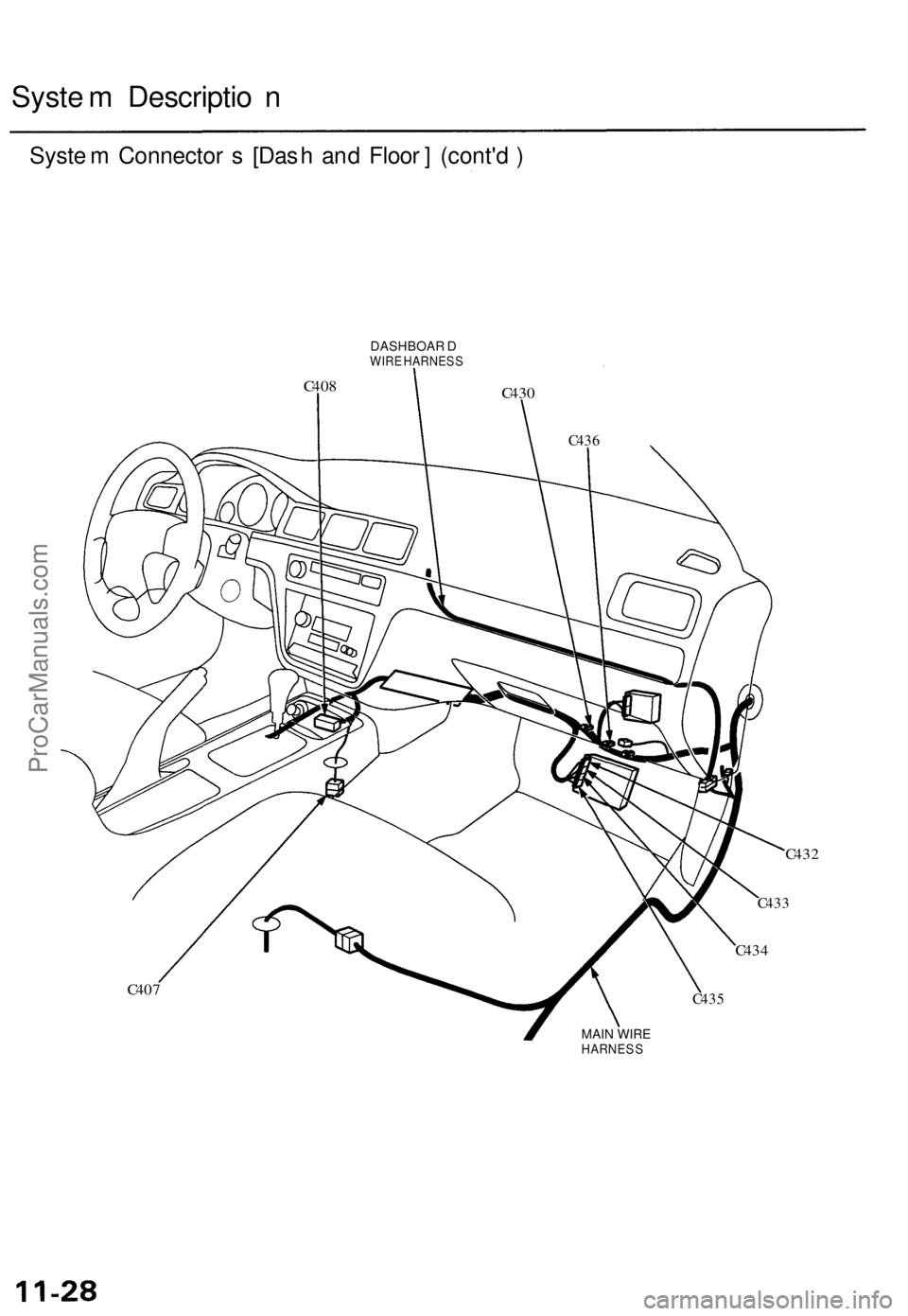

System Descriptio n
System Connector s [Das h an d Floor ] (cont'd )
C407
DASHBOAR DWIRE HARNES S
C408C43 0
C43 2
C434
C43 5
MAIN WIREHARNES S
C433
C43
6

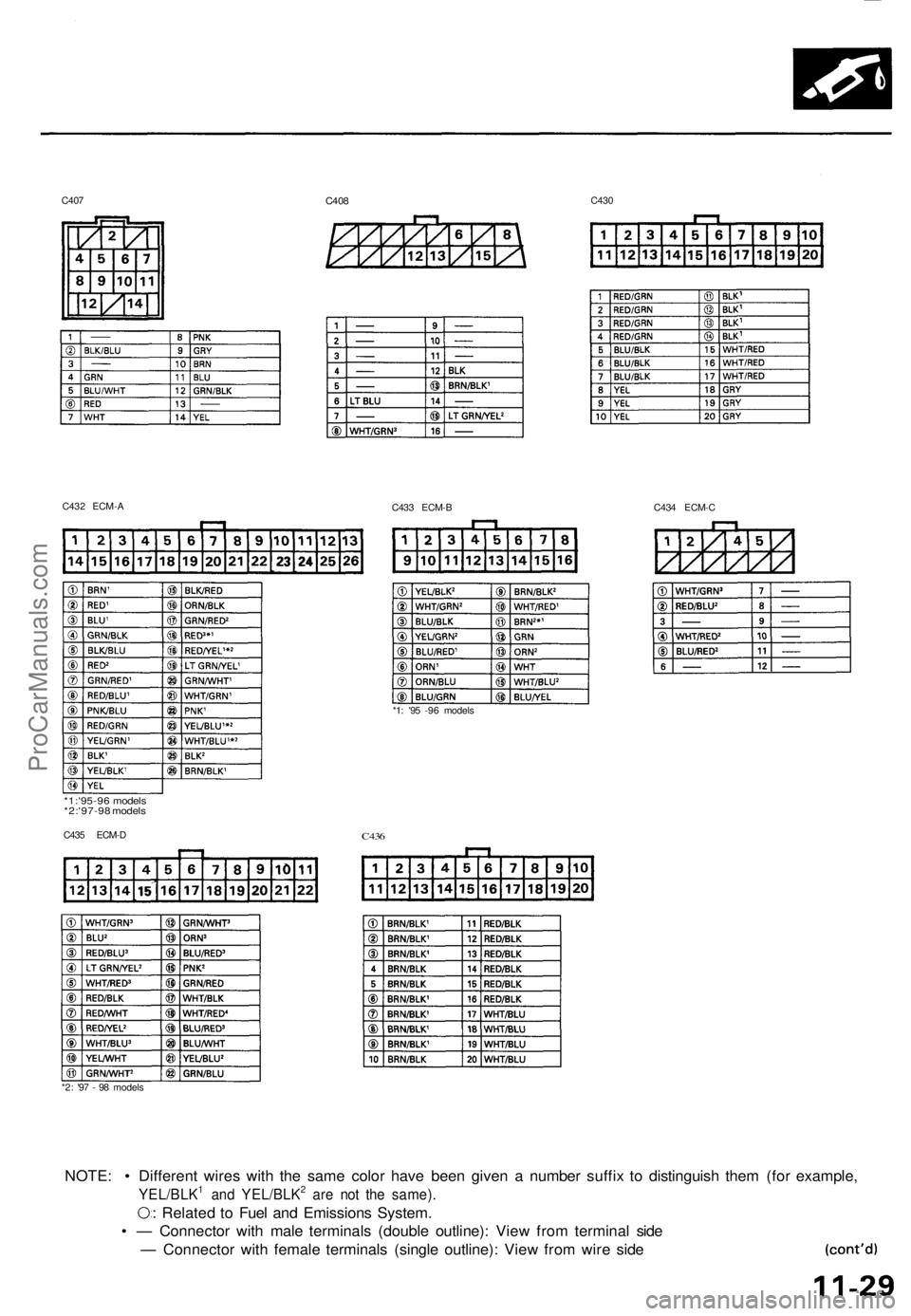

ProCarManuals.com

C408

C432 ECM-A

C433 ECM-B
C434 ECM-C

*1:'95-96 models

*2:'97-98 models

C435 ECM-D
*1: '95 -96 models

*2: '97 - 98 models

NOTE: • Different wires with the same color have been given a number suffix to distinguish them (for example,

YEL/BLK1 and YEL/BLK2 are not the same).

: Related to Fuel and Emissions System.

• — Connector with male terminals (double outline): View from terminal side

— Connector with female terminals (single outline): View from wire side
C436
C407
C430ProCarManuals.com

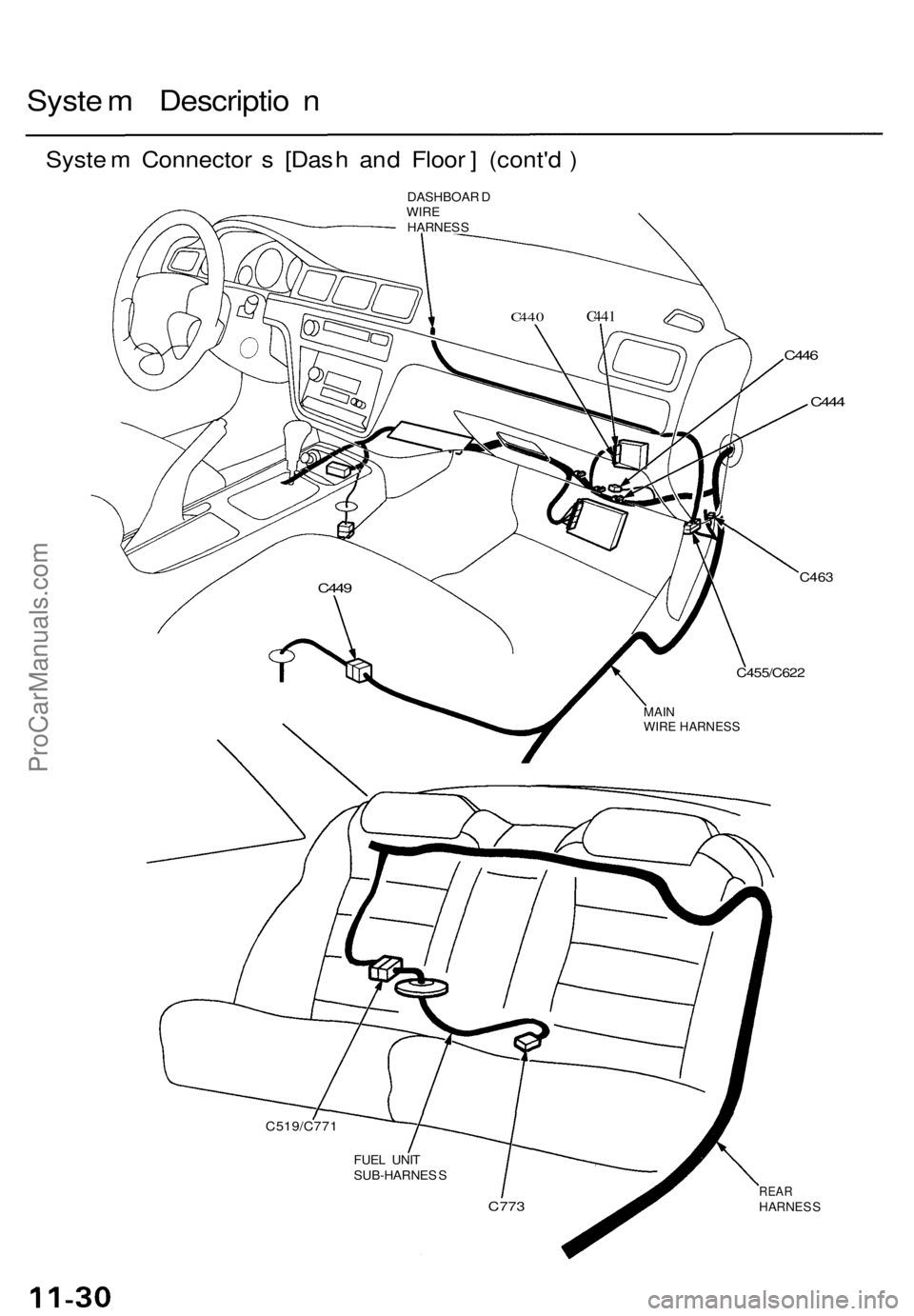

System Descriptio n
System Connector s [Das h an d Floor ] (cont'd )
DASHBOAR DWIREHARNES S
C463
REA RHARNES S
C519/C77 1
FUEL UNI TSUB-HARNES S
C773
MAIN
WIRE HARNESS
C455/C622
C449
C444
C44 6
C441C44 0
ProCarManuals.com

NOTE: • Different wires with the same color have been given a number suffix to distinguish them (for example,

YEL/BLK1 and YEL/BLK2 are not the same).

: Related to Fuel and Emissions System.

• — Connector with male terminals (double outline): View from terminal side

— Connector with female terminals (single outline): View from wire side
C519 C773
C446 C449 C455 C463
