Acura TLX 2019 Navigation Manual

29
uuInterface Settings uClock Adjustment
System SetupH SETTINGS buttonuClock Settings uClock/Wallpaper Type uClock
1. Rotate to select an option to
change the design. Press .
H SETTINGS buttonuClock Settings uClock Adjustment
1.Move or to highlight the
hour digit.
2. Rotate to set the hour.
3. Set the minute digit and AM/PM
likewise.
4. Press .
■Setting the Clock Type
■Setting the Clock
19 ACURA TLX NAVI-31TZ38400.book 29 ページ ２０１８年３月７日　水曜日　午後４時２３分

30
uuInterface Settings uWallpaper Settings
System Setup
Wallpaper Settings
Select, delete, and import wallpaper pictures for display on the screen.
H SETTINGS buttonuClock Settings uClock/Wallpaper Type
1.Connect the USB flash drive to the
USB port.
2. Move to select Wallpaper.
u The screen will change to the
wallpaper list.
3. Rotate to select Options.
Press .
4. Rotate to select Add New
Wallpaper . Press .
5. Rotate to select a desired
picture. Press .
u The preview is displayed on the
left side on the screen.
6. Rotate to select Start Import.
Press .
u The confirmation message will
appear. Then the display will
return to the wallpaper list.
■Import Wallpaper
1
Wallpaper Settings
•When importing wallpaper files, the image must be
in the USB flash drive’s root directory. Images in a
folder cannot be imported.
•The file name must be fewer than 210 characters.•The file format of the im age that can be imported
is BMP (bmp) or JPEG (jpg).
•The individual file size limit is 10 MB.•The maximum image size is 5,800 x 5,800 pixels.
•Up to 10 files can be saved for each driver (Driver1
and Driver2).
•If the USB flash drive doe s not have any pictures,
the No files detect ed message appears.
19 ACURA TLX NAVI-31TZ38400.book 30 ページ ２０１８年３月７日　水曜日　午後４時２３分

31
uuInterface Settings uWallpaper Settings
Continued
System SetupH SETTINGS buttonuClock Settings uClock/Wallpaper Type uWallpaper
1. Rotate to select a desired
wallpaper. Press .
u The preview is displayed on the
left side on the screen.
u The pop-up menu appears on
the screen.
2. Rotate to select Set . Press .
u The display will return to the
Clock Settings screen.
■Select Wallpaper
19 ACURA TLX NAVI-31TZ38400.book 31 ページ ２０１８年３月７日　水曜日　午後４時２３分

32
uuInterface Settings uWallpaper Settings
System SetupH SETTINGS buttonuClock Settings uClock/Wallpaper Type uWallpaper
1. Rotate to select a wallpaper
that you want to delete. Press .
u The preview is displayed on the
left side on the screen.
u The pop-up menu appears on
the screen.
2. Rotate to select Delete. Press
.
u The confirmation message will
appear.
3. Rotate to select Yes . Press .
u The display will return to the
wallpaper list.
■Delete Wallpaper
19 ACURA TLX NAVI-31TZ38400.book 32 ページ ２０１８年３月７日　水曜日　午後４時２３分

33

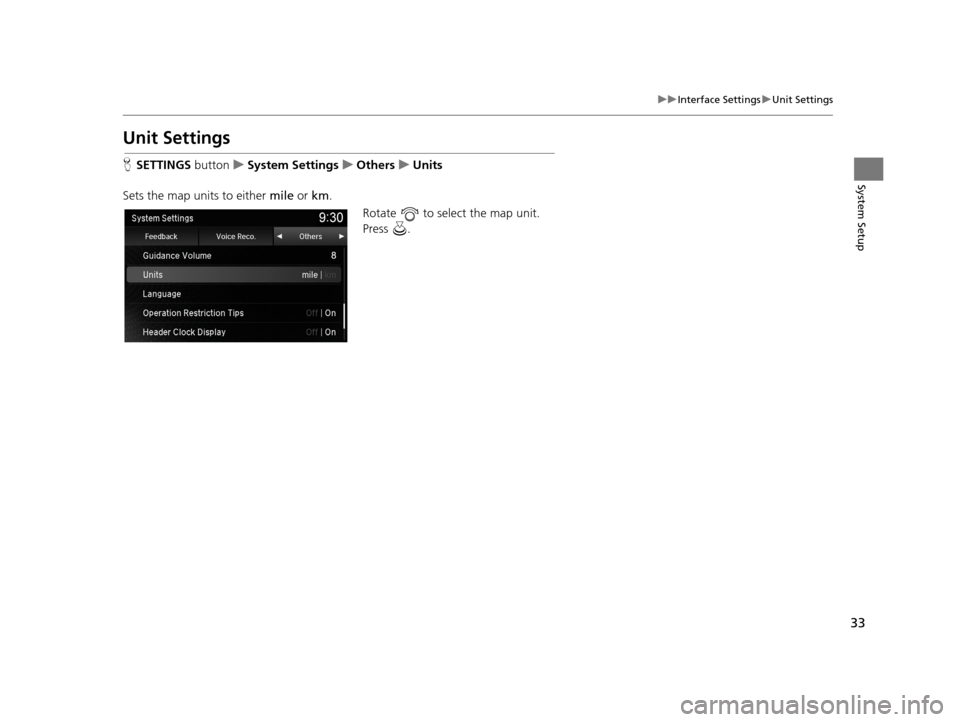

uuInterface Settings uUnit Settings
System Setup
Unit Settings
H SETTINGS buttonuSystem Settings uOthers uUnits
Sets the map units to either mile or km.
Rotate to select the map unit.
Press .
19 ACURA TLX NAVI-31TZ38400.book 33 ページ ２０１８年３月７日　水曜日　午後４時２３分

34
uuInterface Settings uLanguage Settings
System Setup
Language Settings
H SETTINGS buttonuSystem Settings uOthers uLanguage
Set the system language used on all screens. You can choose from three languages:
English , Français (French), Español (Spanish).
Rotate to select the system
language. Press .1Language Settings
Voice confirmation of cities and streets only occurs
when English is the system language.
When Français or Español is selected, some
messages continue to be displayed in English.
19 ACURA TLX NAVI-31TZ38400.book 34 ページ ２０１８年３月７日　水曜日　午後４時２３分

35

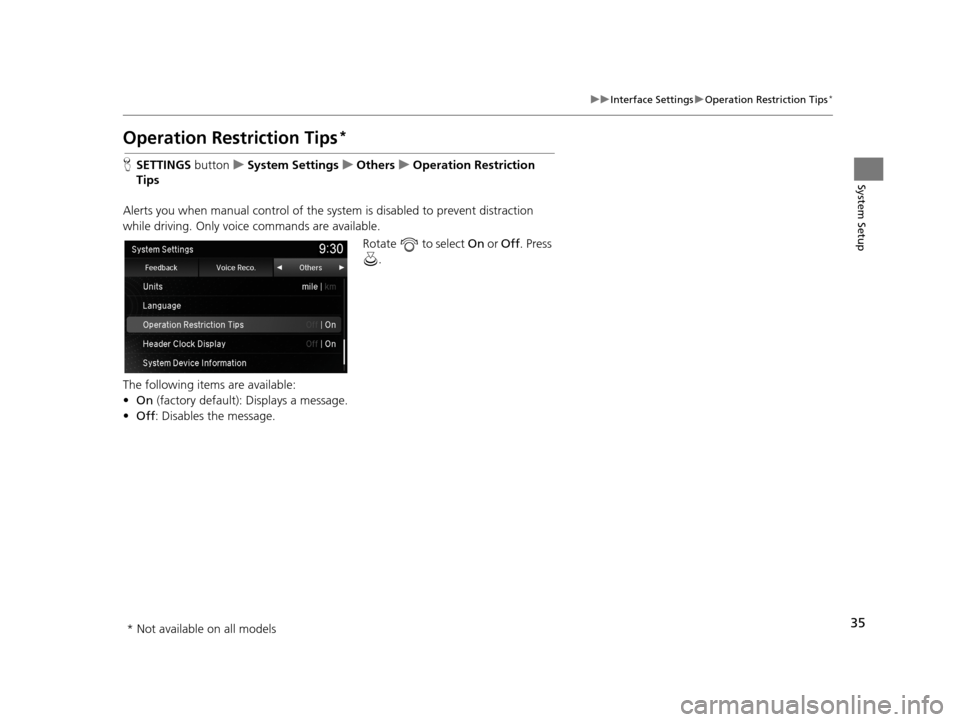

uuInterface Settings uOperation Restriction Tips*
System Setup
Operation Restriction Tips*
H SETTINGS buttonuSystem Settings uOthers uOperation Restriction
Tips
Alerts you when manual control of the syst em is disabled to prevent distraction
while driving. Only voice commands are available.
Rotate to select On or Off. Press
.
The following items are available:
• On (factory default): Displays a message.
• Off : Disables the message.
* Not available on all models
19 ACURA TLX NAVI-31TZ38400.book 35 ページ ２０１８年３月７日　水曜日　午後４時２３分

36
uuInterface Settings uHeader Clock Display
System Setup
Header Clock Display
H SETTINGS buttonuSystem Settings uOthers uHeader Clock Display
Selects whether the clock display comes on. Rotate to select On or Off . Press
.
The following options are available:
• On (factory default): The sy stem displays the clock in the navigation screen.
• Off : Disables the feature.
19 ACURA TLX NAVI-31TZ38400.book 36 ページ ２０１８年３月７日　水曜日　午後４時２３分

37
System Setup
Personal Information
HSETTINGS buttonuNavigation Settings uPersonal Info
Use the personal informatio n menu to select and set your address books, home
address, and PINs. You can also delete unwanted destinations from the list of
previously routed destinations.
Rotate to select an item. Press .
The following items are available:
• Default: Restores the factory default settings.
• Address Book : Stores new addresses or edits your address book.
2Address Book P. 38
•Edit Go Home : Sets or edits your home address.
2Home Address P. 44
•PIN Number : Sets or changes your PIN.
2PIN Numbers P. 45
•Previous Destination : Deletes the destination history.
2Previous Destination P. 46
•Category History : Deletes the place categories you recently used.
2Category History P. 47
•Download POI : Edits and deletes the Imported POI categories.
2Download POI P. 48
1Personal Information
Personal information cannot be backed up or moved
to another navigation system.
The navigation setti ngs can also be selected from the
navigation menu. Press from the map screen.
Move or to select Destination or Map/
Route . Rotate to select Navigation Settings.
19 ACURA TLX NAVI-31TZ38400.book 37 ページ ２０１８年３月７日　水曜日　午後４時２３分

38
uuPersonal Information uAddress Book
System Setup
Address Book
H SETTINGS buttonuNavigation Settings uPersonal Info uAddress Book
Store up to 200 address entries in two a ddress books (Driver 1 and Driver 2). You
can add, edit, and delete info rmation in the address books.
Move or to display only the
addresses in the selected category.
To change the user address book
(Driver 1 or Driver 2 ), rotate to
select Options . Press . Rotate
to select Driver 1 or Driver 2 . Press
. 1 Address Book
Up to 200 addresses can be stored to each address
book of Driver 1 and Driver 2 separately.
If you have PIN-protecte d your address book, enter
your PIN when prompted. Press to select OK.
PINs are optional. 2 PIN Numbers P. 45
Any address book categories you create are also
displayed. 2 Selecting an Address Book Category P. 42
19 ACURA TLX NAVI-31TZ38400.book 38 ページ ２０１８年３月７日　水曜日　午後４時２３分
