BMW MOTORRAD G 650 GS 2010 Rider's Manual (in English)

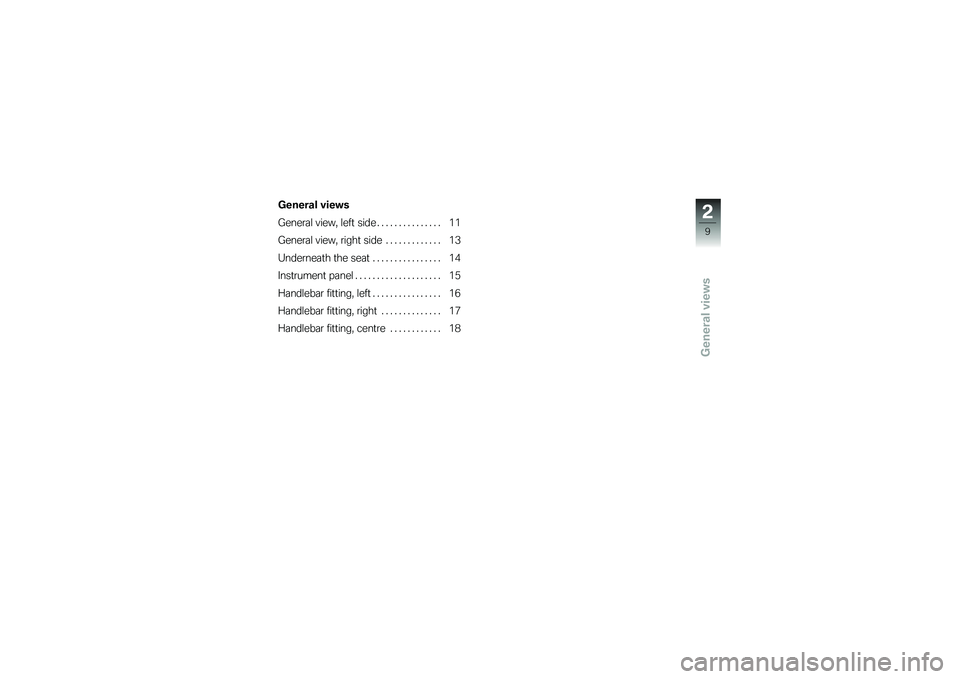

General views
General views
General view, left side . . . . . . . . . . . . . . . 11
General view, right side . . . . . . . . . . . . . 13
Underneath the seat . . . . . . . . . . . . . . . . 14
Instrument panel . . . . . . . . . . . . . . . . . . . . 15
Handlebar fitting, left . . . . . . . . . . . . . . . . 16
Handlebar fitting, right . . . . . . . . . . . . . . 17
Handlebar fitting, centre . . . . . . . . . . . . 18
2
9
zGeneral views

2
10
zGeneral views

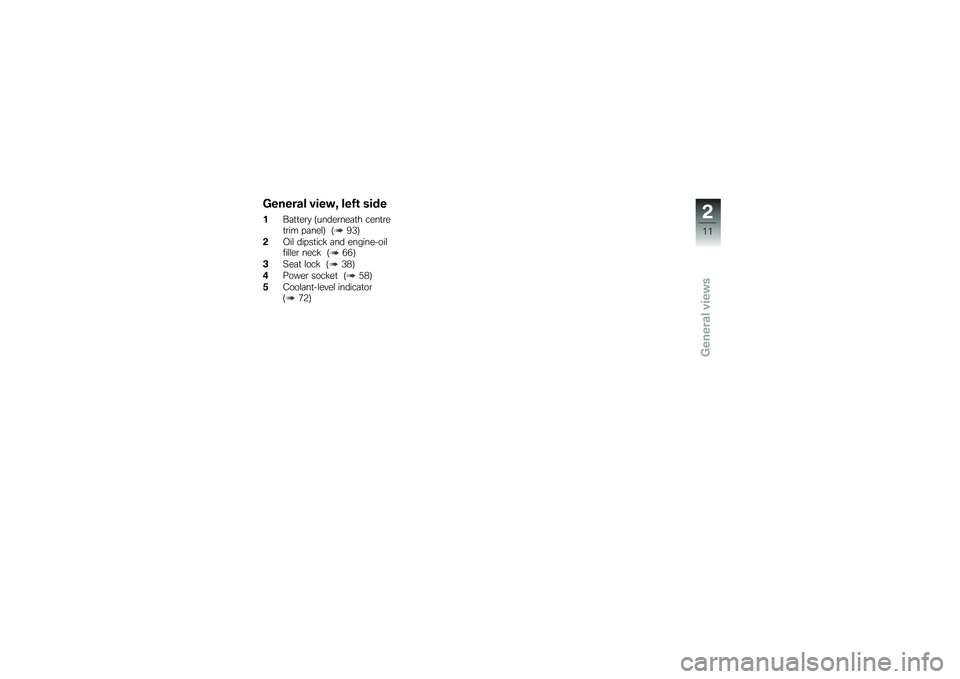

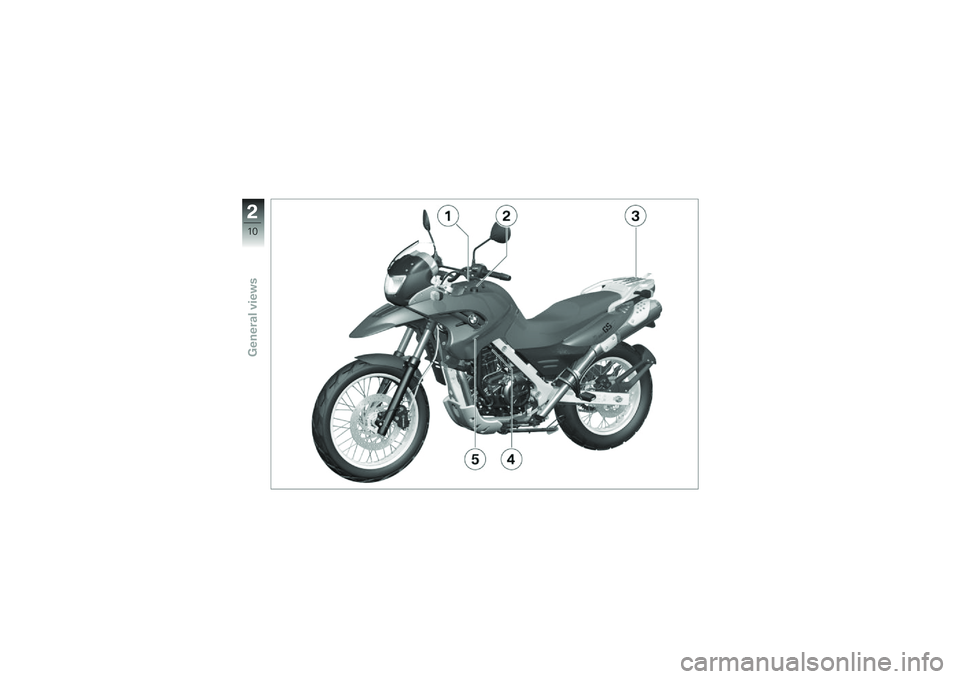

General view, left side
1Battery (underneath centretrim panel) (93)
2Oil dipstick and engine-oilfiller neck (66)
3Seat lock (38)
4Power socket (58)
5Coolant-level indicator(72)
2
11
zGeneral views

2
12
zGeneral views

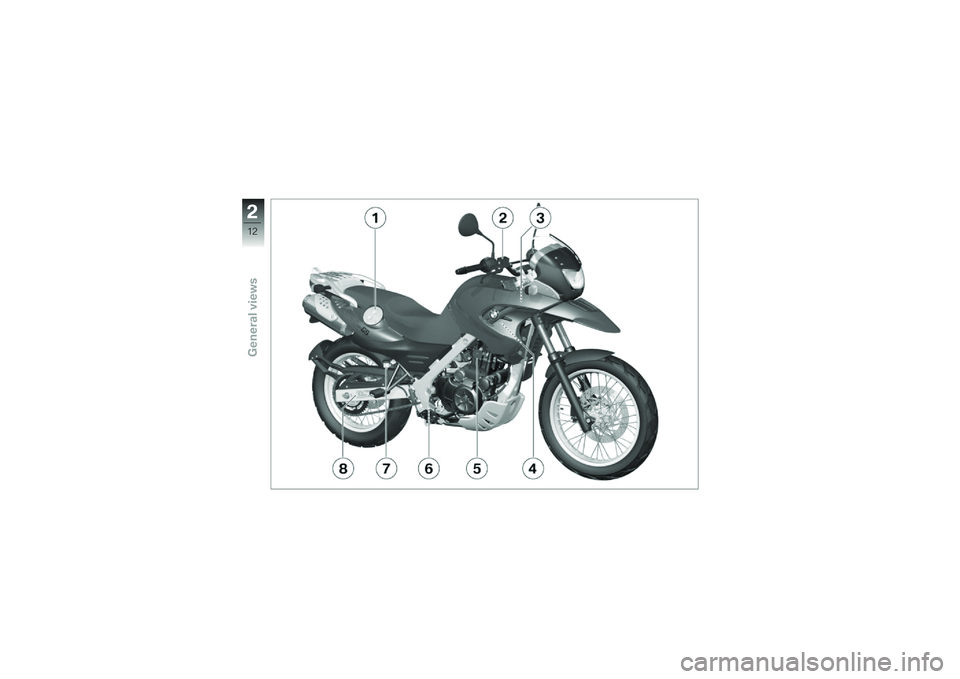

General view, right side
1Fuel filler neck (49)
2Brake-fluid reservoir, front(70)
3Type plate (on right frametube)
VIN (on steering-headbearing, right)
4Air filter (underneath sidepanel) (91)
5Adjuster for spring preload,rear (35)
6Adjuster for damping char-acteristic, rear suspension(36)
7Brake-fluid reservoir, rear(71)
8Tyre pressures table (onrear wheel swinging arm)
2
13
zGeneral views

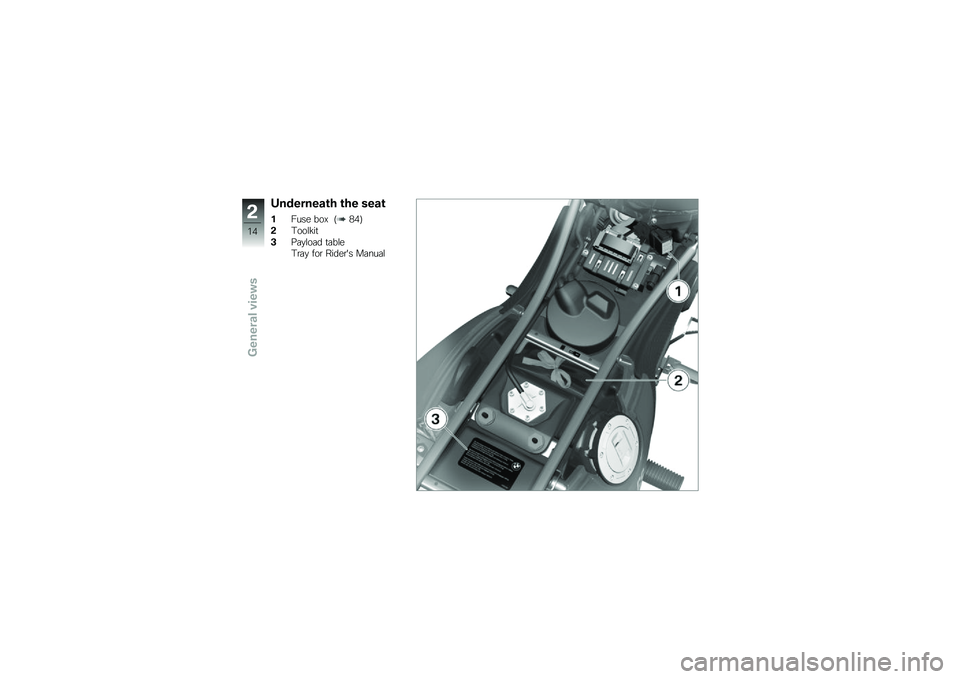

Underneath the seat
1Fuse box (84)
2Toolkit
3Payload table
Tray for Rider's Manual
2
14
zGeneral views

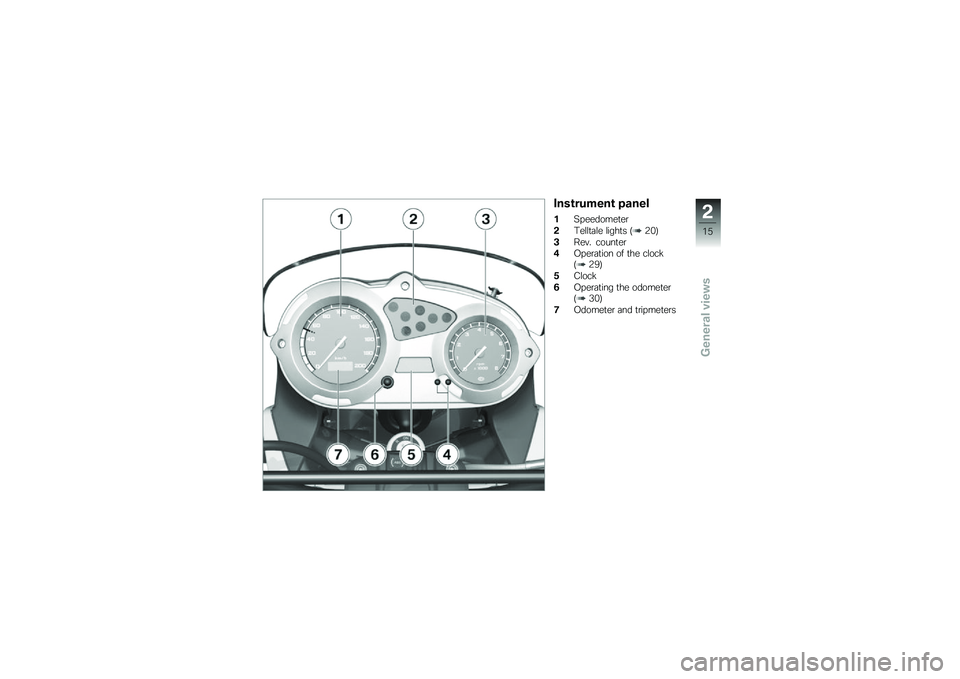

Instrument panel
1Speedometer
2Telltale lights (20)
3Rev. counter
4Operation of the clock(29)
5Clock
6Operating the odometer(30)
7Odometer and tripmeters
2
15
zGeneral views

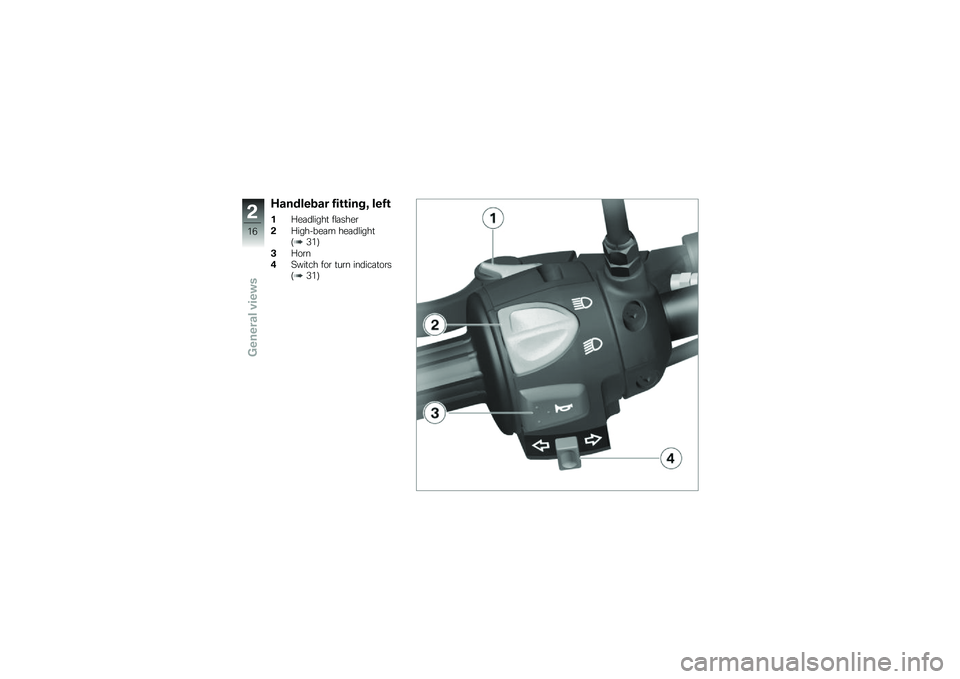

Handlebar fitting, left
1Headlight flasher
2High-beam headlight(31)
3Horn
4Switch for turn indicators(31)
2
16
zGeneral views

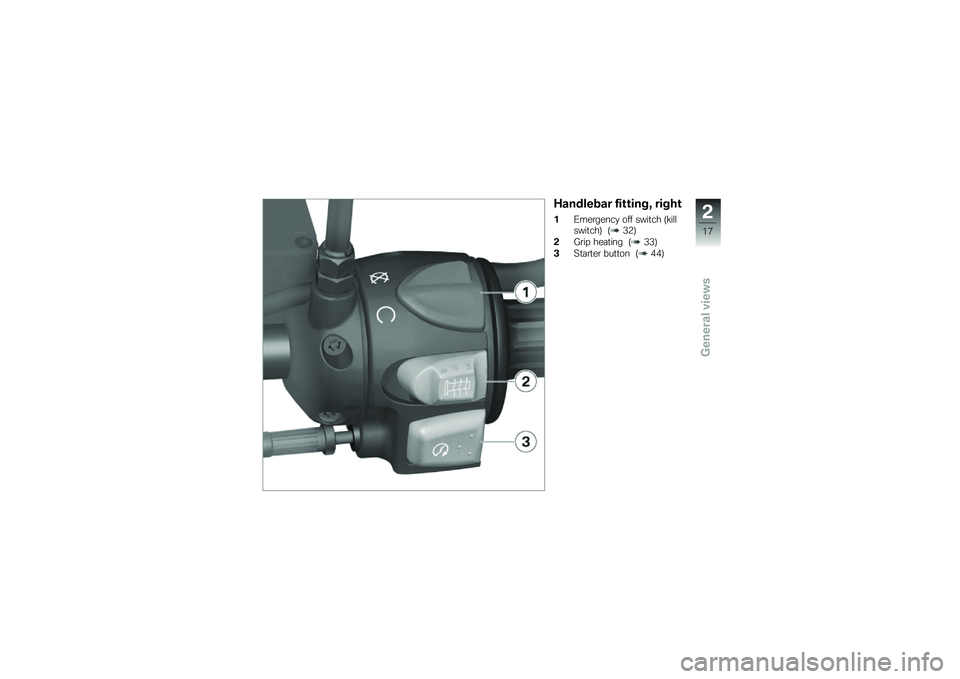

Handlebar fitting, right
1Emergency off switch (killswitch) (32)
2Grip heating (33)
3Starter button (44)
2
17
zGeneral views

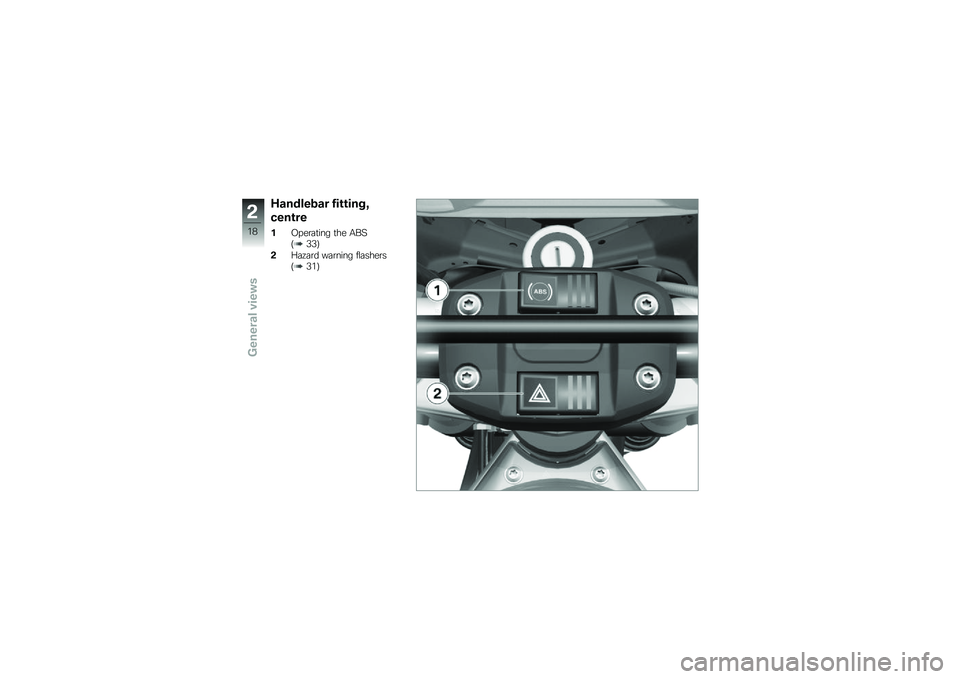

Handlebar fitting,
centre
1Operating the ABS(33)
2Hazard warning flashers(31)
2
18
zGeneral views
