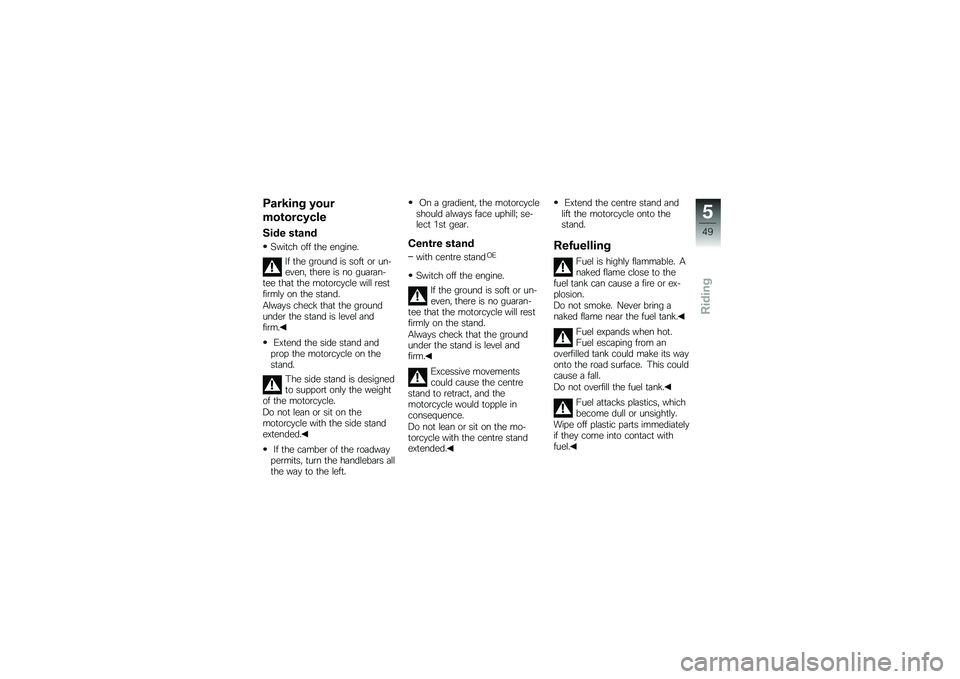

Parking your
motorcycle
Side stand
Switch off the engine.
If the ground is soft or un-even, there is no guaran-tee that the motorcycle will restfirmly on the stand.
Always check that the groundunder the stand is level andfirm.
Extend the side stand andprop the motorcycle on thestand.
The side stand is designedto support only the weightof the motorcycle.
Do not lean or sit on themotorcycle with the side standextended.
If the camber of the roadwaypermits, turn the handlebars allthe way to the left.
On a gradient, the motorcycleshould always face uphill; se-lect 1st gear.
Centre stand
with centre standOE
Switch off the engine.
If the ground is soft or un-even, there is no guaran-tee that the motorcycle will restfirmly on the stand.
Always check that the groundunder the stand is level andfirm.
Excessive movementscould cause the centrestand to retract, and themotorcycle would topple inconsequence.
Do not lean or sit on the mo-torcycle with the centre standextended.
Extend the centre stand andlift the motorcycle onto thestand.
Refuelling
Fuel is highly flammable. Anaked flame close to thefuel tank can cause a fire or ex-plosion.
Do not smoke. Never bring anaked flame near the fuel tank.
Fuel expands when hot.Fuel escaping from anoverfilled tank could make its wayonto the road surface. This couldcause a fall.
Do not overfill the fuel tank.
Fuel attacks plastics, whichbecome dull or unsightly.
Wipe off plastic parts immediatelyif they come into contact withfuel.
5
49
zRiding

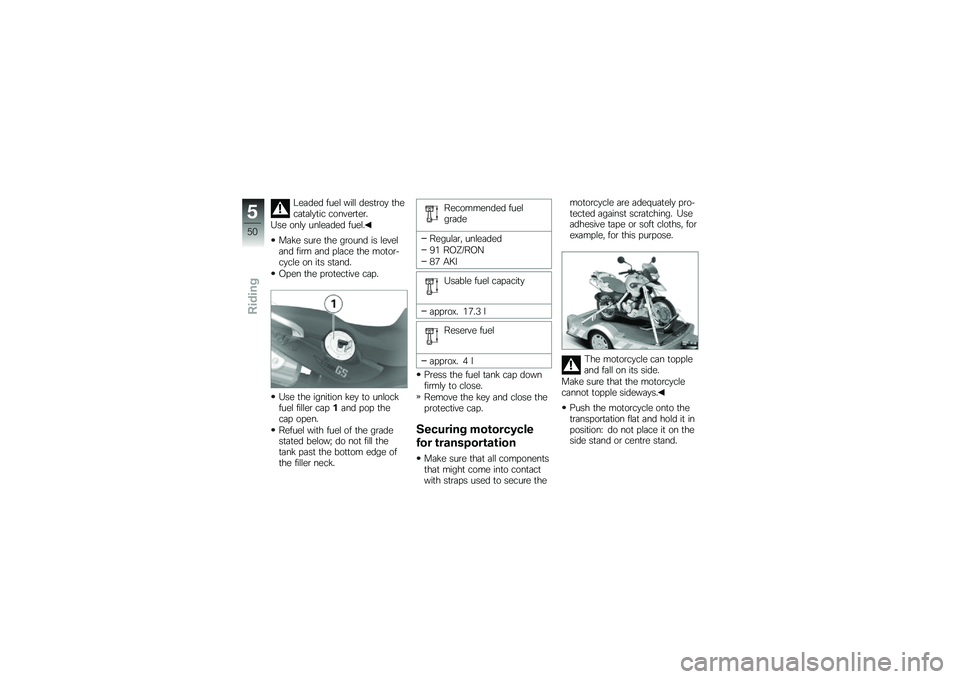

Leaded fuel will destroy thecatalytic converter.
Use only unleaded fuel.
Make sure the ground is leveland firm and place the motor-cycle on its stand.
Open the protective cap.
Use the ignition key to unlockfuel filler cap1and pop thecap open.
Refuel with fuel of the gradestated below; do not fill thetank past the bottom edge ofthe filler neck.
Recommended fuelgrade
Regular, unleaded
91 ROZ/RON
87 AKI
Usable fuel capacity
approx. 17.3 l
Reserve fuel
approx. 4 l
Press the fuel tank cap downfirmly to close.
Remove the key and close theprotective cap.
Securing motorcycle
for transportation
Make sure that all componentsthat might come into contactwith straps used to secure the
motorcycle are adequately pro-tected against scratching. Useadhesive tape or soft cloths, forexample, for this purpose.
The motorcycle can toppleand fall on its side.
Make sure that the motorcyclecannot topple sideways.
Push the motorcycle onto thetransportation flat and hold it inposition: do not place it on theside stand or centre stand.
5
50
zRiding

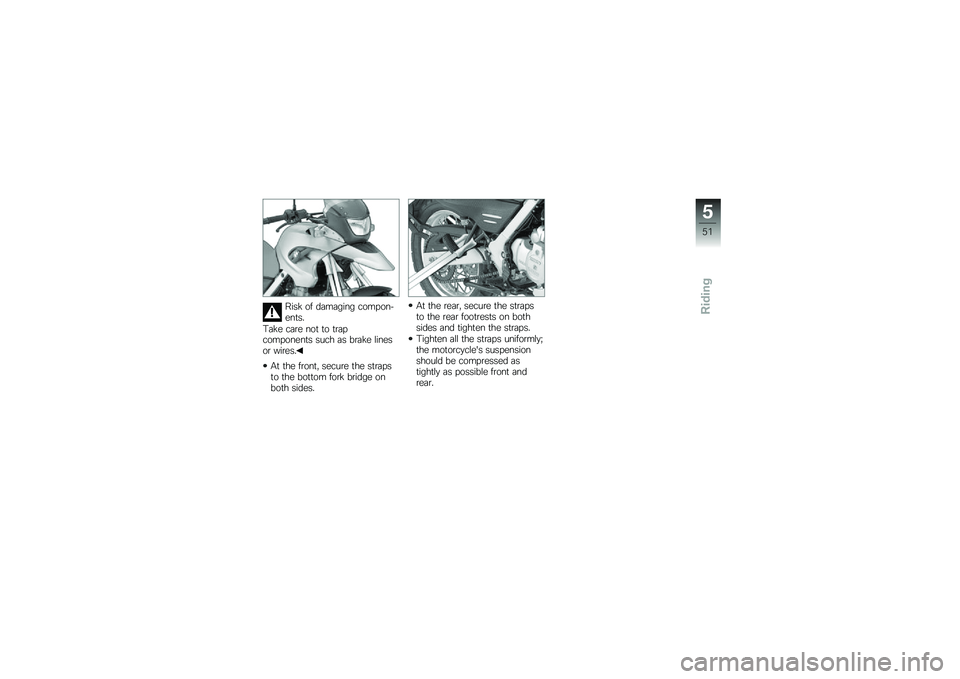

Risk of damaging compon-ents.
Take care not to trapcomponents such as brake linesor wires.
At the front, secure the strapsto the bottom fork bridge onboth sides.
At the rear, secure the strapsto the rear footrests on bothsides and tighten the straps.
Tighten all the straps uniformly;the motorcycle's suspensionshould be compressed astightly as possible front andrear.
5
51
zRiding

5
52
zRiding

Engineering details
Engineering details
Brake system with BMW Motorrad
ABS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
6
53
zEngineering details

Brake system with
BMW Motorrad ABS

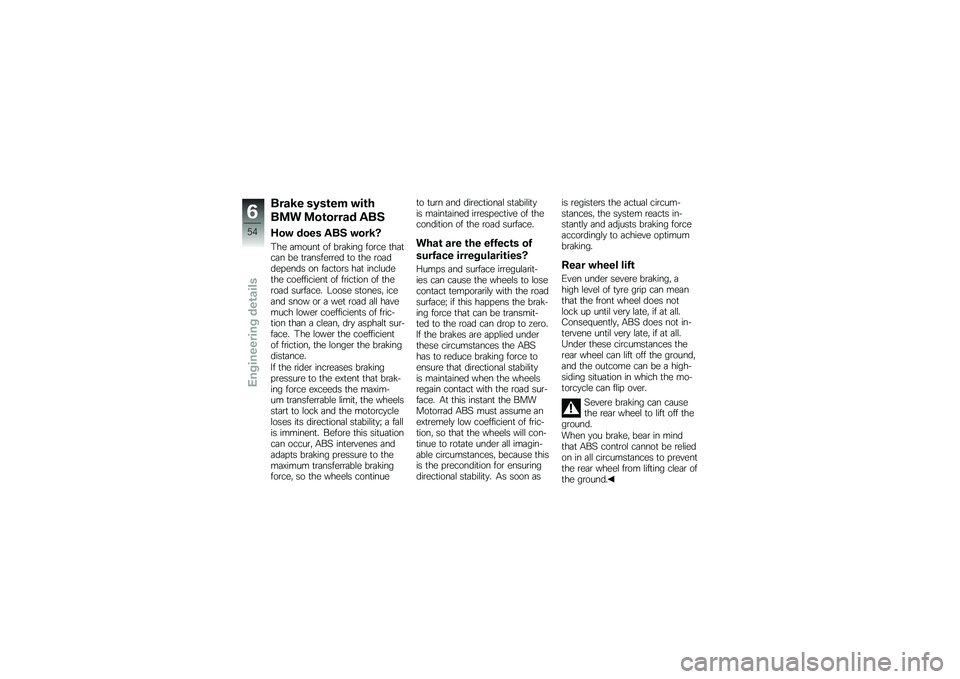

How does ABS work?
The amount of braking force thatcan be transferred to the roaddepends on factors hat includethe coefficient of friction of theroad surface. Loose stones, iceand snow or a wet road all havemuch lower coefficients of fric-tion than a clean, dry asphalt sur-face. The lower the coefficientof friction, the longer the brakingdistance.
If the rider increases brakingpressure to the extent that brak-ing force exceeds the maxim-um transferrable limit, the wheelsstart to lock and the motorcycleloses its directional stability; a fallis imminent. Before this situationcan occur, ABS intervenes andadapts braking pressure to themaximum transferrable brakingforce, so the wheels continue
to turn and directional stabilityis maintained irrespective of thecondition of the road surface.
What are the effects of
surface irregularities?
Humps and surface irregularit-ies can cause the wheels to losecontact temporarily with the roadsurface; if this happens the brak-ing force that can be transmit-ted to the road can drop to zero.If the brakes are applied underthese circumstances the ABShas to reduce braking force toensure that directional stabilityis maintained when the wheelsregain contact with the road sur-face. At this instant the BMWMotorrad ABS must assume anextremely low coefficient of fric-tion, so that the wheels will con-tinue to rotate under all imagin-able circumstances, because thisis the precondition for ensuringdirectional stability. As soon as
is registers the actual circum-stances, the system reacts in-stantly and adjusts braking forceaccordingly to achieve optimumbraking.
Rear wheel lift
Even under severe braking, ahigh level of tyre grip can meanthat the front wheel does notlock up until very late, if at all.Consequently, ABS does not in-tervene until very late, if at all.Under these circumstances therear wheel can lift off the ground,and the outcome can be a high-siding situation in which the mo-torcycle can flip over.
Severe braking can causethe rear wheel to lift off theground.
When you brake, bear in mindthat ABS control cannot be reliedon in all circumstances to preventthe rear wheel from lifting clear ofthe ground.
6
54
zEngineering details

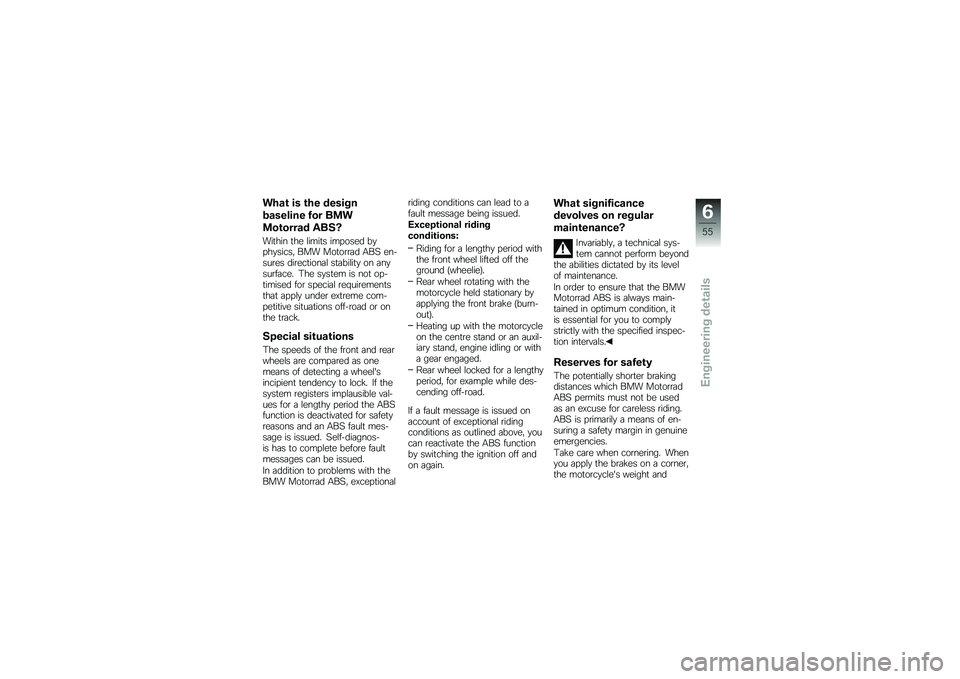

What is the design
baseline for BMW
Motorrad ABS?
Within the limits imposed byphysics, BMW Motorrad ABS en-sures directional stability on anysurface. The system is not op-timised for special requirementsthat apply under extreme com-petitive situations off-road or onthe track.
Special situations
The speeds of the front and rearwheels are compared as onemeans of detecting a wheel'sincipient tendency to lock. If thesystem registers implausible val-ues for a lengthy period the ABSfunction is deactivated for safetyreasons and an ABS fault mes-sage is issued. Self-diagnos-is has to complete before faultmessages can be issued.
In addition to problems with theBMW Motorrad ABS, exceptional
riding conditions can lead to afault message being issued.Exceptional ridingconditions:
Riding for a lengthy period withthe front wheel lifted off theground (wheelie).
Rear wheel rotating with themotorcycle held stationary byapplying the front brake (burn-out).
Heating up with the motorcycleon the centre stand or an auxil-iary stand, engine idling or witha gear engaged.
Rear wheel locked for a lengthyperiod, for example while des-cending off-road.
If a fault message is issued onaccount of exceptional ridingconditions as outlined above, youcan reactivate the ABS functionby switching the ignition off andon again.
What significance
devolves on regular
maintenance?
Invariably, a technical sys-tem cannot perform beyondthe abilities dictated by its levelof maintenance.
In order to ensure that the BMWMotorrad ABS is always main-tained in optimum condition, itis essential for you to complystrictly with the specified inspec-tion intervals.
Reserves for safety
The potentially shorter brakingdistances which BMW MotorradABS permits must not be usedas an excuse for careless riding.ABS is primarily a means of en-suring a safety margin in genuineemergencies.
Take care when cornering. Whenyou apply the brakes on a corner,the motorcycle's weight and
6
55

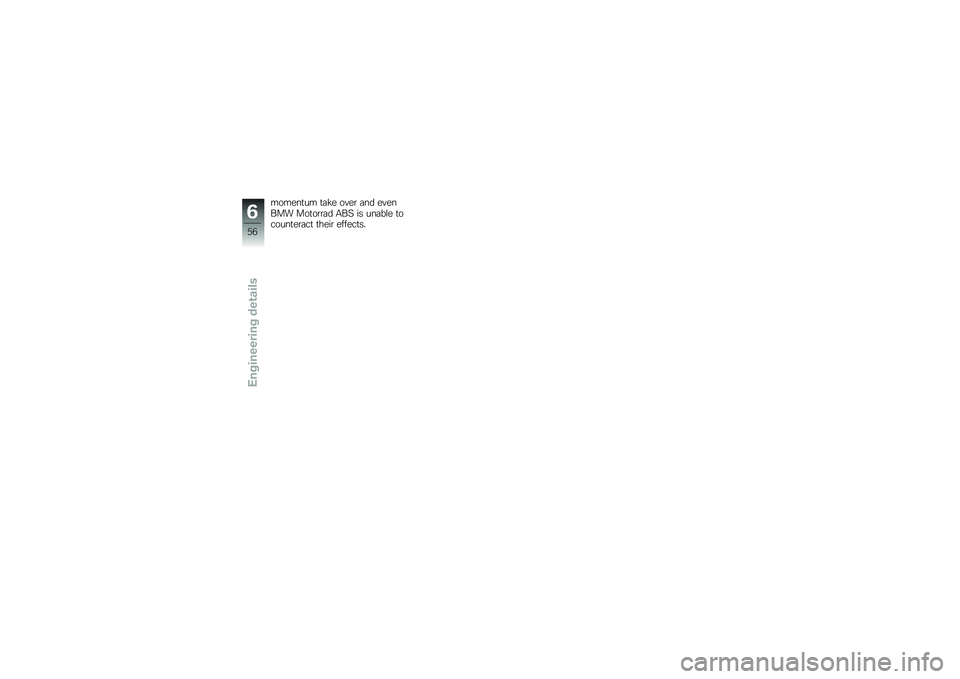

zEngineering details

momentum take over and evenBMW Motorrad ABS is unable tocounteract their effects.6
56
zEngineering details

Accessories
Accessories
General instructions . . . . . . . . . . . . . . . . . 58
Power sockets . . . . . . . . . . . . . . . . . . . . . . 58
Case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
topcase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
7
57
zAccessories

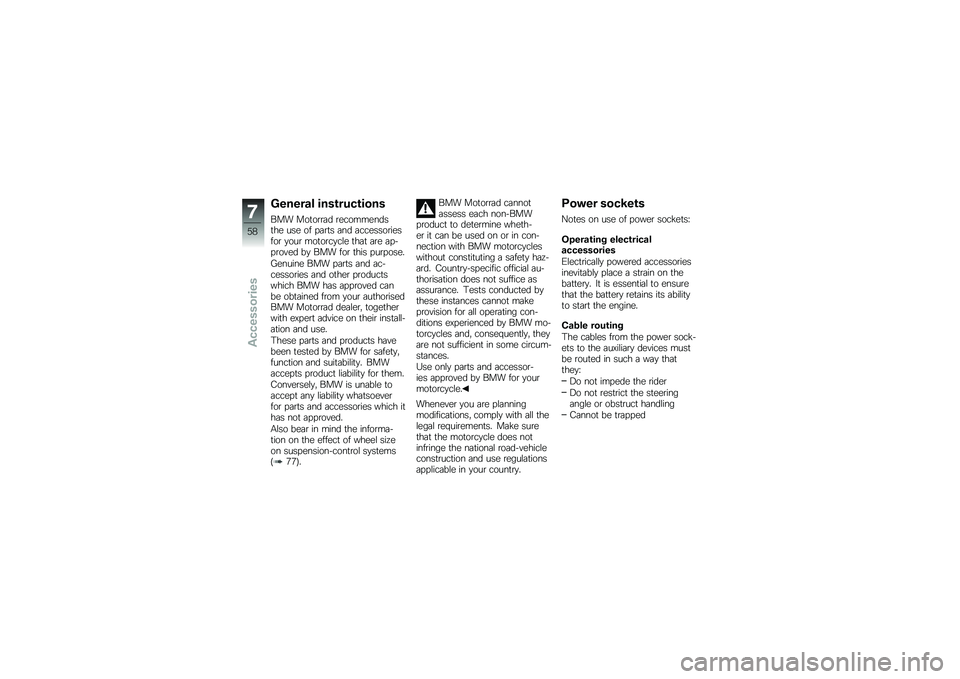

General instructions
BMW Motorrad recommendsthe use of parts and accessoriesfor your motorcycle that are ap-proved by BMW for this purpose.
Genuine BMW parts and ac-cessories and other productswhich BMW has approved canbe obtained from your authorisedBMW Motorrad dealer, togetherwith expert advice on their install-ation and use.
These parts and products havebeen tested by BMW for safety,function and suitability. BMWaccepts product liability for them.
Conversely, BMW is unable toaccept any liability whatsoeverfor parts and accessories which ithas not approved.
Also bear in mind the informa-tion on the effect of wheel sizeon suspension-control systems(77).
BMW Motorrad cannotassess each non-BMWproduct to determine wheth-er it can be used on or in con-nection with BMW motorcycleswithout constituting a safety haz-ard. Country-specific official au-thorisation does not suffice asassurance. Tests conducted bythese instances cannot makeprovision for all operating con-ditions experienced by BMW mo-torcycles and, consequently, theyare not sufficient in some circum-stances.
Use only parts and accessor-ies approved by BMW for yourmotorcycle.
Whenever you are planningmodifications, comply with all thelegal requirements. Make surethat the motorcycle does notinfringe the national road-vehicleconstruction and use regulationsapplicable in your country.
Power sockets
Notes on use of power sockets:
Operating electricalaccessories
Electrically powered accessoriesinevitably place a strain on thebattery. It is essential to ensurethat the battery retains its abilityto start the engine.
Cable routing
The cables from the power sock-ets to the auxiliary devices mustbe routed in such a way thatthey:
Do not impede the rider
Do not restrict the steeringangle or obstruct handling
Cannot be trapped
7
58
zAccessories
