BMW MOTORRAD G 650 GS 2010 Rider's Manual (in English)

Case
with caseOA

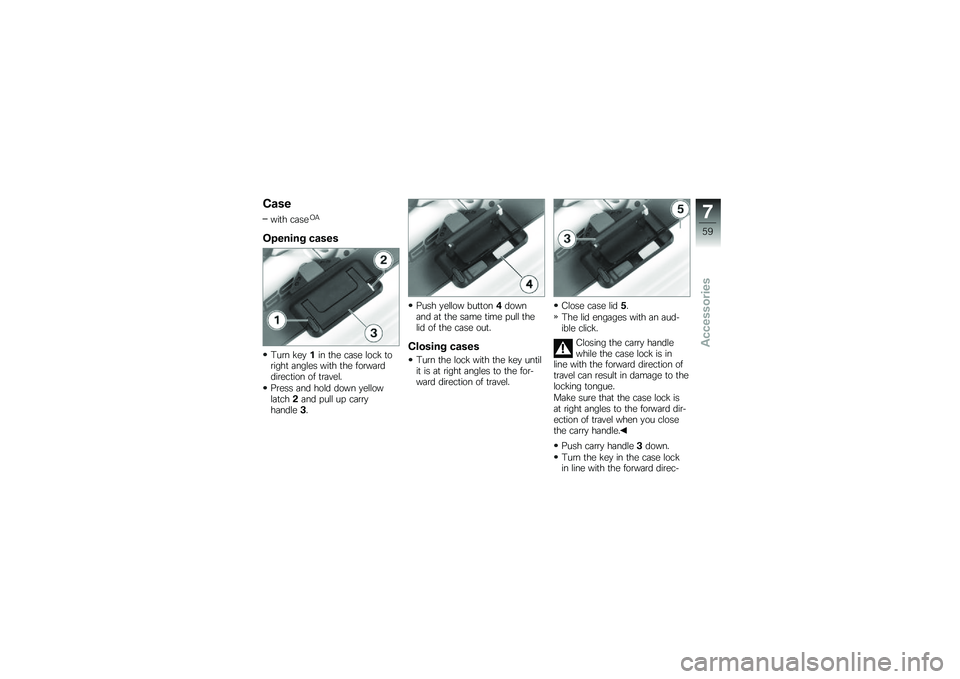

Opening cases
Turn key1in the case lock toright angles with the forwarddirection of travel.
Press and hold down yellowlatch2and pull up carryhandle3.
Push yellow button4downand at the same time pull thelid of the case out.
Closing cases
Turn the lock with the key untilit is at right angles to the for-ward direction of travel.
Close case lid5.
The lid engages with an aud-ible click.
Closing the carry handlewhile the case lock is inline with the forward direction oftravel can result in damage to thelocking tongue.
Make sure that the case lock isat right angles to the forward dir-ection of travel when you closethe carry handle.
Push carry handle3down.
Turn the key in the case lockin line with the forward direc-
7
59
zAccessories

tion of travel and remove thekey from the lock.

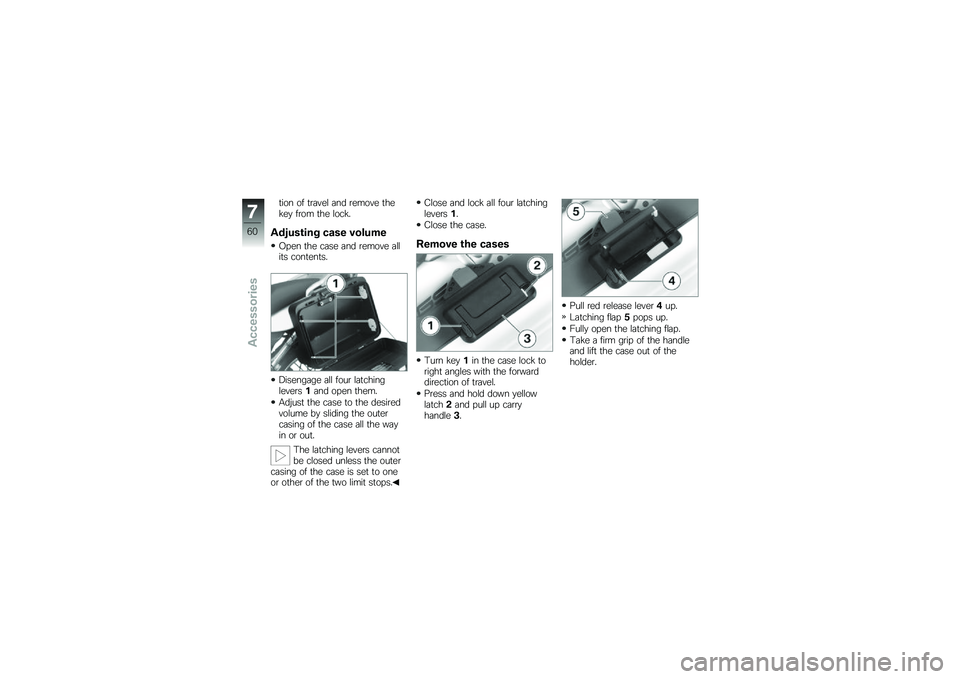

Adjusting case volume
Open the case and remove allits contents.
Disengage all four latchinglevers1and open them.
Adjust the case to the desiredvolume by sliding the outercasing of the case all the wayin or out.
The latching levers cannotbe closed unless the outercasing of the case is set to oneor other of the two limit stops.
Close and lock all four latchinglevers1.
Close the case.
Remove the cases
Turn key1in the case lock toright angles with the forwarddirection of travel.
Press and hold down yellowlatch2and pull up carryhandle3.
Pull red release lever4up.
Latching flap5pops up.
Fully open the latching flap.
Take a firm grip of the handleand lift the case out of theholder.
7
60
zAccessories

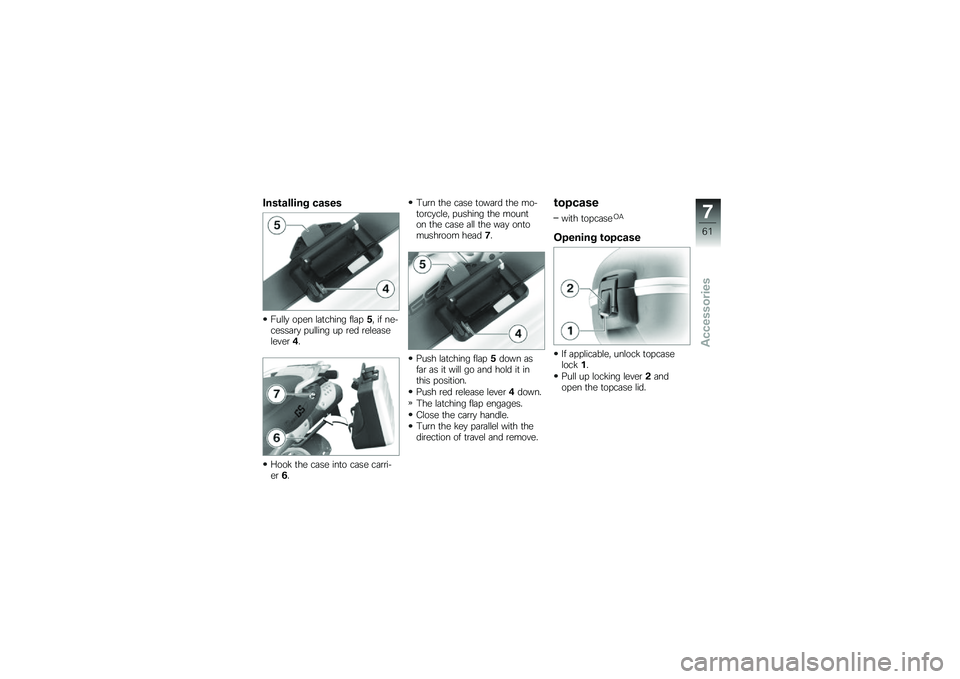

Installing cases
Fully open latching flap5, if ne-cessary pulling up red releaselever4.
Hook the case into case carri-er6.
Turn the case toward the mo-torcycle, pushing the mounton the case all the way ontomushroom head7.
Push latching flap5down asfar as it will go and hold it inthis position.
Push red release lever4down.
The latching flap engages.
Close the carry handle.
Turn the key parallel with thedirection of travel and remove.
topcase
with topcaseOA
Opening topcase
If applicable, unlock topcaselock1.
Pull up locking lever2andopen the topcase lid.
7
61
zAccessories

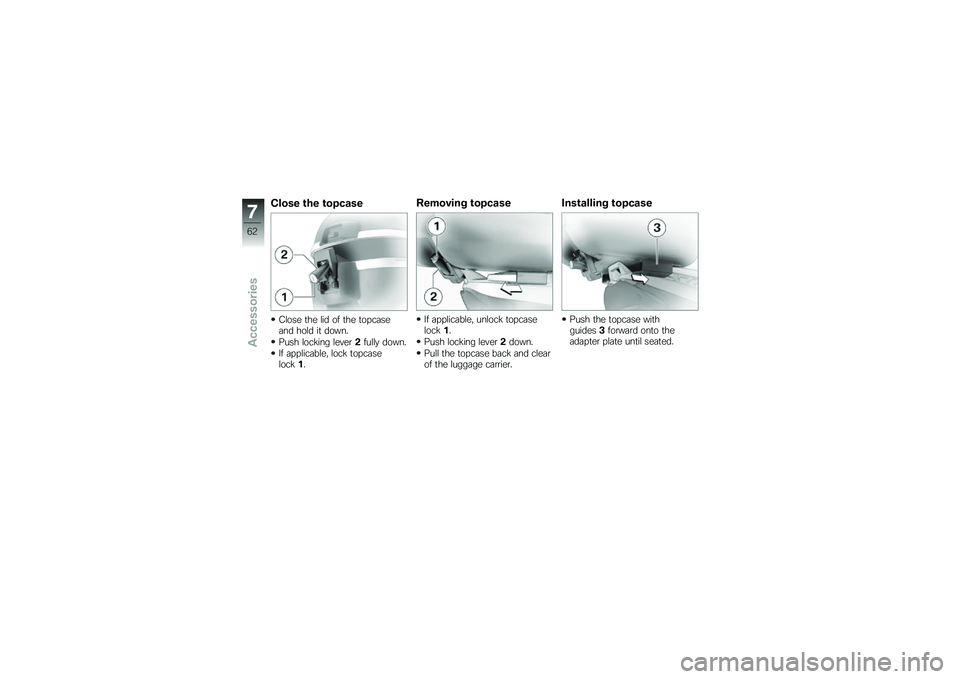

Close the topcase
Close the lid of the topcaseand hold it down.
Push locking lever2fully down.
If applicable, lock topcaselock1.
Removing topcase
If applicable, unlock topcaselock1.
Push locking lever2down.
Pull the topcase back and clearof the luggage carrier.
Installing topcase
Push the topcase withguides3forward onto theadapter plate until seated.
7
62
zAccessories

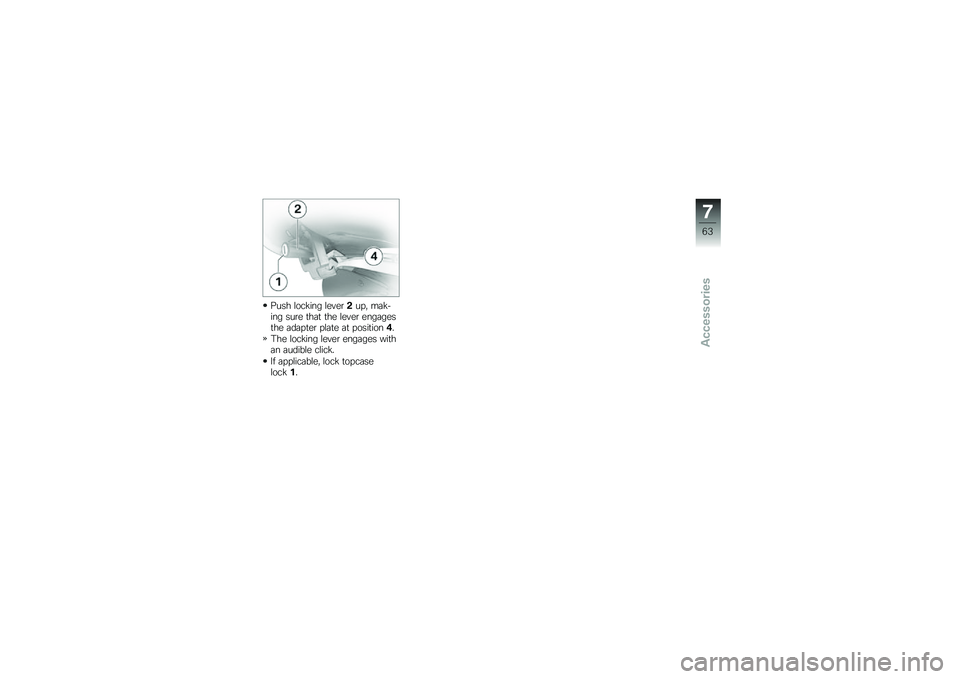

Push locking lever2up, mak-ing sure that the lever engagesthe adapter plate at position4.
The locking lever engages withan audible click.
If applicable, lock topcaselock1.
7
63
zAccessories

7
64
zAccessories

Maintenance

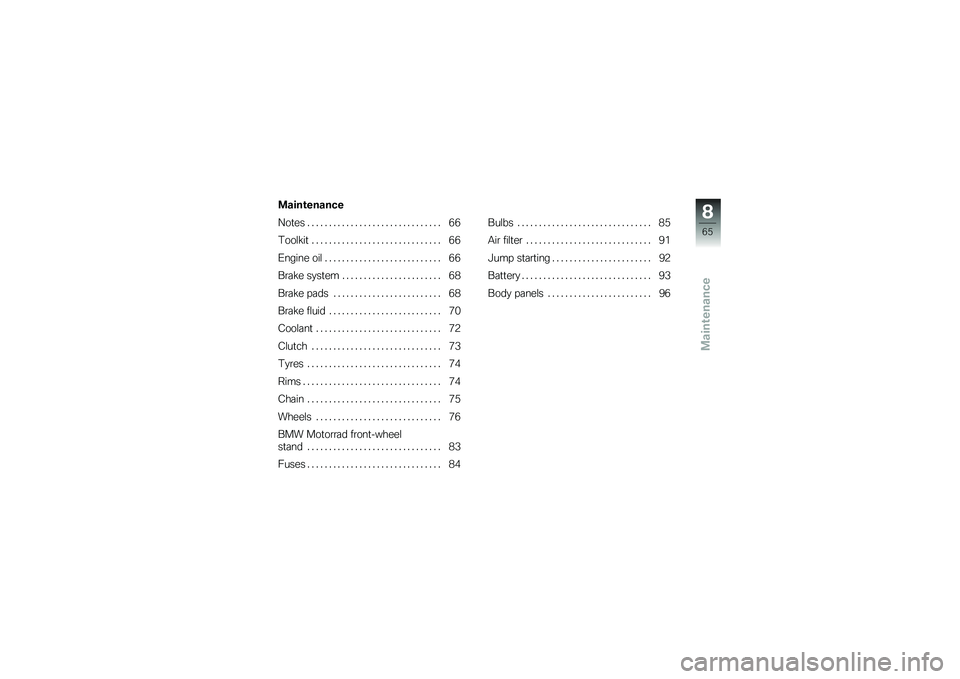

Maintenance
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Toolkit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Brake system . . . . . . . . . . . . . . . . . . . . . . . 68
Brake pads . . . . . . . . . . . . . . . . . . . . . . . . . 68
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Clutch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Rims . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
BMW Motorrad front-wheel
stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Air filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Jump starting . . . . . . . . . . . . . . . . . . . . . . . 92
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Body panels . . . . . . . . . . . . . . . . . . . . . . . . 96
8
65
zMaintenance

Notes

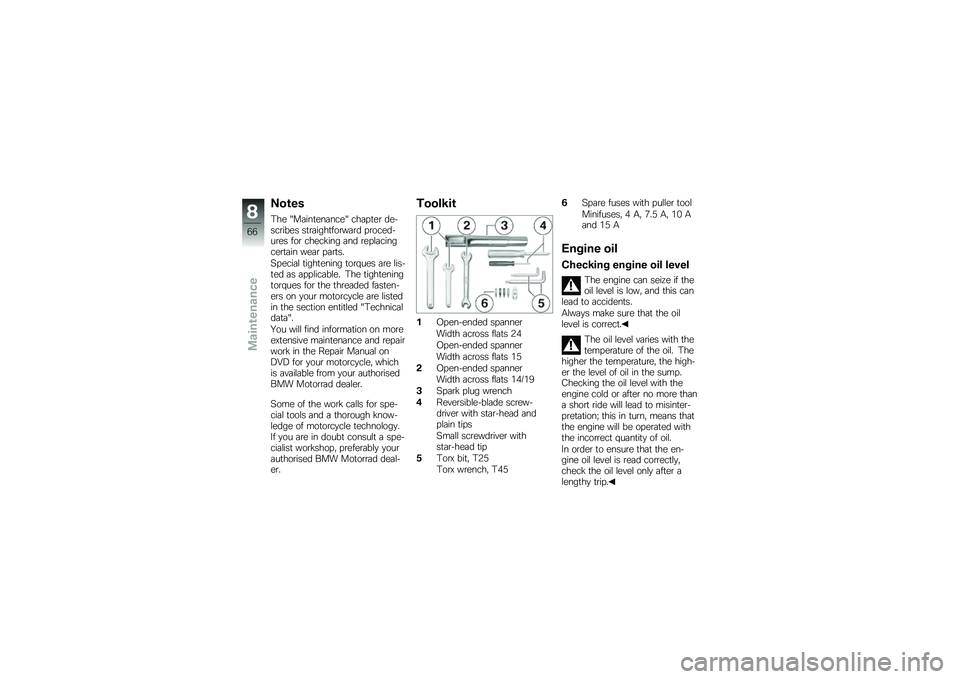

The "Maintenance" chapter de-scribes straightforward proced-ures for checking and replacingcertain wear parts.
Special tightening torques are lis-ted as applicable. The tighteningtorques for the threaded fasten-ers on your motorcycle are listedin the section entitled "Technicaldata".
You will find information on moreextensive maintenance and repairwork in the Repair Manual onDVD for your motorcycle, whichis available from your authorisedBMW Motorrad dealer.
Some of the work calls for spe-cial tools and a thorough know-ledge of motorcycle technology.If you are in doubt consult a spe-cialist workshop, preferably yourauthorised BMW Motorrad deal-er.
Toolkit
1Open-ended spanner
Width across flats 24
Open-ended spanner
Width across flats 15
2Open-ended spanner
Width across flats 14/19
3Spark plug wrench
4Reversible-blade screw-driver with star-head andplain tips
Small screwdriver withstar-head tip
5Torx bit, T25
Torx wrench, T45
6Spare fuses with puller tool
Minifuses, 4 A, 7.5 A, 10 Aand 15 A
Engine oil
Checking engine oil level
The engine can seize if theoil level is low, and this canlead to accidents.
Always make sure that the oillevel is correct.
The oil level varies with thetemperature of the oil. Thehigher the temperature, the high-er the level of oil in the sump.Checking the oil level with theengine cold or after no more thana short ride will lead to misinter-pretation; this in turn, means thatthe engine will be operated withthe incorrect quantity of oil.
In order to ensure that the en-gine oil level is read correctly,check the oil level only after alengthy trip.
8
66
zMaintenance

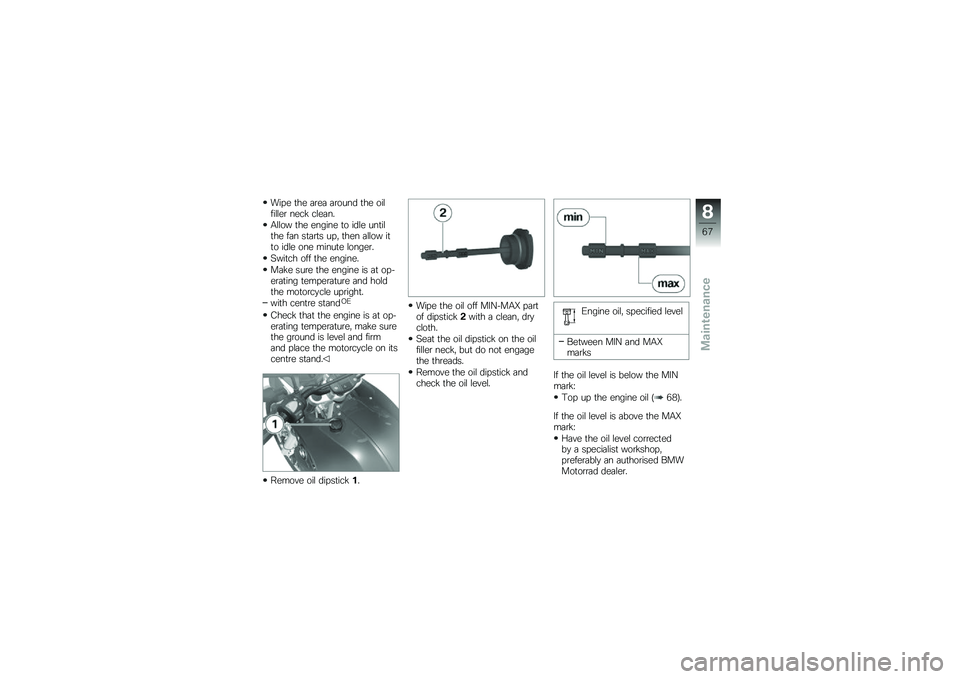

Wipe the area around the oilfiller neck clean.
Allow the engine to idle untilthe fan starts up, then allow itto idle one minute longer.
Switch off the engine.
Make sure the engine is at op-erating temperature and holdthe motorcycle upright.
with centre standOE
Check that the engine is at op-erating temperature, make surethe ground is level and firmand place the motorcycle on itscentre stand.
Remove oil dipstick1.
Wipe the oil off MIN-MAX partof dipstick2with a clean, drycloth.
Seat the oil dipstick on the oilfiller neck, but do not engagethe threads.
Remove the oil dipstick andcheck the oil level.
Engine oil, specified level
Between MIN and MAXmarks
If the oil level is below the MINmark:
Top up the engine oil (68).
If the oil level is above the MAXmark:
Have the oil level correctedby a specialist workshop,preferably an authorised BMWMotorrad dealer.
8
67
zMaintenance

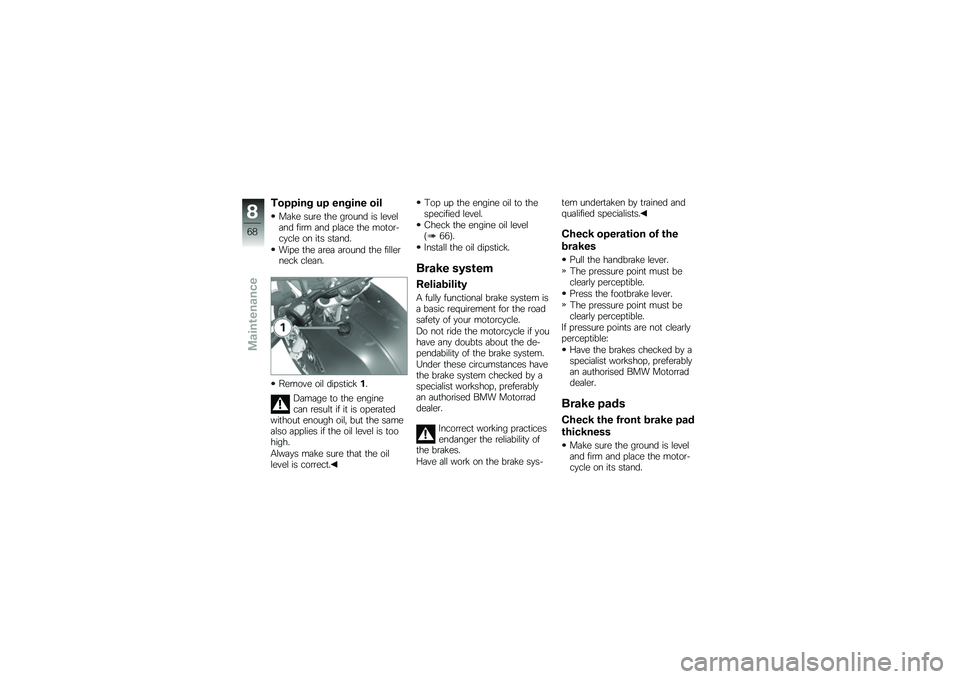

Topping up engine oil
Make sure the ground is leveland firm and place the motor-cycle on its stand.
Wipe the area around the fillerneck clean.
Remove oil dipstick1.
Damage to the enginecan result if it is operatedwithout enough oil, but the samealso applies if the oil level is toohigh.
Always make sure that the oillevel is correct.
Top up the engine oil to thespecified level.
Check the engine oil level(66).
Install the oil dipstick.
Brake system
Reliability
A fully functional brake system isa basic requirement for the roadsafety of your motorcycle.
Do not ride the motorcycle if youhave any doubts about the de-pendability of the brake system.
Under these circumstances havethe brake system checked by aspecialist workshop, preferablyan authorised BMW Motorraddealer.
Incorrect working practicesendanger the reliability ofthe brakes.
Have all work on the brake sys-
tem undertaken by trained andqualified specialists.
Check operation of the
brakes
Pull the handbrake lever.
The pressure point must beclearly perceptible.
Press the footbrake lever.
The pressure point must beclearly perceptible.
If pressure points are not clearlyperceptible:
Have the brakes checked by aspecialist workshop, preferablyan authorised BMW Motorraddealer.
Brake pads
Check the front brake pad
thickness
Make sure the ground is leveland firm and place the motor-cycle on its stand.
8
68
zMaintenance
