BMW MOTORRAD R 1100 S 2002 Rider's Manual (in English)

11
9
General information and controls

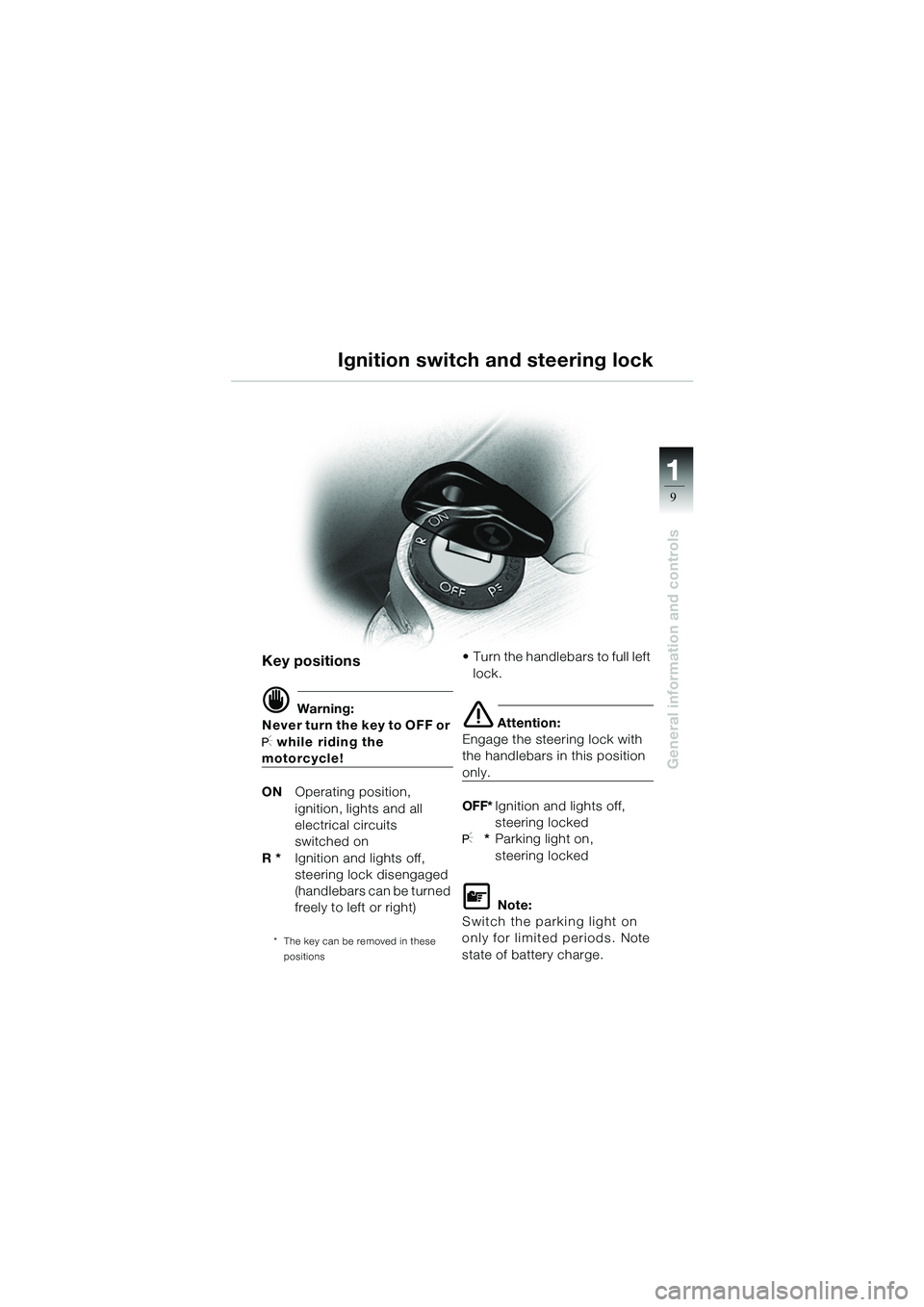

Ignition switch and steering lock
Key positions
d Warning:
Never turn the key to OFF or
I while riding the
motorcycle!
ON Operating position,
ignition, ligh ts and all
electrical circuits
switched on
R * Ignition and lights off,
steering lock disengaged
(handlebars can be turned
freely to left or right)
* The key can be removed in these
positions
• Turn the handlebars to full left lock.
e Attention:
Engage the steer ing lock with
the handlebars in this position
only.
OFF* Ignition and lights off,
steering locked
I**Parking light on,
steering locked
L Note:
Switch the parking light on
only for limited periods. Note
state of battery charge.
10sbkg6.bk.fm Seite 9 Montag, 23. Januar 2006 4:27 16

11
10
General information and controls
d Warning:
To prevent air from entering
the clutch system: do not turn
the fitting on the handlebars.
1 Cold start lever (increased engine
speed) (
b 61)
2 Hazard warning flashers switch
(
b 12) 3
Headlight
FHigh (main) beam
GLow (dipped) beam
FHeadlight flasher
4 Horn button
5 Left turn indicator switch
•Press
– Turn indicators flash
To switch off:
• Self-cancelling while riding, or
press turn-indicator cancel
switch 9

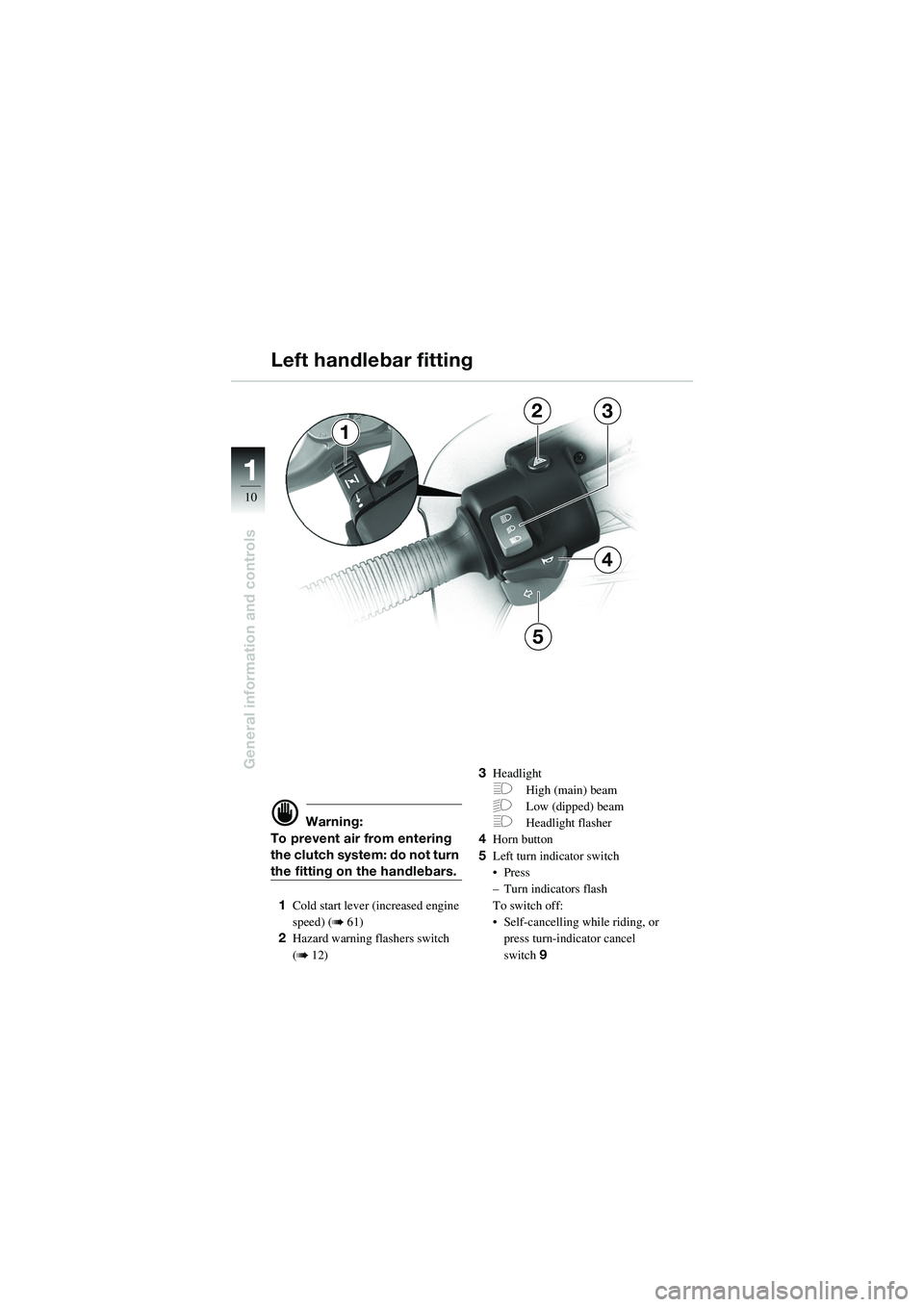

Left handlebar fitting
23
4
5
1
10sbkg6.bk.fm Seite 10 Montag, 23. Januar 2006 4:27 16

11
11
General information and controls
7
B
C
A
68
910
C
B
d Warning:
To prevent air from entering
the brake circuit: do not turn
the fitting on the handlebars.
6 Switch for heated handlebar grip-
s
OE
A Heating off
B 50% (centre position)
C 100%
7 Emergency ignition off (kill)
switch (
b 58)
8 Starter button
9 Turn-indicator cancel switch
•Press
– left/right indicators off 10
Right turn indicator switch
•Press
– Turn indicators flash
To switch off:
• Self-cancelling while riding, or
press turn-indicator cancel
switch 9
OEOptional extra

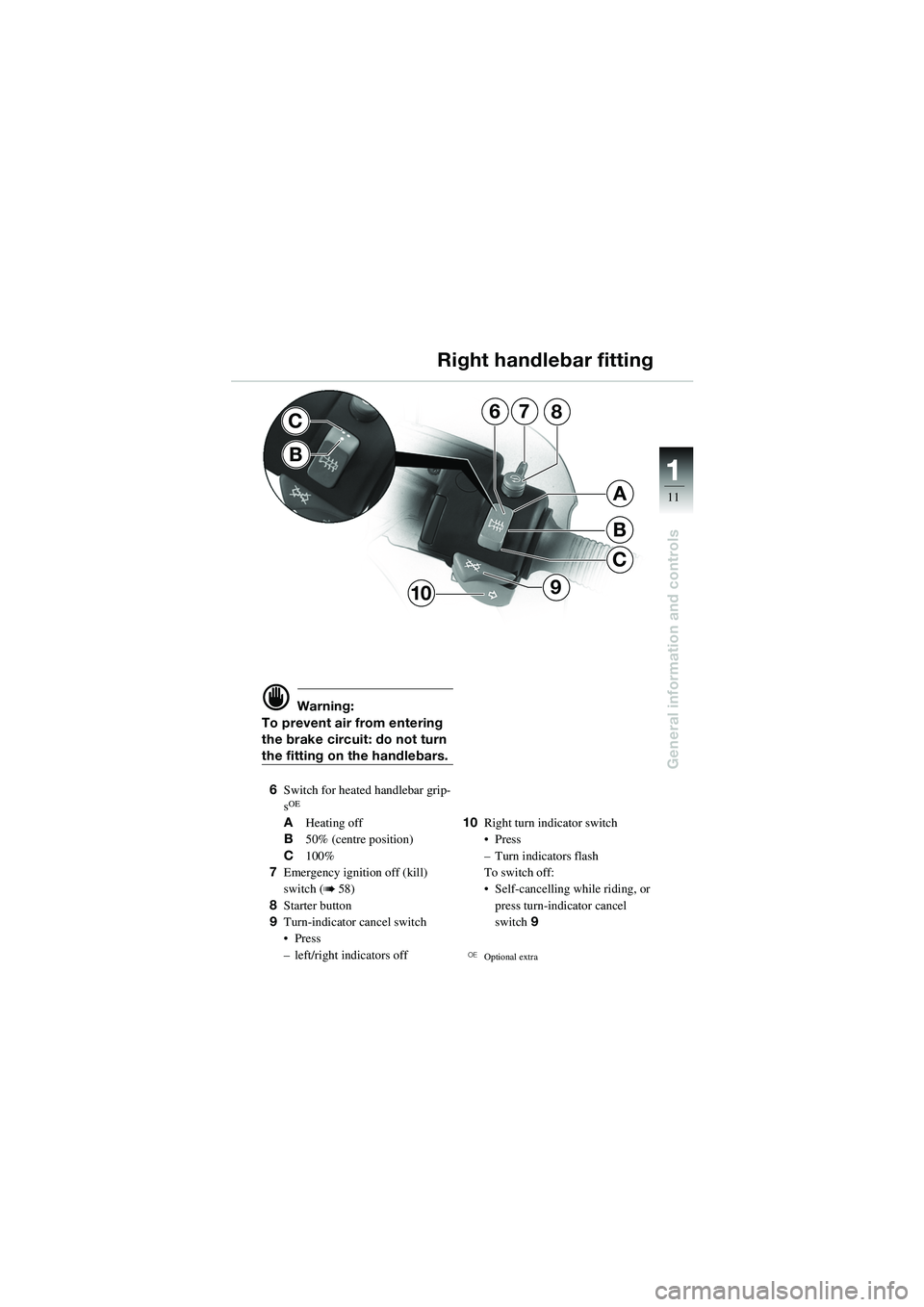

Right handlebar fitting
10sbkg6.bk.fm Seite 11 Montag, 23. Januar 2006 4:27 16

11
12
General information and controls
1

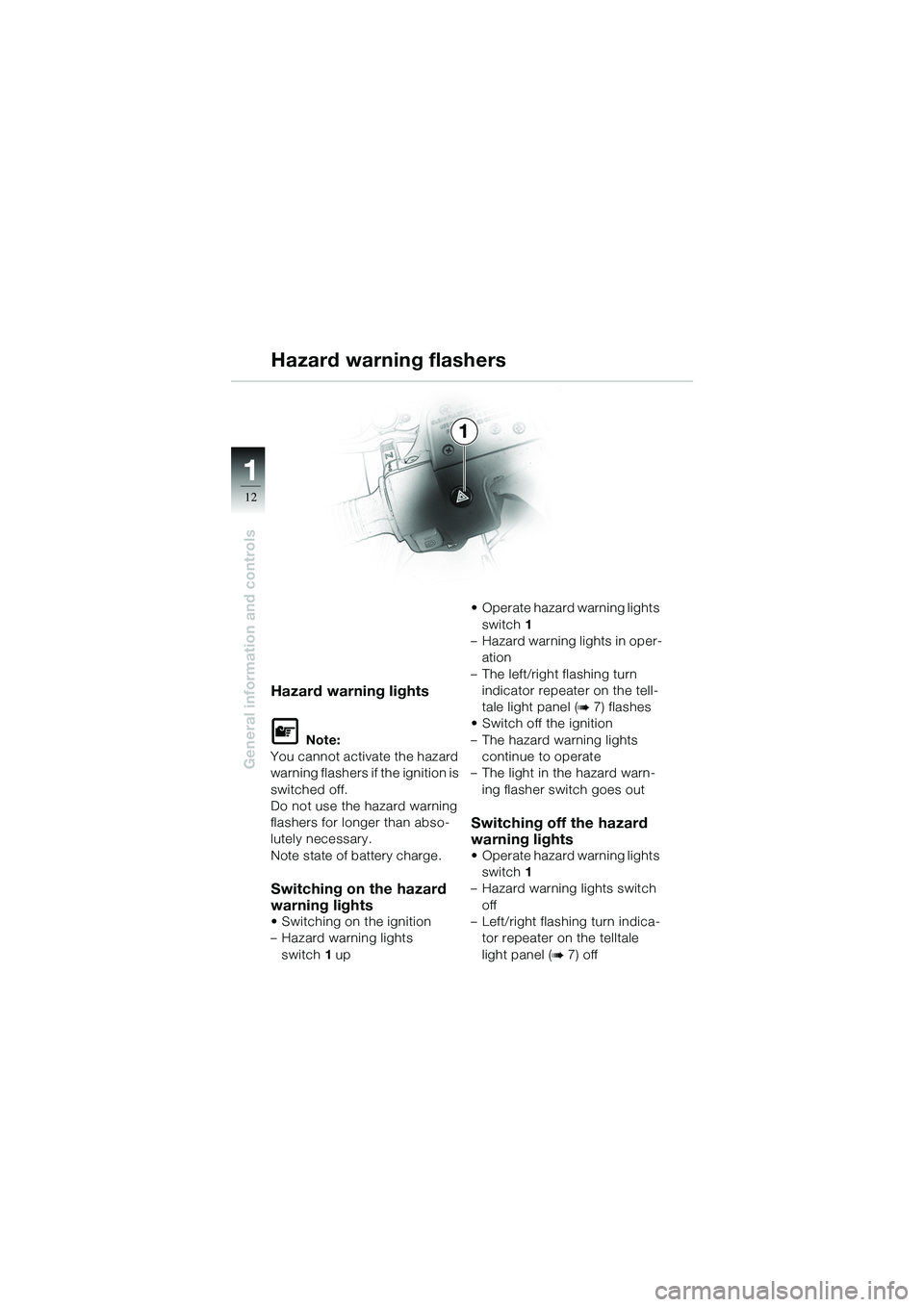

Hazard warning lights
L Note:
You cannot activate the hazard
warning flashers if the ignition is
switched off.
Do not use the hazard warning
flashers for longer than abso-
lutely necessary.
Note state of battery charge.
Switching on the hazard
warning lights
• Switching on the ignition
– Hazard warning lights switch 1 up • Operate hazard warning lights
switch 1
– Hazard warning lights in oper- ation
– The left/right flashing turn indicator repeater on the tell-
tale light panel (
b 7) flashes
• Switch off the ignition
– The hazard warning lights
continue to operate
– The light in the hazard warn- ing flasher switch goes out
Switching off the hazard
warning lights
• Operate hazard warning lights switch 1
– Hazard warning lights switch off
– Left/right flashing turn indica- tor repeater on the telltale
light panel (
b 7) off
Hazard warning flashers
10sbkg6.bk.fm Seite 12 Montag, 23. Januar 2006 4:27 16

11
13
General information and controls
2
3
14
1

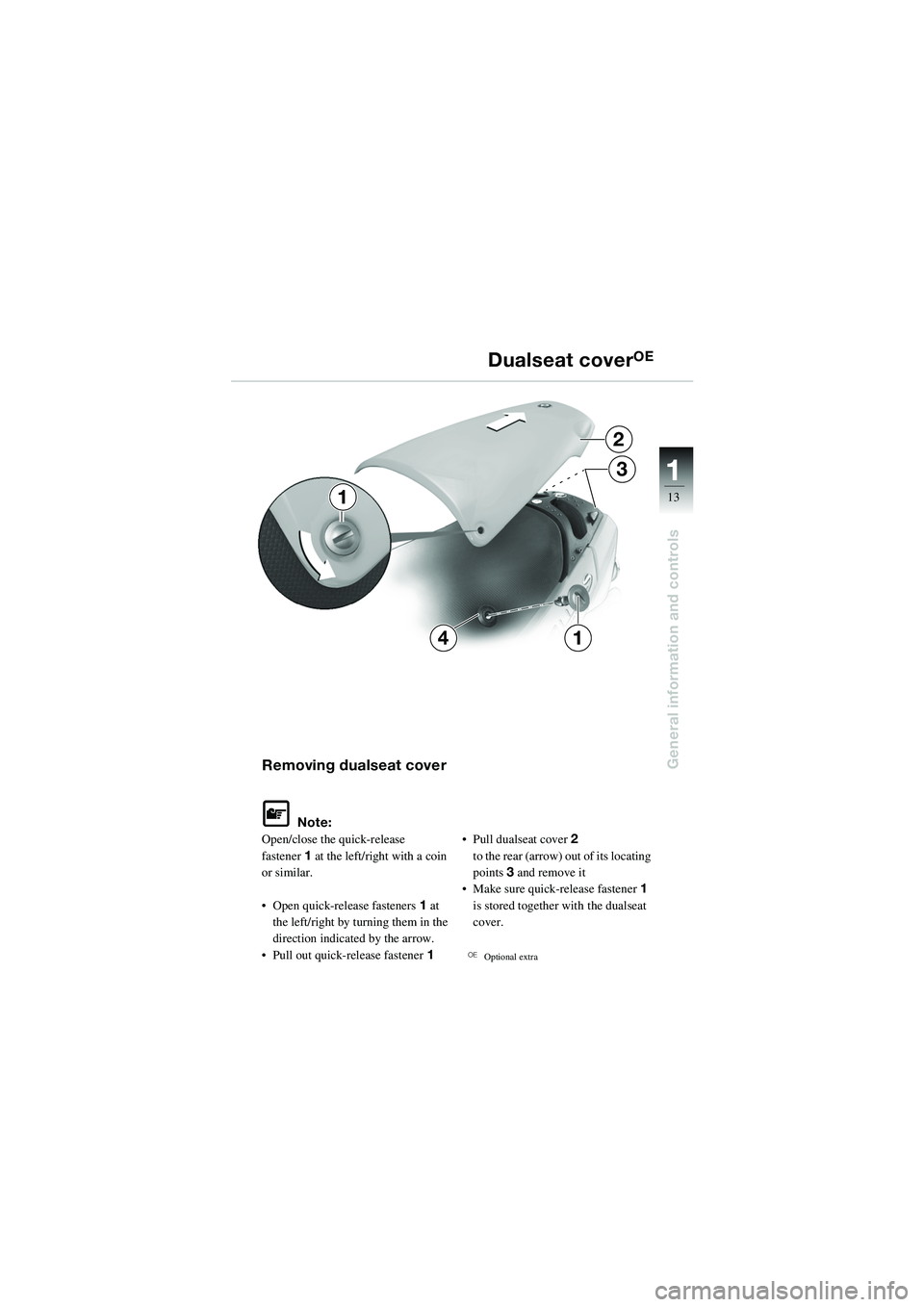

Removing dualseat cover
L Note:
Open/close the quick-release
fastener 1 at the left/right with a coin
or similar.
• Open quick-release fasteners 1 at
the left/right by tu rning them in the
direction indicated by the arrow.
• Pull out quick-release fastener 1• Pull dualseat cover
2
to the rear (arrow) out of its locating
points 3 and remove it
• Make sure quick-release fastener 1
is stored together with the dualseat
cover.
OEOptional extra
Dualseat coverOE
10sbkg6.bk.fm Seite 13 Montag, 23. Januar 2006 4:27 16

11
14

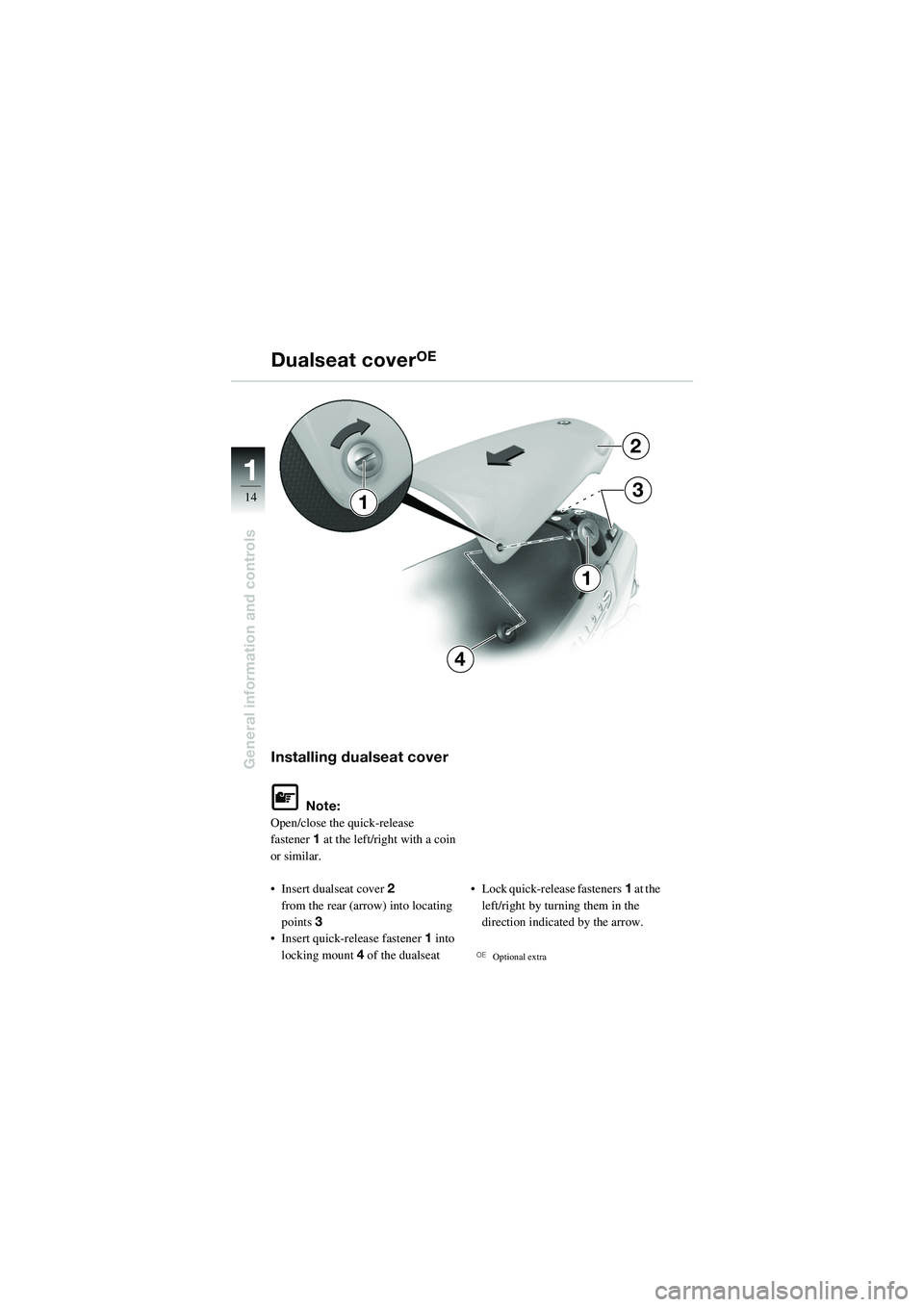

General information and controlsInstalling dualseat cover
L Note:
Open/close the quick-release
fastener 1 at the left/rig ht with a coin
or similar.
• Insert dualseat cover 2
from the rear (arro w) into locating
points 3
• Insert quick-release fastener 1 into
locking mount 4 of the dualseat • Lock quick-release fasteners
1 at the
left/right by turning th em in the
direction indicated by the arrow.
OEOptional extra
Dualseat coverOE
2
3
4
1
1
10sbkg6.bk.fm Seite 14 Montag, 23. Januar 2006 4:27 16

11
15
General information and controls
1

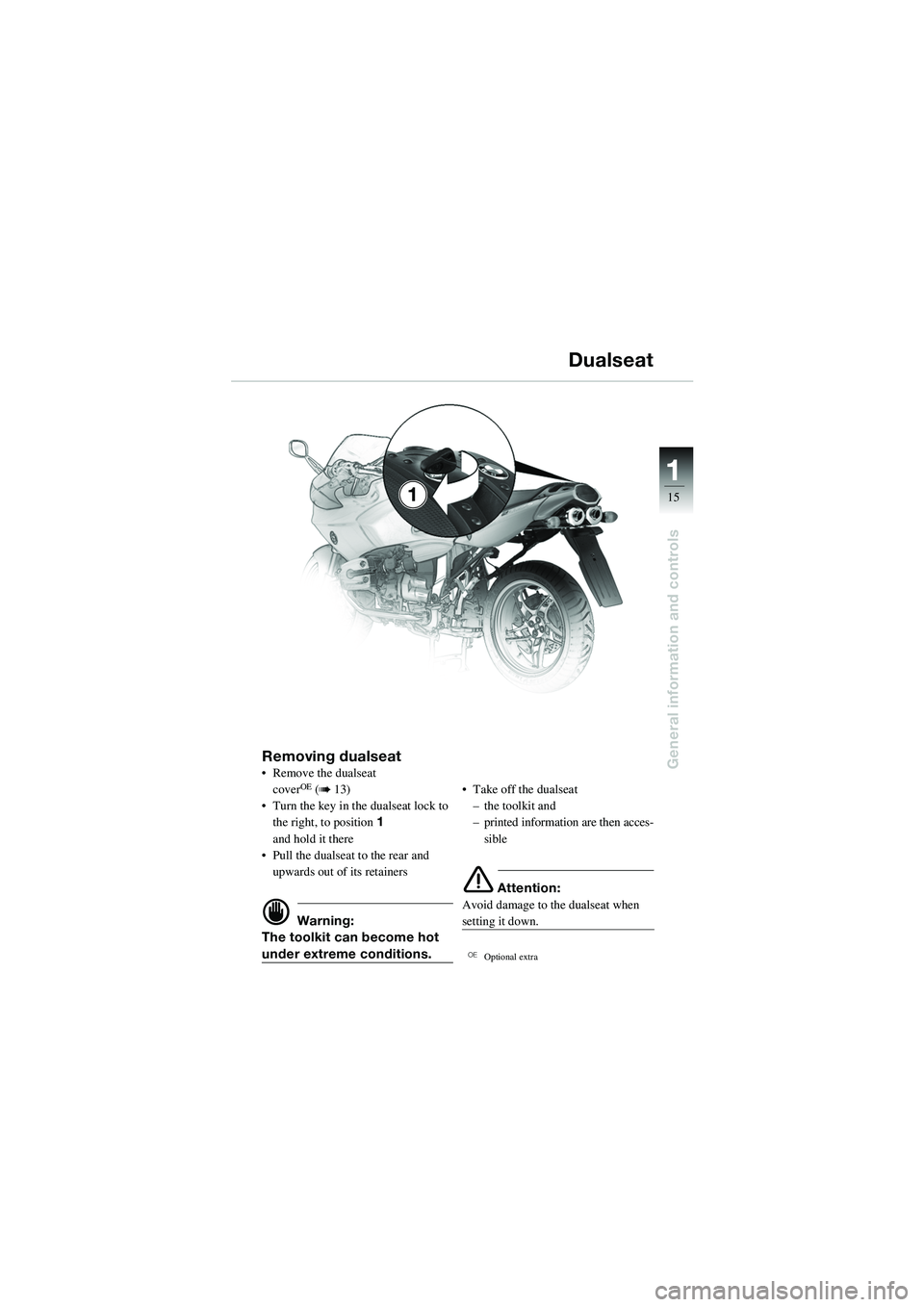

Removing dualseat• Remove the dualseat coverOE (b 13)
• Turn the key in the dualseat lock to the right, to position 1
and hold it there
• Pull the dualseat to the rear and
upwards out of its retainers
d Warning:
The toolkit can become hot
under extreme conditions. • Take off the dualseat
– the toolkit and
– printed information are then acces-sible
e Attention:
Avoid damage to the dualseat when
setting it down.
OEOptional extra
Dualseat
10sbkg6.bk.fm Seite 15 Montag, 23. Januar 2006 4:27 16

11
16
General information and controls
1

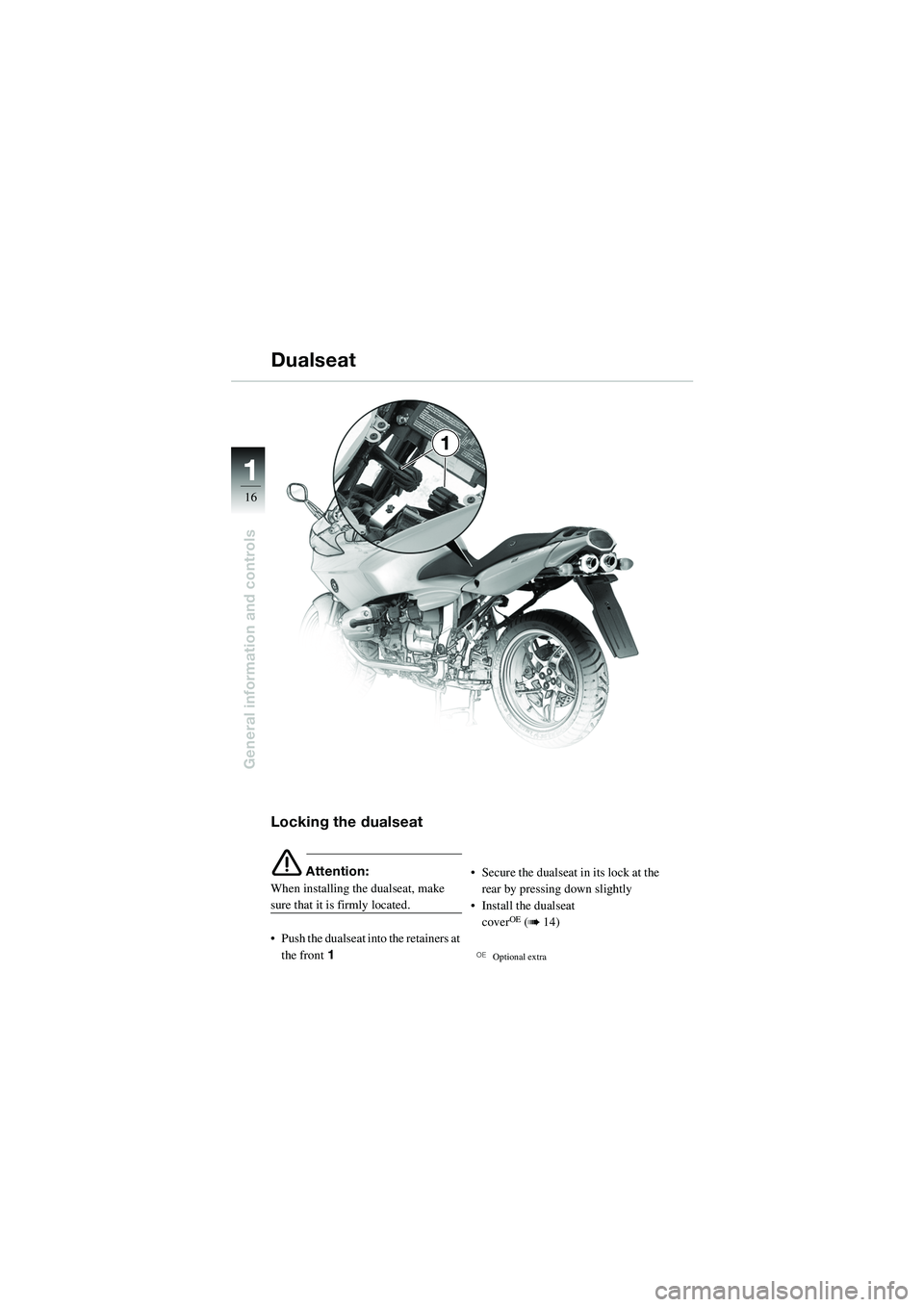

Locking the dualseat
e Attention:
When installing the dualseat, make
sure that it is firmly located.
• Push the dualseat into the retainers at
the front 1 • Secure the dualseat in its lock at the
rear by pressing down slightly
• Install the dualseat coverOE (b 14)
OEOptional extra
Dualseat
10sbkg6.bk.fm Seite 16 Montag, 23. Januar 2006 4:27 16

11
17
General information and controls
A
3
1
2
d Warning:
After an accident or if the
motorcycle has fallen over,
check that the System cases
are correctly secured.
Max. load per System case:
10 kg (22 lbs).
With System cases installed,
it is advisable not to exceed
130 km/h (80 mph).

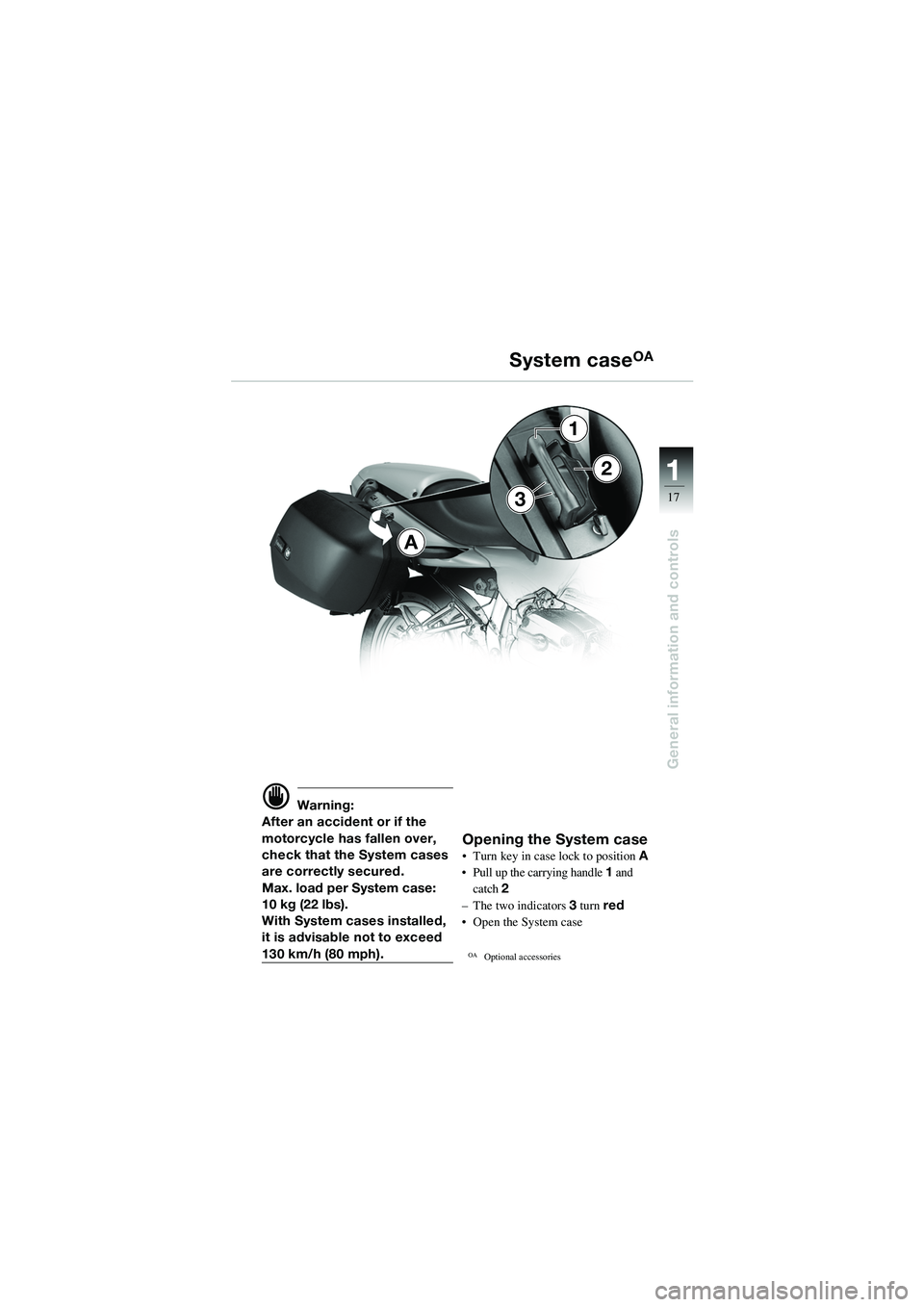

Opening the System case
• Turn key in case lock to positionA
• Pull up the carrying handle 1 and
catch 2
– The two indicators 3 turn red
• Open the System case
OAOptional accessories
System caseOA
10sbkg6.bk.fm Seite 17 Montag, 23. Januar 2006 4:27 16

11
18
General information and controls
A
3
1
2

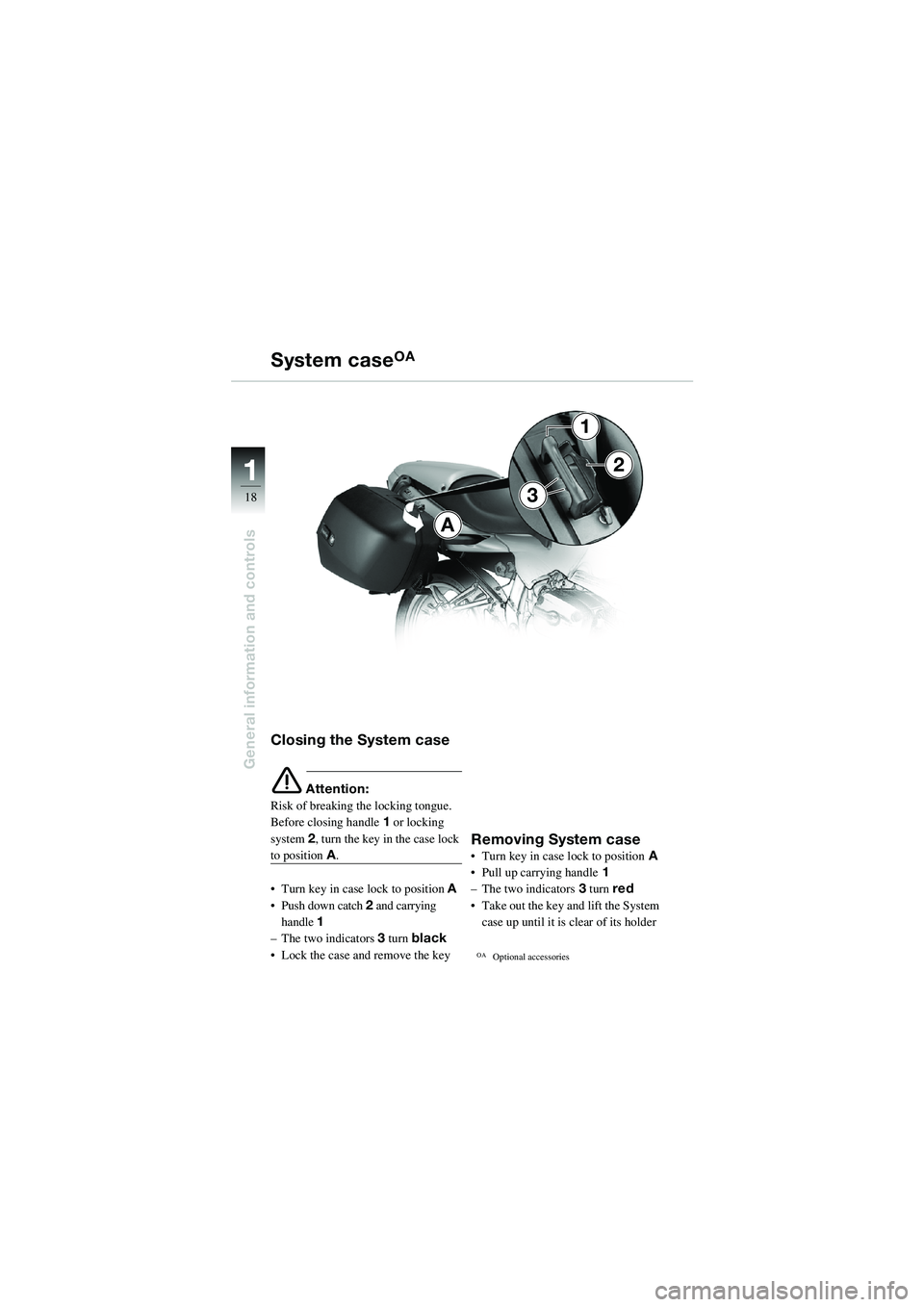

Closing the System case
e Attention:
Risk of breaking th e locking tongue.
Before closing handle 1 or locking
system 2, turn the key in the case lock
to position A.
• Turn key in case lock to positionA
• Push down catch 2 and carrying
handle 1
– The two indicators 3 turn black
• Lock the case and remove the keyRemoving System case
• Turn key in case lock to position A
• Pull up carrying handle 1
– The two indicators 3 turn red
• Take out the key and lift the System case up until it is clear of its holder
OAOptional accessories
System caseOA
10sbkg6.bk.fm Seite 18 Montag, 23. Januar 2006 4:27 16
