CHEVROLET AVEO 2002 Service Repair Manual

Fig. 159: O/D Brake Flange, Discs & Plates
Courtesy of GENERAL MOTORS CORP.
47. Remove 2nd coast and O/D brake flan
ge (1), 2 discs (2), and 2 plates (3) from the transaxle case.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:22 PMPage 172 © 2005 Mitchell Repair Information Company, LLC.

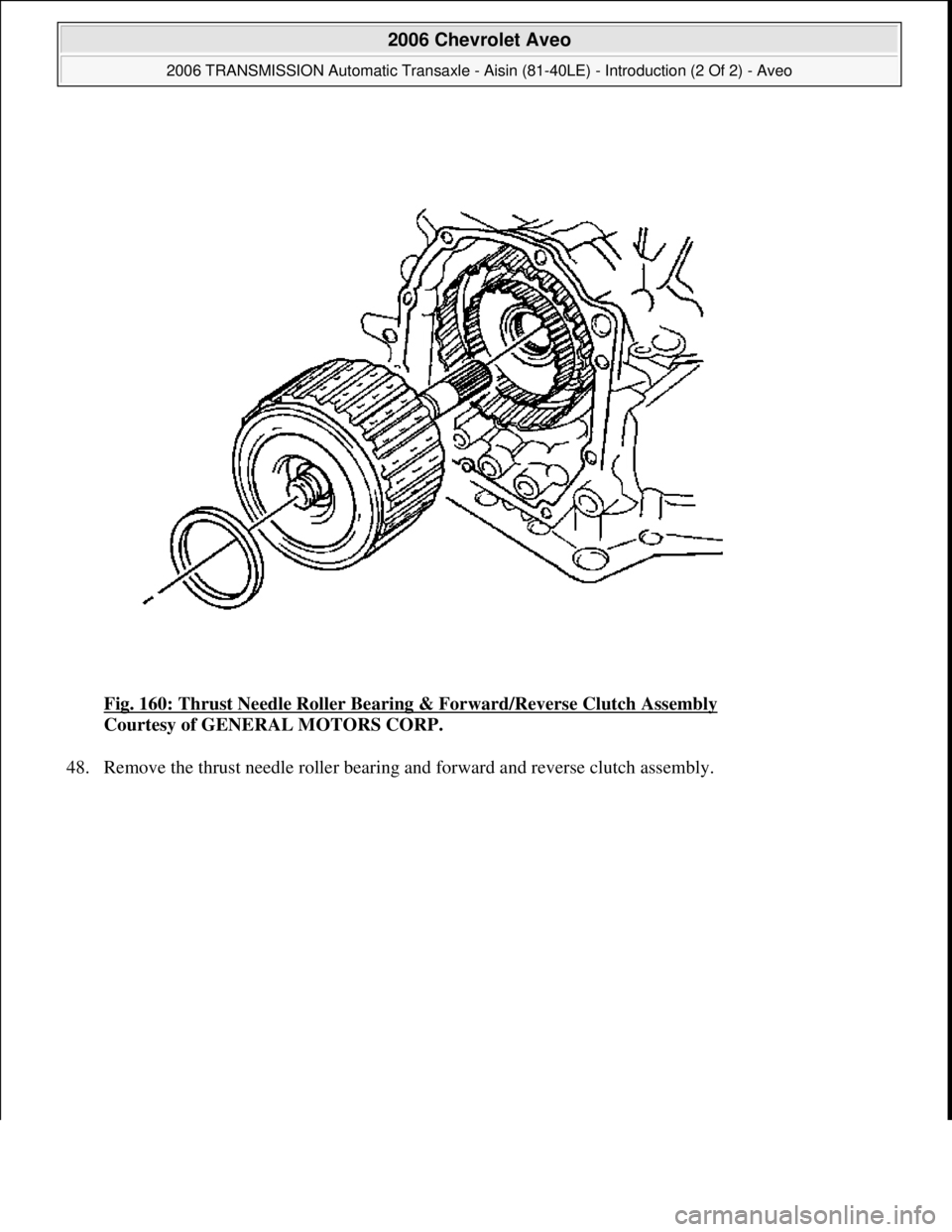

Fig. 160: Thrust Needle Roller Bearing & Forward/Reverse Clutch Assembly
Courtesy of GENERAL MOTORS CORP.
48. Remove the thrust needle roller bearin
g and forward and reverse clutch assembly.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:22 PMPage 173 © 2005 Mitchell Repair Information Company, LLC.

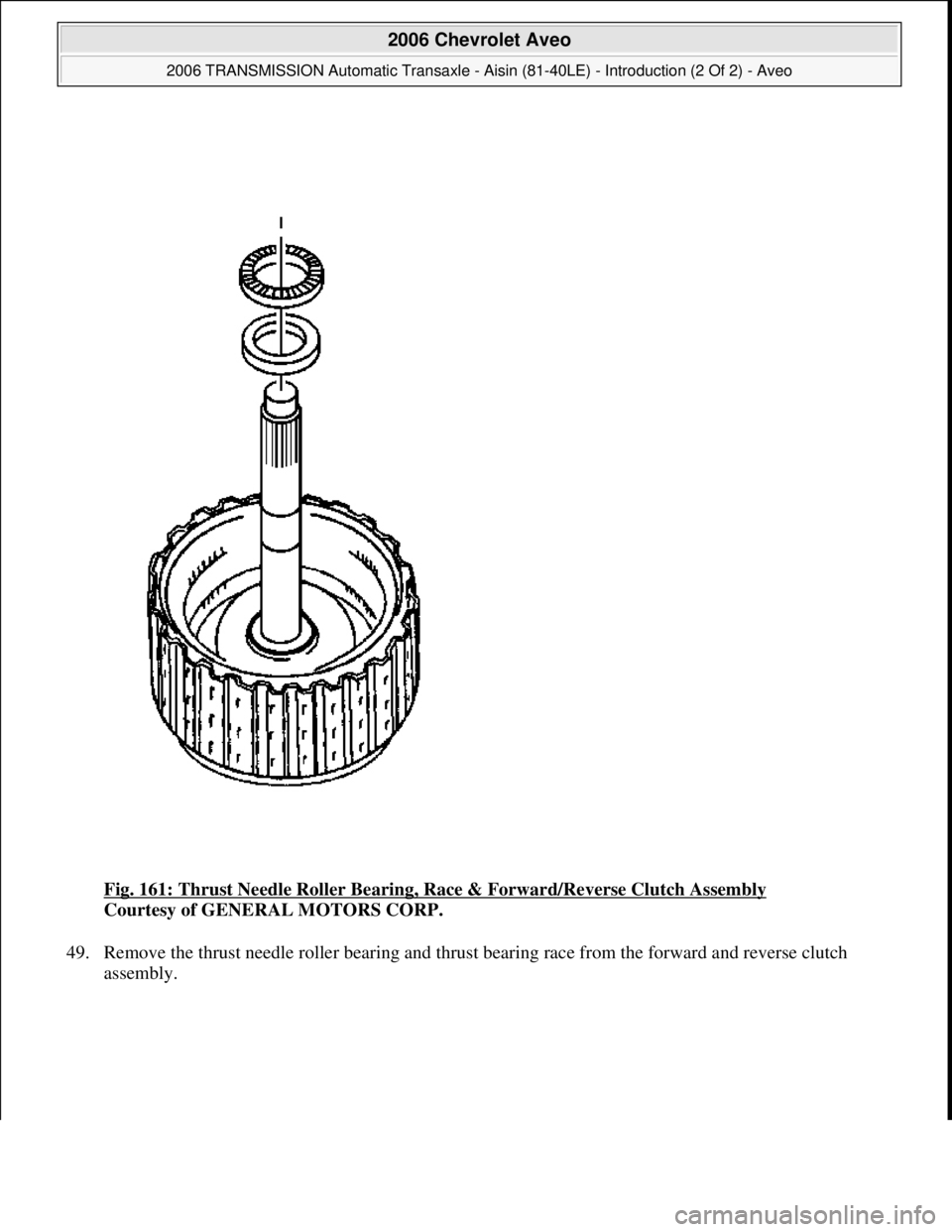

Fig. 161: Thrust Needle Roller Bearing, Race & Forward/Reverse Clutch Assembly
Courtesy of GENERAL MOTORS CORP.
49. Remove the thrust needle roller bearing and thrust bearing race from the forward and reverse clutch
assembly.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:22 PMPage 174 © 2005 Mitchell Repair Information Company, LLC.

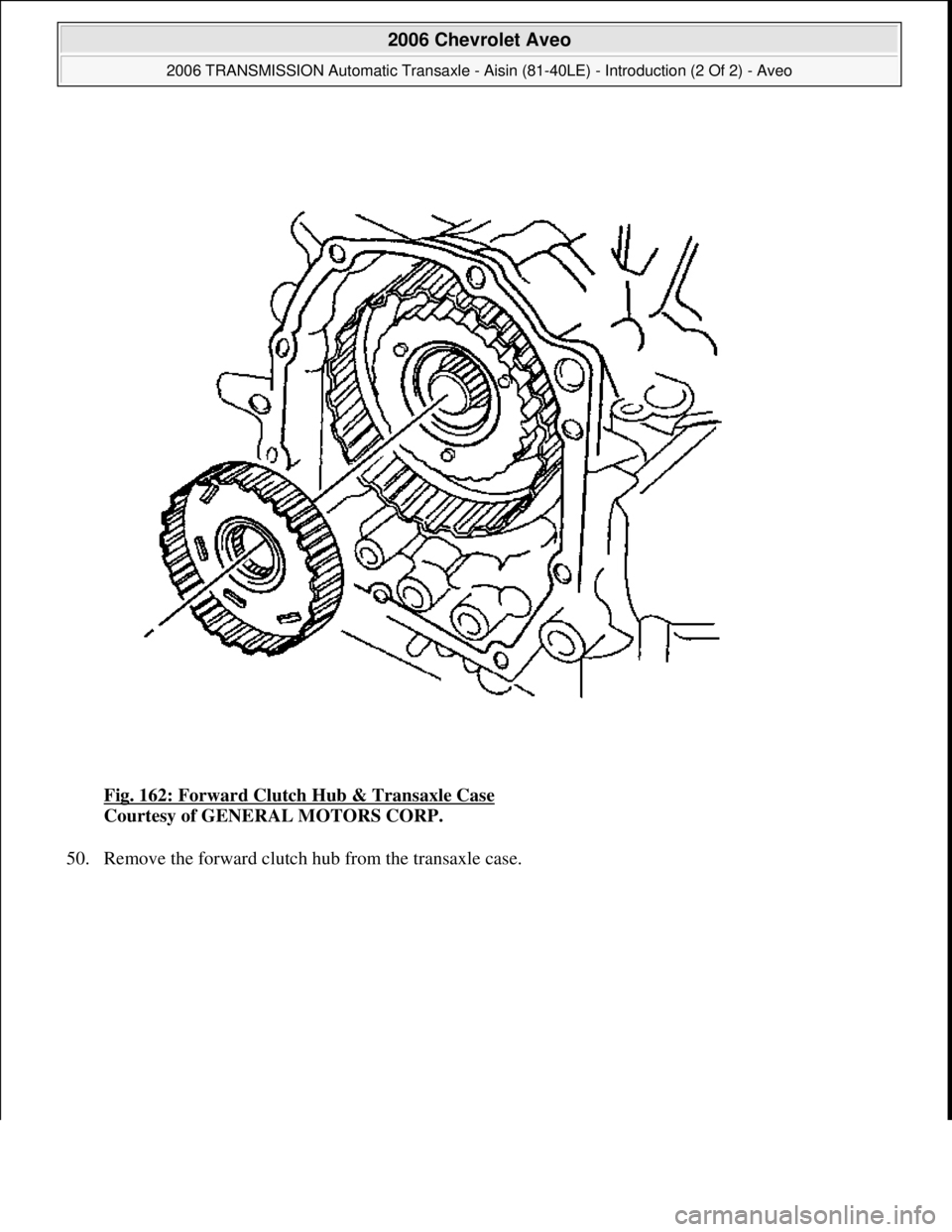

Fig. 162: Forward Clutch Hub & Transaxle Case
Courtesy of GENERAL MOTORS CORP.
50. Remove the forward clutch hub from the transaxle case.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:22 PMPage 175 © 2005 Mitchell Repair Information Company, LLC.

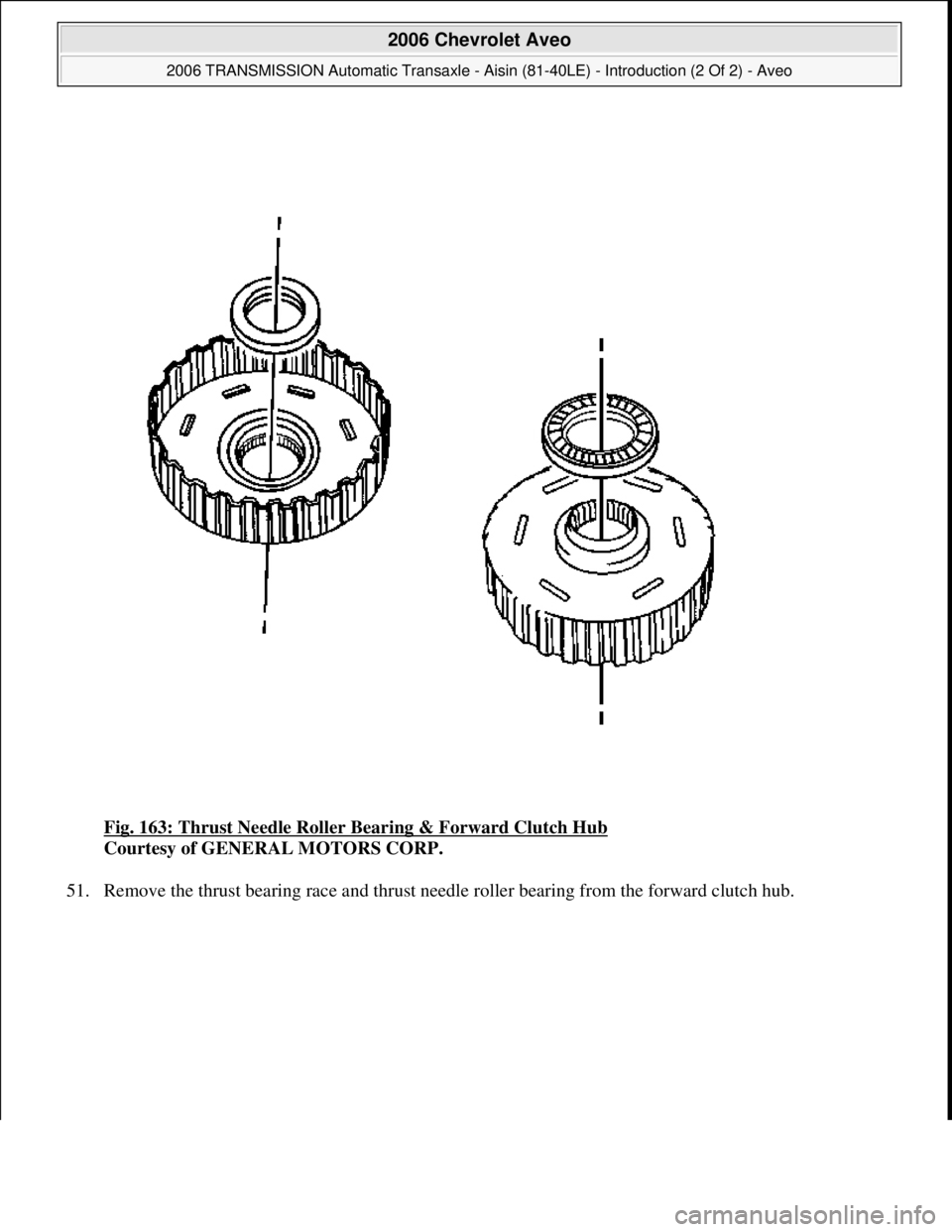

Fig. 163: Thrust Needle Roller Bearing & Forward Clutch Hub
Courtesy of GENERAL MOTORS CORP.
51. Remove the thrust bearing race and thrust needle roller bearing from the forward clutch hub.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:22 PMPage 176 © 2005 Mitchell Repair Information Company, LLC.

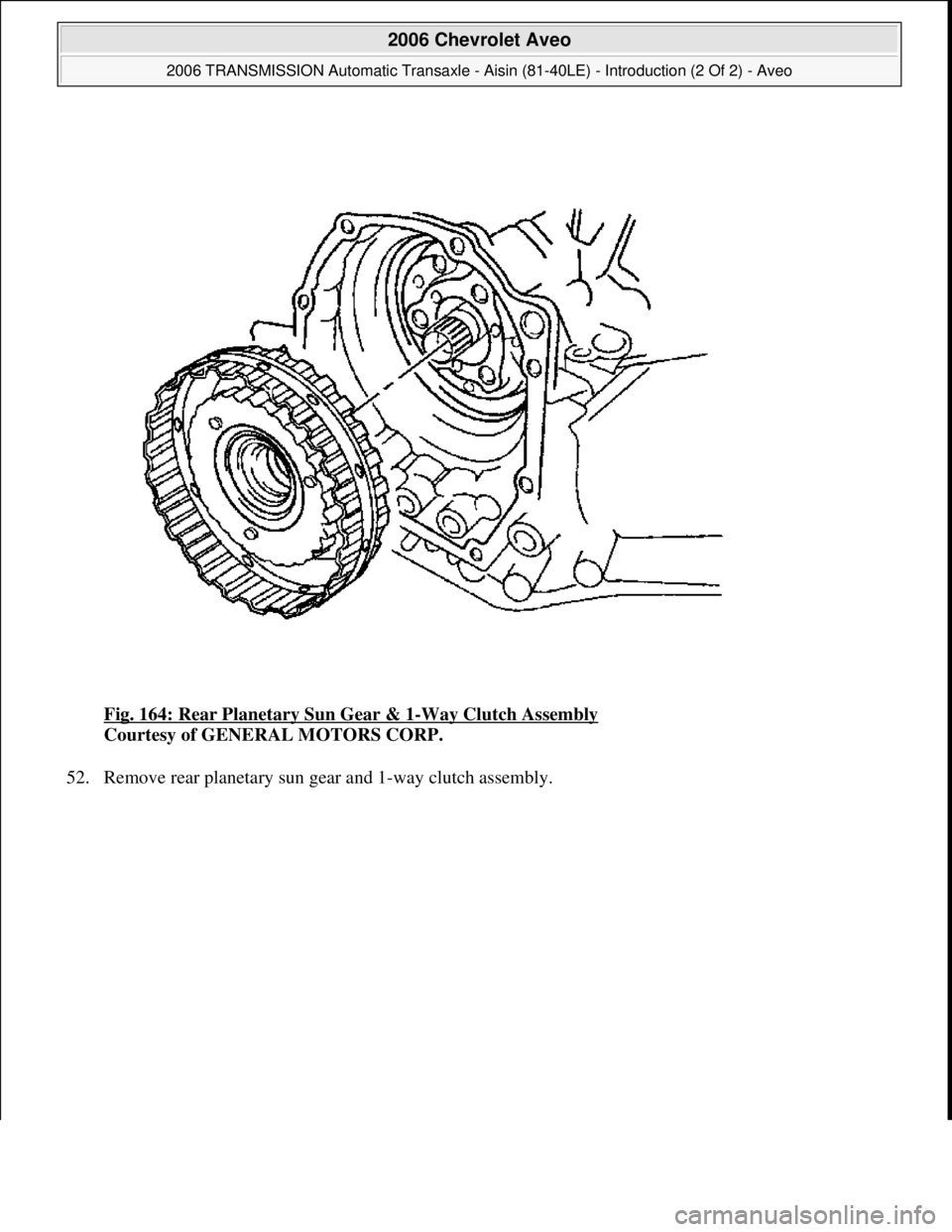

Fig. 164: Rear Planetary Sun Gear & 1-Way Clutch Assembly
Courtesy of GENERAL MOTORS CORP.
52. Remove rear planetar
y sun gear and 1-way clutch assembly.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:22 PMPage 177 © 2005 Mitchell Repair Information Company, LLC.

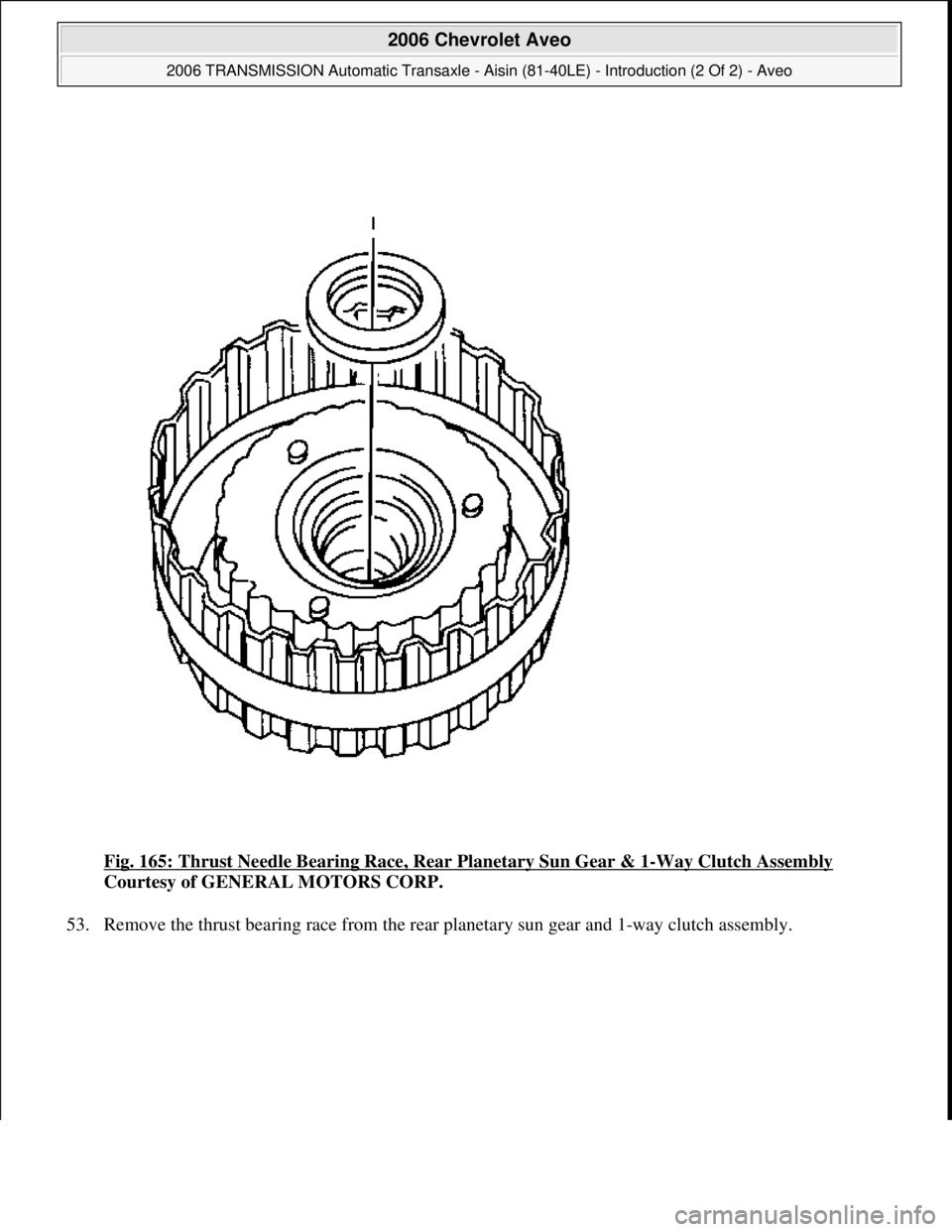

Fig. 165: Thrust Needle Bearing Race, Rear Planetary Sun Gear & 1-Way Clutch Assembly
Courtesy of GENERAL MOTORS CORP.
53. Remove the thrust bearin
g race from the rear planetary sun gear and 1-way clutch assembly.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:22 PMPage 178 © 2005 Mitchell Repair Information Company, LLC.

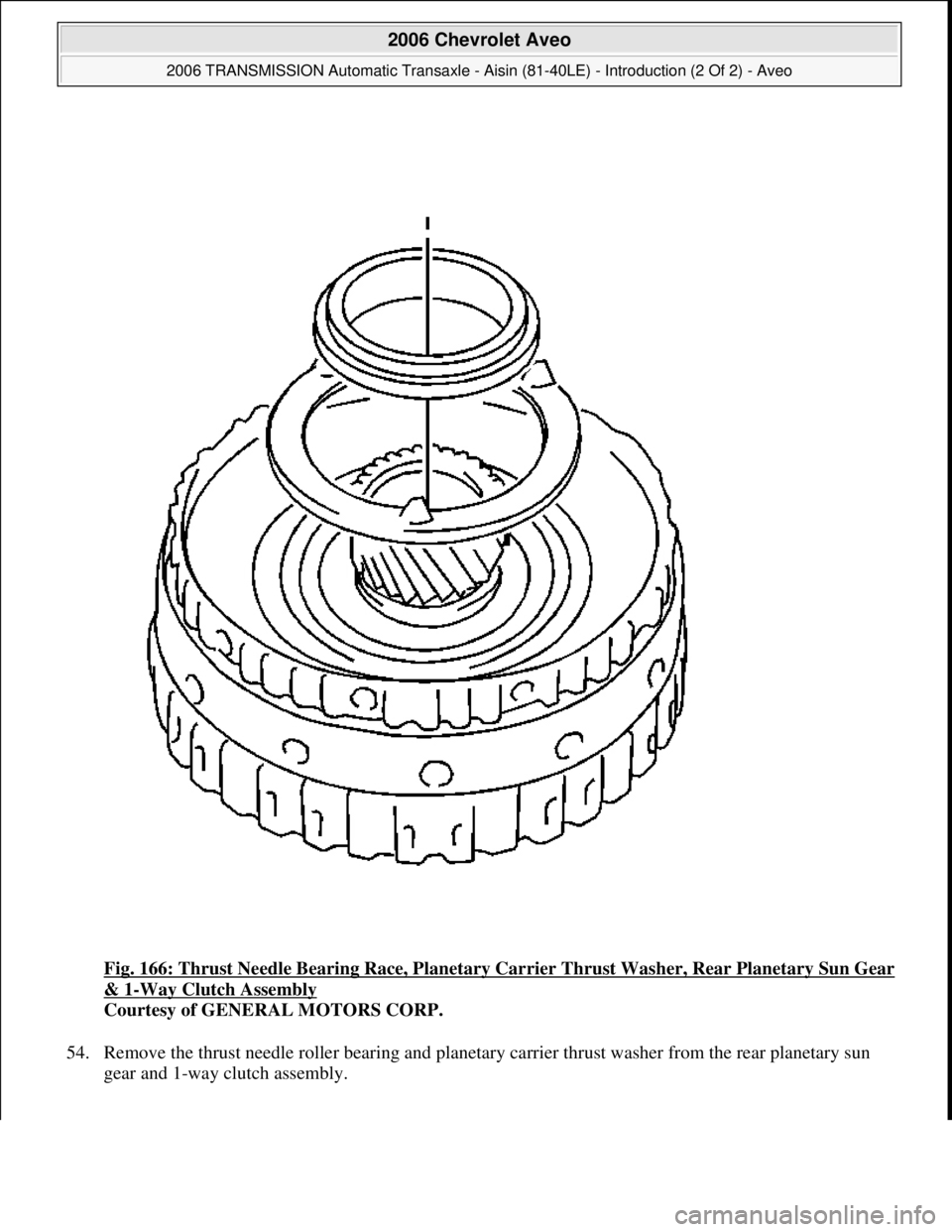

Fig. 166: Thrust Needle Bearing Race, Planetary Carrier Thrust Washer, Rear Planetary Sun Gear
& 1-Way Clutch Assembly
Courtesy of GENERAL MOTORS CORP.
54. Remove the thrust needle roller bearing and planetary carrier thrust washer from the rear planetary sun
gear and 1-way clutch assembly.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:22 PMPage 179 © 2005 Mitchell Repair Information Company, LLC.

Fig. 167: 1-Way Clutch Assembly, Thrust Washer & Rear Planetary Sun Gear
Courtesy of GENERAL MOTORS CORP.
55. Remove the 1-wa
y clutch assembly and thrust washer from the rear planetary sun gear.

2006 Chevrolet Aveo
2006 TRANSMISSION Automatic Transaxle - Aisin (81-40LE) - Introduction (2 Of 2) - Aveo
Microsoft
Thursday, July 16, 2009 1:17:22 PMPage 180 © 2005 Mitchell Repair Information Company, LLC.

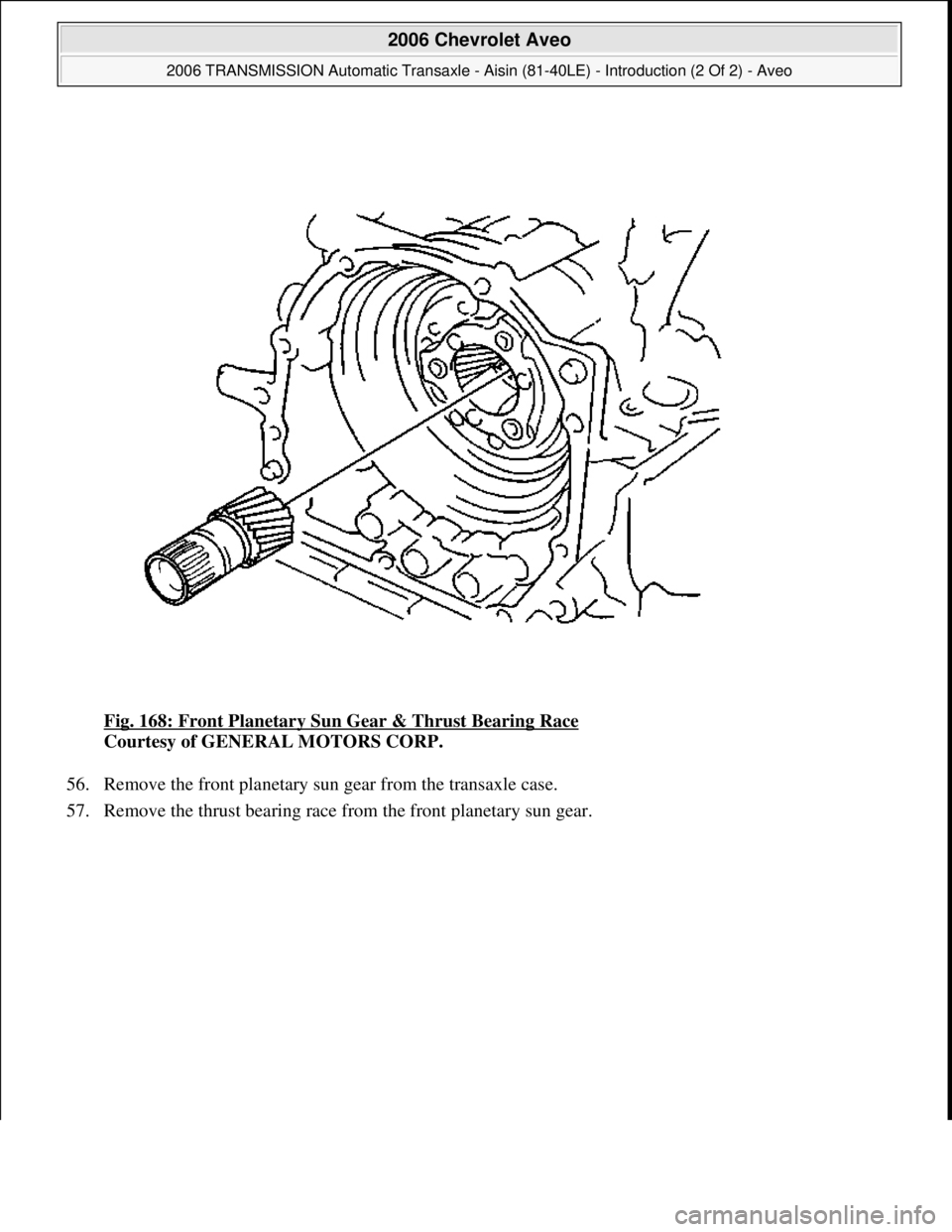

Fig. 168: Front Planetary Sun Gear & Thrust Bearing Race
Courtesy of GENERAL MOTORS CORP.
56. Remove the front planetary sun gear from the transaxle case.
57. Remove the thrust bearin
g race from the front planetary sun gear.

2006 Chevrolet Aveo
