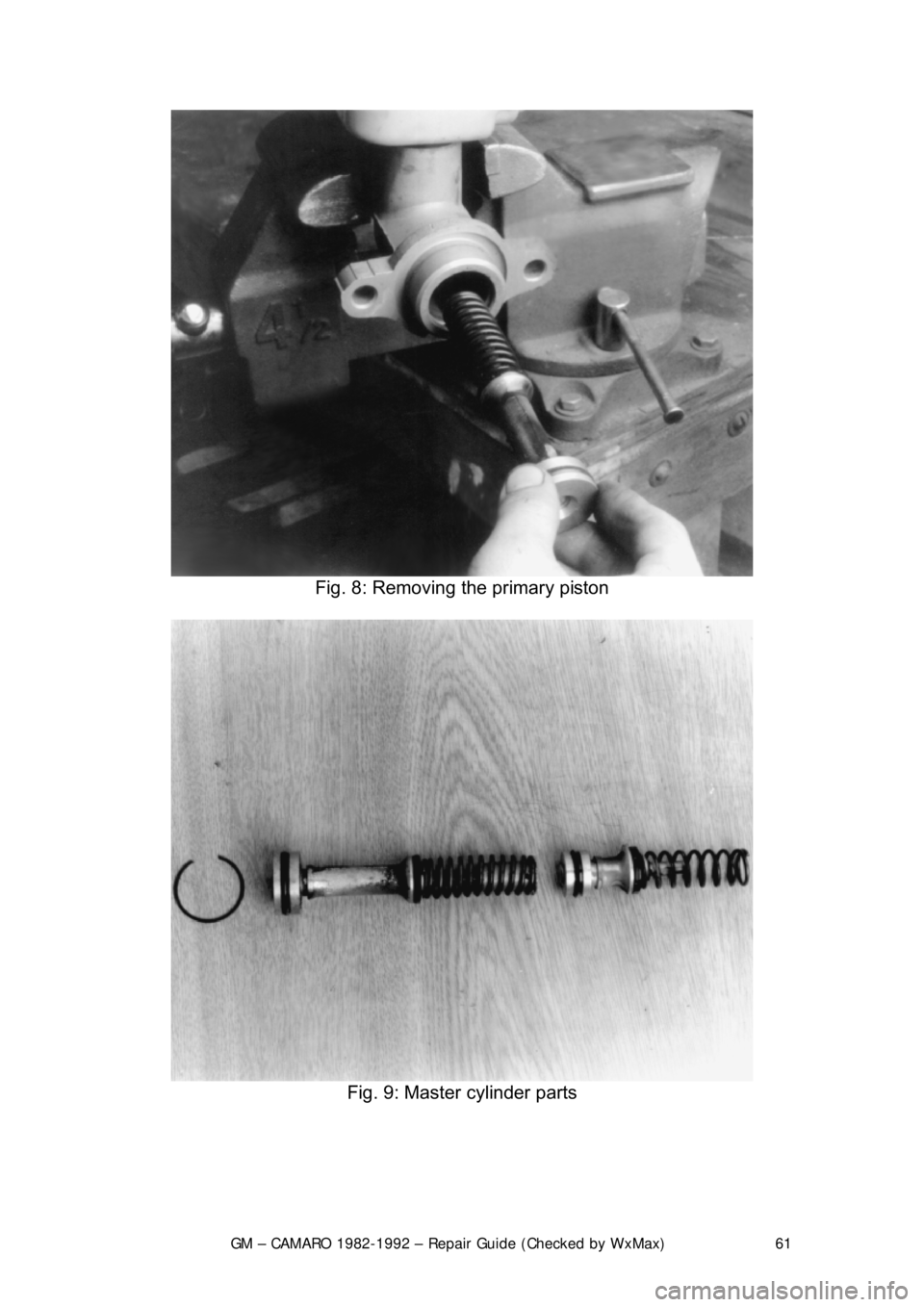

Fig. 8: Removing the primary piston

Fig. 9: Master cylinder parts

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 62

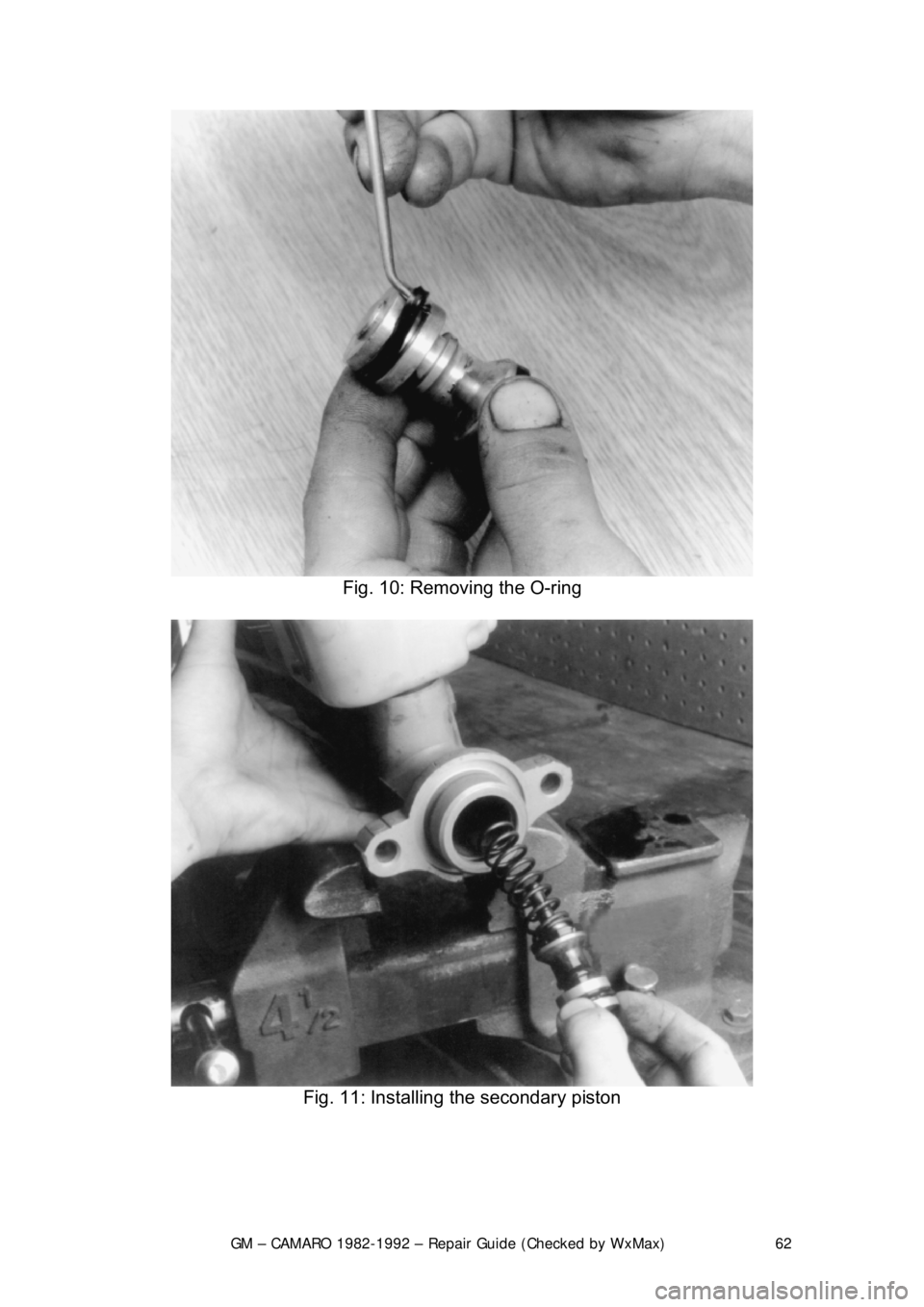

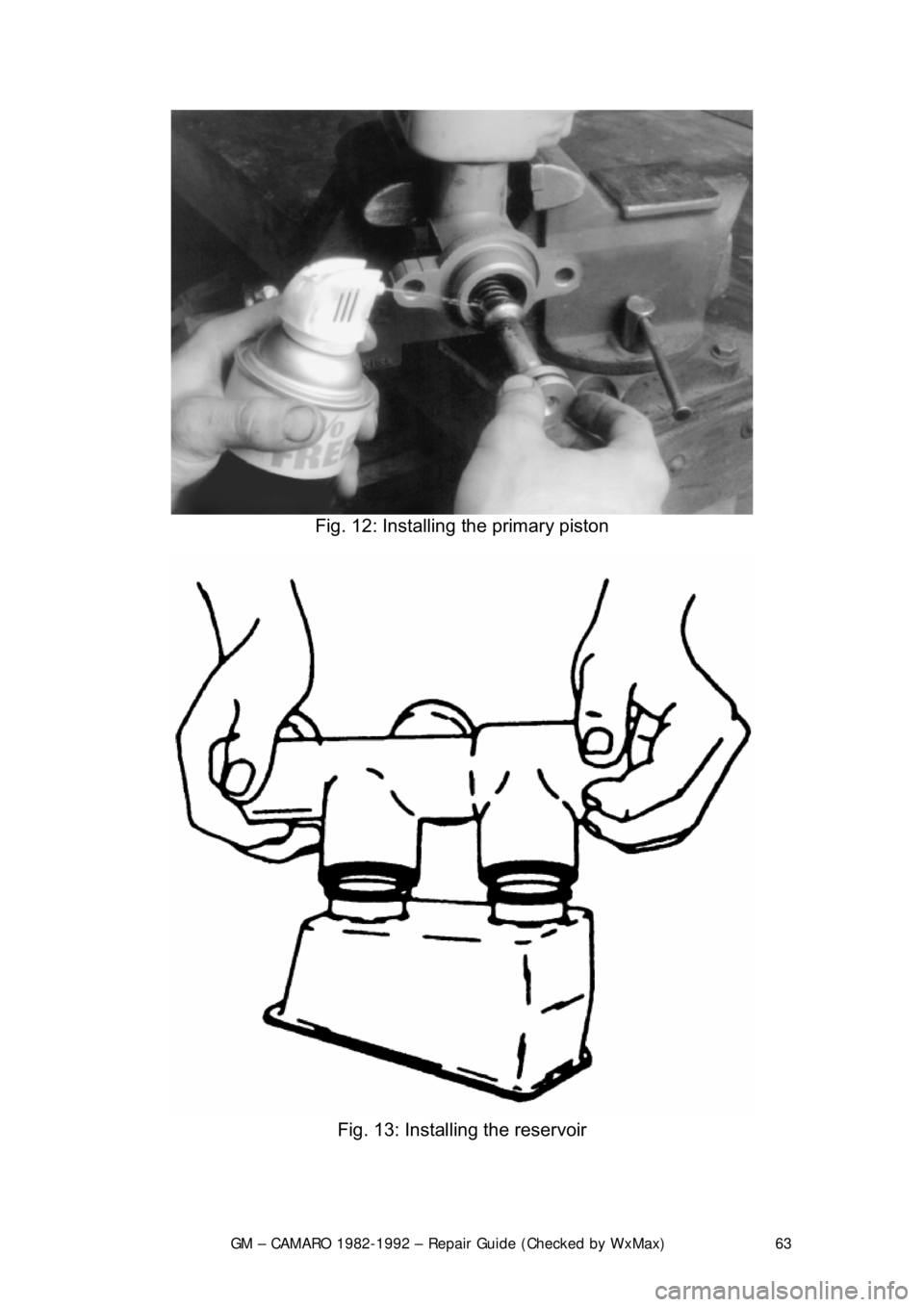

Fig. 10: Removing the O-ring

Fig. 11: Installing the secondary piston

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 63

Fig. 12: Installing the primary piston

Fig. 13: Installing the reservoir

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 64
This is a tedious, time-consuming job. You
can save yourself a lot of trouble by
buying a rebuilt master cylinder from y our dealer or parts supply house. The
small difference in price between a r ebuilding kit and a rebuilt part usually
makes it more economical, in terms of time and work, to buy the rebuilt part.
1. Remove the reservoir cover and diap hragm. Discard any brake fluid in the
reservoir.
2. Inspect the reservoir cover and diaphr agm for cuts, cracks, or deformation.
Replace any defective parts.
3. Depress the primary pist on and remove the lock ring.
4. Direct compressed air into the outle t at the blind end of the bore and plug
the other outlet to remove primary and secondary piston.
5. Remove the spring retainer and s eals from the secondary piston.
6. Clamp the master cylinder in a vise. Do not clamp it on the master cylinder
body. Use a pry bar to re move the reservoir.
7. Do not attempt to remove the quick take-up valve from the body. This valve
is not serviced separately.
8. Remove the reservoir grommets.
9. Inspect the master cylinder bore for corrosion. If corroded, replace the
master cylinder. Do not use any abrasive on the bore.
10. Reassemble, using new seals and gr ommets. Lubricate all parts with brake
fluid.
11. Install the reservoir grommets.
12. Install the reservoir.
13. Install the spring retainer and seals from the secondary piston.
14. Install primary and secondary piston.
15. Depress the primary pist on and install the lock ring.
16. Fill with brake fluid. Install the reservoir cover and diaphragm.
17. Bleed brake system.

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 65
POWER BRAKE BOOSTER
REMOVAL & INSTALLATION

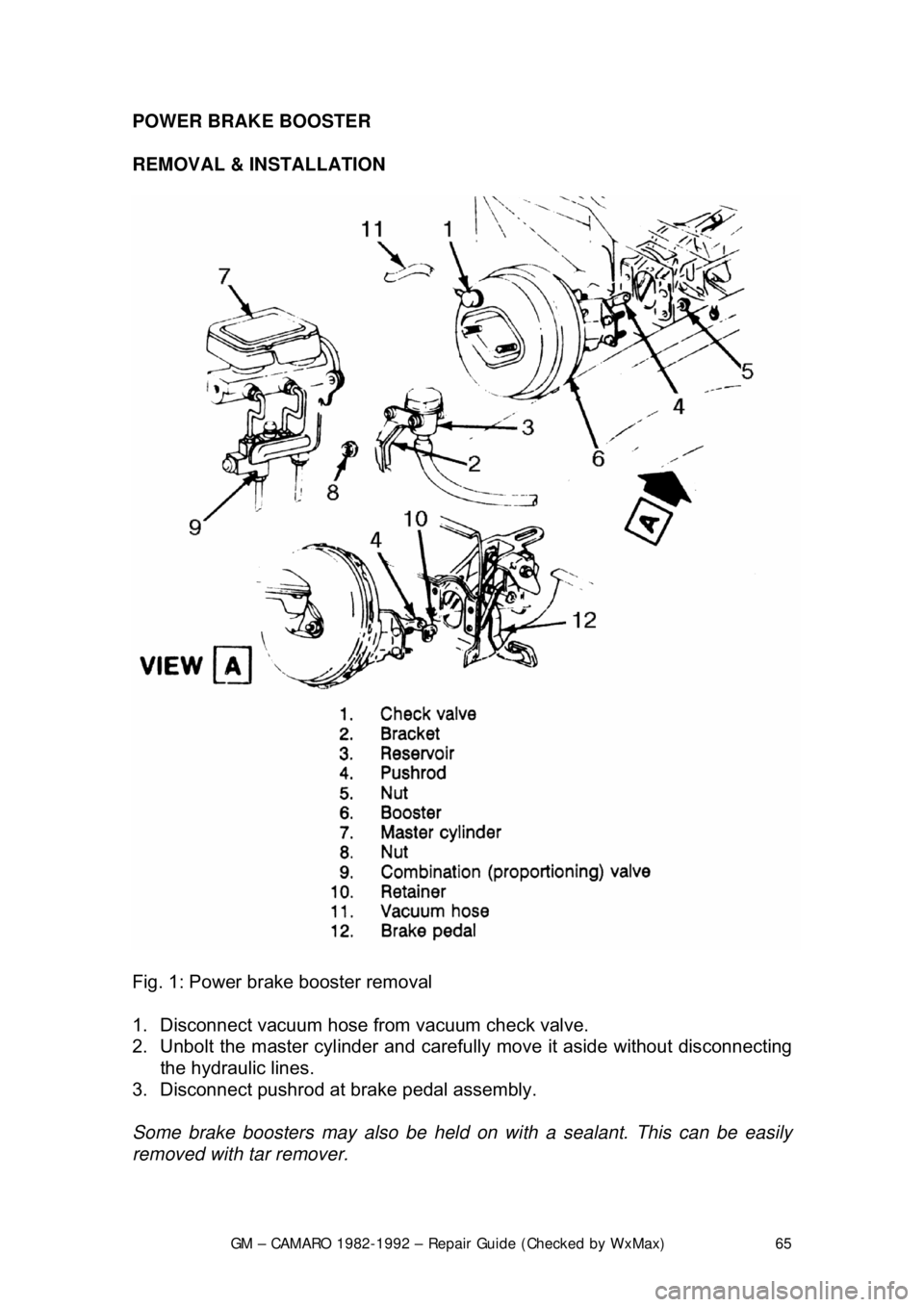

Fig. 1: Power brake booster removal
1. Disconnect vacuum hose from vacuum check valve.
2. Unbolt the master cylinder and carefu
lly move it aside without disconnecting
the hydraulic lines.
3. Disconnect pushrod at brake pedal assembly.
Some brake boosters may also be held on with a sealant. This can be easily
removed with tar remover.

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 66
4. Remove nuts and lockwashers that se
cure booster to firewall and remove
booster from engine compartment.
5. Install by reversing removal procedure. Make sure to check operation of stop
lights. Allow engine vacuum to build before applying brakes.

COMBINATION VALVE
REMOVAL & INSTALLATION
This valve is not repairable and only serviced as a complete assembly.
1. Disconnect the hydraulic lines from t he valve. Plug the lines to prevent fluid
loss and dirt contamination.
2. Disconnect the electrical connection.
3. Remove the valve.
To install:
4. Position the valve.
5. Connect the electrical connection.
6. Connect the hydraulic lines to the valve.
7. Bleed the brake system.

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 67
BRAKE HOSES AND LINES

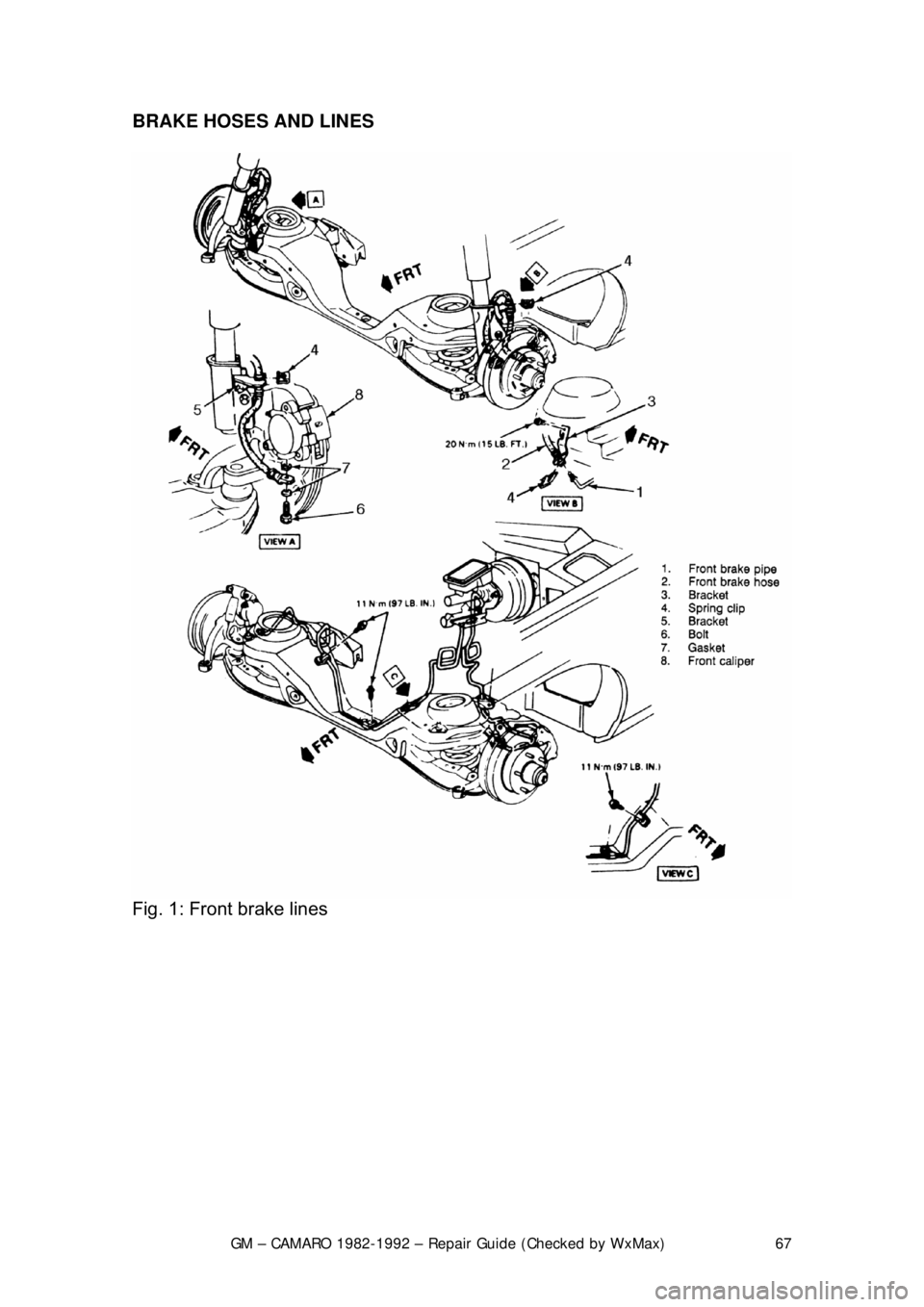

Fig. 1: Front brake lines

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 68

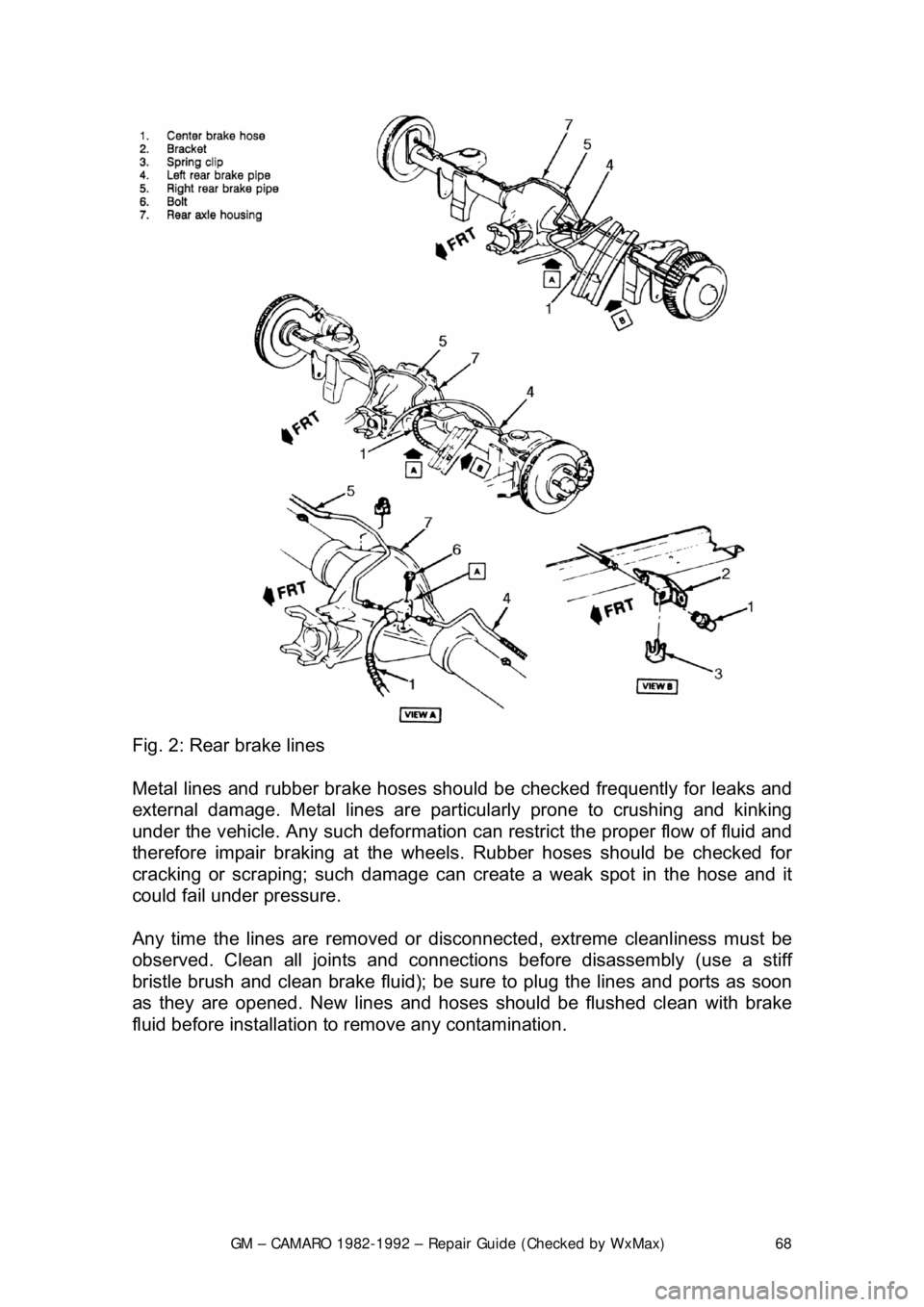

Fig. 2: Rear brake lines
Metal lines and rubber brake hoses shou ld be checked frequently for leaks and
external damage. Metal li nes are particularly prone to crushing and kinking
under the vehicle. Any such deformation can restrict the proper flow of fluid and
therefore impair braking at the wheels. Rubber hoses should be checked for
cracking or scraping; such damage can cr eate a weak spot in the hose and it
could fail under pressure.
Any time the lines are removed or di sconnected, extreme cleanliness must be
observed. Clean all joints and connecti ons before disassembly (use a stiff
bristle brush and clean brake fluid); be su re to plug the lines and ports as soon
as they are opened. New lines and hoses should be flushed clean with brake
fluid before installation to re move any contamination.

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 69

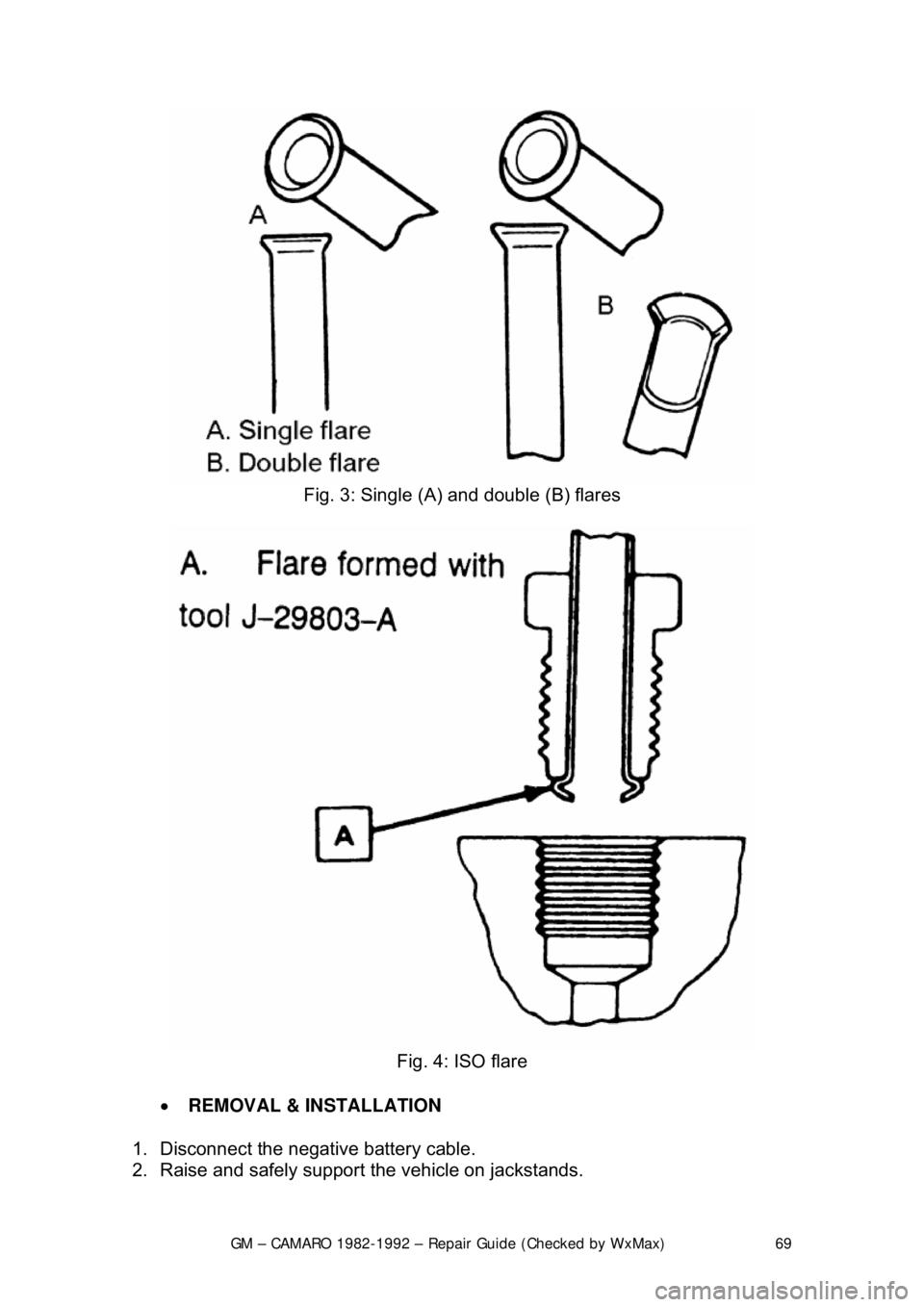

Fig. 3: Single (A) and double (B) flares

Fig. 4: ISO flare
• REMOVAL & INSTALLATION
1. Disconnect the negative battery cable.
2. Raise and safely support the vehicle on jackstands.

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 70
3. Remove any wheel and tire asse
mblies necessary for access to the
particular line you are removing.
4. Thoroughly clean the su rrounding area at the joints to be disconnected.

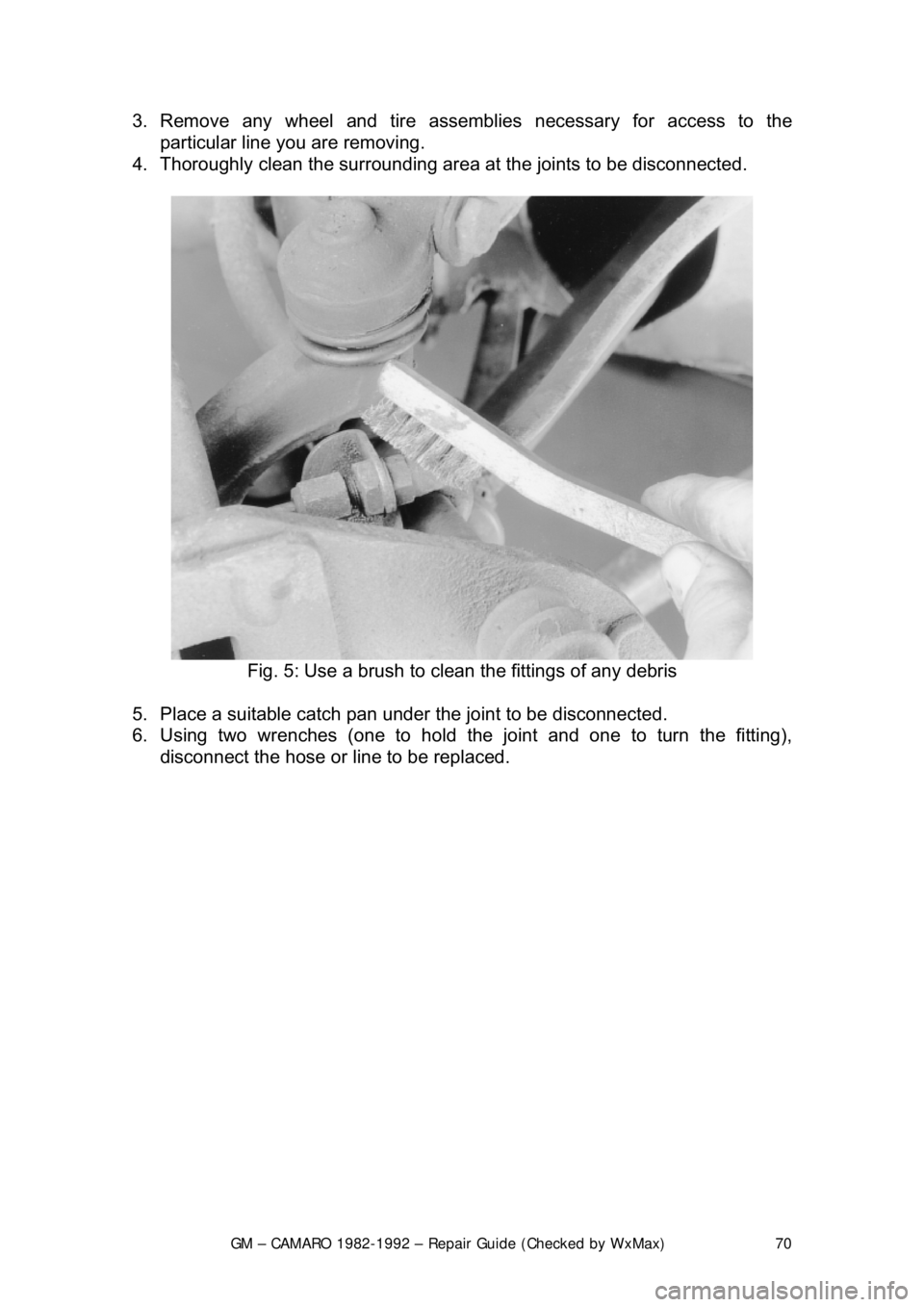

Fig. 5: Use a brush to cl ean the fittings of any debris
5. Place a suitable catch pan under the joint to be disconnected.
6. Using two wrenches (one to hold th e joint and one to turn the fitting),
disconnect the hose or line to be replaced.
