(2) Remove two speaker attaching screws and dis-
connect wire connector. (3) Remove speaker.
(4) For installation reverse above procedures.
REAR SHELF SPEAKERS REMOVAL
(1) Remove rear shelf, refer to Group 23, Body.
(2) Remove two speaker attaching screws and dis-
connect wire connector. (3) Remove speaker.
(4) For installation reverse above procedures.
AG and AJ BODIES
INSTRUMENT PANEL SPEAKERS REPLACEMENT
(1) Remove instrument panel top cover (Fig. 22).
(2) Remove two speaker retaining screws.
(3) Lift speaker away from panel and disconnect
wiring. (4) For installation reverse above procedures.
FRONT DOOR MOUNTED SPEAKERREPLACEMENTÐAG BODY
(1) Remove door trim panel.
(2) Remove two speaker-adaptor retaining screws
(Fig. 23). (3) Pull speaker away from door and disconnect
wiring. (4) For installation reverse above procedures.
REAR SPEAKER REPLACEMENTÐAG BODY
(1) Remove speaker grille by pulling away from
quarter trim panel to disengage retaining clips (Fig.
24). (2) Remove four speaker retaining screws.
(3) Pull speaker away from body and disconnect
wiring. (4) For installation reverse above procedures.
DOOR MOUNTED SPEAKER
REPLACEMENTÐAJ BODY
(1) Pull speaker grille away from door trim panel
to disengage retaining clips (Fig. 25). (2) Remove two speaker retaining screws.
(3) Pull speaker away from door and disconnect
wiring. (4) For installation reverse above procedures.
REAR SPEAKER REPLACEMENTÐAJ BODYWITH 60/40 FOLDING REAR SEAT
(1) Remove 40-side seat back.
(2) Remove 60-side seat back.
(3) Remove outboard pivot brackets.

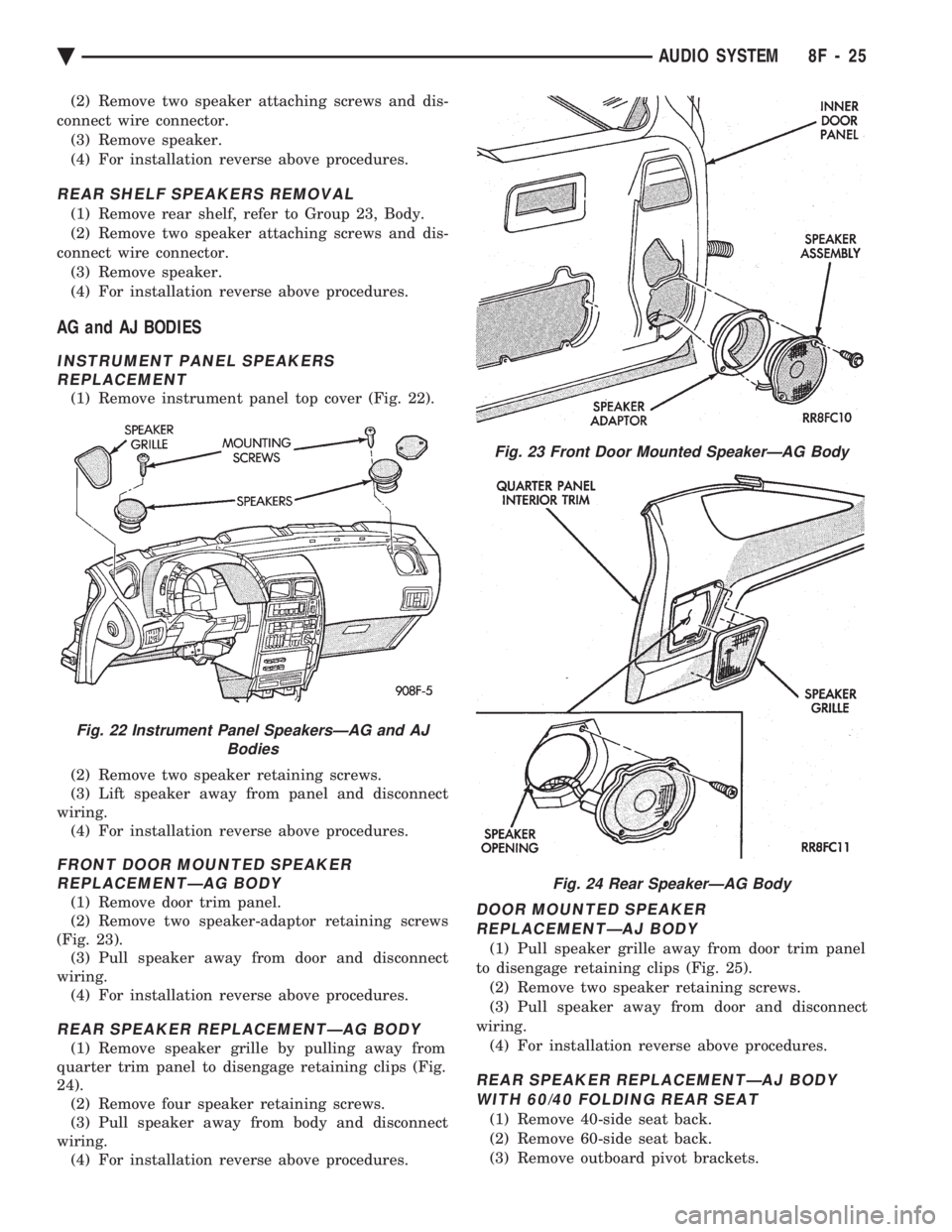

Fig. 22 Instrument Panel SpeakersÐAG and AJ Bodies
Fig. 23 Front Door Mounted SpeakerÐAG Body
Fig. 24 Rear SpeakerÐAG Body
Ä AUDIO SYSTEM 8F - 25

(4) Remove seat cushion.
(5) Remove quarter trim lower extension panel.
(6) Remove front seat belt turning loop and cover.
(7) Remove rear reading lamp.
(8) Remove quarter trim panel.
(9) Remove two seat back latches.
(10) Pull out shelf trim side extension molding.
(11) Remove shelf trim center extension molding.
(12) Remove shelf trim panel (Fig. 26).
(13) Remove four speaker retaining screws.
(14) Lift speaker away from shelf panel and dis-
connect wiring. (15) For installation reverse above procedures. Be
sure to position speakers so that terminals are point-
ing outward.
REAR SPEAKER REPLACEMENTÐAJ BODY WITH FIXED SEAT BACK
(1) Remove seat cushion.
(2) Remove seat back.
(3) Remove quarter trim panels.
(4) Remove shelf trim panel.
(5) Remove four speaker retaining screws (Fig. 26).
(6) Lift speaker away from shelf panel and discon-
nect wiring. (7) For installation reverse above procedures. Be
sure to position speakers so that terminals are point-
ing outward.
REAR SPEAKER REPLACEMENTÐAJ BODY CONVERTIBLE
(1) Move folding top to UP position.
(2) Unsnap sling well from tacking strip and fold-
out of the way to gain access to speaker. (3) Lower folding top to improve speaker accessi-
bility. (4) Remove two speaker retaining screws (Fig. 27).
(5) Disconnect wiring and pull out speaker.
(6) For installation reverse above procedures.
AP Body
DOOR MOUNTED SPEAKER REPLACEMENTÐAP BODY
(1) Remove door trim panel.
(2) Remove two screws holding speaker to inner
door panel (Fig. 28). (3) Pull speaker out and disconnect wiring.
(4) For installation reverse above procedures.

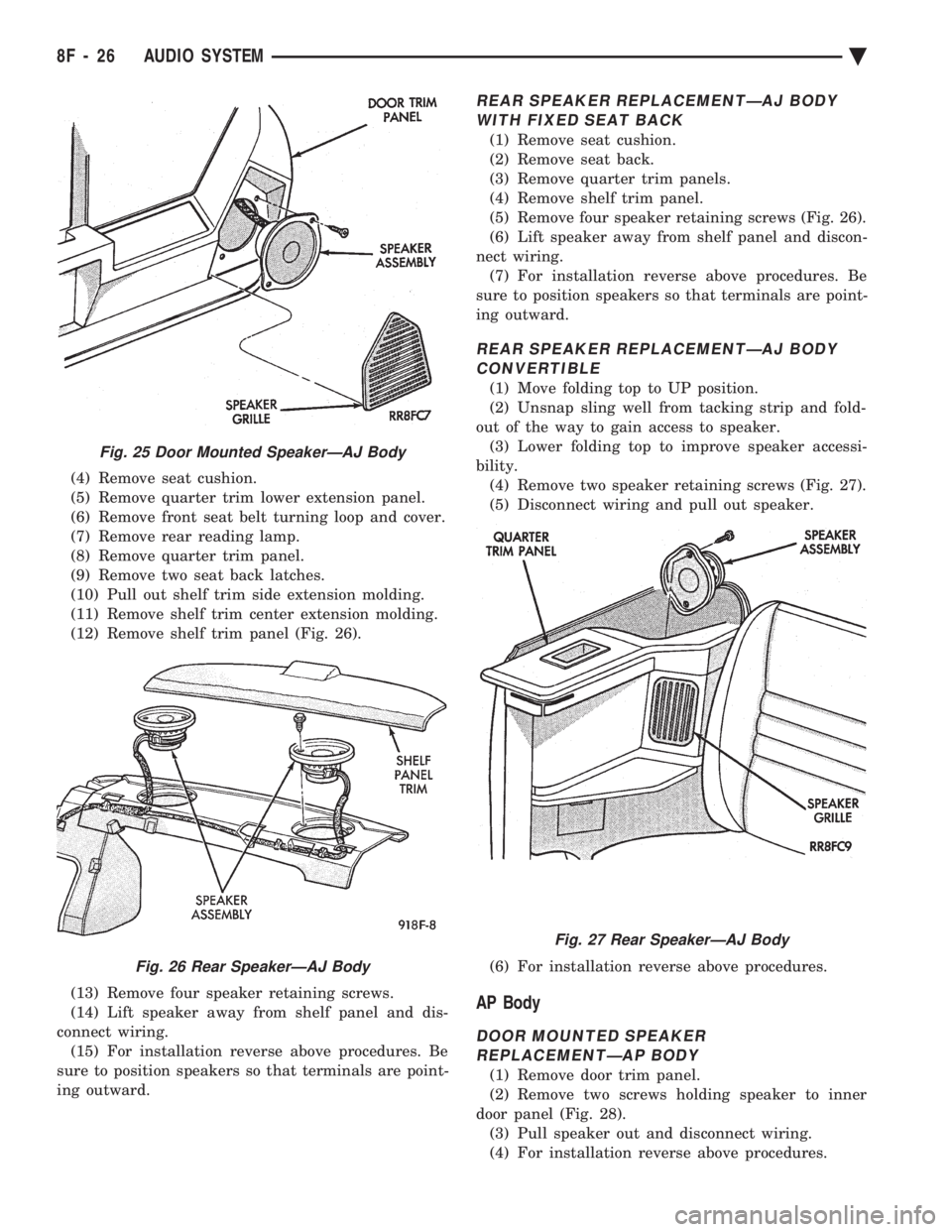

Fig. 25 Door Mounted SpeakerÐAJ Body
Fig. 26 Rear SpeakerÐAJ Body
Fig. 27 Rear SpeakerÐAJ Body
8F - 26 AUDIO SYSTEM Ä

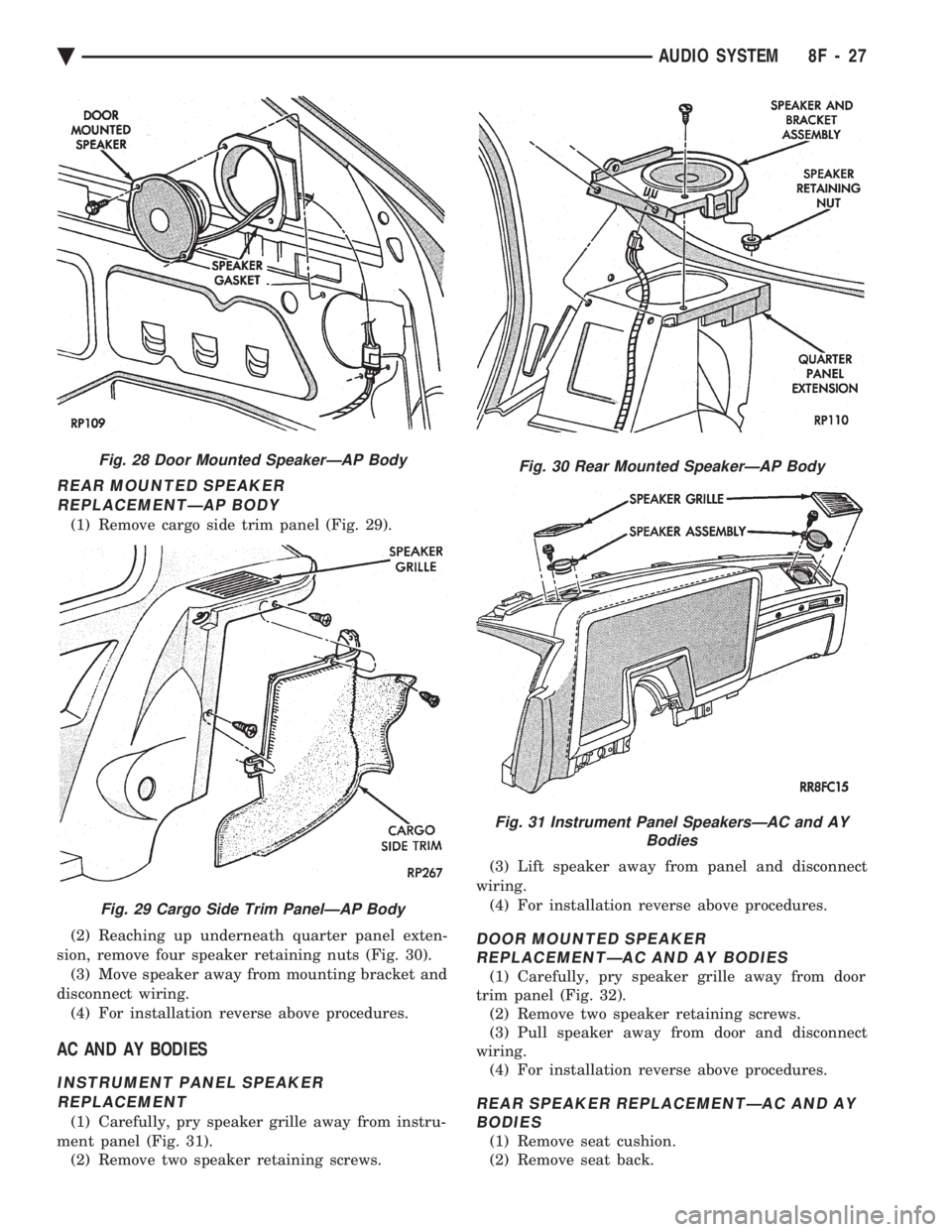

REAR MOUNTED SPEAKER REPLACEMENTÐAP BODY
(1) Remove cargo side trim panel (Fig. 29).
(2) Reaching up underneath quarter panel exten-
sion, remove four speaker retaining nuts (Fig. 30). (3) Move speaker away from mounting bracket and
disconnect wiring. (4) For installation reverse above procedures.
AC AND AY BODIES
INSTRUMENT PANEL SPEAKERREPLACEMENT
(1) Carefully, pry speaker grille away from instru-
ment panel (Fig. 31). (2) Remove two speaker retaining screws. (3) Lift speaker away from panel and disconnect
wiring. (4) For installation reverse above procedures.
DOOR MOUNTED SPEAKER REPLACEMENTÐAC AND AY BODIES
(1) Carefully, pry speaker grille away from door
trim panel (Fig. 32). (2) Remove two speaker retaining screws.
(3) Pull speaker away from door and disconnect
wiring. (4) For installation reverse above procedures.
REAR SPEAKER REPLACEMENTÐAC AND AYBODIES
(1) Remove seat cushion.
(2) Remove seat back.
Fig. 28 Door Mounted SpeakerÐAP Body
Fig. 29 Cargo Side Trim PanelÐAP Body
Fig. 30 Rear Mounted SpeakerÐAP Body
Fig. 31 Instrument Panel SpeakersÐAC and AY Bodies
Ä AUDIO SYSTEM 8F - 27

(3) Remove shelf trim panel (Fig. 33).
(4) Remove four speaker retaining screws.
(5) Pull speaker away from shelf panel and discon-
nect wiring. (6) For installation reverse above procedures.
INFINITY REMOTE AMPLIFIER
The AC and AY amplifier is located in the trunk
on the rear seat bulkhead and the behind rear trim
panel. The AJ amplifier is located in the trunk on the left
wheel housing extension behind the side trim panel. When the radio system is ON, and all or some
speakers are not operating or have a noise distortion
refer to the diagnostic tests. The amplifier has the
terminal connections list on the case (Fig. 34).
CONDITION: NOISE DISTORTION IN ALL SPEAKERS
² Check battery voltage for 11 Volts or more
² Check amplifier connectors and wires for proper
connection and continuity
² If OK, check radio, refer to Audio Diagnostic
Charts.
² If OK, replace amplifier
CONDITION: ELECTRICAL NOISE
DISTORTION ONE SPEAKER
Remove output signal connector from amplifier and
check for short to ground on the speaker with the
distortion. Refer to Fig. 34 for the appropriate pin
numbers.
² If shorted to ground disconnect speaker connector
and recheck the amplifier connector for short to
ground.
² If still shorted to ground repair wires. If not
shorted to ground, replace speaker.
Fig. 32 Door Mounted SpeakerÐAC and AY Bodies
Fig. 33 Rear SpeakersÐAC and AY Bodies

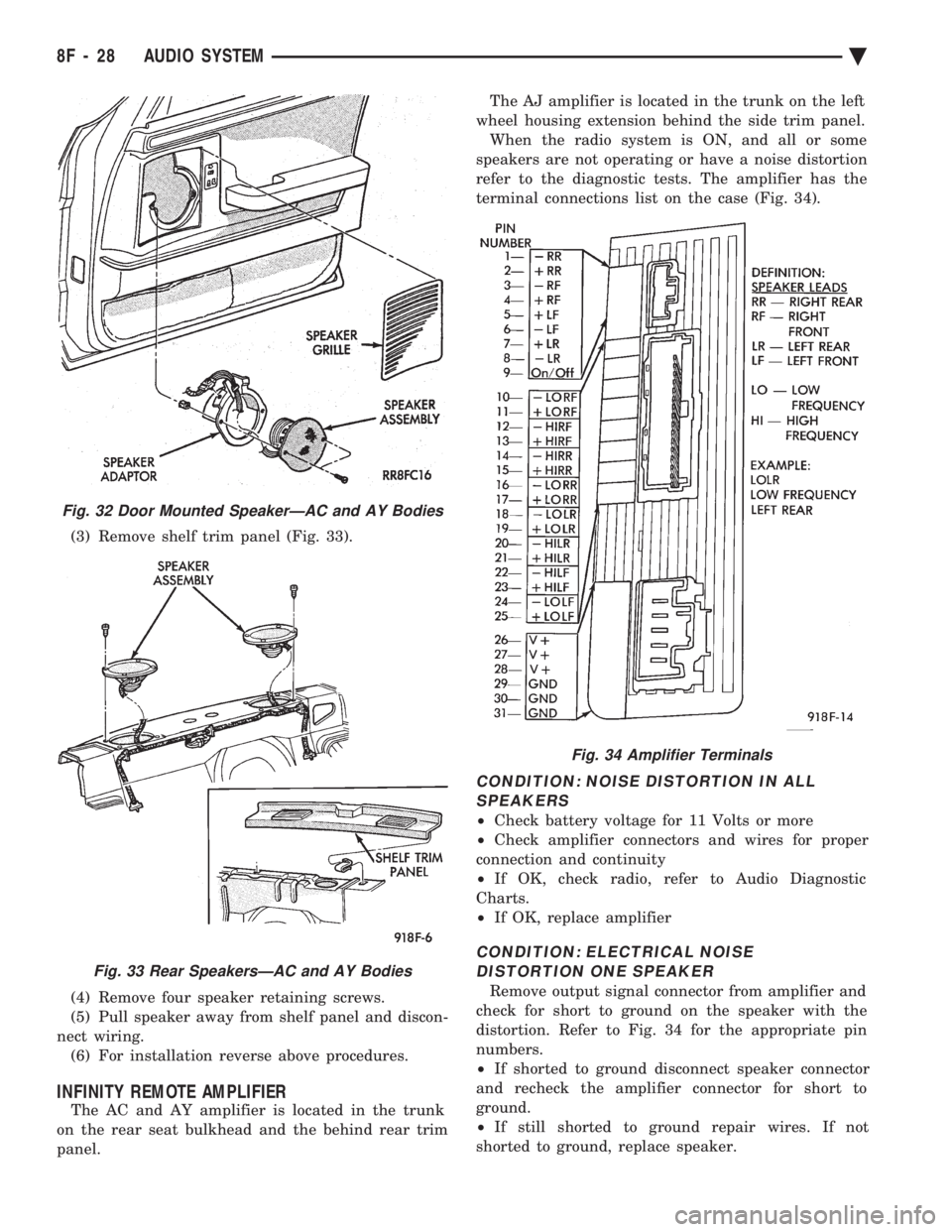

Fig. 34 Amplifier Terminals
8F - 28 AUDIO SYSTEM Ä

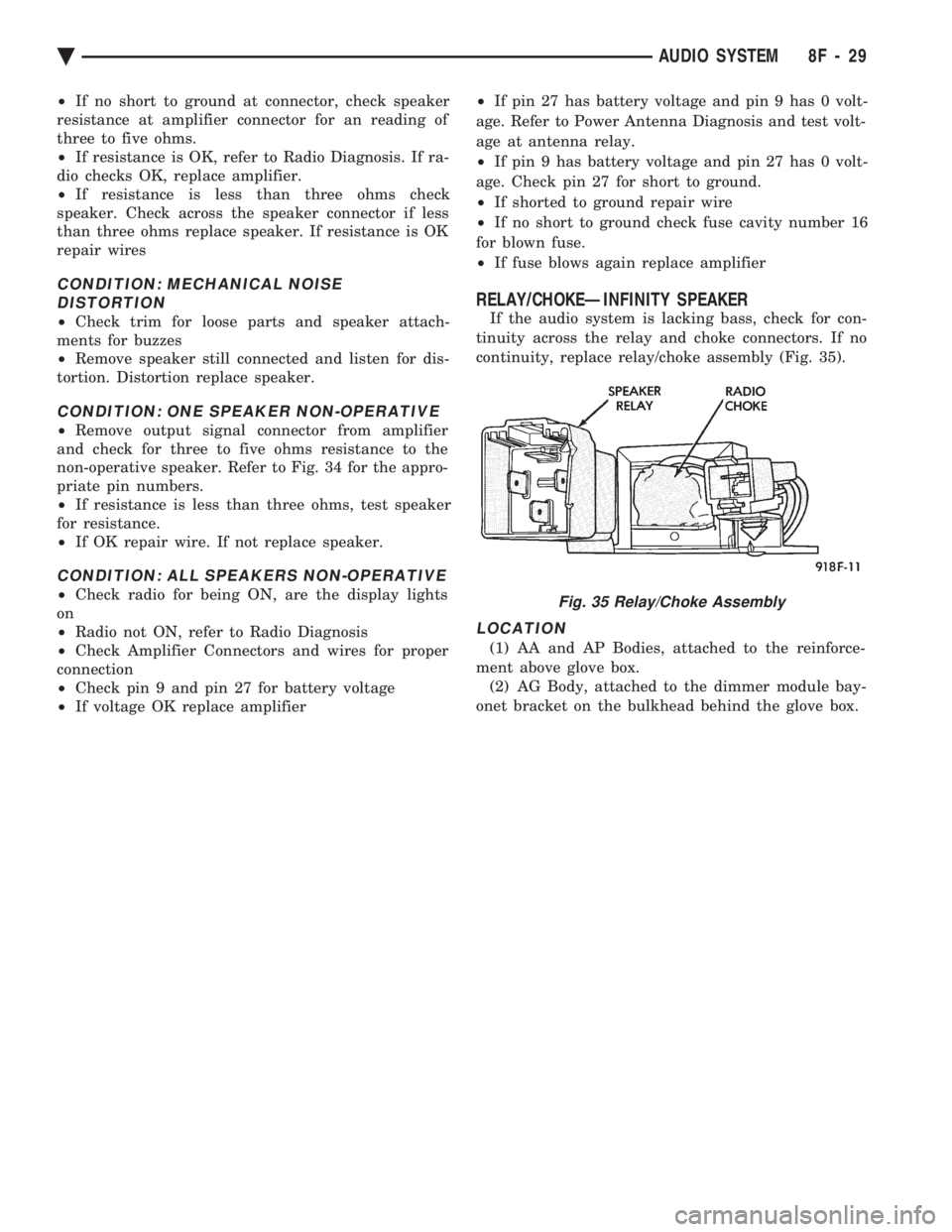

² If no short to ground at connector, check speaker
resistance at amplifier connector for an reading of
three to five ohms.
² If resistance is OK, refer to Radio Diagnosis. If ra-
dio checks OK, replace amplifier.
² If resistance is less than three ohms check
speaker. Check across the speaker connector if less
than three ohms replace speaker. If resistance is OK
repair wires
CONDITION: MECHANICAL NOISE DISTORTION
² Check trim for loose parts and speaker attach-
ments for buzzes
² Remove speaker still connected and listen for dis-
tortion. Distortion replace speaker.
CONDITION: ONE SPEAKER NON-OPERATIVE
² Remove output signal connector from amplifier
and check for three to five ohms resistance to the
non-operative speaker. Refer to Fig. 34 for the appro-
priate pin numbers.
² If resistance is less than three ohms, test speaker
for resistance.
² If OK repair wire. If not replace speaker.
CONDITION: ALL SPEAKERS NON-OPERATIVE
²Check radio for being ON, are the display lights
on
² Radio not ON, refer to Radio Diagnosis
² Check Amplifier Connectors and wires for proper
connection
² Check pin 9 and pin 27 for battery voltage
² If voltage OK replace amplifier ²
If pin 27 has battery voltage and pin 9 has 0 volt-
age. Refer to Power Antenna Diagnosis and test volt-
age at antenna relay.
² If pin 9 has battery voltage and pin 27 has 0 volt-
age. Check pin 27 for short to ground.
² If shorted to ground repair wire
² If no short to ground check fuse cavity number 16
for blown fuse.
² If fuse blows again replace amplifier
RELAY/CHOKEÐINFINITY SPEAKER
If the audio system is lacking bass, check for con-
tinuity across the relay and choke connectors. If no
continuity, replace relay/choke assembly (Fig. 35).
LOCATION
(1) AA and AP Bodies, attached to the reinforce-
ment above glove box. (2) AG Body, attached to the dimmer module bay-
onet bracket on the bulkhead behind the glove box.
Fig. 35 Relay/Choke Assembly
Ä AUDIO SYSTEM 8F - 29

COMPACT DISC PLAYER
WARNING: USE OF THE CONTROLS, ADJUST-
MENTS, OR SERVICE PROCEDURES NOT SPECI-
FIED HERE OR IN THE OWNER MANUAL MAY
RESULT IN HAZARDOUS RADIATION EXPOSURE.
REPAIR PROCEDURES SHOULD ONLY BE PER-
FORMED BY A TRAINED TECHNICIAN.
DIAGNOSIS TEST
Power to the compact disc player is supplied by the
radio through the CD interface cable. The compact
disc player will only work with the radio system
turned ON. When a compact disc is inserted with the
label side facing up, the disc is automatically loaded
and will begin to play. The CD player may eject the disc with a display of
E under the following conditions:
² The surface of the disc is dirty or wet
² The disc was inserted with the label side facing
down
² The disc is defective
² The CD player may skip or mute while playing a
disc under severe vibration conditions example pot
holes, railroad tracks, etc.
² If the CD player becomes too hot at temperatures
above 60ÉC (140 ÉF) the CD player will shut down
with a display of HOT until it cools down. Refer to
the Audio Diagnostic Charts.
COMPACT DISC PLAYER REPLACEMENT
With intergral compact disc player refer to Radio
Removal.
AJ BODY
(1) Remove center instrument panel bezel by pull-
ing toward the rear of the car. (2) Remove two screws attaching disc player to
console (Fig. 36). (3) Pull disc player out of console and disconnect
interface cable. (4) To install compact disc player, above the re-
moval procedures.

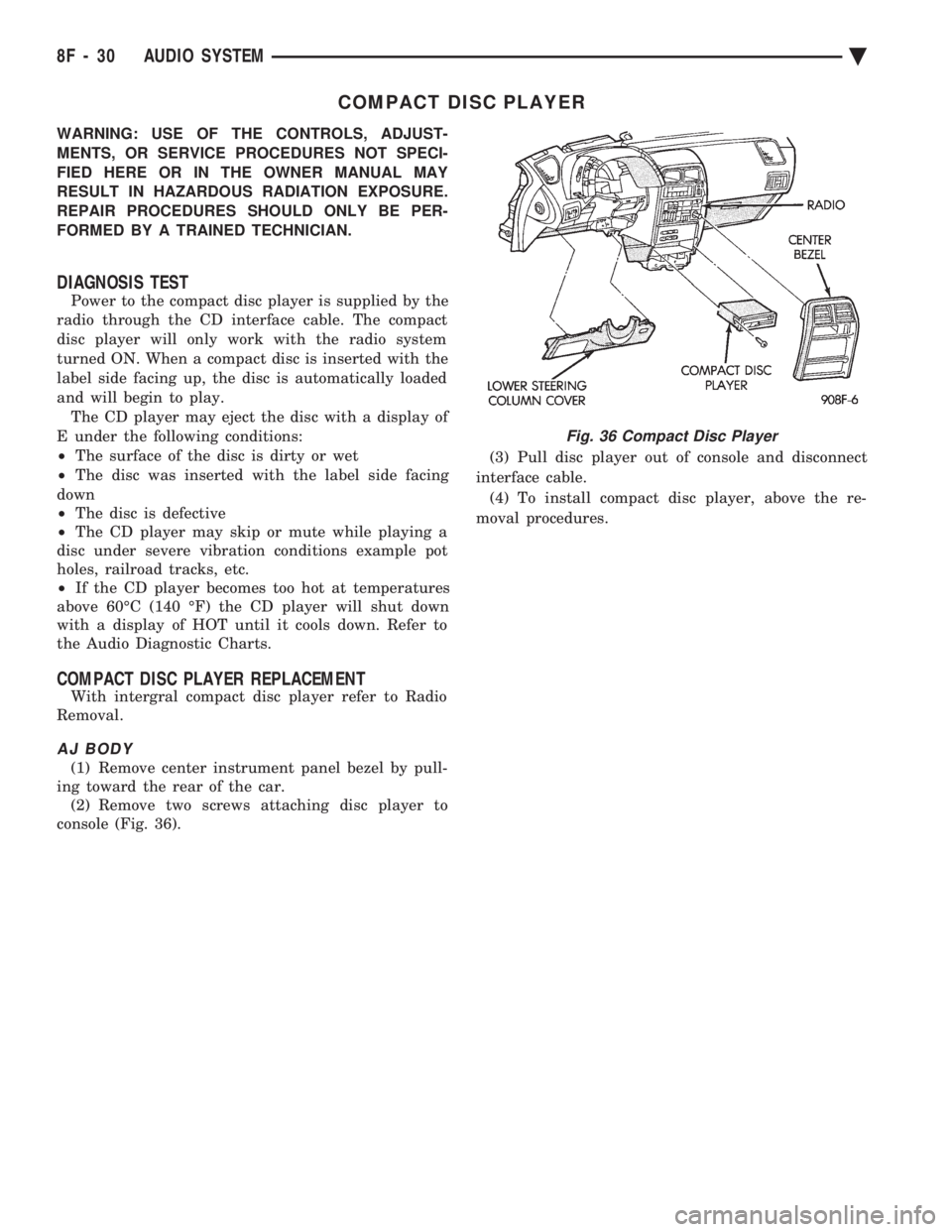

Fig. 36 Compact Disc Player
8F - 30 AUDIO SYSTEM Ä

HORNS
CONTENTS
page page
GENERAL INFORMATION .................. 1
HORN SWITCH REPLACEMENT ............ 3 TESTING HORN SYSTEM
................. 1
GENERAL INFORMATION
WARNING: ON VEHICLES EQUIPPED WITH AIR
BAG, SEE GROUP 8M, RESTRAINT SYSTEMS FOR
STEERING WHEEL OR COLUMN REMOVAL PROCE-
DURES.

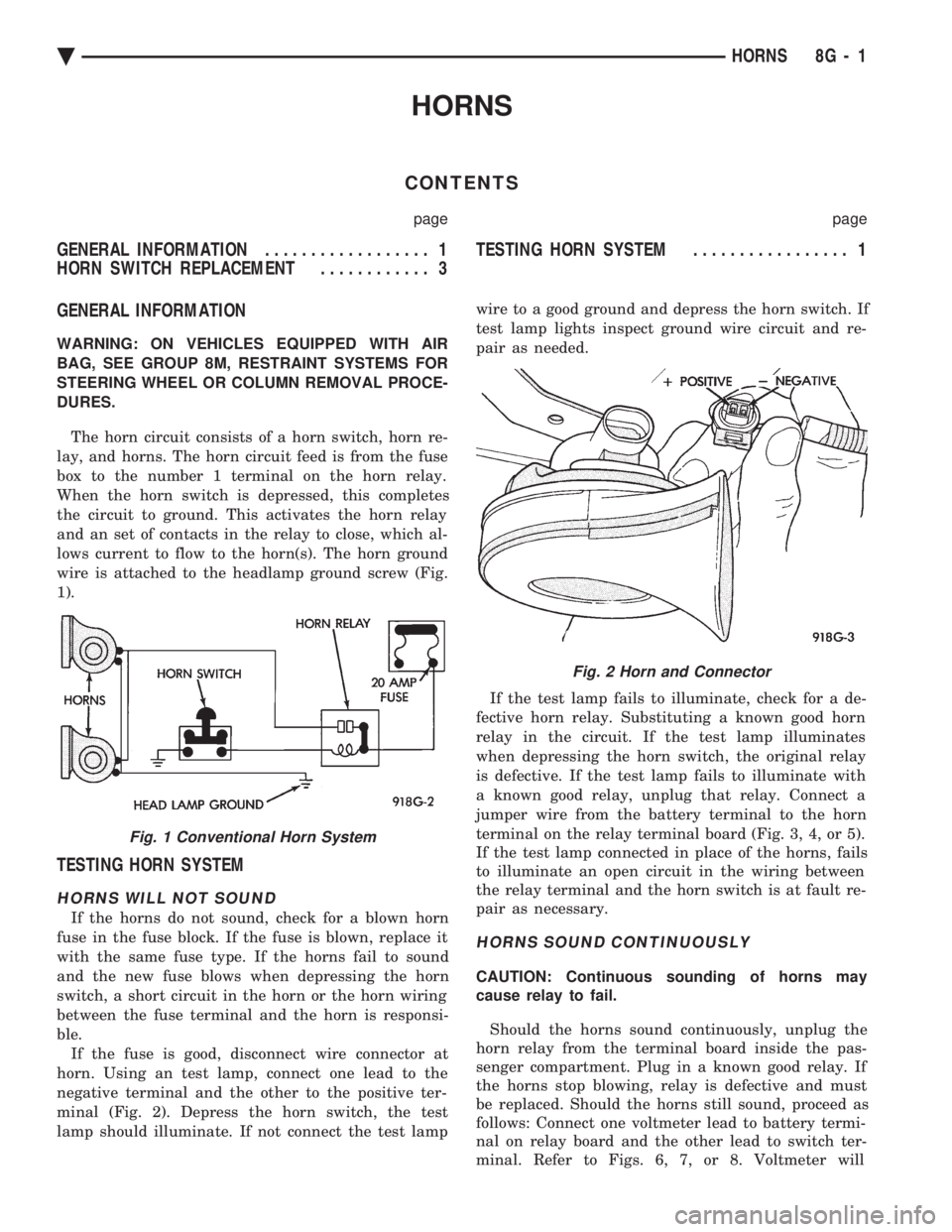

The horn circuit consists of a horn switch, horn re-
lay, and horns. The horn circuit feed is from the fuse
box to the number 1 terminal on the horn relay.
When the horn switch is depressed, this completes
the circuit to ground. This activates the horn relay
and an set of contacts in the relay to close, which al-
lows current to flow to the horn(s). The horn ground
wire is attached to the headlamp ground screw (Fig.
1).

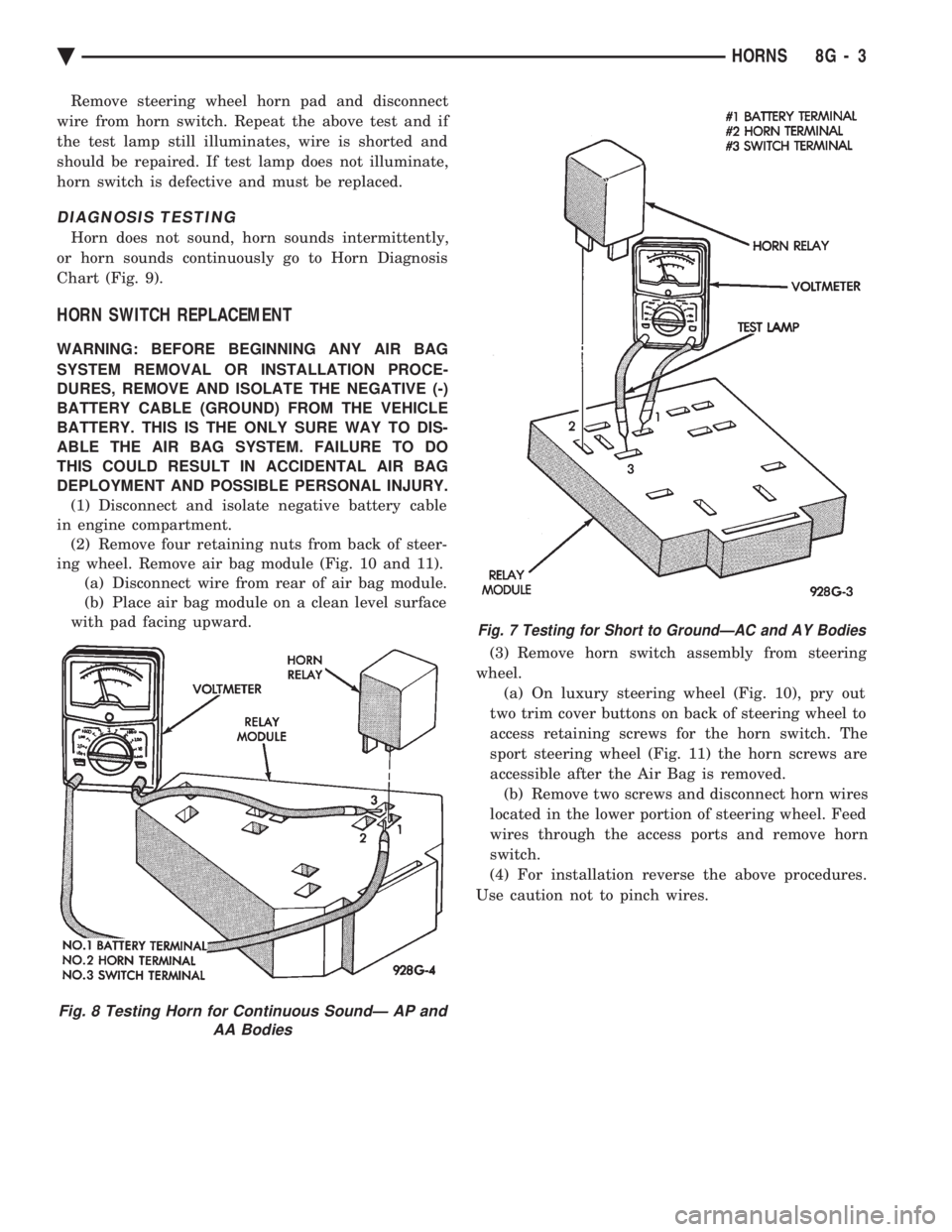

TESTING HORN SYSTEM
HORNS WILL NOT SOUND
If the horns do not sound, check for a blown horn
fuse in the fuse block. If the fuse is blown, replace it
with the same fuse type. If the horns fail to sound
and the new fuse blows when depressing the horn
switch, a short circuit in the horn or the horn wiring
between the fuse terminal and the horn is responsi-
ble. If the fuse is good, disconnect wire connector at

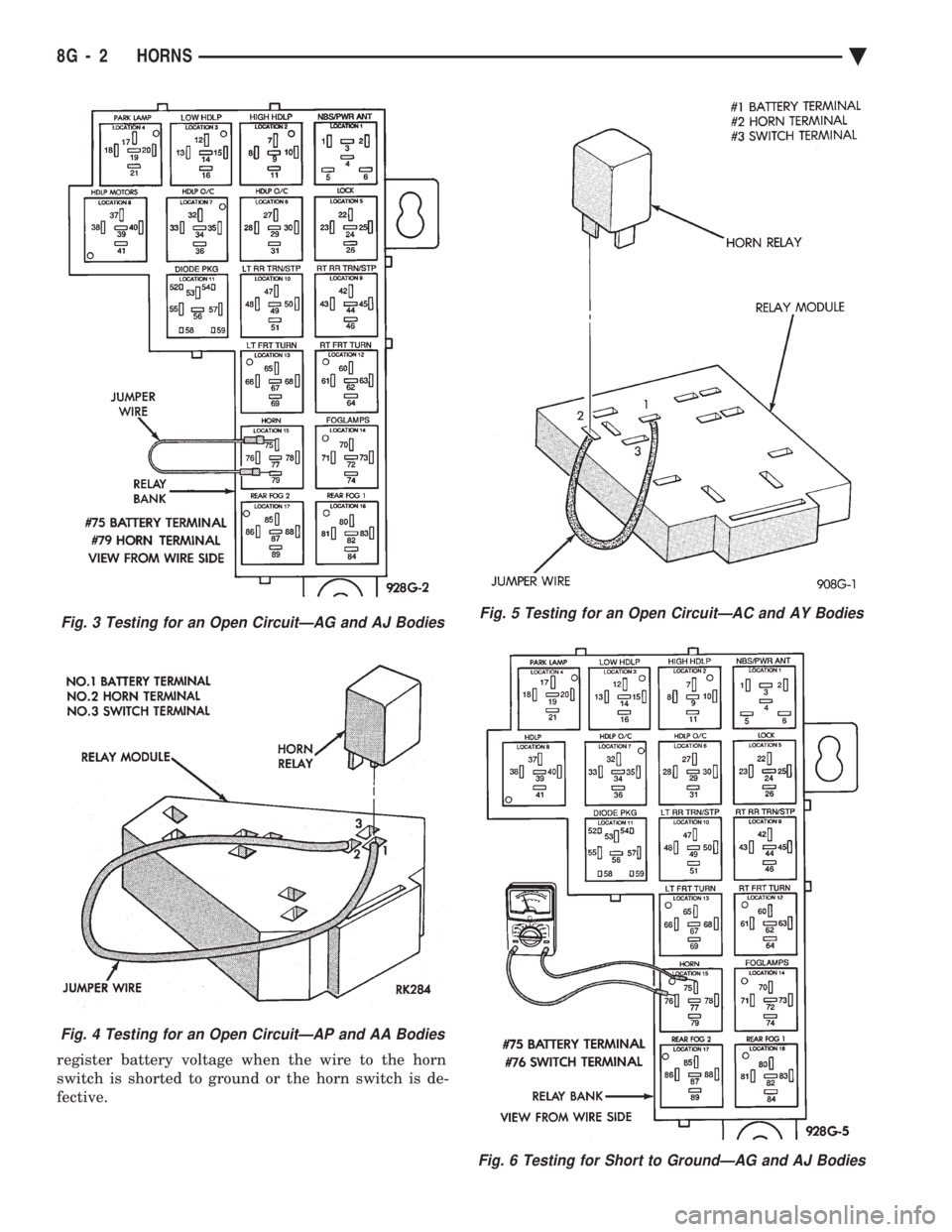

horn. Using an test lamp, connect one lead to the
negative terminal and the other to the positive ter-
minal (Fig. 2). Depress the horn switch, the test
lamp should illuminate. If not connect the test lamp wire to a good ground and depress the horn switch. If
test lamp lights inspect ground wire circuit and re-
pair as needed.
If the test lamp fails to illuminate, check for a de-
fective horn relay. Substituting a known good horn
relay in the circuit. If the test lamp illuminates
when depressing the horn switch, the original relay
is defective. If the test lamp fails to illuminate with
a known good relay, unplug that relay. Connect a
jumper wire from the battery terminal to the horn
terminal on the relay terminal board (Fig. 3, 4, or 5).
If the test lamp connected in place of the horns, fails
to illuminate an open circuit in the wiring between
the relay terminal and the horn switch is at fault re-
pair as necessary.
HORNS SOUND CONTINUOUSLY
CAUTION: Continuous sounding of horns may
cause relay to fail.
Should the horns sound continuously, unplug the
horn relay from the terminal board inside the pas-
senger compartment. Plug in a known good relay. If
the horns stop blowing, relay is defective and must
be replaced. Should the horns still sound, proceed as
follows: Connect one voltmeter lead to battery termi-
nal on relay board and the other lead to switch ter-
minal. Refer to Figs. 6, 7, or 8. Voltmeter will
Fig. 1 Conventional Horn System
Fig. 2 Horn and Connector
Ä HORNS 8G - 1

register battery voltage when the wire to the horn
switch is shorted to ground or the horn switch is de-
fective.
Fig. 3 Testing for an Open CircuitÐAG and AJ Bodies
Fig. 4 Testing for an Open CircuitÐAP and AA Bodies
Fig. 5 Testing for an Open CircuitÐAC and AY Bodies
Fig. 6 Testing for Short to GroundÐAG and AJ Bodies
8G - 2 HORNS Ä

Remove steering wheel horn pad and disconnect
wire from horn switch. Repeat the above test and if
the test lamp still illuminates, wire is shorted and
should be repaired. If test lamp does not illuminate,
horn switch is defective and must be replaced.
DIAGNOSIS TESTING
Horn does not sound, horn sounds intermittently,
or horn sounds continuously go to Horn Diagnosis
Chart (Fig. 9).
HORN SWITCH REPLACEMENT
WARNING: BEFORE BEGINNING ANY AIR BAG
SYSTEM REMOVAL OR INSTALLATION PROCE-
DURES, REMOVE AND ISOLATE THE NEGATIVE (-)
BATTERY CABLE (GROUND) FROM THE VEHICLE
BATTERY. THIS IS THE ONLY SURE WAY TO DIS-
ABLE THE AIR BAG SYSTEM. FAILURE TO DO
THIS COULD RESULT IN ACCIDENTAL AIR BAG
DEPLOYMENT AND POSSIBLE PERSONAL INJURY. (1) Disconnect and isolate negative battery cable
in engine compartment. (2) Remove four retaining nuts from back of steer-
ing wheel. Remove air bag module (Fig. 10 and 11). (a) Disconnect wire from rear of air bag module.
(b) Place air bag module on a clean level surface
with pad facing upward.
(3) Remove horn switch assembly from steering
wheel. (a) On luxury steering wheel (Fig. 10), pry out
two trim cover buttons on back of steering wheel to
access retaining screws for the horn switch. The
sport steering wheel (Fig. 11) the horn screws are
accessible after the Air Bag is removed. (b) Remove two screws and disconnect horn wires
located in the lower portion of steering wheel. Feed
wires through the access ports and remove horn
switch.
(4) For installation reverse the above procedures.
Use caution not to pinch wires.
Fig. 8 Testing Horn for Continuous SoundÐ AP and AA Bodies
Fig. 7 Testing for Short to GroundÐAC and AY Bodies
Ä HORNS 8G - 3

Fig. 9 Horn Diagnosis
8G - 4 HORNS Ä
