CITROEN BERLINGO FIRST 2011 Handbook (in English)

9 FAMILIARISATION
-

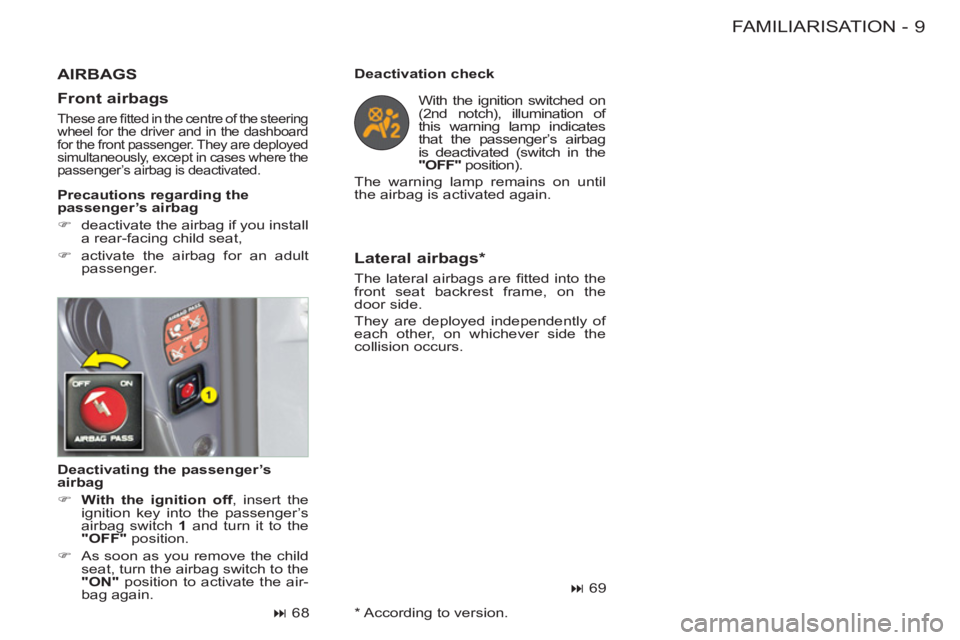

Deactivating the passenger’s
airbag


)
With the ignition off
, insert the
ignition key into the passenger’s
airbag switch 1
and turn it to the
"OFF"
position.

)
As soon as you remove the child
seat, turn the airbag switch to the
"ON"
position to activate the air-
bag again.
Deactivation check
With the ignition switched on
(2 nd notch), illumination of
this warning lamp indicates
that the passenger’s airbag
is deactivated (switch in the
"OFF"
position).
The warning lamp remains on until
the airbag is activated again.




69



Front airbags

These are fi tted in the centre of the steering
wheel for the driver and in the dashboard
for the front passenger. They are deployed
simultaneously, except in cases where the
passenger’s airbag is deactivated.

Precautions regarding the
passenger’s airbag


)
deactivate the airbag if you install
a rear-facing child seat,

)
activate the airbag for an adult
passenger.




68



Lateral airbags *

The lateral airbags are fi tted into the
front seat backrest frame, on the
door side.
They are deployed independently of
each other, on whichever side the
collision occurs.
AIRBAGS


*
According to version.

FAMILIARISATION10 -
STEERING WHEEL HEIGHT ADJUSTMENT


)
When stationary, push the control
A
forwards to release the steering
wheel adjustment mechanism.

)
Adjust the height of the steering
wheel.

)
Lock the steering wheel adjust-
ment it by pulling control A
to-
wards you fully.


1.
Driver’s electric window.


2.
Passenger’s electric window.




DOOR MIRRORS



)
Move the manual control 3
in all
four directions to adjust.


Electric control for the
passenger’s side mirror


)
From the driver’s seat, adjust in
all four directions by operating
the control 4
.
Manual mode:


)
Press the switch. The window
stops as soon as the switch is re-
leased.


Automatic mode (driver):


)
Press and hold the switch. One
touch completely opens or closes
the window.



54




55



58

11-
SPEED LIMITER * CRUISE CONTROL *




65



63 If the vehicle is fi tted with
a speed limiter and cruise
control, these functions can-
not both be activated at the
same time. This limiter indicates the status of
selection of the function on the in-
strument panel and displays the
programmed speed. The minimum
speed which can be programmed is
at least 18 mph (30 km/h).
It prevents exceeding of the speed
programmed by the driver, this func-
tion remains active regardless of any
action on the brake or clutch pedals.
On the other hand, pressing the ac-
celerator pedal to the point of resist-
ance does not have any effect.
It is possible to exceed the pro-
grammed speed temporarily by
pressing the accelerator fi rmly be-
yond this point of resistance.
The operating actions must be car-
ried out with the engine running. The cruise control has a display on
the instrument panel to indicate the
programmed reference speed.
It enables the vehicle to maintain the
reference speed programmed by the
driver.
In order for it to be programmed or
activated, the vehicle speed must be
greater than 25 mph (40 km/h) with
at least fourth gear engaged.

* According to version.

FAMILIARISATION12 -


N°



Symbol



Function




1




Air fl ow adjustment.


2



Air fl ow adjustment
and air intake
control.


3



Temperature
adjustment.


4



Air distribution
adjustment.


N°



Symbol



Function




1





Air conditioning control.



2



Air fl ow adjustment and
air intake control.


3



Temperature
adjustment.


4



Air distribution
adjustment.


28



30

HEATING
AIR CONDITIONING

13 FAMILIARISATION
-
RECOMMENDED INTERIOR SETTINGS


I require...

Heating or Manual air conditioning


Air distribution

Air fl ow

Air recirculation/
Intake of exterior air

Temperature

Manual AC


HOT





COLD




DEMISTING
DE-ICING

FAMILIARISATION14 -
FRONT FITTINGS


1.
Storage compartments in the
doors.


A.
Bottle holder.

B.
Cup holder.

C.
Storage compartment.

2.
Overhead storage.

3.
Map reading lamp.

4.
Courtesy lamp.

5.
Sun visors.

6.
Glove box.

7.
Cigarette lighter.

8.
Removable ashtray.

9.
Storage drawer (passenger).



57

15 FAMILIARISATION
-
REAR FITTINGS



Stowing rings
For greater safety, always en-
sure that the loads transported
are secured fi rmly.



59



1.
Load space cover.

2.
High load retaining net.

3.
Stowing rings.

4.
Side door storage compartment.

5.
Trays between the front and rear
seats.

6.
Seat back storage pockets.



60

FAMILIARISATION16 -
This operation must be carried out
with the engine switched off
.


)
Insert the key then turn it to the
left.

)
Remove the fi ller cap.
A label indicates which type of fuel to
use.
When you fi ll your tank, do not continue
after the third cut-off of the pump. This
could cause engine malfunctions.

The capacity of the tank is approxi-
mately 55 litres for petrol engines
and 60 litres for Diesel engines.
From the time this light comes on,
you have enough fuel left to cover
approximately 30 miles (50 km)
.

Note:
the right-hand sliding side door
cannot be opened while the fuel fi ller
cap is removed.

Outside the vehicle:
Lift the safety
catch, raise the bonnet and secure
the stay to hold the bonnet open.
OPENING THE BONNET

Inside the vehicle:
Pull the lever on
the left-hand side, under the dash-
board.

Low fuel level
warning lamp



51



51



FILLING WITH FUEL

MONITORING and DISPLAY SCREENS
18 -

*
Version indicating kilometres, ac-
cording to country.

1.
Seat belt not fastened warning light

2.
Passenger airbag disarmed
warning light

3.
Front and side airbags warning
light

4.
Front fog lamps indicator light

5.
Anti-lock braking system (ABS)
warning light

6.
Rear fog lamp indicator light

7.
Diesel pre-heat warning light

8.
Left hand direction indicator
9.
Total distance recorder, service
indicator and engine oil level
indicator

10.
Right hand direction indicator

11 .
Emission control system warning
light

12.

Main beam headlamps indicator light


13.
Handbrake, low brake fl uid
level and electronic brake force
distribution warning light

14.
Dipped beam headlamps
indicator light

15.
Battery charge warning light

16.
Engine oil pressure and
temperature warning light

17.
Water in diesel fi lter warning light
18.
Low coolant level warning light

19.
Coolant temperature indicator

20.
Total distance recorder button

21.
Central (STOP) warning light

22.
Speedometer *

23.
Rev counter

24.
Lighting rheostat button

25.
Fuel level indicator

26.
Low fuel level warning light

27.
Speed limiter/cruise control
display

INSTRUMENT PANEL: PETROL - DIESEL
