CITROEN BERLINGO VAN 2019 Handbook (in English)

219

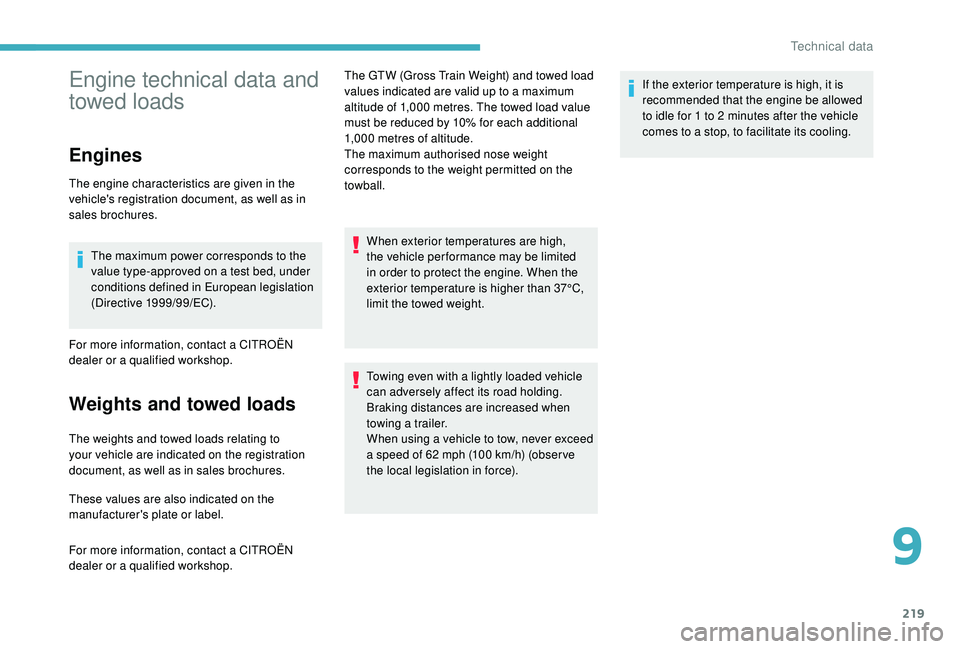

Engine technical data and
towed loads
Engines
The engine characteristics are given in the
vehicle's registration document, as well as in
sales brochures.The maximum power corresponds to the
value type-approved on a test bed, under
conditions defined in European legislation
(Directive 1999/99/EC).
For more information, contact a CITROËN
dealer or a qualified workshop.
Weights and towed loads
The weights and towed loads relating to
your vehicle are indicated on the registration
document, as well as in sales brochures.
These values are also indicated on the
manufacturer's plate or label.
For more information, contact a CITROËN
dealer or a qualified workshop. The GTW (Gross Train Weight) and towed load
values indicated are valid up to a maximum
altitude of 1,000
metres. The towed load value
must be reduced by 10% for each additional
1,000 metres of altitude.
The maximum authorised nose weight
corresponds to the weight permitted on the
towball.
When exterior temperatures are high,
the vehicle per formance may be limited
in order to protect the engine. When the
exterior temperature is higher than 37°C,
limit the towed weight.
Towing even with a lightly loaded vehicle
can adversely affect its road holding.
Braking distances are increased when
towing a trailer.
When using a vehicle to tow, never exceed
a speed of 62 mph (100 km/h) (obser ve
the local legislation in force). If the exterior temperature is high, it is
recommended that the engine be allowed
to idle for 1 to 2
minutes after the vehicle
comes to a stop, to facilitate its cooling.
9
Technical data

220

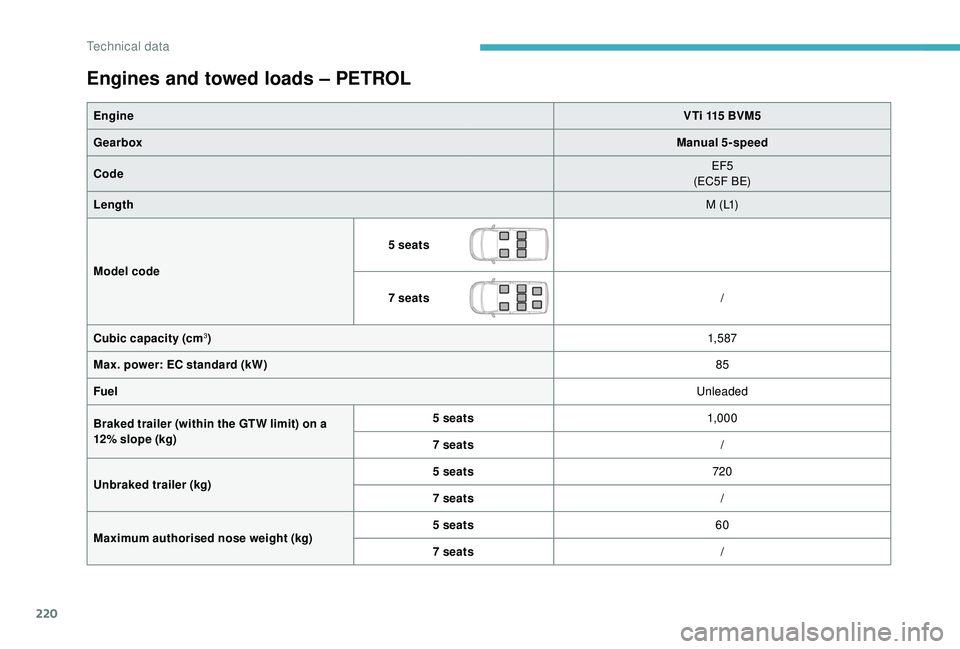

Engines and towed loads – PETROL
EngineVTi 115 BVM5
Gearbox Manual 5-speed
Code EF5
(EC5F BE)
Length M ( L1)
Model code 5 seats
7 seats
/
Cubic capacity (cm
3) 1,5 87
Max. power: EC standard (kW) 85
Fuel Unleaded
Braked trailer (within the GTW limit) on a
12% slope (kg) 5 seats
1,000
7 seats /
Unbraked trailer (kg) 5 seats
720
7 seats /
Maximum authorised nose weight (kg) 5 seats
60
7 seats /
Technical data

221

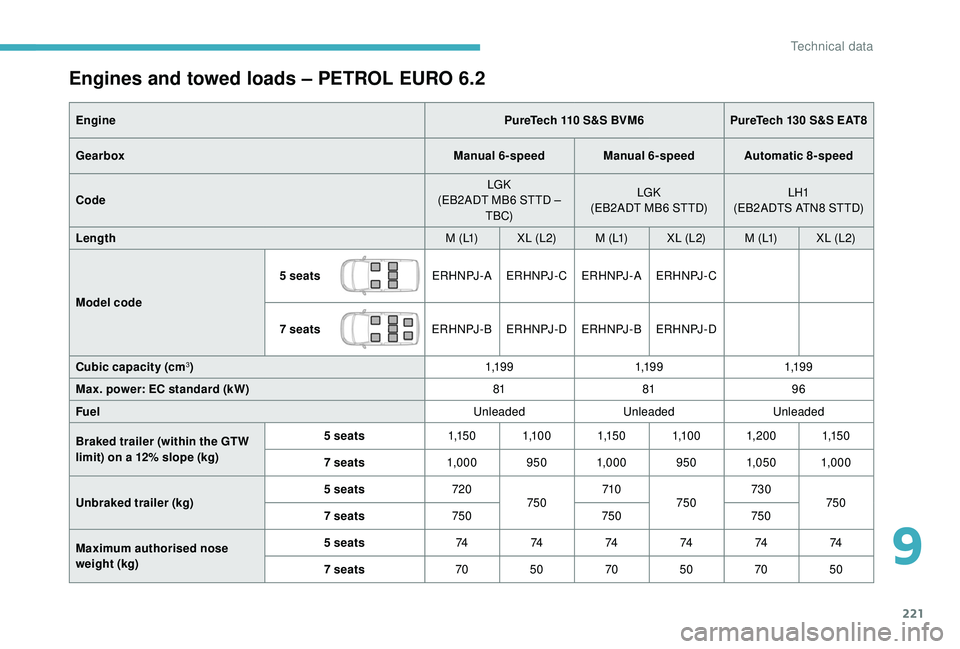

Engines and towed loads – PETROL EURO 6.2
EnginePureTech 110 S&S BVM6PureTech 130 S&S EAT8
Gearbox Manual 6-speed Manual 6-speedAutomatic 8-speed
Code LGK
(EB2ADT MB6 STTD – TBC) LGK
(EB2ADT MB6 STTD) LH1
(EB2ADTS ATN8 STTD)
Length M ( L1)X L (L 2) M ( L1)X L (L 2) M ( L1)X L (L 2)
Model code 5 seats
E R H N PJ - A E R H N PJ - C E R H N PJ - A E R H N PJ - C
7 seats E R H N PJ - BERHNPJ-D E R H N PJ - BERHNPJ-D
Cubic capacity (cm
3) 1,1 9 91,1 9 91,1 9 9
Max. power: EC standard (kW) 818196
Fuel UnleadedUnleadedUnleaded
Braked trailer (within the GTW
limit) on a 12% slope (kg) 5 seats
1,1 5 0 1,1 0 0 1,1 5 0 1,1 0 0 1, 20 01,1 5 0
7 seats 1,0009501,000 950 1,050 1,000
Unbraked trailer (kg) 5 seats
720
750 710
750 730
750
7 seats 750 750750
Maximum authorised nose
weight (kg) 5 seats
747474747474
7 seats 7050 7050 7050
9
Technical data

222

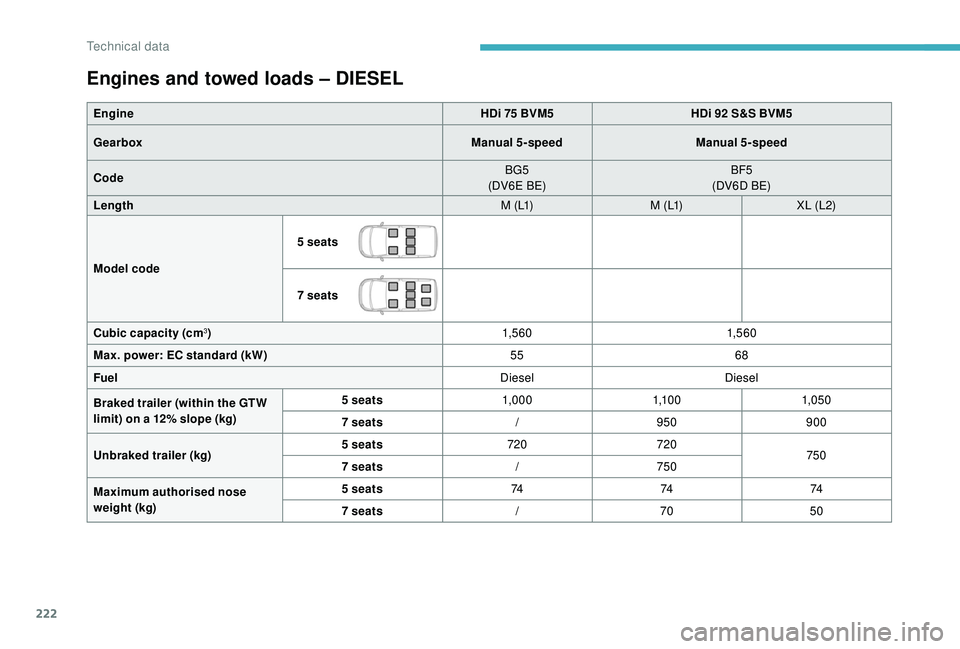

Engines and towed loads – DIESEL
EngineHDi 75 BVM5HDi 92 S&S BVM5
Gearbox Manual 5-speedManual 5-speed
Code BG5
(DV6E BE) BF5
(DV6D BE)
Length M ( L1)M ( L1)X L (L 2)
Model code 5 seats
7 seats
Cubic capacity (cm
3) 1,5 6 01,5 6 0
Max. power: EC standard (kW) 5568
Fuel DieselDiesel
Braked trailer (within the GTW
limit) on a 12% slope (kg) 5 seats
1,0001,1 0 01,050
7 seats /950 900
Unbraked trailer (kg) 5 seats
720720
750
7 seats /750
Maximum authorised nose
weight (kg) 5 seats
747474
7 seats /70 50
Technical data

223

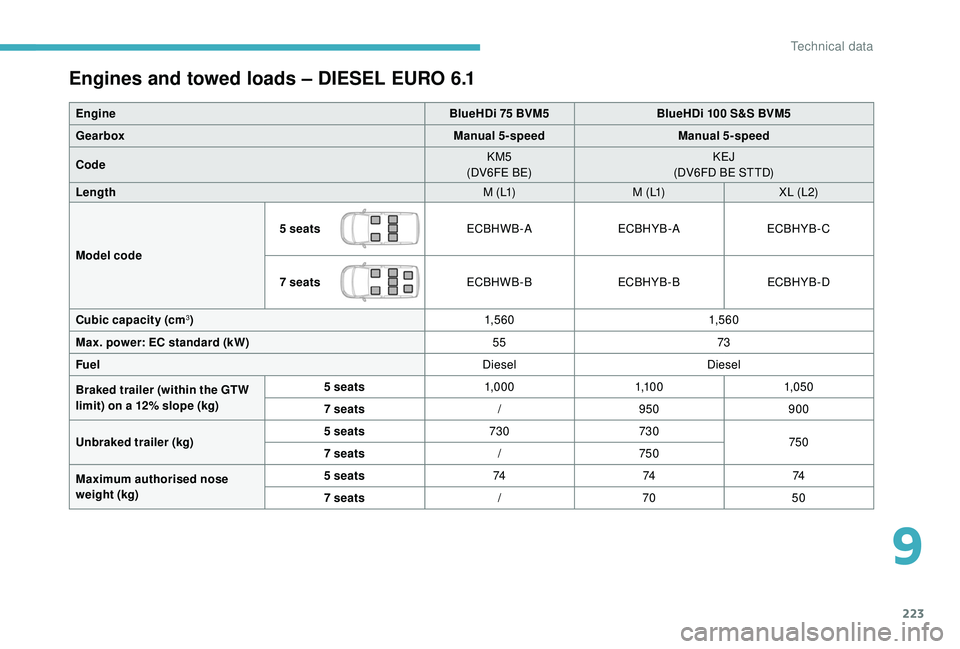

Engines and towed loads – DIESEL EURO 6.1
EngineBlueHDi 75 BVM5BlueHDi 100 S&S BVM5
Gearbox Manual 5-speedManual 5-speed
Code KM5
(DV6FE BE) KEJ
(DV6FD BE STTD)
Length M ( L1)M ( L1)X L (L 2)
Model code 5 seats
ECBHWB-AECBHYB -AECBHYB - C
7 seats ECBHWB-BECBHYB-BECBHYB -D
Cubic capacity (cm
3) 1,5 6 01,5 6 0
Max. power: EC standard (kW) 5573
Fuel DieselDiesel
Braked trailer (within the GTW
limit) on a 12% slope (kg) 5 seats
1,0001,1 0 01,050
7 seats /950 900
Unbraked trailer (kg) 5 seats
730730
750
7 seats /750
Maximum authorised nose
weight (kg) 5 seats
747474
7 seats /70 50
9
Technical data

224
Engines and towed loads – DIESEL EURO 6.2
EngineBlueHDi 75
BVM5 BlueHDi 100 S&S BVM5
BlueHDi 100 BVM5
Gearbox Manual
5-speed Manual
5-speed Manual
5-speed
Code MJ5
(DV5RE BE) MDJ
(DV5RD BE STTD – TBC) MD5
(DV5RD BE)
Length M ( L1) M ( L1)X L (L 2)M ( L1)X L (L 2)
Model code 5 seats
ECYHWC-AECYH YC - A ECYH YC - C ECYH YC - A ECYH YC - C
7 seats ECYHWC- BECYH YC - B ECYH YC - D ECYH YC - B ECYH YC - D
Cubic capacity (cm
3) 1,49 91,49 9 1,49 9
Max. power: EC standard (kW) 5575 75
Fuel DieselDiesel Diesel
Braked trailer (within the GTW
limit) on a 12% slope (kg) 5 seats
1,0001,3 0 0 1, 25 01,3 0 0 1, 25 0
7 seats /1,1 5 0 1,1 0 0 1,1 5 01,1 0 0
Unbraked trailer (kg) 5 seats
73074 0
750 730
750
7 seats /750 750
Maximum authorised nose
weight (kg) 5 seats
74747474
74
7 seats /60 5050
Technical data

225

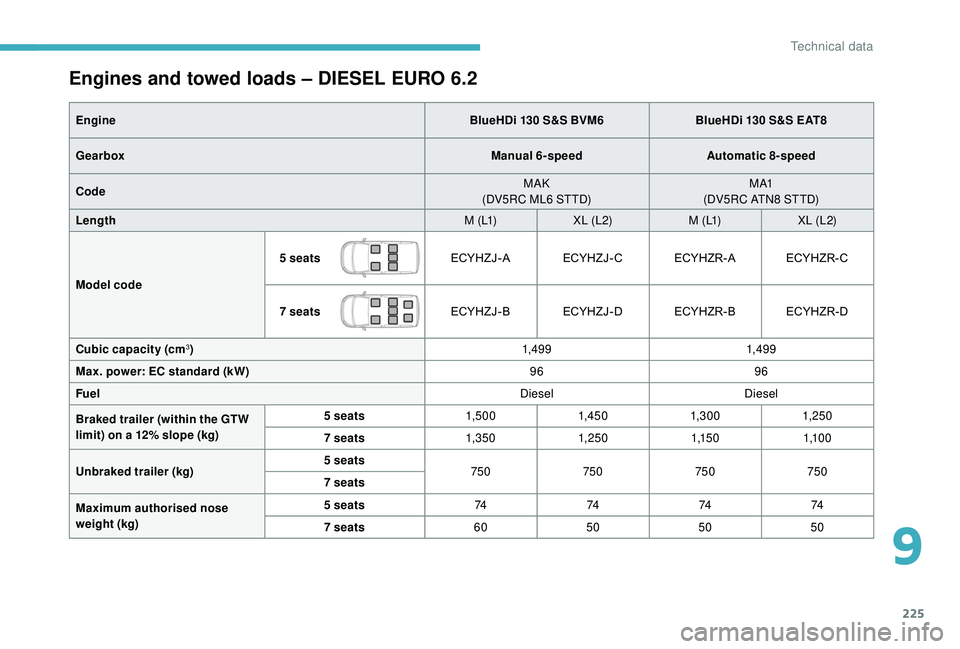

Engines and towed loads – DIESEL EURO 6.2
EngineBlueHDi 130 S&S BVM6BlueHDi 130 S&S EAT8
Gearbox Manual 6-speedAutomatic 8-speed
Code MAK
(DV5RC ML6 STTD) M A1
(DV5RC ATN8 STTD)
Length M ( L1)X L (L 2) M ( L1)X L (L 2)
Model code 5 seats
ECYHZJ -A ECYHZJ - C ECYHZR-A ECYHZR- C
7 seats ECYHZJ - BECYHZJ-DECYHZR- B ECYHZR- D
Cubic capacity (cm
3) 1,49 91,49 9
Max. power: EC standard (kW) 9696
Fuel DieselDiesel
Braked trailer (within the GTW
limit) on a 12% slope (kg) 5 seats
1,5 0 01,4 5 01,3 0 0 1, 25 0
7 seats 1,3 5 01, 25 0 1,1 5 01,1 0 0
Unbraked trailer (kg) 5 seats
750750750750
7 seats
Maximum authorised nose
weight (kg) 5 seats
74747474
7 seats 60 505050
9
Technical data

226
Identification markings
Different visible markings for the identification
and localisation of your vehicle.
A. Vehicle Identification Number (VIN),
under the bonnet.
This number is engraved on the chassis near
the right-hand front wheel arch.
B. Vehicle Identification Number (VIN) on
the windscreen lower cross member.
This number is recorded on a label, visible
through the windscreen.-

t
he vehicle identification number (VIN),
- t he maximum authorised weight (gross
vehicle weight),
-

t
he maximum authorised weight with trailer
(gross train weight),
-

t
he maximum weight on the front axle,
-

t
he maximum weight on the rear axle.
D. Tyre/paint label.
This label on the middle door pillar, driver's
side, contains the following information:
-

t
he tyre pressures, unladen and laden,
-

t
he tyre sizes (including the load index and
speed rating),
-

t
he spare tyre inflation pressure,
-

t
he paint colour code.The vehicle may be originally equipped
with tyres with higher load and speed
indices than those indicated on the label,
without affecting inflation pressure.
C. Manufacturer's label.
This tamperproof label on the middle door
pillar, right or left-hand side, contains the
following information:
-

t
he name of the manufacturer,
-

t
he European Whole Vehicle Type Approval
number,
Technical data

1

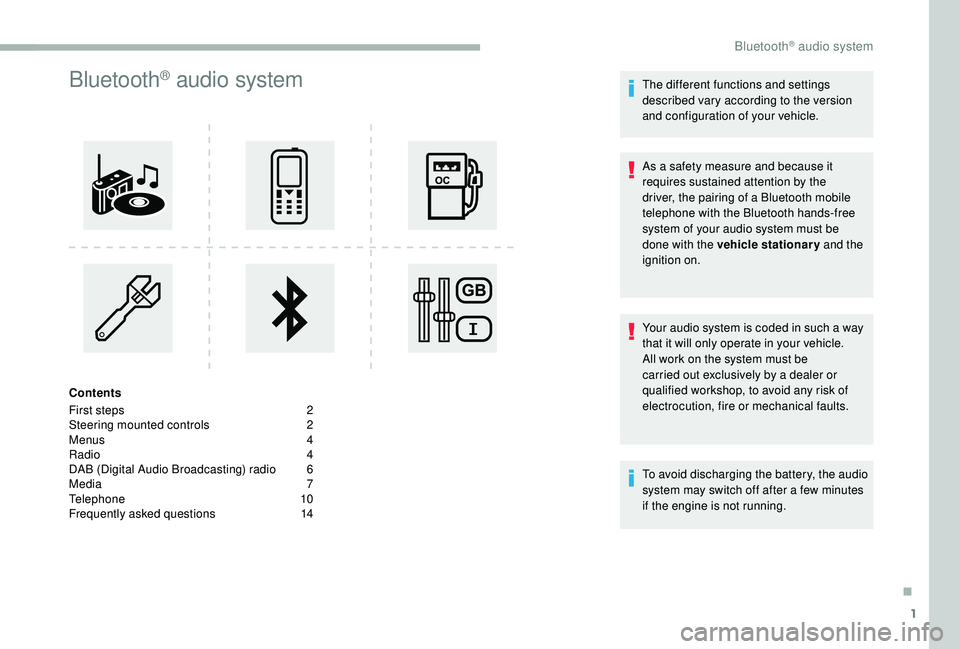

Bluetooth® audio system
Contents
First steps
2
S

teering mounted controls
2
M

enus
4
R

adio 4
DAB (Digital Audio Broadcasting) radio

6
M

edia 7
Telephone


10
Frequently asked questions

1
4 The different functions and settings
described vary according to the version
and configuration of your vehicle.
As a safety measure and because it
requires sustained attention by the
driver, the pairing of a Bluetooth mobile
telephone with the Bluetooth hands-free
system of your audio system must be
done with the vehicle stationary
and the
ignition on.
Your audio system is coded in such a way
that it will only operate in your vehicle.
All work on the system must be
carried out exclusively by a dealer or
qualified workshop, to avoid any risk of
electrocution, fire or mechanical faults.
To avoid discharging the battery, the audio
system may switch off after a few minutes
if the engine is not running.
.
Bluetooth® audio system

2

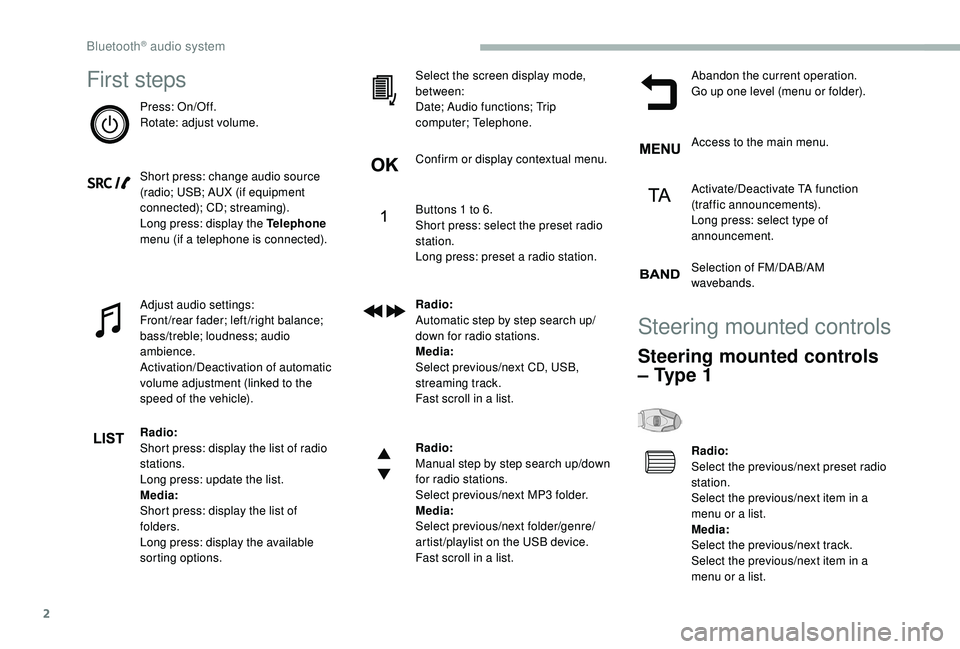

First steps
Press: On/Off.
Rotate: adjust volume.
Short press: change audio source
(radio; USB; AUX (if equipment
connected); CD; streaming).
Long press: display the Telephone
menu (if a telephone is connected).
Adjust audio settings:
Front/rear fader; left/right balance;
bass/treble; loudness; audio
ambience.
Activation/Deactivation of automatic
volume adjustment (linked to the
speed of the vehicle).
Radio:
Short press: display the list of radio
stations.
Long press: update the list.
Media:
Short press: display the list of
folders.
Long press: display the available
sorting options.Select the screen display mode,
between:
Date; Audio functions; Trip
computer; Telephone.
Confirm or display contextual menu.
Buttons 1 to 6.
Short press: select the preset radio
station.
Long press: preset a radio station.
Radio:
Automatic step by step search up/
down for radio stations.
Media:
Select previous/next CD, USB,
streaming track.
Fast scroll in a list.
Radio:
Manual step by step search up/down
for radio stations.
Select previous/next MP3 folder.
Media:
Select previous/next folder/genre/
artist/playlist on the USB device.
Fast scroll in a list.
Abandon the current operation.
Go up one level (menu or folder).
Access to the main menu.
Activate/Deactivate TA function
(traffic announcements).
Long press: select type of
announcement.
Selection of FM/DAB/AM
wavebands.
Steering mounted controls
Steering mounted controls
– Type 1
Radio:
Select the previous/next preset radio
station.
Select the previous/next item in a
menu or a list.
Media:
Select the previous/next track.
Select the previous/next item in a
menu or a list.
Bluetooth® audio system
