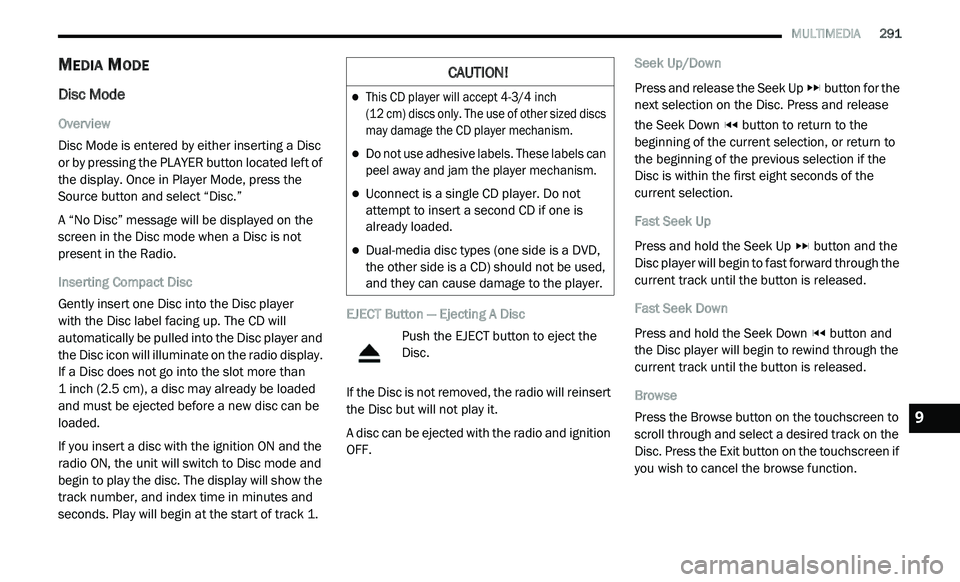

MULTIMEDIA 291
MEDIA MODE
Disc Mode
Overview
Disc Mode is entered by either inserting a Disc
or

by pressing the PLAYER button located left of
the display. Once in Player Mode, press the
Source button and select “Disc.”
A “No Disc” message will be displayed on the
s c

reen in the Disc mode when a Disc is not
present in the Radio.
Inserting Compact Disc
Gently insert one Disc into the Disc player
with the Disc label facing up. The CD will
a u

tomatically be pulled into the Disc player and
the Disc icon will illuminate on the radio display.
If a Disc does not go into the slot more than
1 inch (2.5 cm), a disc may already be loaded
a n

d must be ejected before a new disc can be
loaded.
If you insert a disc with the ignition ON and the
r a

dio ON, the unit will switch to Disc mode and
begin to play the disc. The display will show the
track number, and index time in minutes and
seconds. Play will begin at the start of track 1. EJECT Button — Ejecting A Disc
Push the EJECT button to eject the
Disc.
If the Disc is not removed, the radio will reinsert
t h

e Disc but will not play it.
A disc can be ejected with the radio and ignition
O F

F. Seek Up/Down
Press and release the Seek Up
button for the
next selection on the Disc. Press and release
t h

e Seek Down button to return to the
beginning of the current selection, or return to
t h

e beginning of the previous selection if the
Disc is within the first eight seconds of the
current selection.
Fast Seek Up
Press and hold the Seek Up button and the
Disc player will begin to fast forward through the
c u

rrent track until the button is released.
Fast Seek Down
Press and hold the Seek Down button and
the Disc player will begin to rewind through the
c u

rrent track until the button is released.
Browse
Press the Browse button on the touchscreen to
s c

roll through and select a desired track on the
Disc. Press the Exit button on the touchscreen if
you wish to cancel the browse function.
CAUTION!

This CD player will accept 4-3/4 inch
(12 cm) discs only. The use of other sized discs
m a

y damage the CD player mechanism.

Do not use adhesive labels. These labels can
peel away and jam the player mechanism.

Uconnect is a single CD player. Do not
attempt to insert a second CD if one is
already loaded.
Dual-media disc types (one side is a DVD,
the other side is a CD) should not be used,
and they can cause damage to the player.
9

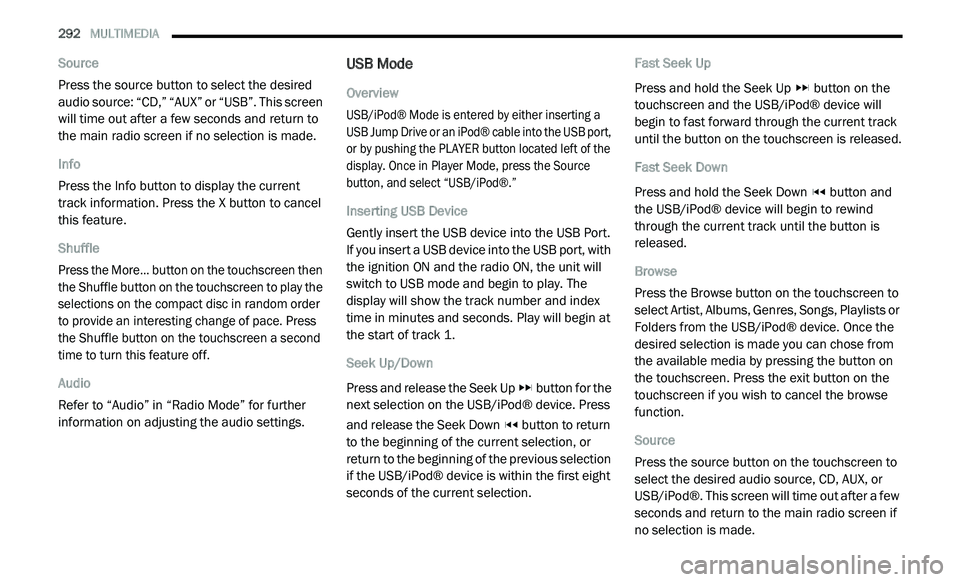

292 MULTIMEDIA
Source
Press the source button to select the desired
au

dio source: “CD,” “AUX” or “USB”. This screen
will time out after a few seconds and return to
the main radio screen if no selection is made.
Info
Press the Info button to display the current
t r

ack information. Press the X button to cancel
this feature.
Shuffle

Press the More... button on the touchscreen then
t h

e Shuffle button on the touchscreen to play the
selections on the compact disc in random order
to provide an interesting change of pace. Press
the Shuffle button on the touchscreen a second
time to turn this feature off.

Audio
Refer to “Audio” in “Radio Mode” for further
i n

formation on adjusting the audio settings.
USB Mode
Overview

USB/iPod® Mode is entered by either inserting a
US

B Jump Drive or an iPod® cable into the USB port,
or by pushing the PLAYER button located left of the
display. Once in Player Mode, press the Source
button, and select “USB/iPod®.”

Inserting USB Device
Gently insert the USB device into the USB Port.
I f

you insert a USB device into the USB port, with
the ignition ON and the radio ON, the unit will
switch to USB mode and begin to play. The
display will show the track number and index
time in minutes and seconds. Play will begin at
the start of track 1.
Seek Up/Down
Press and release the Seek Up button for the
next selection on the USB/iPod® device. Press
a n

d release the Seek Down button to return
to the beginning of the current selection, or
r e

turn to the beginning of the previous selection
if the USB/iPod® device is within the first eight
seconds of the current selection. Fast Seek Up
Press and hold the Seek Up
button on the
touchscreen and the USB/iPod® device will
b e

gin to fast forward through the current track
until the button on the touchscreen is released.
Fast Seek Down
Press and hold the Seek Down button and
the USB/iPod® device will begin to rewind
t h

rough the current track until the button is
released.
Browse
Press the Browse button on the touchscreen to
s e

lect Artist, Albums, Genres, Songs, Playlists or
Folders from the USB/iPod® device. Once the
desired selection is made you can chose from
the available media by pressing the button on
the touchscreen. Press the exit button on the
touchscreen if you wish to cancel the browse
function.
Source
Press the source button on the touchscreen to
s e

lect the desired audio source, CD, AUX, or
USB/iPod®. This screen will time out after a few
seconds and return to the main radio screen if
no selection is made.

MULTIMEDIA 293
Info
Press the Info button to display the current
tr

ack information. Press the X button to cancel
this feature.
Shuffle
Press the More... button then the Shuffle button
t o

play the selections on the USB/iPod® device
in random order to provide an interesting
change of pace. Press the Shuffle button a
second time to turn this feature off.
Audio
Refer to “Audio” in “Radio Mode” for further
i n

formation on adjusting the audio settings.
AUX Mode
Overview
AUX Mode is entered by inserting a AUX device
us

ing a cable with a 3.5 mm audio jack into the
A U

X port or by pushing the PLAYER button
located left of the display. Once in Player Mode,
press the Source button, and select “AUX.”
Inserting Auxiliary Device
Gently insert the Auxiliary device cable into the
A U

X Port. If you connect an Auxiliary device with a 3.5
mm stereo cable into the AUX Port, with
t h

e ignition ON and the radio ON, the unit will
switch to AUX mode and begin to play.
Controlling The Auxiliary Device
The control of the auxiliary device (e.g.,
s e

lecting playlists, play, fast forward, etc.)
cannot be provided by the radio; use the device
controls instead. Adjust the volume with the
ON/OFF VOLUME rotary knob, or with the
volume of the attached device.
NOTE:
The vehicle radio unit is acting as the amplifier
f o

r audio output from the Auxiliary device.
Therefore if the volume control on the Auxiliary
device is set too low, there will be insufficient
audio signal for the radio unit to play the music
on the device.
Source
Press the source button to select the desired
a u

dio source: “CD,” “AUX” or “USB”. This screen
will time out after a few seconds and return to
the main radio screen if no selection is made.
Audio
Refer to “Audio” in “Radio Mode” for further
i n

formation on adjusting the audio settings.
Bluetooth® Mode
Overview
Bluetooth® Streaming Audio (BTSA) or
Bl

uetooth® Mode is entered by pairing a
Bluetooth® device, containing music, to the
Uconnect System.
Before proceeding, the Bluetooth® device
n e

eds to be paired through Uconnect to
communicate with the Uconnect System.
NOTE:
See the pairing procedure in the Owner's
Ma
nual for more details.
Once the Bluetooth® device is paired to the
U c

onnect System, push the PLAYER button
located on the left side of the display. Once in
Player Mode, press the Source button, and
select “Bluetooth®.”
Seek Up/Down
Press and release the Seek Up button on the
touchscreen for the next selection on the
B l

uetooth® device. Press and release the Seek
Down button on the touchscreen to return to
the beginning of the current selection, or return
t o

the beginning of the previous selection if the
9

294 MULTIMEDIA
Bluetooth® device is within the first eight
seconds of the current selection.
Source

Press the Source button on the touchscreen to
se

lect the desired audio source; CD, USB/iPod®,
AUX or Bluetooth®. This screen will time out after
a few seconds and return to the main radio
screen if no selection is made.

Info
Press the Info button to display the current
t r

ack information. Press the Info button a
second time to cancel this feature.
Audio
Refer to “Audio” in “Radio Mode” for further
i n

formation on adjusting the audio settings.
UCONNECT PHONE (4.3)
Radio 4.3
Uconnect Phone is a voice-activated,
hands-free, in-vehicle communications system.
Uconnect Phone allows you to dial a phone
number with your mobile phone. Uconnect Phone supports the following
f
e

atures:
Voice Activated Features:
Hands-Free dialing via Voice (“Call John
Smith Mobile” or, “Dial 248-555-1212”)
Redialing last dialed numbers (“Redial”)
Calling Back the last incoming call number
(“Call Back”)
Viewing Call logs on screen (“Show Incoming
Calls,” “Show Outgoing Calls,” “Show Missed
Calls,” “Show Recent Calls”)
Searching Contacts phone number (“Search
for John Smith Mobile”)
Screen Activated Features:
Dialing via Keypad using touchscreen
Viewing and Calling contacts from Phone -
books displayed on the touchscreen
Setting Favorite Contact Phone numbers so
they are easily accessible on the Main Phone
screen
Viewing and Calling contacts from Recent
Call logs
Listening to Music on your Bluetooth®
Device via the touchscreen
Pairing up to 10 phones/audio devices for
easy access to connect to them quickly
Your mobile phone’s audio is transmitted
t h

rough your vehicle’s audio system; the system
will automatically mute your radio when using
the Uconnect Phone.
For Uconnect Customer Support:
US residents — visit UconnectPhone.com or
call 1-877-855-8400.
Canadian Residents — visit Uconnect-
Phone.com or call, 1-800-465-2001
(English) or 1-800-387-9983 (French).
If your mobile phone only supports the Headset
P r

ofile you may not be able to use any Uconnect
Phone features. Refer to your mobile service
provider or the phone manufacturer for details.
Uconnect Phone allows you to transfer calls
b e

tween the system and your mobile phone as
you enter or exit your vehicle and enables you to
mute the system's microphone for private
conversation.

MULTIMEDIA 297

1. You can do either of the following:

a. Push the Settings button on the faceplate,
p
age down to the Phone/Bluetooth®
button on the touchscreen, press it and
you will see the Paired Phones screen.
If there are no paired phones you will see
< E

mpty> as the first device name.

b. P ush the More button on the faceplate,
t
hen press the Phone button on the
touchscreen and you will go to the
Uconnect Phone main screen. Press the
Settings button on the touchscreen.
If there are no phones currently paired a
p o

p-up appears. If Yes is selected, the
Paired Phones screen will appear. If No is
selected, the Uconnect Phone Main
Menu screen will appear.
2. A t the Paired Phones screen press the Add
D
evice button on the touchscreen and a
pop-up with instructions appears.
3. S earch for available devices on your
B
luetooth®-enabled mobile phone.
When prompted on the phone, select the
“ U

connect” device and enter the PIN.
4. W
hen the pairing process has successfully
c
ompleted, the system prompts you to
choose whether or not this is your favorite
phone. Selecting Yes makes this phone
the highest priority. This phone takes
p r

ecedence over other paired phones within
range.

NOTE:
Software updates on your phone or the
U c

onnect system may interfere with the
Bluetooth® connection. If this happens, simply
r e

peat the pairing process. However, first, make
sure to delete the device from the list of phones
on your Uconnect system. Next, be sure to
remove Uconnect from the list of devices in your
phone’s Bluetooth® settings.
Pair A Bluetooth® Streaming Audio Device

1. P ush the Player button on the faceplate to
b
egin.

2. P ress the Source button on the
t
ouchscreen.
3. C hange the Source to Bluetooth®. 4
. P
ress the “Add Device” button on the
t
ouchscreen.
5. S earch for available devices on your
B
luetooth®-enabled Audio Device. When
prompted on the device, select the
“Uconnect” device and enter the PIN.
6. Uconnect Phone will display an in process s
creen while the system is connecting.
7. W hen the pairing process has successfully
c
ompleted, the system will prompt you to
choose whether or not this is your favorite
device. Selecting Yes will make this device
the highest priority. This device will take
precedence over other paired devices
within range.
NOTE:
If No is selected, device priority is determined by
t h

e order in which it was paired. The latest
device paired will have the higher priority.
You can also use the following VR command to
br
ing up a list of paired audio devices.
“Show Paired Audio Devices.”
9

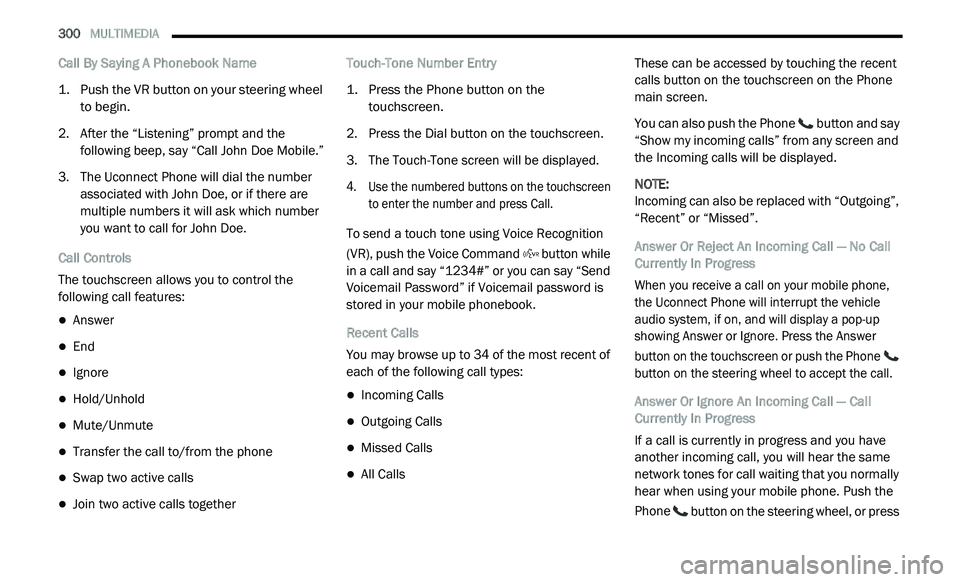

300 MULTIMEDIA
Call By Saying A Phonebook Name

1. Push the VR button on your steering wheel
t
o begin.

2. A fter the “Listening” prompt and the
f
ollowing beep, say “Call John Doe Mobile.”
3. T he Uconnect Phone will dial the number
a
ssociated with John Doe, or if there are
multiple numbers it will ask which number
you want to call for John Doe.
Call Controls
The touchscreen allows you to control the
f o

llowing call features:
Answer
End
Ignore
Hold/Unhold
Mute/Unmute
Transfer the call to/from the phone
Swap two active calls
Join two active calls together Touch-Tone Number Entry

1. P
ress the Phone button on the
t
ouchscreen.

2. P ress the Dial button on the touchscreen.
3
. T he Touch-Tone screen will be displayed.

4
. U se the numbered buttons on the touchscreen
t
o enter the number and press Call.

To send a touch tone using Voice Recognition
( V

R), push the Voice Command button while
in a call and say “1234#” or you can say “Send
V o

icemail Password” if Voicemail password is
stored in your mobile phonebook.
Recent Calls
You may browse up to 34 of the most recent of
e a

ch of the following call types:
Incoming Calls
Outgoing Calls
Missed Calls
All Calls These can be accessed by touching the recent
c
a

lls button on the touchscreen on the Phone
main screen.
You can also push the Phone button and say
“Show my incoming calls” from any screen and
t h

e Incoming calls will be displayed.
NOTE:
Incoming can also be replaced with “Outgoing”,
“ R

ecent” or “Missed”.
Answer Or Reject An Incoming Call — No Call
C u

rrently In Progress

When you receive a call on your mobile phone,
t h

e Uconnect Phone will interrupt the vehicle
audio system, if on, and will display a pop-up
showing Answer or Ignore. Press the Answer
button on the touchscreen or push the Phone
button on the steering wheel to accept the call.

Answer Or Ignore An Incoming Call — Call
C u

rrently In Progress
If a call is currently in progress and you have
a n

other incoming call, you will hear the same
network tones for call waiting that you normally
hear when using your mobile phone. Push the
Phone button on the steering wheel, or press

MULTIMEDIA 303
the Voice Command button and say, “Send
3 7 4 6 #.” Saying “Send” followed by a number,
o r

sequence of numbers, is also to be used for
navigating through an automated customer
service center menu structure, and to leave a
number on a pager.
You can also send stored mobile phonebook
en
tries as tones for fast and easy access to
voice mail and pager entries. For example, if you
previously created a Phonebook entry and/or
Last Name as “Voice Password,” then if you
push the Voice Command button and say
“Send Voicemail Password,” the Uconnect
P h

one will then send the corresponding phone
number associated with the phonebook entry,
as tones over the phone.
NOTE:
The first number encountered for that
contact will be sent. All other numbers
entered for that contact will be ignored.
You may not hear all of the tones due to
mobile phone network configurations.
This is normal.
Some paging and voice mail systems have
system time out settings that are too short
and may not allow the use of this feature.
Pauses, wait or other characters that are
supported by some phones are not
supported over Bluetooth®. These additional
symbols will be ignored when dialing a
numbered sequence.
Barge In — Overriding Prompts
The Voice Command button can be used
when you wish to skip part of a prompt and
i s

sue your voice command immediately.
For example, if a prompt is asking “There are
t w

o numbers with the name John. Say the full
name” you could push the Voice Command
button and say, “John Smith” to select that
o p

tion without having to listen to the rest of the
voice prompt.
Voice Response Length
It is possible for you to choose between Brief
a n

d Detailed Voice Response Length.

1. P ush the MORE button on the faceplate,
t
hen press the Settings button on the
touchscreen.

2. P ress the Display button on the
t
ouchscreen, then scroll down to Voice
Response Length. 3. S
elect either “Brief” or “Detailed” by
p
ressing the box next to the selection.
A check-mark will appear to indicate your
s e

lection.
Phone And Network Status Indicators
Uconnect Phone will provide notification to
in
form you of your phone and network status
when you are attempting to make a phone call
using Uconnect Phone. The status is given for
network signal strength and phone battery
strength.
Dialing Using The Mobile Phone Keypad

You can dial a phone number with your mobile
p h

one keypad and still use the Uconnect Phone
(while dialing via the mobile phone keypad, the
user must exercise caution and take
precautionary safety measures). By dialing a
number with your connected Bluetooth® mobile
phone, the audio will be played through your
vehicle's audio system. The Uconnect Phone will
work the same as if you dial the number using a
voice command.

NOTE:
Certain brands of mobile phones do not send
t h

e dial ring to the Uconnect Phone to play it on
the vehicle audio system, so you will not hear it.
9

MULTIMEDIA 305
Phonebook (Downloaded and Uconnect
Phone Local) name recognition rate is opti -
mized when the entries are not similar.
Numbers must be spoken in single digits.
“800” must be spoken “eight-zero-zero” not
“eight hundred.”
You can say “O” (letter “O”) for “0” (zero).
Even though international dialing for most
number combinations is supported, some
shortcut dialing number combinations may
not be supported.
Far End Audio Performance
Audio quality is maximized under:
Low-to-medium blower setting
Low-to-medium vehicle speed
Low road noise
Smooth road surface
Fully closed windows
Dry weather conditions
Operation from the driver's seat
Performance, such as audio clarity, echo,
and loudness to a large degree, relies on the
phone and network, and not the Uconnect
Phone
Echo at the phone far end can sometimes be
reduced by lowering the in-vehicle audio
volume
Bluetooth® Communication Link
Mobile phones have been found to lose
c o

nnection to the Uconnect Phone. When this
happens, the connection can generally be
reestablished by switching the phone off/on.
Your mobile phone is recommended to remain
in Bluetooth® ON mode.
Power-Up
After switching the ignition key from OFF to
e i

ther the ON/RUN or ACC position, or after a
language change, you must wait at least
15 seconds prior to using the system.
MORE MODE
More Button
Push the MORE button to display the More Main
Menu. The More Main Menu contains the
following options:
Economy — If Equipped
Phone
Outlet — If Equipped
Time
Compass
Clock Setting

1. P ush the MORE button on the right side of
t
he display, then press the Time button.
Next, press the Set button.

Or,
Push the SETTINGS button on the right side
of
the display, then press the Clock button.
The Time setting screen is displayed and
t h

e clock can be adjusted as described in
the following procedure.
9

306 MULTIMEDIA

2. Press the Up or Down Arrow button to adjust
the hours or minutes, next select the AM or
PM button. You can also select 12 hr or 24 hr
format by pressing the desired button.
Setting The Clock

Once the time is set, press the Done button
t o

exit the time screen.
UCONNECT 3/3 NAV WITH 8.4-INCH
DI
SPLAY
INTRODUCTION TO THE UCONNECT 3/
3 NAV W
ITH 8.4-INCH DISPLAY

Uconnect 3/3 NAV with 8.4-inch Display System
1 — ON/OFF & VOLUME
Push the ON/OFF button to turn the system on
o
r

off. Rotate the rotary knob to adjust the
Volume.
NOTE:
If the ignition is switched off with the radio in
st
andby mode, the radio memorizes the
standby mode when the ignition is turned on
again. Push the ON/OFF VOLUME Control to
turn the radio on. It is possible to eject the Disc
and to display the time if the system is off. The
navigation software is always working when the
ignition is switched on, even if the radio is in
standby mode.
2 — CLIMATE CONTROLS (Faceplate Controls)
Refer to “Climate Controls” in “Getting To Know
Y o

ur Vehicle” further more information.
3 — RADIO
Press the Radio button on the touchscreen to
en
ter the Radio Mode. The different tuner
modes, AM, FM, and SAT, can be selected by
pressing the corresponding buttons in the
Radio Mode.
WARNING!
ALWAYS drive safely with your hands on the
steering wheel. You have full responsibility
and assume all risks related to the use of the
Uconnect features and applications in this
vehicle. Only use Uconnect when it is safe to
do so. Failure to do so may result in an
accident involving serious injury or death.

308 MULTIMEDIA
Common Radio Functions
The following operations offer the same
functionality across all Radio Modes, and
further instructions are provided where
differences exist.
ON/OFF & Volume Control
Push the ON/OFF Volume Control
knob to turn on the radio. Push the
ON

/OFF Volume Control knob a
second time to turn off the radio.
The electronic Volume control turns
c o

ntinuously (360 degrees) in either direction,
without stopping. Turning the ON/OFF Volume
Control knob clockwise increases the Volume
and counterclockwise decreases it.
When the audio system is turned on, the sound
wi
ll be set at the same Volume level as last
played.
Tune/Scroll Control
Turn the rotary TUNE/SCROLL control
knob clockwise to increase or
co

unterclockwise to decrease the
radio station frequency. Push the
ENTER/BROWSE button to choose a selection.
Seek And Direct Tune Functions
The Seek Up and Down functions are activated
by pressing the Double Arrow buttons to the
right and left of the radio station display, or by
pushing the left Steering Wheel Audio Control
(if equipped) up or down.
Seek Up
Press and release the Seek Up button on the
touchscreen to tune the radio to the next
l i

stenable station or channel.
During a Seek Up function, if the radio reaches
t h

e starting station after passing through the
entire band two times, the radio will stop at the
station where it began.
Fast Seek Up
Press and hold the Seek Up button on the
touchscreen to advance the radio through the
a v

ailable stations or channels at a faster rate.
The radio stops at the next available station or
channel when the button on the touchscreen is
released. Seek Down
Press and release the Seek Down
button on
the touchscreen to tune the radio to the next
l i

stenable station or channel.
During a Seek Down function, if the radio
r e

aches the starting station after passing
through the entire band two times, the radio will
stop at the station where it began.
Fast Seek Down
Press and hold the Seek Down button on the
touchscreen to advance the radio through the
a v

ailable stations or channel at a faster rate.
The radio stops at the next available station or
channel when the button is released.
Direct Tune
Press the Tune button located at the bottom of
t h

e radio screen. The Direct Tune screen is
available in AM, FM, and SAT radio modes and
can be used to direct tune the radio to a desired
station or channel.
