DODGE TRUCK 1993 Service Repair Manual

3
- 24
REAR SUSPENSION
AND
AXLE

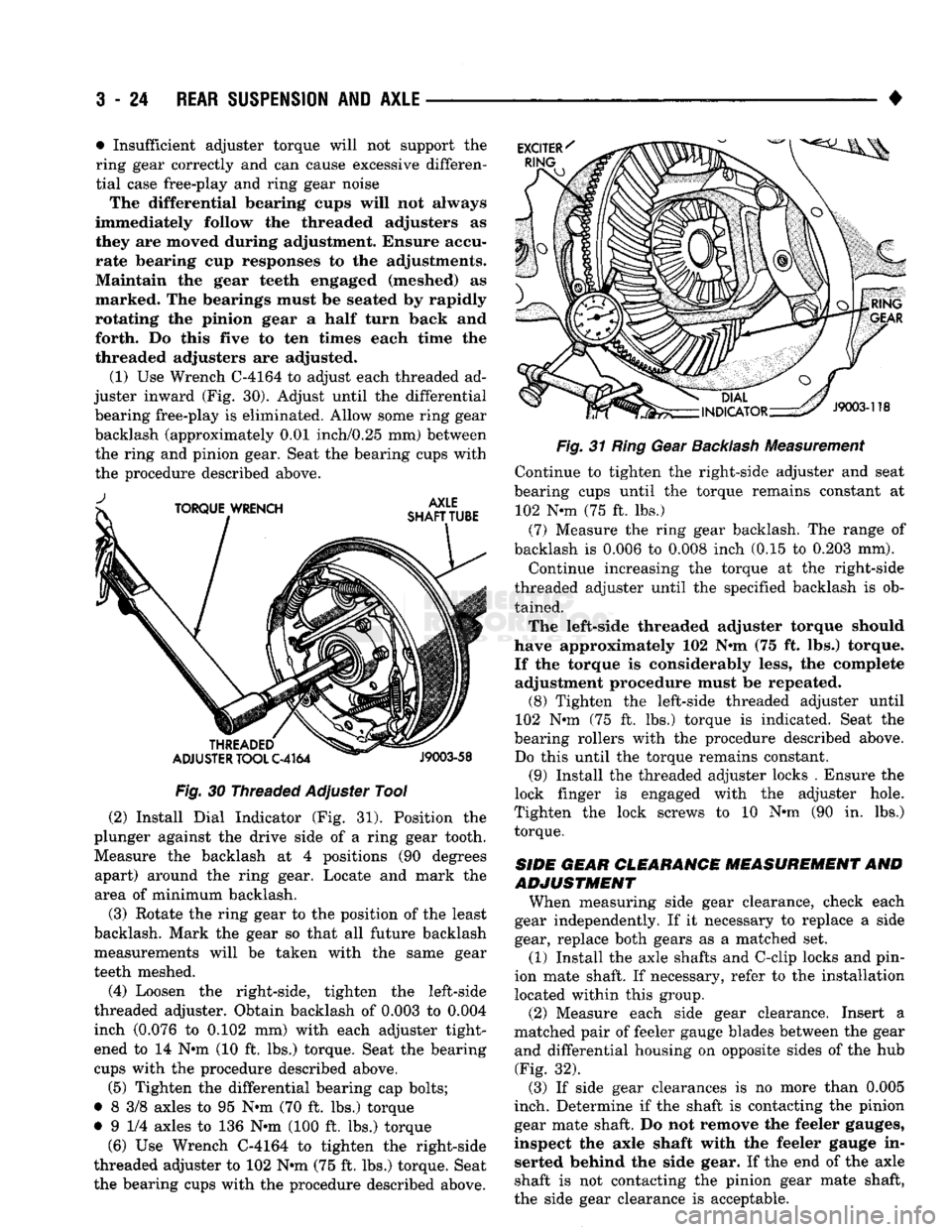

Fig.
30 Threaded Adjuster Tool
(2) Install Dial Indicator (Fig. 31). Position the
plunger against the drive side of a ring gear tooth. Measure the backlash at 4 positions (90 degrees apart) around the ring gear. Locate and mark the
area of minimum backlash.
(3) Rotate the ring gear to the position of the least
backlash. Mark the gear so that all future backlash
measurements will be taken with the same gear
teeth meshed.
(4) Loosen the right-side, tighten the left-side
threaded adjuster. Obtain backlash of 0.003 to 0.004
inch (0.076 to 0.102 mm) with each adjuster tight­
ened to 14 N-m (10 ft. lbs.) torque. Seat the bearing
cups with the procedure described above.
(5) Tighten the differential bearing cap bolts;
• 8 3/8 axles to 95 N-m (70 ft. lbs.) torque
• 9 1/4 axles to 136 N-m (100 ft. lbs.) torque
(6) Use Wrench C-4164 to tighten the right-side
threaded adjuster to 102 N-m (75 ft. lbs.) torque. Seat the bearing cups with the procedure described above. •

Fig.
31
Ring
Gear
Backlash
Measurement Continue to tighten the right-side adjuster and seat
bearing cups until the torque remains constant at 102 N-m (75 ft. lbs.)
(7) Measure the ring gear backlash. The range of
backlash is 0.006 to 0.008 inch (0.15 to 0.203 mm).
Continue increasing the torque at the right-side
threaded adjuster until the specified backlash is ob­ tained.
The left-side threaded adjuster torque should
have approximately 102 N-m (75 ft. lbs.) torque. If the torque is considerably less, the complete adjustment procedure must be repeated. (8) Tighten the left-side threaded adjuster until
102 N-m (75 ft. lbs.) torque is indicated. Seat the
bearing rollers with the procedure described above. Do this until the torque remains constant. (9) Install the threaded adjuster locks . Ensure the
lock finger is engaged with the adjuster hole.
Tighten the lock screws to 10 N-m (90 in. lbs.) torque.
SIDE
GEAR CLEARANCE
MEASUREMENT
AND

ADJUSTMENT

When measuring side gear clearance, check each
gear independently. If it necessary to replace a side
gear, replace both gears as a matched set.
(1) Install the axle shafts and C-clip locks and pin­
ion mate shaft. If necessary, refer to the installation
located within this group. (2) Measure each side gear clearance. Insert a
matched pair of feeler gauge blades between the gear
and differential housing on opposite sides of the hub (Fig. 32).
(3) If side gear clearances is no more than 0,005
inch. Determine if the shaft is contacting the pinion
gear mate shaft. Do not remove the feeler gauges,
inspect the axle shaft with the feeler gauge in­ serted behind the side gear. If the end of the axle
shaft is not contacting the pinion gear mate shaft,
the side gear clearance is acceptable.
• Insufficient adjuster torque will not support the
ring gear correctly and can cause excessive differen­
tial case free-play and ring gear noise
The differential bearing cups will not always
immediately follow the threaded adjusters as they are moved during adjustment. Ensure accu­
rate bearing cup responses to the adjustments. Maintain the gear teeth engaged (meshed) as
marked. The bearings must be seated by rapidly
rotating the pinion gear a half turn back and forth. Do this five to ten times each time the
threaded adjusters are adjusted.
(1) Use Wrench C-4164 to adjust each threaded ad­
juster inward (Fig. 30). Adjust until the differential bearing free-play is eliminated. Allow some ring gear
backlash (approximately 0.01 inch/0.25 mm) between
the ring and pinion gear. Seat the bearing cups with
the procedure described above.

REAR
SUSPENSION
AND
AXLE
3 - 2§

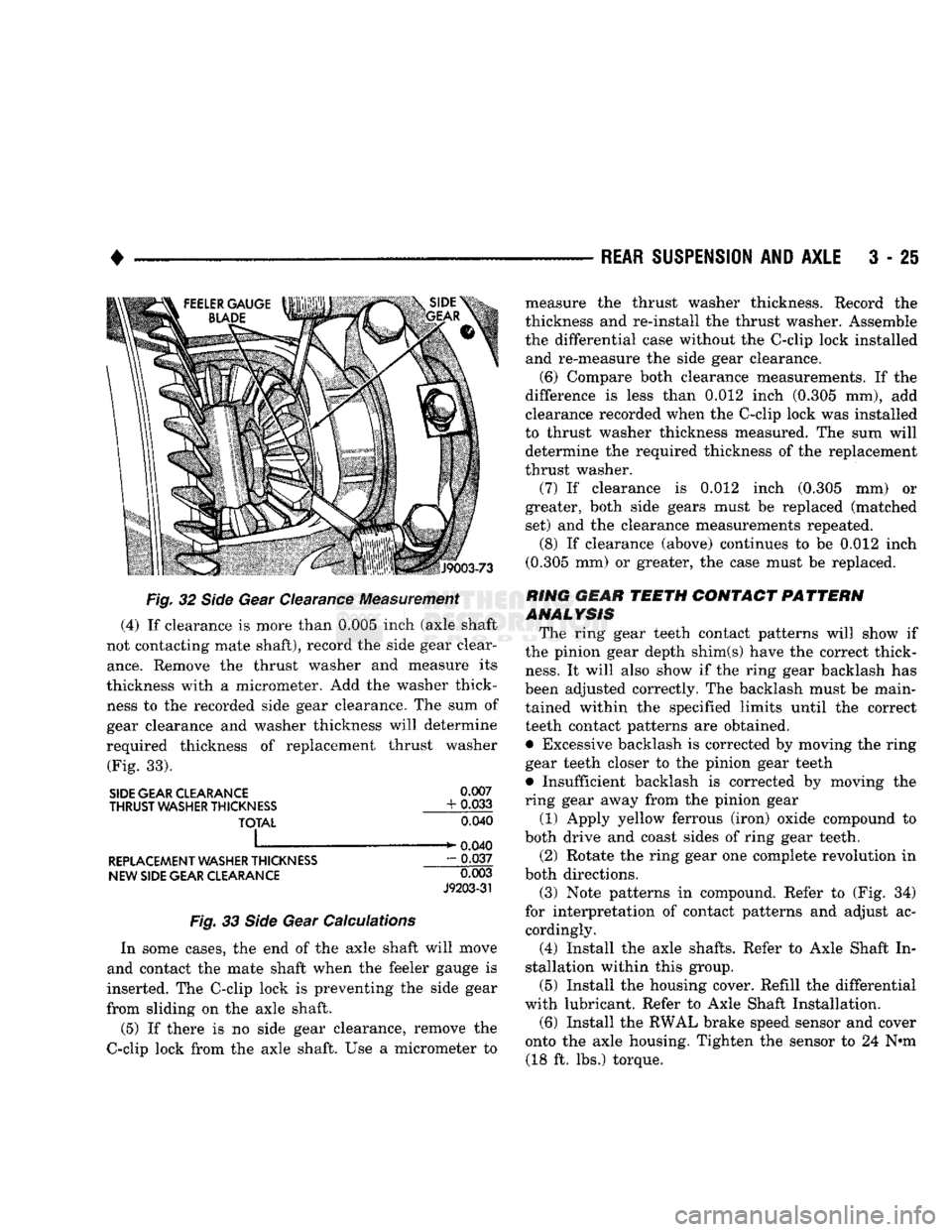

Fig.
32
Side
Gear Clearance Measurement
(4)
If
clearance
is
more than 0.005 inch (axle shaft
not contacting mate shaft), record
the
side gear clear­
ance.
Remove
the
thrust washer
and
measure
its

thickness with
a
micrometer.
Add the
washer thick­ ness
to the
recorded side gear clearance.
The sum of

gear clearance
and
washer thickness will determine
required thickness
of
replacement thrust washer (Fig.
33).
SIDE GEAR CLEARANCE
0.007

THRUST
WASHER THICKNESS
+ 0.033
TOTAL
0.040
I ^ ^ 0.040

REPLACEMENT WASHER THICKNESS
- 0.037
NEW SIDE GEAR CLEARANCE
0.003
J9203-31

Fig.
33
Side
Gear Calculations
In some cases,
the end of the
axle shaft will move
and contact
the
mate shaft when
the
feeler gauge
is

inserted.
The
C-clip lock
is
preventing
the
side gear
from sliding
on the
axle shaft.
(5)
If
there
is no
side gear clearance, remove
the

C-clip lock from
the
axle shaft.
Use a
micrometer
to
measure
the
thrust washer thickness. Record
the

thickness
and
re-install
the
thrust washer. Assemble
the differential case without
the
C-clip lock installed and re-measure
the
side gear clearance.
(6) Compare both clearance measurements.
If the

difference
is
less than
0,012
inch (0.305
mm), add
clearance recorded when
the
C-clip lock
was
installed
to thrust washer thickness measured.
The sum
will determine
the
required thickness
of the
replacement
thrust washer.
(7)
If
clearance
is 0.012
inch (0.305
mm) or

greater, both side gears must
be
replaced (matched set)
and the
clearance measurements repeated.
(8)
If
clearance (above) continues
to be 0.012
inch
(0.305
mm) or
greater,
the
case must
be
replaced.

RING
GEAR
TEETH CONTACT PATTERN

ANALYSIS
The ring gear teeth contact patterns will show
if

the pinion gear depth shim(s) have
the
correct thick­
ness.
It
will also show
if the
ring gear backlash
has

been adjusted correctly.
The
backlash must
be
main­ tained within
the
specified limits until
the
correct
teeth contact patterns
are
obtained.
• Excessive backlash
is
corrected
by
moving
the
ring gear teeth closer
to the
pinion gear teeth
• Insufficient backlash
is
corrected
by
moving
the

ring gear away from
the
pinion gear
(1) Apply yellow ferrous (iron) oxide compound
to

both drive
and
coast sides
of
ring gear teeth. (2) Rotate
the
ring gear
one
complete revolution
in

both directions.
(3) Note patterns
in
compound. Refer
to (Fig. 34)

for interpretation
of
contact patterns
and
adjust
ac­
cordingly.
(4) Install
the
axle shafts. Refer
to
Axle Shaft
In­

stallation within this group. (5) Install
the
housing cover. Refill
the
differential
with lubricant. Refer
to
Axle Shaft Installation.
(6) Install
the
RWAL brake speed sensor
and
cover
onto
the
axle housing. Tighten
the
sensor
to 24 N*m
(18
ft. lbs.)
torque.

3
- 26
REAR SUSPENSION
AND
AXLE

DRIVE SIDE
OF RING
GEAR TEETH HEEL
TOE COAST SIDE
OF RING
GEAR TEETH TOE
HEEL DESIRABLE CONTACT PATTERN.
PATTERN SHOULD
BE
CENTERED
ON
THE
DRIVE SIDE
OF
TOOTH. PATTERN SHOULD
BE
CENTERED
ON

THE COAST SIDE
OF
TOOTH, BUT
MAY
BE SLIGHTLY TOWARD
THE TOE. THERE SHOULD ALWAYS BE SOME CLEARANCE BETWEEN
CONTACT PATTERN
AND TOP
OF

THE TOOTH.
RING GEAR BACKLASH CORRECT.

THINNER
PINION GEAR DEPTH SHIM REQUIRED.
RING GEAR BACKLASH CORRECT.

THICKER
PINION GEAR DEPTH SHIM REQUIRED.
PINION GEAR DEPTH SHIM
CORRECT.
DECREASE
RING
GEAR BACKLASH.
PINION GEAR DEPTH SHIM
CORRECT.
INCREASE
RING
GEAR BACKLASH.

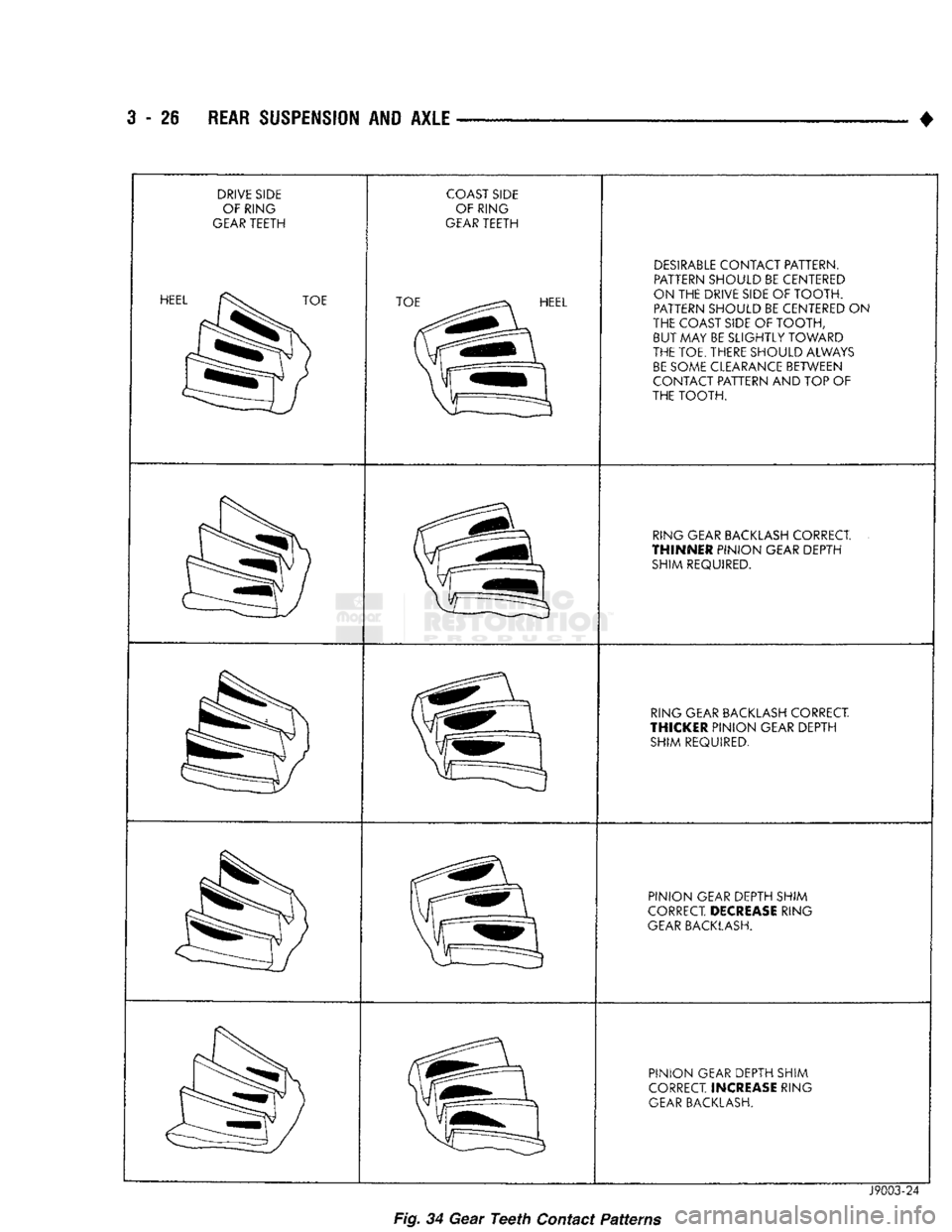

Fig.
34
Gear
Teeth
Contact
Patterns
J9003-24

•

REAR
SUSPENSION
AND
AXLE
3 - 27

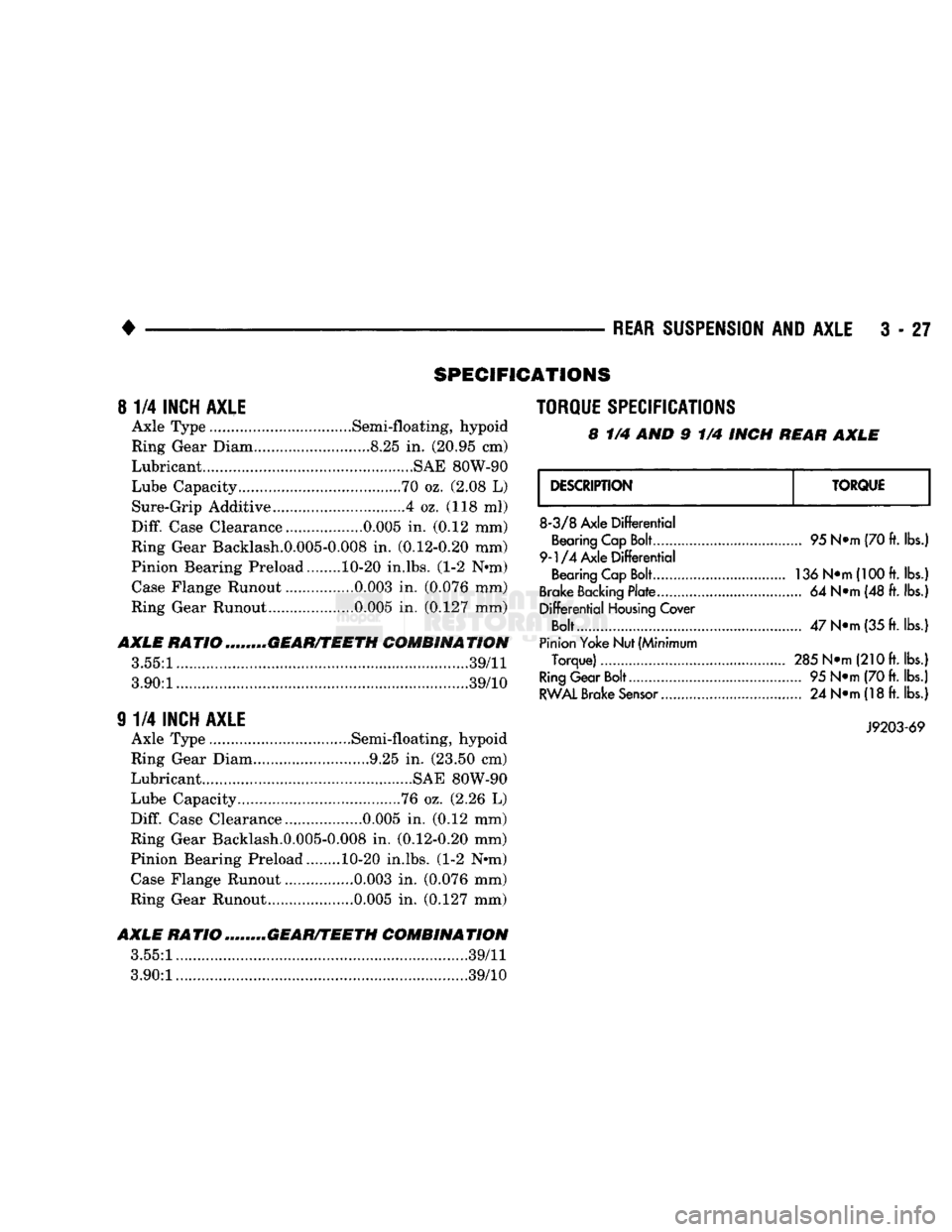

SPECIFICATIONS

8
1/4
INCH AXLE
Axle Type .Semi-floating, hypoid
Ring Gear Diam.. ....8.25
in.
(20.95 cm)
Lubricant............................. .........SAE 80W-90
Lube Capacity.....
70
oz. (2.08
L)

Sure-Grip Additive ....4 oz. (118
ml)

Diff.
Case Clearance.. 0.005
in.
(0.12 mm)
Ring Gear Backlash.0.005-0.008
in.
(0.12-0.20 mm)
Pinion Bearing Preload........ 10-20 in.lbs. (1-2 N*m) Case Flange Runout ................0.003
in.
(0.076 mm)
Ring Gear Runout ....0.005
in.
(0.127 mm)

AXLE
RATIOm„...,„GEAR/TEETH COMBINATION
3.55:1.....
39/11

3.90:1............
...............39/10

9
1/4
INCH AXLE
Axle Type .............Semi-floating, hypoid
Ring Gear Diam 9.25
in.
(23.50 cm)
Lubricant ....................SAE 80W-90
Lube Capacity ........76 oz. (2.26
L)
Diff.
Case Clearance 0.005
in.
(0.12 mm)
Ring Gear Backlash.0.005-0.008
in,
(0.12-0.20 mm)
Pinion Bearing Preload. 10-20 in.lbs. (1-2 Nnn) Case Flange Runout ................0.003
in.
(0.076 mm)
Ring Gear Runout..... .......0.005
in.
(0.127 mm)

AXLE
RATIO ........GEAR/TEETH COMBINATION
3.55:1.
.......39/11

3.90:1..............
39/10
TORQUE SPECIFICATIONS

8
1/4 AND 9 1/4
INCH
REAR AXLE

DESCRIPTION
TORQUE

8-3/8
Axle
Differential

Bearing Cap Bolt

9-1/4
Axle
Differential
Bearing Cap Bolt
Brake Backing
Plate
Differential
Housing
Cover
Bolt....

Pinion Yoke Nut (Minimum

Torque)

Ring
Gear Bolt

RWAL
Brake
Sensor...........
95 N*m (70 ft.
lbs.)

136 N»m(100ft.
lbs.!

... 64
N*m (48 ft. lbs.]
47
N»m
(35 ft.
lbs.)

285 N*m
(21
Oft. lbs.)

... 95
N*m (70 ft. lbs.)

... 24
N*m (18 ft.
lbs.)

J9203-69

3
- 28
REAR
SUSPENSION
AND
AXLE

•

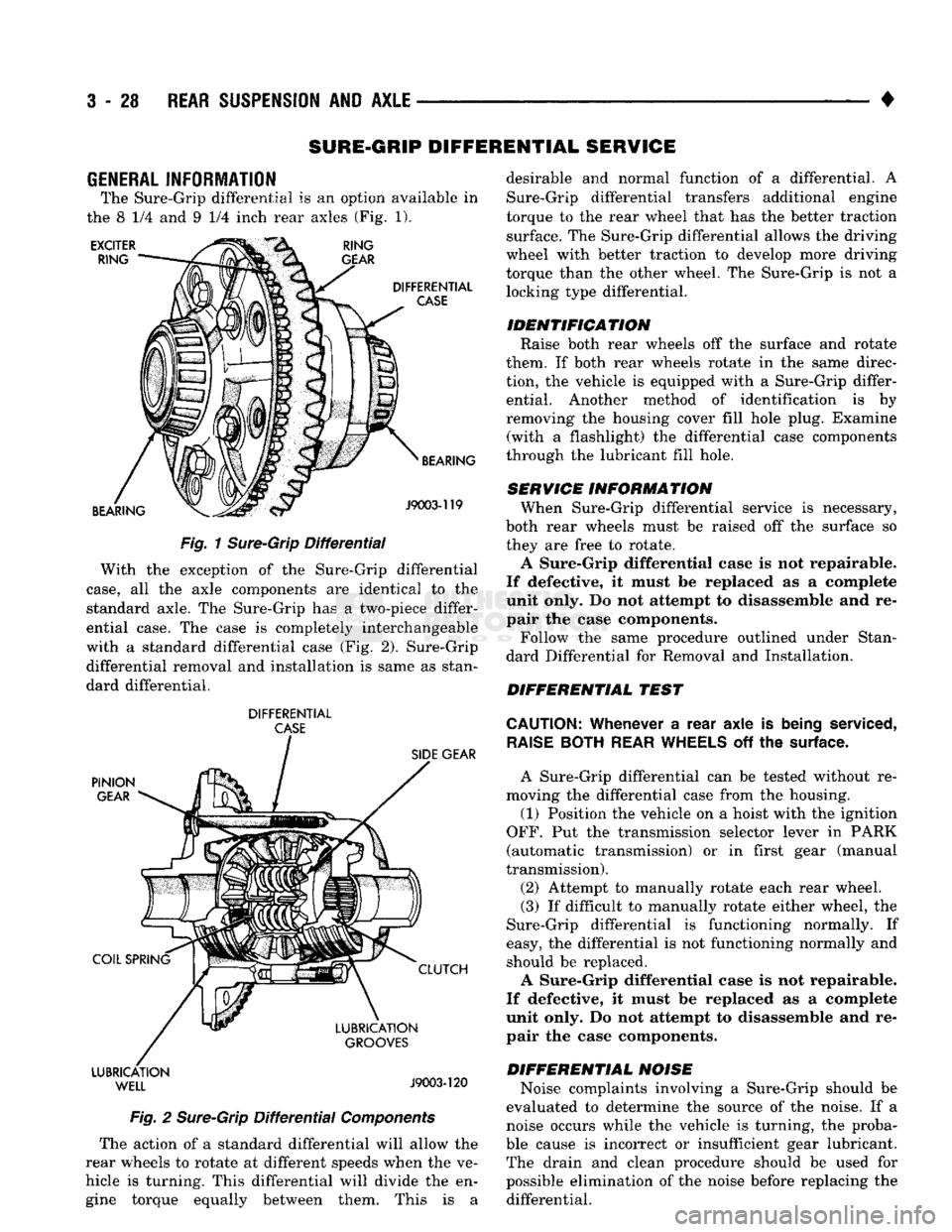

SURE-GRIP
DIFFERENTIAL
SERVICE

GENERAL
INFORMATION
The Sure-Grip differential
is an
option available
in

the
8 1/4 and 9 1/4
inch rear axles
(Fig. 1).
EXCITER
RING RING

GEAR
DIFFERENTIAL

CASE

BEARING BEARING

J9003-119
Fig.
1
Sure-Grip
Differential

With
the
exception
of the
Sure-Grip differential

case,
all the
axle components
are
identical
to the

standard axle.
The
Sure-Grip
has a
two-piece differ­
ential case.
The
case
is
completely interchangeable
with
a
standard differential case
(Fig. 2).
Sure-Grip differential removal
and
installation
is
same
as
stan­
dard differential.
DIFFERENTIAL

CASE

PINION
GEAR

COIL SPRING LUBRICATION
WELL
SIDE
GEAR

CLUTCH

LUBRICATION
GROOVES

J9003-120

Fig.
2
Sure-Grip
Differential
Components
The action
of a
standard differential will allow
the

rear wheels
to
rotate
at
different speeds when
the ve­

hicle
is
turning. This differential will divide
the en­
gine torque equally between them. This
is a
desirable
and
normal function
of a
differential.
A

Sure-Grip differential transfers additional engine
torque
to the
rear wheel that
has the
better traction surface.
The
Sure-Grip differential allows
the
driving
wheel with better traction
to
develop more driving
torque than
the
other wheel.
The
Sure-Grip
is not a
locking type differential.
IDENTIFICATION Raise both rear wheels
off the
surface
and
rotate
them.
If
both rear wheels rotate
in the
same direc­
tion,
the
vehicle
is
equipped with
a
Sure-Grip differ­ ential. Another method
of
identification
is by

removing
the
housing cover fill hole plug. Examine (with
a
flashlight)
the
differential case components
through
the
lubricant fill hole.
SERVICE INFORMATION When Sure-Grip differential service
is
necessary,
both rear wheels must
be
raised
off the
surface
so
they
are
free
to
rotate.
A Sure-Grip differential case
is not
repairable.
If defective,
it
must
be
replaced
as a
complete
unit only.
Do not
attempt
to
disassemble
and re­

pair
the
case components.
Follow
the
same procedure outlined under Stan­
dard Differential
for
Removal
and
Installation.
DIFFERENTIAL TEST

CAUTION:
Whenever
a
rear axle
is
being
serviced,
RAISE
BOTH
REAR
WHEELS
off the
surface.
A Sure-Grip differential
can be
tested without
re­

moving
the
differential case from
the
housing.
(1) Position
the
vehicle
on a
hoist with
the
ignition

OFF.
Put the
transmission selector lever
in
PARK
(automatic transmission)
or in
first gear (manual
transmission).
(2) Attempt
to
manually rotate each rear wheel.
(3)
If
difficult
to
manually rotate either wheel,
the

Sure-Grip differential
is
functioning normally.
If

easy,
the
differential
is not
functioning normally
and
should
be
replaced.
A Sure-Grip differential case
is not
repairable.
If defective,
it
must
be
replaced
as a
complete
unit only.
Do not
attempt
to
disassemble
and re­

pair
the
case components.
DIFFERENTIAL NOISE Noise complaints involving
a
Sure-Grip should
be

evaluated
to
determine
the
source
of the
noise.
If a

noise occurs while
the
vehicle
is
turning,
the
proba­
ble cause
is
incorrect
or
insufficient gear lubricant. The drain
and
clean procedure should
be
used
for

possible elimination
of the
noise before replacing
the
differential.

•

REAR
SUSPENSION
AND
AXLE
3-29

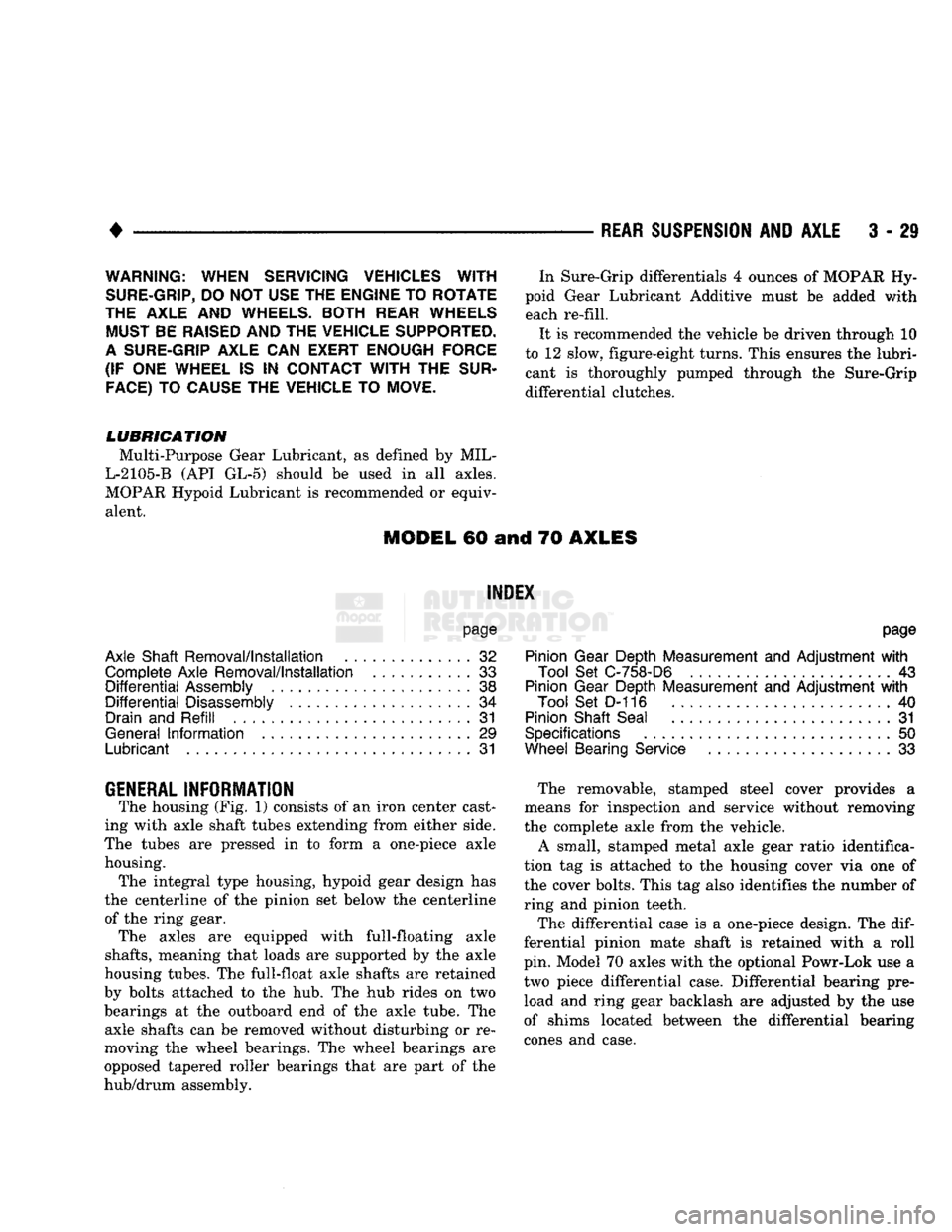

WARNING: WHEN SERVICING VEHICLES
WITH

SURE-GRIP,
DO NOT
USE THE ENGINE
TO
ROTATE
THE AXLE
AND
WHEELS. BOTH REAR WHEELS MUST BE RAISED AND
THE
VEHICLE SUPPORTED.

A
SURE-GRIP AXLE
CAN
EXERT ENOUGH FORCE
(IF ONE
WHEEL
IS IN
CONTACT
WITH
THE
SUR­ FACE)
TO
CAUSE
THE
VEHICLE
TO
MOVE.
LUBRICATION

Multi-Purpose Gear Lubricant, as defined by MIL-
L-2105-B (API GL-5) should be used in all axles.
MOPAR Hypoid Lubricant is recommended or equiv­ alent. In Sure-Grip differentials 4 ounces of MOPAR Hy­
poid Gear Lubricant Additive must be added with each re-fill.
It is recommended the vehicle be driven through 10
to 12 slow, figure-eight turns. This ensures the lubri­ cant is thoroughly pumped through the Sure-Grip
differential clutches.
MODEL 60 and 70 AXLES
INDEX

page

Axle Shaft Removal/Installation
32
Complete Axle Removal/Installation
........... 33
Differential
Assembly
38

Differential
Disassembly
34

Drain
and Refill 31

General
Information
29
Lubricant
31

GENERAL
INFORMATION

The housing (Fig. 1) consists of an iron center cast­
ing with axle shaft tubes extending from either side.
The tubes are pressed in to form a one-piece axle housing. The integral type housing, hypoid gear design has
the centerline of the pinion set below the centerline of the ring gear. The axles are equipped with full-floating axle

shafts,
meaning that loads are supported by the axle
housing tubes. The full-float axle shafts are retained
by bolts attached to the hub. The hub rides on two
bearings at the outboard end of the axle tube. The axle shafts can be removed without disturbing or re­
moving the wheel bearings. The wheel bearings are
opposed tapered roller bearings that are part of the
hub/drum assembly.
page

Pinion Gear Depth Measurement
and
Adjustment
with Tool Set C-758-D6 43

Pinion Gear Depth Measurement
and
Adjustment
with

Tool
Set
D-116
. 40

Pinion Shaft Seal
31

Specifications
50

Wheel Bearing Service
33
The removable, stamped steel cover provides a
means for inspection and service without removing
the complete axle from the vehicle.
A small, stamped metal axle gear ratio identifica­
tion tag is attached to the housing cover via one of
the cover bolts. This tag also identifies the number of
ring and pinion teeth.
The differential case is a one-piece design. The
dif­

ferential pinion mate shaft is retained with a roll
pin. Model 70 axles with the optional Powr-Lok use a
two piece differential case. Differential bearing pre­ load and ring gear backlash are adjusted by the use
of shims located between the differential bearing
cones and case.

CO

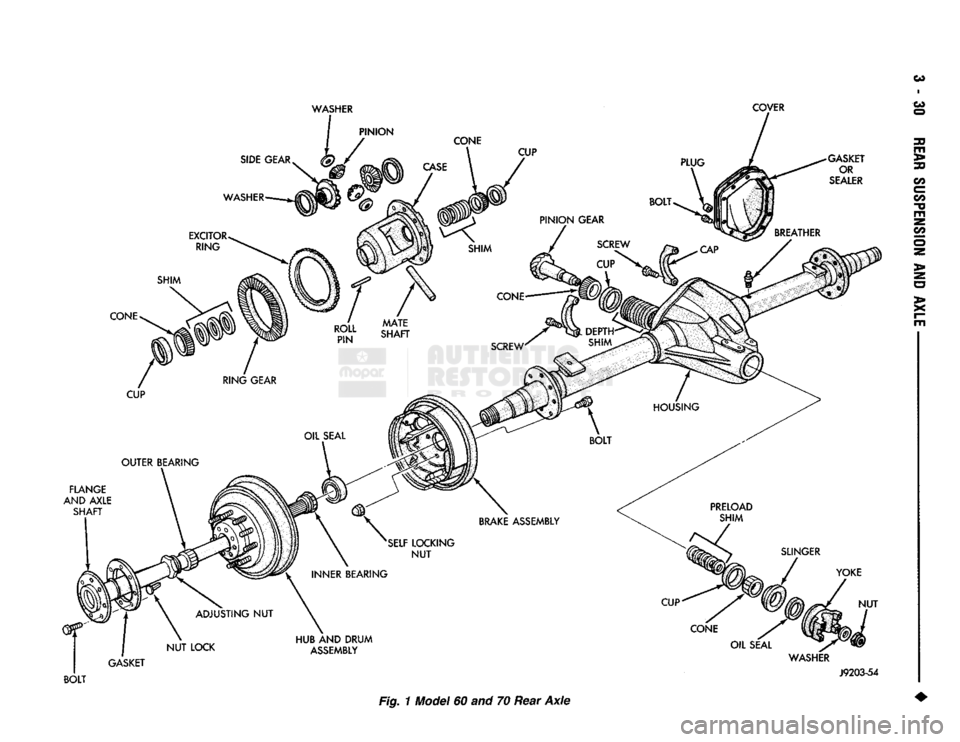

Fig. 1 Model 60 and 70 Rear Axle

•

REAR
SUSPENSION
AND
AXLE
3 - 31

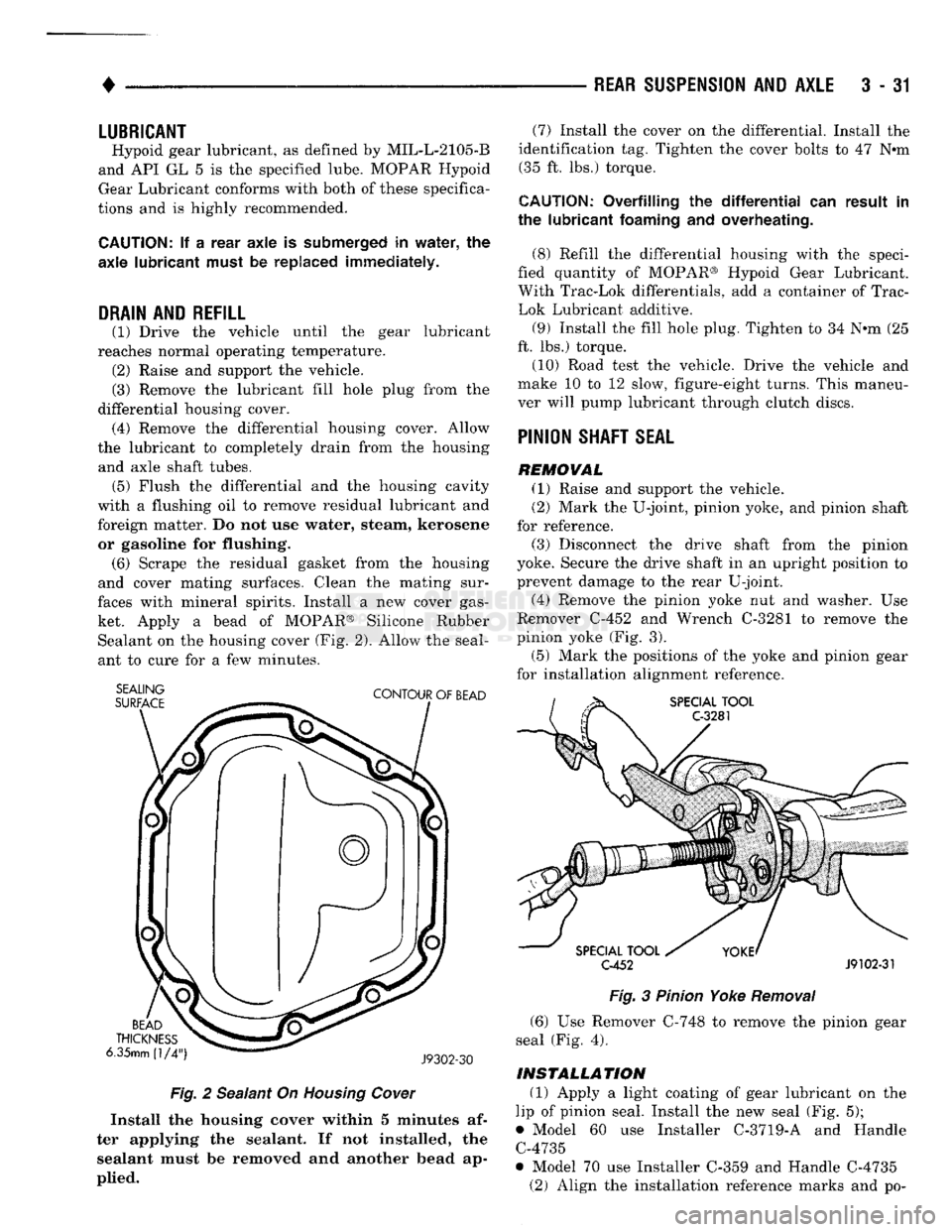

LUBRICANT

Hypoid gear lubricant, as defined by MIL-L-2105-B
and API GL 5 is the specified lube. MOPAR Hypoid
Gear Lubricant conforms with both of these specifica­
tions and is highly recommended.

CAUTION:
If a
rear
axle
is
submerged
in
water,
the

axle
lubricant
must
be
replaced
immediately,

DRAIN
AND
REFILL
(1) Drive the vehicle until the gear lubricant
reaches normal operating temperature. (2) Raise and support the vehicle. (3) Remove the lubricant fill hole plug from the
differential housing cover. (4) Remove the differential housing cover. Allow
the lubricant to completely drain from the housing and axle shaft tubes. (5) Flush the differential and the housing cavity
with a flushing oil to remove residual lubricant and
foreign matter. Do not use water,
steam,
kerosene
or
gasoline for
flushing,
(6) Scrape the residual gasket from the housing
and cover mating surfaces. Clean the mating sur­
faces with mineral spirits. Install a new cover gas­
ket. Apply a bead of MOPAR® Silicone Rubber Sealant on the housing cover (Fig. 2). Allow the seal­
ant to cure for a few minutes.
SEALING

SURFACE
CONTOUR
OF
BEAD
BEAD

THICKNESS

6.35mm
(1/4")
J9302-30

Fig.
2 Sealant On Housing Cower

Install
the
housing
cover
within 5
minutes
af­
ter
applying
the
sealant.
If not
installed,
the
sealant
must be
removed
and another
bead
ap­

plied.
(7) Install the cover on the differential. Install the
identification tag. Tighten the cover bolts to 47 Nem (35 ft. lbs.) torque.

CAUTION:
Overfilling
the differential" can
result
in

the
lubricant
foaming
and
overheating.

(8) Refill the differential housing with the speci­
fied quantity of MOPAR® Hypoid Gear Lubricant.
With Trac-Lok differentials, add a container of Trac-
Lok Lubricant additive.
(9) Install the fill hole plug. Tighten to 34 N-m (25
ft. lbs.) torque.
(10) Road test the vehicle. Drive the vehicle and
make 10 to 12 slow, figure-eight turns. This maneu­
ver will pump lubricant through clutch discs.

PINION
SHAFT
SEAL

REMOVAL
(1) Raise and support the vehicle.
(2) Mark the U-joint, pinion yoke, and pinion shaft
for reference.
(3) Disconnect the drive shaft from the pinion
yoke. Secure the drive shaft in an upright position to
prevent damage to the rear U-joint.
(4) Remove the pinion yoke nut and washer. Use
Remover C-452 and Wrench C-3281 to remove the
pinion yoke (Fig. 3).
(5) Mark the positions of the yoke and pinion gear
for installation alignment reference.
SPECIAL
TOOL

C-3281

SPECIAL
TOOL
C-452
J9102-31

Fig.
3 Pinion Yoke
Removal
(6) Use Remover C-748 to remove the pinion gear
seal (Fig. 4).

INSTALLATION
(1) Apply a light coating of gear lubricant on the
lip of pinion seal. Install the new seal (Fig. 5);
• Model 60 use Installer C-3719-A and Handle C-4735
• Model 70 use Installer C-359 and Handle C-4735 (2) Align the installation reference marks and po-

3
- 32
REAR
SUSPENSION
AND
AXLE

•

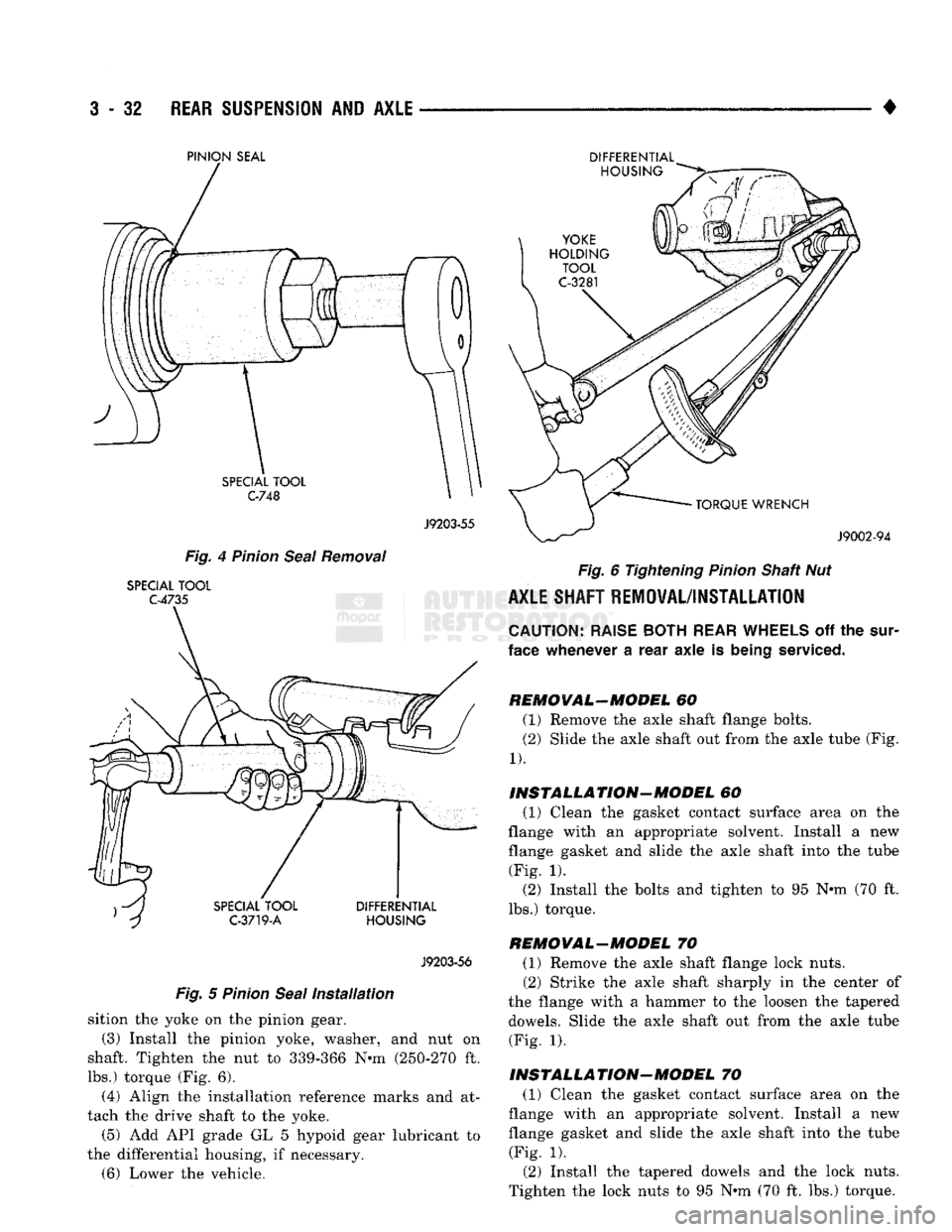

PINION SEAL

J9203-55

Fig.
4
Pinion
Seal
Removal

SPECIAL
TOOL
C-4735

J9203-56

Fig.
5
Pinion
Seal
Installation
sition the yoke on the pinion gear.
(3) Install the pinion yoke, washer, and nut on
shaft. Tighten the nut to 339-366 N-m (250-270 ft.
lbs.) torque (Fig. 6).
(4) Align the installation reference marks and at­
tach the drive shaft to the yoke.
(5) Add API grade GL 5 hypoid gear lubricant to
the differential housing, if necessary. (6) Lower the vehicle.
DIFFERENTIAL

Fig.
6 Tightening
Pinion
Shaft Nut
AXLE
SHAFT
REiOWAL/INSTALLATlON

CAUTION:
RAISE
BOTH
REAR
WHEELS
off the
sur­

face whenever a rear axle is being
serviced.

REMOVAL-MODEL 60 (1) Remove the axle shaft flange bolts.
(2) Slide the axle shaft out from the axle tube (Fig.

1).

INSTALLATION-MODEL 60 (1) Clean the gasket contact surface area on the
flange with an appropriate solvent. Install a new flange gasket and slide the axle shaft into the tube (Fig. 1). (2) Install the bolts and tighten to 95 N»m (70 ft.
lbs.) torque.
REMOVAL-MODEL 70 (1) Remove the axle shaft flange lock nuts. (2) Strike the axle shaft sharply in the center of
the flange with a hammer to the loosen the tapered dowels. Slide the axle shaft out from the axle tube (Fig. 1).
INSTALLATION-MODEL 70 (1) Clean the gasket contact surface area on the
flange with an appropriate solvent. Install a new
flange gasket and slide the axle shaft into the tube
(Fig. 1). (2) Install the tapered dowels and the lock nuts.
Tighten the lock nuts to 95 N*m (70 ft. lbs.) torque.

•

REAR
SUSPENSION
AND
AXLE
3 - 33

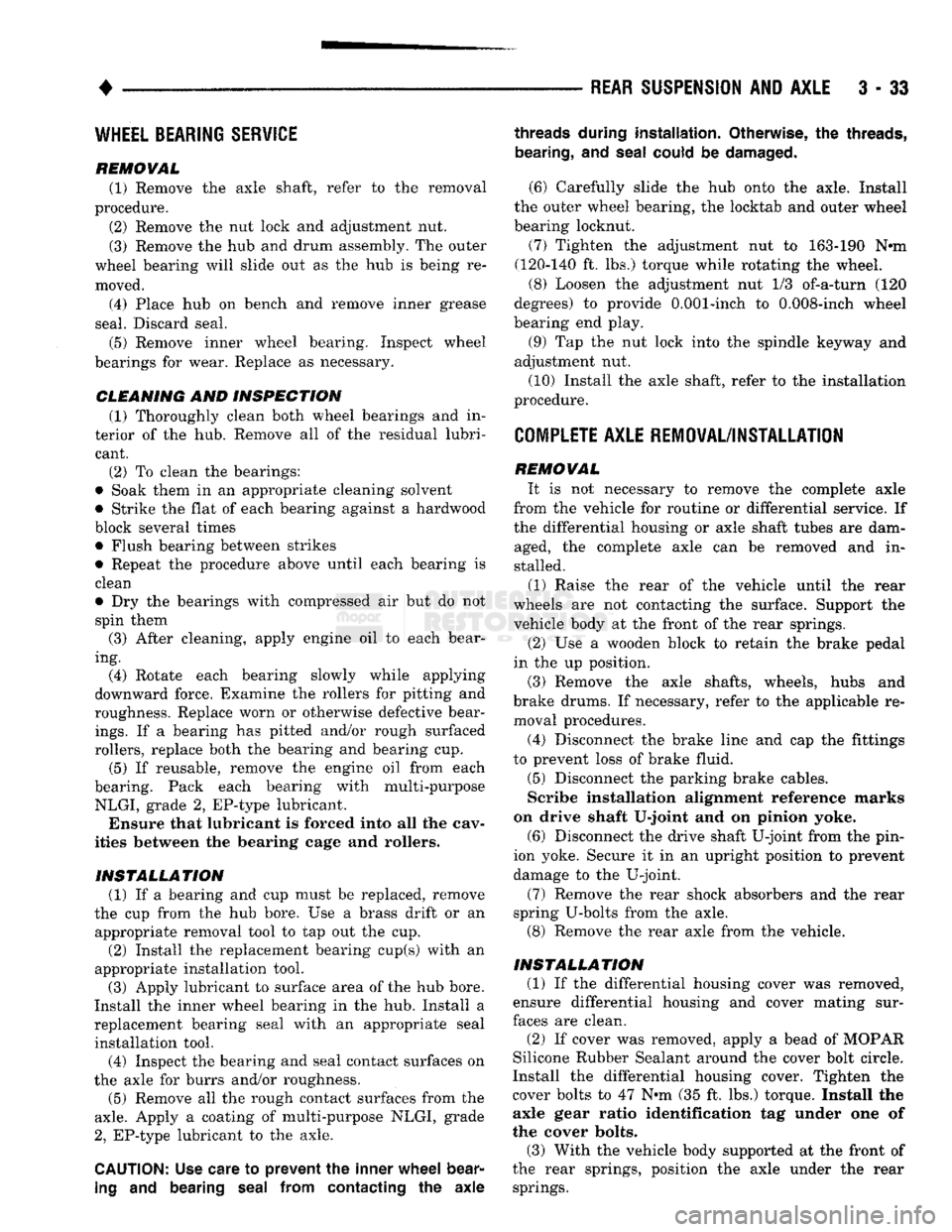

WHEEL BEARING SERVICE

REMOVAL (1) Remove the axle shaft, refer to the removal
procedure. (2) Remove the nut lock and adjustment nut.
(3) Remove the hub and drum assembly. The outer
wheel bearing will slide out as the hub is being re­
moved. (4) Place hub on bench and remove inner grease
seal. Discard seal. (5) Remove inner wheel bearing. Inspect wheel
bearings for wear. Replace as necessary.
CLEANING AND INSPECTION (1) Thoroughly clean both wheel bearings and in­
terior of the hub. Remove all of the residual lubri­ cant. (2) To clean the bearings:
• Soak them in an appropriate cleaning solvent
• Strike the flat of each bearing against a hardwood
block several times • Flush bearing between strikes
• Repeat the procedure above until each bearing is clean
• Dry the bearings with compressed air but do not
spin them (3) After cleaning, apply engine oil to each bear­
ing. (4) Rotate each bearing slowly while applying
downward force. Examine the rollers for pitting and
roughness. Replace worn or otherwise defective bear­
ings.
If a bearing has pitted and/or rough surfaced
rollers, replace both the bearing and bearing cup. (5) If reusable, remove the engine oil from each
bearing. Pack each bearing with multi-purpose
NLGI, grade 2, EP-type lubricant. Ensure that lubricant is forced into all the cav­
ities between the bearing cage and rollers.
INSTALLATION (1) If a bearing and cup must be replaced, remove
the cup from the hub bore. Use a brass drift or an appropriate removal tool to tap out the cup. (2) Install the replacement bearing cup(s) with an
appropriate installation tool.
(3) Apply lubricant to surface area of the hub bore.
Install the inner wheel bearing in the hub. Install a
replacement bearing seal with an appropriate seal installation tool. (4) Inspect the bearing and seal contact surfaces on
the axle for burrs and/or roughness.
(5) Remove all the rough contact surfaces from the

axle.
Apply a coating of multi-purpose NLGI, grade

2,
EP-type lubricant to the axle.

CAUTION:
Use care to prevent the inner
wheel
bear­
ing
and bearing
seal
from contacting the axle
threads
during installation. Otherwise, the
threads,

bearing,
and
seal
could
be
damaged.

(6) Carefully slide the hub onto the axle. Install
the outer wheel bearing, the locktab and outer wheel
bearing locknut.
(7) Tighten the adjustment nut to 163-190 Nnn
(120-140 ft. lbs.) torque while rotating the wheel. (8) Loosen the adjustment nut 1/3 of-a-turn (120
degrees) to provide 0.001-inch to 0.008-inch wheel
bearing end play.
(9) Tap the nut lock into the spindle keyway and
adjustment nut.
(10) Install the axle shaft, refer to the installation
procedure.

COMPLETE AXLE REMOVAL/INSTALLATION
REMOVAL It is not necessary to remove the complete axle
from the vehicle for routine or differential service. If
the differential housing or axle shaft tubes are dam­ aged, the complete axle can be removed and in­
stalled.
(1) Raise the rear of the vehicle until the rear
wheels are not contacting the surface. Support the
vehicle body at the front of the rear springs.
(2) Use a wooden block to retain the brake pedal
in the up position.
(3) Remove the axle shafts, wheels, hubs and
brake drums. If necessary, refer to the applicable re­ moval procedures.
(4) Disconnect the brake line and cap the fittings
to prevent loss of brake fluid. (5) Disconnect the parking brake cables.
Scribe installation alignment reference marks
on drive shaft U-joint and on pinion yoke. (6) Disconnect the drive shaft U-joint from the pin­
ion yoke. Secure it in an upright position to prevent
damage to the U-joint.
(7) Remove the rear shock absorbers and the rear
spring U-bolts from the axle. (8) Remove the rear axle from the vehicle.
INSTALLATION (1) If the differential housing cover was removed,
ensure differential housing and cover mating sur­
faces are clean.
(2) If cover was removed, apply a bead of MOPAR
Silicone Rubber Sealant around the cover bolt circle.
Install the differential housing cover. Tighten the
cover bolts to 47 N»m (35 ft. lbs.) torque. Install the axle gear ratio identification tag under one of
the cover bolts.
(3) With the vehicle body supported at the front of
the rear springs, position the axle under the rear springs.
