RADIO WITH CASSETTE PLAYER
20
The “FMAST” reception band is
reserved to the stations stored auto-
matically with the AutoSTorefunc-
tion.
The AMband is divided into sec-
tions: MW, LWand AMAST. The
AMASTsection is reserved to the
stations stored automatically with
the AutoSTorefunction.
The radio is always ready to
receive stations in the RDS mode
(Radio Data System).
Presetting buttons
The buttons with symbols from 1
to 6 (“3”, “4”, “5”, “16”, “17, “18”)
make it possible to set the following
presettings:
– 24 in the FM band (6 in FM 1, 6 in
FM 2, 6 in FM 3, 6 in FMAST)
– 6 in the LW band
– 6 in the MW band
– 6 in the AMAST bandTo call a preset station, choose the
required frequency band and then
press briefly (less than 1 second) the
corresponding preset button (from 1
to 6). The display will show the name
and the presetting number.
Storing the last station heard
The radio automatically keeps in
storage the last station heard for
each reception band, which is then
tuned when the radio is turned on or
the reception band is changed. RADIO (Tuner) fig. 1
When the set is turned on the last
function selected before turning off
is played (Radio, Cassette or CD
Changer).
To select the Radio source while
listening to a cassette or Compact
Disc, press briefly (less than 1 sec-
ond) and repeatedly the 14(SRC)
button until this function is selected.
If in the radio source, press briefly
(less than 1 second) and repeatedly
the 13(BAND
AS) button to select
the required reception band.
Every time the button 13 (BAND
AS) is pressed, the following bands
are selected in sequence: “FM1”,
FM2”, “FM3”, “FM4AST”, “LW”,
“MW” and “AMAST”.
The FMband is divided into sec-
tions: FM1, FM2, FM3and
FMAST. The FMASTsection is
reserved to the stations stored auto-
matically with the AutoSTorefunc-
tion.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 20

RADIO WITH CASSETTE PLAYER
21 Nero- Testo 603.46.306 Radio Stilo gb
21

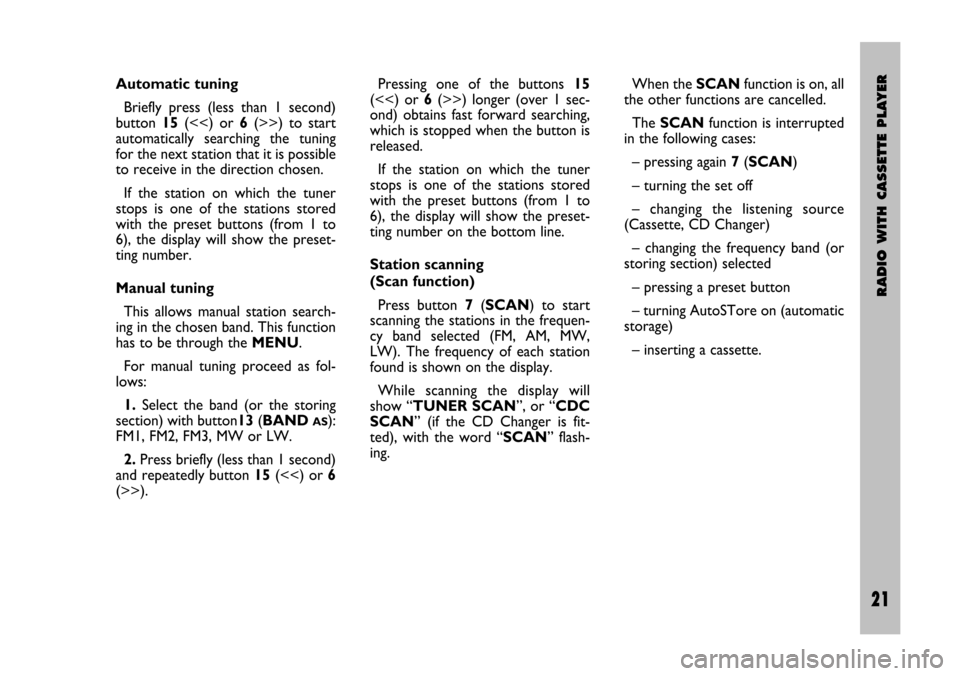

Automatic tuning
Briefly press (less than 1 second)
button 15(<<) or 6(>>) to start
automatically searching the tuning
for the next station that it is possible
to receive in the direction chosen.
If the station on which the tuner
stops is one of the stations stored
with the preset buttons (from 1 to
6), the display will show the preset-
ting number.
Manual tuning
This allows manual station search-
ing in the chosen band. This function
has to be through the MENU.
For manual tuning proceed as fol-
lows:
1.Select the band (or the storing
section) with button13(BAND
AS):
FM1, FM2, FM3, MW or LW.
2. Press briefly (less than 1 second)
and repeatedly button 15(<<) or 6
(>>).Pressing one of the buttons 15
(<<) or 6(>>) longer (over 1 sec-
ond) obtains fast forward searching,
which is stopped when the button is
released.
If the station on which the tuner
stops is one of the stations stored
with the preset buttons (from 1 to
6), the display will show the preset-
ting number on the bottom line.
Station scanning
(Scan function)
Press button 7(SCAN) to start
scanning the stations in the frequen-
cy band selected (FM, AM, MW,
LW). The frequency of each station
found is shown on the display.
While scanning the display will
show “TUNER SCAN”, or “CDC
SCAN” (if the CD Changer is fit-
ted), with the word “SCAN” flash-
ing.When the SCANfunction is on, all
the other functions are cancelled.
The SCANfunction is interrupted
in the following cases:
– pressing again 7(SCAN)
– turning the set off
– changing the listening source
(Cassette, CD Changer)
– changing the frequency band (or
storing section) selected
– pressing a preset button
– turning AutoSTore on (automatic
storage)
– inserting a cassette.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 21

22 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH CASSETTE PLAYER
22
– changing the FM level or frequen-
cy band selected
– inserting a cassette
Manual station storage
The station being heard can be
stored in the range selected with
buttons numbered from 1 to 6.
Keep one of these buttons (from 1
to 6) pressed. After storage, the dis-
play shows the number of the button
with which the station has been
stored and a confirmation beep
sounds.
AutoSTore function
(automatic station storage)
To switch on the AutoSTore func-
tion, keep the 13(BAND
AS) but-
ton pressed. With this function the
radio automatically stores the sta-
tions with the strongest signal in
decreasing order of intensity of the
FMAST frequency band. IMPORTANTActivating the
AutoSTore function cancels the sta-
tions stored previously in the
FMAST band.
During automatic storage the dis-
play shows “TUNER FMAST” or
“TUNER AMAST” if in the
TUNER mode (Radio) with FM or
AM frequency bands. To interrupt
the storage process, press the 13
(BAND
AS) button again: the radio
will automatically tune to the station
heard before activation of the
AutoSTorefunction.
Listening to stored stations
Proceed as follows:
– select the required frequency
band and the storing section (FM1,
FM2, FM3, FMAST, MW, LW,
AMAST);
– briefly press (less than 1 second)
one of the six station storage but-

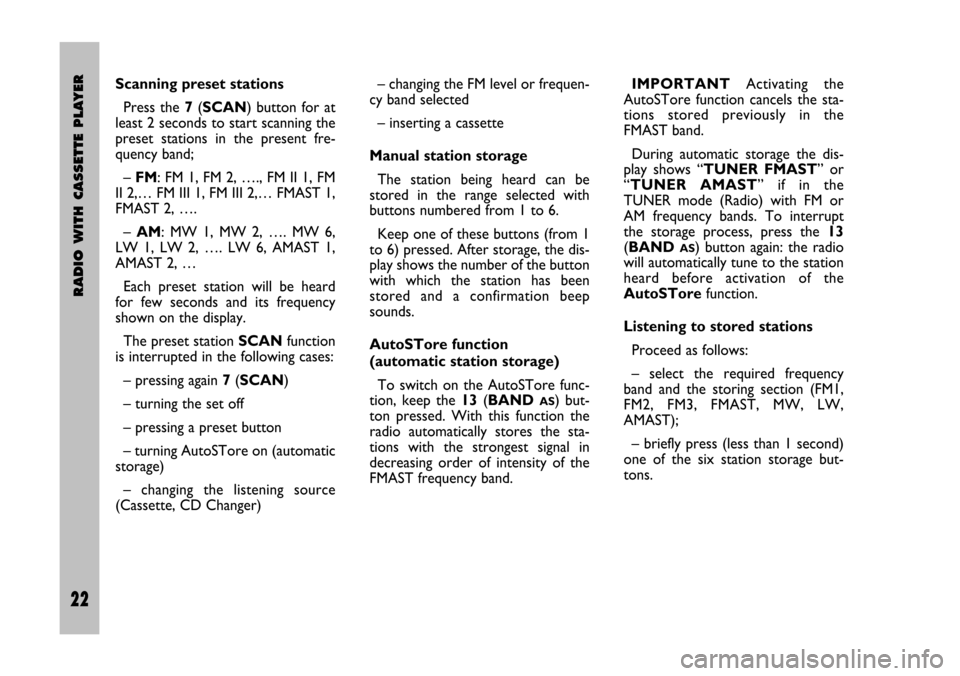

tons. Scanning preset stations
Press the 7(SCAN) button for at
least 2 seconds to start scanning the
preset stations in the present fre-
quency band;
– FM: FM 1, FM 2, …., FM II 1, FM
II 2,… FM III 1, FM III 2,… FMAST 1,
FMAST 2, ….
– AM: MW 1, MW 2, …. MW 6,
LW 1, LW 2, …. LW 6, AMAST 1,
AMAST 2, …
Each preset station will be heard
for few seconds and its frequency
shown on the display.
The preset station SCANfunction
is interrupted in the following cases:
– pressing again 7(SCAN)
– turning the set off
– pressing a preset button
– turning AutoSTore on (automatic
storage)
– changing the listening source
(Cassette, CD Changer)
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 22

RADIO WITH CASSETTE PLAYER
23 Nero- Testo 603.46.306 Radio Stilo gb
23
The display will show the station
name (if any) and frequency, and on
the bottom line of the display will be
shown “Pn” where ncorresponds
to the active presetting number.
In bands FM1, FM2, FM3 and
FMAST, if reception is poor and the
AF alternative frequency search
function is active, the station with
the strongest signal that is broad-
casting the same programme will be
sought automatically.

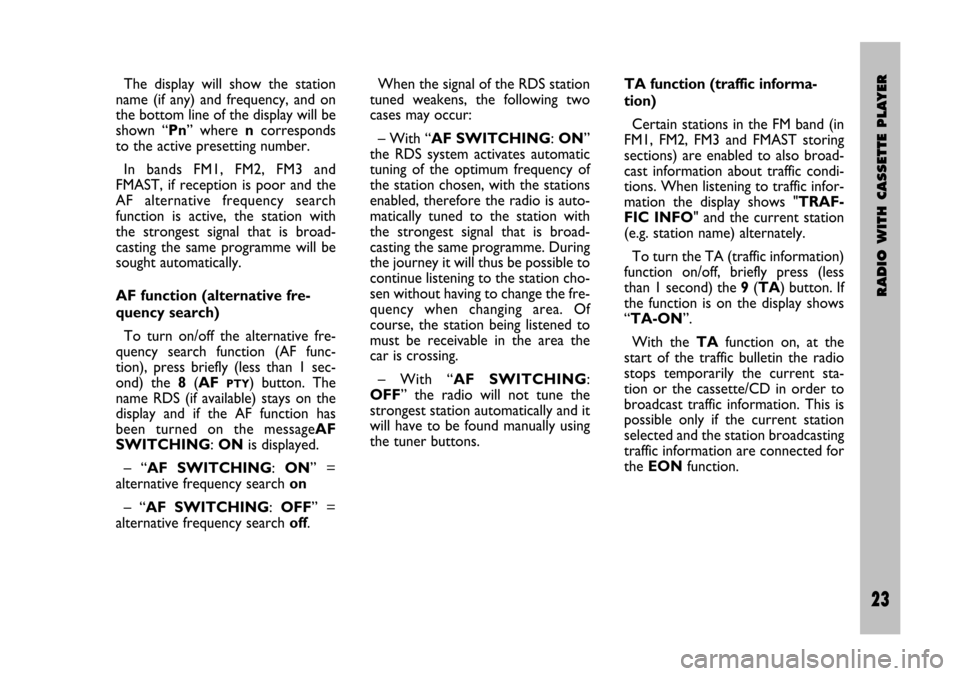

AF function (alternative fre-
quency search)
To turn on/off the alternative fre-
quency search function (AF func-
tion), press briefly (less than 1 sec-
ond) the 8(AF
PTY) button. The
name RDS (if available) stays on the
display and if the AF function has
been turned on the messageAF
SWITCHING:ONis displayed.
– “AF SWITCHING: ON” =
alternative frequency searchon
– “AF SWITCHING: OFF” =
alternative frequency search off.When the signal of the RDS station
tuned weakens, the following two
cases may occur:
– With “AF SWITCHING: ON”
the RDS system activates automatic
tuning of the optimum frequency of
the station chosen, with the stations
enabled, therefore the radio is auto-
matically tuned to the station with
the strongest signal that is broad-
casting the same programme. During
the journey it will thus be possible to
continue listening to the station cho-
sen without having to change the fre-
quency when changing area. Of
course, the station being listened to
must be receivable in the area the
car is crossing.
– With “AF SWITCHING:
OFF” the radio will not tune the
strongest station automatically and it
will have to be found manually using
the tuner buttons.TA function (traffic informa-
tion)
Certain stations in the FM band (in
FM1, FM2, FM3 and FMAST storing
sections) are enabled to also broad-
cast information about traffic condi-
tions. When listening to traffic infor-
mation the display shows "TRAF-
FIC INFO" and the current station
(e.g. station name) alternately.
To turn the TA (traffic information)
function on/off, briefly press (less
than 1 second) the 9(TA) button. If
the function is on the display shows
“TA-ON”.
With the TAfunction on, at the
start of the traffic bulletin the radio
stops temporarily the current sta-
tion or the cassette/CD in order to
broadcast traffic information. This is
possible only if the current station
selected and the station broadcasting
traffic information are connected for
the EONfunction.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 23

24 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH CASSETTE PLAYER
24
CULTURE Culture and reli-
gion
SCIENCE Science
VARIED Variety
POP M Pop music (hits)
ROCK M Rock music
EASY M Easy music
LIGHT M Light classic music
CLASSICS Classic music
OTHER M Other music
(e.g. folk)
WEATHER Weather report
FINANCE Finance news
CHILDREN Child’s pro-
grammes
SOCIALSocial information
RELIGION Religion and philos-
ophy
PHONE IN Listener’s calls
(other than “
PHONE
IN
” function active
only with handsfree
kit connection for
cell phone)TRAVELTourist’s informa-
tion
LEISURE Free time and
hobbies
JAZZ Jazz
COUNTRY Country music
NATION M National
broadcasting
OLDIES Golden Oldies
FOLK M Folk music
DOCUMENT Special reports
Automatic PTY select
To select a type of programme
through this function select a pro-
gramme type in the stored list and
then start the automatic search as
described in the following para-
graphs. Program Type function (PTY)
(selecting a type of programme)
Many radio stations offer, in the FM
range (FM1, FM2, FM3), the ‘type of
programme’ (PTY) service. For
example, stations broadcasting infor-
mation/news will display “NEWS”
as PTY code.
With the PTY function, a search fil-
ter is activated that enables tuning
only on the stations broadcasting
programmes with preset PTY code
(e.g. “POP”).
To turn on the PTY function, keep
button 8(AF
PTY) pressed.
The types of programmes offered
by a radio station can change accord-
ing to broadcasting:
NEWS News and magazine
AFFAIRS Politics and news
INFO Special information
programmes
SPORT Sport
programmes
EDUCATE Education
DRAMA Radio dramas and
literature
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 24

RADIO WITH CASSETTE PLAYER
25 Nero- Testo 603.46.306 Radio Stilo gb
25
PTY function reactivation
Press button 8(AF
PTY) for over 2
seconds…. Then, the last pro-
gramme type selected is displayed
(e.g. “POP”).
Setting the programme type
Press button 8(AF
PTY) for over 2
seconds and the PTY code of the
current station will be displayed.
Select the required code turning the
button/knob 10 (VOL PUSH ON/
OFF). Then press one of the 15
(<<) or 6(>>) buttons to start the
automatic search of stations broad-
casting with the selected PTY code.
Automatic PTY search stops auto-
matically on next station offering the
preset programme type and shows
the type of programme (e.g.
“POP”), word “PTY” flashes.
IMPORTANTIf no station is
available with this type of pro-
gramme, the station selected previ-
ously is heard and the PTY function
is abandoned.PTY function deactivation
When selecting the PTY mode, if
no operation is performed within 10
seconds, the radio returns to the
mode selected before pressing but-
ton 8(AF
PTY) and stores the last
PTY code selected.
MENU
Functions of the
12(MENU
RDS)button
To activate the menu function,
briefly press (less than 1 second) the
12(MENU
RDS) button, in this way
you enter the first level menu. To
enter the second level keep the 12
(MENU
RDS) button pressed for
over 2 seconds.
To scroll the menu functions press
repeatedly the 12(MENU
RDS) but-
ton.The functions controlled by the
first levelmenu are:
1Manual tuning seek on/off (MAN-
UAL TUNING SEEK)
2Function confirmation beep
(BEEP)
3Tuning sensitivity adjustment
(SENS DX/LO)
4News programmes on/off
(NEWS)
5Volume control according to
speed (SVC)
6Tuning adjustment on traffic
information (EON TA)
7Loudness on/off (LOUDNESS)
8Tape noise reduction system,
“Dolby B”
9CD Compression (with CD
Changer only)
To turn selected function on/off
press buttons 15(<<) or 6(>>)
The functions controlled by the
second levelmenu are:
1Current RDS station time display
(if any)
2Audio distortion clipper on/off
(AUDIO CLIP DETECT)
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 25

26 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH CASSETTE PLAYER
26

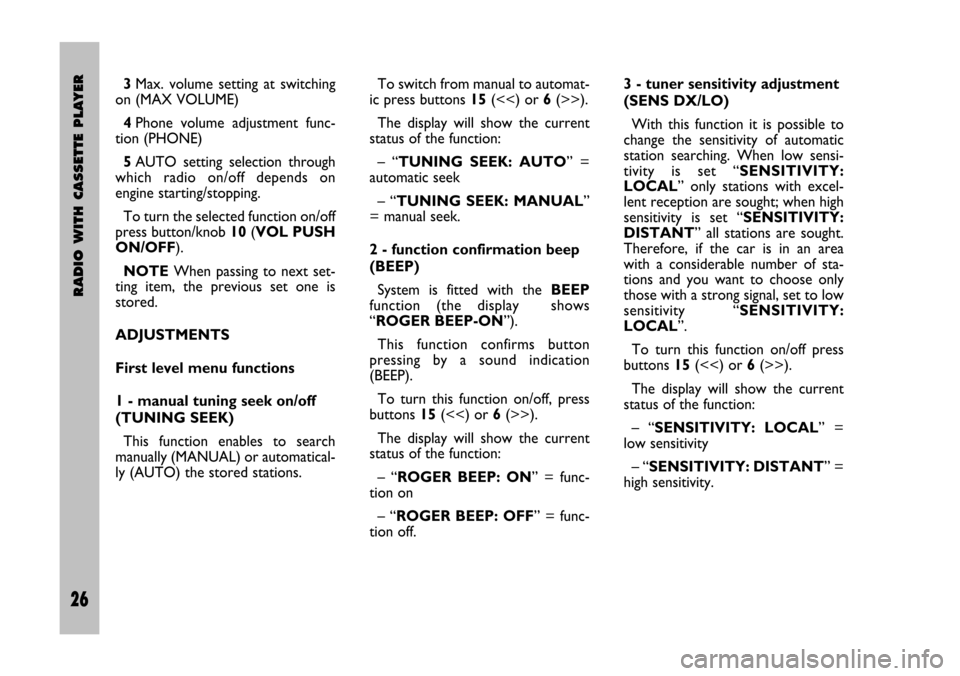

To switch from manual to automat-
ic press buttons 15(<<) or 6(>>).
The display will show the current
status of the function:
– “TUNING SEEK: AUTO” =
automatic seek
– “TUNING SEEK: MANUAL”
= manual seek.
2 - function confirmation beep
(BEEP)
System is fitted with the BEEP
function (the display shows
“ROGER BEEP-ON”).
This function confirms button
pressing by a sound indication
(BEEP).
To turn this function on/off, press
buttons 15(<<) or 6(>>).
The display will show the current
status of the function:
– “ROGER BEEP: ON” = func-
tion on
– “ROGER BEEP: OFF” = func-
tion off.3 - tuner sensitivity adjustment
(SENS DX/LO)
With this function it is possible to
change the sensitivity of automatic
station searching. When low sensi-
tivity is set “SENSITIVITY:
LOCAL” only stations with excel-
lent reception are sought; when high
sensitivity is set “SENSITIVITY:
DISTANT” all stations are sought.
Therefore, if the car is in an area
with a considerable number of sta-
tions and you want to choose only
those with a strong signal, set to low
sensitivity “SENSITIVITY:
LOCAL”.
To turn this function on/off press
buttons 15(<<) or 6(>>).
The display will show the current
status of the function:
– “SENSITIVITY: LOCAL” =
low sensitivity
– “SENSITIVITY: DISTANT” =
high sensitivity. 3Max. volume setting at switching
on (MAX VOLUME)
4Phone volume adjustment func-
tion (PHONE)
5AUTO setting selection through
which radio on/off depends on
engine starting/stopping.
To turn the selected function on/off
press button/knob 10 (VOL PUSH
ON/OFF).
NOTEWhen passing to next set-
ting item, the previous set one is
stored.
ADJUSTMENTS
First level menu functions
1 - manual tuning seek on/off
(TUNING SEEK)
This function enables to search
manually (MANUAL) or automatical-
ly (AUTO) the stored stations.
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 26

RADIO WITH CASSETTE PLAYER
27 Nero- Testo 603.46.306 Radio Stilo gb
27

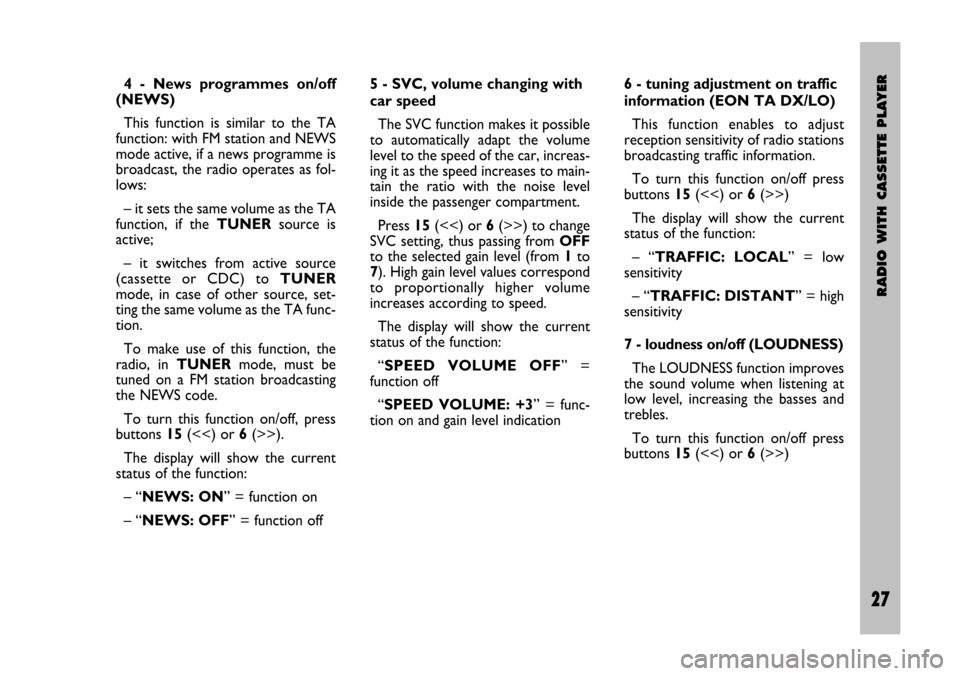

4 - News programmes on/off
(NEWS)
This function is similar to the TA
function: with FM station and NEWS
mode active, if a news programme is
broadcast, the radio operates as fol-
lows:
– it sets the same volume as the TA
function, if the TUNERsource is
active;
– it switches from active source
(cassette or CDC) to TUNER
mode, in case of other source, set-
ting the same volume as the TA func-
tion.
To make use of this function, the
radio, in TUNERmode, must be
tuned on a FM station broadcasting
the NEWS code.
To turn this function on/off, press
buttons 15(<<) or 6(>>).
The display will show the current
status of the function:
– “NEWS: ON” = function on
– “NEWS: OFF” = function off5 - SVC, volume changing with
car speed
The SVC function makes it possible
to automatically adapt the volume
level to the speed of the car, increas-
ing it as the speed increases to main-
tain the ratio with the noise level
inside the passenger compartment.
Press 15 (<<) or 6(>>) to change
SVC setting, thus passing from OFF
to the selected gain level (from 1to
7). High gain level values correspond
to proportionally higher volume
increases according to speed.
The display will show the current
status of the function:
“SPEED VOLUME OFF” =
function off
“SPEED VOLUME: +3” = func-
tion on and gain level indication6 - tuning adjustment on traffic
information (EON TA DX/LO)
This function enables to adjust
reception sensitivity of radio stations
broadcasting traffic information.
To turn this function on/off press
buttons 15(<<) or 6(>>)
The display will show the current
status of the function:
– “TRAFFIC: LOCAL” = low
sensitivity
– “TRAFFIC: DISTANT” = high
sensitivity
7 - loudness on/off (LOUDNESS)
The LOUDNESS function improves
the sound volume when listening at
low level, increasing the basses and
trebles.
To turn this function on/off press
buttons 15(<<) or 6(>>)
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 27

28 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH CASSETTE PLAYER
28

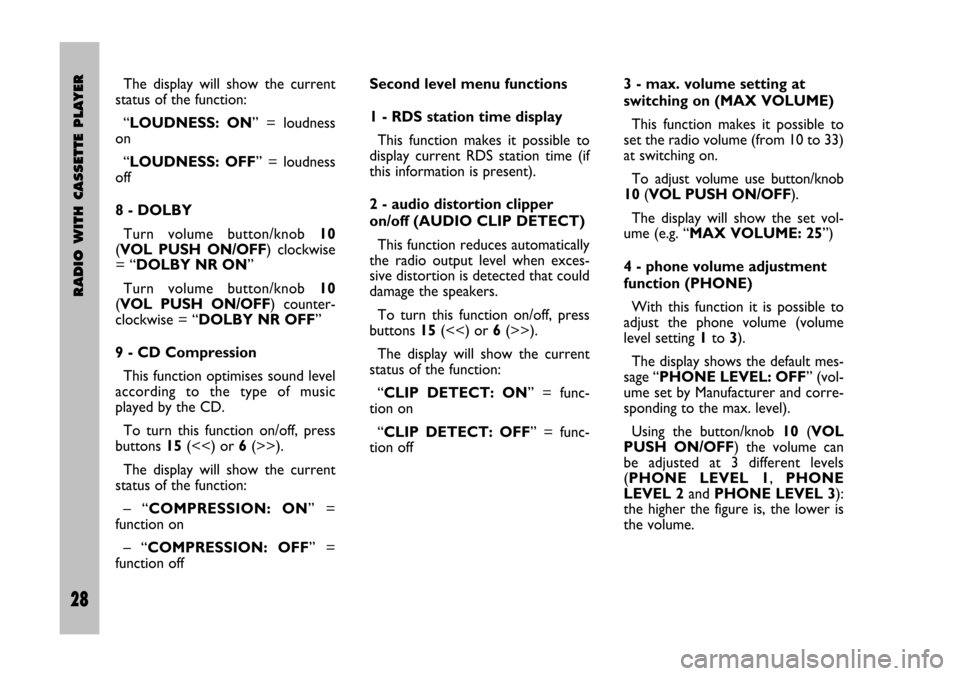

Second level menu functions
1 - RDS station time display
This function makes it possible to
display current RDS station time (if
this information is present).
2 - audio distortion clipper
on/off (AUDIO CLIP DETECT)
This function reduces automatically
the radio output level when exces-
sive distortion is detected that could
damage the speakers.
To turn this function on/off, press
buttons 15(<<) or 6(>>).
The display will show the current
status of the function:
“CLIP DETECT: ON” = func-
tion on
“CLIP DETECT: OFF” = func-
tion off3 - max. volume setting at
switching on (MAX VOLUME)
This function makes it possible to
set the radio volume (from 10 to 33)
at switching on.
To adjust volume use button/knob
10(VOL PUSH ON/OFF).
The display will show the set vol-
ume (e.g. “MAX VOLUME: 25”)
4 - phone volume adjustment
function (PHONE)
With this function it is possible to
adjust the phone volume (volume
level setting 1to 3).
The display shows the default mes-
sage “PHONE LEVEL: OFF” (vol-
ume set by Manufacturer and corre-
sponding to the max. level).
Using the button/knob 10(VOL
PUSH ON/OFF) the volume can
be adjusted at 3 different levels
(PHONE LEVEL 1, PHONE
LEVEL 2and PHONE LEVEL 3):
the higher the figure is, the lower is
the volume. The display will show the current
status of the function:
“LOUDNESS: ON” = loudness
on
“LOUDNESS: OFF” = loudness
off
8 - DOLBY
Turn volume button/knob 10
(VOL PUSH ON/OFF) clockwise
= “DOLBY NR ON”
Turn volume button/knob 10
(VOL PUSH ON/OFF) counter-
clockwise = “DOLBY NR OFF”
9 - CD Compression
This function optimises sound level
according to the type of music
played by the CD.
To turn this function on/off, press
buttons 15(<<) or 6(>>).
The display will show the current
status of the function:
– “COMPRESSION: ON” =
function on
– “COMPRESSION: OFF” =
function off
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 28

RADIO WITH CASSETTE PLAYER
29 Nero- Testo 603.46.306 Radio Stilo gb
29
5 - AUTO function setting
With this function it is possible to
set radio turning on/off depending on
car ignition/stopping or independent
radio turning on/off.
With this function on (radio is set
to switch off when the car is
switched off), it is however possible
to switch on the radio.
With this function off, when
switching off the car the radio stays
on.
To turn this function on/off, press
buttons 15(<<) or 6(>>).
The display will show the current
status of the function:
– “AUTO: ON” = function on
– “AUTO: OFF” = function offCASSETTE PLAYER
(TAPE) fig. 1
Your radio is fitted with a cassette
player for magnetic tapes.
It has an AUTOREVERSE func-
tion which makes it possible to listen
to both sides of the tape without
having to turn over the cassette.
Cassette insertion and ejection are
facilitated by a powered mechanism.
Selecting the cassette player
To turn the cassette player on,
even when the set if off, insert the
cassette in the slot with the tape fac-
ing rightwards.
The display shows “TAPE PLAY
A” or “TAPE PLAY B” depending
on which side is playing.
If the cassette is already in, turn the
set on then press briefly (less than 1
second) and repeatedly the 14
(SRC) button until the display shows
“TAPE”.Changing the tape playing side
After playing the tape, the cassette
side is changed automatically
(AUTOREVERSEfunction). To
change side before the end of the
tape, press button 1(Ä) for over 2
seconds.
Tape fast forward/rewind
To move the tape fast forward,
press 6(>>) or 15(<<) depending
on the direction of the tape.
To interrupt fast forward/rewind,
press again 6(>>) or 15(<<).
The fast forward/rewind function is
interrupted in the following cases:
– When the sound source is
changed
– When the cassette is ejected
– When the direction of the tape is
reversed
– When the set is turned off
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 29
