FORD FESTIVA 1991 Owners Manual

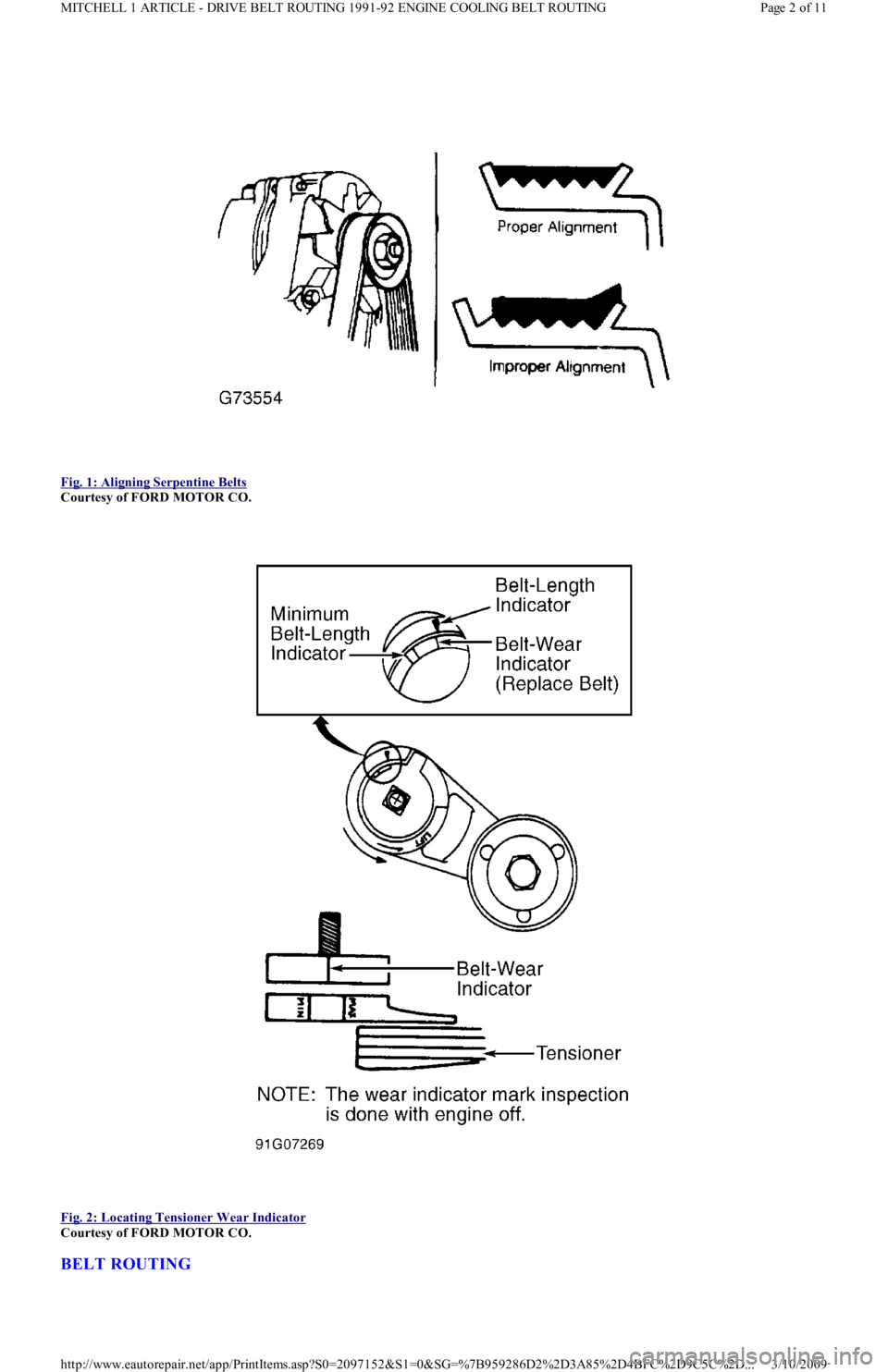

Fig. 1: Aligning Serpentine Belts

Courtesy of FORD MOTOR CO.

Fig. 2: Locating Tensioner Wear Indicator

Courtesy of FORD MOTOR CO.
BELT ROUTING
Page 2 of 11 MITCHELL 1 ARTICLE - DRIVE BELT ROUTING 1991-92 ENGINE COOLING BELT ROUTING
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B959286D2%2D3A85%2D4BFC%2D9C5C%2D
...

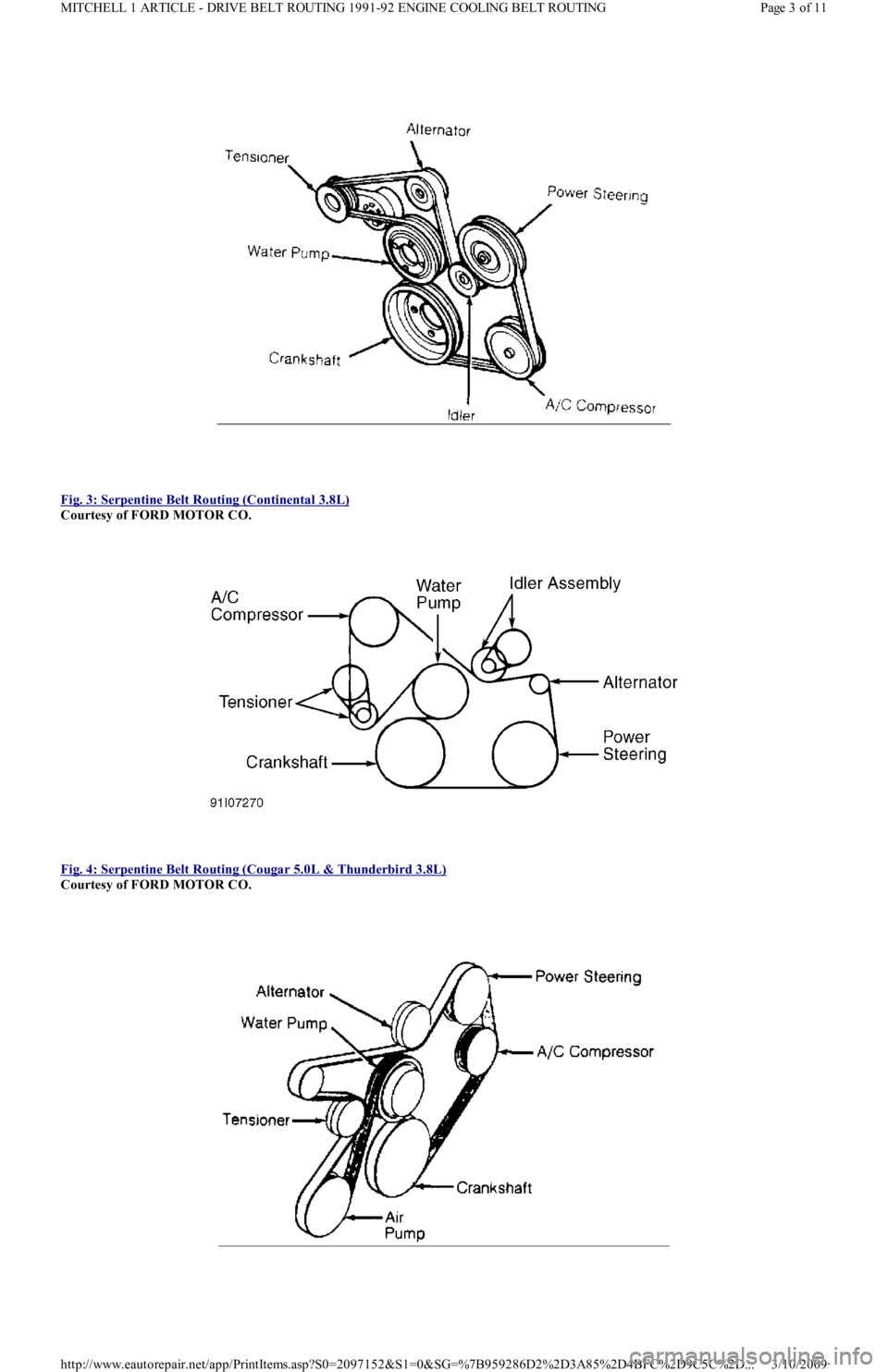

Fig. 3: Serpentine Belt Routing (Continental 3.8L)

Courtesy of FORD MOTOR CO.

Fig. 4: Serpentine Belt Routing (Cougar 5.0L & Thunderbird 3.8L)

Courtesy of FORD MOTOR CO.

Page 3 of 11 MITCHELL 1 ARTICLE - DRIVE BELT ROUTING 1991-92 ENGINE COOLING BELT ROUTING
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B959286D2%2D3A85%2D4BFC%2D9C5C%2D
...

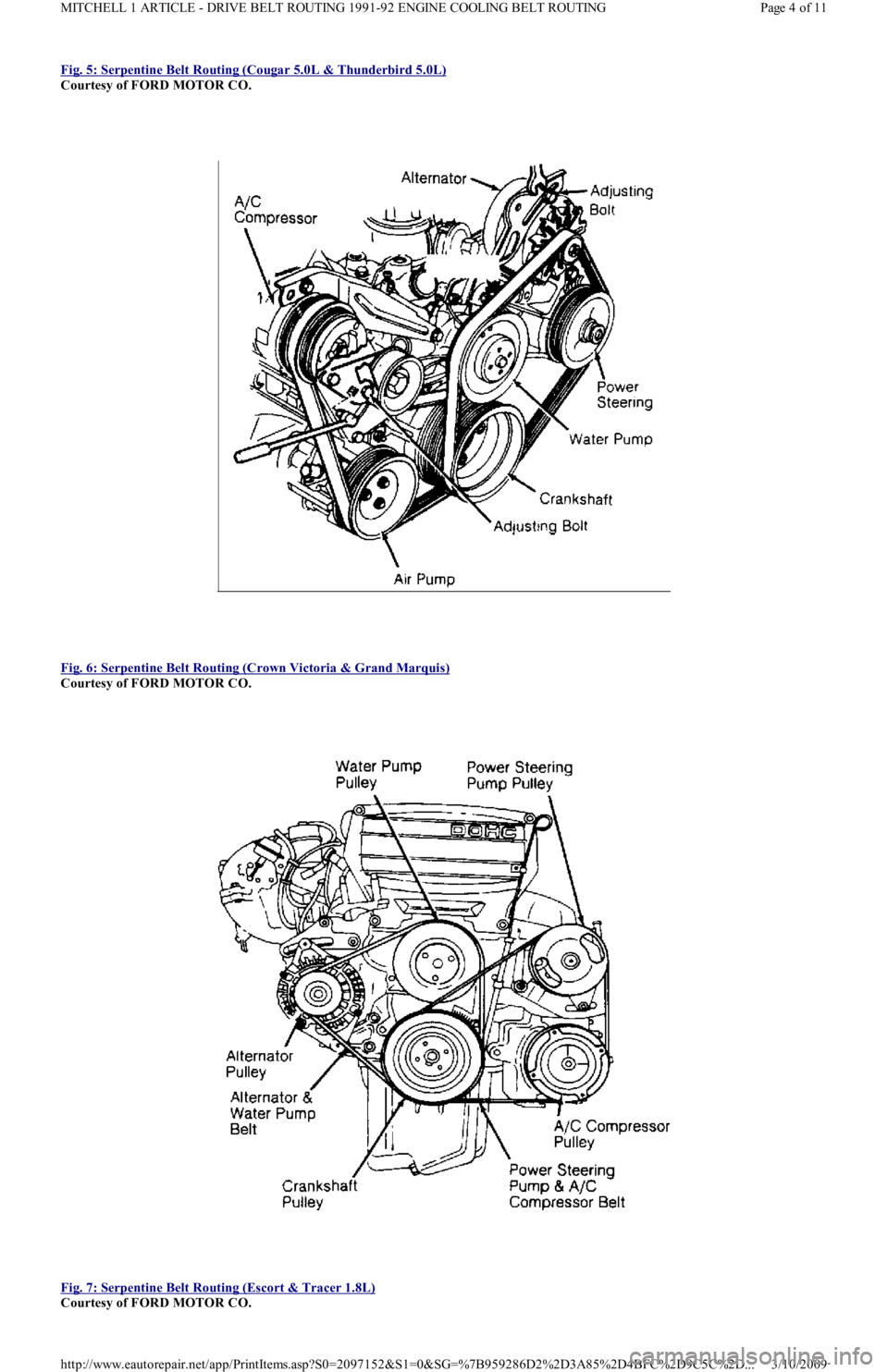

Fig. 5: Serpentine Belt Routing (Cougar 5.0L & Thunderbird 5.0L)
Courtesy of FORD MOTOR CO.

Fig. 6: Serpentine Belt Routing (Crown Victoria & Grand Marquis)

Courtesy of FORD MOTOR CO.

Fig. 7: Serpentine Belt Routing (Escort & Tracer 1.8L)

Courtesy of FORD MOTOR CO.
Page 4 of 11 MITCHELL 1 ARTICLE - DRIVE BELT ROUTING 1991-92 ENGINE COOLING BELT ROUTING
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B959286D2%2D3A85%2D4BFC%2D9C5C%2D
...

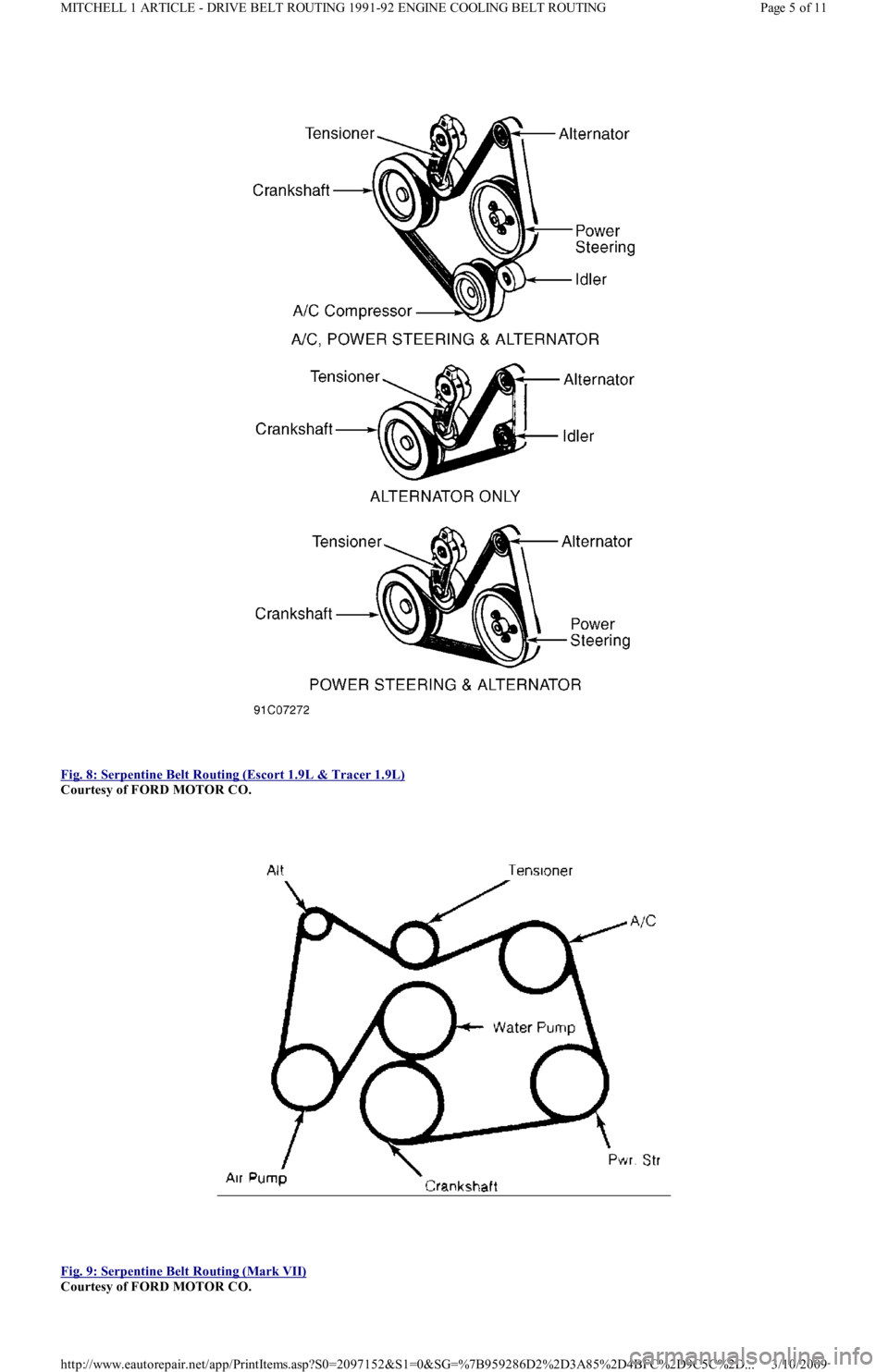

Fig. 8: Serpentine Belt Routing (Escort 1.9L & Tracer 1.9L)

Courtesy of FORD MOTOR CO.

Fig. 9: Serpentine Belt Routing (Mark VII)

Courtesy of FORD MOTOR CO.
Page 5 of 11 MITCHELL 1 ARTICLE - DRIVE BELT ROUTING 1991-92 ENGINE COOLING BELT ROUTING
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B959286D2%2D3A85%2D4BFC%2D9C5C%2D
...

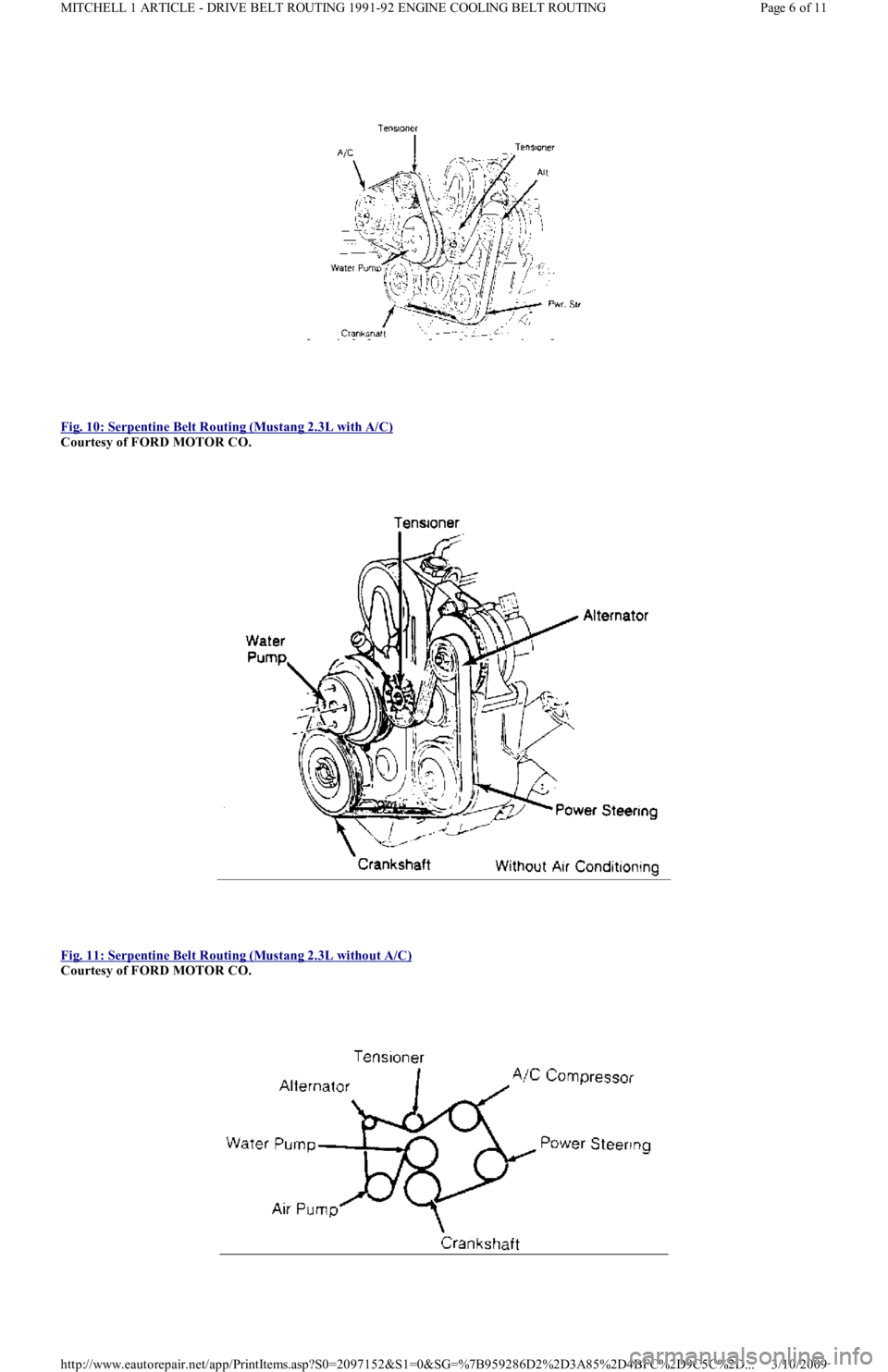

Fig. 10: Serpentine Belt Routing (Mustang 2.3L with A/C)

Courtesy of FORD MOTOR CO.

Fig. 11: Serpentine Belt Routing (Mustang 2.3L without A/C)

Courtesy of FORD MOTOR CO.
Page 6 of 11 MITCHELL 1 ARTICLE - DRIVE BELT ROUTING 1991-92 ENGINE COOLING BELT ROUTING
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B959286D2%2D3A85%2D4BFC%2D9C5C%2D
...

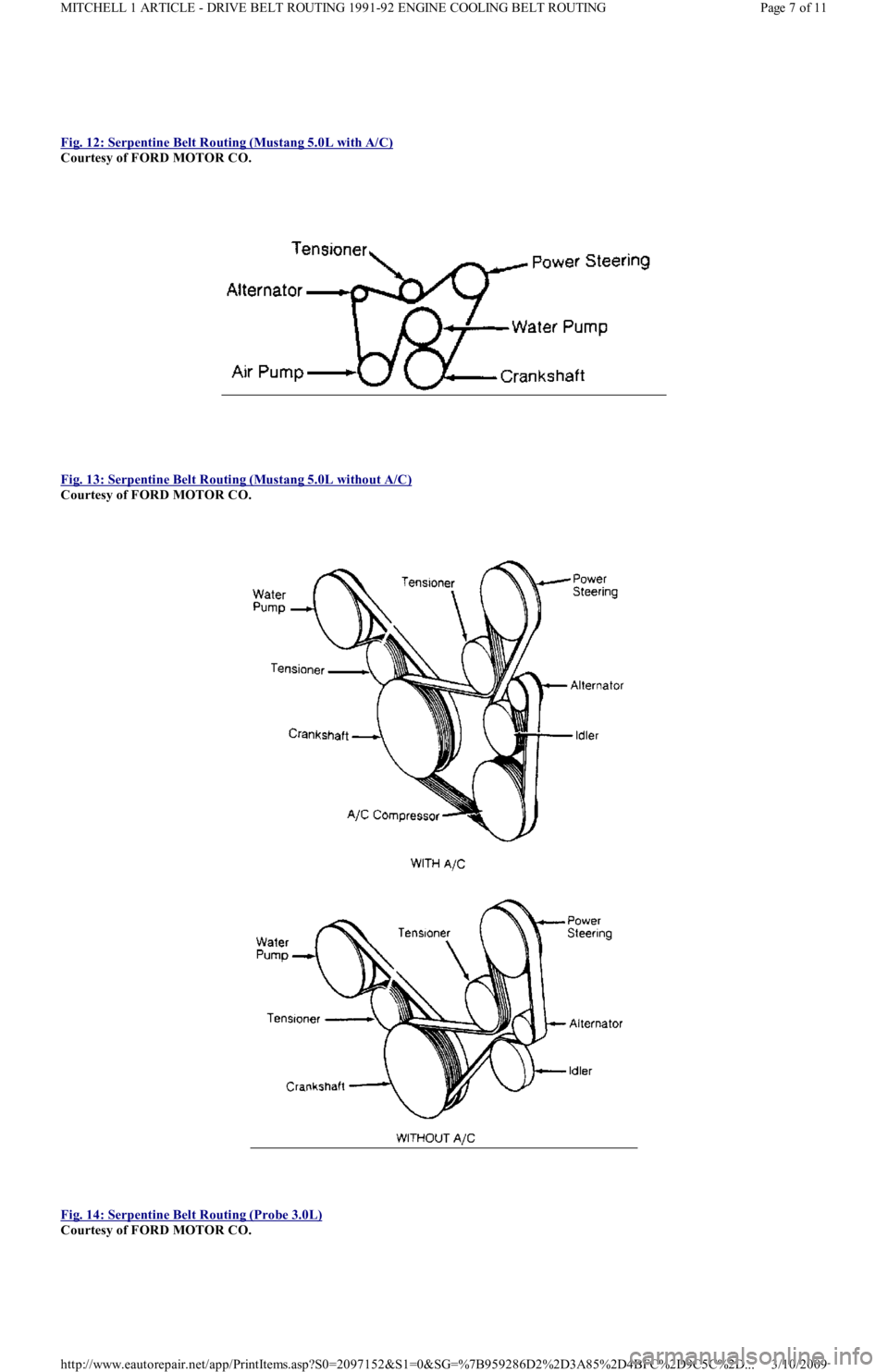

Fig. 12: Serpentine Belt Routing (Mustang 5.0L with A/C)
Courtesy of FORD MOTOR CO.

Fig. 13: Serpentine Belt Routing (Mustang 5.0L without A/C)

Courtesy of FORD MOTOR CO.

Fig. 14: Serpentine Belt Routing (Probe 3.0L)

Courtesy of FORD MOTOR CO.
Page 7 of 11 MITCHELL 1 ARTICLE - DRIVE BELT ROUTING 1991-92 ENGINE COOLING BELT ROUTING
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B959286D2%2D3A85%2D4BFC%2D9C5C%2D
...

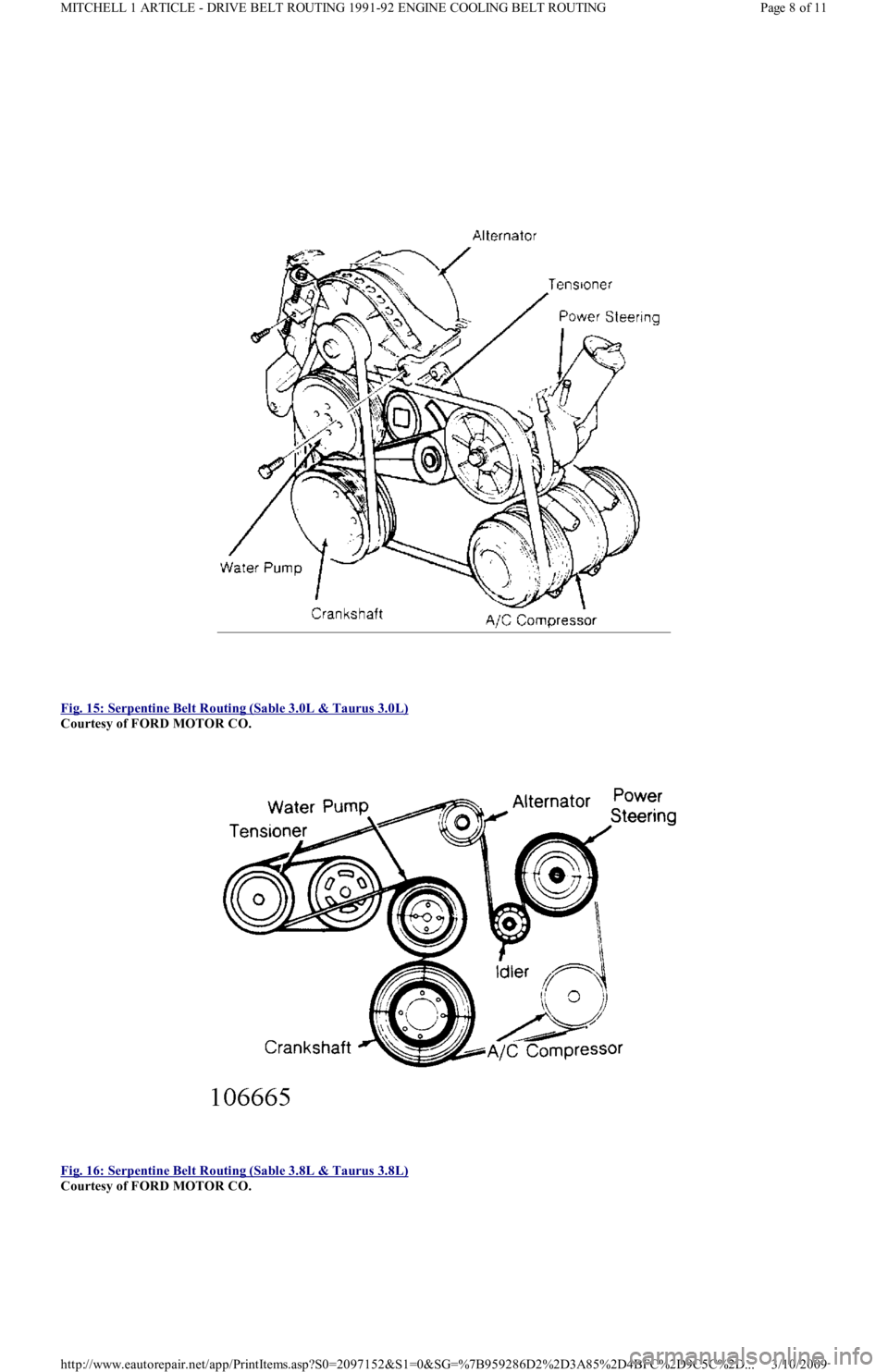

Fig. 15: Serpentine Belt Routing (Sable 3.0L & Taurus 3.0L)

Courtesy of FORD MOTOR CO.

Fig. 16: Serpentine Belt Routing (Sable 3.8L & Taurus 3.8L)

Courtesy of FORD MOTOR CO.
Page 8 of 11 MITCHELL 1 ARTICLE - DRIVE BELT ROUTING 1991-92 ENGINE COOLING BELT ROUTING
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B959286D2%2D3A85%2D4BFC%2D9C5C%2D
...

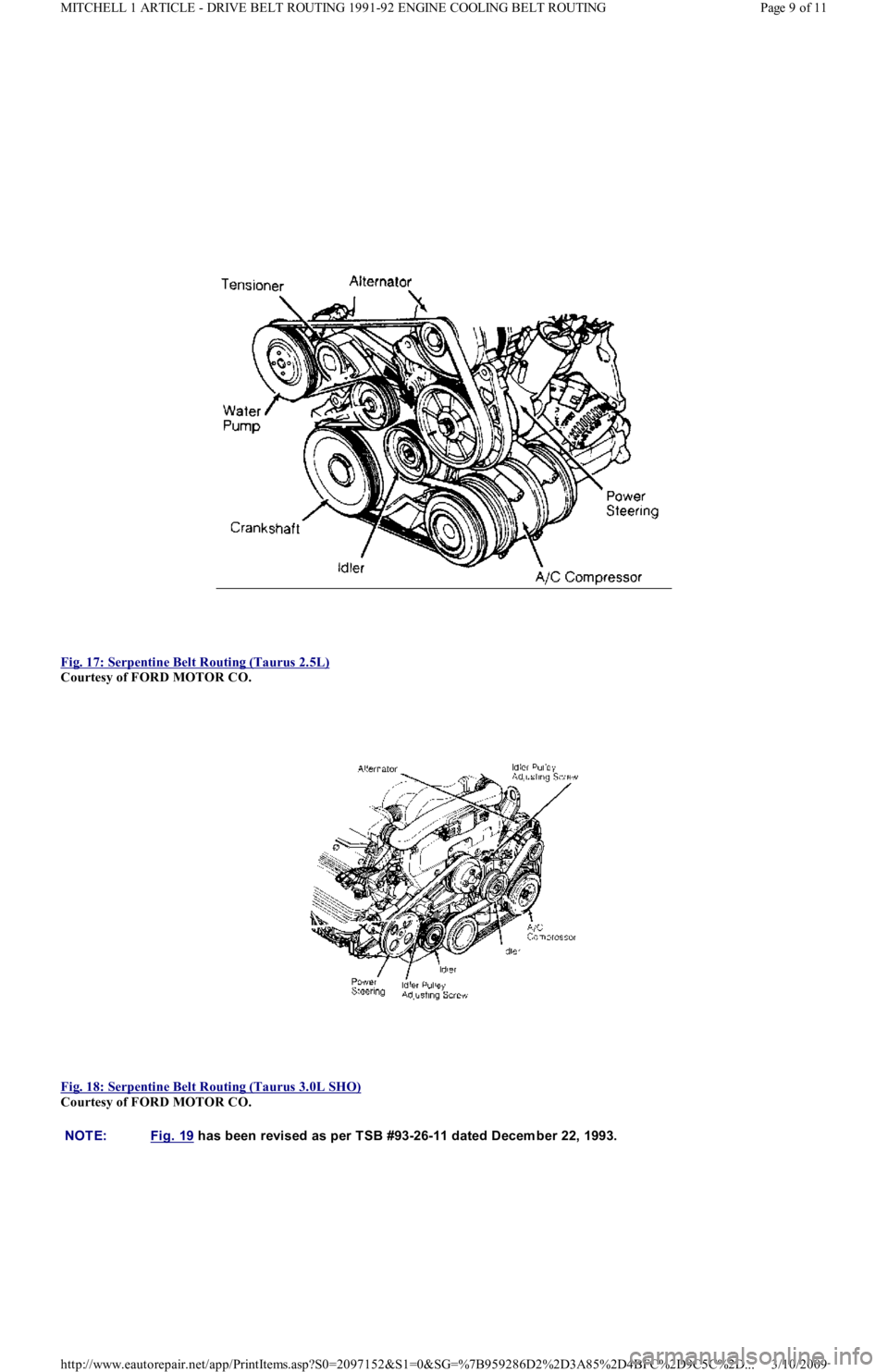

Fig. 17: Serpentine Belt Routing (Taurus 2.5L)

Courtesy of FORD MOTOR CO.

Fig. 18: Serpentine Belt Routing (Taurus 3.0L SHO)

Courtesy of FORD MOTOR CO.
NOTE: Fig. 19 has been revised as per T SB #93-26-11 dated Decem ber 22, 1993.
Page 9 of 11 MITCHELL 1 ARTICLE - DRIVE BELT ROUTING 1991-92 ENGINE COOLING BELT ROUTING
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B959286D2%2D3A85%2D4BFC%2D9C5C%2D
...

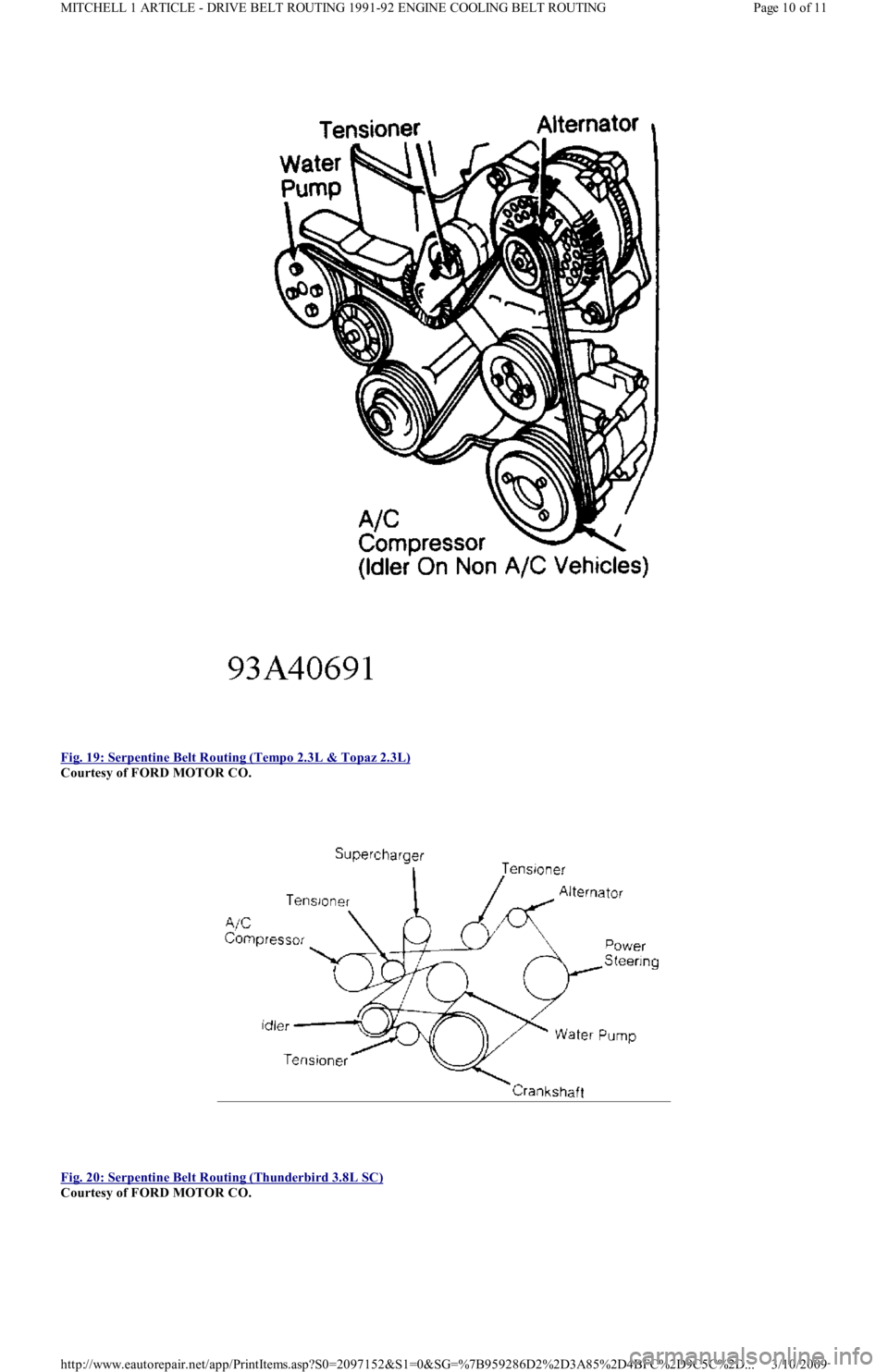

Fig. 19: Serpentine Belt Routing (Tempo 2.3L & Topaz 2.3L)

Courtesy of FORD MOTOR CO.

Fig. 20: Serpentine Belt Routing (Thunderbird 3.8L SC)

Courtesy of FORD MOTOR CO.
Page 10 of 11 MITCHELL 1 ARTICLE - DRIVE BELT ROUTING 1991-92 ENGINE COOLING BELT ROUTING
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B959286D2%2D3A85%2D4BFC%2D9C5C%2D
...

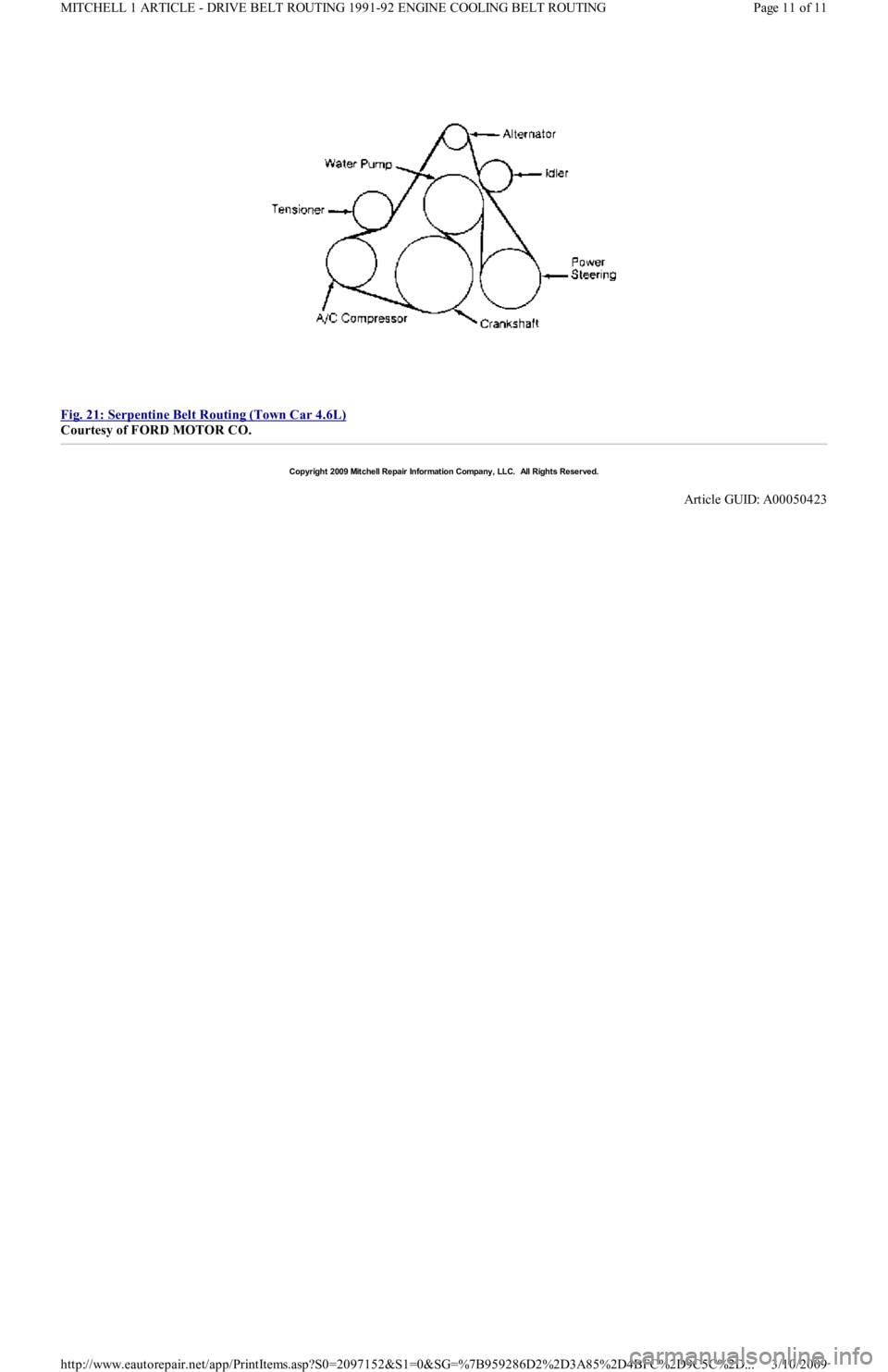

Fig. 21: Serpentine Belt Routing (Town Car 4.6L)

Courtesy of FORD MOTOR CO.
Copyr ight 2009 Mitchell Repair Information Company, LLC. All Rights Reserved.
Article GUID: A00050423
