FORD FESTIVA 1991 Service Manual

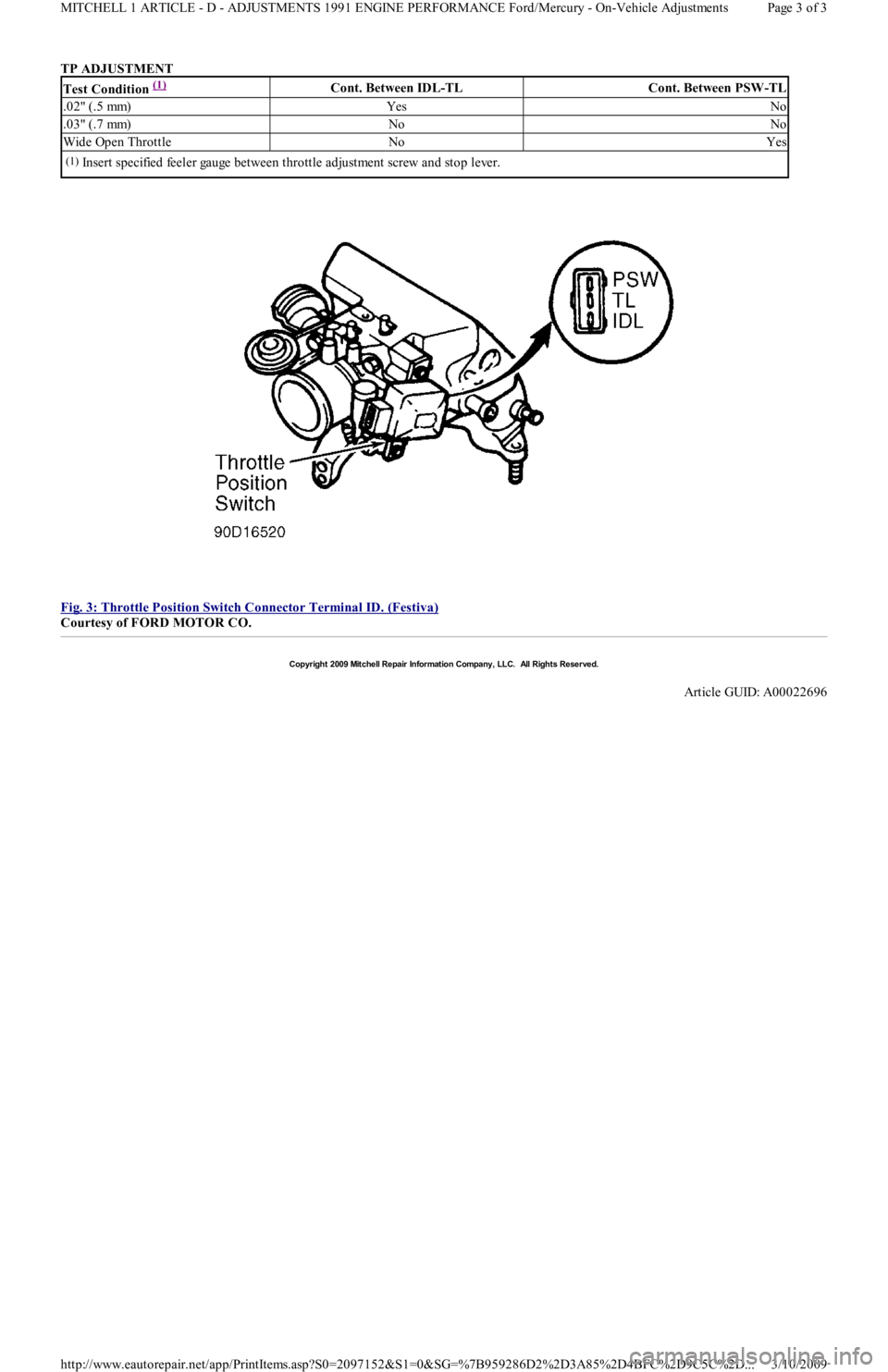

TP ADJUSTMENT

Fig. 3: Throttle Position Switch Connector Terminal ID. (Festiva)

Courtesy of FORD MOTOR CO.
Test Condition (1) Cont. Between IDL-TLCont. Between PSW-TL
.02" (.5 mm)YesNo
.03" (.7 mm)NoNo
Wide Open ThrottleNoYes
(1)Insert specified feeler gauge between throttle adjustment screw and stop lever.
Copyr ight 2009 Mitchell Repair Information Company, LLC. All Rights Reserved.
Article GUID: A00022696
Page 3 of 3 MITCHELL 1 ARTICLE - D - ADJUSTMENTS 1991 ENGINE PERFORMANCE Ford/Mercury - On-Vehicle Adjustments
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B959286D2%2D3A85%2D4BFC%2D9C5C%2D
...

Back To Article

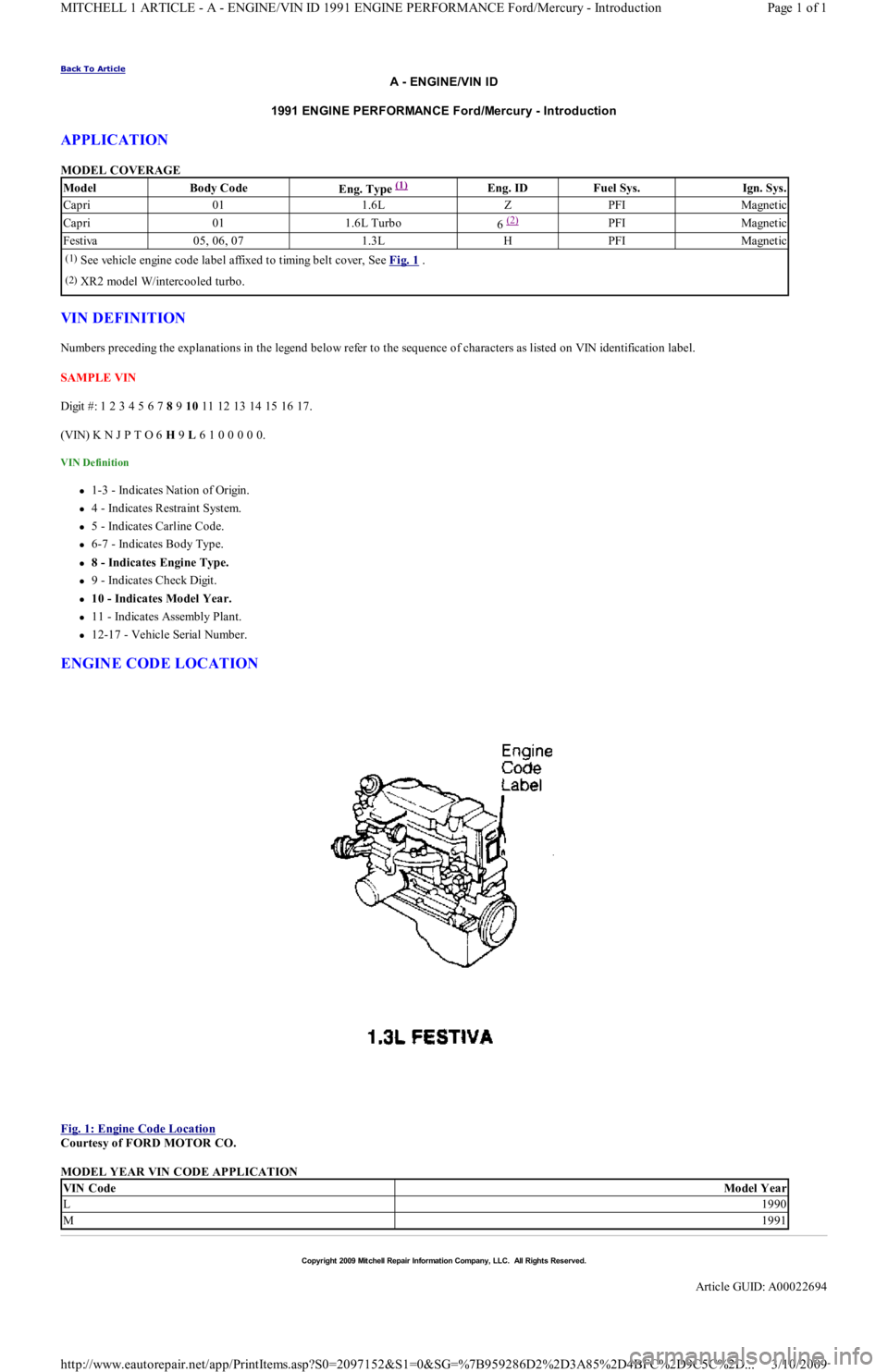

A - ENGINE/VIN ID
1991 ENGINE PERFORMANCE Ford/Mercury - Introduction
APPLICATION
MODEL COVERAGE
VIN DEFINITION
Numbers preceding the explanations in the legend below refer to the sequence of characters as listed on VIN identification label.
SAMPLE VIN
Digit #: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17.
(VIN) K N J P T O 6 H 9 L 6 1 0 0 0 0 0.
VIN Definition
1-3 - Indicates Nation of Origin.
4 - Indicates Restraint System.
5 - Indicates Carline Code.
6-7 - Indicates Body Type.
8 - Indicates Engine Type.
9 - Indicates Check Digit.
10 - Indicates Model Year.
11 - Indicates Assembly Plant.
12-17 - Vehicle Serial Number.
ENGINE CODE LOCATION

Fig. 1: Engine Code Location

Courtesy of FORD MOTOR CO.
MODEL YEAR VIN CODE APPLICATION
ModelBody CodeEng. Type (1) Eng. IDFuel Sys.Ign. Sys.
Capri011.6LZPFIMagnetic
Capri011.6L Turbo6 (2) PFIMagnetic
Festiva05, 06, 071.3LHPFIMagnetic
(1)See vehicle engine code label affixed to timing belt cover, See Fig. 1 .
(2)XR2 model W/intercooled turbo.
VIN CodeModel Year
L1990
M1991
Copyr ight 2009 Mit chell Repair Information Company, LLC. All Rights Reserved.
Article GUID: A00022694
Page 1 of 1 MITCHELL 1 ARTICLE - A - ENGINE/VIN ID 1991 ENGINE PERFORMANCE Ford/Mercury - Introduction
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B959286D2%2D3A85%2D4BFC%2D9C5C%2D
...

Back To Article

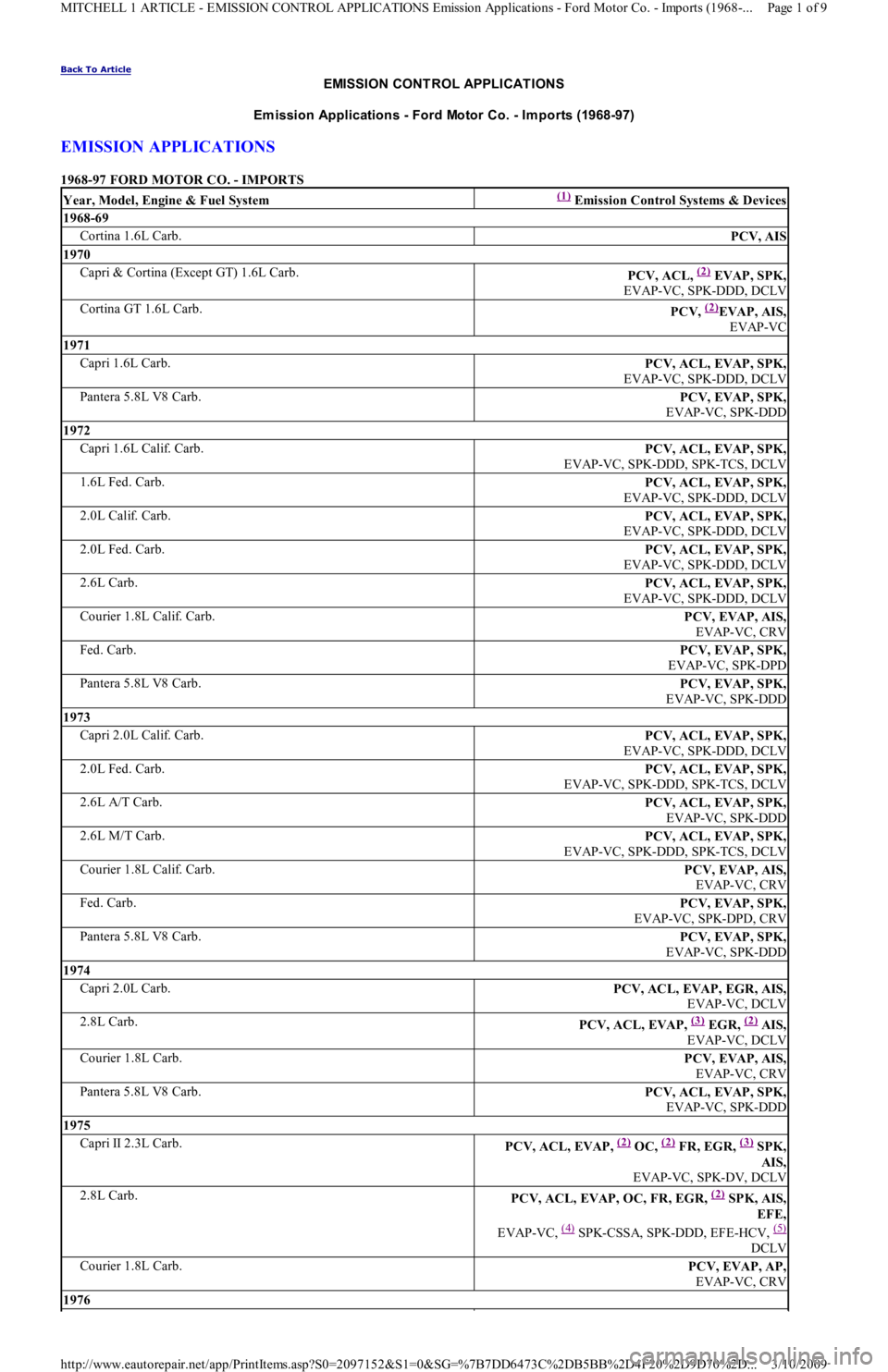

EMISSION CONT ROL APPLICAT IONS
Em ission Applications - Ford Motor Co. - Im ports (1968-97)
EMISSION APPLICATIONS
1968-97 FORD MOTOR CO. - IMPORTS
Year, Model, Engine & Fuel System(1) Emission Control Systems & Devices
1968-69
Cortina 1.6L Carb.PCV, AIS
1970
Capri & Cortina (Except GT) 1.6L Carb.PCV, ACL, (2) EVAP, SPK,
EVAP-VC, SPK-DDD, DCLV
Cortina GT 1.6L Carb.PCV, (2)EVAP, AIS,
EVAP-VC
1971
Capri 1.6L Carb.PCV, ACL, EVAP, SPK,
EVAP-VC, SPK-DDD, DCLV
Pantera 5.8L V8 Carb.PCV, EVAP, SPK,
EVAP-VC, SPK-DDD
1972
Capri 1.6L Calif. Carb.PCV, ACL, EVAP, SPK,
EVAP-VC, SPK-DDD, SPK-TCS, DCLV
1.6L Fed. Carb.PCV, ACL, EVAP, SPK,
EVAP-VC, SPK-DDD, DCLV
2.0L Calif. Carb.PCV, ACL, EVAP, SPK,
EVAP-VC, SPK-DDD, DCLV
2.0L Fed. Carb.PCV, ACL, EVAP, SPK,
EVAP-VC, SPK-DDD, DCLV
2.6L Carb.PCV, ACL, EVAP, SPK,
EVAP-VC, SPK-DDD, DCLV
Courier 1.8L Calif. Carb.PCV, EVAP, AIS,
EVAP-VC, CRV
Fed. Carb.PCV, EVAP, SPK,
EVAP-VC, SPK-DPD
Pantera 5.8L V8 Carb.PCV, EVAP, SPK,
EVAP-VC, SPK-DDD
1973
Capri 2.0L Calif. Carb.PCV, ACL, EVAP, SPK,
EVAP-VC, SPK-DDD, DCLV
2.0L Fed. Carb.PCV, ACL, EVAP, SPK,
EVAP-VC, SPK-DDD, SPK-TCS, DCLV
2.6L A/T Carb.PCV, ACL, EVAP, SPK,
EVAP-VC, SPK-DDD
2.6L M/T Carb.PCV, ACL, EVAP, SPK,
EVAP-VC, SPK-DDD, SPK-TCS, DCLV
Courier 1.8L Calif. Carb.PCV, EVAP, AIS,
EVAP-VC, CRV
Fed. Carb.PCV, EVAP, SPK,
EVAP-VC, SPK-DPD, CRV
Pantera 5.8L V8 Carb.PCV, EVAP, SPK,
EVAP-VC, SPK-DDD
1974
Capri 2.0L Carb.PCV, ACL, EVAP, EGR, AIS,
EVAP-VC, DCLV
2.8L Carb.PCV, ACL, EVAP, (3) EGR, (2) AIS,
EVAP-VC, DCLV
Courier 1.8L Carb.PCV, EVAP, AIS,
EVAP-VC, CRV
Pantera 5.8L V8 Carb.PCV, ACL, EVAP, SPK,
EVAP-VC, SPK-DDD
1975
Capri II 2.3L Carb.PCV, ACL, EVAP, (2) OC, (2) FR, EGR, (3)SPK,
AIS,
EVAP-VC, SPK-DV, DCLV
2.8L Carb.PCV, ACL, EVAP, OC, FR, EGR, (2)SPK, AIS,
EFE,
EVAP-VC,
(4) SPK-CSSA, SPK-DDD, EFE-HCV, (5)
DCLV
Courier 1.8L Carb.PCV, EVAP, AP,
EVAP-VC, CRV
1976
Page 1 of 9 MITCHELL 1 ARTICLE - EMISSION CONTROL APPLICATIONS Emission Applications - Ford Motor Co. - Imports (1968-
...
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B7DD6473C%2DB5BB%2D4F20%2D9D70%2D
...

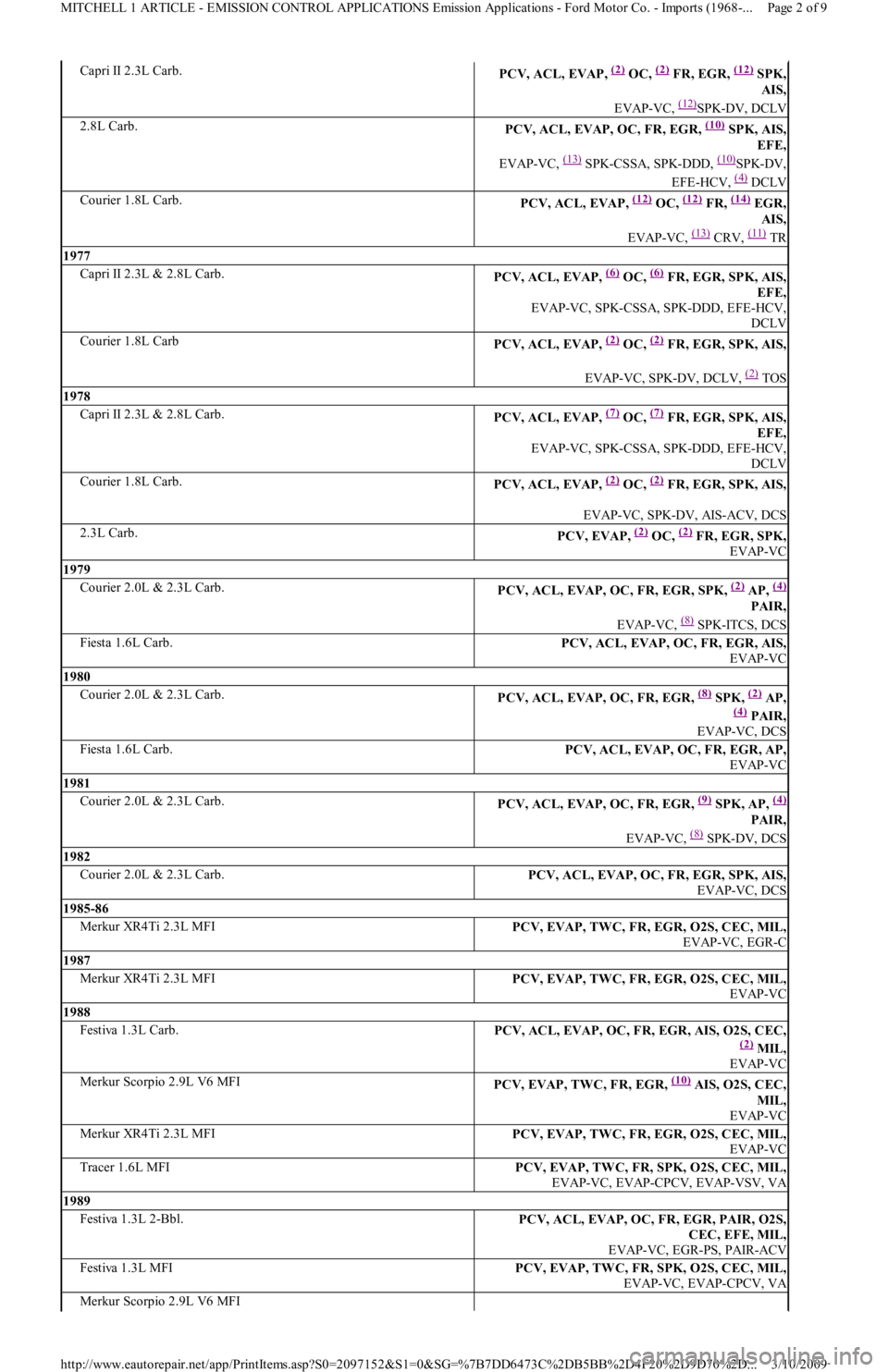

Capri II 2.3L Carb.PCV, ACL, EVAP, (2) OC, (2) FR, EGR, (12)SPK,
AIS,
EVAP-VC,
(12)SPK-DV, DCLV
2.8L Carb.PCV, ACL, EVAP, OC, FR, EGR, (10)SPK, AIS,
EFE,
EVAP-VC,
(13) SPK-CSSA, SPK-DDD, (10)SPK-DV,
EFE-HCV,
(4) DCLV
Courier 1.8L Carb.PCV, ACL, EVAP, (12) OC, (12) FR, (14)EGR,
AIS,
EVAP-VC,
(13) CRV, (11) TR
1977
Capri II 2.3L & 2.8L Carb.PCV, ACL, EVAP, (6) OC, (6)FR, EGR, SPK, AIS,
EFE,
EVAP-VC, SPK-CSSA, SPK-DDD, EFE-HCV,
DCLV
Courier 1.8L CarbPCV, ACL, EVAP, (2) OC, (2) FR, EGR, SPK, AIS,
EVAP-VC, SPK-DV, DCLV,
(2) TOS
1978
Capri II 2.3L & 2.8L Carb.PCV, ACL, EVAP, (7) OC, (7)FR, EGR, SPK, AIS,
EFE,
EVAP-VC, SPK-CSSA, SPK-DDD, EFE-HCV,
DCLV
Courier 1.8L Carb.PCV, ACL, EVAP, (2) OC, (2) FR, EGR, SPK, AIS,
EVAP-VC, SPK-DV, AIS-ACV, DCS
2.3L Carb.PCV, EVAP, (2) OC, (2) FR, EGR, SPK,
EVAP-VC
1979
Courier 2.0L & 2.3L Carb.PCV, ACL, EVAP, OC, FR, EGR, SPK, (2) AP, (4)
PAIR,
EVAP-VC,
(8) SPK-ITCS, DCS
Fiesta 1.6L Carb.PCV, ACL, EVAP, OC, FR, EGR, AIS,
EVAP-VC
1980
Courier 2.0L & 2.3L Carb.PCV, ACL, EVAP, OC, FR, EGR, (8) SPK, (2)AP,
(4) PAIR,
EVAP-VC, DCS
Fiesta 1.6L Carb.PCV, ACL, EVAP, OC, FR, EGR, AP,
EVAP-VC
1981
Courier 2.0L & 2.3L Carb.PCV, ACL, EVAP, OC, FR, EGR, (9) SPK, AP, (4)
PAIR,
EVAP-VC,
(8) SPK-DV, DCS
1982
Courier 2.0L & 2.3L Carb.PCV, ACL, EVAP, OC, FR, EGR, SPK, AIS,
EVAP-VC, DCS
1985-86
Merkur XR4Ti 2.3L MFIPCV, EVAP, TWC, FR, EGR, O2S, CEC, MIL,
EVAP-VC, EGR-C
1987
Merkur XR4Ti 2.3L MFIPCV, EVAP, TWC, FR, EGR, O2S, CEC, MIL,
EVAP-VC
1988
Festiva 1.3L Carb.PCV, ACL, EVAP, OC, FR, EGR, AIS, O2S, CEC,
(2) MIL,
EVAP-VC
Merkur Scorpio 2.9L V6 MFIPCV, EVAP, TW C, FR, EGR, (10)AIS, O2S, CEC,
MIL,
EVAP-VC
Merkur XR4Ti 2.3L MFIPCV, EVAP, TWC, FR, EGR, O2S, CEC, MIL,
EVAP-VC
Tracer 1.6L MFIPCV, EVAP, TWC, FR, SPK, O2S, CEC, MIL,
EVAP-VC, EVAP-CPCV, EVAP-VSV, VA
1989
Festiva 1.3L 2-Bbl.PCV, ACL, EVAP, OC, FR, EGR, PAIR, O2S,
CEC, EFE, MIL,
EVAP-VC, EGR-PS, PAIR-ACV
Festiva 1.3L MFIPCV, EVAP, TWC, FR, SPK, O2S, CEC, MIL,
EVAP-VC, EVAP-CPCV, VA
Merkur Scorpio 2.9L V6 MFI
Page 2 of 9 MITCHELL 1 ARTICLE - EMISSION CONTROL APPLICATIONS Emission Applications - Ford Motor Co. - Imports (1968-
...
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B7DD6473C%2DB5BB%2D4F20%2D9D70%2D
...

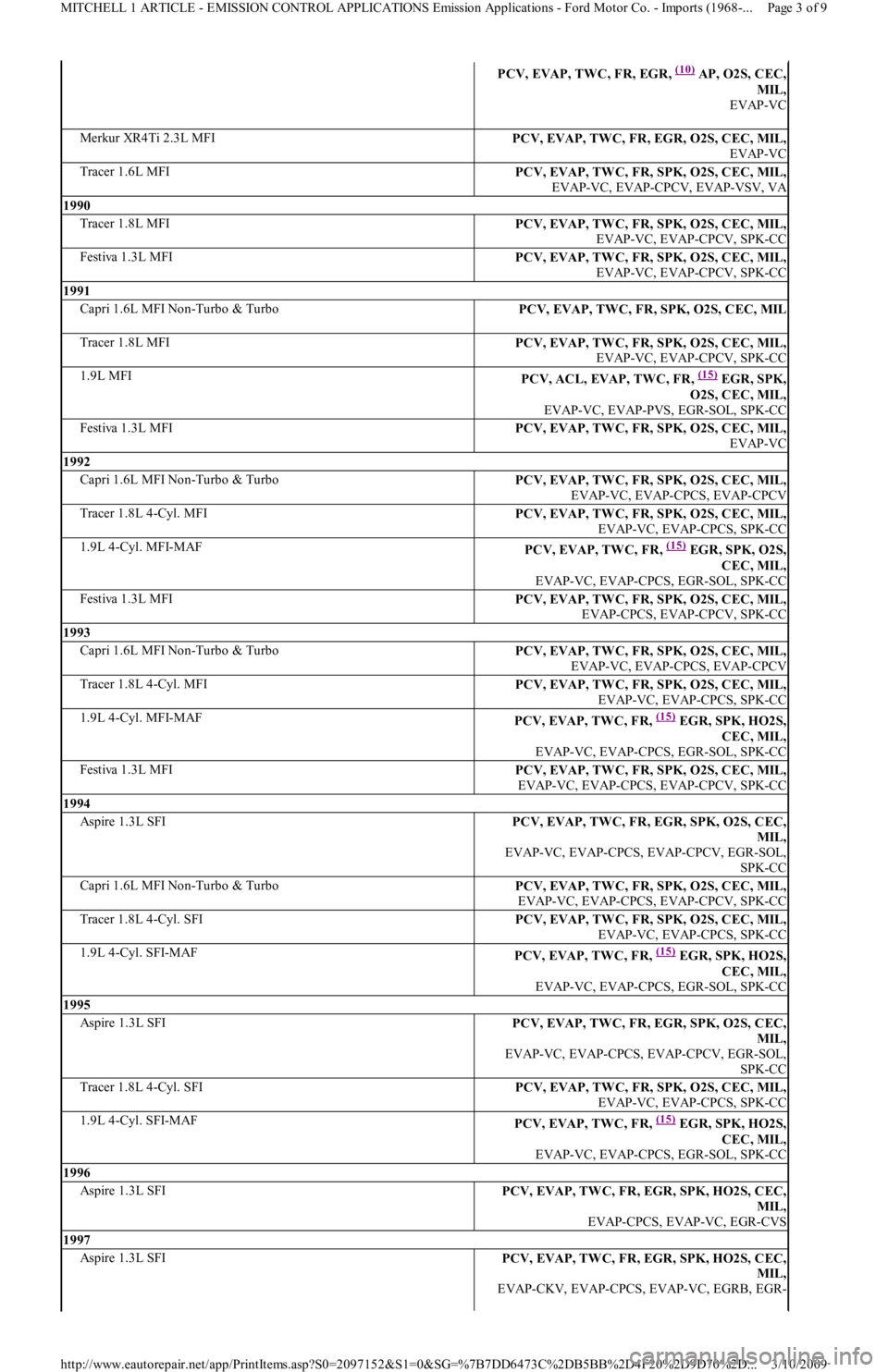

PCV, EVAP, TWC, FR, EGR, (10)AP, O2S, CEC,
MIL,
EVAP-VC

Merkur XR4Ti 2.3L MFIPCV, EVAP, TWC, FR, EGR, O2S, CEC, MIL,
EVAP-VC
Tracer 1.6L MFIPCV, EVAP, TWC, FR, SPK, O2S, CEC, MIL,
EVAP-VC, EVAP-CPCV, EVAP-VSV, VA
1990
Tracer 1.8L MFIPCV, EVAP, TWC, FR, SPK, O2S, CEC, MIL,
EVAP-VC, EVAP-CPCV, SPK-CC
Festiva 1.3L MFIPCV, EVAP, TWC, FR, SPK, O2S, CEC, MIL,
EVAP-VC, EVAP-CPCV, SPK-CC
1991
Capri 1.6L MFI Non-Turbo & TurboPCV, EVAP, TWC, FR, SPK, O2S, CEC, MIL

Tracer 1.8L MFIPCV, EVAP, TWC, FR, SPK, O2S, CEC, MIL,
EVAP-VC, EVAP-CPCV, SPK-CC
1.9L MFIPCV, ACL, EVAP, TWC, FR, (15)EGR, SPK,
O2S, CEC, MIL,
EVAP-VC, EVAP-PVS, EGR-SOL, SPK-CC
Festiva 1.3L MFIPCV, EVAP, TWC, FR, SPK, O2S, CEC, MIL,
EVAP-VC
1992
Capri 1.6L MFI Non-Turbo & TurboPCV, EVAP, TWC, FR, SPK, O2S, CEC, MIL,
EVAP-VC, EVAP-CPCS, EVAP-CPCV
Tracer 1.8L 4-Cyl. MFIPCV, EVAP, TWC, FR, SPK, O2S, CEC, MIL,
EVAP-VC, EVAP-CPCS, SPK-CC
1.9L 4-Cyl. MFI-MAFPCV, EVAP, TW C, FR, (15)EGR, SPK, O2S,
CEC, MIL,
EVAP-VC, EVAP-CPCS, EGR-SOL, SPK-CC
Festiva 1.3L MFIPCV, EVAP, TWC, FR, SPK, O2S, CEC, MIL,
EVAP-CPCS, EVAP-CPCV, SPK-CC
1993
Capri 1.6L MFI Non-Turbo & TurboPCV, EVAP, TWC, FR, SPK, O2S, CEC, MIL,
EVAP-VC, EVAP-CPCS, EVAP-CPCV
Tracer 1.8L 4-Cyl. MFIPCV, EVAP, TWC, FR, SPK, O2S, CEC, MIL,
EVAP-VC, EVAP-CPCS, SPK-CC
1.9L 4-Cyl. MFI-MAFPCV, EVAP, TWC, FR, (15)EGR, SPK, HO2S,
CEC, MIL,
EVAP-VC, EVAP-CPCS, EGR-SOL, SPK-CC
Festiva 1.3L MFIPCV, EVAP, TWC, FR, SPK, O2S, CEC, MIL,
EVAP-VC, EVAP-CPCS, EVAP-CPCV, SPK-CC
1994
Aspire 1.3L SFIPCV, EVAP, TWC, FR, EGR, SPK, O2S, CEC,
MIL,
EVAP-VC, EVAP-CPCS, EVAP-CPCV, EGR-SOL,
SPK-CC
Capri 1.6L MFI Non-Turbo & TurboPCV, EVAP, TWC, FR, SPK, O2S, CEC, MIL,
EVAP-VC, EVAP-CPCS, EVAP-CPCV, SPK-CC
Tracer 1.8L 4-Cyl. SFIPCV, EVAP, TWC, FR, SPK, O2S, CEC, MIL,
EVAP-VC, EVAP-CPCS, SPK-CC
1.9L 4-Cyl. SFI-MAFPCV, EVAP, TWC, FR, (15)EGR, SPK, HO2S,
CEC, MIL,
EVAP-VC, EVAP-CPCS, EGR-SOL, SPK-CC
1995
Aspire 1.3L SFIPCV, EVAP, TWC, FR, EGR, SPK, O2S, CEC,
MIL,
EVAP-VC, EVAP-CPCS, EVAP-CPCV, EGR-SOL,
SPK-CC
Tracer 1.8L 4-Cyl. SFIPCV, EVAP, TWC, FR, SPK, O2S, CEC, MIL,
EVAP-VC, EVAP-CPCS, SPK-CC
1.9L 4-Cyl. SFI-MAFPCV, EVAP, TWC, FR, (15)EGR, SPK, HO2S,
CEC, MIL,
EVAP-VC, EVAP-CPCS, EGR-SOL, SPK-CC
1996
Aspire 1.3L SFIPCV, EVAP, TWC, FR, EGR, SPK, HO2S, CEC,
MIL,
EVAP-CPCS, EVAP-VC, EGR-CVS
1997
Aspire 1.3L SFIPCV, EVAP, TWC, FR, EGR, SPK, HO2S, CEC,
MIL,
EVAP-CKV, EVAP-CPCS, EVAP-VC, EGRB, EGR-
Page 3 of 9 MITCHELL 1 ARTICLE - EMISSION CONTROL APPLICATIONS Emission Applications - Ford Motor Co. - Imports (1968-
...
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B7DD6473C%2DB5BB%2D4F20%2D9D70%2D
...

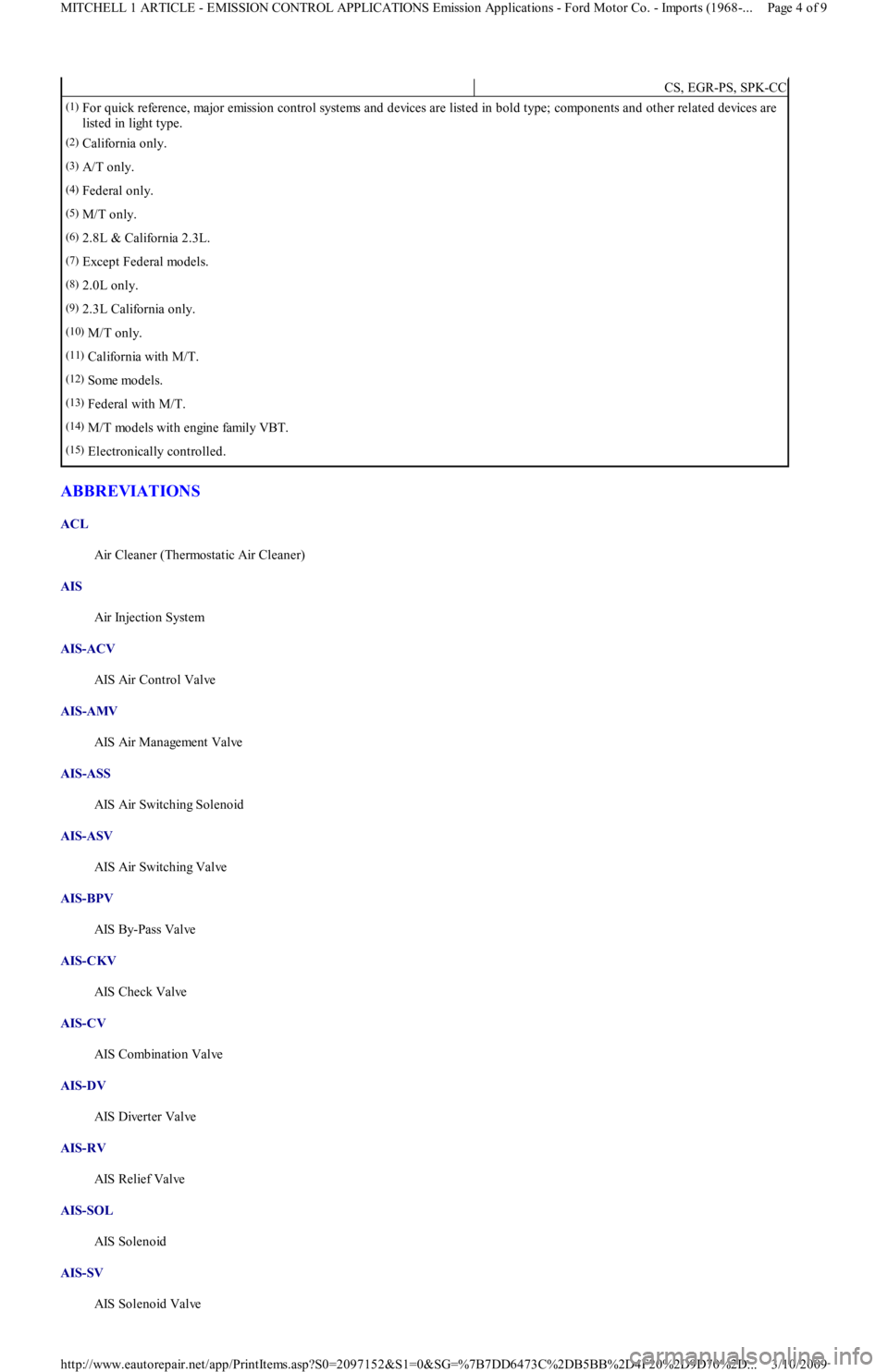

ABBREVIATIONS
ACL
Air Cleaner (Thermostatic Air Cleaner)
AIS
Air Injection System
AIS-ACV
AIS Air Control Valve
AIS-AMV
AIS Air Management Valve
AIS-ASS
AIS Air Switching Solenoid
AIS-ASV
AIS Air Switching Valve
AIS-BPV
AIS By-Pass Valve
AIS-CKV
AIS Check Valve
AIS-CV
AIS Combination Valve
AIS-DV
AIS Diverter Valve
AIS-RV
AIS Relief Valve
AIS-SOL
AIS Solenoid
AIS-SV
AIS Solenoid Valve
CS, EGR-PS, SPK-CC
(1)For quick reference, major emission control systems and devices are listed in bold type; components and other related devices are
listed in light type.
(2)California only.
(3)A/T only.
(4)Federal only.
(5)M/T only.
(6)2.8L & California 2.3L.
(7)Except Federal models.
(8)2.0L only.
(9)2.3L California only.
(10)M/T only.
(11)California with M/T.
(12)Some models.
(13)Federal with M/T.
(14)M/T models with engine family VBT.
(15)Electronically controlled.
Page 4 of 9 MITCHELL 1 ARTICLE - EMISSION CONTROL APPLICATIONS Emission Applications - Ford Motor Co. - Imports (1968-
...
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B7DD6473C%2DB5BB%2D4F20%2D9D70%2D
...

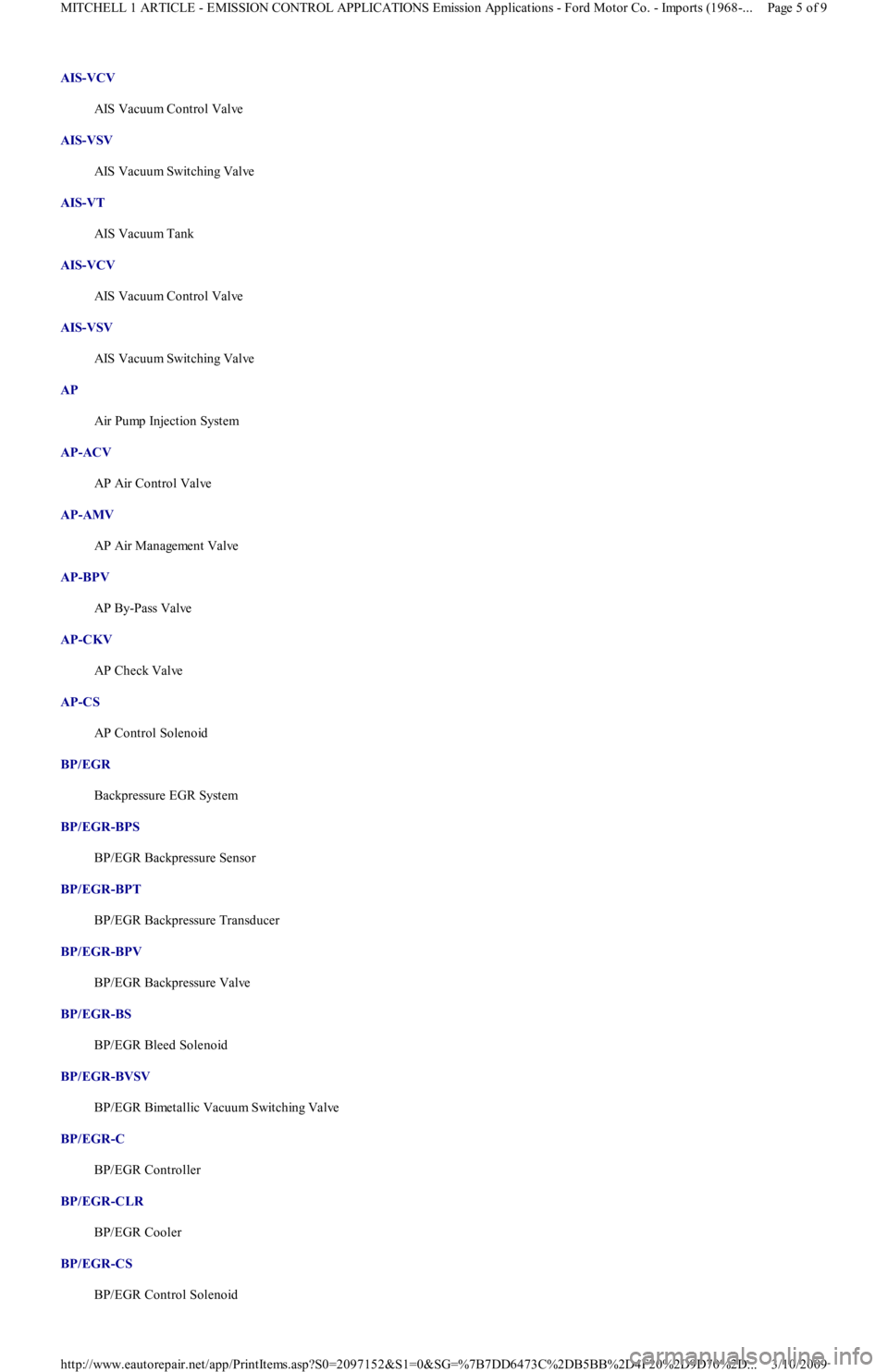

AIS-VCV
AIS Vacuum Control Valve
AIS-VSV
AIS Vacuum Switching Valve
AIS-VT
AIS Vacuum Tank
AIS-VCV
AIS Vacuum Control Valve
AIS-VSV
AIS Vacuum Switching Valve
AP
Air Pump Injection System
AP-ACV
AP Air Control Valve
AP-AMV
AP Air Management Valve
AP-BPV
AP By-Pass Valve
AP-CKV
AP Check Valve
AP-CS
AP Control Solenoid
BP/EGR
Backpressure EGR System
BP/EGR-BPS
BP/EGR Backpressure Sensor
BP/EGR-BPT
BP/EGR Backpressure Transducer
BP/EGR-BPV
BP/EGR Backpressure Valve
BP/EGR-BS
BP/EGR Bleed Solenoid
BP/EGR-BVSV
BP/EGR Bimetallic Vacuum Switching Valve
BP/EGR-C
BP/EGR Controller
BP/EGR-CLR
BP/EGR Cooler
BP/EGR-CS
BP/EGR Control Solenoid
Page 5 of 9 MITCHELL 1 ARTICLE - EMISSION CONTROL APPLICATIONS Emission Applications - Ford Motor Co. - Imports (1968-
...
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B7DD6473C%2DB5BB%2D4F20%2D9D70%2D
...

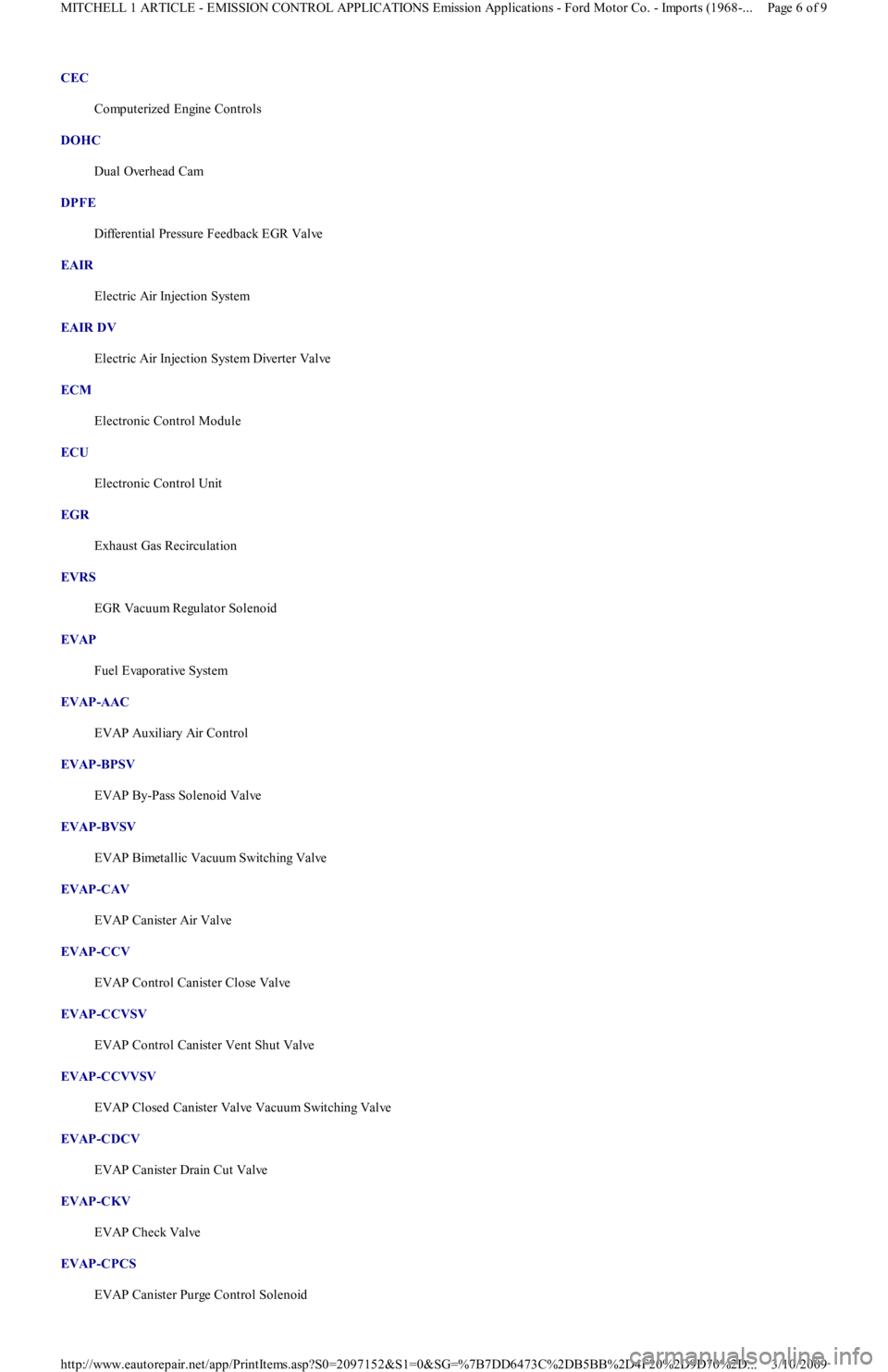

CEC
Computerized Engine Controls
DOHC
Dual Overhead Cam
DPFE
Differential Pressure Feedback EGR Valve
EAIR
Electric Air Injection System
EAIR DV
Electric Air Injection System Diverter Valve
ECM
Electronic Control Module
ECU
Electronic Control Unit
EGR
Exhaust Gas Recirculation
EVRS
EGR Vacuum Regulator Solenoid
EVAP
Fuel Evaporative System
EVAP-AAC
EVAP Auxiliary Air Control
EVAP-BPSV
EVAP By-Pass Solenoid Valve
EVAP-BVSV
EVAP Bimetallic Vacuum Switching Valve
EVAP-CAV
EVAP Canister Air Valve
EVAP-CCV
EVAP Control Canister Close Valve
EVAP-CCVSV
EVAP Control Canister Vent Shut Valve
EVAP-CCVVSV
EVAP Closed Canister Valve Vacuum Switching Valve
EVAP-CDCV
EVAP Canister Drain Cut Valve
EVAP-CKV
EVAP Check Valve
EVAP-CPCS
EVAP Canister Purge Control Solenoid
Page 6 of 9 MITCHELL 1 ARTICLE - EMISSION CONTROL APPLICATIONS Emission Applications - Ford Motor Co. - Imports (1968-
...
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B7DD6473C%2DB5BB%2D4F20%2D9D70%2D
...

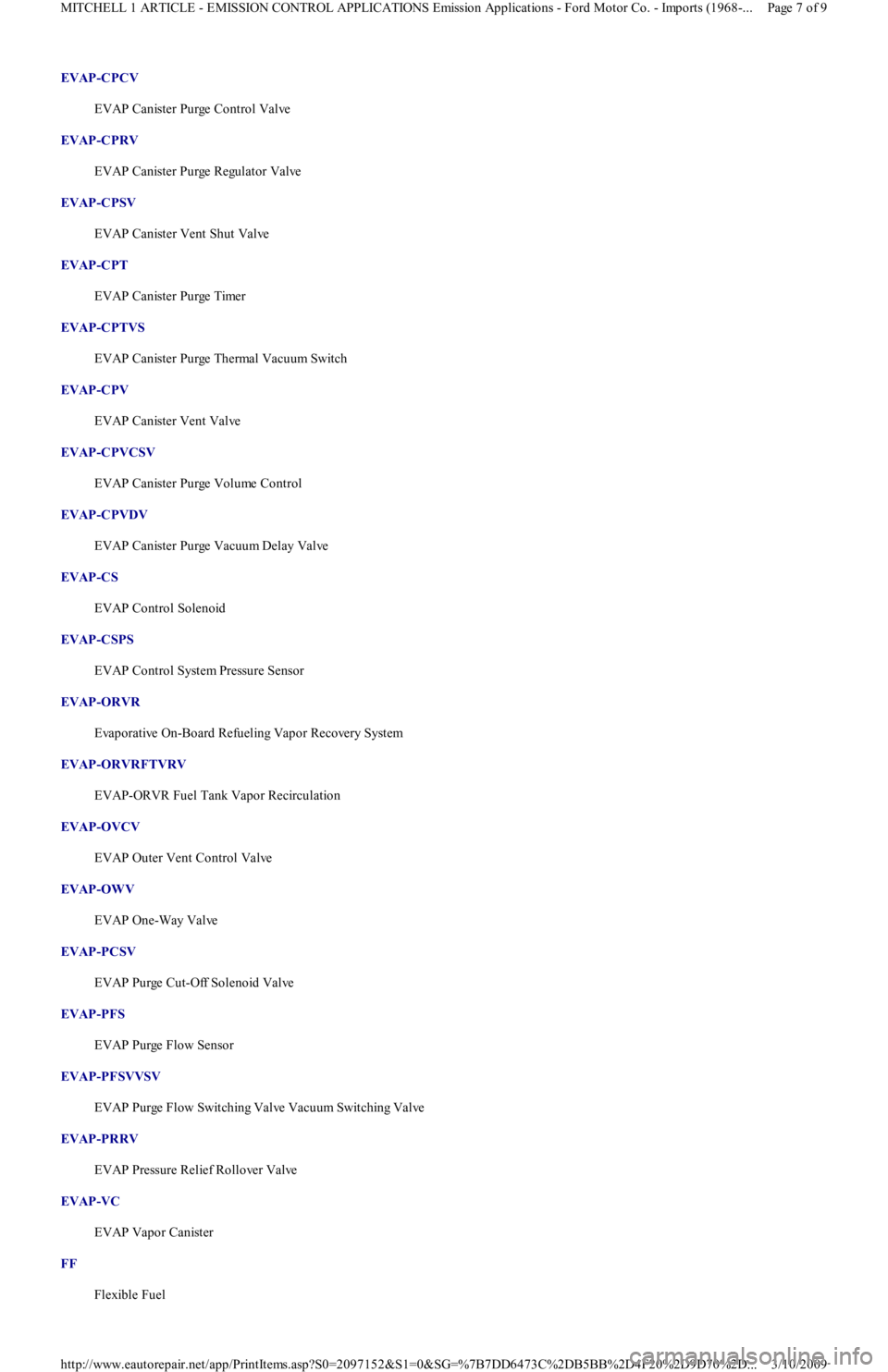

EVAP-CPCV
EVAP Canister Purge Control Valve
EVAP-CPRV
EVAP Canister Purge Regulator Valve
EVAP-CPSV
EVAP Canister Vent Shut Valve
EVAP-CPT
EVAP Canister Purge Timer
EVAP-CPTVS
EVAP Canister Purge Thermal Vacuum Switch
EVAP-CPV
EVAP Canister Vent Valve
EVAP-CPVCSV
EVAP Canister Purge Volume Control
EVAP-CPVDV
EVAP Canister Purge Vacuum Delay Valve
EVAP-CS
EVAP Control Solenoid
EVAP-CSPS
EVAP Control System Pressure Sensor
EVAP-ORVR
Evaporative On-Board Refueling Vapor Recovery System
EVAP-ORVRFTVRV
EVAP-ORVR Fuel Tank Vapor Recirculation
EVAP-OVCV
EVAP Outer Vent Control Valve
EVAP-OW V
EVAP One-Way Valve
EVAP-PCSV
EVAP Purge Cut-Off Solenoid Valve
EVAP-PFS
EVAP Purge Flow Sensor
EVAP-PFSVVSV
EVAP Purge Flow Switching Valve Vacuum Switching Valve
EVAP-PRRV
EVAP Pressure Relief Rollover Valve
EVAP-VC
EVAP Vapor Canister
FF
Flexible Fuel
Page 7 of 9 MITCHELL 1 ARTICLE - EMISSION CONTROL APPLICATIONS Emission Applications - Ford Motor Co. - Imports (1968-
...
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B7DD6473C%2DB5BB%2D4F20%2D9D70%2D
...

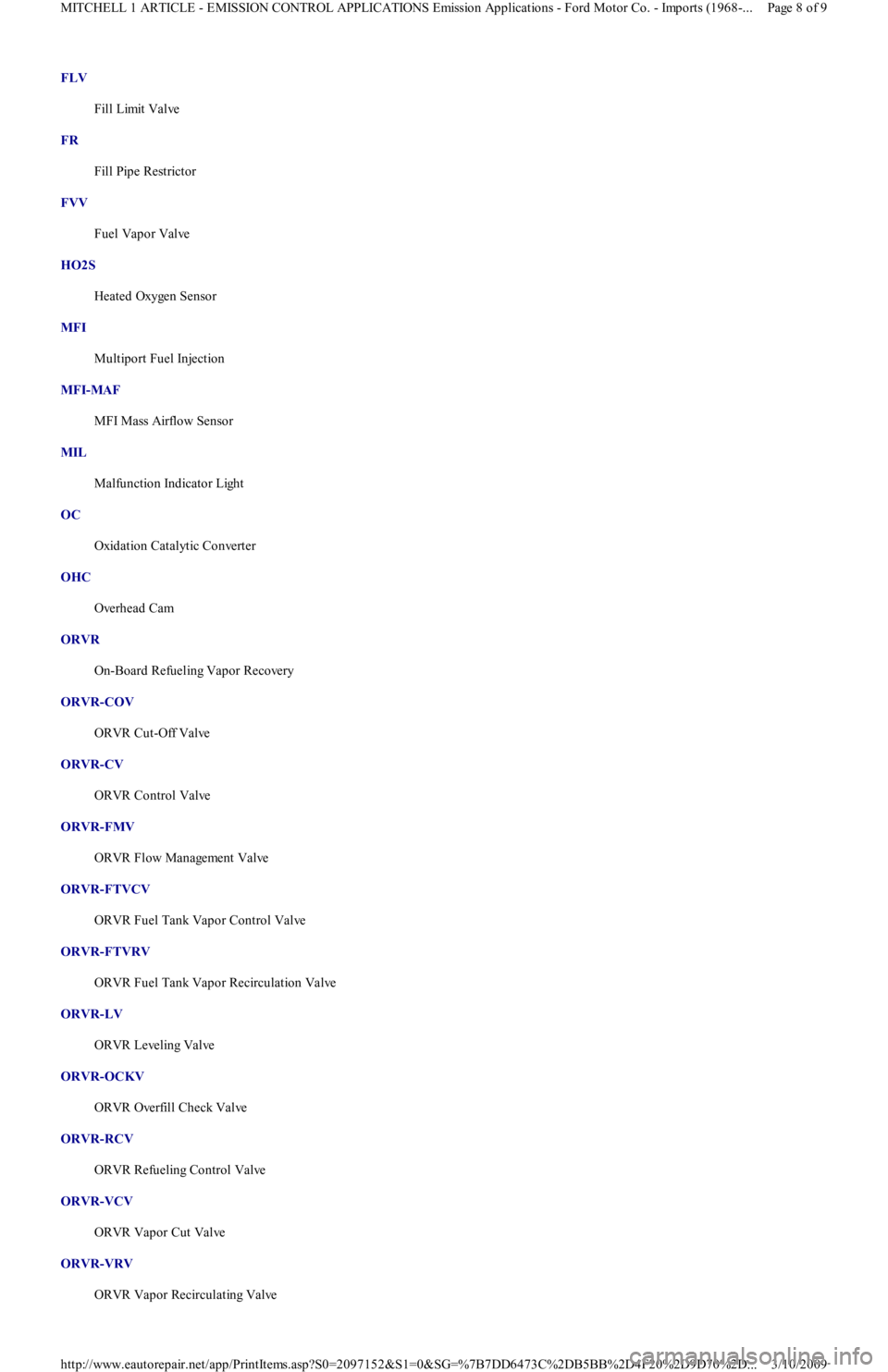

FLV
Fill Limit Valve
FR
Fill Pipe Restrictor
FVV
Fuel Vapor Valve
HO2S
Heated Oxygen Sensor
MFI
Multiport Fuel Injection
MFI-MAF
MFI Mass Airflow Sensor
MIL
Malfunction Indicator Light
OC
Oxidation Catalytic Converter
OHC
Overhead Cam
ORVR
On-Board Refueling Vapor Recovery
ORVR-COV
ORVR Cut-Off Valve
ORVR-CV
ORVR Control Valve
ORVR-FMV
ORVR Flow Management Valve
ORVR-FTVCV
ORVR Fuel Tank Vapor Control Valve
ORVR-FTVRV
ORVR Fuel Tank Vapor Recirculation Valve
ORVR-LV
ORVR Leveling Valve
ORVR-OCKV
ORVR Overfill Check Valve
ORVR-RCV
ORVR Refueling Control Valve
ORVR-VCV
ORVR Vapor Cut Valve
ORVR-VRV
ORVR Vapor Recirculating Valve
Page 8 of 9 MITCHELL 1 ARTICLE - EMISSION CONTROL APPLICATIONS Emission Applications - Ford Motor Co. - Imports (1968-
...
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B7DD6473C%2DB5BB%2D4F20%2D9D70%2D
...
