FORD FESTIVA 1991 Service Manual

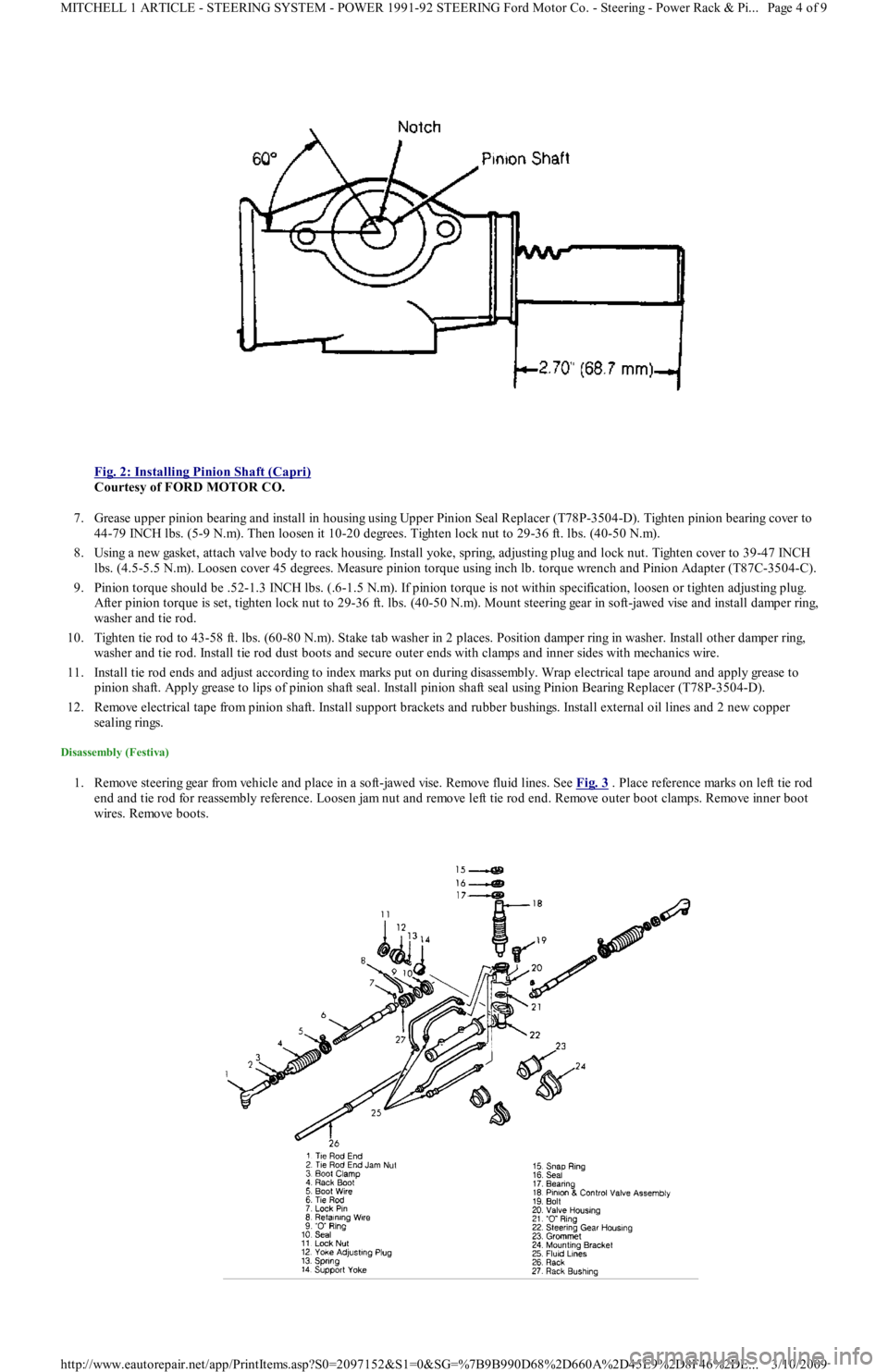

Fig. 2: Installing Pinion Shaft (Capri)

Courtesy of FORD MOTOR CO.
7. Grease upper pinion bearing and install in housing using Upper Pinion Seal Replacer (T78P-3504-D). Tighten pinion bearing cover to
44-79 INCH lbs. (5-9 N.m). Then loosen it 10-20 degrees. Tighten lock nut to 29-36 ft. lbs. (40-50 N.m).
8. Using a new gasket, attach valve body to rack housing. Install yoke, spring, adjusting plug and lock nut. Tighten cover to 39-47 INCH
lbs. (4.5-5.5 N.m). Loosen cover 45 degrees. Measure pinion torque using inch lb. torque wrench and Pinion Adapter (T87C-3504-C).
9. Pinion torque should be .52-1.3 INCH lbs. (.6-1.5 N.m). If pinion torque is not within specification, loosen or tighten adjusting plug.
After pinion torque is set, tighten lock nut to 29-36 ft. lbs. (40-50 N.m). Mount steering gear in soft-jawed vise and install damper ring,
washer and tie rod.
10. Tighten tie rod to 43-58 ft. lbs. (60-80 N.m). Stake tab washer in 2 places. Position damper ring in washer. Install other damper ring,
washer and tie rod. Install tie rod dust boots and secure outer ends with clamps and inner sides with mechanics wire.
11. Install tie rod ends and adjust according to index marks put on during disassembly. Wrap electrical tape around and apply grease to
pinion shaft. Apply grease to lips of pinion shaft seal. Install pinion shaft seal using Pinion Bearing Replacer (T78P-3504-D).
12. Remove electrical tape from pinion shaft. Install support brackets and rubber bushings. Install external oil lines and 2 new copper
sealing rings.
Disassembly (Festiva)
1. Remove steering gear from vehicle and place in a soft-jawed vise. Remove fluid lines. See Fig. 3 . Place reference marks on left tie rod
end and tie rod for reassembly reference. Loosen jam nut and remove left tie rod end. Remove outer boot clamps. Remove inner boot
wires. Remove boots.

Page 4 of 9 MITCHELL 1 ARTICLE - STEERING SYSTEM - POWER 1991-92 STEERING Ford Motor Co. - Steering - Power Rack & Pi
...
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

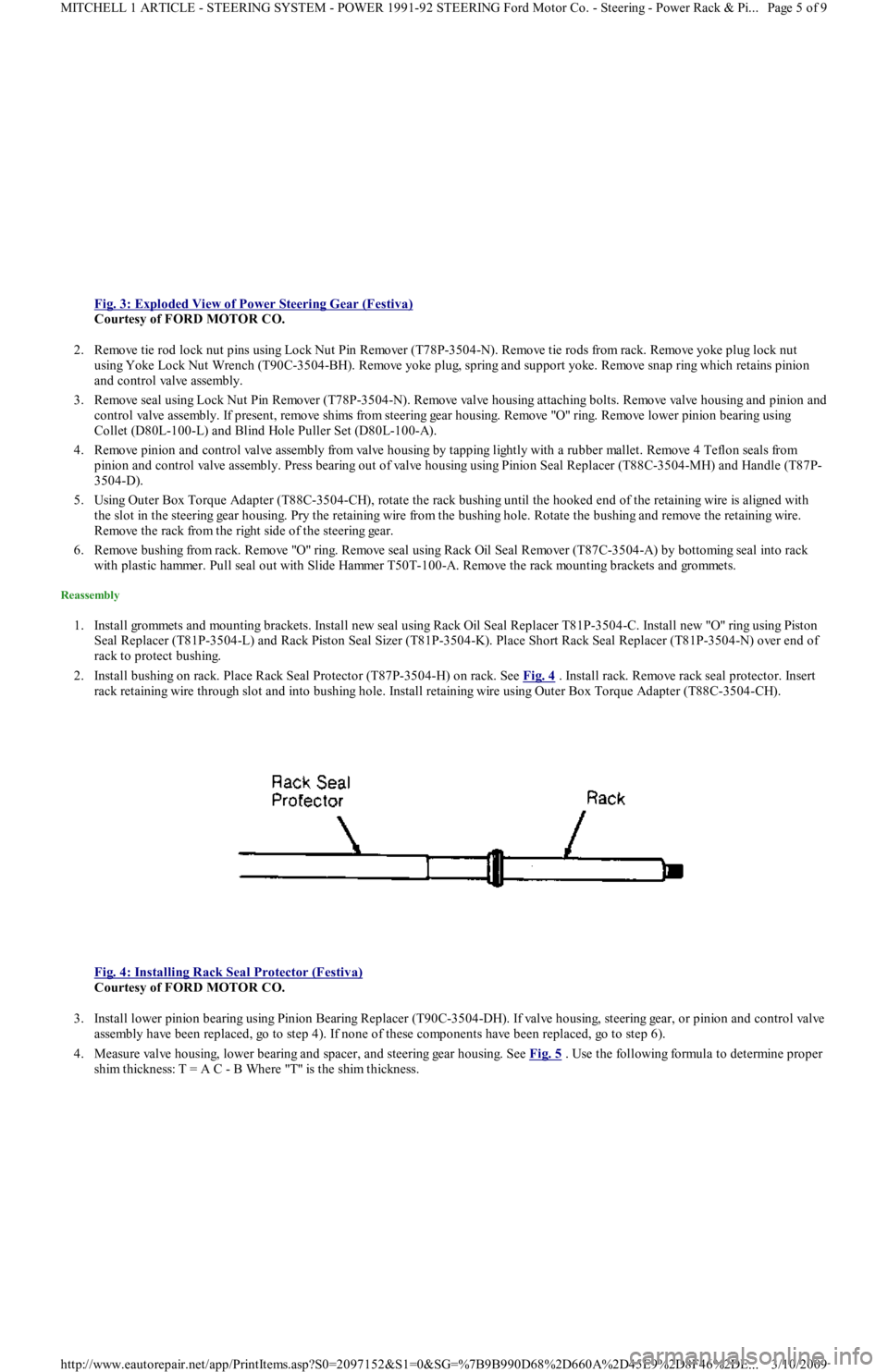

Fig. 3: Exploded View of Power Steering Gear (Festiva)
Courtesy of FORD MOTOR CO.
2. Remove tie rod lock nut pins using Lock Nut Pin Remover (T78P-3504-N). Remove tie rods from rack. Remove yoke plug lock nut
using Yoke Lock Nut Wrench (T90C-3504-BH). Remove yoke plug, spring and support yoke. Remove snap ring which retains pinion
and control valve assembly.
3 . R e mo ve se a l u sin g Lo c k Nu t P in R e mo ve r ( T7 8 P - 3 5 0 4 - N) . R e mo ve va l ve h o u sin g a t t a c h in g b o l t s. R e mo ve va l ve h o u sin g a n d p in io n and
control valve assembly. If present, remove shims from steering gear housing. Remove "O" ring. Remove lower pinion bearing using
Collet (D80L-100-L) and Blind Hole Puller Set (D80L-100-A).
4. Remove pinion and control valve assembly from valve housing by tapping lightly with a rubber mallet. Remove 4 Teflon seals from
pinion and control valve assembly. Press bearing out of valve housing using Pinion Seal Replacer (T88C-3504-MH) and Handle (T87P-
3504-D).
5. Using Outer Box Torque Adapter (T88C-3504-CH), rotate the rack bushing until the hooked end of the retaining wire is aligned with
the slot in the steering gear housing. Pry the retaining wire from the bushing hole. Rotate the bushing and remove the retaining wir e .
Remove the rack from the right side of the steering gear.
6 . R e mo ve b u sh in g fr o m r a c k. R e mo ve "O" r in g. R e mo ve se a l u sin g Rack Oil Seal Remover (T87C-3504-A) by bottoming seal into rack
with plastic hammer. Pull seal out with Slide Hammer T50T-100-A. Remove the rack mounting brackets and grommets.
Reassembly
1. Install grommets and mounting brackets. Install new seal using Rack Oil Seal Replacer T81P-3504-C. Install new "O" ring using Piston
Seal Replacer (T81P-3504-L) and Rack Piston Seal Sizer (T81P-3504-K). Place Short Rack Seal Replacer (T81P-3504-N) over end of
rack to protect bushing.
2. Install bushing on rack. Place Rack Seal Protector (T87P-3504-H) on rack. See Fig. 4
. Install rack. Remove rack seal protector. Insert
rack retaining wire through slot and into bushing hole. Install retaining wire using Outer Box Torque Adapter (T88C-3504-CH).

Fig. 4: Installing Rack Seal Protector (Festiva)

Courtesy of FORD MOTOR CO.
3. Install lower pinion bearing using Pinion Bearing Replacer (T90C-3504-DH). If valve housing, steering gear, or pinion and control valve
assembly have been replaced, go to step 4). If none of these components have been replaced, go to step 6).
4. Measure valve housing, lower bearing and spacer, and steering gear housing. See Fig. 5
. Use the following formula to determine proper
shim thickness: T = A C - B Where "T" is the shim thickness.
Page 5 of 9 MITCHELL 1 ARTICLE - STEERING SYSTEM - POWER 1991-92 STEERING Ford Motor Co. - Steering - Power Rack & Pi
...
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

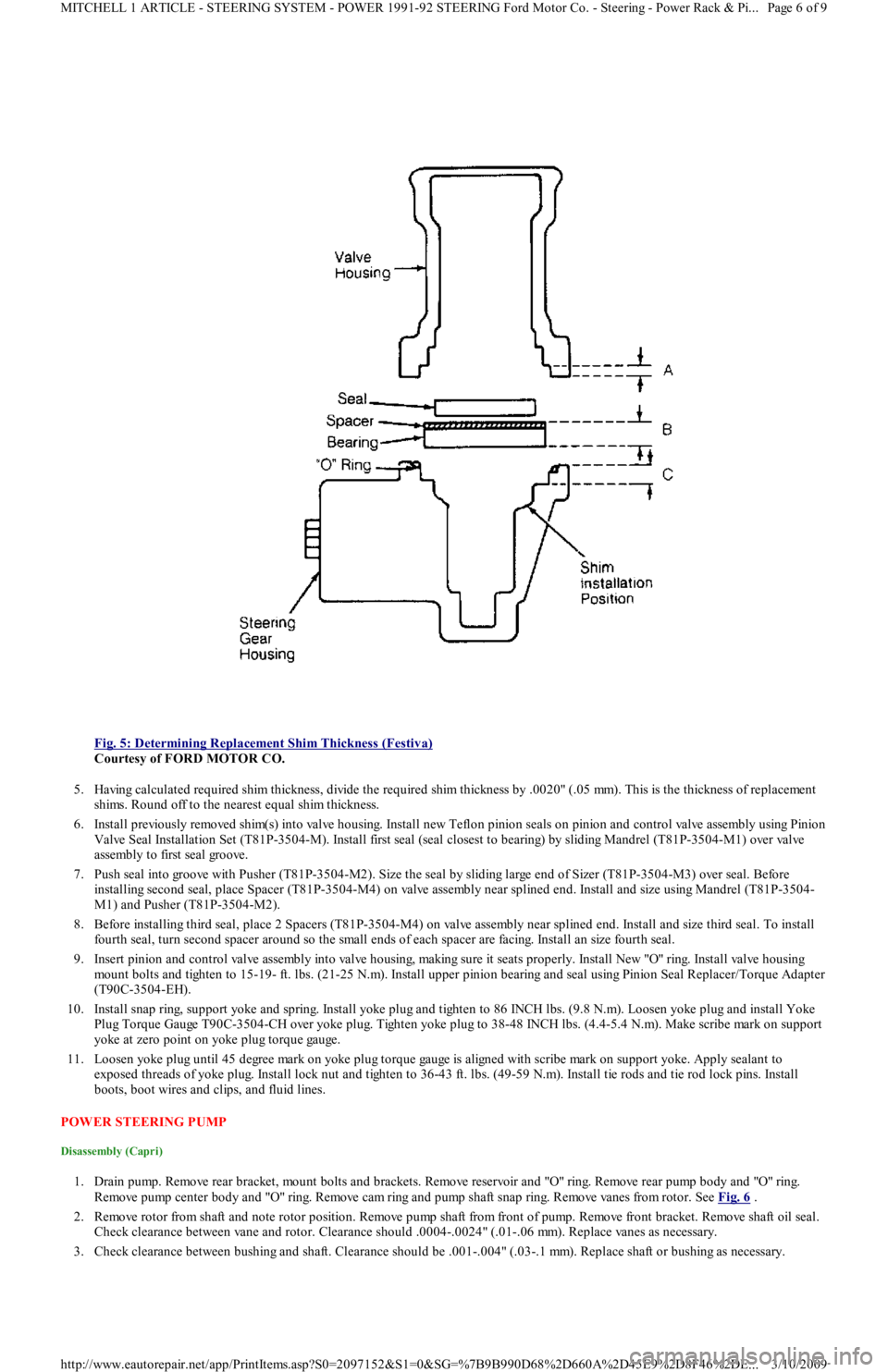

Fig. 5: Determining Replacement Shim Thickness (Festiva)

Courtesy of FORD MOTOR CO.
5. Having calculated required shim thickness, divide the required shim thickness by .0020" (.05 mm). This is the thickness of replacement
shims. Round off to the nearest equal shim thickness.
6. Install previously removed shim(s) into valve housing. Install new Teflon pinion seals on pinion and control valve assembly using Pinion
Valve Seal Installation Set (T81P-3504-M). Install first seal (seal closest to bearing) by sliding Mandrel (T81P-3504-M1) over va l ve
assembly to first seal groove.
7. Push seal into groove with Pusher (T81P-3504-M2). Size the seal by sliding large end of Sizer (T81P-3504-M3) over seal. Before
installing second seal, place Spacer (T81P-3504-M4) on valve assembly near splined end. Install and size using Mandrel (T81P-3504-
M1) and Pusher (T81P-3504-M2).
8. Before installing third seal, place 2 Spacers (T81P-3504-M4) on valve assembly near splined end. Install and size third seal. To install
fourth seal, turn second spacer around so the small ends of each spacer are facing. Install an size fourth seal.
9. Insert pinion and control valve assembly into valve housing, making sure it seats properly. Install New "O" ring. Install valve h o u sin g
mount bolts and tighten to 15-19- ft. lbs. (21-25 N.m). Install upper pinion bearing and seal using Pinion Seal Replacer/Torque Adapter
(T90C-3504-EH).
10. Install snap ring, support yoke and spring. Install yoke plug and tighten to 86 INCH lbs. (9.8 N.m). Loosen yoke plug and install Yoke
Plug Torque Gauge T90C-3504-CH over yoke plug. Tighten yoke plug to 38-48 INCH lbs. (4.4-5.4 N.m). Make scribe mark on support
yoke at zero point on yoke plug torque gauge.
11. Loosen yoke plug until 45 degree mark on yoke plug torque gauge is aligned with scribe mark on support yoke. Apply sealant to
exposed threads of yoke plug. Install lock nut and tighten to 36-43 ft. lbs. (49-59 N.m). Install tie rods and tie rod lock pins. Install
boots, boot wires and clips, and fluid lines.
POWER STEERING PUMP
Disassembly (Capri)
1. Drain pump. Remove rear bracket, mount bolts and brackets. Remove reservoir and "O" ring. Remove rear pump body and "O" ring.
Remove pump center body and "O" ring. Remove cam ring and pump shaft snap ring. Remove vanes from rotor. See Fig. 6
.
2. Remove rotor from shaft and note rotor position. Remove pump shaft from front of pump. Remove front bracket. Remove shaft oil seal.
Check clearance between vane and rotor. Clearance should .0004-.0024" (.01-.06 mm). Replace vanes as necessary.
3. Check clearance between bushing and shaft. Clearance should be .001-.004" (.03-.1 mm). Replace shaft or bushing as necessary.
Page 6 of 9 MITCHELL 1 ARTICLE - STEERING SYSTEM - POWER 1991-92 STEERING Ford Motor Co. - Steering - Power Rack & Pi
...
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

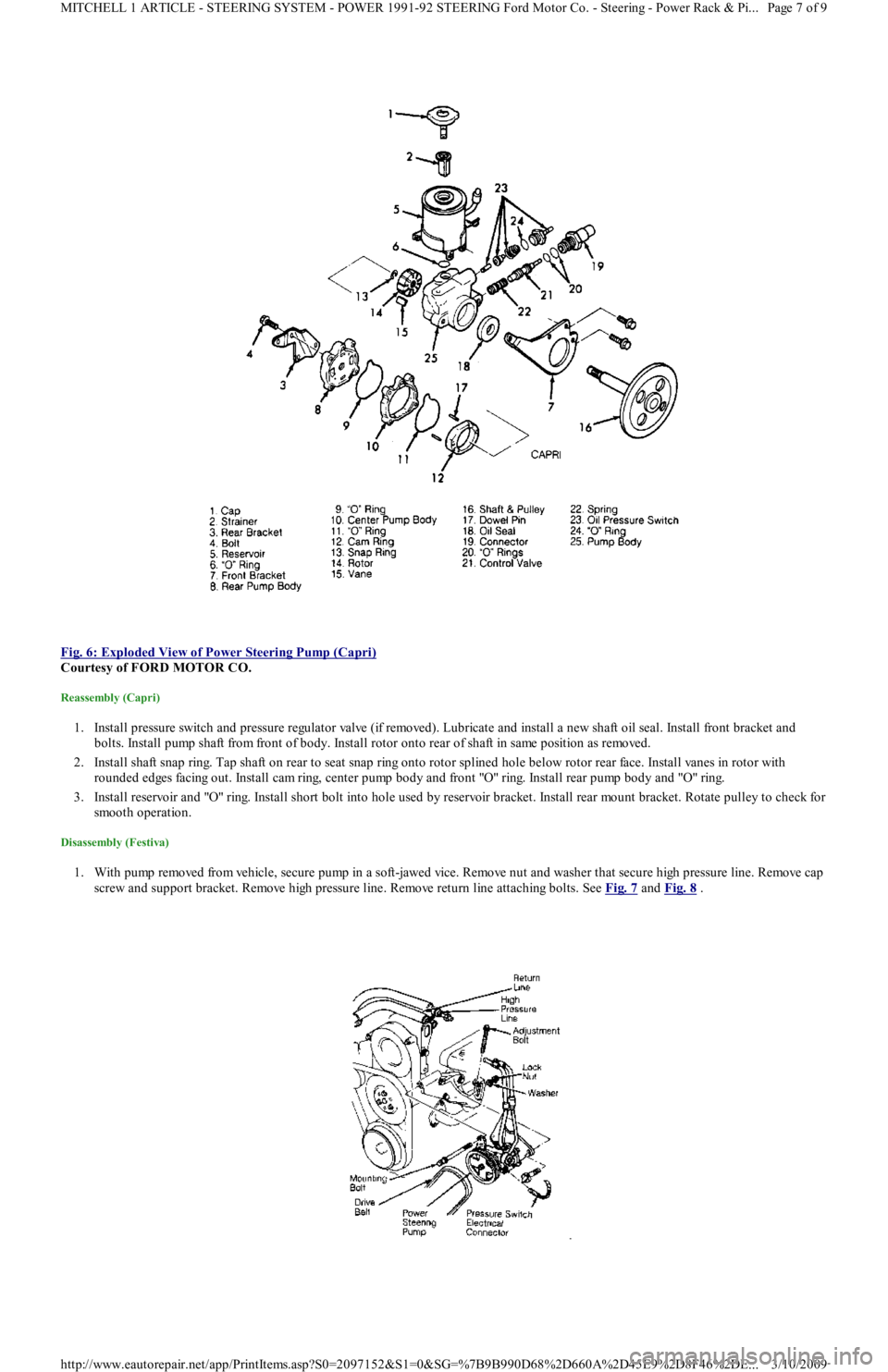

Fig. 6: Exploded View of Power Steering Pump (Capri)

Courtesy of FORD MOTOR CO.
Reassembly (Capri)
1. Install pressure switch and pressure regulator valve (if removed). Lubricate and install a new shaft oil seal. Install front bracket and
bolts. Install pump shaft from front of body. Install rotor onto rear of shaft in same position as removed.
2. Install shaft snap ring. Tap shaft on rear to seat snap ring onto rotor splined hole below rotor rear face. Install vanes in rotor with
rounded edges facing out. Install cam ring, center pump body and front "O" ring. Install rear pump body and "O" ring.
3. Install reservoir and "O" ring. Install short bolt into hole used by reservoir bracket. Install rear mount bracket. Rotate pulley to check for
smooth operation.
Disassembly (Festiva)
1. With pump removed from vehicle, secure pump in a soft-jawed vice. Remove nut and washer that secure high pressure line. Remove cap
screw and support bracket. Remove high pressure line. Remove return line attaching bolts. See Fig. 7
and Fig. 8 .

Page 7 of 9 MITCHELL 1 ARTICLE - STEERING SYSTEM - POWER 1991-92 STEERING Ford Motor Co. - Steering - Power Rack & Pi
...
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

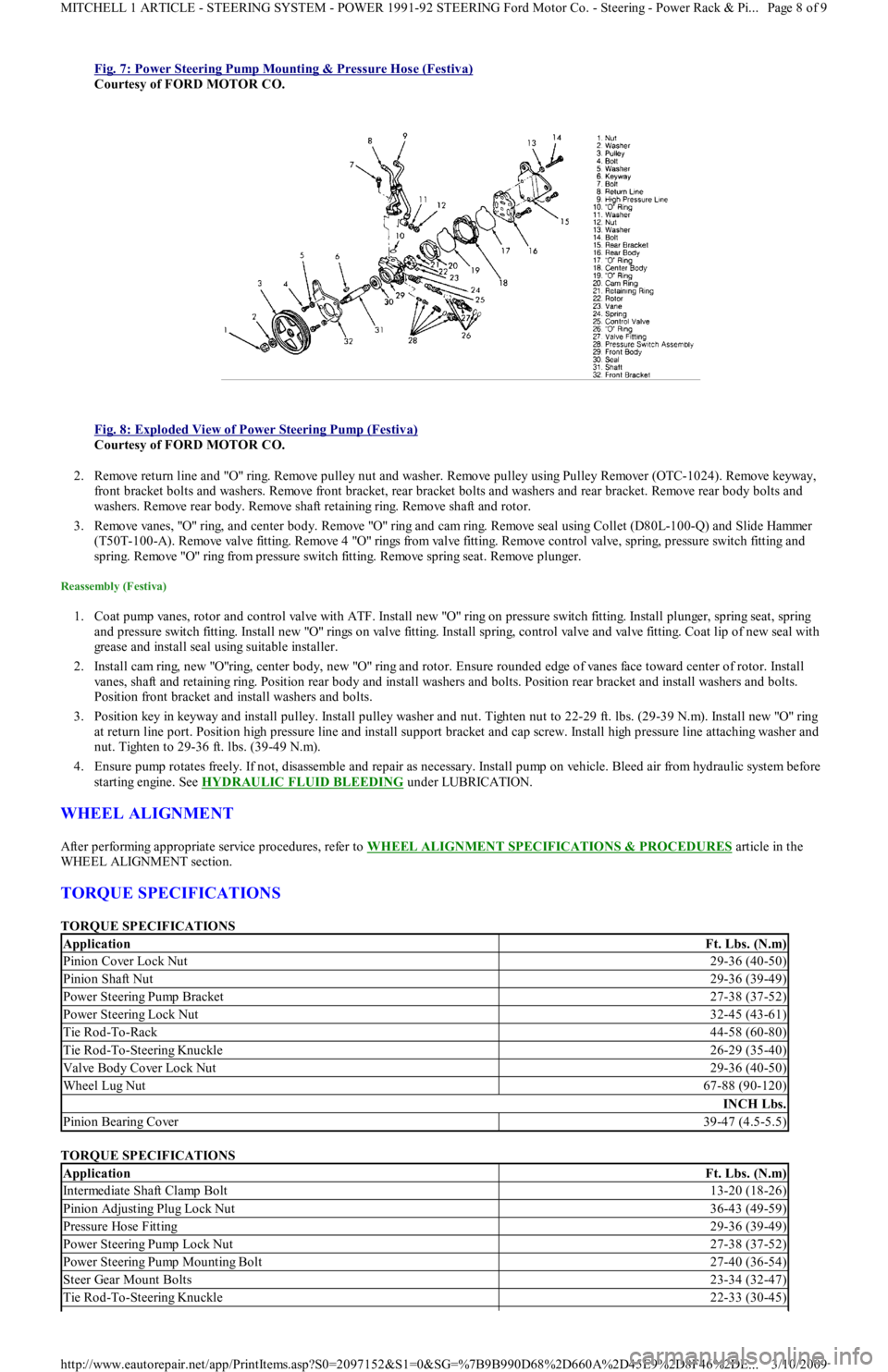

Fig. 7: Power Steering Pump Mounting & Pressure Hose (Festiva)
Courtesy of FORD MOTOR CO.

Fig. 8: Exploded View of Power Steering Pump (Festiva)

Courtesy of FORD MOTOR CO.
2. Remove return line and "O" ring. Remove pulley nut and washer. Remove pulley using Pulley Remover (OTC-1024). Remove keyway,
front bracket bolts and washers. Remove front bracket, rear bracket bolts and washers and rear bracket. Remove rear body bolts and
washers. Remove rear body. Remove shaft retaining ring. Remove shaft and rotor.
3. Remove vanes, "O" ring, and center body. Remove "O" ring and cam ring. Remove seal using Collet (D80L-100-Q) and Slide Hammer
( T5 0 T- 1 0 0 - A) . R e mo ve va l ve fit t in g. R e mo ve 4 "O" r in gs fr o m va l ve fit t in g. R e mo ve c o n t r o l va l ve , sp r in g, p r e ssu r e swit c h fit t ing a n d
spring. Remove "O" ring from pressure switch fitting. Remove spring seat. Remove plunger.
Reassembly (Festiva)
1. Coat pump vanes, rotor and control valve with ATF. Install new "O" ring on pressure switch fitting. Install plunger, spring seat, spring
and pressure switch fitting. Install new "O" rings on valve fitting. Install spring, control valve and valve fitting. Coat lip of new seal with
grease and install seal using suitable installer.
2. Install cam ring, new "O"ring, center body, new "O" ring and rotor. Ensure rounded edge of vanes face toward center of rotor. In st al l
vanes, shaft and retaining ring. Position rear body and install washers and bolts. Position rear bracket and install washers and bolts.
Position front bracket and install washers and bolts.
3. Position key in keyway and install pulley. Install pulley washer and nut. Tighten nut to 22-29 ft. lbs. (29-39 N.m). Install new "O" ring
at return line port. Position high pressure line and install support bracket and cap screw. Install high pressure line attaching washer and
nut. Tighten to 29-36 ft. lbs. (39-49 N.m).
4. Ensure pump rotates freely. If not, disassemble and repair as necessary. Install pump on vehicle. Bleed air from hydraulic system before
starting engine. See HYDRAULIC FLUID BLEEDING
under LUBRICATION.
WHEEL ALIGNMENT
After performing appropriate service procedures, refer to WHEEL ALIGNMENT SPECIFICATIONS & PROCEDURES article in the
WHEEL ALIGNMENT section.
TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS
ApplicationFt. Lbs. (N.m)
Pinion Cover Lock Nut29-36 (40-50)
Pinion Shaft Nut29-36 (39-49)
Power Steering Pump Bracket27-38 (37-52)
Power Steering Lock Nut32-45 (43-61)
Tie Rod-To-Rack44-58 (60-80)
Tie Rod-To-Steering Knuckle26-29 (35-40)
Valve Body Cover Lock Nut29-36 (40-50)
Wheel Lug Nut67-88 (90-120)
INCH Lbs.
Pinion Bearing Cover39-47 (4.5-5.5)
ApplicationFt. Lbs. (N.m)
Intermediate Shaft Clamp Bolt13-20 (18-26)
Pinion Adjusting Plug Lock Nut36-43 (49-59)
Pressure Hose Fitting29-36 (39-49)
Power Steering Pump Lock Nut27-38 (37-52)
Power Steering Pump Mounting Bolt27-40 (36-54)
Steer Gear Mount Bolts23-34 (32-47)
Tie Rod-To-Steering Knuckle22-33 (30-45)
Page 8 of 9 MITCHELL 1 ARTICLE - STEERING SYSTEM - POWER 1991-92 STEERING Ford Motor Co. - Steering - Power Rack & Pi
...
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

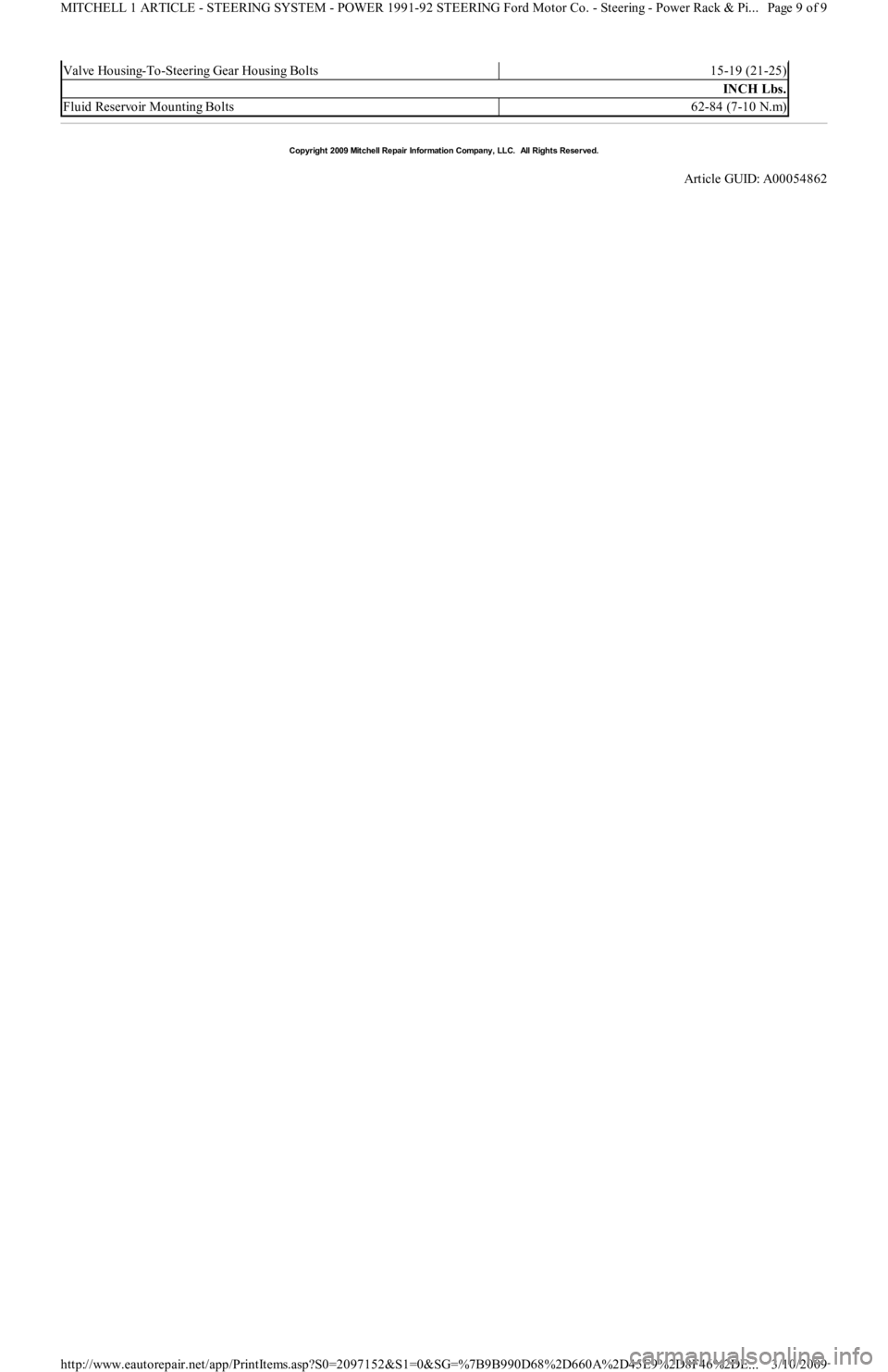

Valve Housing-To-Steering Gear Housing Bolts15-19 (21-25)
INCH Lbs.
Fluid Reservoir Mounting Bolts62-84 (7-10 N.m)
Copyr ight 2009 Mitchell Repair Information Company, LLC. All Rights Reserved.
Article GUID: A00054862
Page 9 of 9 MITCHELL 1 ARTICLE - STEERING SYSTEM - POWER 1991-92 STEERING Ford Motor Co. - Steering - Power Rack & Pi
...
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

Back To Article
ST EERING COLUMN
1991 ST EERING Ford Motor Co. - Steering Colum ns
DESCRIPTION
The steering column assembly consists of a steering shaft, steering shaft tube, upper and lower bearings, mounting brackets, ignition lock and
combination switch assembly.

Fig. 1: Exploded View of External Steering Column Assembly (Typical)

Courtesy of FORD MOTOR CO.
TROUBLE SHOOTING
Refer to TROUBLE SHOOTING - BASIC PROCEDURES article in the GENERAL TROUBLE SHOOTING section.
REMOVAL & INSTALLATION
STEERING WHEEL & HORN PAD
Removal & Installation (Capri)
1. Disconnect negative battery cable and air bag back-up power supply. Back-up power supply is a Blue rectangular unit located behind
glove box, attached to instrument panel. Remove 4 mount nuts from back of steering wheel and remove air bag module.
2. Disconnect air bag module connector. Loosen steering wheel nut 4-6 turns. Using Steering Wheel Remover (T67L-3600-A), remove
steering wheel. To install, reverse removal procedure.
Removal & Installation (Festiva)
Remove 2 screws from back of steering wheel. Disconnect horn wire and remove cover. Remove steering wheel retaining nut. Mark steering
wheel and steering shaft. Using Steering Wheel Remover (T67L-3600-A), remove steering wheel. To install, reverse removal procedure.
COMBINATION SW ITCH NOTE:Steering colum n is not repairable and m ust be replaced as a unit.
WARNING:On m odels with Supplem ental Restraint System (SRS), observe the following precautions. Before any
repairs are perform ed, disconnect and shield battery ground cable and air bag back-up power supply.
Back-up power supply is a Blue rectangular unit located behind glove box, attached to instrum ent
panel.
CAUT ION: DO NOT use a knock-off type steering wheel puller or strike steering wheel or shaft with a
ham m er. Sudden im pact could dam age a bearing or begin to collapse steering colum n.
Page 1 of 4 MITCHELL 1 ARTICLE - STEERING COLUMN 1991 STEERING Ford Motor Co. - Steering Columns
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

Removal & Installation (Capri)
Disconnect negative battery cable. With steering wheel removed, remove screws from lower column cover and remove lower cover. Remove
steering column upper retaining bolts. Steering column will rest on instrument panel bracket. Release wiring harness clip and unplug
connectors. Remove 2 switch retaining screws and remove switch from steering column. To install, reverse removal procedure.
Removal & Installation (Festiva)
Disconnect negative battery cable. With steering wheel removed, remove screws from lower column cover and remove both upper and lower
cover. Release wiring harness clip and unplug connectors. Loosen band clamp securing switch hub to steering column jacket. Remove swit c h
from steering column. To install, reverse removal procedure.
IGNITION SWITCH & LOCK
Removal & Installation (Capri Ignition Switch)
1. Disconnect negative battery cable. With steering wheel removed, remove upper and lower column covers. Remove center access panel
and trim panel under steering wheel. Remove left side defroster connector tube.
2. Remove steering column upper attaching bolts. Lower steering column onto instrument panel brace. Remove ignition tumbler. With
ignition key inserted, rotate tumbler while pushing release pin with .125" (3.17 mm) drift. Pull tumbler out of ignition lock housing.
3. Remove column lock shield. Disconnect switch harness connector. Remove single retaining screw. Remove ignition switch. See Fig. 2
.
Reverse removal procedures to complete installation.
Removal & Installation (Festiva Ignition Switch)
1. Disconnect negative battery cable. With steering wheel removed, remove screws from lower column cover and remove both upper and
lower covers. Remove steering column shield and shield bracket. Remove air discharge tube.
2. Remove steering column attaching nuts and lower the steering column support bracket. Remove single retaining screw from top side of
ignition switch. Remove ignition switch wiring harness and ignition switch. See Fig. 2
.

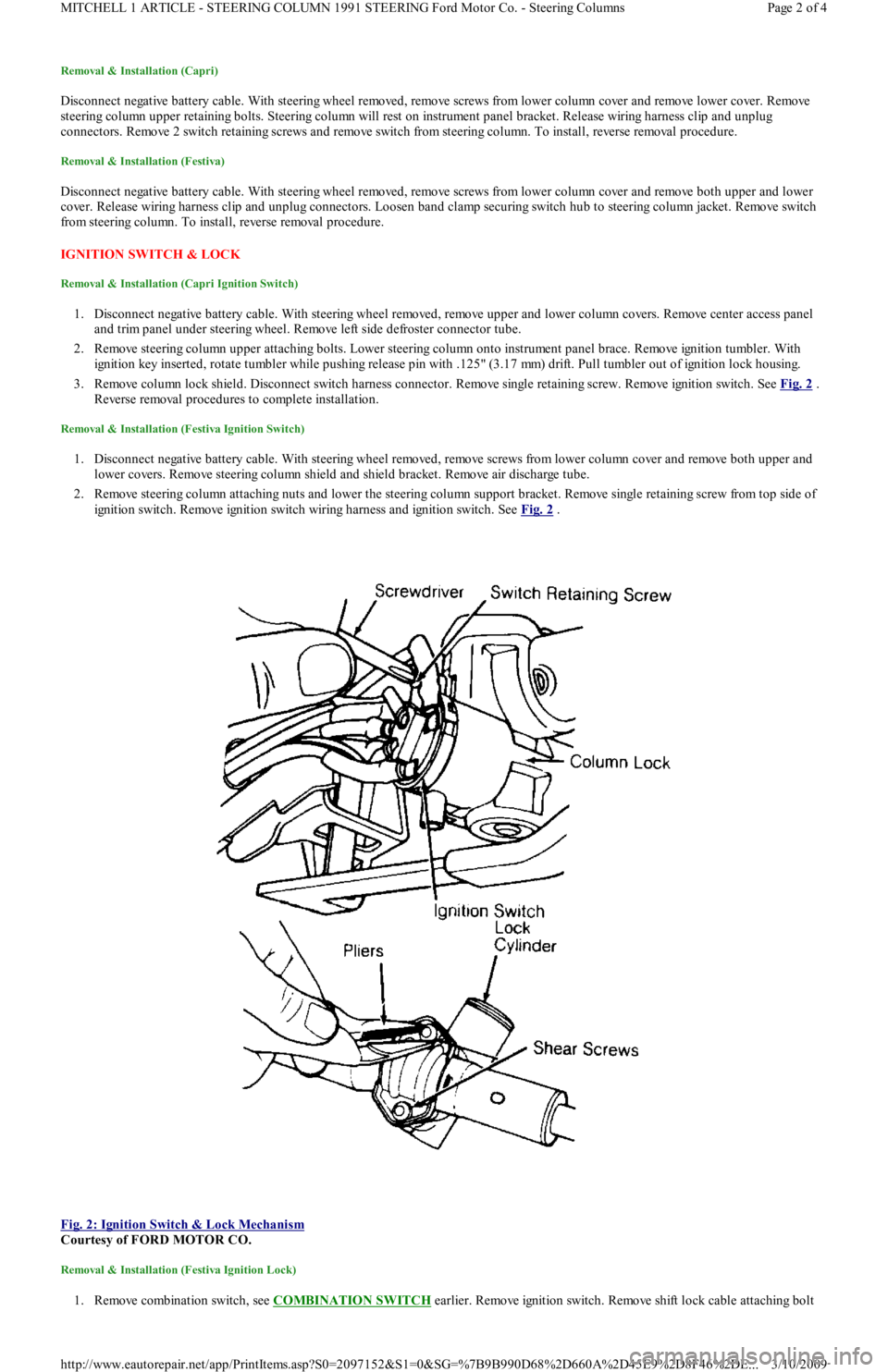

Fig. 2: Ignition Switch & Lock Mechanism

Courtesy of FORD MOTOR CO.
Removal & Installation (Festiva Ignition Lock)
1. Remove combination switch, see COMBINATION SW ITCH earlier. Remove ignition switch. Remove shift lock cable attaching bolt
Page 2 of 4 MITCHELL 1 ARTICLE - STEERING COLUMN 1991 STEERING Ford Motor Co. - Steering Columns
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

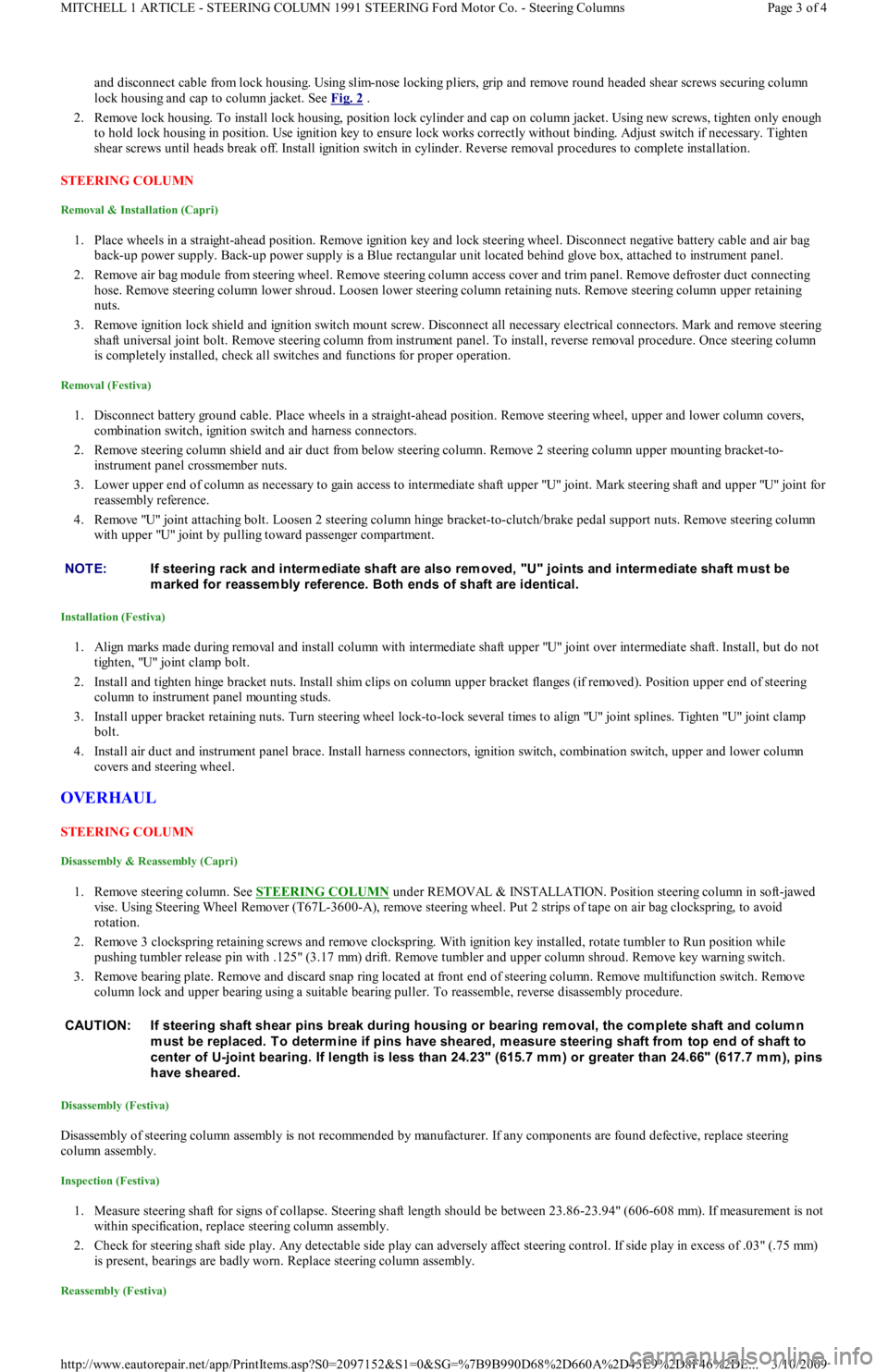

and disconnect cable from lock housing. Using slim-nose locking pliers, grip and remove round headed shear screws securing column
lock housing and cap to column jacket. See Fig. 2
.
2. Remove lock housing. To install lock housing, position lock cylinder and cap on column jacket. Using new screws, tighten only enough
to hold lock housing in position. Use ignition key to ensure lock works correctly without binding. Adjust switch if necessary. Tighten
shear screws until heads break off. Install ignition switch in cylinder. Reverse removal procedures to complete installation.
STEERING COLUMN
Removal & Installation (Capri)
1. Place wheels in a straight-ahead position. Remove ignition key and lock steering wheel. Disconnect negative battery cable and air bag
back-up power supply. Back-up power supply is a Blue rectangular unit located behind glove box, attached to instrument panel.
2. Remove air bag module from steering wheel. Remove steering column access cover and trim panel. Remove defroster duct connecting
hose. Remove steering column lower shroud. Loosen lower steering c o l u mn r e t a in in g n u t s. R e mo ve st e e r in g c o l u mn u p p e r r e t a in in g
nuts.
3. Remove ignition lock shield and ignition switch mount screw. Disconnect all necessary electrical connectors. Mark and remove steering
shaft universal joint bolt. Remove steering column from instrument panel. To install, reverse removal procedure. Once steering column
is completely installed, check all switches and functions for proper operation.
Removal (Festiva)
1. Disconnect battery ground cable. Place wheels in a straight-ahead position. Remove steering wheel, upper and lower column covers,
combination switch, ignition switch and harness connectors.
2. Remove steering column shield and air duct from below steering column. Remove 2 steering column upper mounting bracket-to-
instrument panel crossmember nuts.
3. Lower upper end of column as necessary to gain access to intermediate shaft upper "U" joint. Mark steering shaft and upper "U" jo in t fo r
reassembly reference.
4. Remove "U" joint attaching bolt. Loosen 2 steering column hinge bracket-to-clutch/brake pedal support nuts. Remove steering column
with upper "U" joint by pulling toward passenger compartment.
Installation (Festiva)
1. Align marks made during removal and install column with intermediate shaft upper "U" joint over intermediate shaft. Install, but do not
tighten, "U" joint clamp bolt.
2. Install and tighten hinge bracket nuts. Install shim clips on column upper bracket flanges (if removed). Position upper end of steering
column to instrument panel mounting studs.
3. Install upper bracket retaining nuts. Turn steering wheel lock-to-lock several times to align "U" joint splines. Tighten "U" joint clamp
bolt.
4. Install air duct and instrument panel brace. Install harness connectors, ignition switch, combination switch, upper and lower column
covers and steering wheel.
OVERHAUL
STEERING COLUMN
Disassembly & Reassembly (Capri)
1. Remove steering column. See STEERING COLUMN under REMOVAL & INSTALLATION. Position steering column in soft-jawed
vise. Using Steering Wheel Remover (T67L-3600-A), remove steering wheel. Put 2 strips of tape on air bag clockspring, to avoid
rotation.
2. Remove 3 clockspring retaining screws and remove clockspring. With ignition key installed, rotate tumbler to Run position while
pushing tumbler release pin with .125" (3.17 mm) drift. Remove tumbler and upper column shroud. Remove key warning switch.
3. Remove bearing plate. Remove and discard snap ring located at front end of steering column. Remove multifunction switch. Remove
column lock and upper bearing using a suitable bearing puller. To reassemble, reverse disassembly procedure.
Disassembly (Festiva)
Disassembly of steering column assembly is not recommended by manufacturer. If any components are found defective, replace steering
column assembly.
Inspection (Festiva)
1. Measure steering shaft for signs of collapse. Steering shaft length should be between 23.86-23.94" (606-608 mm). If measurement is not
within specification, replace steering column assembly.
2. Check for steering shaft side play. Any detectable side play can adversely affect steering control. If side play in excess of .03" (.75 mm)
is present, bearings are badly worn. Replace steering column assembly.
Reassembly (Festiva)
NOTE:If steering rack and interm ediate shaft are also rem oved, "U" joints and interm ediate shaft m ust be
m arked for reassem bly reference. Both ends of shaft are identical.
CAUT ION: If steering shaft shear pins break during housing or bearing rem oval, the com plete shaft and colum n
m ust be replaced. T o determ ine if pins have sheared, m easure steering shaft from top end of shaft to
center of U-
joint bearing. If length is less than 24.23" (615.7 m m ) or greater than 24.66" (617.7 m m ), pins
have sheared.
Page 3 of 4 MITCHELL 1 ARTICLE - STEERING COLUMN 1991 STEERING Ford Motor Co. - Steering Columns
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

To reassemble, reverse disassembly procedure.

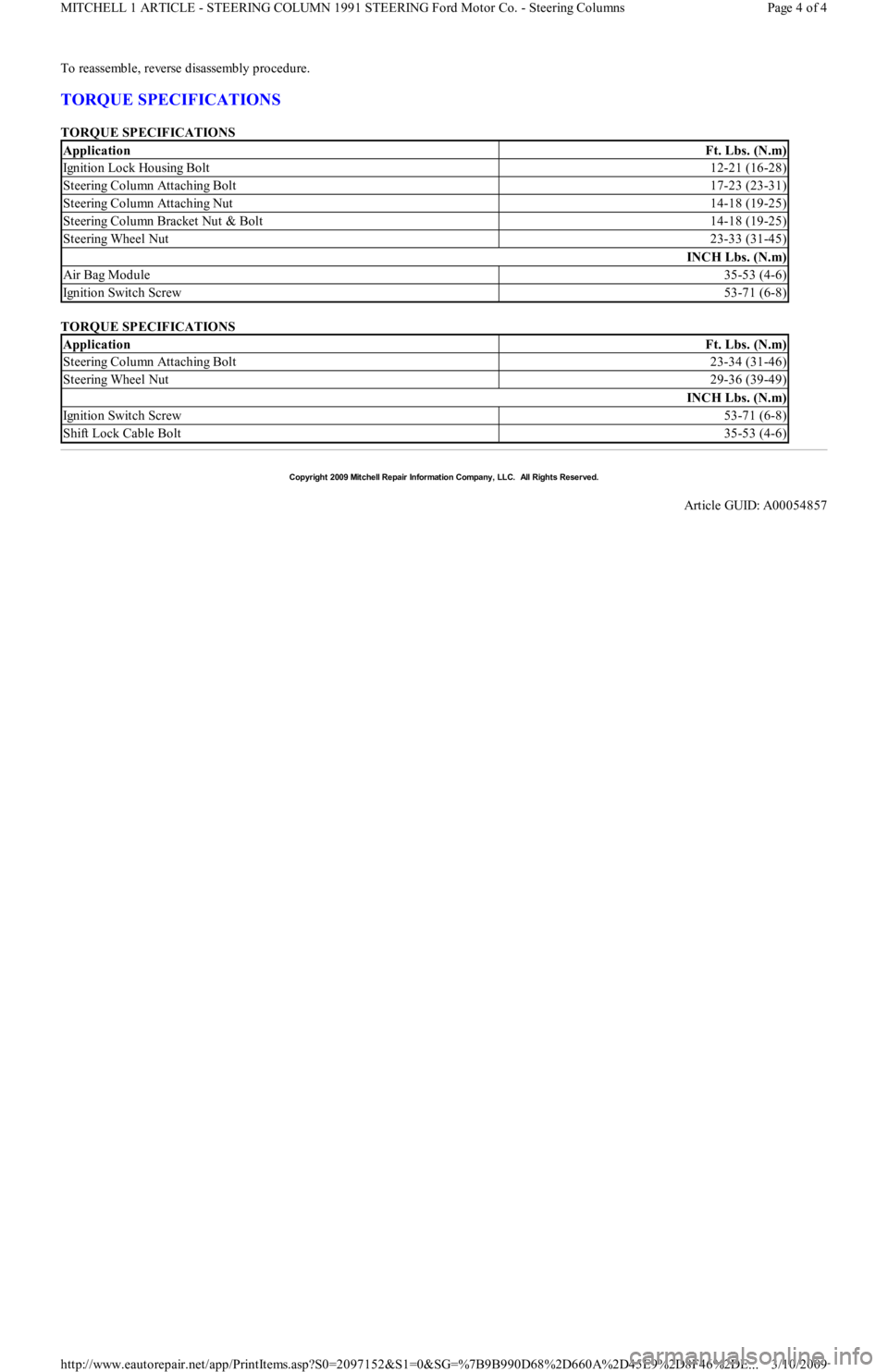

TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS
ApplicationFt. Lbs. (N.m)
Ignition Lock Housing Bolt12-21 (16-28)
Steering Column Attaching Bolt17-23 (23-31)
Steering Column Attaching Nut14-18 (19-25)
Steering Column Bracket Nut & Bolt14-18 (19-25)
Steering Wheel Nut23-33 (31-45)
INCH Lbs. (N.m)
Air Bag Module35-53 (4-6)
Ignition Switch Screw53-71 (6-8)
ApplicationFt. Lbs. (N.m)
Steering Column Attaching Bolt23-34 (31-46)
Steering Wheel Nut29-36 (39-49)
INCH Lbs. (N.m)
Ignition Switch Screw53-71 (6-8)
Shift Lock Cable Bolt35-53 (4-6)
Copyr ight 2009 Mitchell Repair Information Company, LLC. All Rights Reserved.
Article GUID: A00054857
Page 4 of 4 MITCHELL 1 ARTICLE - STEERING COLUMN 1991 STEERING Ford Motor Co. - Steering Columns
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...
