FORD MUSTANG 1969 Volume One Chassis

03-11-03

Eaton Power Steering Pump

03-11-03

POWER STEERING PUMP

DISASSEMBLY

A clean working area should be

used when overhauling the power

steering pump. Foreign matter picked

up on working parts may cause dam-

age or failure of the unit. Clean con-

tainers should be used for parts.

1.
Drain the fluid from the pump.

Remove the pump cover-to-housing

cap screws (Fig. 1). Place the pump

on the bench, cover side down. Lift

the housing from the cover.

2.
Remove the large and the small

O-rings from the pump cover. Remove

the O-ring from the pressure plate

hub.

3.
Remove the pressure plate-

to-cover screws, and remove the plate.

Lift the cam ring off the dowel pins.

4.
Remove the rollers. Lift the

rotor off the shaft, and remove the

drive key from the shaft. Remove the

dowel pins from the cover.

5.
Remove the rotor shaft from the

cover. Do not remove the snap ring

from the shaft unless it, or the shaft,

is damaged.

6. Pry the rotor shaft seals out of

the cover and the housing.

7. Do not disturb the control valve

unless diagnosis indicated a control

valve problem or foreign matter in the

valve. To remove the valve, drive the

roll pin out of the housing. Remove

the plug and O-ring, control valve,

and the spring. If the plug or valve is

stuck, tap the end of the housing on a

piece of wood or tap it with a soft-

faced hammer. Remove the O-ring

from the plug.

ASSEMBLY

Apply automatic transmission fluid

to all parts as they are assembled. Al-

ways use new seals and O-rings.

1.
Install the control valve spring in

the housing. Install the valve with the

small sensing hole in the end of the

valve toward the spring. Install a new

O-ring on the plug. The plug O-ring is

1/8 inch smaller in diameter than the

bypass O-ring. Make sure the proper

O-ring is used. Install the plug and a

new roll pin (Fig. 1).

2.
The rotor shaft oil seals are in-

stalled in the cover and the housing

with Tool 3583-J, which consists of a

driver and an adapter. The procedure

is as follows:

a. Support the cover on wood

blocks (Fig. 2) to provide tool clear-

ance.
Use clean blocks that will not

nick or damage the inner face of the

cover.
b.
Start the seal (metal shell up-

ward) square!y into the bore with fin-

ger pressure. Place the adapter on the

driver with the square corner of the

FIG. 2—Preparation for Installing

Rotor Shaft Seals

adapter toward the seal (Fig. 2). Drive

the seal into the cover, as shown in

Fig. 3, until it bottoms.

Driving the seal beyond this point

can damage it. Install the seal in the

pump housing in the same manner.

3.
Install the rotor shaft in the

FIG. 3—Installing Rotor

Shaft Seals
cover as shown in Fig. 4 to prevent

damage to the seal.

4.
Install the dowel pins in the

cover. Place the rotor drive key in the

shaft. Install the rotor on the shaft

with the drive key groove aligned with

the key and the counterbored side of

the rotor toward the cover so that it

goes over the snap ring.

5.
Place the cam ring on the dowel

pins with the chamfered edge upward

(Fig. 5). Place the rollers in the rotor.

6. Place the pressure plate on the

dowel pins. Install and tighten the

screws to 20 in-lbs torque. Install the

O-ring on the pressure plate hub. In-

stall O-rings in the groove at the fluid

bypass hole and around the cam ring

(Fig. 6).

7.
Place the tool shown in Fig. 6 in

the rotor shaft to prevent damage to

the oil seal, then install the housing on

the cover. Install and torque the cap

screws to 15-20 ft-lbs.

FIG. 5—Cam Ring Installation

FIG. 4—Installing Rotor Shaft

in Cover

FIG. 6—O-Ring Installationprocarmanuals.com

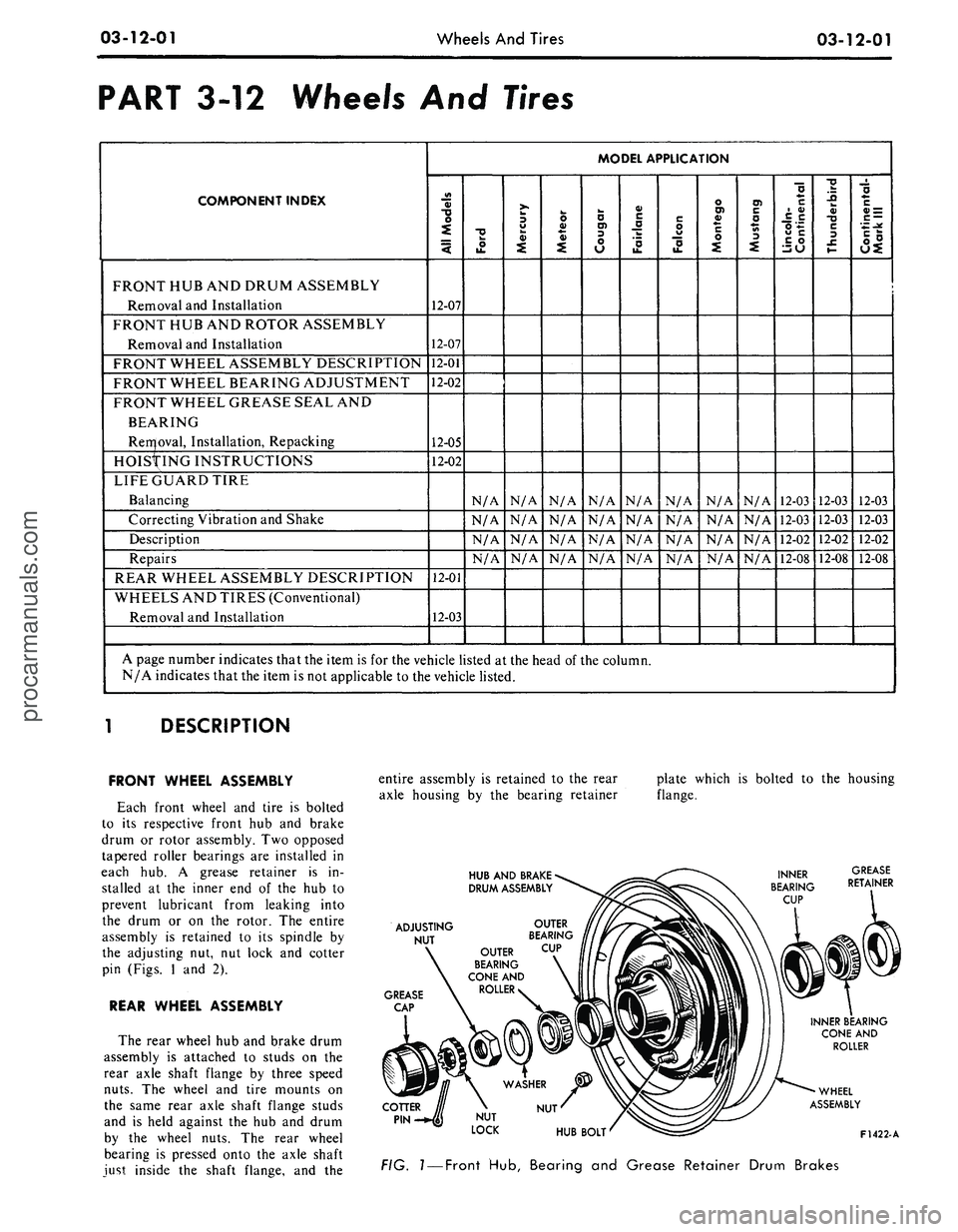

03-12-01

Wheels
And
Tires

03-12-01

PART
3-12
Wheels
And
Tires

COMPONENT INDEX

FRONT
HUB AND
DRUM ASSEMBLY

Removal
and
Installation

FRONT
HUB AND
ROTOR ASSEMBLY

Removal
and
Installation

FRONT WHEEL ASSEMBLY DESCRIPTION

FRONT WHEEL BEARING ADJUSTMENT

FRONT WHEEL GREASE SEAL
AND

BEARING

Removal, Installation, Repacking

HOISTING INSTRUCTIONS

LIFE GUARD TIRE

Balancing

Correcting Vibration
and
Shake

Description

Repairs

REAR WHEEL ASSEMBLY DESCRIPTION

WHEELS AND TIRES (Conventional)

Removal
and
Installation
MODEL APPLICATION
All
Models

12-07

12-07

12-01

12-02

12-05

12-02

12-01

12-03
Ford
N/A

N/A

N/A

N/A
Mercury
N/A

N/A

N/A

N/A
Meteor
N/A

N/A

N/A

N/A
Cougar
N/A

N/A

N/A

N/A
Fairlane
N/A

N/A

N/A

N/A
Falcon
N/A

N/A

N/A

N/A
Montego
N/A

N/A

N/A

N/A
Mustang
N/A

N/A

N/A

N/A
Lincoln-
Continental
12-03

12-03

12-02

12-08
Thunderbird
12-03

12-03

12-02

12-08
Continental-
Mark
III
12-03

12-03

12-02

12-08

A page number indicates that
the
item
is for the
vehicle listed
at the
head
of the
column.

N/A indicates that
the
item
is not
applicable
to the
vehicle listed.

DESCRIPTION

FRONT WHEEL ASSEMBLY

Each front wheel
and
tire
is
bolted

to
its
respective front
hub and
brake

drum
or
rotor assembly.
Two
opposed

tapered roller bearings
are
installed
in

each
hub. A
grease retainer
is in-

stalled
at the
inner
end of the hub to

prevent lubricant from leaking into

the drum
or on the
rotor.
The
entire

assembly
is
retained
to its
spindle
by

the adjusting
nut, nut
lock
and
cotter

pin (Figs.
1 and 2).

REAR WHEEL ASSEMBLY

The rear wheel
hub and
brake drum

assembly
is
attached
to
studs
on the

rear axle shaft flange
by
three speed

nuts.
The
wheel
and
tire mounts
on

the same rear axle shaft flange studs

and
is
held against
the hub and
drum

by
the
wheel nuts.
The
rear wheel

bearing
is
pressed onto
the
axle shaft

just inside
the
shaft flange,
and the
entire assembly
is
retained
to the
rear

axle housing
by the
bearing retainer

HUB
AND
BRAKE

DRUM
ASSEMBLY
plate which
is
bolted
to the
housing

flange.

ADJUSTING

NUT

GREASE

CAP
OUTER

BEARING

OUTER
CUP

BEARING

CONE
AND

ROLLER

NUT
INNER BEARING

CONE
AND

ROLLER

WHEEL

ASSEMBLY

HUB
BOLT'
^£=3^
F1422-A

FIG.
1
—
Front
Hub,
Bearing
and
Grease Retainer Drum Brakes
procarmanuals.com

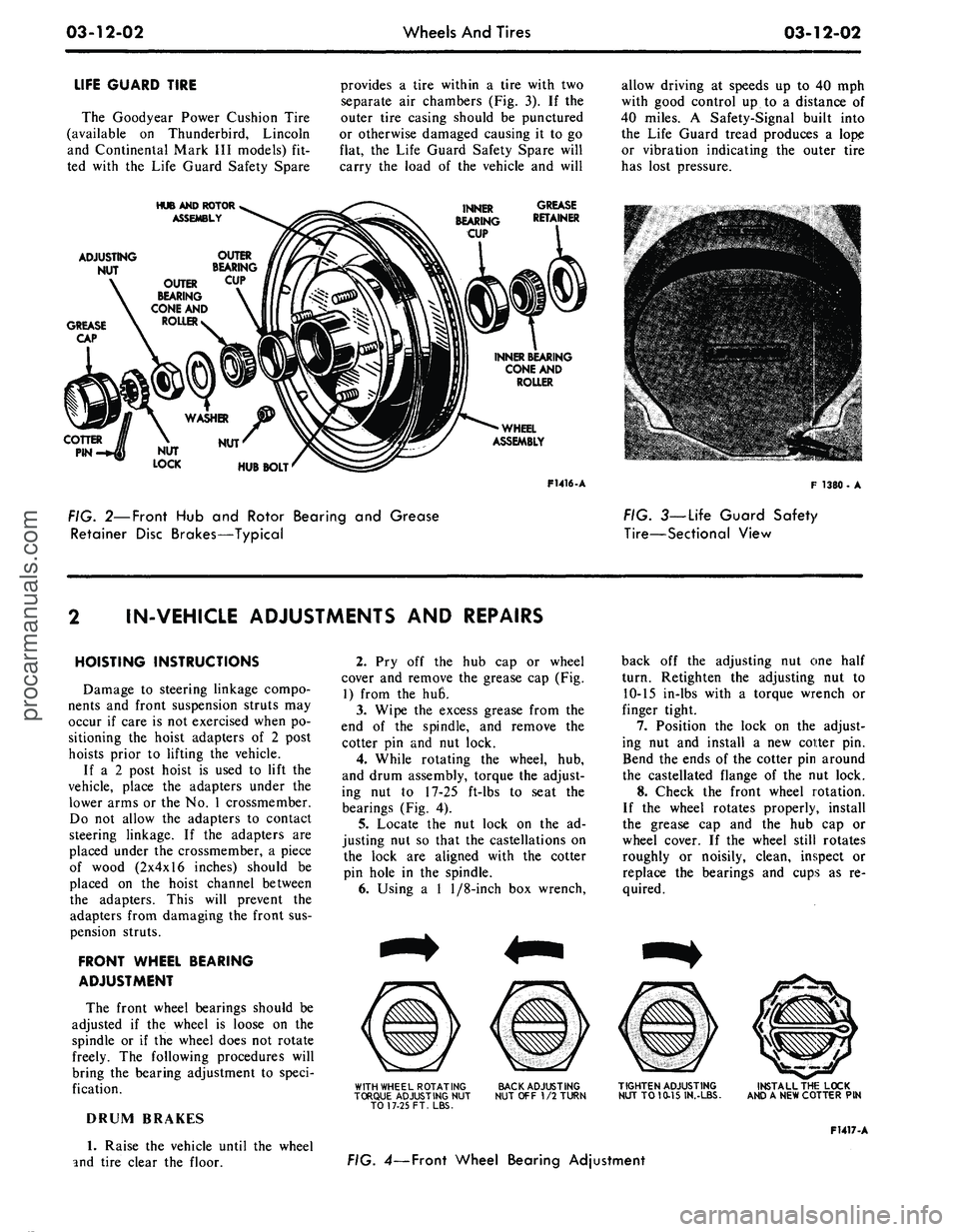

03-12-02
Wheels
And
Tires

03-12-02

LIFE GUARD TIRE

The Goodyear Power Cushion Tire

(available
on
Thunderbird, Lincoln

and Continental Mark
III
models)
fit-

ted with
the
Life Guard Safety Spare
provides
a
tire within
a
tire with
two

separate
air
chambers
(Fig.
3). If the

outer tire casing should
be
punctured

or otherwise damaged causing
it to go

flat,
the
Life Guard Safety Spare will

carry
the
load
of the
vehicle
and
will
allow driving
at
speeds
up to 40 mph

with good control
up to a
distance
of

40 miles.
A
Safety-Signal built into

the Life Guard tread produces
a
lope

or vibration indicating
the
outer tire

has lost pressure.

HUB AND ROTOR

ASSEMBLY
INNER

BEARING

CUP
GREASE

RETAINER

ADJUSTING

NUT

OUTER

BEARING

CONE
AND

ROLLER

INNER BEARING

CONE
AND

ROLLER

WHEEL

ASSEMBLY

F1416-A

F- 1380 •
A

FIG. 2—Front
Hub and
Rotor Bearing
and
Grease

Retainer Disc Brakes—Typical
FIG. 3—Life Guard Safety

Tire—Sectional View

IN-VEHICLE ADJUSTMENTS AND REPAIRS

HOISTING INSTRUCTIONS

Damage
to
steering linkage compo-

nents
and
front suspension struts
may

occur
if
care
is
not
exercised when
po-

sitioning
the
hoist adapters
of 2
post

hoists prior
to
lifting
the
vehicle.

If
a 2
post hoist
is
used
to
lift
the

vehicle, place
the
adapters under
the

lower arms
or
the No. 1
crossmember.

Do
not
allow
the
adapters
to
contact

steering linkage.
If the
adapters
are

placed under
the
crossmember,
a
piece

of wood (2x4x16 inches) should
be

placed
on the
hoist channel between

the adapters. This will prevent
the

adapters from damaging
the
front
sus-

pension struts.

FRONT WHEEL BEARING

ADJUSTMENT

The front wheel bearings should
be

adjusted
if the
wheel
is
loose
on the

spindle
or if the
wheel does
not
rotate

freely.
The
following procedures will

bring
the
bearing adjustment
to
speci-

fication.

DRUM BRAKES

1.
Raise
the
vehicle until
the
wheel

and tire clear
the
floor.
2.
Pry off the hub cap or
wheel

cover
and
remove
the
grease
cap (Fig.

1) from
the hu6.

3.
Wipe
the
excess grease from
the

end
of the
spindle,
and
remove
the

cotter
pin and nut
lock.

4.
While rotating
the
wheel,
hub,

and drum assembly, torque
the
adjust-

ing
nut to 17-25
ft-lbs
to
seat
the

bearings
(Fig.
4).

5.
Locate
the nut
lock
on the ad-

justing
nut so
that
the
castellations
on

the lock
are
aligned with
the
cotter

pin hole
in the
spindle.

6. Using
a 1
1/8-inch
box
wrench,

WITH WHEEL ROTATING

TORQUE ADJUSTING
NUT

TO 17-25 FT. LBS.
BACK ADJUSTING

NUT
OFF
1/2
TURN
back
off the
adjusting
nut one
half

turn. Retighten
the
adjusting
nut to

10-15 in-lbs with
a
torque wrench
or

finger tight.

7.
Position
the
lock
on the
adjust-

ing
nut and
install
a new
cotter
pin.

Bend
the
ends
of
the
cotter
pin
around

the castellated flange
of the nut
lock.

8. Check
the
front wheel rotation.

If
the
wheel rotates properly, install

the grease
cap and the hub cap or

wheel cover.
If the
wheel still rotates

roughly
or
noisily, clean, inspect
or

replace
the
bearings
and
cups
as re-

quired.

TIGHTEN ADJUSTING

NUT
TO
10-15 IN.-LBS.
INSTALL THE LOCK

AND
A
NEW COTTER
PIN

F1417-A

FIG. 4— Front Wheel Bearing Adjustmentprocarmanuals.com

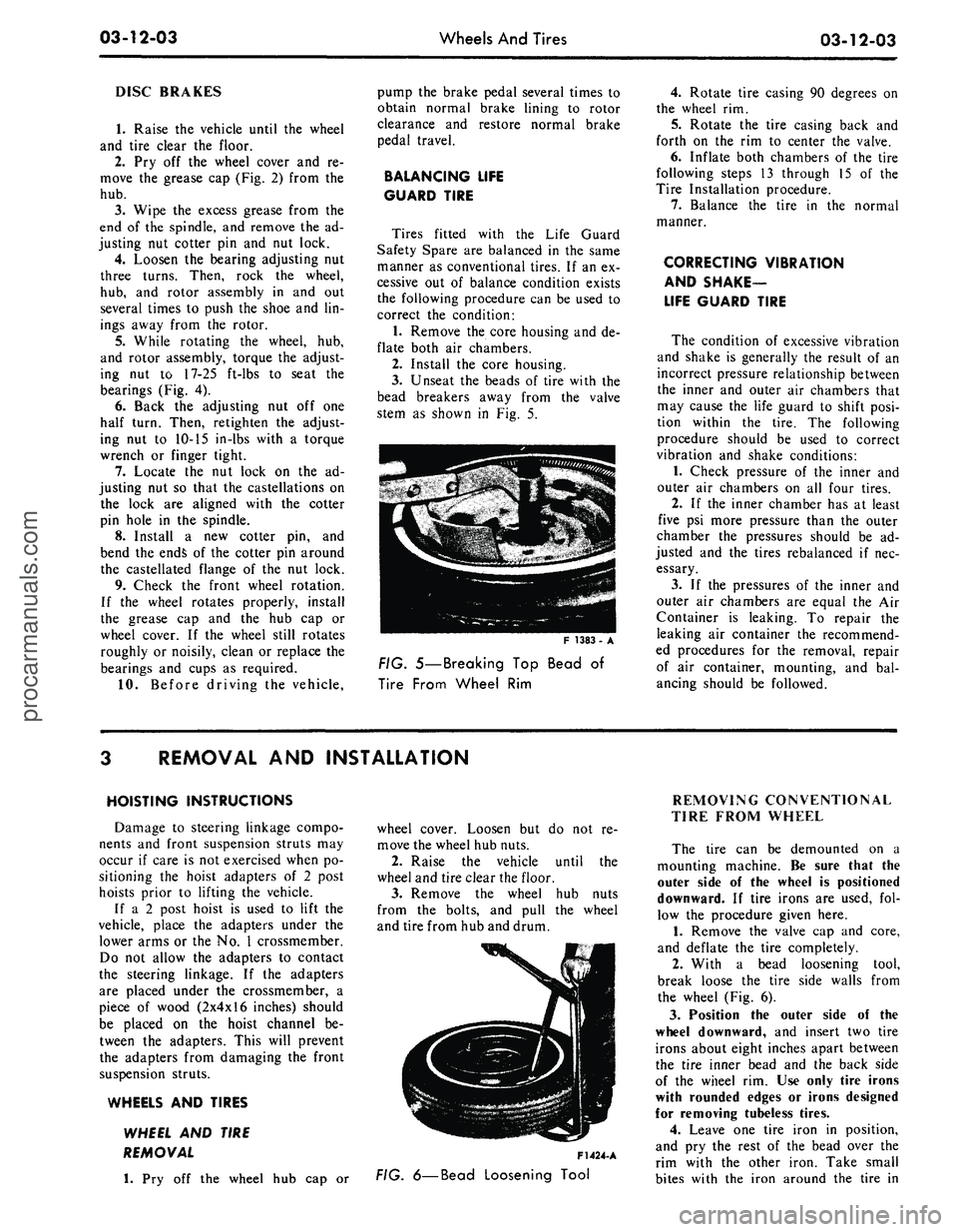

03-12-03

Wheels And Tires

03-12-03

DISC BRAKES

1.
Raise the vehicle until the wheel

and tire clear the floor.

2.
Pry off the wheel cover and re-

move the grease cap (Fig. 2) from the

hub.

3.
Wipe the excess grease from the

end of the spindle, and remove the ad-

justing nut cotter pin and nut lock.

4.
Loosen the bearing adjusting nut

three turns. Then, rock the wheel,

hub,
and rotor assembly in and out

several times to push the shoe and lin-

ings away from the rotor.

5.
While rotating the wheel, hub,

and rotor assembly, torque the adjust-

ing nut to 17-25 ft-lbs to seat the

bearings (Fig. 4).

6. Back the adjusting nut off one

half turn. Then, retighten the adjust-

ing nut to 10-15 in-lbs with a torque

wrench or finger tight.

7.
Locate the nut lock on the ad-

justing nut so that the castellations on

the lock are aligned with the cotter

pin hole in the spindle.

8. Install a new cotter pin, and

bend the ends of the cotter pin around

the castellated flange of the nut lock.

9. Check the front wheel rotation.

If the wheel rotates properly, install

the grease cap and the hub cap or

wheel cover. If the wheel still rotates

roughly or noisily, clean or replace the

bearings and cups as required.

10.
Before driving the vehicle,
pump the brake pedal several times to

obtain normal brake lining to rotor

clearance and restore normal brake

pedal travel.

BALANCING LIFE

GUARD TIRE

Tires fitted with the Life Guard

Safety Spare are balanced in the same

manner as conventional tires. If an ex-

cessive out of balance condition exists

the following procedure can be used to

correct the condition:

1.
Remove the core housing and de-

flate both air chambers.

2.
Install the core housing.

3.
Unseat the beads of tire with the

bead breakers away from the valve

stem as shown in Fig. 5.

F 1383

FIG. 5—Breaking Top Bead of

Tire From Wheel Rim
4.
Rotate tire casing 90 degrees on

the wheel rim.

5.
Rotate the tire casing back and

forth on the rim to center the valve.

6. Inflate both chambers of the tire

following steps 13 through 15 of the

Tire Installation procedure.

7.
Balance the tire in the normal

manner.

CORRECTING VIBRATION

AND SHAKE-

LIFE GUARD TIRE

The condition of excessive vibration

and shake is generally the result of an

incorrect pressure relationship between

the inner and outer air chambers that

may cause the life guard to shift posi-

tion within the tire. The following

procedure should be used to correct

vibration and shake conditions:

1.
Check pressure of the inner and

outer air chambers on all four tires.

2.
If the inner chamber has at least

five psi more pressure than the outer

chamber the pressures should be ad-

justed and the tires rebalanced if nec-

essary.

3.
If the pressures of the inner and

outer air chambers are equal the Air

Container is leaking. To repair the

leaking air container the recommend-

ed procedures for the removal, repair

of air container, mounting, and bal-

ancing should be followed.

REMOVAL AND INSTALLATION

HOISTING INSTRUCTIONS

Damage to steering linkage compo-

nents and front suspension struts may

occur if care is not exercised when po-

sitioning the hoist adapters of 2 post

hoists prior to lifting the vehicle.

If a 2 post hoist is used to lift the

vehicle, place the adapters under the

lower arms or the No. 1 crossmember.

Do not allow the adapters to contact

the steering linkage. If the adapters

are placed under the crossmember, a

piece of wood (2x4x16 inches) should

be placed on the hoist channel be-

tween the adapters. This will prevent

the adapters from damaging the front

suspension struts.

WHEELS AND TIRES

WHEEL AND TIRE

REMOVAL

1.
Pry off the wheel hub cap or
wheel cover. Loosen but do not re-

move the wheel hub nuts.

2.
Raise the vehicle until the

wheel and tire clear the floor.

3.
Remove the wheel hub nuts

from the bolts, and pull the wheel

and tire from hub and drum.

F1424-
A

FIG.
6—Bead
Loosening Tool
REMOVING CONVENTIONAL

TIRE FROM WHEEL

The tire can be demounted on a

mounting machine. Be sure that the

outer side of the wheel is positioned

downward. If tire irons are used, fol-

low the procedure given here.

1.
Remove the valve cap and core,

and deflate the tire completely.

2.
With a bead loosening tool,

break loose the tire side walls from

the wheel (Fig. 6).

3.
Position the outer side of the

wheel downward, and insert two tire

irons about eight inches apart between

the tire inner bead and the back side

of the wheel rim. Use only tire irons

with rounded edges or irons designed

for removing tubeless tires.

4.
Leave one tire iron in position,

and pry the rest of the bead over the

rim with the other iron. Take small

bites with the iron around the tire inprocarmanuals.com

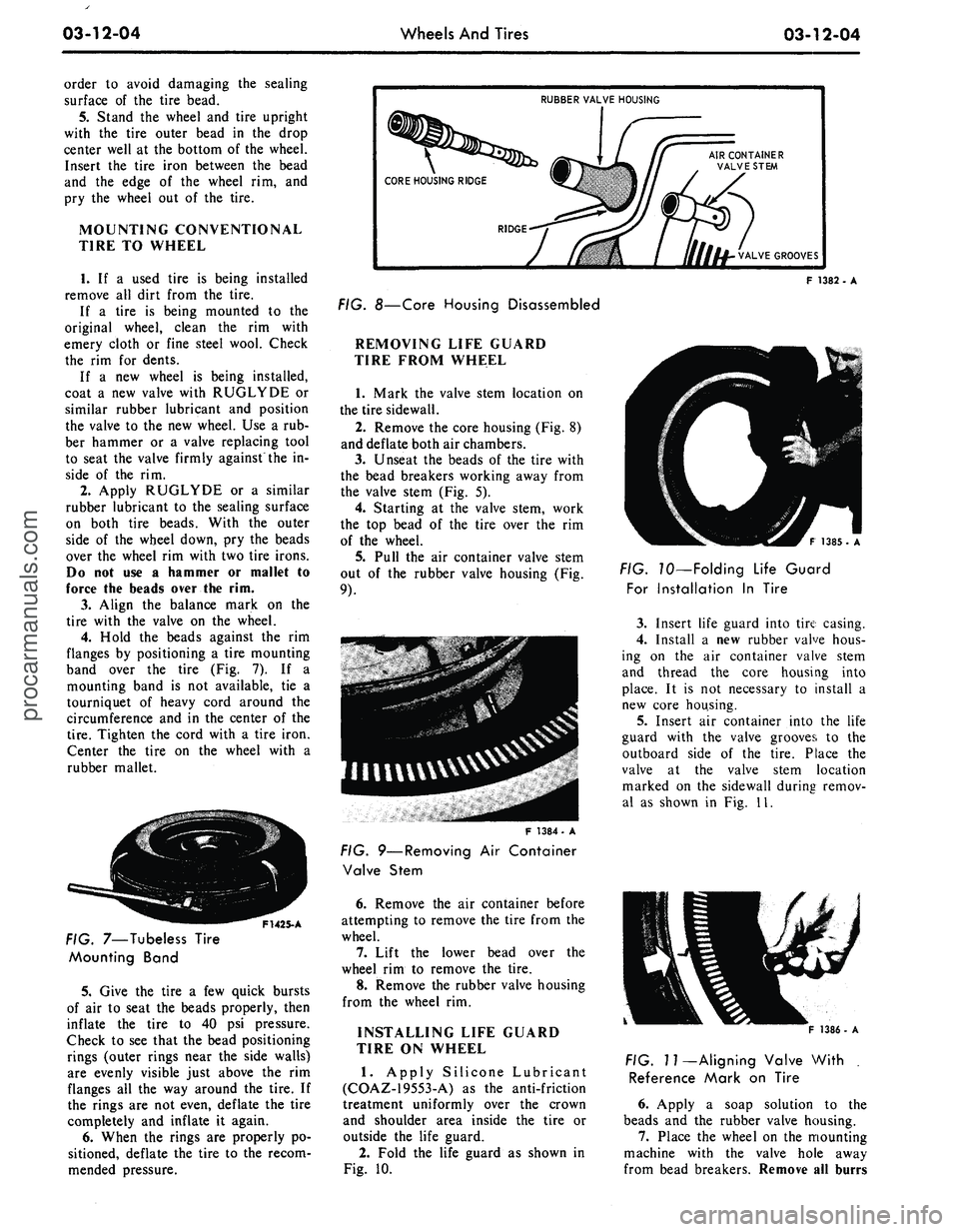

03-12-04

Wheels And Tires

03-12-04

order to avoid damaging the sealing

surface of the tire bead.

5.
Stand the wheel and tire upright

with the tire outer bead in the drop

center well at the bottom of the wheel.

Insert the tire iron between the bead

and the edge of the wheel rim, and

pry the wheel out of the tire.

MOUNTING CONVENTIONAL

TIRE TO WHEEL

1.
If a used tire is being installed

remove all dirt from the tire.

If a tire is being mounted to the

original wheel, clean the rim with

emery cloth or fine steel wool. Check

the rim for dents.

If a new wheel is being installed,

coat a new valve with RUGLYDE or

similar rubber lubricant and position

the valve to the new wheel. Use a rub-

ber hammer or a valve replacing tool

to seat the valve firmly against the in-

side of the rim.

2.
Apply RUGLYDE or a similar

rubber lubricant to the sealing surface

on both tire beads. With the outer

side of the wheel down, pry the beads

over the wheel rim with two tire irons.

Do not use a hammer or mallet to

force the beads over the rim.

3.
Align the balance mark on the

tire with the valve on the wheel.

4.
Hold the beads against the rim

flanges by positioning a tire mounting

band over the tire (Fig. 7). If a

mounting band is not available, tie a

tourniquet of heavy cord around the

circumference and in the center of the

tire.
Tighten the cord with a tire iron.

Center the tire on the wheel with a

rubber mallet.

F1425- A

FIG. 7—Tubeless Tire

Mounting Band

5.
Give the tire a few quick bursts

of air to seat the beads properly, then

inflate the tire to 40 psi pressure.

Check to see that the bead positioning

rings (outer rings near the side walls)

are evenly visible just above the rim

flanges all the way around the tire. If

the rings are not even, deflate the tire

completely and inflate it again.

6. When the rings are properly po-

sitioned, deflate the tire to the recom-

mended pressure.
RUBBER VALVE HOUSING

AIR CONTAINER

VALVE STEM

Ilk-
VALVE GROOVES

F 1382 . A

FIG. 8—Core Housing Disassembled

REMOVING LIFE GUARD

TIRE FROM WHEEL

1.
Mark the valve stem location on

the tire sidewall.

2.
Remove the core housing (Fig. 8)

and deflate both air chambers.

3.
Unseat the beads of the tire with

the bead breakers working away from

the valve stem (Fig. 5).

4.
Starting at the valve stem, work

the top bead of the tire over the rim

of the wheel.

5.
Pull the air container valve stem

out of the rubber valve housing (Fig.

9).

F 1384- A

FIG. 9—Removing Air Container

Valve Stem

6. Remove the air container before

attempting to remove the tire from the

wheel.

7.
Lift the lower bead over the

wheel rim to remove the tire.

8. Remove the rubber valve housing

from the wheel rim.

INSTALLING LIFE GUARD

TIRE ON WHEEL

1.
Apply Silicone Lubricant

(COAZ-19553-A) as the anti-friction

treatment uniformly over the crown

and shoulder area inside the tire or

outside the life guard.

2.
Fold the life guard as shown in

Fig. 10.
1385-
A

FIG. 70—Folding Life Guard

For Installation In Tire

3.
Insert life guard into tire casing.

4.
Install a new rubber valve hous-

ing on the air container valve stem

and thread the core housing into

place. It is not necessary to install a

new core housing.

5.
Insert air container into the life

guard with the valve grooves to the

outboard side of the tire. Place the

valve at the valve stem location

marked on the sidewall during remov-

al as shown in Fig. 11.

F 1386 • A

FIG.
7
7—Aligning Valve With

Reference Mark on Tire

6. Apply a soap solution to the

beads and the rubber valve housing.

7.
Place the wheel on the mounting

machine with the valve hole away

from bead breakers. Remove all burrsprocarmanuals.com

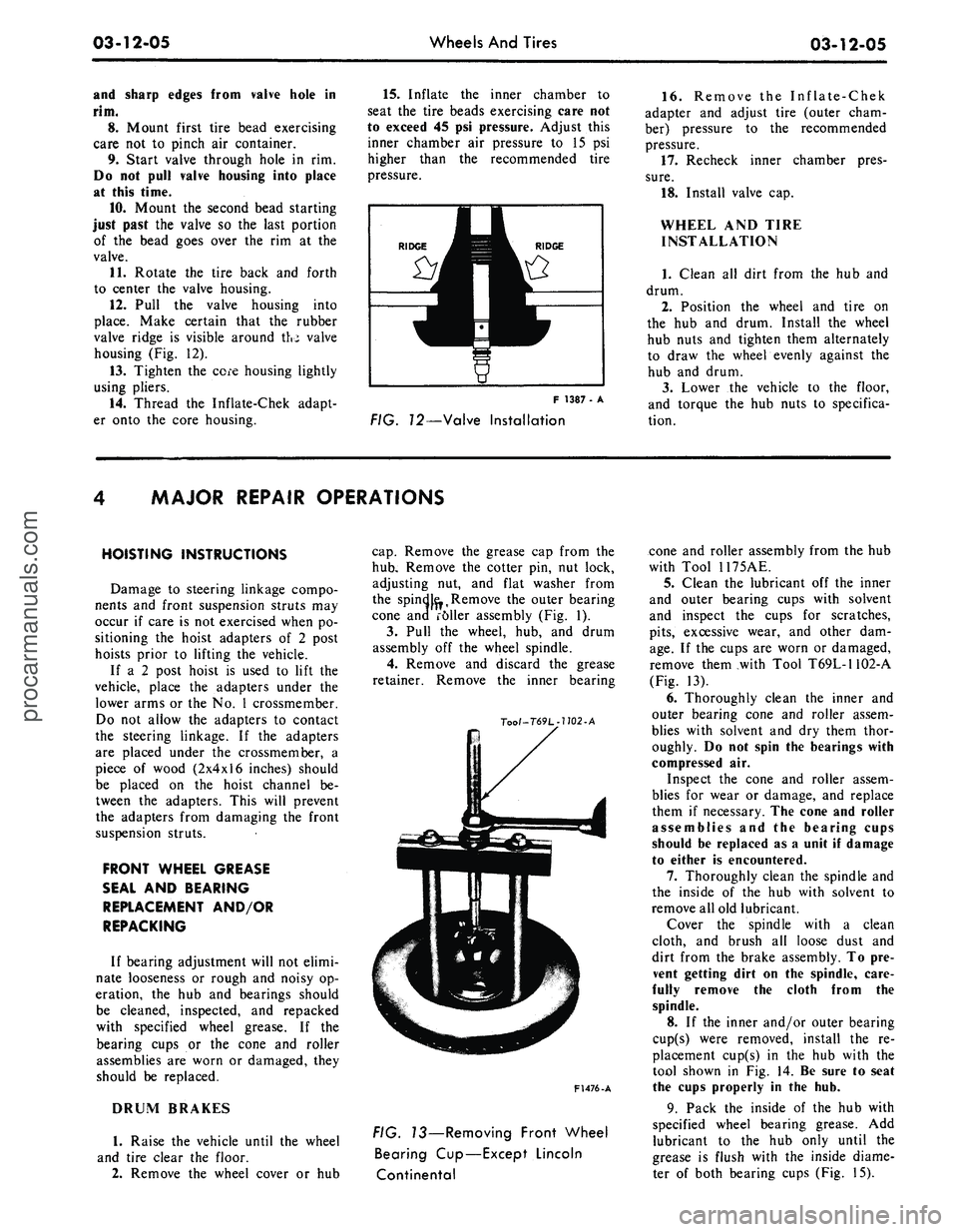

03-12-05
Wheels
And
Tires

03-12-05

and sharp edges from valve hole
in

rim.

8. Mount first tire bead exercising

care
not to
pinch
air
container.

9. Start valve through hole
in rim.

Do
not
pull valve housing into place

at this time.

10.
Mount
the
second bead starting

just past
the
valve
so the
last portion

of
the
bead goes over
the rim at the

valve.

11.
Rotate
the
tire back
and
forth

to center
the
valve housing.

12.
Pull
the
valve housing into

place. Make certain that
the
rubber

valve ridge
is
visible around
thi
valve

housing
(Fig.
12).

13.
Tighten
the
core housing lightly

using pliers.

14.
Thread
the
Inflate-Chek adapt-

er onto
the
core housing.
15.
Inflate
the
inner chamber
to

seat
the
tire beads exercising care
not

to exceed
45 psi
pressure. Adjust this

inner chamber
air
pressure
to 15 psi

higher than
the
recommended tire

pressure.

F 1387
- A

FIG. 12—Valve Installation
16.
Remove
the
Inflate-Chek

adapter
and
adjust tire (outer cham-

ber) pressure
to the
recommended

pressure.

17.
Recheck inner chamber pres-

sure.

18.
Install valve
cap.

WHEEL
AND
TIRE

INSTALLATION

1.
Clean
all
dirt from
the hub and

drum.

2.
Position
the
wheel
and
tire
on

the
hub and
drum. Install
the
wheel

hub nuts
and
tighten them alternately

to draw
the
wheel evenly against
the

hub
and
drum.

3.
Lower
the
vehicle
to the
floor,

and torque
the hub
nuts
to
specifica-

tion.

MAJOR REPAIR OPERATIONS

HOISTING INSTRUCTIONS

Damage
to
steering linkage compo-

nents
and
front suspension struts
may

occur
if
care
is
not
exercised when
po-

sitioning
the
hoist adapters
of 2
post

hoists prior
to
lifting
the
vehicle.

If
a 2
post hoist
is
used
to
lift
the

vehicle, place
the
adapters under
the

lower arms
or the
No.
1
crossmember.

Do
not
allow
the
adapters
to
contact

the steering linkage.
If the
adapters

are placed under
the
crossmember,
a

piece
of
wood (2x4x16 inches) should

be placed
on the
hoist channel
be-

tween
the
adapters. This will prevent

the adapters from damaging
the
front

suspension struts.

FRONT WHEEL GREASE

SEAL
AND
BEARING

REPLACEMENT AND/OR

REPACKING

If bearing adjustment will
not
elimi-

nate looseness
or
rough
and
noisy
op-

eration,
the hub and
bearings should

be cleaned, inspected,
and
repacked

with specified wheel grease.
If the

bearing cups
or the
cone
and
roller

assemblies
are
worn
or
damaged, they

should
be
replaced.

DRUM BRAKES

1.
Raise
the
vehicle until
the
wheel

and tire clear
the
floor.

2.
Remove
the
wheel cover
or hub
cap.
Remove
the
grease
cap
from
the

hub.
Remove
the
cotter
pin,
nut
lock,

adjusting
nut, and
flat washer from

the spindjej, Remove
the
outer bearing

cone
and
roller assembly
(Fig.
1).

3.
Pull
the
wheel,
hub, and
drum

assembly
off the
wheel spindle.

4.
Remove
and
discard
the
grease

retainer. Remove
the
inner bearing

Too/-T69L-J102-A

F1476-A

FIG. 13—Removing Front Wheel

Bearing Cup—Except Lincoln

Continental
cone
and
roller assembly from
the hub

with Tool 1175AE.

5.
Clean
the
lubricant
off the
inner

and outer bearing cups with solvent

and inspect
the
cups
for
scratches,

pits,
excessive wear,
and
other
dam-

age.
If
the
cups
are
worn
or
damaged,

remove them with Tool T69L-1102-A

(Fig.
13).

6. Thoroughly clean
the
inner
and

outer bearing cone
and
roller assem-

blies with solvent
and dry
them thor-

oughly.
Do not
spin
the
bearings with

compressed
air.

Inspect
the
cone
and
roller assem-

blies
for
wear
or
damage,
and
replace

them
if
necessary.
The
cone
and
roller

assemblies
and the
bearing cups

should
be
replaced
as a
unit
if
damage

to either
is
encountered.

7. Thoroughly clean
the
spindle
and

the inside
of the hub
with solvent
to

remove
all old
lubricant.

Cover
the
spindle with
a
clean

cloth,
and
brush
all
loose dust
and

dirt from
the
brake assembly.
To
pre-

vent getting dirt
on the
spindle, care-

fully remove
the
cloth from
the

spindle.

8.
If the
inner and/or outer bearing

cup(s) were removed, install
the re-

placement cup(s)
in the hub
with
the

tool shown
in Fig.
14.
Be
sure
to
seat

the cups properly
in the hub.

9. Pack
the
inside
of the hub
with

specified wheel bearing grease.
Add

lubricant
to the hub
only until
the

grease
is
flush with
the
inside diame-

ter
of
both bearing cups
(Fig.
15).procarmanuals.com

03-12-06

Wheels And Tires

03-12-06

Tool-T56P-1217-A

INNER CUP

INSTALLATION
OUTER CUP

INSTALLATION

F1464-A

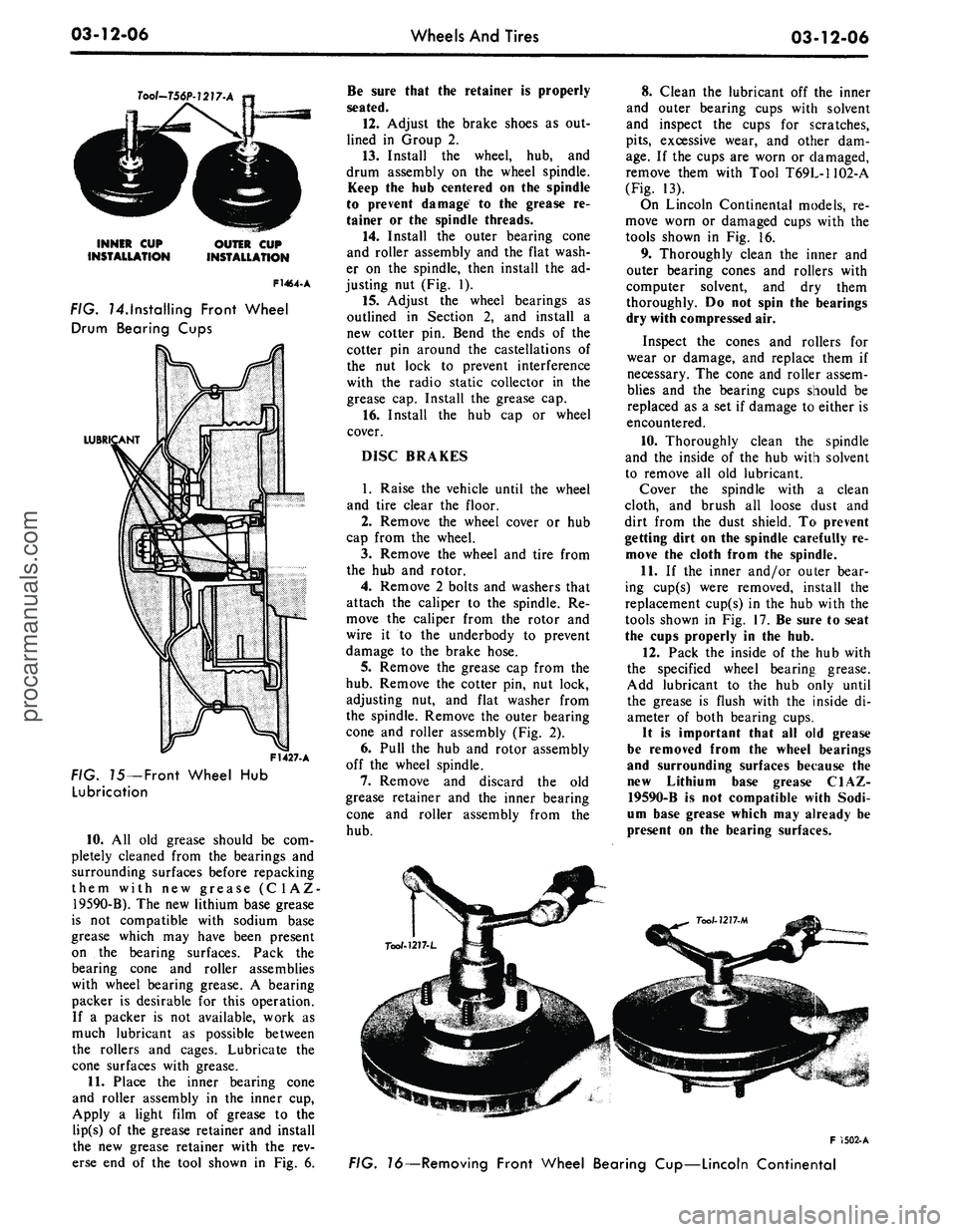

FIG. ^.Installing Front Wheel

Drum Bearing Cups

LUBR

F1427. A

FIG. 75—Front Wheel Hub

Lubrication

10.
All old grease should be com-

pletely cleaned from the bearings and

surrounding surfaces before repacking

them with new grease (C1AZ-

19590-B). The new lithium base grease

is not compatible with sodium base

grease which may have been present

on the bearing surfaces. Pack the

bearing cone and roller assemblies

with wheel bearing grease. A bearing

packer is desirable for this operation.

If a packer is not available, work as

much lubricant as possible between

the rollers and cages. Lubricate the

cone surfaces with grease.

11.
Place the inner bearing cone

and roller assembly in the inner cup,

Apply a light film of grease to the

lip(s) of the grease retainer and install

the new grease retainer with the rev-

erse end of the tool shown in Fig. 6.
Be sure that the retainer is properly

seated.

12.
Adjust the brake shoes as out-

lined in Group 2.

13.
Install the wheel, hub, and

drum assembly on the wheel spindle.

Keep the hub centered on the spindle

to prevent damage to the grease re-

tainer or the spindle threads.

14.
Install the outer bearing cone

and roller assembly and the flat wash-

er on the spindle, then install the ad-

justing nut (Fig. 1).

15.
Adjust the wheel bearings as

outlined in Section 2, and install a

new cotter pin. Bend the ends of the

cotter pin around the castellations of

the nut lock to prevent interference

with the radio static collector in the

grease cap. Install the grease cap.

16.
Install the hub cap or wheel

cover.

DISC BRAKES

1.
Raise the vehicle until the wheel

and tire clear the floor.

2.
Remove the wheel cover or hub

cap from the wheel.

3.
Remove the wheel and tire from

the hub and rotor.

4.
Remove 2 bolts and washers that

attach the caliper to the spindle. Re-

move the caliper from the rotor and

wire it to the underbody to prevent

damage to the brake hose.

5.
Remove the grease cap from the

hub.
Remove the cotter pin, nut lock,

adjusting nut, and flat washer from

the spindle. Remove the outer bearing

cone and roller assembly (Fig. 2).

6. Pull the hub and rotor assembly

off the wheel spindle.

7.
Remove and discard the old

grease retainer and the inner bearing

cone and roller assembly from the

hub.
8. Clean the lubricant off the inner

and outer bearing cups with solvent

and inspect the cups for scratches,

pits,
excessive wear, and other dam-

age.
If the cups are worn or damaged,

remove them with Tool T69L-1102-A

(Fig. 13).

On Lincoln Continental models, re-

move worn or damaged cups with the

tools shown in Fig. 16.

9. Thoroughly clean the inner and

outer bearing cones and rollers with

computer solvent, and dry them

thoroughly. Do not spin the bearings

dry with compressed air.

Inspect the cones and rollers for

wear or damage, and replace them if

necessary. The cone and roller assem-

blies and the bearing cups should be

replaced as a set if damage to either is

encountered.

10.
Thoroughly clean the spindle

and the inside of the hub with solvent

to remove all old lubricant.

Cover the spindle with a clean

cloth, and brush all loose dust and

dirt from the dust shield. To prevent

getting dirt on the spindle carefully re-

move the cloth from the spindle.

11.
If the inner and/or outer bear-

ing cup(s) were removed, install the

replacement cup(s) in the hub with the

tools shown in Fig. 17. Be sure to seat

the cups properly in the hub.

12.
Pack the inside of the hub with

the specified wheel bearing grease.

Add lubricant to the hub only until

the grease is flush with the inside di-

ameter of both bearing cups.

It is important that all old grease

be removed from the wheel bearings

and surrounding surfaces because the

new Lithium base grease C1AZ-

19590-B is not compatible with Sodi-

um base grease which may already be

present on the bearing surfaces.

F 1502-A

FIG. 16—Removing Front Wheel Bearing Cup—Lincoln Continentalprocarmanuals.com

03-12-07
Wheels And Tires

03-12-07

Tool - 7277- K

F 1263-A

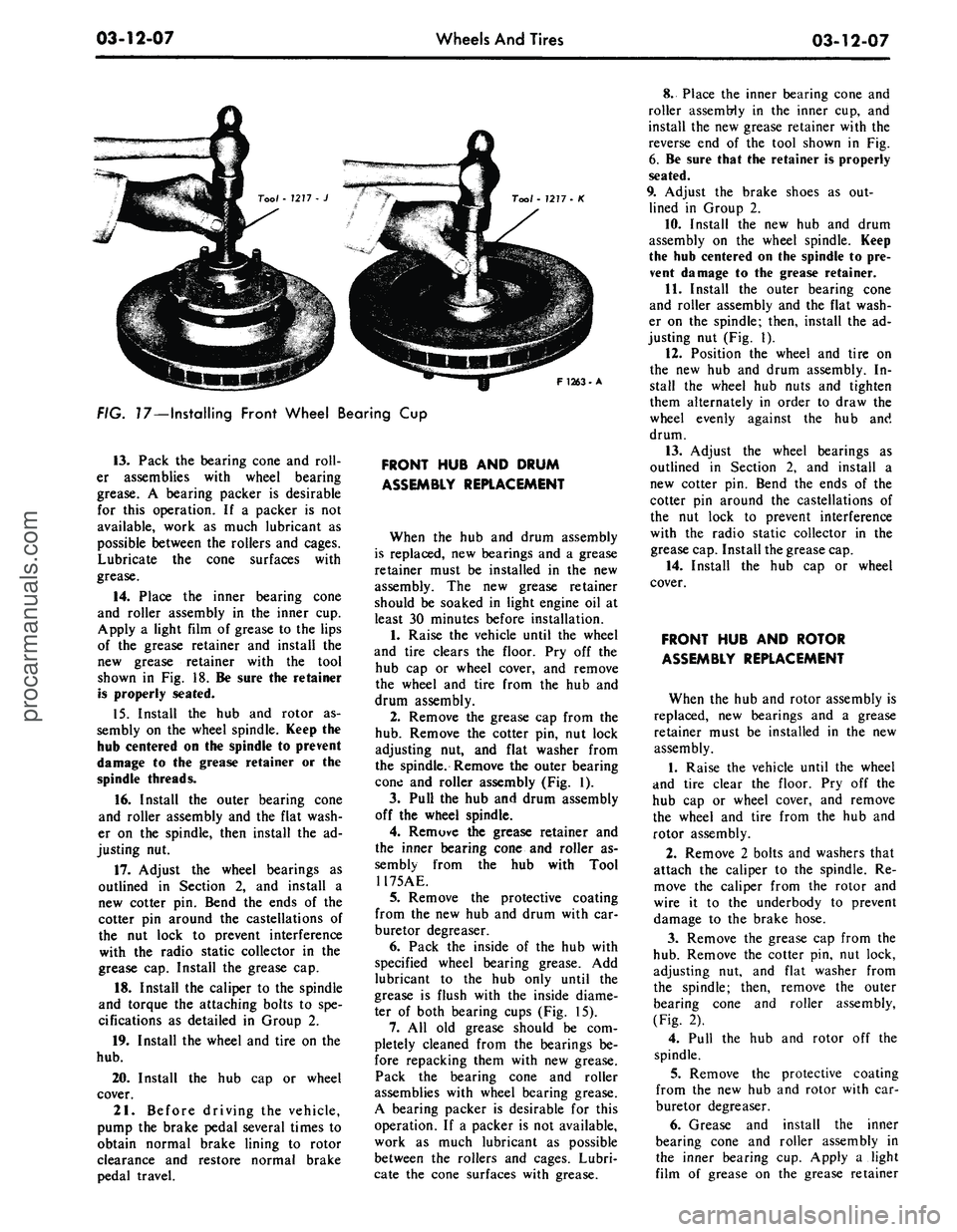

FIG. 17—Installing Front Wheel Bearing Cup

13.
Pack the bearing cone and roll-

er assemblies with wheel bearing

grease. A bearing packer is desirable

for this operation. If a packer is not

available, work as much lubricant as

possible between the rollers and cages.

Lubricate the cone surfaces with

grease.

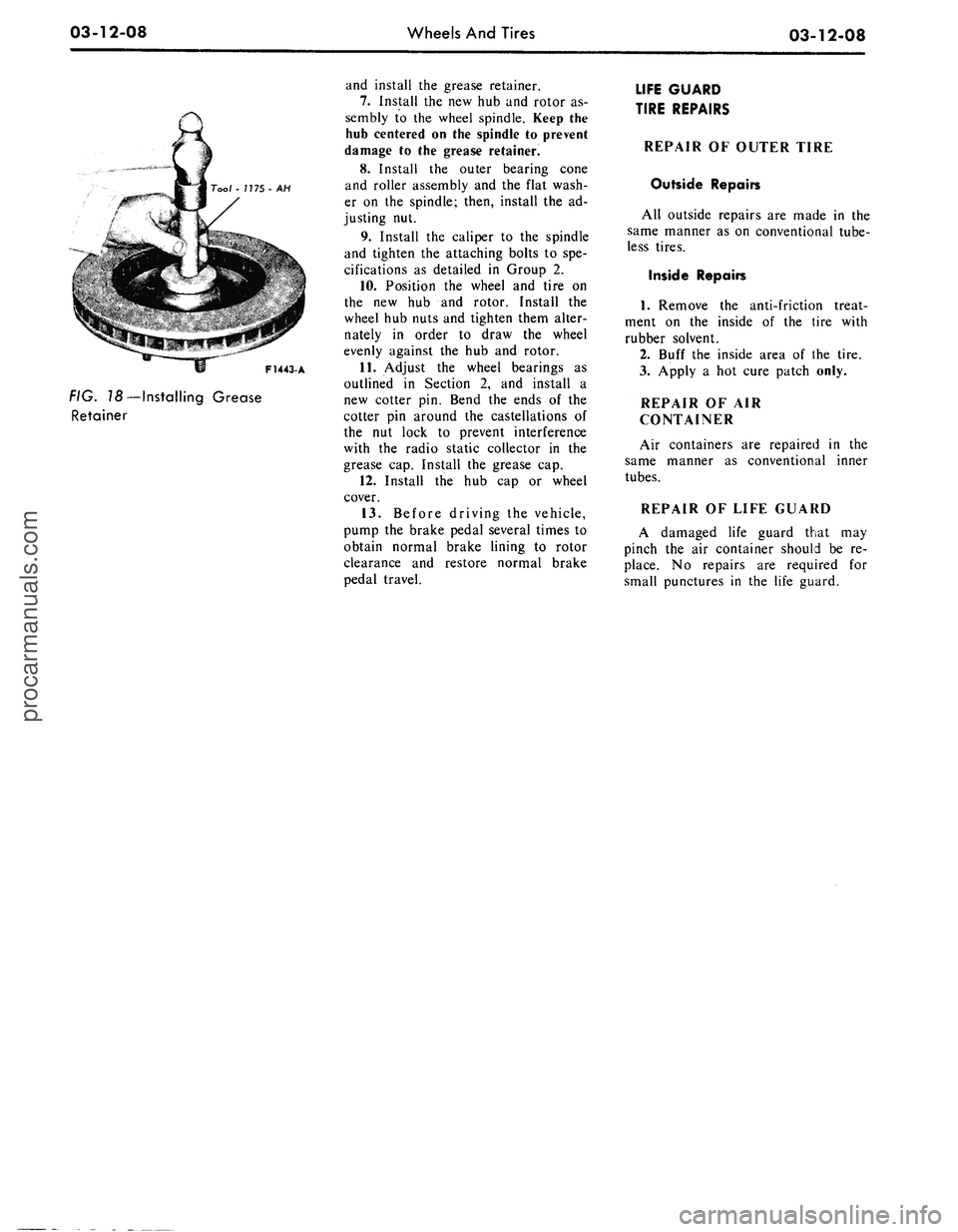

14.
Place the inner bearing cone

and roller assembly in the inner cup.

Apply a light film of grease to the lips

of the grease retainer and install the

new grease retainer with the tool

shown in Fig. 18. Be sure the retainer

is properly seated.

15.
Install the hub and rotor as-

sembly on the wheel spindle. Keep the

hub centered on the spindle to prevent

damage to the grease retainer or the

spindle threads.

16.
Install the outer bearing cone

and roller assembly and the flat wash-

er on the spindle, then install the ad-

justing nut.

17.
Adjust the wheel bearings as

outlined in Section 2, and install a

new cotter pin. Bend the ends of the

cotter pin around the castellations of

the nut lock to prevent interference

with the radio static collector in the

grease cap. Install the grease cap.

18.
Install the caliper to the spindle

and torque the attaching bolts to spe-

cifications as detailed in Group 2.

19.
Install the wheel and tire on the

hub.

20.
Install the hub cap or wheel

cover.

21.
Before driving the vehicle,

pump the brake pedal several times to

obtain normal brake lining to rotor

clearance and restore normal brake

pedal travel.
FRONT HUB AND DRUM

ASSEMBLY REPLACEMENT

When the hub and drum assembly

is replaced, new bearings and a grease

retainer must be installed in the new

assembly. The new grease retainer

should be soaked in light engine oil at

least 30 minutes before installation.

1.
Raise the vehicle until the wheel

and tire clears the floor. Pry off the

hub cap or wheel cover, and remove

the wheel and tire from the hub and

drum assembly.

2.
Remove the grease cap from the

hub.
Remove the cotter pin, nut lock

adjusting nut, and flat washer from

the spindle. Remove the outer bearing

cone and roller assembly (Fig. 1).

3.
Pull the hub and drum assembly

off the wheel spindle.

4.
Remuve the grease retainer and

the inner bearing cone and roller as-

sembly from the hub with Tool

1175AE.

5.
Remove the protective coating

from the new hub and drum with car-

buretor degreaser.

6. Pack the inside of the hub with

specified wheel bearing grease. Add

lubricant to the hub only until the

grease is flush with the inside diame-

ter of both bearing cups (Fig. 15).

7.
All old grease should be com-

pletely cleaned from the bearings be-

fore repacking them with new grease.

Pack the bearing cone and roller

assemblies with wheel bearing grease.

A bearing packer is desirable for this

operation. If a packer is not available,

work as much lubricant as possible

between the rollers and cages. Lubri-

cate the cone surfaces with grease.
8. Place the inner bearing cone and

roller assembly in the inner cup, and

install the new grease retainer with the

reverse end of the tool shown in Fig.

6. Be sure that the retainer is properly

seated.

9. Adjust the brake shoes as out-

lined in Group 2.

10.
Install the new hub and drum

assembly on the wheel spindle. Keep

the hub centered on the spindle to pre-

vent damage to the grease retainer.

11.
Install the outer bearing cone

and roller assembly and the flat wash-

er on the spindle; then, install the ad-

justing nut (Fig. 1).

12.
Position the wheel and tire on

the new hub and drum assembly. In-

stall the wheel hub nuts and tighten

them alternately in order to draw the

wheel evenly against the hub and

drum.

13.
Adjust the wheel bearings as

outlined in Section 2, and install a

new cotter pin. Bend the ends of the

cotter pin around the castellations of

the nut lock to prevent interference

with the radio static collector in the

grease cap. Install the grease cap.

14.
Install the hub cap or wheel

cover.

FRONT HUB AND ROTOR

ASSEMBLY REPLACEMENT

When the hub and rotor assembly is

replaced, new bearings and a grease

retainer must be installed in the new

assembly.

1.
Raise the vehicle until the wheel

and tire clear the floor. Pry off the

hub cap or wheel cover, and remove

the wheel and tire from the hub and

rotor assembly.

2.
Remove 2 bolts and washers that

attach the caliper to the spindle. Re-

move the caliper from the rotor and

wire it to the underbody to prevent

damage to the brake hose.

3.
Remove the grease cap from the

hub.
Remove the cotter pin, nut lock,

adjusting nut, and flat washer from

the spindle; then, remove the outer

bearing cone and roller assembly,

(Fig. 2).

4.
Pull the hub and rotor off the

spindle.

5.
Remove the protective coating

from the new hub and rotor with car-

buretor degreaser.

6. Grease and install the inner

bearing cone and roller assembly in

the inner bearing cup. Apply a light

film of grease on the grease retainerprocarmanuals.com

03-12-08

Wheels And Tires

03-12-08

Tool -
7
775 - AH

F1443-A

FIG.
18
— Installing Grease

Retainer
and install the grease retainer.

7.
Install the new hub and rotor as-

sembly to the wheel spindle. Keep the

hub centered on the spindle to prevent

damage to the grease retainer.

8. Install the outer bearing cone

and roller assembly and the flat wash-

er on the spindle; then, install the ad-

justing nut.

9. Install the caliper to the spindle

and tighten the attaching bolts to spe-

cifications as detailed in Group 2.

10.
Position the wheel and tire on

the new hub and rotor. Install the

wheel hub nuts and tighten them alter-

nately in order to draw the wheel

evenly against the hub and rotor.

11.
Adjust the wheel bearings as

outlined in Section 2, and install a

new cotter pin. Bend the ends of the

cotter pin around the castellations of

the nut lock to prevent interference

with the radio static collector in the

grease cap. Install the grease cap.

12.
Install the hub cap or wheel

cover.

13.
Before driving the vehicle,

pump the brake pedal several times to

obtain normal brake lining to rotor

clearance and restore normal brake

pedal travel.
LIFE GUARD

TIRE REPAIRS

REPAIR OF OUTER TIRE

Outside Repairs

All outside repairs are made in the

same manner as on conventional tube-

less tires.

Inside Repairs

1.
Remove the anti-friction treat-

ment on the inside of the tire with

rubber solvent.

2.
Buff the inside area of the tire.

3.
Apply a hot cure patch only.

REPAIR OF AIR

CONTAINER

Air containers are repaired in the

same manner as conventional inner

tubes.

REPAIR OF LIFE GUARD

A damaged life guard that may

pinch the air container should be re-

place. No repairs are required for

small punctures in the life guard.procarmanuals.com

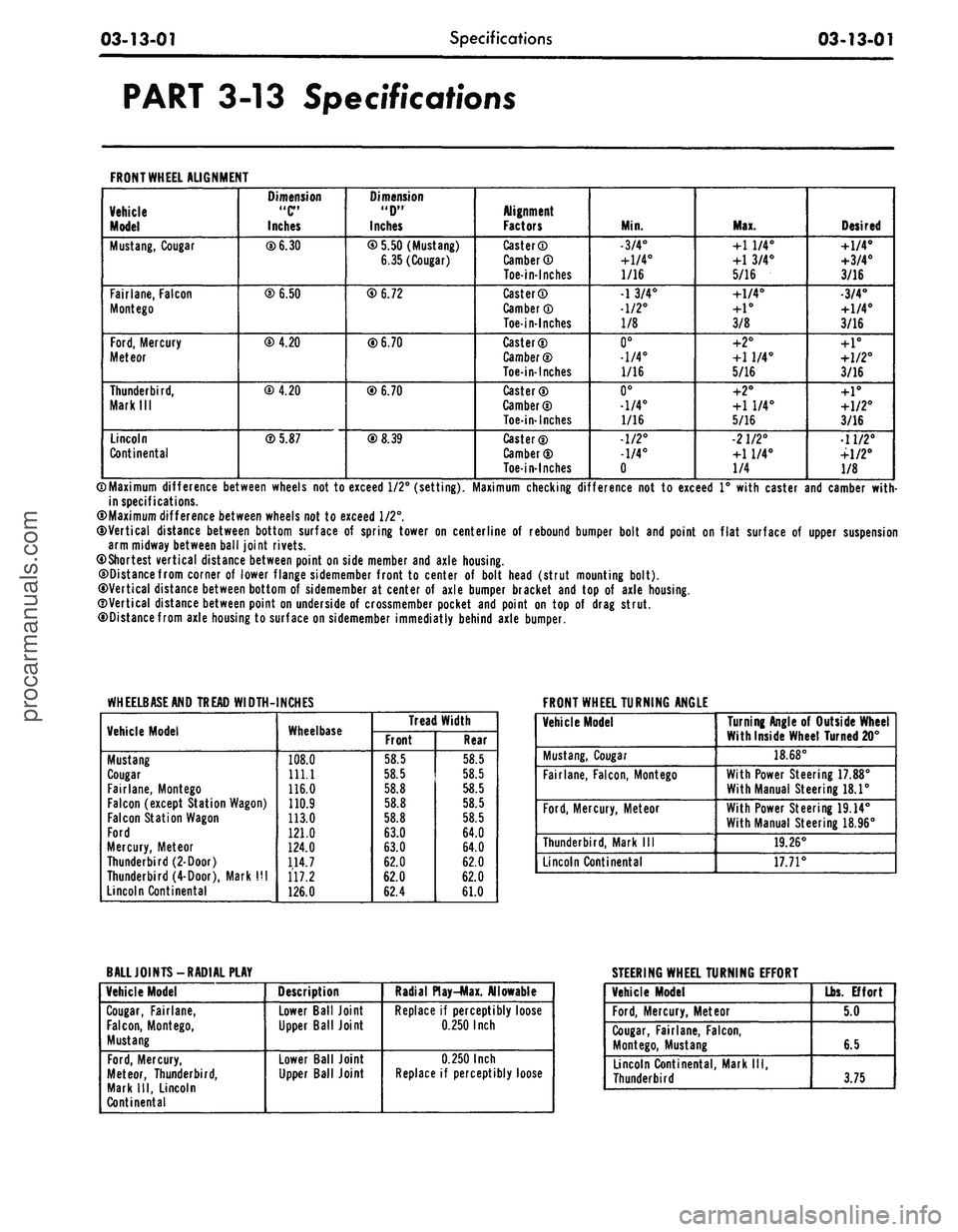

03-13-01
Specifications

03-13-01

PART 3-13 Specifications

FRONT
WHEEL
ALIGNMENT

Vehicle

Model

Mustang,
Cougar

Fairlane, Falcon

Mont
ego

Ford,
Mercury

Meteor

Thunderbird,

Mark III

Lincoln

Continental
Dimension

"C"

Inches

(I) 6.30

® 6.50

©4.20

® 4.20

©5.87
Dimension

"D"

Inches

©5.50 (Mustang)

6.35 (Cougar)

©6.72

©6.70

©6.70

©8.39
Alignment

Factors

Caster©

Camber©

Toe-in-Inches

Caster©

Camber©

Toe-in-Inches

Caster©

Camber©

Toe-in-Inches

Caster©

Camber®

Toe-in-Inches

Caster®

Camber®

Toe-in-Inches
Min.

-3/4°

+1/4°

1/16

-1
3/4°

•1/2°

1/8

0°

•1/4°

1/16

0°

•1/4°

1/16

-1/2°

•1/4°

0
Max.

+1 1/4°

+1 3/4°

5/16

+1/4°

+1°

3/8

+2°

+11/4°

5/16

+2°

+1 1/4°

5/16

-2
1/2°

+11/4°

1/4
Desired

+1/4°

+3/4°

3/16

•3/4°

+1/4°

3/16

+1°

+1/2°

3/16

+1°

+1/2°

3/16

•11/2°

+1/2°

1/8

©Maximum difference between wheels not to exceed 1/2° (setting). Maximum checking difference not to exceed 1° with caster and camber
with-

in specifications.

©Maximum difference between wheels not to exceed 1/2°.

©Vertical distance between bottom surface of spring tower on centerline of rebound bumper bolt and point on flat surface of upper suspension

arm midway between ball joint rivets.

©Shortest vertical distance between point on side member and axle housing.

©Distance from corner of lower flange sidemember front to center of bolt head (strut mounting bolt).

©Vertical distance between bottom of sidemember at center of axle bumper bracket and top of axle housing.

©Vertical distance between point on underside of crossmember pocket and point on top of drag strut.

©Distance from axle housing to surface on sidemember immediatly behind axle bumper.

WHEELBASEAND TREAD WIDTH-INCHES

FRONT WHEEL TURNING ANGLE

Vehicle Model

Mustang

Cougar

Fairlane, Montego

Falcon (except Station Wagon)

Falcon Station Wagon

Ford

Mercury, Meteor

Thunderbird (2-Door)

Thunderbird (4-Door), Mark HI

Lincoln Continental
Wheelbase

108.0

111.1

116.0

110.9

113.0

121.0

124.0

114.7

117.2

126.0
Tread

Front

58.5

58.5

58.8

58.8

58.8

63.0

63.0

62.0

62.0

62.4
Width

Rear

58.5

58.5

5«.5

58.5

58.5

64.0

64.0

62.0

62.0

61.0
Vehicle Model

Mustang,
Cougar

Fairlane, Falcon, Montego

Ford,
Mercury, Meteor

Thunderbird, Mark III

Lincoln Continental
Turning Angle of Outside Wheel

With Inside Wheel Turned 20°

18.68°

With Power Steering 17.88°

With Manual Steering 18.1°

With Power Steering 19.14°

With Manual Steering 18.96°

19.26°

17.71°

BALL JOINTS -RADIAL PLAY

STEERING WHEEL TURNING EFFORT

Vehicle Model

Cougar, Fairlane,

Falcon,
Montego,

Mustang

Ford,
Mercury,

Meteor, Thunderbird,

Mark III, Lincoln

Continental
Description

Lower Ball Joint

Upper Ball Joint

Lower Ball Joint

Upper Ball Joint
Radial Play-Max. Allowable

Replace if perceptibly loose

0.250
Inch

0.250
Inch

Replace if perceptibly loose
Vehicle Model

Ford,
Mercury, Meteor

Cougar, Fairlane, Falcon,

Montego, Mustang

Lincoln Continental, Mark III,

Thunderbird
Lbs.
Effort

5.0

6.5

3.75procarmanuals.com
