GENESIS G80 2021 Premium Navigation Manual

21
Basic Controls

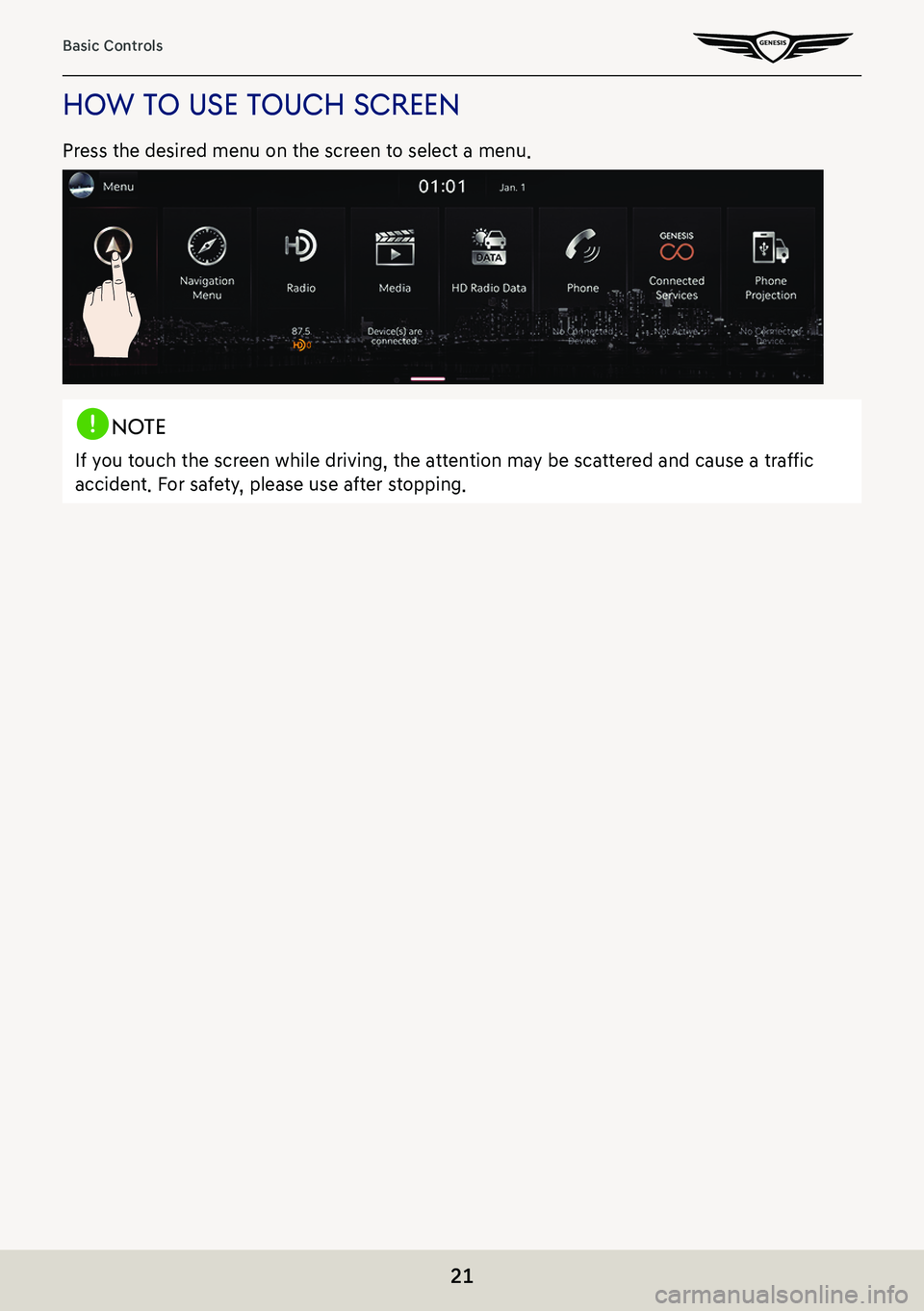

how To use Touch screen
Press the desired menu on the screen to select a menu.
,noTe
If you touch the screen while driving, the attention may be scattered and cause a traffic
accident. For safety, please use after stopping.

22
Basic Controls
basic conTrols of home screen
The images displayed on this system may differ from actual ones.
1. Press [HOME] on the front seat control key or [B]. Home screen opens.
2. Press the desired menu on the home screen.
3. Subsequent operations will be performed according to the desired menu selection.

23
Basic Controls

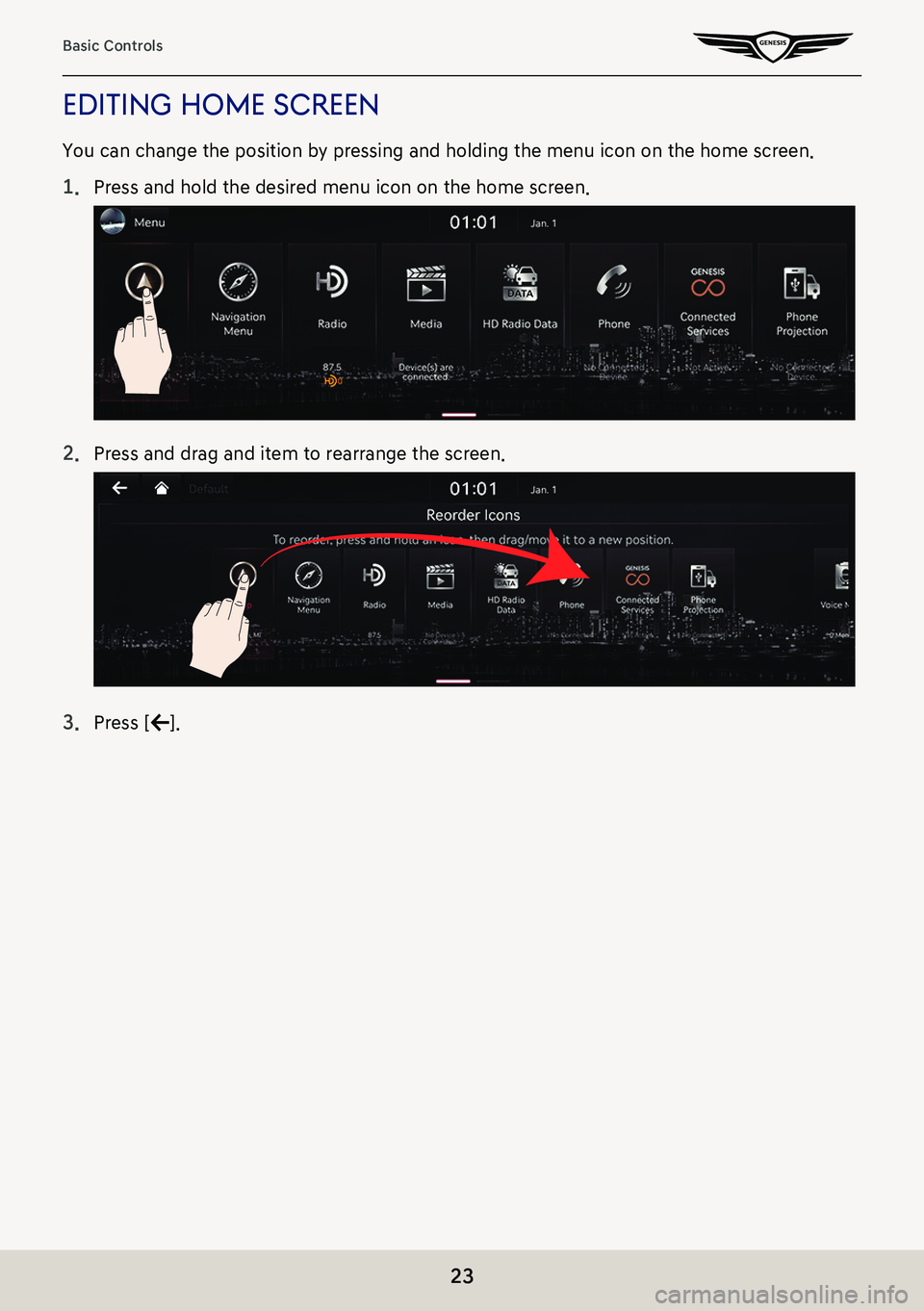

ediTing home screen
You can change the position by pressing and holding the menu icon on the home screen.
1. Press and hold the desired menu icon on the home screen.
2. Press and drag and item to rearrange the screen.
3. Press [a].

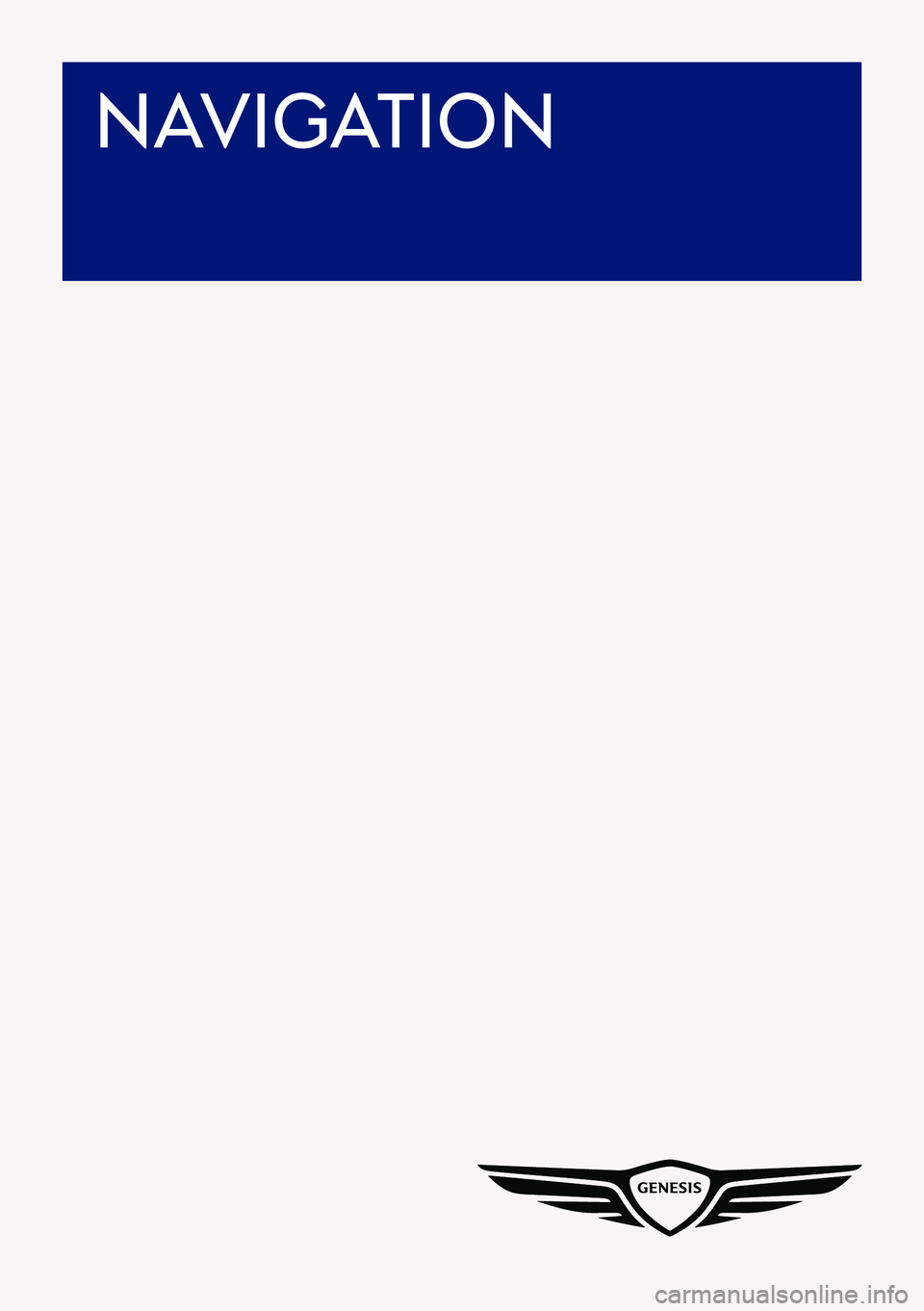

naViga Tion
geTTing sTarTed

25
Starting Navigation
sTar Ting na VigaTion
general informa Tion of naVigaTion use
naViga Tion use res TricTions
Please observe and comply with local traffic rules and regulations.
䠐For your safety, some features cannot be operated while driving. Features that cannot be
operated will be disabled.
䠐The route displayed for destination guidance is a reference and the route guidance will
take you to the vicinity of your destination. The highlighted route is not always; the shortest
distance, the least congested, and in some cases might, not be the fastest route.
䠐Road, name, and POI information may not always been completely updated. Some places
may not include up to date information.
䠐The car position mark does not always indicate your exact location. This system uses GPS
information, various sensors, and road map data to display the current position. However,
errors in displaying your location may occur if the satellite is transmitting inaccurate signals
or two or less satellite signals are being received. Errors that occur in such conditions
cannot be corrected.
䠐The position of the vehicle within the navigation may differ from your actual location
depending on various reasons, including the satellite transmission state, vehicle state
(driving location and conditions), etc. Additionally, the car position mark may differ from the
actual position if the map data is different from the actual road landscape, such as changes
due to the construction of new roads. If such differences occur, driving for a short period
of time will automatically correct the position of the vehicle through map matching or GPS
information.

26
Starting Navigation
whaT is gnss?
The GNSS(Global Navigation Satellite System) is a satellite-based navigation system made up
of a network of 32 satellites placed into orbit by the Global Positioning System (GPS) of U.S.A,
GLONASS of RUSSIA, etc.
GNSS works in any weather conditions, anywhere in the world, 24 hours a day.
There are no subscription fees or setup charges to use GNSS.
abouT sa TelliTe signals
Your head unit must acquire satellite signals to operate. If you are indoors, near tall buildings
or trees, or in a parking garage, the unit may not be able to acquire satellite signals.
acquiring sa TelliTe signals
Before the head unit can determine your current position and navigate a route, you must do
the following steps:
1. Go outside to an area free from tall obstructions.
2. Turn on the head unit. Acquiring satellite signals can take a few minutes.

27

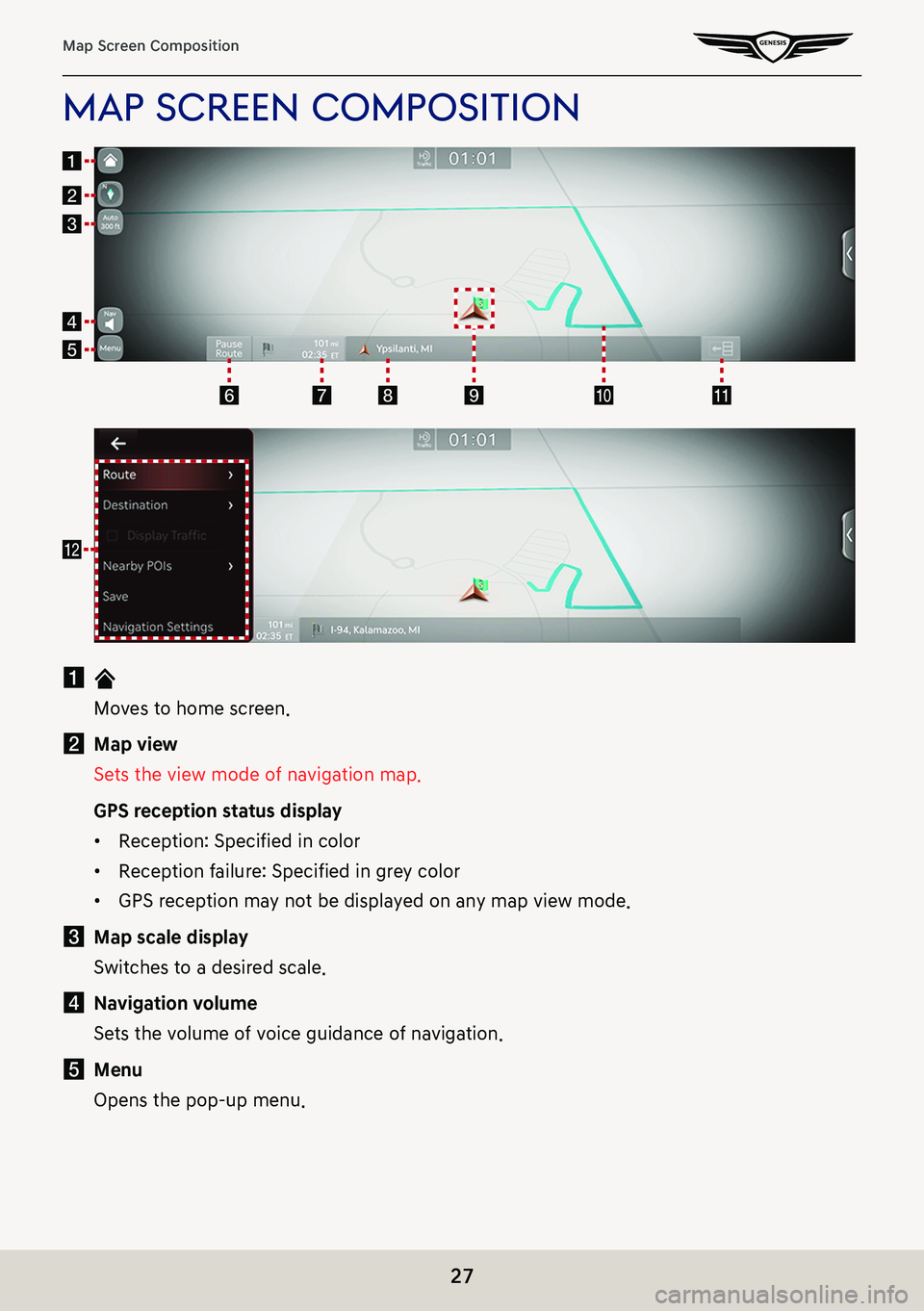

Map Screen Composition
map screen composiTion
a B
Moves to home screen.
b Map view
Sets the view mode of navigation map.
GPS reception status display
䠐Reception: Specified in color
䠐Reception failure: Specified in grey color
䠐GPS reception may not be displayed on any map view mode.
c Map scale display
Switches to a desired scale.
d Navigation volume
Sets the volume of voice guidance of navigation.
e Menu
Opens the pop-up menu.

28

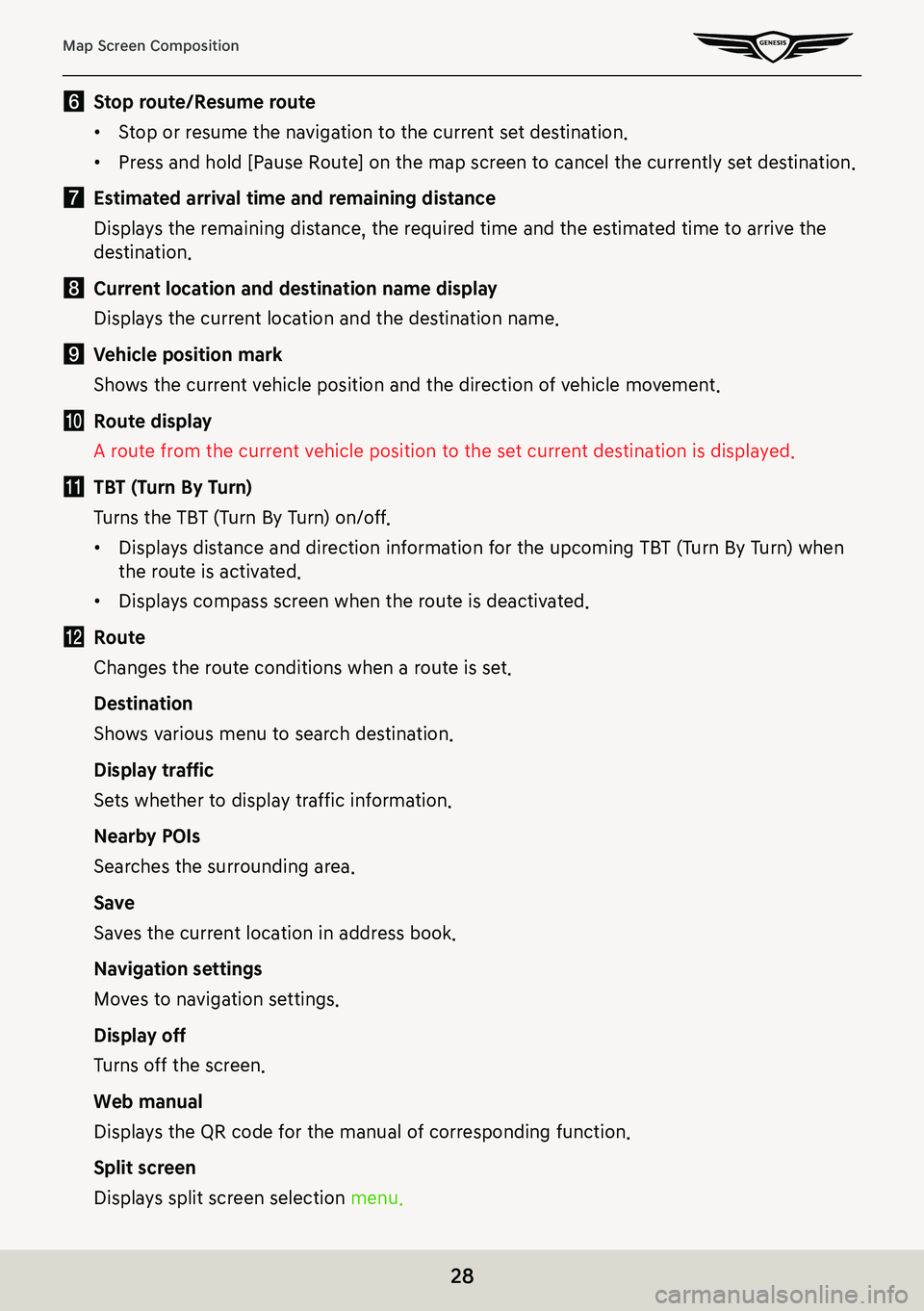

Map Screen Composition
f Stop route/Resume route
䠐Stop or resume the navigation to the current set destination.
䠐Press and hold [Pause Route] on the map screen to cancel the currently set destination.
g Estimated arrival time and remaining distance
Displays the remaining distance, the required time and the estimated time to arrive the
destination.
h Current location and destination name display
Displays the current location and the destination name.
i Vehicle position mark
Shows the current vehicle position and the direction of vehicle movement.
j Route display
A route from the current vehicle position to the set current destination is displayed.
k TBT (Turn By Turn)
Turns the TBT (Turn By Turn) on/off.
䠐Displays distance and direction information for the upcoming TBT (Turn By Turn) when
the route is activated.
䠐Displays compass screen when the route is deactivated.
l Route
Changes the route conditions when a route is set.
Destination
Shows various menu to search destination.
Display traffic
Sets whether to display traffic information.
Nearby POIs
Searches the surrounding area.
Save
Saves the current location in address book.
Navigation settings
Moves to navigation settings.
Display off
Turns off the screen.
Web manual
Displays the QR code for the manual of corresponding function.
Split screen
Displays split screen selection menu.

29
Activating Navigation
ac TiV aTing na VigaTion
sTar Ting na VigaTion
1. Press [HOME] on the front seat control key or [B]. Home screen opens.
2. Press [Map] or Press [MAP] button on the head unit. The map screen opens.
Current LoC ation SpeCifiCation
Press [MAP] button on the head unit while using.
The system specifies the current vehicle location and the map of the surrounding area.
simple na VigaTion fea Ture
Simple navigation features are listed for easy access to frequently used features.
Moves to the simple navigation screen if you press the front seat control key's touchpad on
the map screen.
䠐[Search]: Sets the destination by entering the full name, first name, phone number, or
address.
䠐[Home]: A route to the location saved as [Home] is advised. Save the location before using.
䠐[Work]: A route to the location saved as [Work] is advised. Save the location before using.
䠐Select previous destination to have a route advised to the selected destination.
䠐[Navigation Volume]: Controls the volume of navigation.
䠐[Mute]: Check the box to set mute.
䠐[Navigation Volume Priority]: Check the box to have the volume of navigation guidance
louder than the audio volume.

30
Activating Navigation
changing map View
The map is displayed based on the vehicle direction or the north direction.
Map view change is available by pressing []/[]/[]/[]/[] pop-up on the map screen.
䠐[] (2D heading up): The map displays always showing the vehicle’s direction as
proceeding towards the top of the screen.
䠐[] (2D north up): The map displays always pointing north, regardless of the direction of
the vehicle is moving.
䠐[] (3D map): The map displays always the basic outline and details of the surrounding
roads and general area.
䠐[] (Neon white): The map displays buildings in 3D neon white.
䠐[] (Neon): The map displays buildings in 3D neon.
