Page 11 of 298
11
Table of contents
aV/na VigaTion produc T
SpeCifiC ation . . . . . . . . . . . . . . . .296
genesis connec Ted serVice
Terminal produc T sTandard .298
open source sofTware
no Tice 299
Page 12 of 298

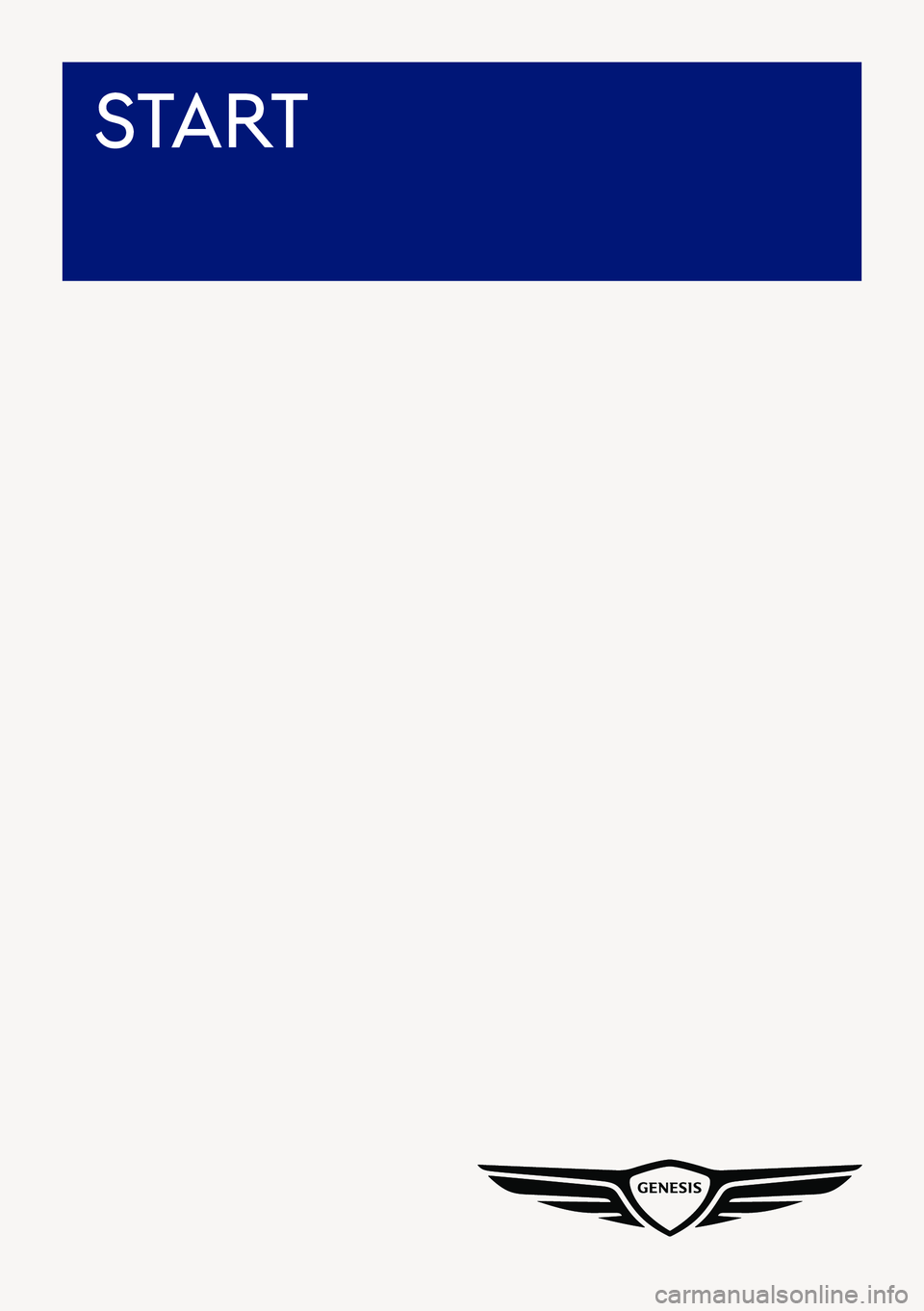

sTa rT
sTa rT
Page 13 of 298
13

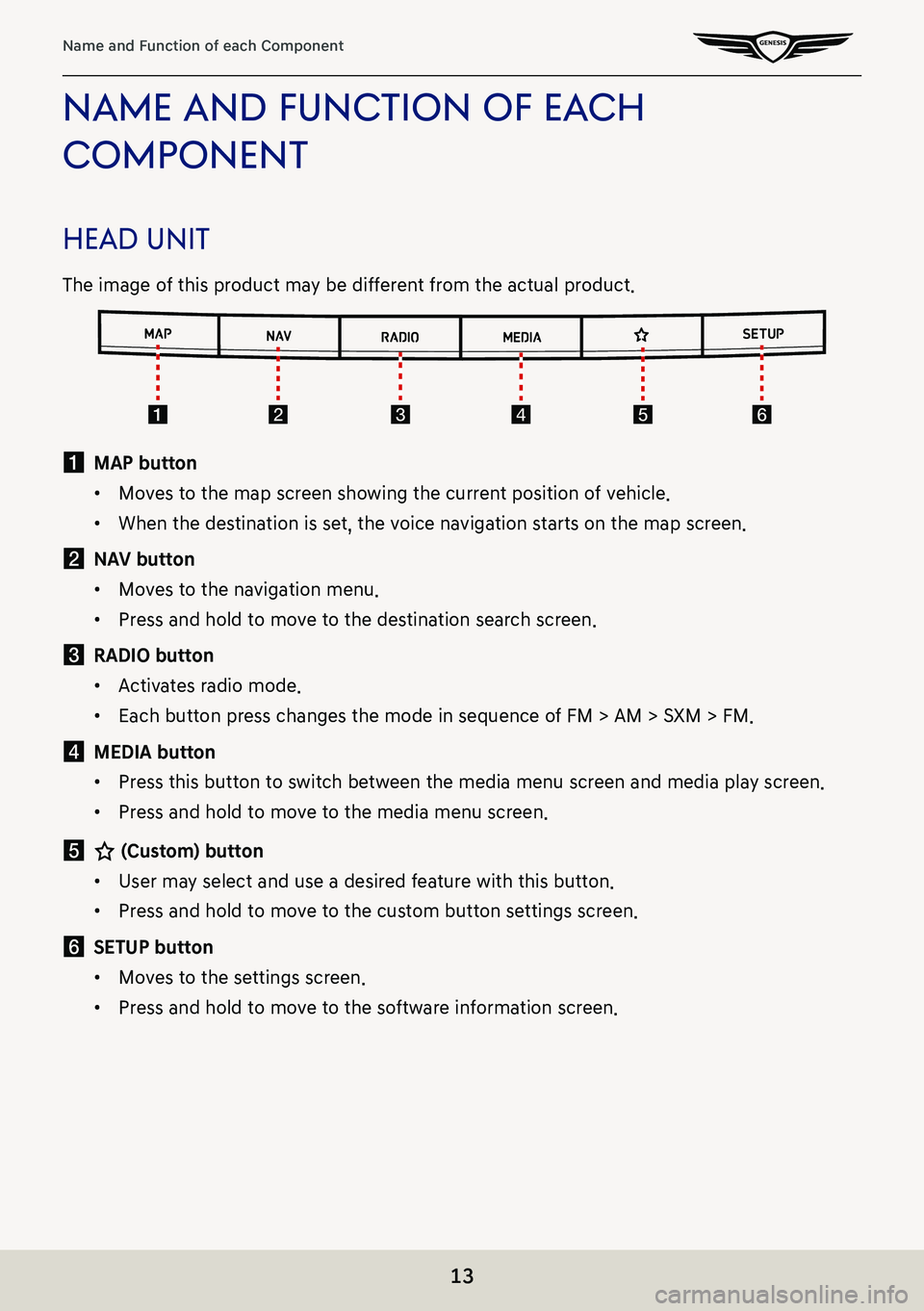

Name and Function of each Component
name and funcTion of each
componenT
head uniT
The image of this product may be different from the actual product.
a MAP button
䠐Moves to the map screen showing the current position of vehicle.
䠐When the destination is set, the voice navigation starts on the map screen.
b NAV button
䠐Moves to the navigation menu.
䠐Press and hold to move to the destination search screen.
c RADIO button
䠐Activates radio mode.
䠐Each button press changes the mode in sequence of FM > AM > SXM > FM.
d MEDIA button
䠐Press this button to switch between the media menu screen and media play screen.
䠐Press and hold to move to the media menu screen.
e K (Custom) button
䠐User may select and use a desired feature with this button.
䠐Press and hold to move to the custom button settings screen.
f SETUP button
䠐Moves to the settings screen.
䠐Press and hold to move to the software information screen.
Page 14 of 298
14
Name and Function of each Component
fronT seaT conTrol KeY s
The image of this product may be different from the actual product.
a :/VOL wheel button
䠐Press briefly to turn AV on/off.
䠐Press and hold to turn on or off the display.
䠐Turn the wheel up/down to adjust the volume.
b BACK button
䠐Press briefly to move to the previous screen.
䠐Press and hold to go to the home screen.
c HOME button
䠐Press briefly to go to the home screen.
䠐Press and hold to go to the map screen.
d TUNE button
䠐Radio mode: Turning the wheel up/down to increases/decreases the frequency by one
step. (FM: 0.2MHz, AM: 10KHz)
䠐SXM mode: Turning the wheel up/down to increases/decreases the channel by one
step.
䠐USB/Sounds of nature mode: Search for a file by turning the wheel up/down. And, when
the name of desired file is displayed, press the button to play the file.
Page 15 of 298
15
Name and Function of each Component

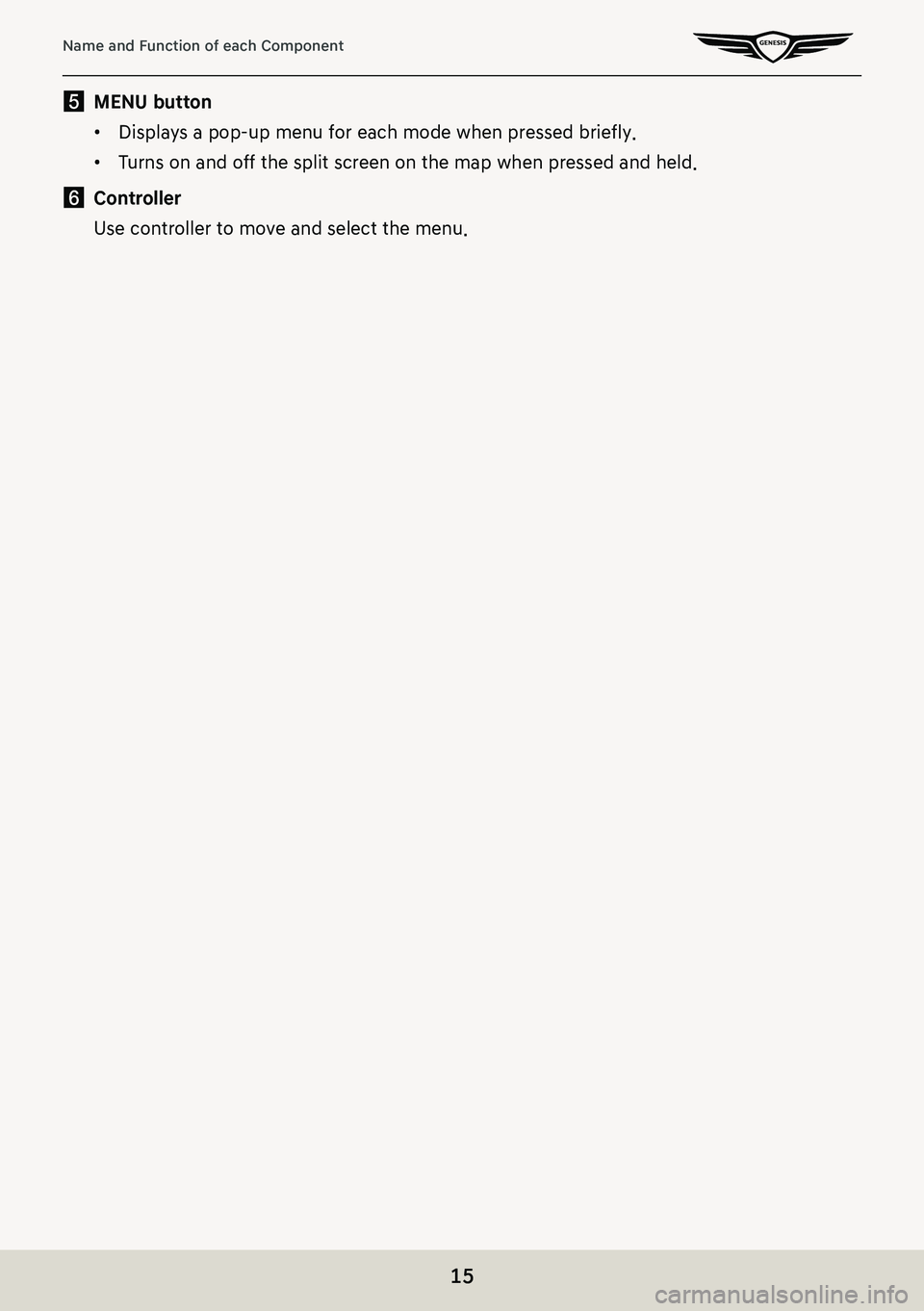

e MENU button
䠐Displays a pop-up menu for each mode when pressed briefly.
䠐Turns on and off the split screen on the map when pressed and held.
f Controller
Use controller to move and select the menu.
Page 16 of 298
16
Name and Function of each Component
sTeering wheel remoTe conTrol
The image of this product may be different from the actual product.
a i (Voice Recognition) button
䠐When it is pressed shortly
-Activates voice recognition mode. -Press and hold the button to cancel voice recognition.
䠐When it is pressed and held
-Activates voice recognition mode of the connected phone projection device.
b W (Bluetooth Call) button
When it is pressed shortly
䠐Searches new Bluetooth phone or connects the registered phone if Bluetooth is not
connected.
䠐If Bluetooth is connected,
-If selected in the call waiting screen, displays call history screen. -If selected in call history screen, makes a call to last called number. -If selected in phone dial screen, enters the last call number. -If selected in phone reception alert screen, answers the phone call. -If selected in calling, ends the call.
When it is pressed and held
䠐When Bluetooth is connected, if selected in Bluetooth hand free waiting mode, redials.
䠐If selected in pop-up of calling, rejects the call.
Page 17 of 298
17
Name and Function of each Component
c L (Custom) button
䠐User may select and use a desired feature with this button.
䠐Press and hold to move to the custom button settings screen.
d MODE button
䠐When it is pressed shortly
-Selects a mode from Bluetooth audio, FM, AM, SXM, USB music, USB video, phone projection or sounds of nature.
䠐When it is pressed and held
-Moves to the mode button (steering wheel) settings screen.
e J/I button
Turn the wheel up/down to adjust the volume.
f (MUTE) button
Press the wheel to turn mute on/off.
f S/W button
䠐When it is pressed shortly
-In FM/AM mode, selects a preset radio station. -In SXM mode, plays broadcast channel saved in the preset. -In media mode, searches track, file or chapter.
䠐When it is pressed and held
-In FM/AM mode, broadcasting are automatically searched. -In SXM mode, moves previous/next channel based on the currently playing channel. -While USB mode activated, rewinds or fast forwards the file.
Page 18 of 298
18
Basic Controls
basic conTrols
Turning The sY sTem on
The image of this product may be different from the actual product.
1. Press the engine start button.
Once the system is turned on, the booting process will start and the safety warning page is
displayed.
䠐Press [Language] to change the language of system display. For more details, refer to
the "Language".
䠐Press [Driver 1], [Driver 2] or [Guest] to change the profile of system. For details, refer to
"User Profile settings".
2. Press [Confirm].
,no Te
䠐You cannot operate the system while it is booting up. It may take some time for all of
features of the system boot up.
䠐The safety warning page is displayed every time the ACC is turned on. The displayed
warnings are related to safety, please closely read and comply with the safety warnings.
Turning The sY sTem off
Press and hold [:/VOL] the wheel on the front seat control key.
To turn the system on again, press [:/VOL] the wheel on the front seat control key.
,no Te
Check the volume when turning on the system.
Before turning on the system, adjust the volume to a reasonable level.
Page 19 of 298
19
Basic Controls
Turning aV off
Press [:/VOL] the wheel on the front seat control key when the AV is ON.
Turning aV on
Press [:/VOL] the wheel on the front seat control key when the AV is OFF.
Volume conTrol
radio/media Volume conTrol
When radio/media is in play, turn [:/VOL] the wheel up/down on the front seat control key to
control the volume.
blueTooTh audio Volume conTrol
When Bluetooth audio is in play, turn [:/VOL] the wheel up/down on the front seat control key
to control the volume.
Voice recogniTion guide Volume conTrol
When voice guidance is in play, turn [:/VOL] the wheel up/down on the front seat control key
to control the volume.
blueToo Th phone Volume conTrol
During Bluetooth phone call, turn [:/VOL] the wheel up/down on the front seat control key to
control the volume.
Page 20 of 298
20
Basic Controls
sYsTem reseT
This feature is used to reset the system in the occurrence of an unforeseen error or problem.
Press [MAP] button and [SETUP] button for 5 seconds.
using conTroller and Touchpad
Rotate controller to left/right or use touchpad to switch or select the menu.
ControllerDetails
Rotate controller to left/right to switch the menu.
Swipe up/down/left/right to switch the menu.
Press touchpad to select the menu.
Write the desired words or gesture on the touchpad.
Press controller to up/down/left/right to focus menu or move map position.
