HONDA ODYSSEY 2014 RC1-RC2 / 5.G Navigation Manual

30


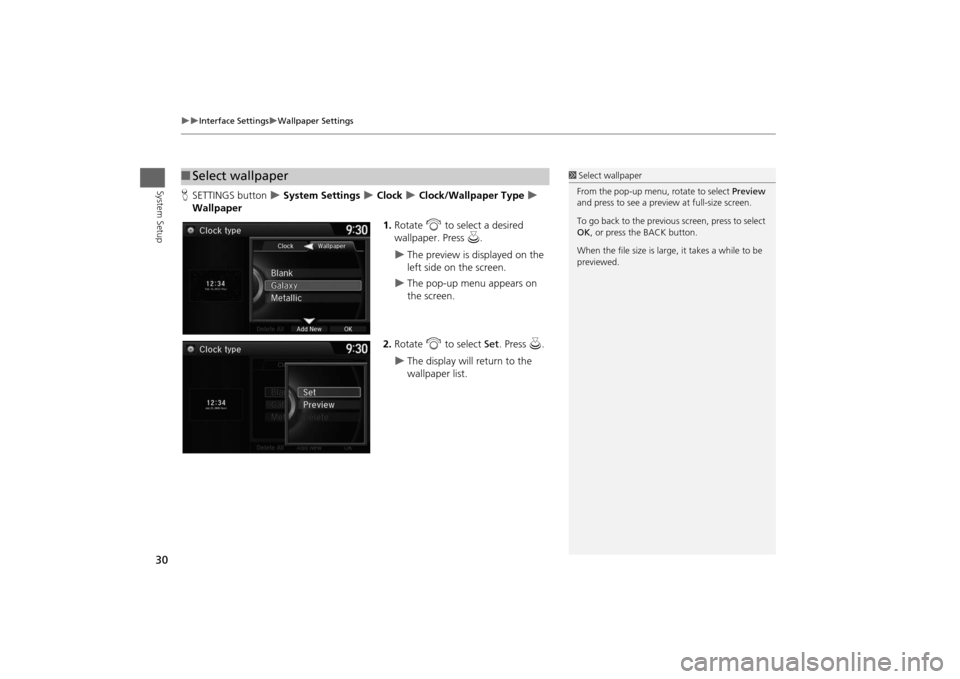

Interface Settings
Wallpaper Settings
System Setup
HSETTINGS button
 System Settings
 Clock
 Clock/Wallpaper Type

Wallpaper
1.Rotate i to select a desired
wallpaper. Press u.

The preview is displayed on the
left side on the screen.

The pop-up menu appears on
the screen.
2.Rotate i to select Set. Press u.

The display will return to the
wallpaper list.
■Select wallpaper
1Select wallpaper
From the pop-up menu, rotate to select Preview
and press to see a preview at full-size screen.
To go back to the previous screen, press to select
OK, or press the BACK button.
When the file size is large, it takes a while to be
previewed.

31


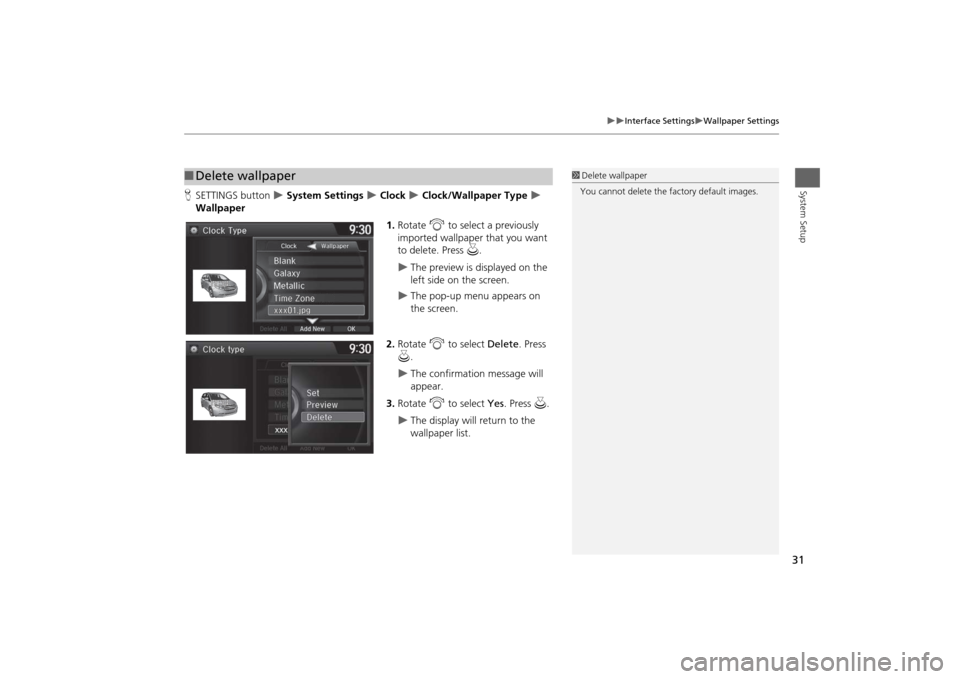

Interface Settings
Wallpaper Settings
System Setup
HSETTINGS button
 System Settings
 Clock
 Clock/Wallpaper Type

Wallpaper
1.Rotate i to select a previously
imported wallpaper that you want
to delete. Press u.

The preview is displayed on the
left side on the screen.

The pop-up menu appears on
the screen.
2.Rotate i to select Delete. Press
u.

The confirmation message will
appear.
3.Rotate i to select Yes. Press u.

The display will return to the
wallpaper list.
■Delete wallpaper
1Delete wallpaper
You cannot delete the factory default images.

32

Interface Settings
Unit Settings
System Setup
Unit SettingsHSETTINGS button
 System Settings
 Others
 Units
Sets the map units to either miles (factory default) or kilometers (km).
Rotate i to select the map unit.
Press u.

33


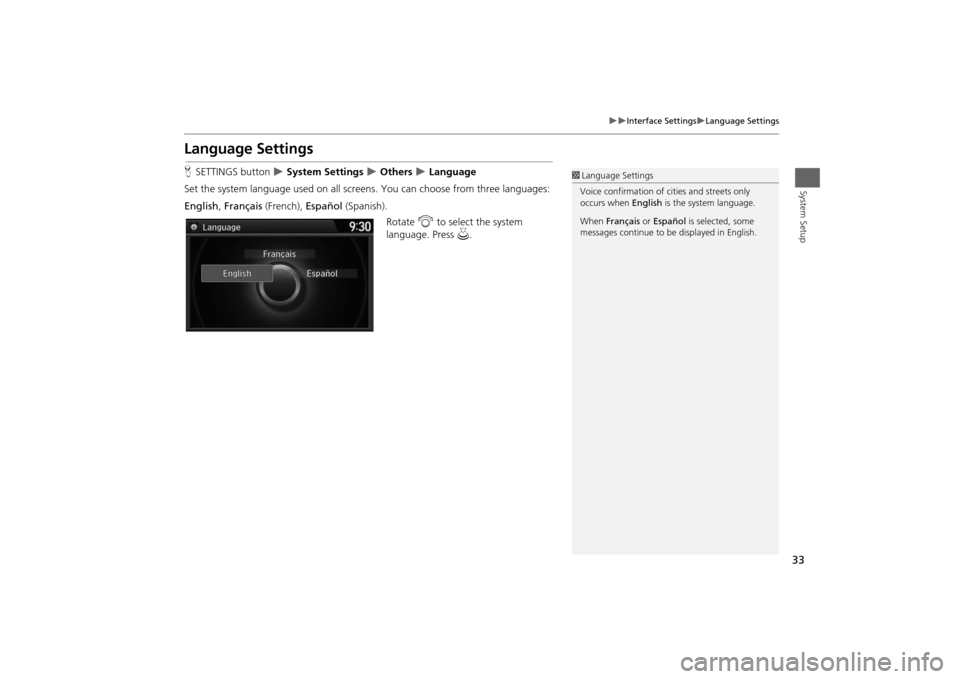

Interface Settings
Language Settings
System Setup
Language SettingsHSETTINGS button
 System Settings
 Others
 Language
Set the system language used on all screens. You can choose from three languages:
English, Français (French), Español (Spanish).
Rotate i to select the system
language. Press u.
1Language Settings
Voice confirmation of cities and streets only
occurs when English is the system language.
When Français or Español is selected, some
messages continue to be displayed in English.

34


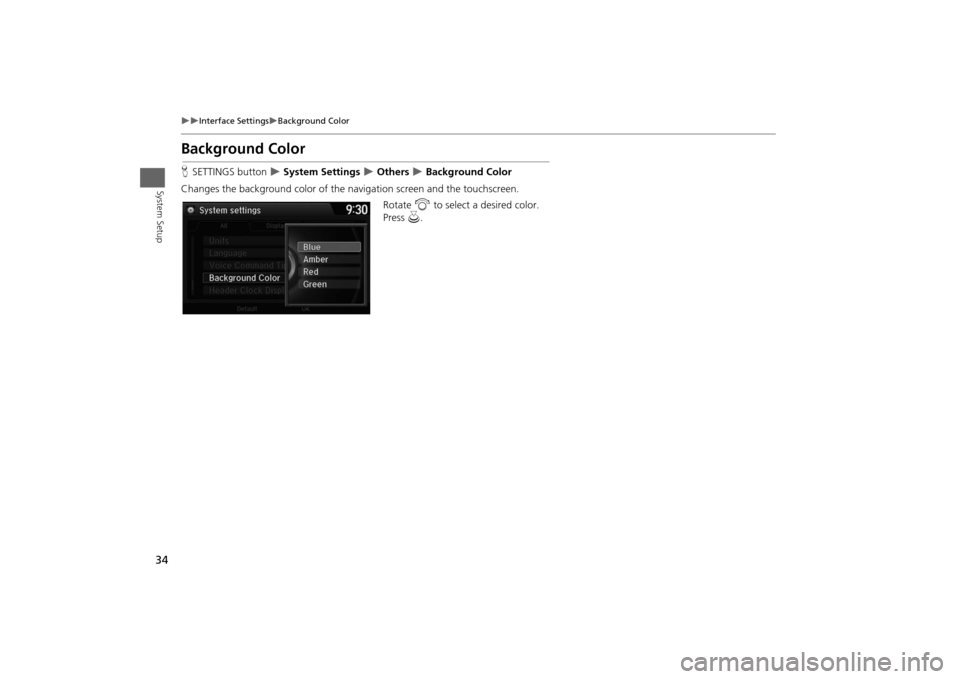

Interface Settings
Background Color
System Setup
Background ColorHSETTINGS button
 System Settings
 Others
 Background Color
Changes the background color of the navigation screen and the touchscreen.
Rotate i to select a desired color.
Press u.

35


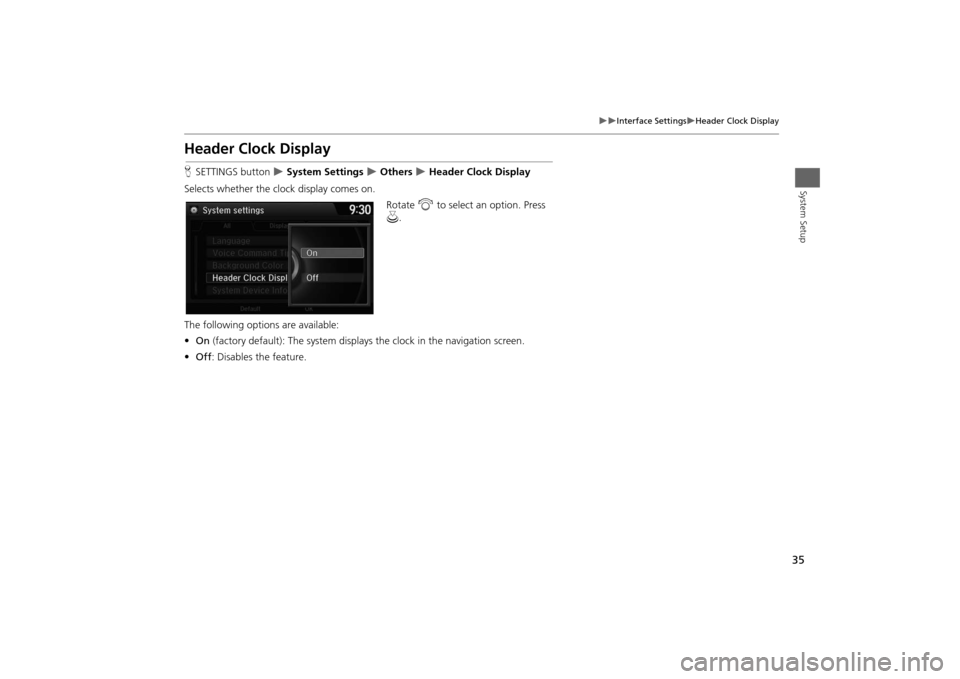

Interface Settings
Header Clock Display
System Setup
Header Clock DisplayHSETTINGS button
 System Settings
 Others
 Header Clock Display
Selects whether the clock display comes on.
Rotate i to select an option. Press
u.
The following options are available:
•On (factory default): The system displays the clock in the navigation screen.
•Off: Disables the feature.

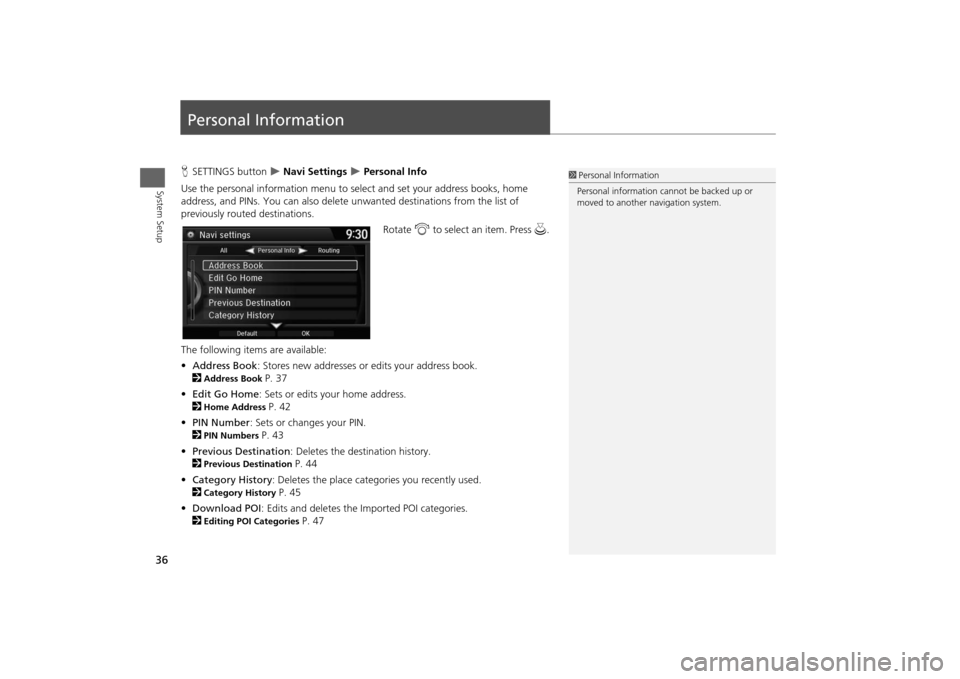

36System Setup
Personal InformationHSETTINGS button
 Navi Settings
 Personal Info
Use the personal information menu to select and set your address books, home
address, and PINs. You can also delete unwanted destinations from the list of
previously routed destinations.
Rotate i to select an item. Press u.
The following items are available:
•Address Book: Stores new addresses or edits your address book.
2
Address Book
P. 37
•Edit Go Home: Sets or edits your home address.
2
Home Address
P. 42
•PIN Number: Sets or changes your PIN.
2
PIN Numbers
P. 43
•Previous Destination: Deletes the destination history.
2
Previous Destination
P. 44
•Category History: Deletes the place categories you recently used.
2
Category History
P. 45
•Download POI: Edits and deletes the Imported POI categories.
2
Editing POI Categories
P. 47
1Personal Information
Personal information cannot be backed up or
moved to another navigation system.

37


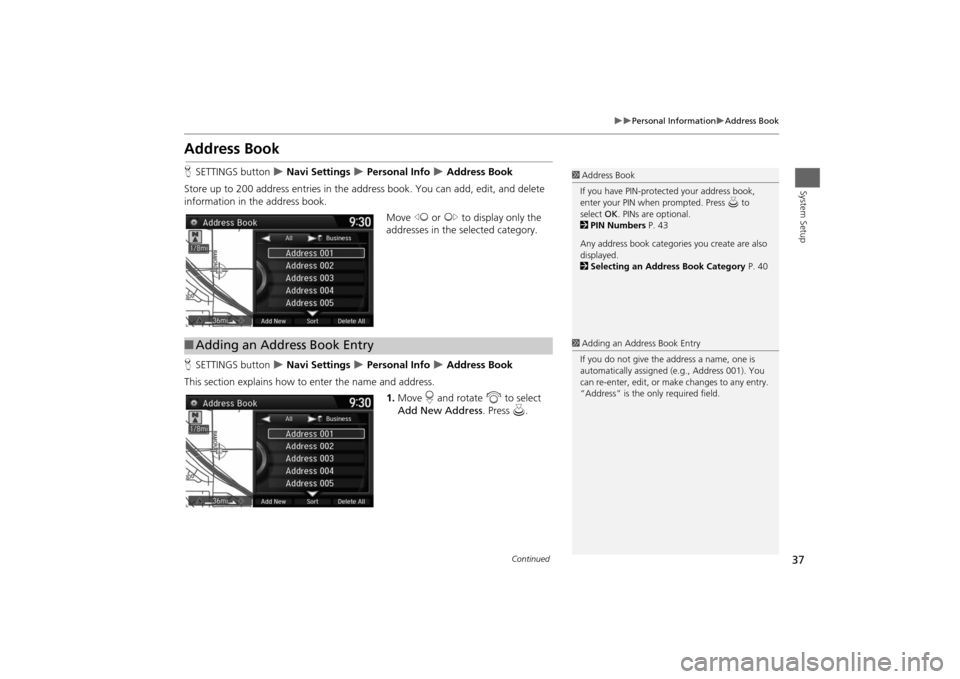

Personal Information
Address Book
System Setup
Address BookHSETTINGS button
 Navi Settings
 Personal Info
 Address Book
Store up to 200 address entries in the address book. You can add, edit, and delete
information in the address book.
Move w or y to display only the
addresses in the selected category.
HSETTINGS button
 Navi Settings
 Personal Info
 Address Book
This section explains how to enter the name and address.
1.Move r and rotate i to select
Add New Address. Press u.
1Address Book
If you have PIN-protected your address book,
enter your PIN when prompted. Press u to
select OK. PINs are optional.
2PIN Numbers P. 43
Any address book categories you create are also
displayed.
2Selecting an Address Book Category P. 40
■Adding an Address Book Entry
1Adding an Address Book Entry
If you do not give the address a name, one is
automatically assigned (e.g., Address 001). You
can re-enter, edit, or make changes to any entry.
“Address” is the only required field.
Continued

38


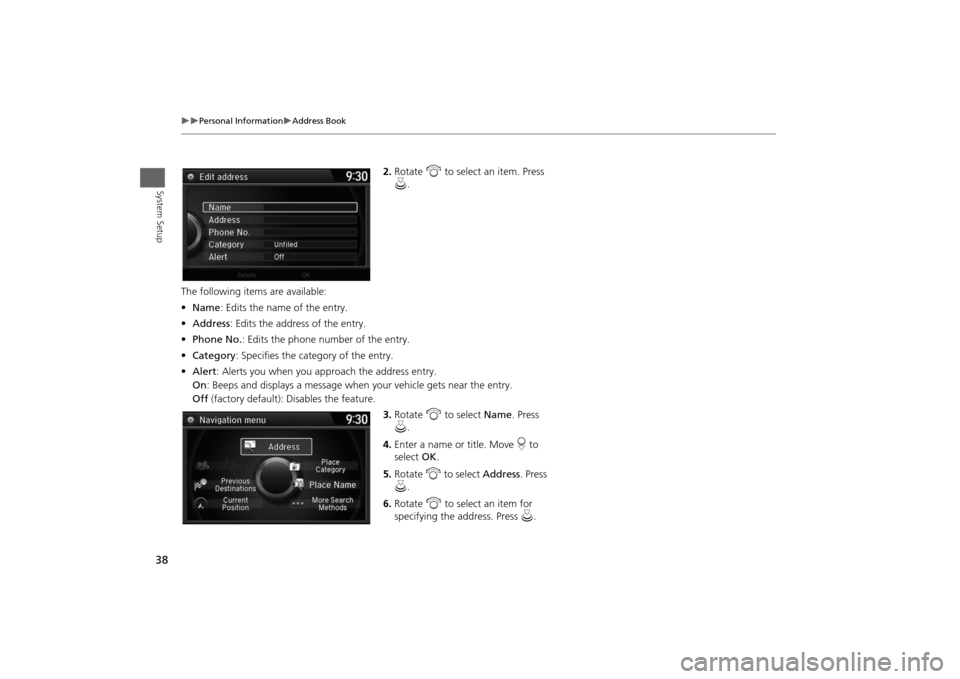

Personal Information
Address Book
System Setup
2.Rotate i to select an item. Press
u.
The following items are available:
•Name: Edits the name of the entry.
•Address: Edits the address of the entry.
•Phone No.: Edits the phone number of the entry.
•Category: Specifies the category of the entry.
•Alert: Alerts you when you approach the address entry.
On: Beeps and displays a message when your vehicle gets near the entry.
Off (factory default): Disables the feature.
3.Rotate i to select Name. Press
u.
4.Enter a name or title. Move r to
select OK.
5.Rotate i to select Address. Press
u.
6.Rotate i to select an item for
specifying the address. Press u.

39

Personal Information
Address Book
System Setup
The following items are available:
•Current Position: Select your current location.
•Address: Enter an address on the character input screen when prompted.
2
Address
P. 86
•Previous Destinations: Select a previous destination.
2
Previous Destination
P. 93
•Place Name: Enter the name of a place/landmark.
2
Place Name
P. 96
•Place Category: Select a category to search for a place/landmark (e.g., Banking,
Lodging).
2
Place Category
P. 94
•More Search Methods: Displays additional search method entries.
2
Entering a Destination
P. 84
HSETTINGS button
 Navi Settings
 Personal Info
 Address Book
1.Rotate i to select the address to
edit. Press u.
2.Enter the name, address, phone
number, and category fields.
2
Adding an Address Book Entry P. 37
3.Move r and rotate i to select
OK. Press u.
■Editing an Address Book Entry
1Adding an Address Book Entry
When you use Place Name or Place Category,
the phone number is automatically entered.
You can also add a phone number and category.1Editing an Address Book Entry
The entered contents are displayed on the Edit
address screen.
