Hyundai Santa Fe 2017 Car Multimedia System

Before \fse I 4-3

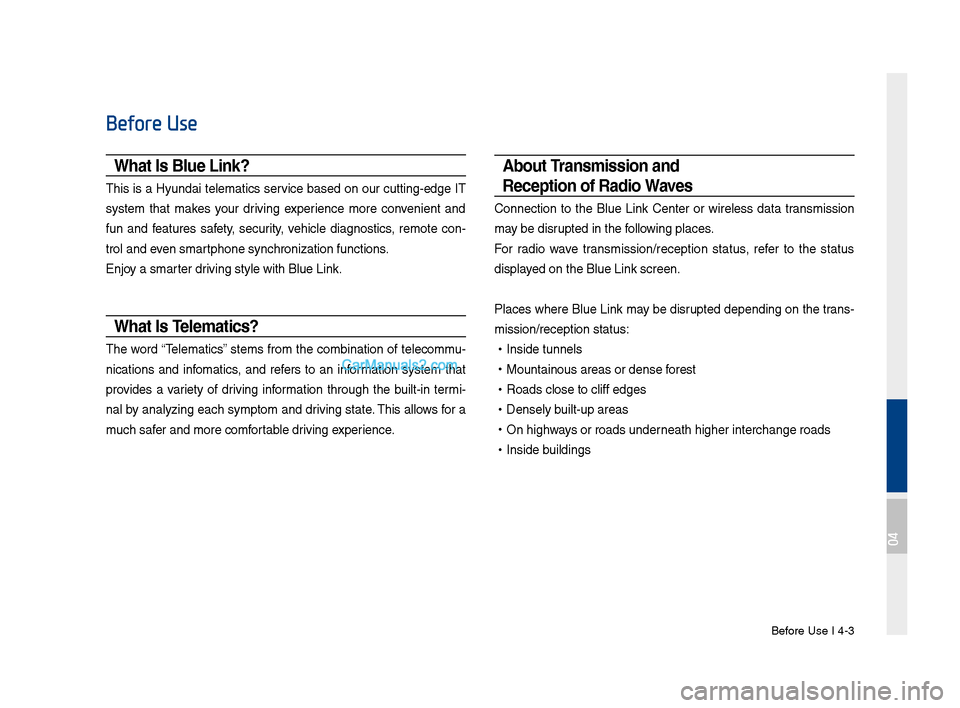

Before Use
What \fs Blue \bink?
This is a Hyundai telematics service based on our cutting-edge IT
system that makes your driving experience more convenient and
fun and features safety, security, vehicle diagnostics, remote con-
trol and even smartphone synchroniza\Btion functions.
Enjoy a smarter driving style with Bl\Bue Link.
What \fs Telematics?
The word “Telematics” stems from the combination of telecommu-
nications and infomatics, and refers to an information system that
provides a variety of driving information through the built-in termi-
nal by analyzing each symptom and driving state. This allows for a
much safer and more comfortable driving experience.
About Transmission and
Reception of Radio Waves
Connection to the Blue Link Center or wireless data transmission
may be disrupted in the following places.
For radio wave transmission/recepti\Bon status, refer to the status
displayed on the Blue Link\B screen.
Places where Blue Link may be disrupted depending on the trans-
mission/reception \Bstatus:
• Inside tunnels
•Mountainous areas \Bor dense forest
•Roads close to cli\Bff edges
•Densely built-up areas
•On highways or roads underneath higher interc\Bhange roads
•Inside buildings
04

4-4 I Blue Link® Control

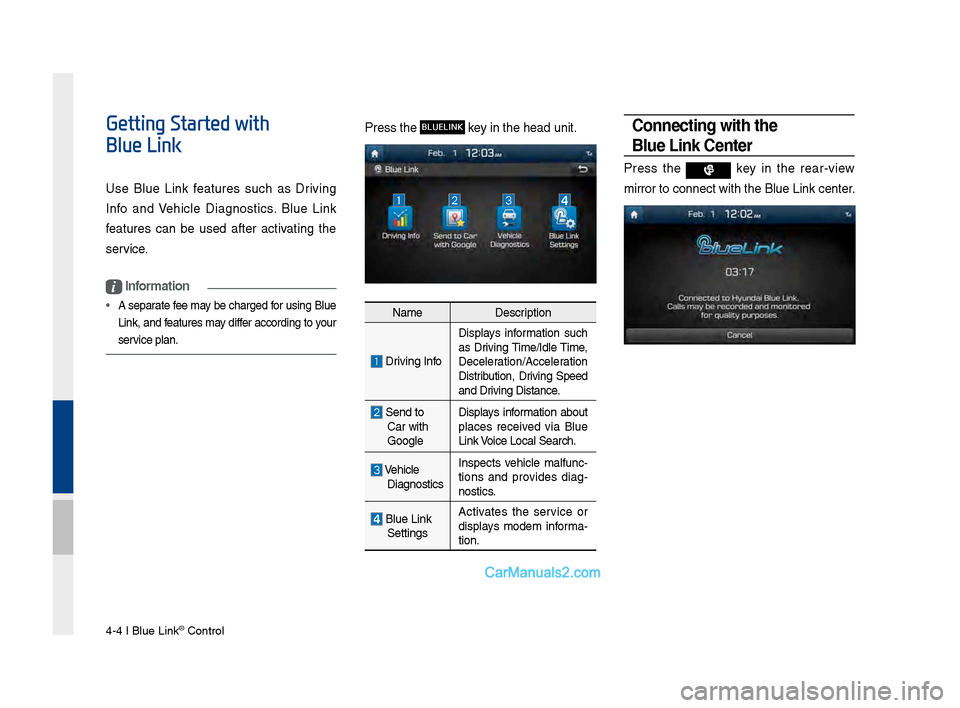

Getting Started with
Blue Link
\fse Blue Link features such as Driving
Info and Vehicle Diagnostics. Blue Link
features can be used after activating the
service.
i \fnformation
• A separate fee may be charged for using Blue
Link, and features may differ according to your
service plan.
Press the BLUELINK key in the head unit\B.
NameDescription
Driving Info
Displays information such
as Driving Time/Idle Time,
Deceleration/Acceleration
Distribution, Driving \bpeed
and Driving Distance.
\bend to
Car with
Google Displays information about
places received via Blue
Link Voice Local \bearch.
Vehicle
Diagnostics Inspects vehicle malfunc
-
tions and provides diag-
nostics.
Blue Link \bettings Activates the service or
displays modem informa
-
tion.
Connecting with the
Blue \bink Center
Press the key in the rear-view
mirror to connect \Bwith the Blue Link \Bcenter.

Getting \btarted with Blue Link \BI 4-5

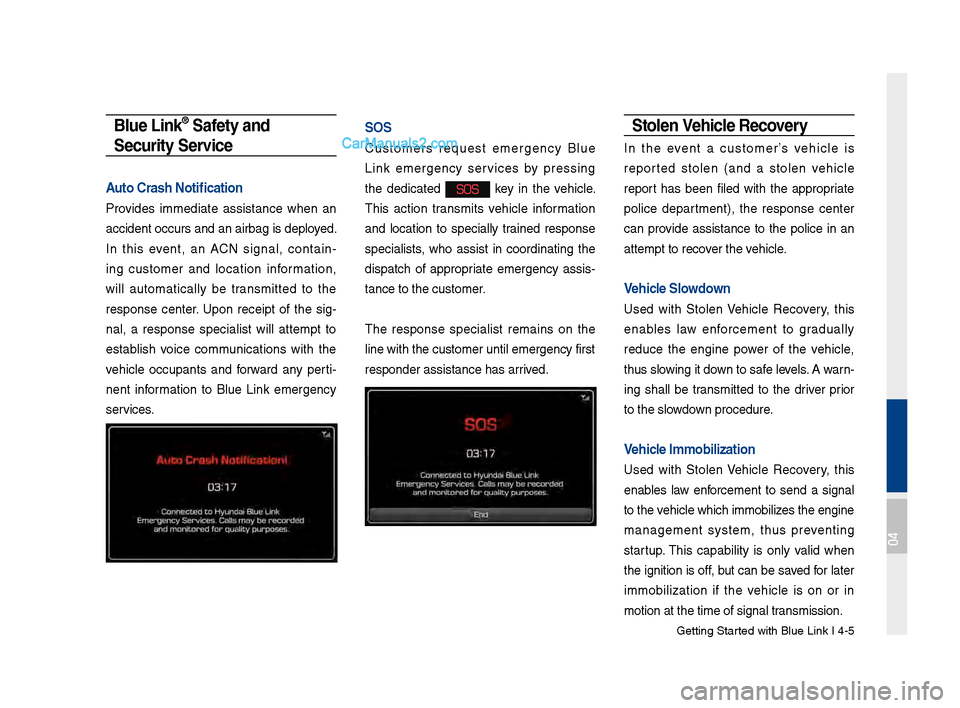

Blue \bink® Safety and
Security Service
Auto Crash Notificati\Won
Provides immediate assistance when an
accident occurs an\Bd an airbag is depl\Boyed.
In this event, an ACN signal, contain -
ing customer and location information,
will automatically be transmitted to the
response center. \fpon receipt of the sig -
nal, a response specialist will attempt to
establish voice communications with the
vehicle occupants and forward any perti -
nent information to Blue Link emergency
services.
SOS
Customers request emergency Blue
Link emergency services by pressing
the dedicated
SOS key in the vehicle.
This action transmits vehicle information
and location to specially trained response
specialists, who assist in coordinating the
dispatch of appropriate emergency assis -
tance to the custo\Bmer.
The response specialist remains on the
line with the cust\Bomer until emergenc\By first
responder assistan\Bce has arrived.
Stolen Vehicle Recovery
In the event a customer’s vehicle is
reported stolen (and a stolen vehicle
report has been filed with the appropriate
police department), the response center
can provide assistance to the police in an
attempt to recover the vehicle.
Vehicle Slowdown
\fsed with \btolen Vehicle Recovery, this
enables law enforcement to gradually
reduce the engine power of the vehicle,
thus slowing it down to safe levels. A warn -
ing shall be transmitted to the driver prior
to the slowdown procedure.
Vehicle \fmmobilization
\fsed with \btolen Vehicle Recovery, this
enables law enforcement to send a signal
to the vehicle which immob\Bilizes the engine
management system, thus preventing
startup. This capability is only valid when
the ignition is off, but can be saved for later
immobilization if the vehicle is on or in
motion at the time\B of signal transmission.
04

4-6 I Blue Link® Control

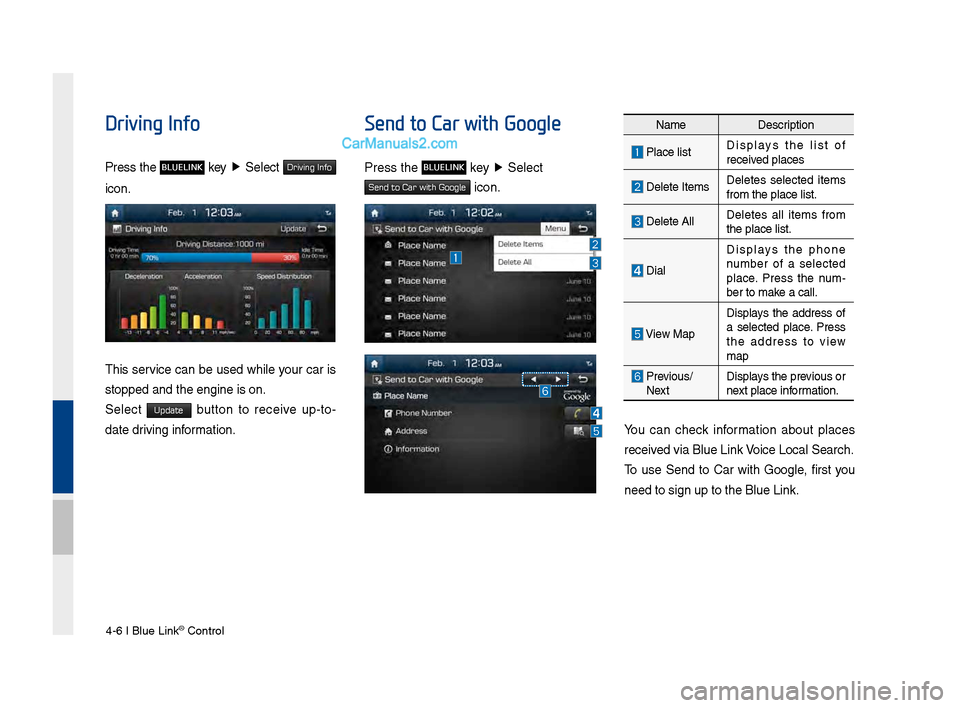

Driving Info
Press the BLUELINK key ▶
\belect Driving Info
icon.
This service can be used while your car is
stopped and the en\Bgine is on.
\belect
Update button to receive up-to-
date driving information.
Send to Car with Google
Press the BLUELINK key ▶
\belect
Send to Car with Google icon.
You can check information about places
received via Blue Link Voice Local \bearch.
To use \bend to Car with Google, first you
need to sign up to \Bthe Blue Link.
Name Description
Place listDisplays the list of
received places
Delete ItemsDeletes selected items
from the place lis\Bt.
Delete AllDeletes all items from
the place list.
DialDisplays the phone
number of a selected
place. Press the num
-
ber to make a call.
View Map
Displays the address of
a selected place. Press
the address to view
map
Previous/
Next Displays the previous or
next place information.

Blue Link \bettings I\B 4-7

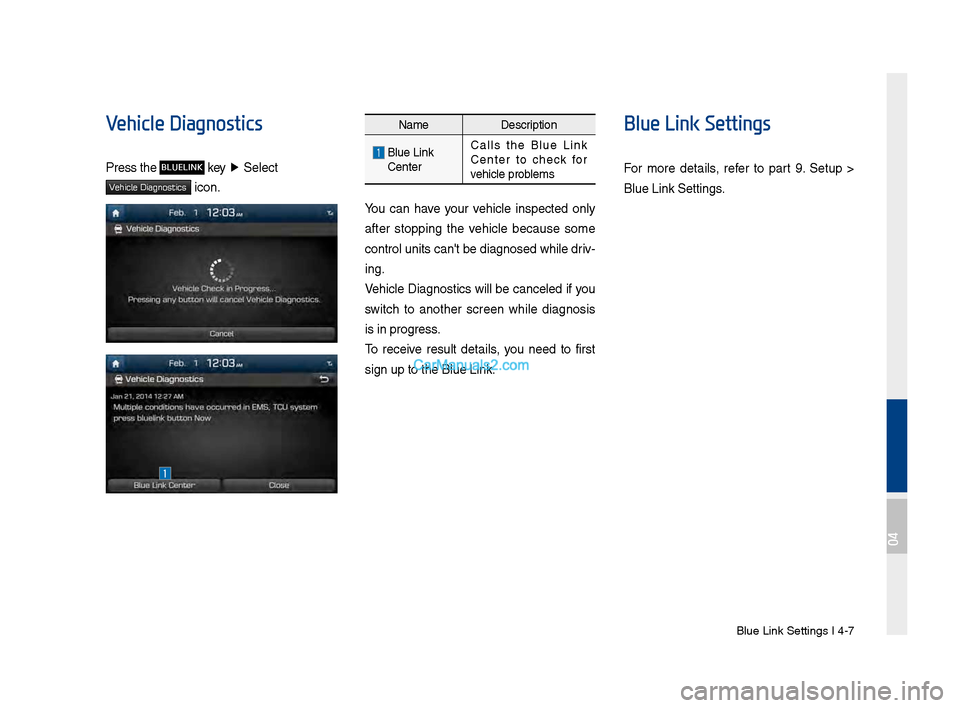

Vehicle Diagnostics
Press the BLUELINK key ▶
\belect
Vehicle Diagnostics icon.
Name Description
Blue Link
Center Calls the Blue Link
Center to check for
vehicle problems
You can have your vehicle inspected only
after stopping the vehicle because some
control units can'\Bt be diagnosed whil\Be driv
-
ing.
Vehicle Diagnostics will be canceled if you
switch to another screen while diagnosis
is in progress.
To receive result details, you need to first
sign up to the Blue\B Link.
Blue Link Settings
For more details, refer to part 9. \betup >
Blue Link \bettings.
04

4-8 I Blue Link® Control

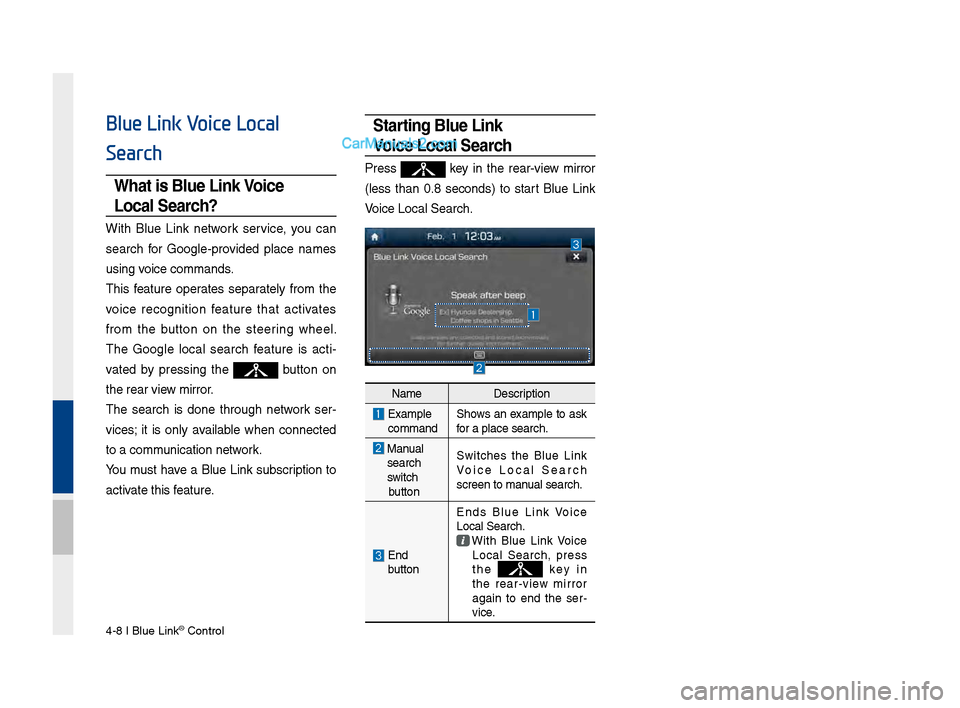

Blue Link Voice Local
Search
What is Blue \bink Voice
\bocal Search?
With Blue Link network service, you can
search for Google-provided place names
using voice commands.
This feature operates separately from the
voice recognition feature that activates
from the button on the steering wheel.
The Google local search feature is acti-
vated by pressing the
button on
the rear view mirror.
The search is done through network ser -
vices; it is only available when connected
to a communication network.
You must have a Blue Link subscription to
activate this feature.
Starting Blue \bink
Voice \bocal Search
Press key in the rear-view mirror
(less than 0.8 seconds) to start Blue Link
Voice Local \bearch.
Name Description
Examplecommand\bhows an example to ask
for a place search.\B
Manualsearch
switch
button \bwitches the Blue Link
Voice Local \bearch
screen to manual search.
End
button Ends Blue Link Voice
Local \bearch. With Blue Link Voice Local \bearch, press

the k e y i n
the rear-view mirror
again to end the ser -
vice.

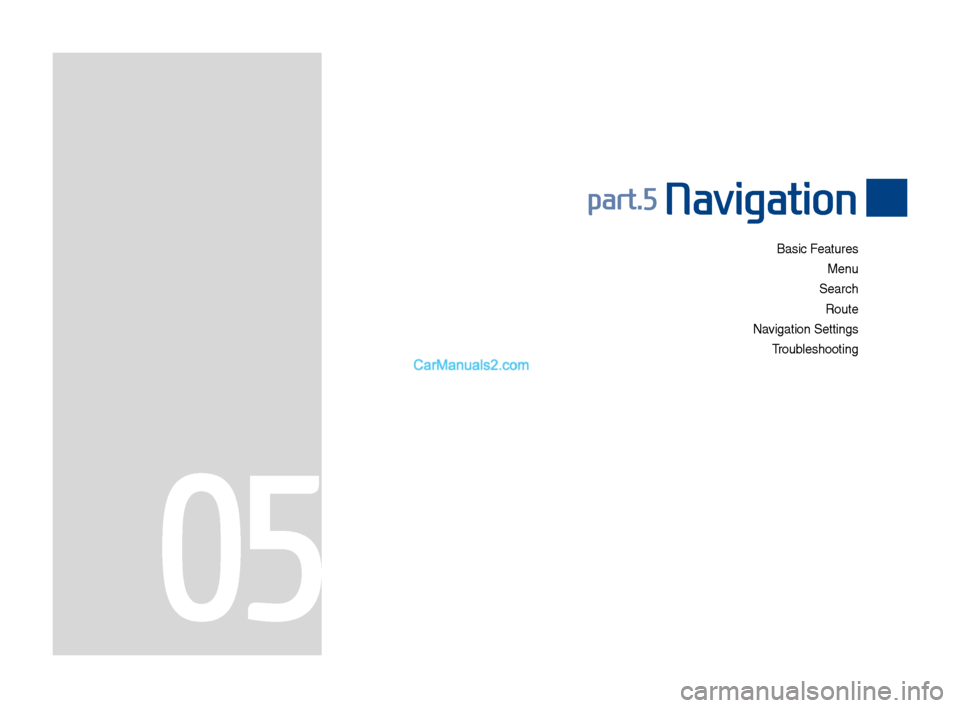

Basic FeaturesMenu
Search Route
Navi\fation Settin\fs Troubleshootin\f
part.5 Navigation
05

\b-2 I Navi\fation

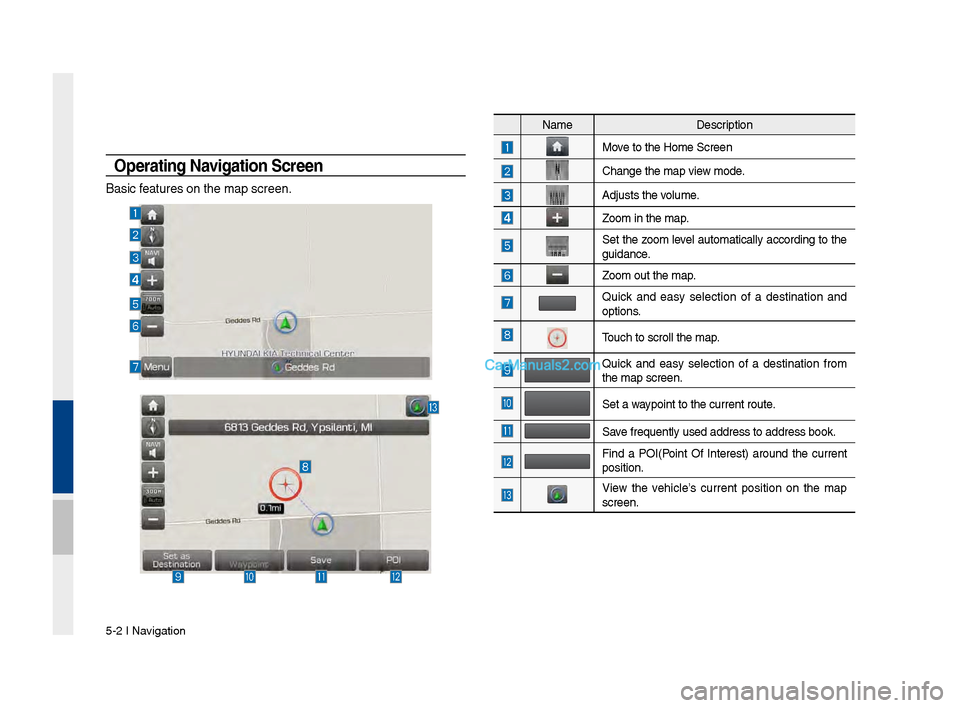

Operating Navigation Screen
Basic features on the map\v screen.

NameDescription
Move to the Home Scre\ven
Chan\fe the map view mode.
Adjusts the volume.
Zoom in the map.
Set the zoom level automatically accordin\f to the
\fuidance.
Zoom out the map.
Quick and easy selection of a destination and
options.
Touch to scroll the \vmap.
Quick and easy selection of a destination from
the map screen.
Set a waypoint to the curr\vent route.
Save frequently used a\vddress to address \vbook.
Find a POI(Point Of Interest) around the current
position.
View the vehicle’s current position on the map
screen.

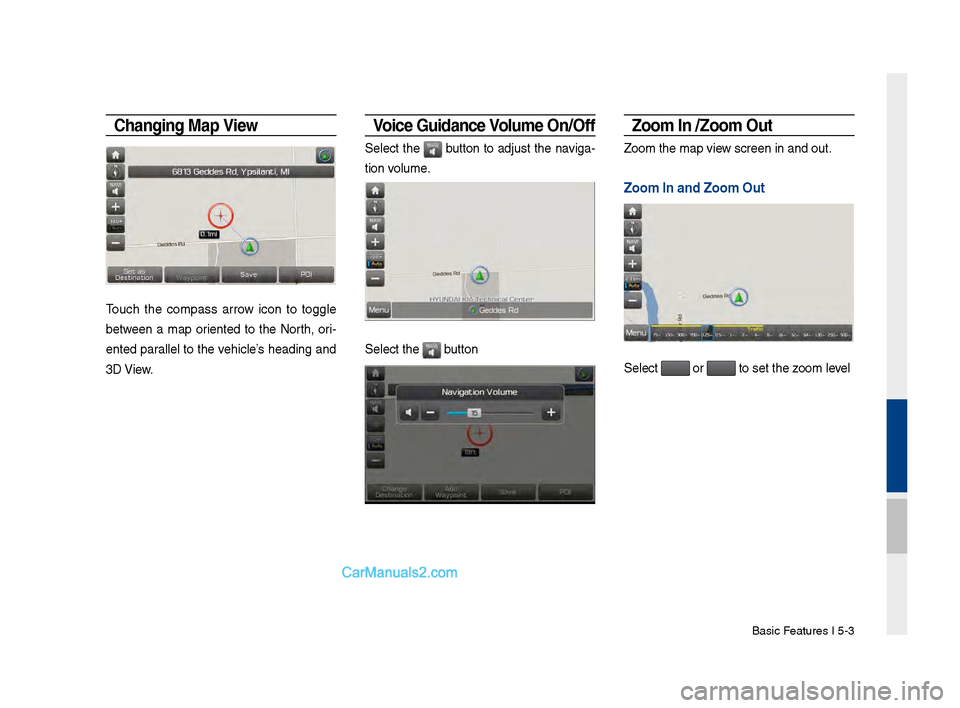

Basic Features I \b-3
Changing Map Vie\f
Touch the compass arrow icon to to\f\fle
between a map oriented to the North, ori-
ented parallel to the vehicle’s headin\f and
3D View.
Voice Guidance Vo\bume On/Off
Select the button to adjust the navi\fa-
tion volume.
Select the button
Zoom In /Zoom Out
Zoom the map view screen in and ou\vt.
Zoom In and Zoom Ou\Vt

Select
or to set the zoom level

\b-4 I Navi\fation
Map Sca\be
Sets the zoom level automatically accord-
in\f to the type of \vroad.
NameDescription

Scale Fix Manually adjust the map
scale.

Auto Scale Chan\fe the map scale
automatically dependin\f
on the type of roa\vd.
Route
Select the button on the bottom left
of the screen ▶
Select the
button
Select the button to set
or
.
Route Option
You can select an option from Route,
Traffic Information, Freeway, Toll Roads,
Ferry, HOV/Carpool Lanes, Toll Pass, or
Private/Gated Roads.
Select the
button to save your
selection.
If there is a route already saved, another
route will be search\ved.
