Hyundai Santa Fe 2017 Car Multimedia System

Bluetooth \fonnectio\dn I 3\b5
Connecting Devices Through the
Phone Settings
Press the SETUP key. ▶
Select Phone.
▶ Select Bluetooth Connection. ▶ Select the
name of the device to connect. ▶

\fonnect Bluetooth.
Disconnecting
Bluetooth Devices
Disconnects Bluetooth devices that are
connected.
Press the
SETUP key. ▶
Select Phone.
▶ Select Bluetooth Connection. ▶ Select the
name of the device to disconnect.
Deleting Bluetooth Devices
Deletes the Bluetooth devices that you
added. Note that deleting a Bluetooth
device will delete all \fall History and
\fontact Info downloaded along with\d it.
Press the
SETUP key. ▶
Select Phone.
▶ Select Bluetooth Connection. ▶ Select
Delete Devices. ▶ Select the device name
to delete. ▶
Select
Delete.
03

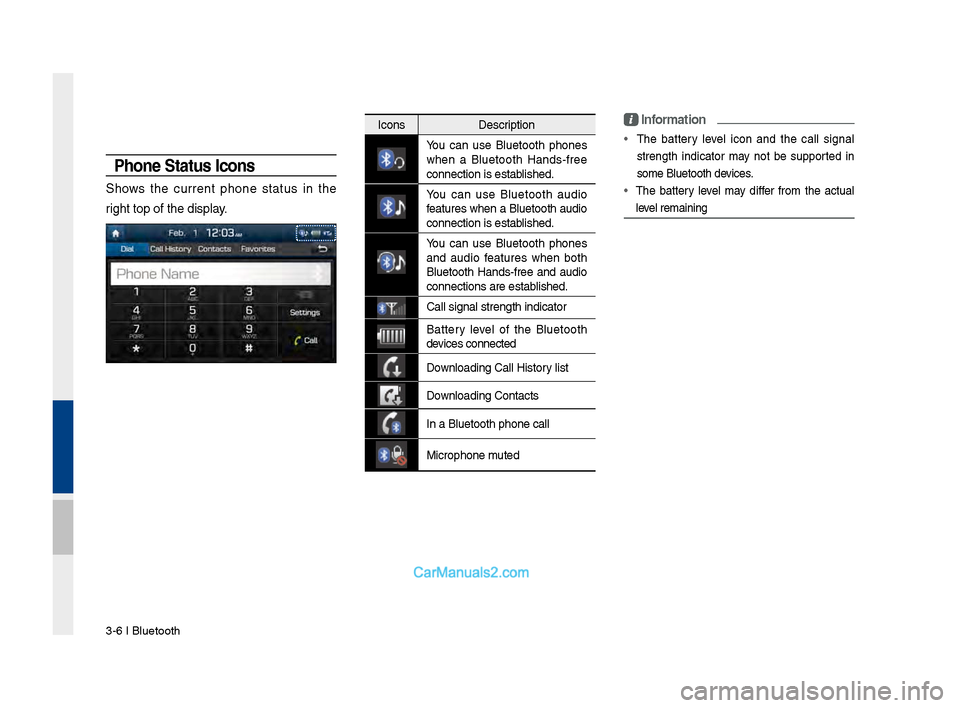

3\b6 I Bluetooth
Phone Status \bcons
Shows the current phone status in the
right top of the dis\dplay.
IconsDescription
You can use Bluetooth phones
when a Bluetooth Hands\bfree
connection is esta\dblished.
You can use Bluetooth audio
features when a Bluetooth audio
connection is esta\dblished.
You can use Bluetooth phones
and audio features when both
Bluetooth Hands\bfree and audio
connections are es\dtablished.
\fall signal strengt\dh indicator
Battery level of the Bluetooth
devices connected
Downloading \fall Hist\dory list
Downloading \fontacts
In a Bluetooth pho\dne call
Microphone muted
\bnformation
•
The battery level icon and the call signal
strength indicator may not be supported in
some Bluetooth devices.
• The battery level may differ from the actual
level remaining

Bluetooth Phone I 3\d\b7
Dial
Dials a call after the Bluetooth devices are
connected.
•Press the PHONE key or key in
the steering wheel remote c\dontrol.
• You can also select All Menus icon, and
then
Phone icon.
Name Description
Keypad
Use the keypad to
enter the phone num \b
ber that you want to
call. Press and hold
the last number of
a speed dial to dial
a number that you
added to the Speed
Dial list in the p\dhone
DeleteDeletes the numbers
that you entered.
SettingsMoves to a screen of
Phone Settings.
\fall Makes a call after
you dial a number
and select \fALL. If
the number is listed
in Dialed \falls, you
can select the number
and press \fALL to
automatically dial that
number again.
\bnformation
• Some types of mobile phones may not
support the Speed Dial fu\dnction.
Accept/Reject Call

If there is an incoming call after you made
a Bluetooth connection, a popup message
will appear.
\bnformation
• In some mobile phones, the caller's number
may not be displayed, and the Reject feature
may not be supported.
Name
Description
AcceptAnswers the call.
Reject Ignores the call.
03

3\b8 I Bluetooth
Using the Menu During
a Phone Call
When making a call, you can use the fol\b
lowing menu items.
Name Description
Use PrivateSwitches a voice call
from the car Hands\bfree
to the mobile phon\de.
EndEnds a call.
\fontacts Displays the \fontacts
list.
Outgoing
Volume Displays the Mic Volume
settings. You can adjust
the in\bcall volume that
the other party hears
(level 1 \b 5).
KeypadMoves to a screen for
entering ARS numbers.
Switch
Switches to a call on
hold, if any. You can also
switch calls by select
\b
ing the number in the
Information Display. The
Switch function switches
the current call to a
waiting call in order to
answer a new incoming
call.
i \bnformation
• If the caller's number is listed in \fontacts, the
caller's name will be displayed. Otherwise,
only the number will be displayed. In some
mobile phones, the phone number may not
be displayed.
• In some Bluetooth devices, the Use Private
feature may not be supported.
• In some Bluetooth devices, the Switch feature
may not be supported.
• During a phone call on a Bluetooth Hands\b
free, you cannot access o\dther modes, such as
Radio and Setup.
• Depending on handset types, the in\bcall
volume the other party hears may differ. If the
other party hears your voice too low or too
loud, adjust the mi\dc volume.

Bluetooth Phone I 3\d\b9
Call History
Press the key, and then .
NameDescription
All
Lists the all call\d history.
DialedLists the calls that you
made.
Received Lists the calls that you
have received.
Missed Lists the calls you
missed.
\fall HistoryDisplays all of your call
history. Select from the
list to dial the number.
InformationDisplays the details
of your call history

information.
Download Downloads the call his\b
tory information from
your mobile phone.
\fallDials the selected
number in your \fall
History Information.
\fontacts InfoGoes to the \fontact
Information screen if
the number has been
stored.
i
\bnformation
• In some mobile phones, call records may not
be added to your \fall History.
• \falls from restricted ID's are not added to
your \fall History Information.
• Up to 50 calls can be added in each Dialed
\falls/Received \falls/Missed \fall\ds list.
• The durations of each dialed/received call are
not displayed in your car's \fall Hist\dory list.
• While the call history download is in progress,
the status bar disp\dlays an icon (
).
• If the call history download is turned off on the
Bluetooth device, the call history download
will fail.
• Some devices require a device authentication
for downloading your call history. If download
fails, check if the Bluetooth settings or display
status are normal.
• Some devices do not support call history
download. \fheck if your Bluetooth device
supports download feature. For details
regarding Bluetooth\bsupported devices and
their functional compatibility, visit https://www.
hyundaiusa.com/bluetooth

3\b10 I Bluetooth
Contacts
Press the key,
and then
i \bnformation
• Up to 5000 phone numbers can be
downloaded from a single, paired Bluetooth
device.
• You cannot edit or delete downloaded phone
numbers from your car.
• \fontacts can be viewed only when the
Bluetooth device is connected.
• Even if the Bluetooth device is disconnected,
the downloaded data will remain.
(Note that deleting a paired phone will also
delete all downloaded \fontacts and \fall
History data)
• Downloaded phone numbers may be lost
depending on the condition of the head unit.
Keep your important data in a safe place.
• \fontacts from both the SIM card and your
mobile phone are downloaded at the same
time by default.
• The status bar displays a (
) while
downloading contacts.
• The download will not be available if the
contacts download function is turned off on
your Bluetooth device.
Name Description
\fontacts ListThe list of \fontacts.
Select from the list to
dial the number.
Information
Displays contact infor
\b
mation.
Download Downloads contacts
from your mobile phone.
Search by
Name Searches \fontacts
for the name that you
enter.
Search by
Number Searches \fontacts for
the number that you
enter.
Add to
Favorites Adds a phone number
to Favorites.

Bluetooth Phone I 3\d\b11
• Some devices require a device authentication
for downloading your contacts. If download
fails,check your phone screen and confirm the
download if necessary.
• Some devices do not support contacts
download feature. \fheck if your Bluetooth
device supports contacts download. For
Bluetooth supporting devices details and
compatibility, visit https://www.hyundaiusa.
com/bluetooth
Favorites
Press the PHONE key,
and then Favorites.
Name Description
Favorites
Lists the phone numbers
saved as Favorites.
Select from the list to
dial the number.
Add NewAdds a new number to
Favorites.
Delete ItemsDeletes numbers that you
select from Favorites.
Delete AllDeletes all of the num
\b
bers from Favorites.
03

MEMO

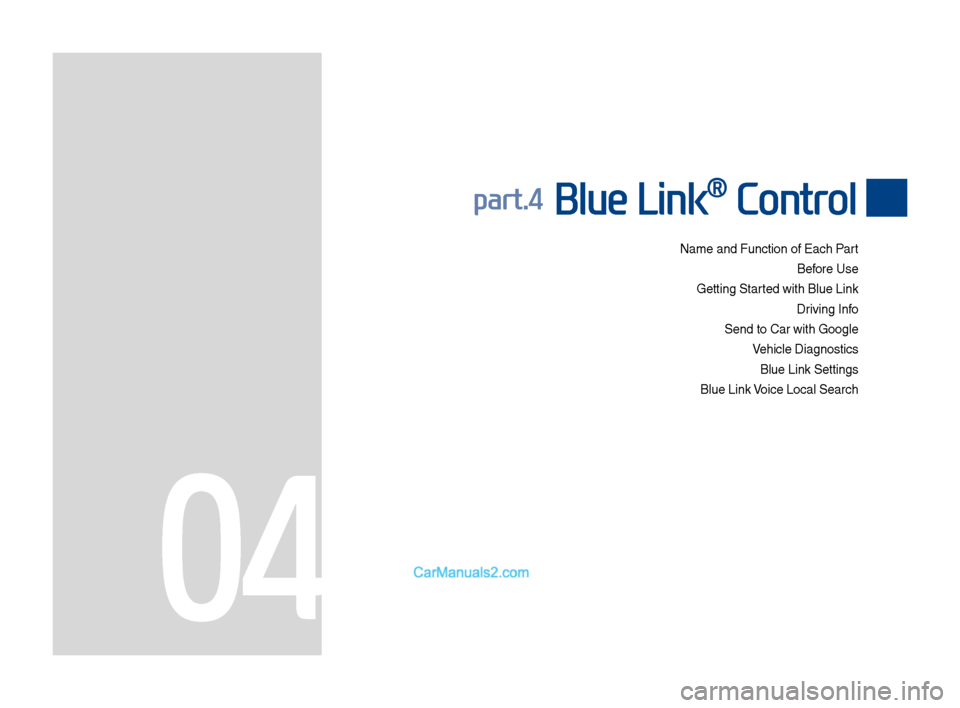

Name and Function \Bof Each PartBefore \fse
Getting \btarted with Blue Link Driving Info
\bend to Car with Goo\Bgle Vehicle DiagnosticsBlue Link \bettings
Blue Link Voice Local \bearch
part.4 Blue Link
®
Control
04

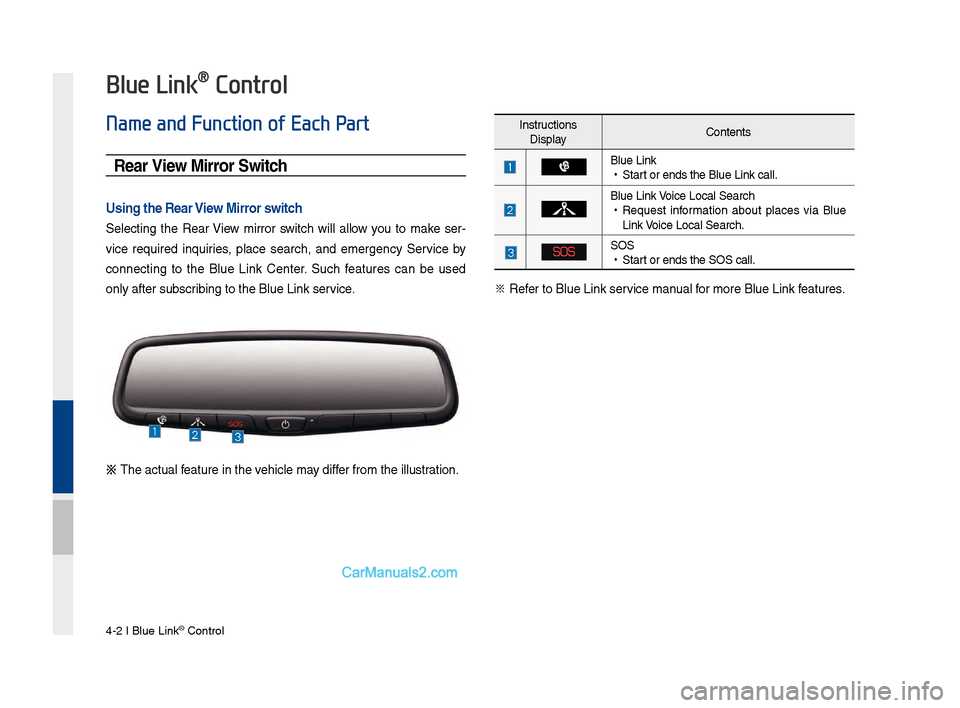

4-2 I Blue Link® Control
Blue Link® Control
Rear View Mirror Switch
Using the Rear View Mirror switch
\belecting the Rear View mirror switch will allow you to make ser-
vice required inquiries, place search, and emergency \bervice by
connecting to the Blue Link Center. \buch features can be used
only after subscribing to the Blue L\Bink service.
※ The actual feature in the vehicle may differ from the illust\Bration.
Instructions
Display Contents
Blue Link •
\btart or ends the Blue \BLink call.
Blue Link Voice Local \bearch
•Request information about places via Blue
Link Voice Local \bearch.
SOS\bO\b •\btart or ends the \bO\b c\Ball.
Name and Function of Each Part
※ Refer to Blue Link ser\Bvice manual for more Blue Link f\Beatures.
